Bernardo | SKU: 12-2196

Bernardo Dust Extractor AT 1000 HM

Name: Bernardo Dust Extractor AT 1000 HM
Brand: Bernardo
SKU: 12-2196
Price: 1668.06 EUR
Availability: InStock

€1.668,06 (22% VAT incl.)

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

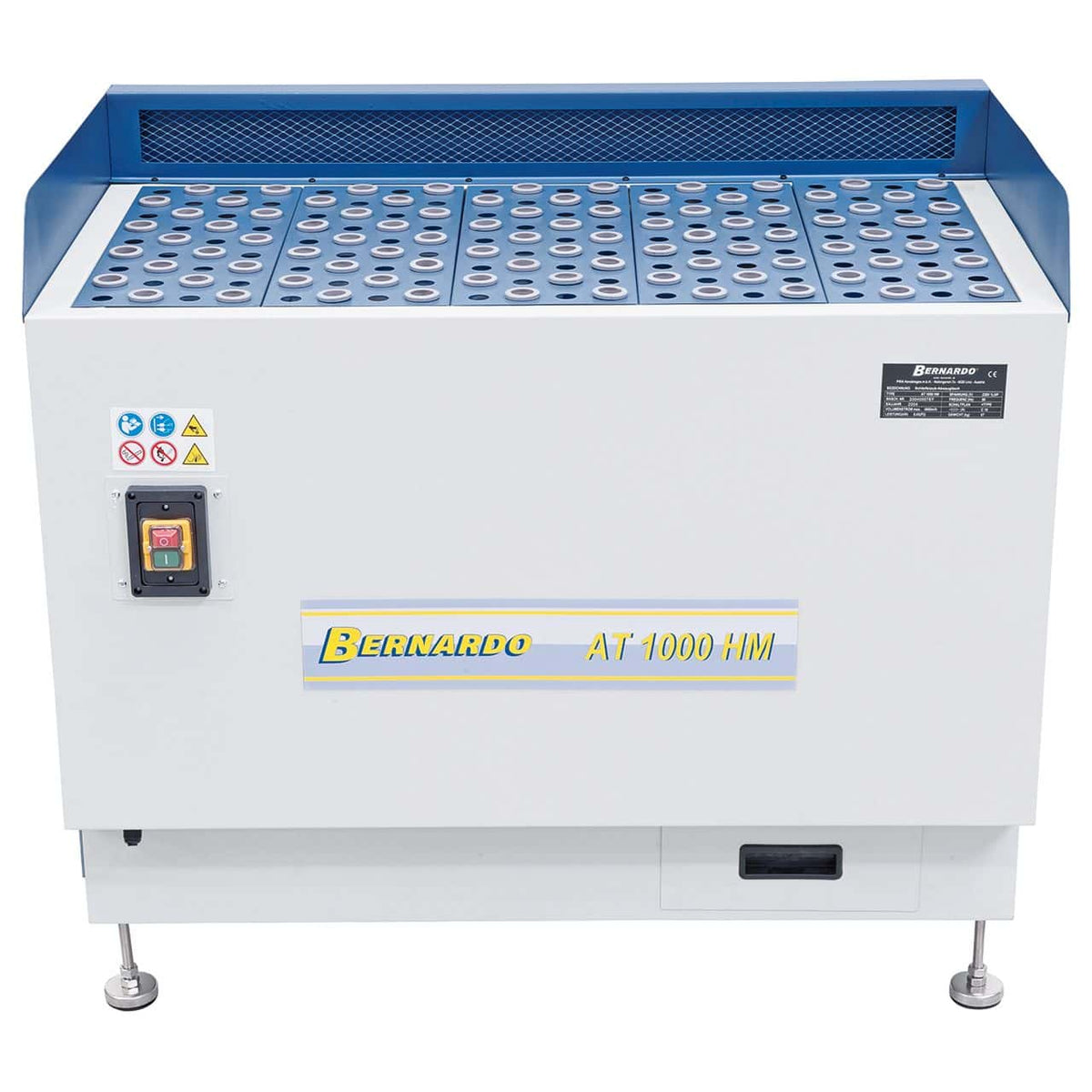

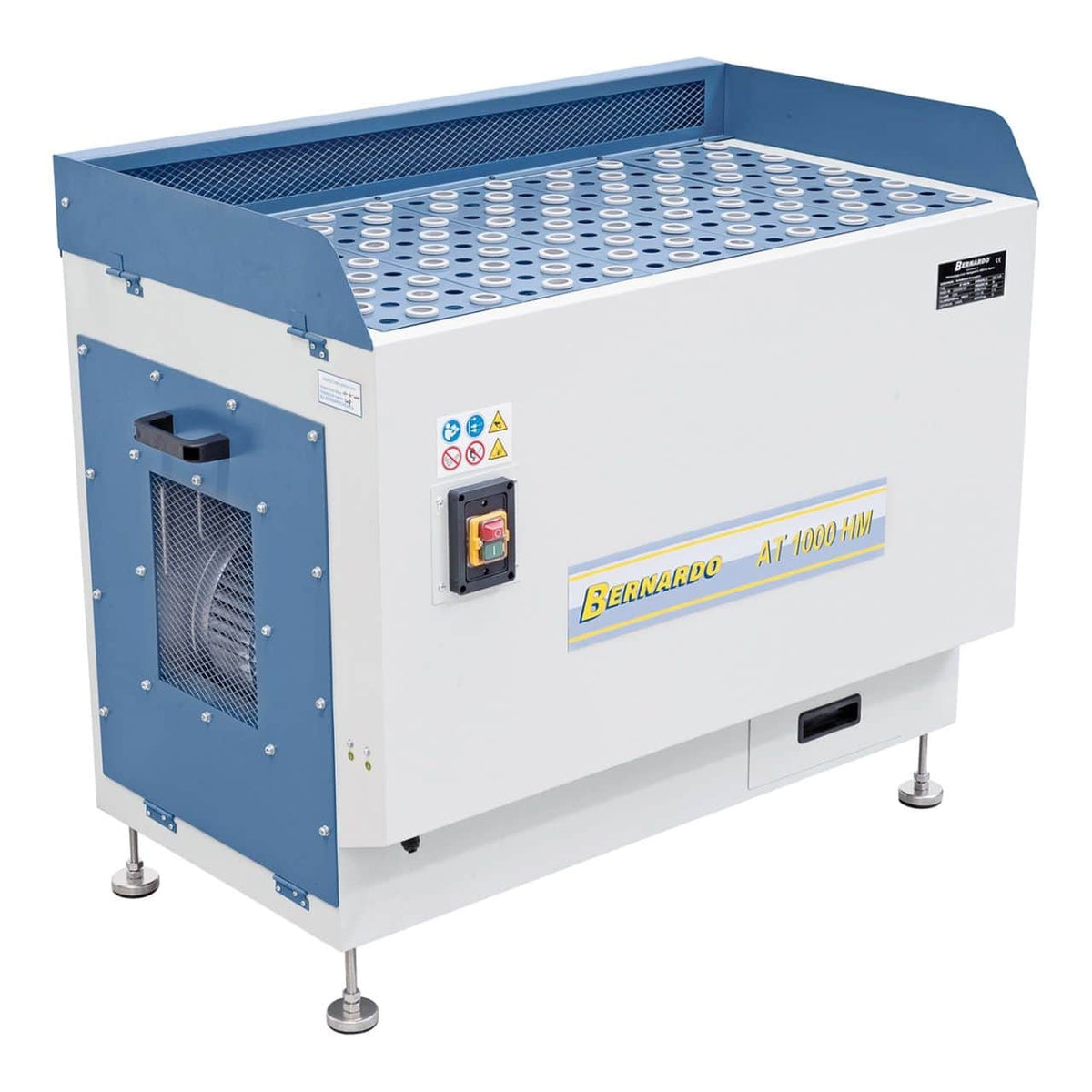

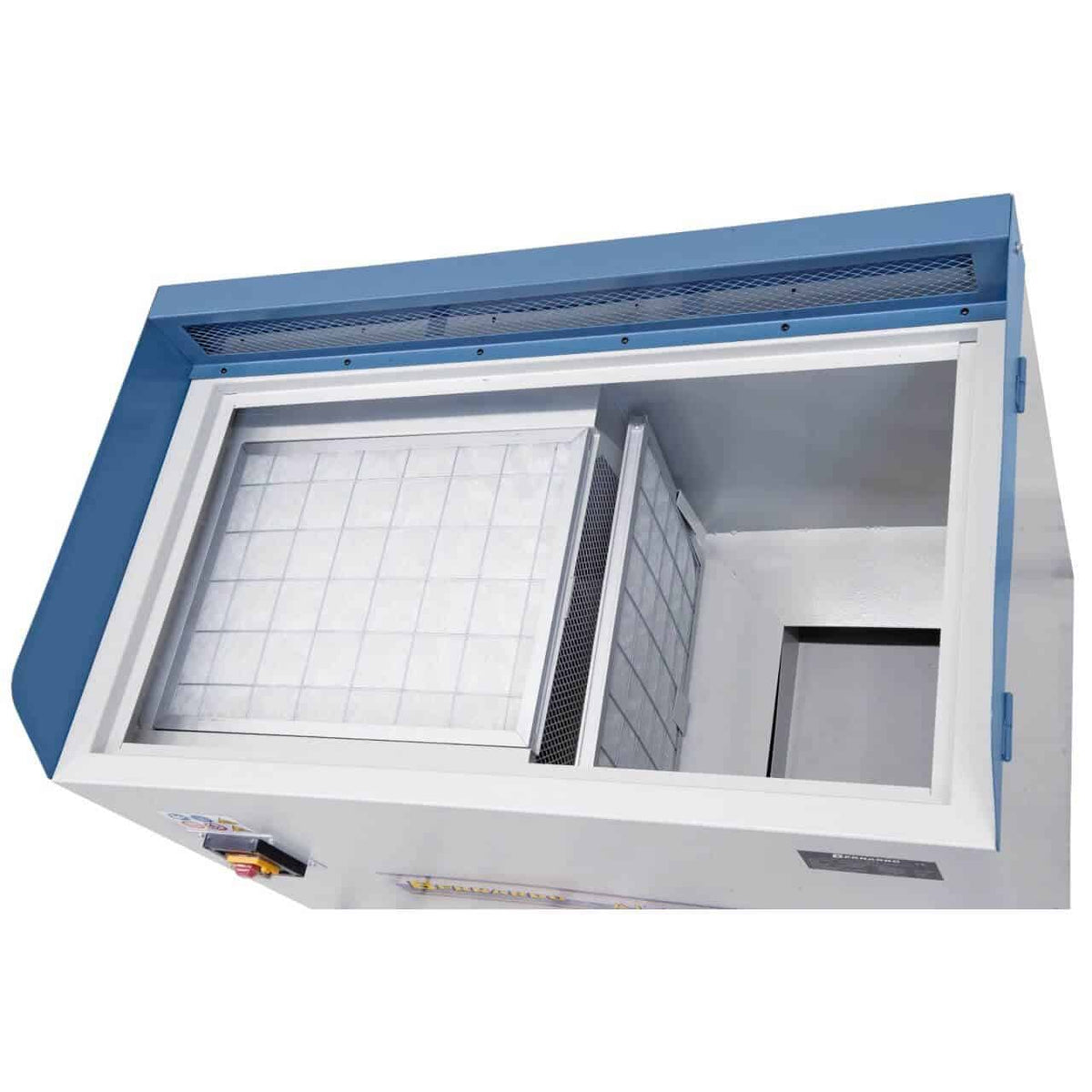

Bernardo AT 1000 HM Extraction Bench – Powerful and Compact

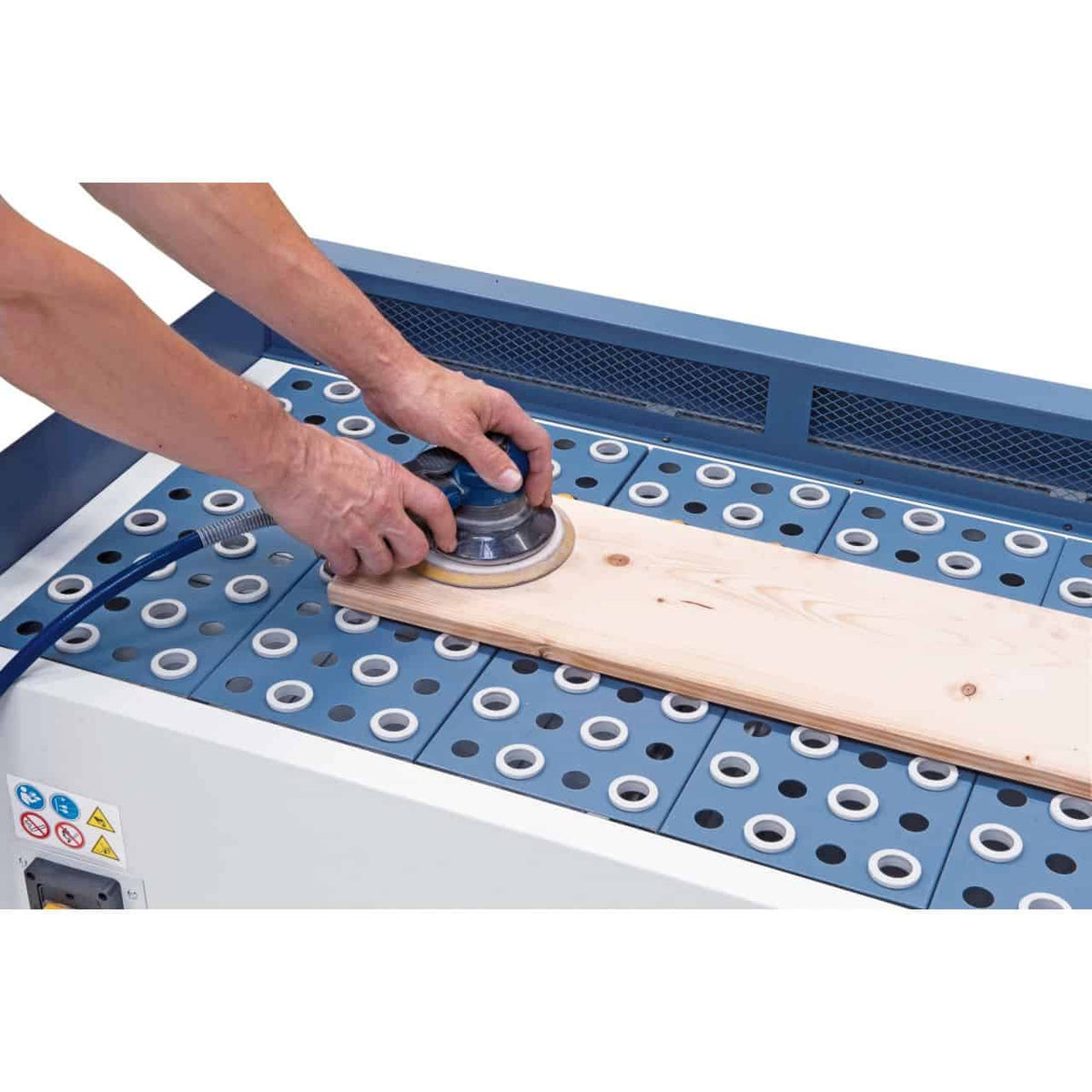

The Bernardo AT 1000 HM is an extraction bench designed for a clean and efficient work environment during sanding and woodworking and metalworking operations. Thanks to its 1.0 kW (1.5 HP) motor and a maximum air flow rate of 2500 m³/h, it ensures powerful and continuous extraction. The work surface measures 1000 x 550 mm, with scratch-resistant rubber supports and a load capacity of up to 200 kg. The bench is equipped with 2 dedicated filters for wood and metal, an integrated ON-OFF switch, and 6 workpiece stops for safe and precise work. Compact and robust, with a weight of 66 kg, the Bernardo AT 1000 HM is suitable for joineries, workshops, and laboratories that require an integrated and reliable extraction system.

Main Specifications

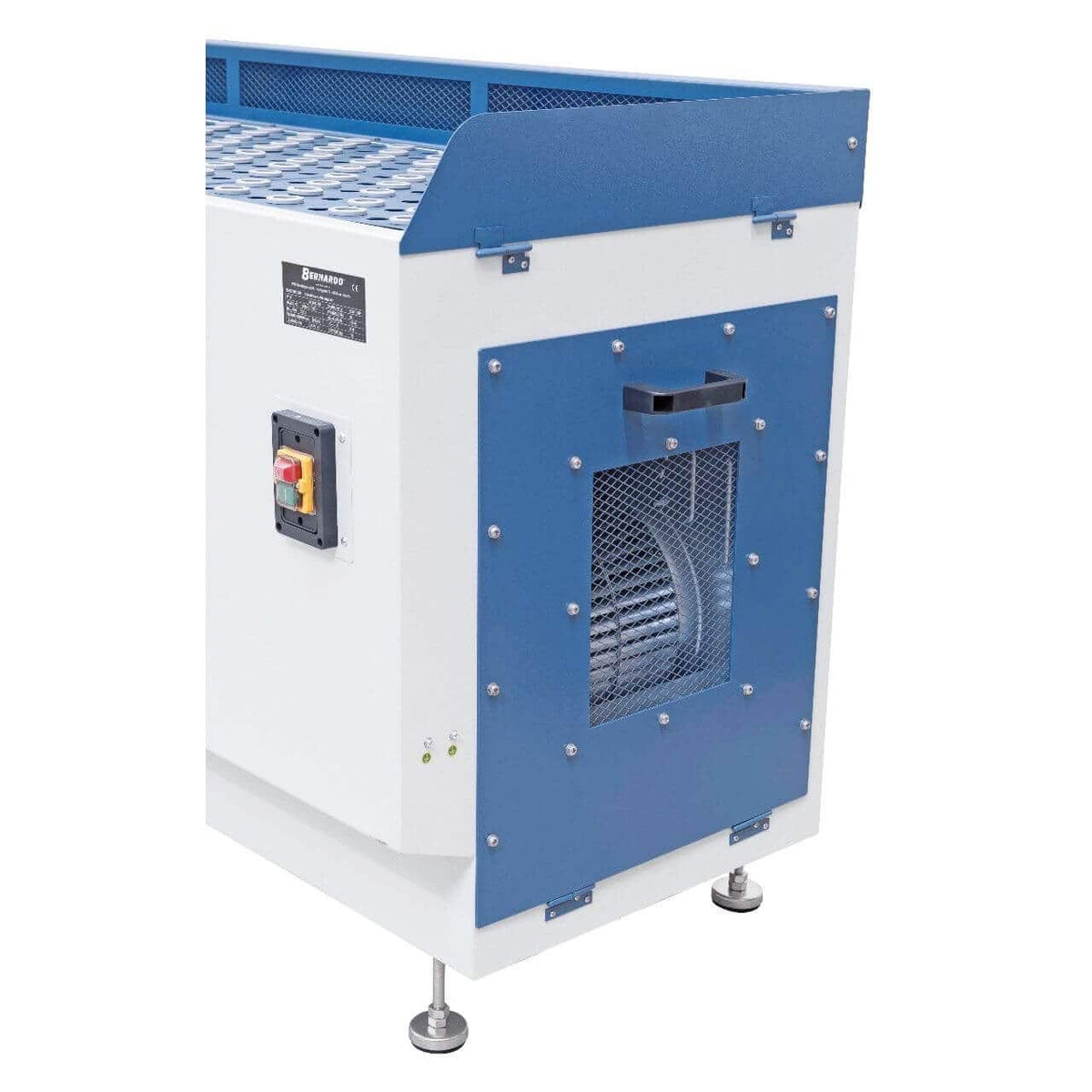

1.0 kW (1.5 HP) motor – powerful and efficient
Maximum air flow 2500 m³/h
Work surface 1000 x 550 mm
Ergonomic table height 825 mm
Maximum load capacity up to 200 kg
2 filters included (wood and metal)
Scratch-resistant rubber table supports

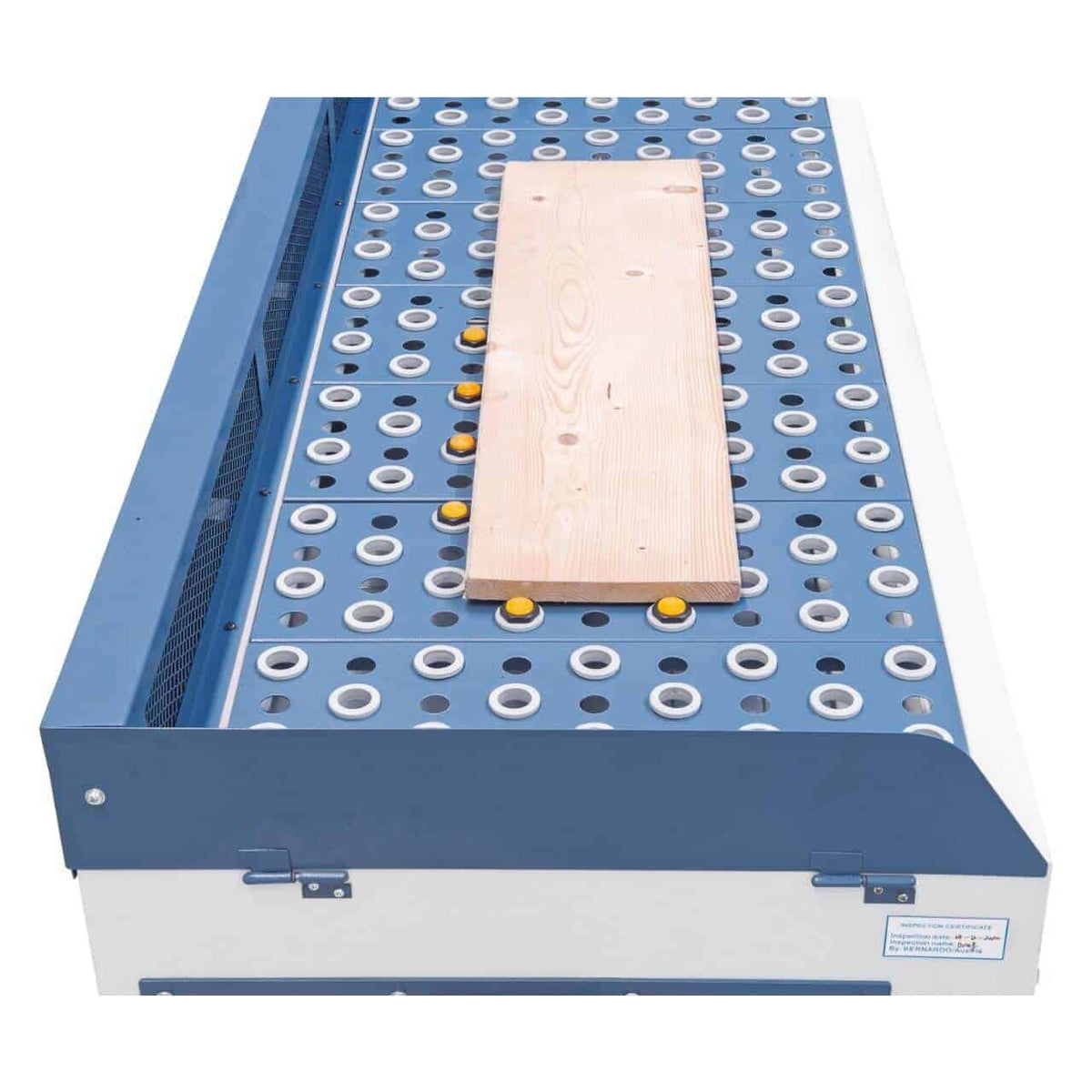

6 workpiece stops for secure fastening
Total weight 66 kg

Package contents:

Bernardo AT 1000 HM extraction bench
Integrated ON-OFF switch
2 filters (wood and metal)
Rubber table supports

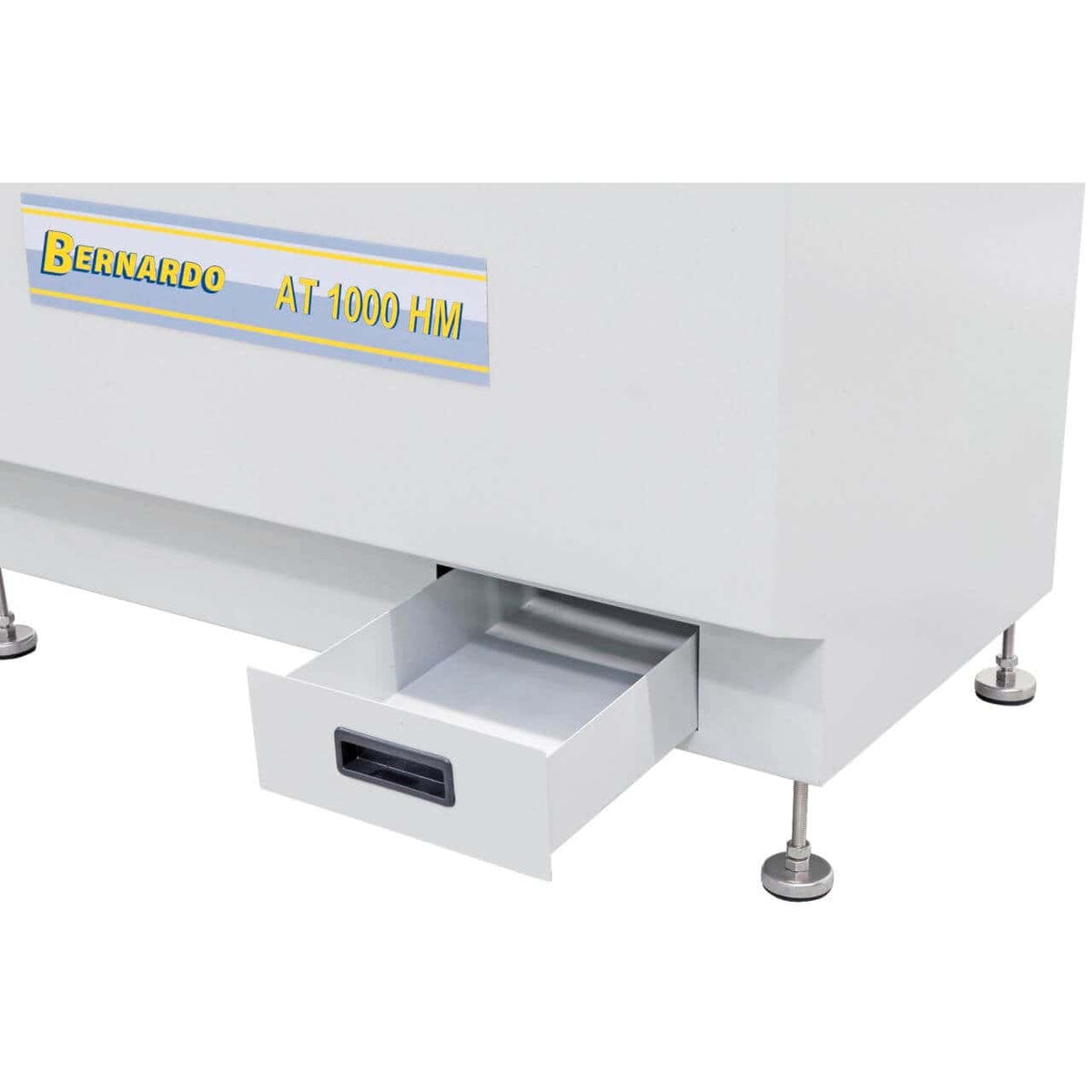

Loading chips
6 workpiece stops

Logistics

Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support in Italian available.

Technical specifications

Technical Table:

Specification	Value
Brand	Bernardo
Model	AT 1000 HM
Table dimensions	1000 x 550 mm
Table height	825 mm
Max. load capacity	200 kg
Max. flow rate	2500 m³/h
Motor power	1.0 kW (1.5 HP)
Voltage	230 V / 50 Hz
Machine dimensions (L x W x H)	1070 x 630 x 930 mm
Weight	66 kg

Warranty

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

FAQ / Frequently asked questions

Frequently Asked Questions

How does an extraction bench differ from a traditional dust extractor?

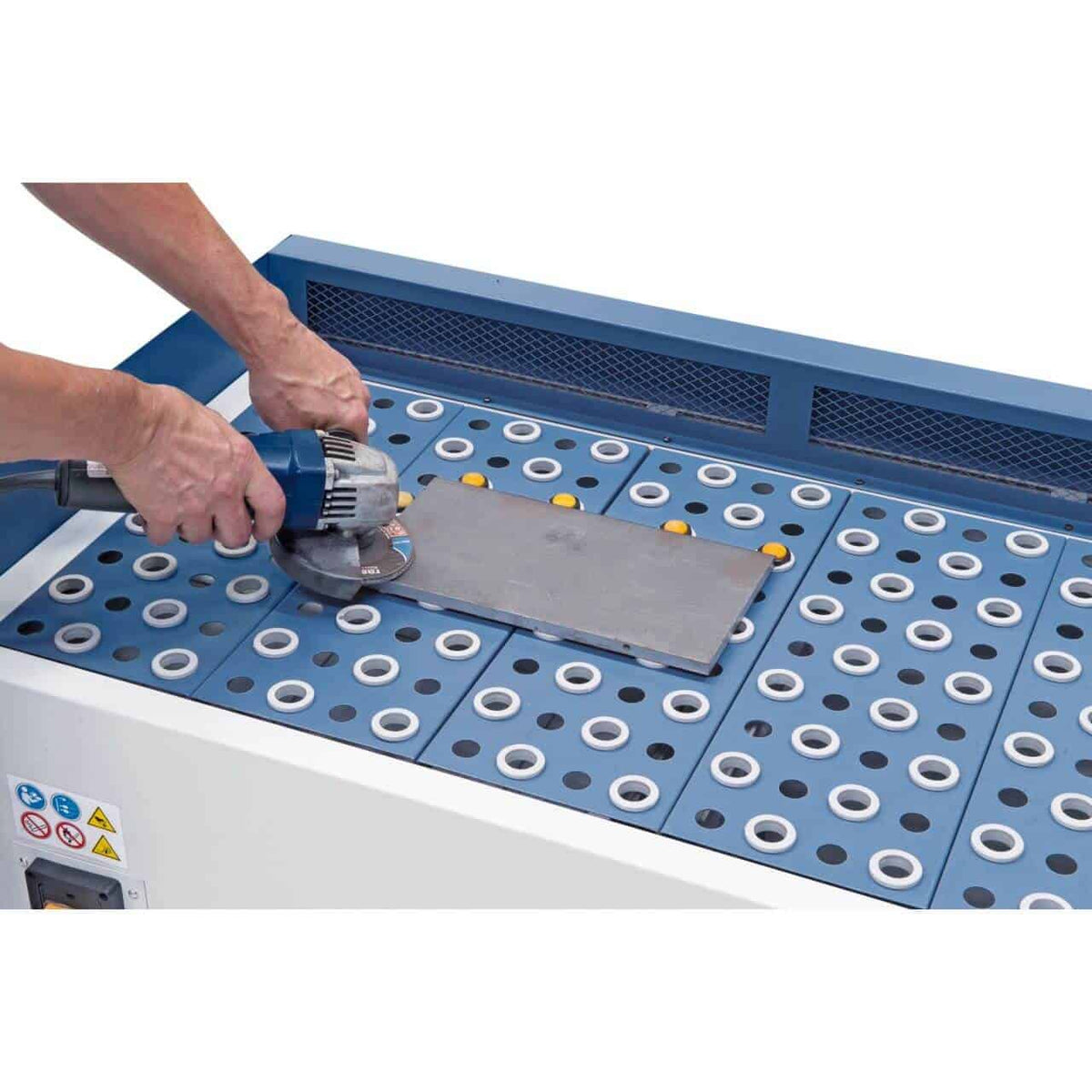

A traditional dust extractor collects dust through a hose pointed at the source. The Bernardo AT extraction bench integrates the work surface with extraction: the perforated top draws dust downwards directly from the workpiece — without hoses obstructing the work and with more efficient capture across the entire surface. Suitable for grinding, sanding, cutting, and any operation that generates fine dust on a fixed work surface.

What is the difference between AT 1000 HM, AT 1500 HM, and AT 2000 HM?

The three models differ in work surface size: AT 1000 HM (1000 mm), AT 1500 HM (1500 mm), AT 2000 HM (2000 mm). They share the same extraction technology and HM (Heavy Metal – for metallic dust) structure. The choice depends on the size of the workpieces and the available space in the workshop.

Is the HM filter specific for metallic dust?

Yes. The HM suffix indicates that the bench is equipped with a specific filter for metallic dust (steel, aluminum, cast iron). Metallic dust has different characteristics than wood dust: it is denser, conductive, and potentially more dangerous. Do not use wood filters for metallic dust — the risk of fire increases significantly.

Is the perforated top made of stainless steel?

Yes. The perforated top of the AT HM benches is made of corrosion-resistant stainless steel — essential for use with coolants, cutting oils, and wet metallic dust. The supporting structure is made of powder-coated steel.

Are filters and spare parts available?

Original Bernardo filters, bags, and spare parts for the AT HM series are available with 3–5 business days shipping. Customer support in Italian available.
