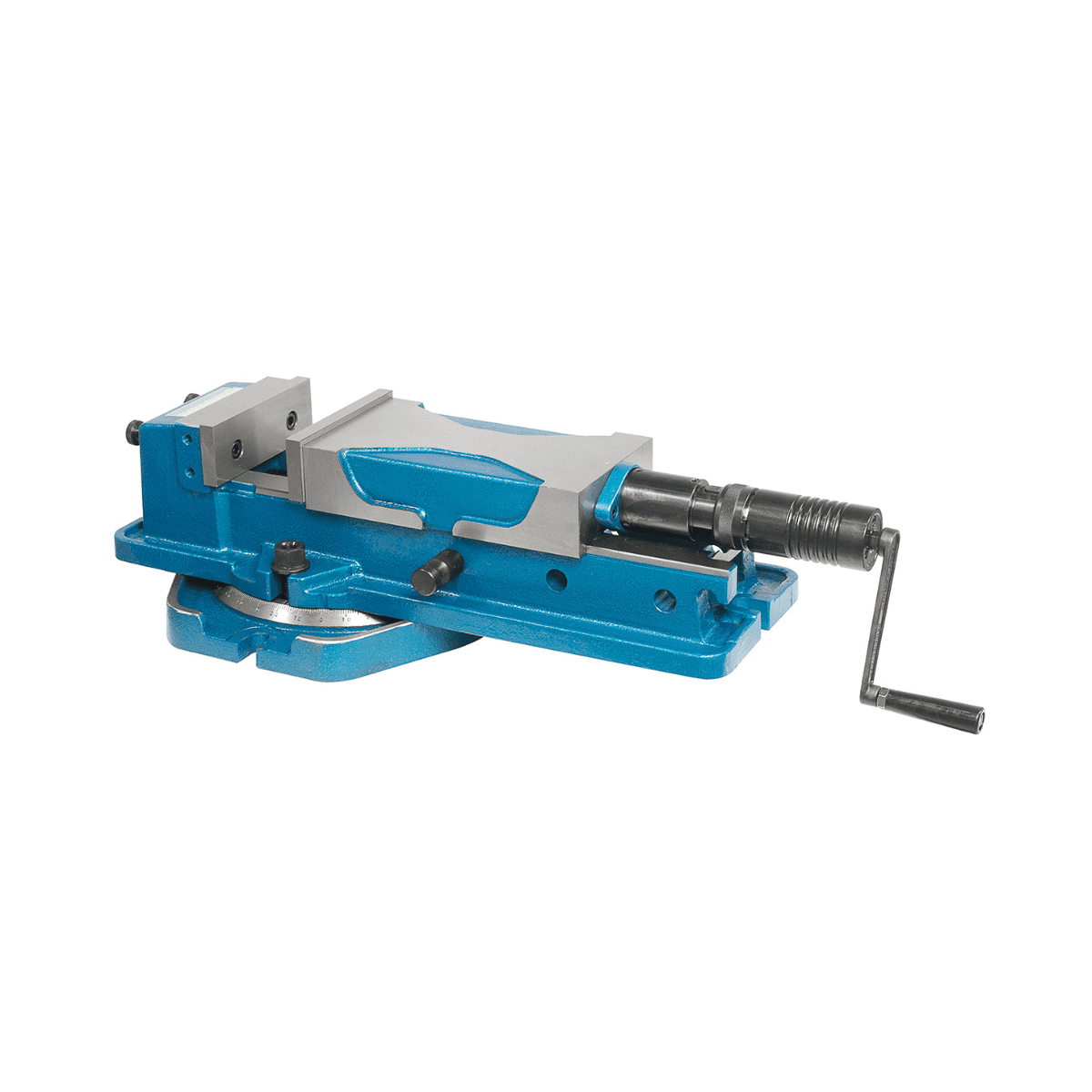

Bernardo Machine Hydraulic Vice PHV 160 is a professional-grade vice, weighing 72 kg. Krollit, official Bernardo distributor since 2007.
- A: 625 mm
- B: 240 mm
- C: 160 mm
- d: 205 mm
- E: 140 mm
- F: 58 mm
Who uses the Machine Hydraulic Vice PHV 160 and for what
The Machine Hydraulic Vice PHV 160 is a professional-grade vice distributed by Krollit.
Its place in the Bernardo range
The Bernardo Machine Hydraulic Vice PHV 160 fits into the range of Bernardo vices, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for assistance with selection.
Krollit logistics and support
Shipping within 3-5 business days from Krollit warehouse for spare parts and accessories. Customer support in Italian available for technical documentation and compatibility verification with the reference machine. Krollit has been an official distributor since 2007.
Who is the Machine Hydraulic Vice PHV 160 for?
The PHV 160 machine hydraulic vice is recommended for the following professional profiles:
-
Mechanical workshops and millers: secure clamping of workpieces during milling and drilling on machine tools.
-
Production departments with series production: fast and repeatable clamping for production cycles.
Not suitable for: turning cylindrical workpieces (lathes require self-centering chucks, not milling vices).

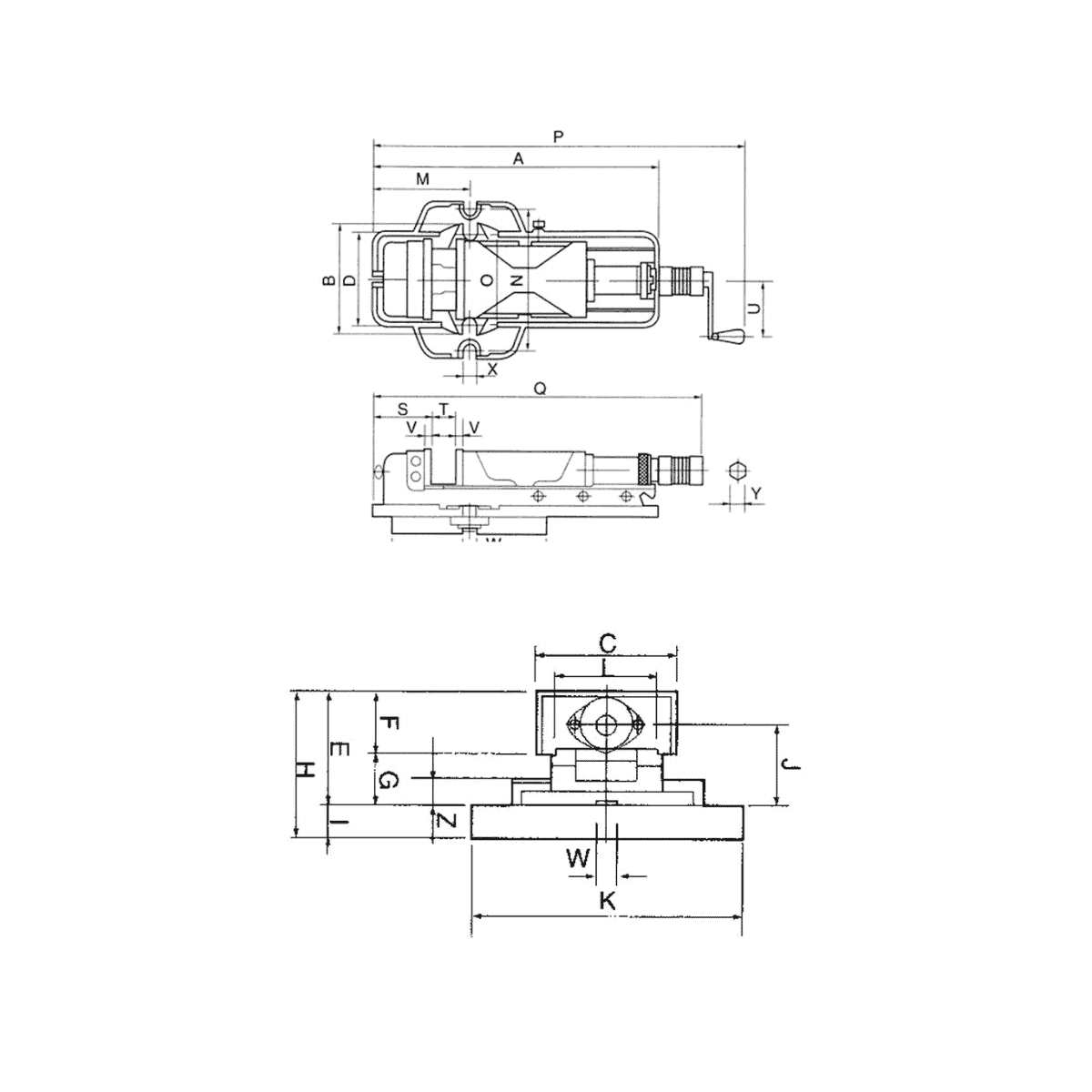

Technical specifications
| A |
625 mm |
| B |
240 mm |
| C |
160 mm |
| d |
205 mm |
| E |
140 mm |
| F |
58 mm |
| G |
82 mm |
| h |
179 mm |
| J |
105 mm |
| K |
340 mm |
| L |
125 mm |
| M |
208 mm |
| P |
755 / 1055 mm |
| Q |
640 / 940 mm |
| R |
320 mm |
| S |
125 mm |
| T |
300 mm |
| U |
125 mm |
| V |
15 mm |
| W |
16 mm |
| X |
18 mm |
| Y |
14 mm |
| Z |
27 mm |
| Clamping area I |
0 - 110 mm |
| Clamping area II |
100 - 210 mm |
| Clamping area III |
200 - 310 mm |
| Max. clamping force |
4000 kg |
| Weight approx. |
72 kg |
Frequently asked questions
What does the PHV's rotary table do?
The PHV 160 mm has a 360° swivel base with a graduated scale, allowing machining at any horizontal angle without repositioning the workpiece.
The PHV is a high-pressure precision vice, suitable for series production on universal milling machines. Precise rotation allows for repeatable angular milling.
What does the 160 mm dimension indicate?
It indicates the jaw width (160 mm), the characteristic dimension of the vice. The clamping width (maximum opening) varies depending on the model: typically 50-105 mm for PS/KV, 105-240 mm for VH/CHV.
To choose the size: as a rule of thumb, the jaw width should be at least 70% of the size of the workpiece. For workpieces >100 mm, choose 160 mm vices or larger.
Which machine does it mount on?
It mounts on universal milling machines, bench milling machines, and machining centers with standard DIN T-slot tables.
Check the vice's weight against the table's capacity. Bernardo vices {series or "PS/KV"} are sized for professional milling machines; for small bench milling machines, lighter models are needed (PTS 50, PGS 50).
Are the jaws replaceable?
Yes, the jaws are hardened, ground, and fully replaceable. This is an important advantage for long-term maintenance.
The jaws are the wear point of the vice: after thousands of clamps, they may show indentations or deformations. Replacement is autonomous with dedicated fixing screws. Krollit supplies original replacement jaws.
How is precision maintained?
Regular cleaning of guides and jaws, application of a light layer of oil on sliding parts every 50 hours of use, periodic parallelism check with a dial indicator.
Chips accumulated in the guides compromise parallelism precision. For intensive use with coolant, dry the vice at the end of the shift to prevent rust on ground parts. Acceptable parallelism tolerance: 0.02-0.05 mm over the length.
