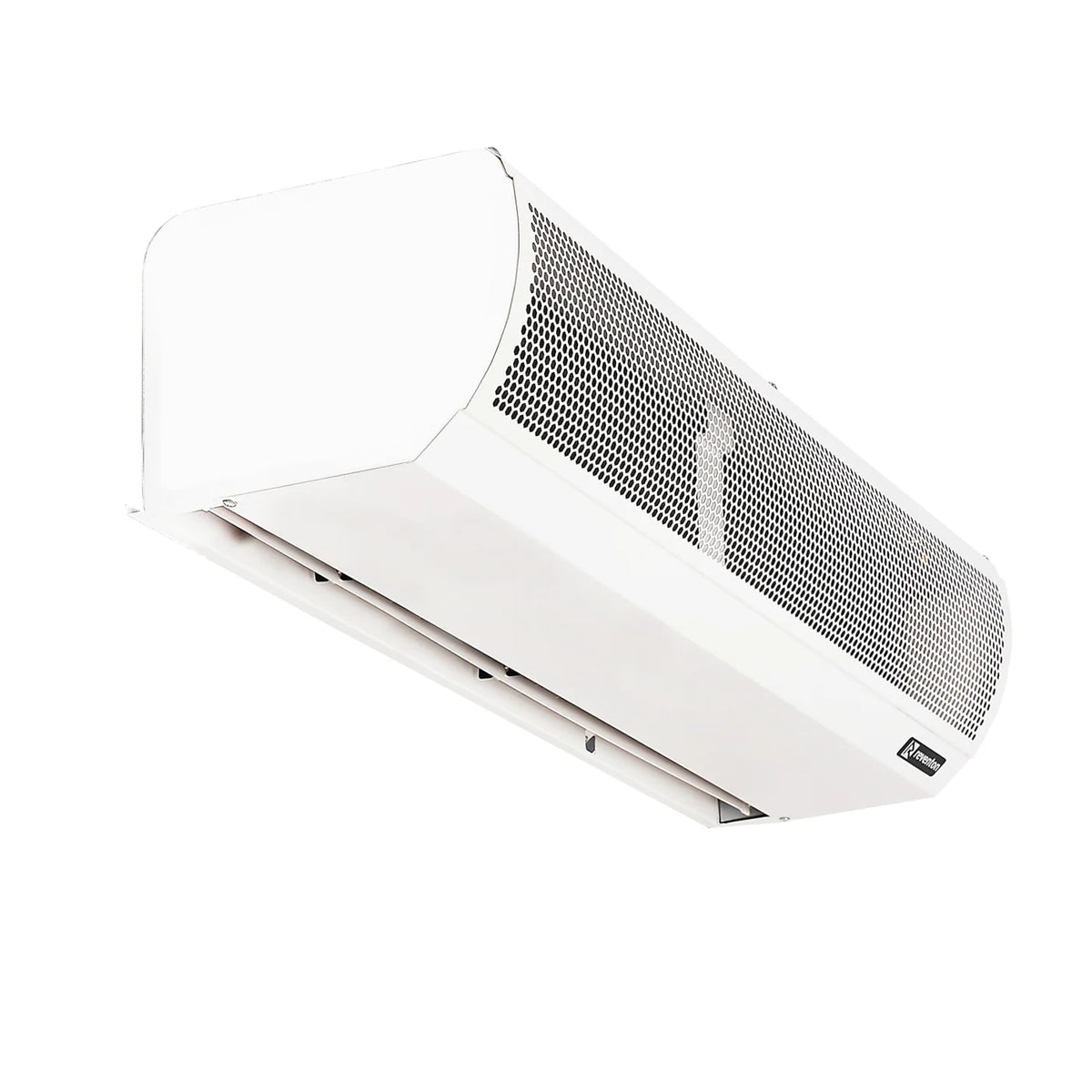

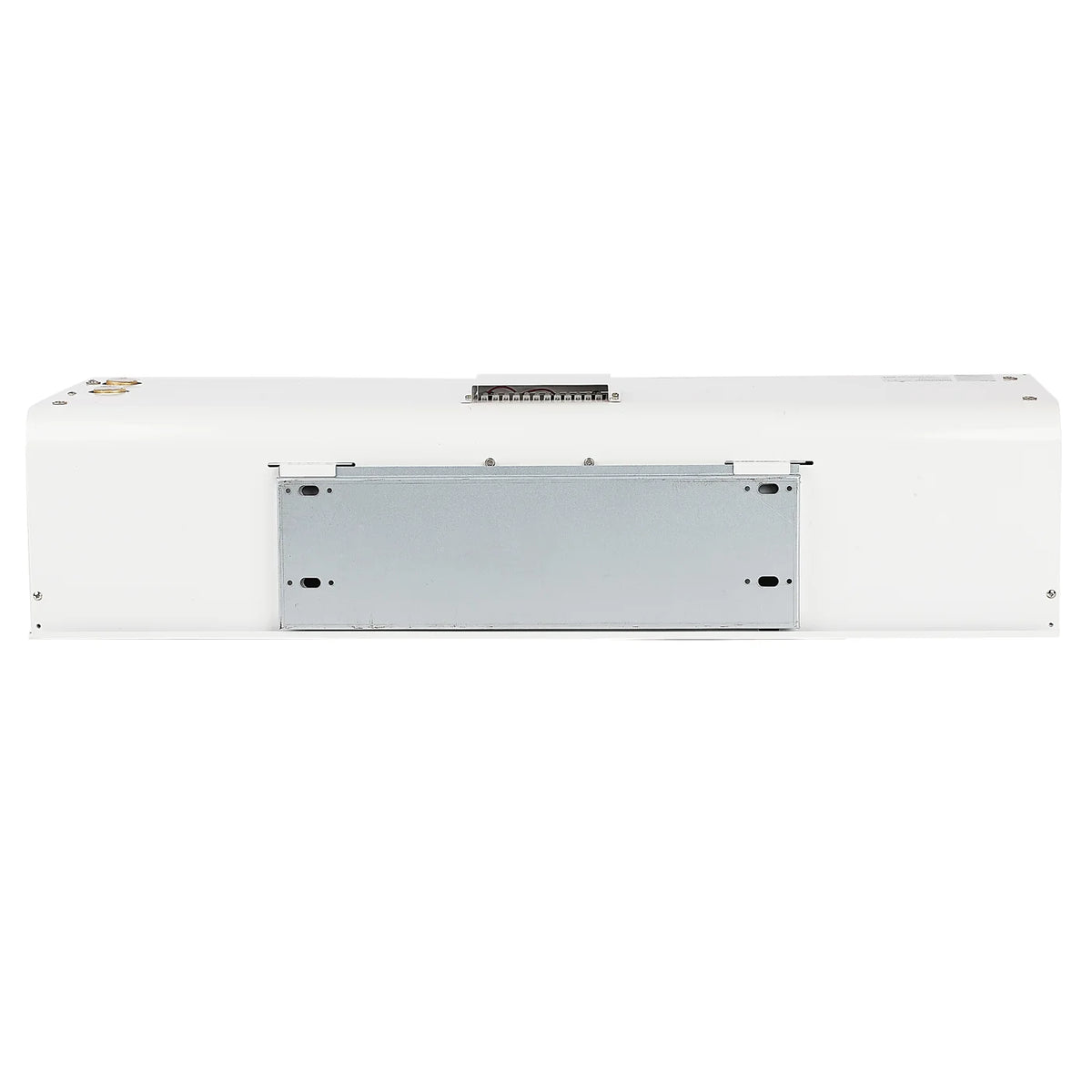

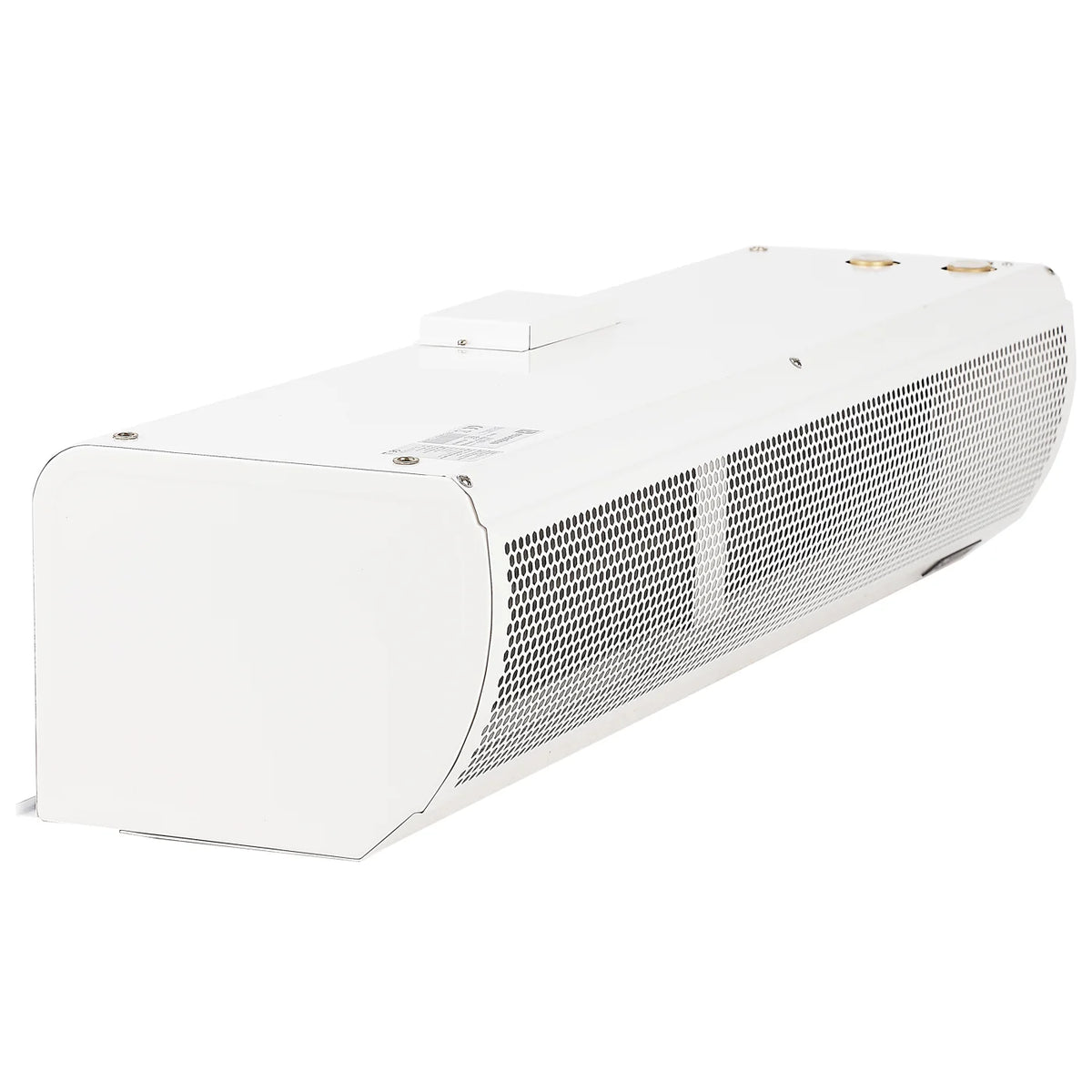

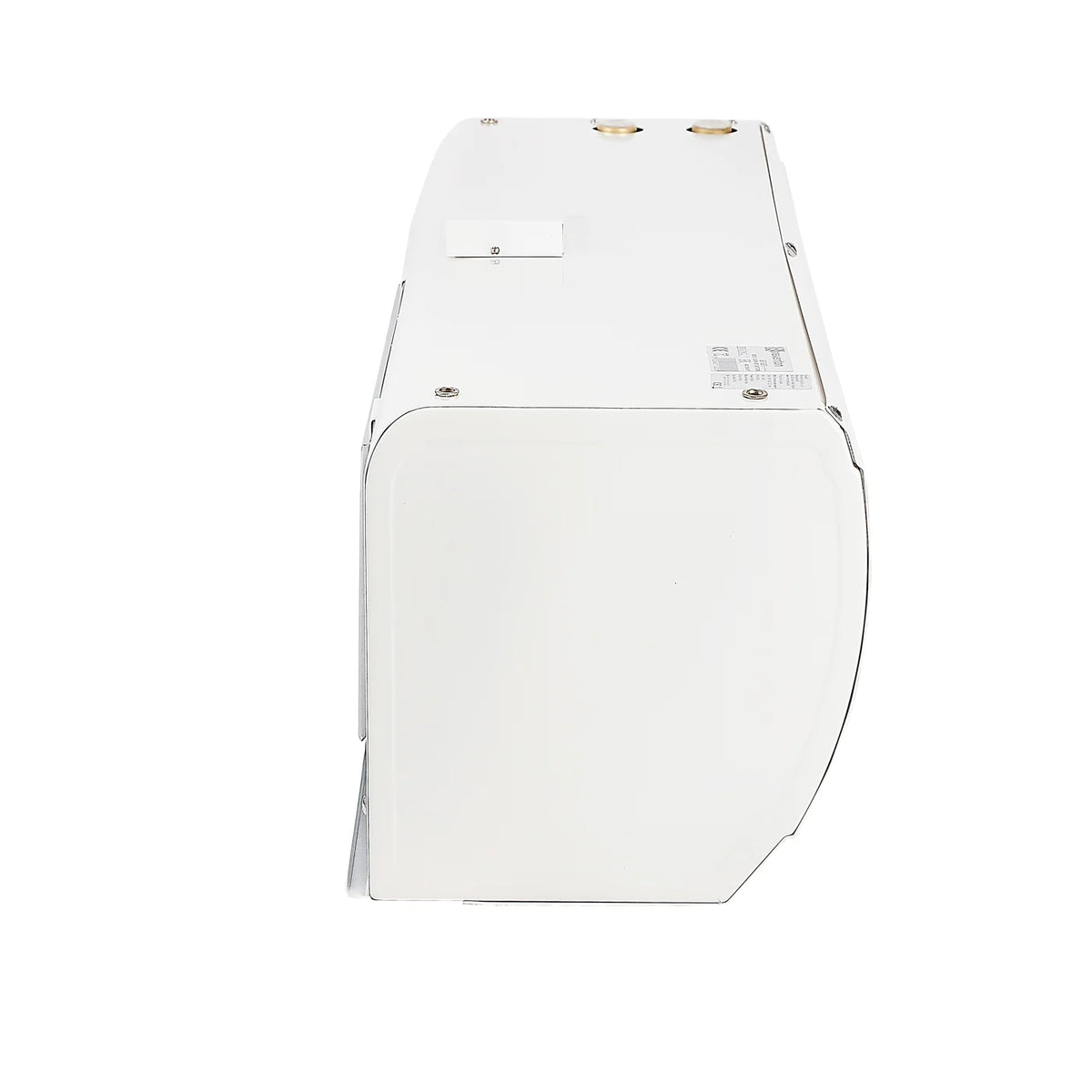

Reventon Water Heated Air Curtain AERIS WN-1P 230V is a professional air curtain, weighing 18 kg. Krollit, official Reventon distributor since 2007.
- Product code: AC100WN-1P
- Rated heating capacity [kW]*: 17.0 / 15.8 / 14.2 (3/2/1 stage)
- Maximum air flow [m³/h]: 1500 / 1350 / 1150 (3/2/1 stage)
- Maximum air velocity [m/s]: 9 / 8 / 7 (3/2/1 stage)
- Curtain range [m]: 3
- Water capacity [dm³/h]: 749 / 698 / 625 (3/2/1 stage)
Who uses the AERIS WN-1P 230V Water Heated Air Curtain and for what purpose
The AERIS WN-1P 230V Water Heated Air Curtain is a professional air curtain distributed by Krollit.
Its place in the Reventon range
The Reventon Water Heated Air Curtain AERIS WN-1P 230V is part of the Reventon air curtain range, distributed in Italy by Krollit since 2007. The Reventon range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Reventon catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product data sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the AERIS WN-1P 230V Water Heated Air Curtain for
The AERIS WN-1P 230V water heated air curtain is recommended for the following professional profiles:
-
Commercial and industrial entrances with frequent opening: thermal separation between heated environments and the outside, reduction of heat loss.
-
Warehouses and sheds with loading docks: maintaining internal temperature during loading and unloading.
Not suitable for: domestic environments or small offices (industrial machine: for small environments, light air curtains are sufficient).
Motor and power supply
| Maximum heating fluid pressure [MPa] |
1.6 |
| Voltage/Frequency [V/Hz] |
230/50 |
| Rated motor current [A] |
0.65 / 0.57 / 0.52 (3/2/1 stage) |
| Rated motor power [W] |
150 / 130 / 120 (3/2/1 stage) |
| Motor IP protection class |
E / IP20 |
Other specifications
| Product code |
AC100WN-1P |
| Maximum air flow [m³/h] |
1500 / 1350 / 1150 (3/2/1 stage) |
| Curtain range [m] |
3 |
| Maximum heating fluid temperature [°C] |
90 |
| Connection diameter [inches] |
3/4 |
| Noise level [dB]** |
57 / 55 / 52 (3/2/1 stage) |
| Rated heating capacity [kW]* |
17.0 / 15.8 / 14.2 (3/2/1 stage) |
| Water capacity [dm³/h] |
749 / 698 / 625 (3/2/1 stage) |
| Maximum air velocity [m/s] |
9 / 8 / 7 (3/2/1 stage) |
| Net weight [kg] |
18 |
Frequently asked questions
What is an air curtain used for?
It creates a vertical airflow that separates two environments with different temperatures, reducing thermal dispersion when doors are open.
Effectiveness depends on the height of the entrance, the speed of the airflow, and the thermal differential. For entrances higher than 3 m, professional models with high-speed flow are needed.
Heated or unheated: which to choose?
Heated (water or electric) for entrances facing a cold exterior; unheated for separation between rooms at similar temperatures.
Water-heated barriers connect to the existing heating system with low consumption. Electric ones are simpler but consume more. Cold barriers only serve as an insulation barrier.
What power supply does it require?
The models shown are 230 V single-phase for standard installation; large industrial models require 400 V three-phase.
Check the available power supply at the site before purchasing. Installation must be carried out by a qualified electrician according to CEI standards.
How is it installed?
Horizontal mounting above the entrance, at a height of 2.5-4 m with the nozzle facing downwards. The flow must cover the entire width of the door.
Correct installation requires wall or ceiling brackets and electrical connection. For water models, hydraulic connection to the heating circuit is also needed.
How much does it consume?
Consumption depends on thermal power: 5-10 kW models for small entrances, 15-30 kW for large industrial entrances.
To calculate annual consumption, consider the hours the door is open and the average thermal differential. Krollit provides technical support for correct sizing.
