Bernardo | SKU: 05-1633

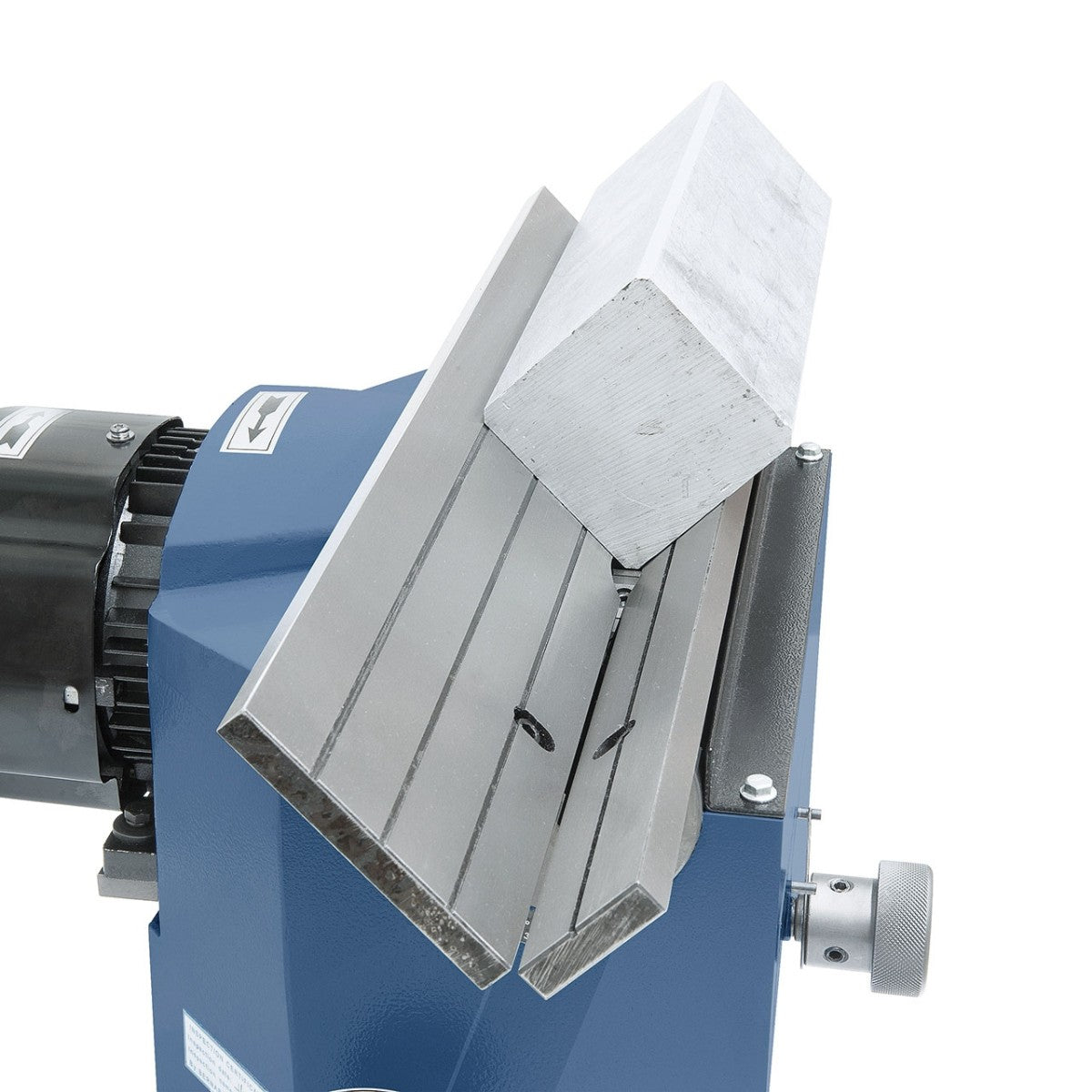

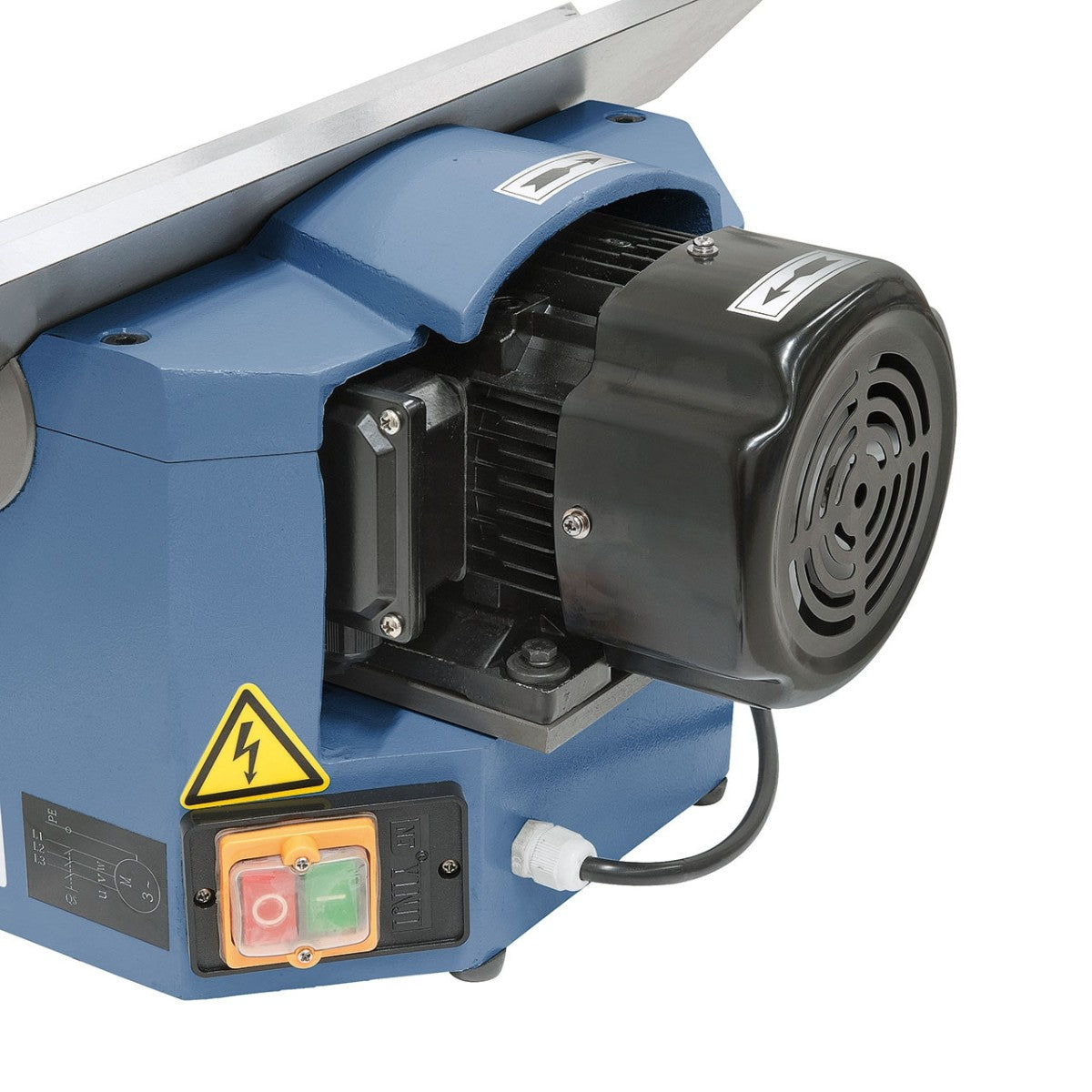

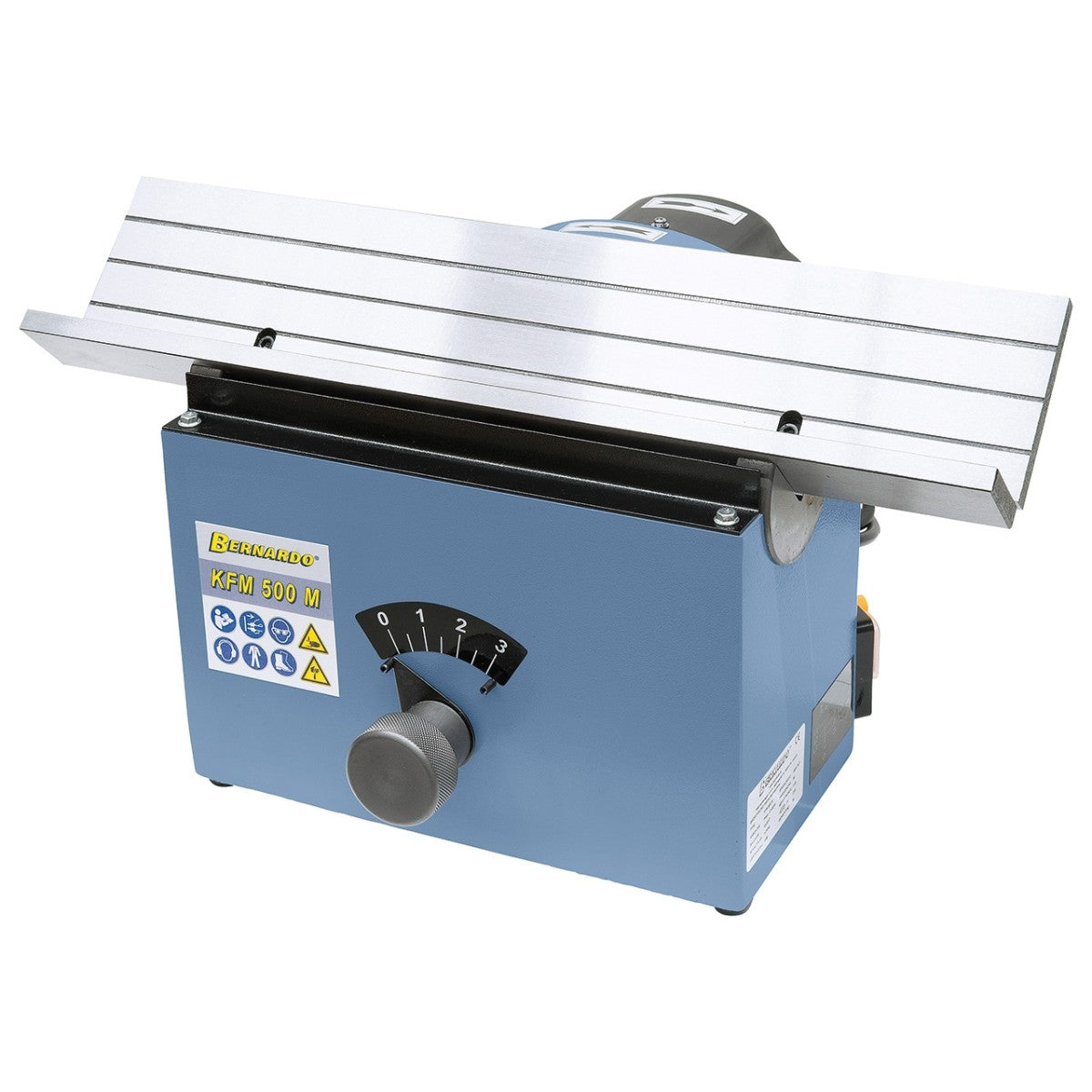

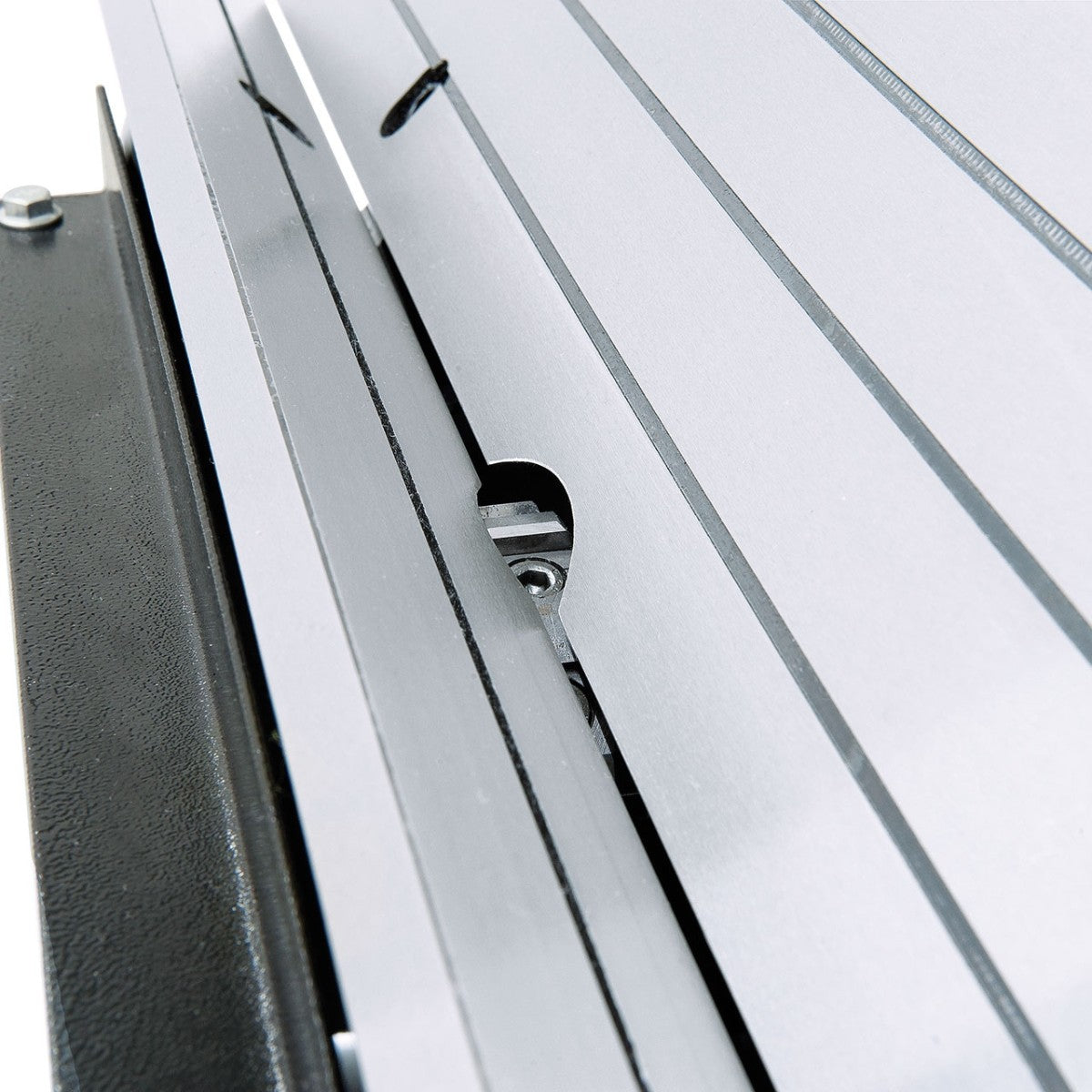

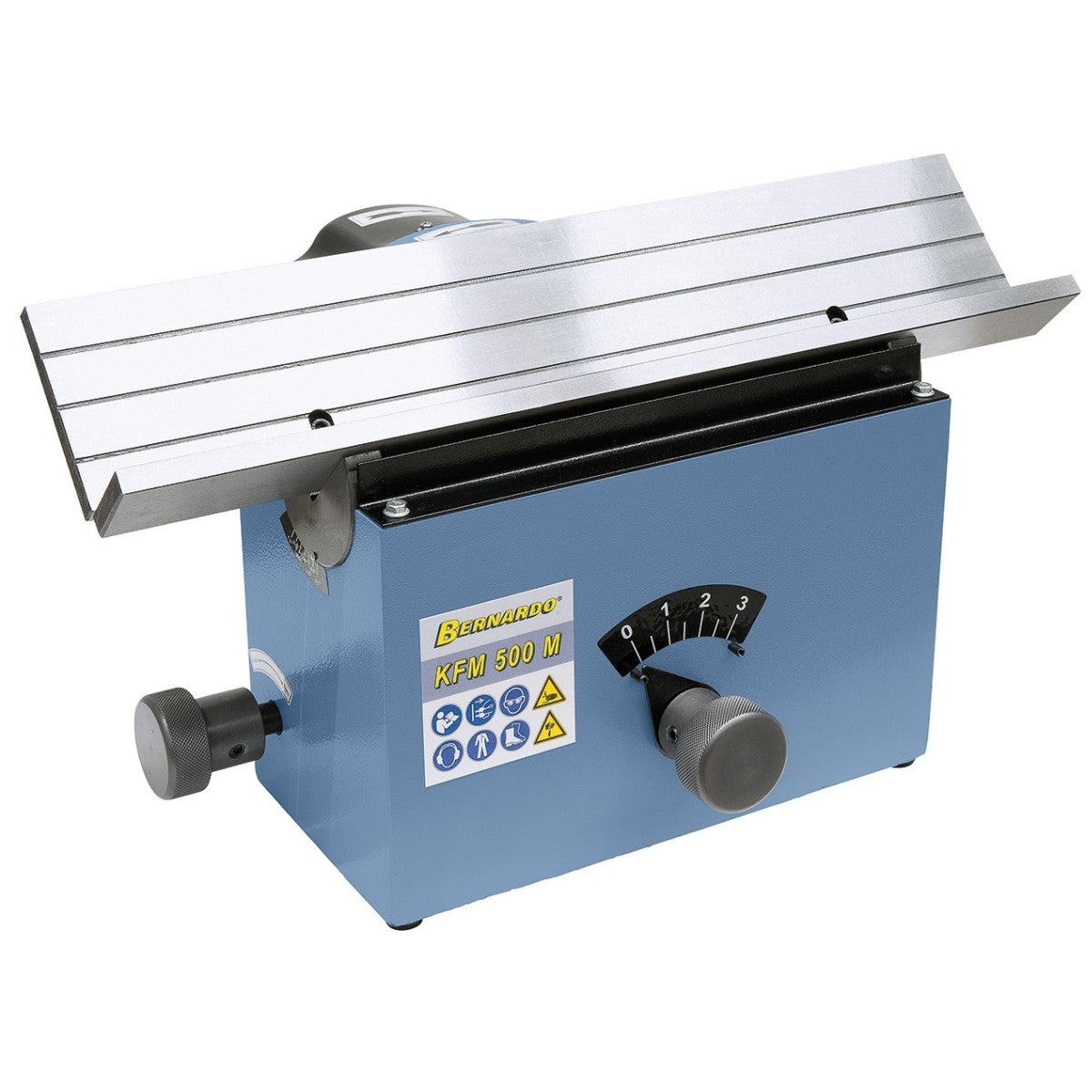

Bernardo Chamfering Machine KFM 500 M – 400V variable angle 15°–45°

Name: Bernardo Chamfering Machine KFM 500 M – 400V variable angle 15°–45°
Brand: Bernardo
SKU: 05-1633
Price: 1066.84 EUR
Availability: InStock

€1.066,84 (22% VAT incl.)

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

The Bernardo KFM 500 M electric chamfering machine chamfers at 15°–45° with a maximum chamfer width of 5 mm, 500 mm guide, speed 2800 rpm. Motor 0.55 kW kW Weight approx. 33 kg. Distributed in Italy by Krollit as an official Bernardo distributor since 2007.

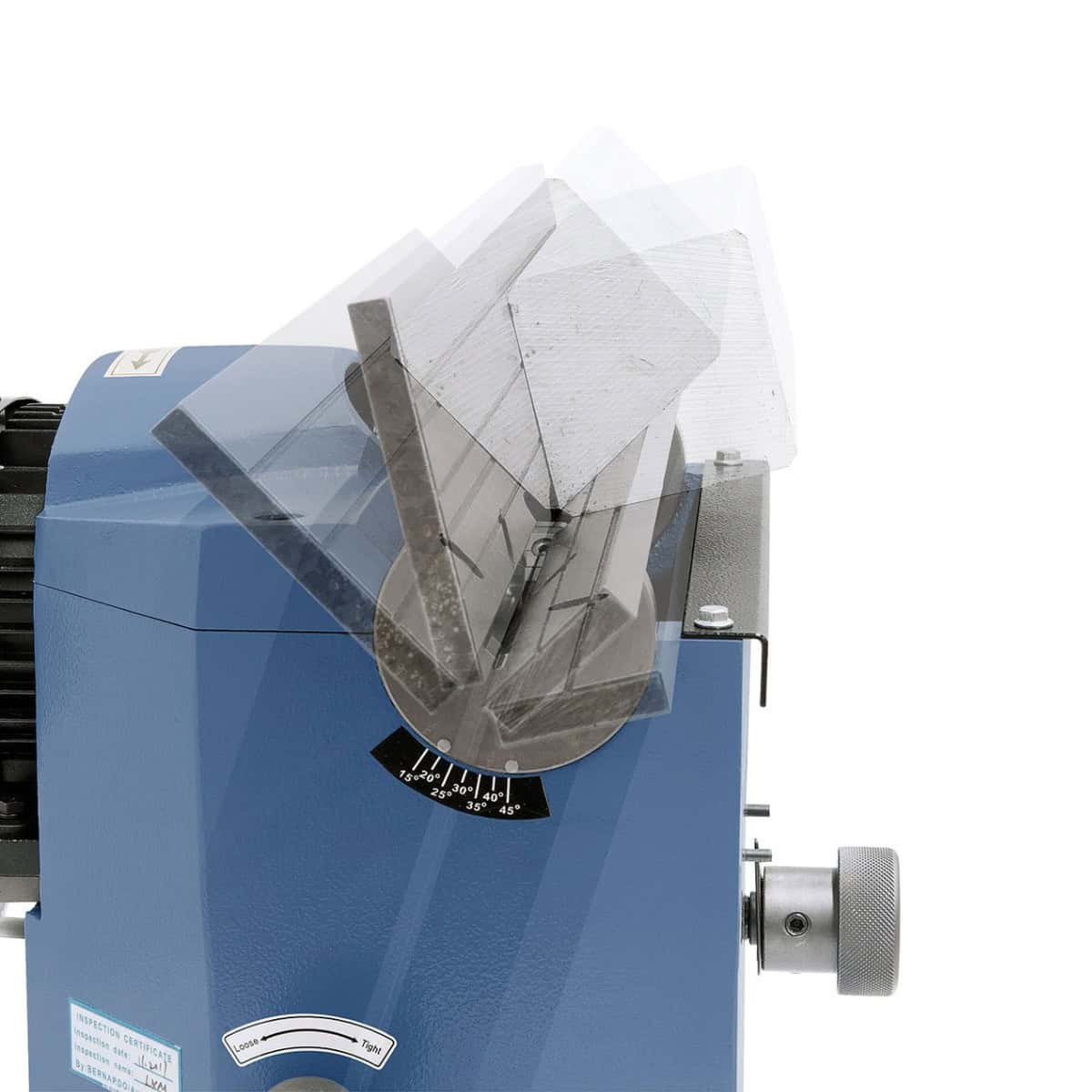

Chamfer angle: 15°–45°
Max. chamfer width: 5 mm
Guide: 500 mm
Speed: 2800 rpm
Motor power: 0.55 kW kW
Dimensions (L × W × H): 500 × 370 × 265 mm
Weight: approx. 33 kg

Who uses the KFM 500 M and for what

The Bernardo KFM 500 M chamfering machine is an electric tool for deburring and chamfering edges on metals: it removes burrs from cutting, punching, and drilling, creating a precise 15°–45° chamfer that eliminates dangerous sharp edges and prepares surfaces for welding or treatment. At 33 kg, it is portable and can be used on a workbench or handheld. In Krollit customers' workshops, it is used by metalworkers, blacksmiths, and workshop operators for systematic deburring after cutting.

Who is the Bernardo KFM 500 M for

Profile	Compatibility	Reason
Hobbyist	Suitable	Portable and easy to use. For occasional deburring.
Mechanical workshop / carpentry	Ideal	5 mm chamfer at 15°–45° with 500 mm guide: for professional systematic deburring after cutting and punching.
Industrial production	Suitable	For high volumes, consider stationary CNC chamfering machines.

Not suitable for: chamfers over 5 mm; angles other than 15°–45°; non-metallic materials.

Logistics

Bernardo shipping: 5–9 business days (7 days in Southern Italy). Original spare parts available with 3–5 business day shipping. Customer support available in Italian.

Technical specifications

Specification	Value
Chamfer angle	15°–45°
Max. chamfer width	5 mm
Chamfer adjustment	0.1 mm
Guide	500 mm
No-load speed	2800 rpm
Motor power	0.55 kW kW
Power supply	400V – three-phase
Dimensions (L × W × H)	500 × 370 × 265 mm
Weight	approx. 33 kg

Compliance and safety

Specification	Value
Marking	CE
Directive	Machinery 2006/42/EC

Warranty

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

FAQ / Frequently asked questions

Frequently Asked Questions

What is the difference between the Bernardo KFM 100K, KFM 140, KFM 175, KFM 200M and KFM 500M chamfering machines?

KFM 100K: fixed 45°, 4 mm chamfer, 100 mm guide, 720W, 3.5 kg. KFM 140: fixed 45°, 3 mm chamfer, 140 mm guide, 720W, 3.8 kg. KFM 175: fixed 45°, 5 mm chamfer, 175 mm guide, 1400W, 5.2 kg. KFM 200M: variable 15°–45°, 10 mm chamfer, 200 mm guide, 550W (230V or 400V), 11 kg. KFM 500M: variable 15°–45°, 5 mm chamfer, 500 mm guide, 550W (400V), 33 kg. The choice depends on the chamfer width, guide length, and required angle.

Are TCT inserts interchangeable between models?

No. Each model uses inserts of a specific geometry. Original Bernardo replacement inserts available with 3–5 business day shipping. Please specify the exact model when ordering.

Does it work on aluminum and stainless steel?

Yes. Bernardo chamfering machines work with steel, stainless steel, aluminum, and non-ferrous metals. For stainless steel, reduce the feed rate. For aluminum, use specific lubricant to prevent aluminum build-up on the inserts.

How is the chamfer width adjusted?

Adjustment is made via a micrometer ring with a 0.1 mm graduation – rotate it to the desired width and lock it. The 0.1 mm precision ensures repeatability on series of identical parts.

Does the chamfering machine also work on curved angles?

The 500 mm guide is designed for chamfers on straight edges. For small internal radii (curves, holes), check the minimum workable radius with Krollit for this specific model.
