Bernardo BRHP 100 QZ – Hydraulic Press with Movable Head
The Bernardo BRHP 100 QZ hydraulic press is a professional industrial machine designed for heavy-duty and high-precision applications. With a pressing force of 100 tons and a piston stroke of 400 mm, it is suitable for straightening axles and shafts, inserting and removing bushings, bearings, and bolts, as well as for load testing. The movable head and sliding cylinder enhance operational versatility, allowing for precise work on different points of the workpiece. The robust welded steel structure ensures stability, while the advance (8.6 mm/sec) and return (12 mm/sec) speeds guarantee productivity and efficiency. With a 4.0 kW motor and a weight of 1250 kg, the BRHP 100 QZ is designed for continuous and safe use. Supplied as standard with a pressure gauge, adjustable table, and V-blocks, it is the ideal choice for workshops and industrial departments requiring a powerful and reliable press.
Key Specifications
100-ton pressing force for industrial applications
Movable head and sliding cylinder for greater versatility
Piston with 400 mm stroke and 220 mm diameter

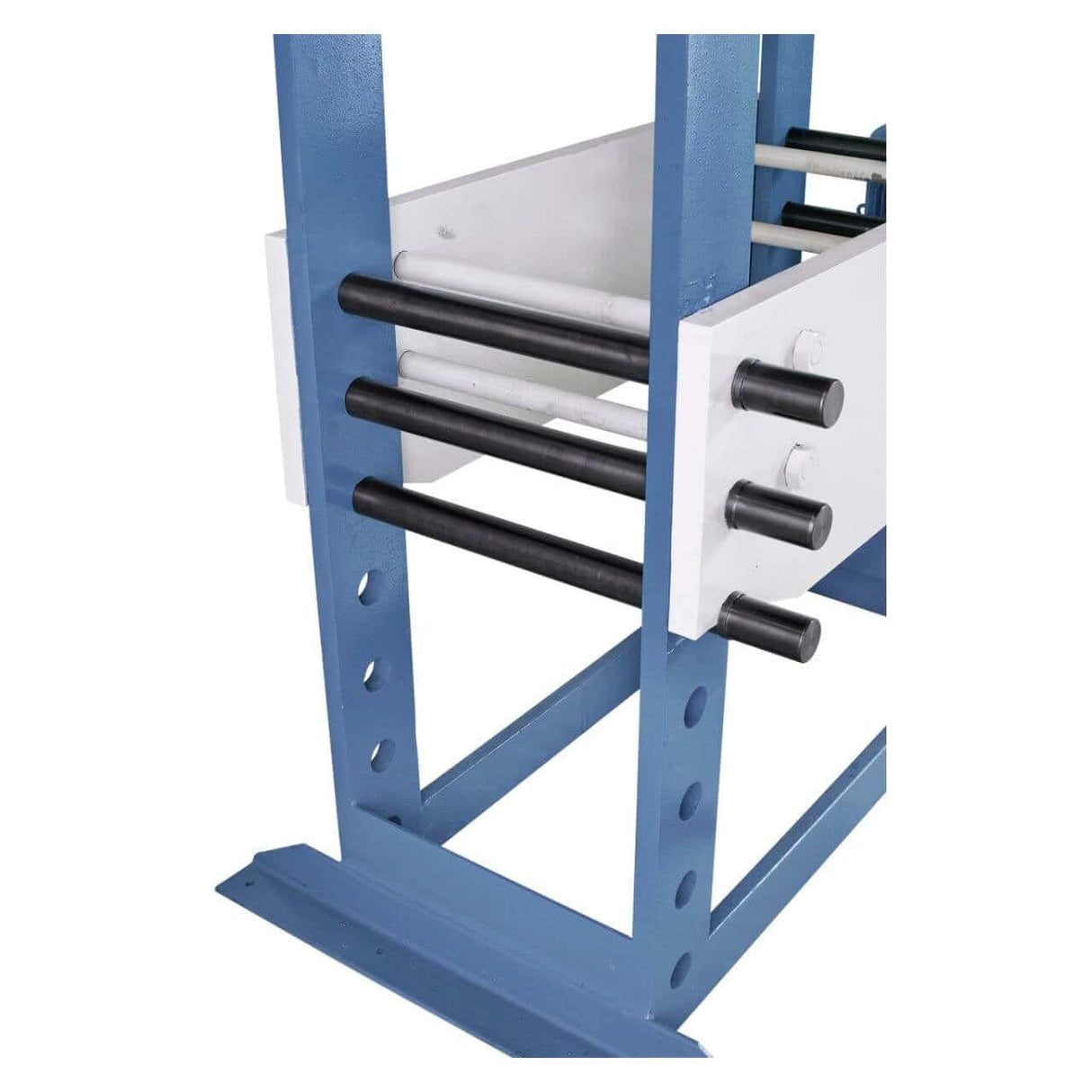

Height-adjustable table via included device
Robust welded steel structure for stability and durability
Advance speed 8.6 mm/sec and return 12 mm/sec

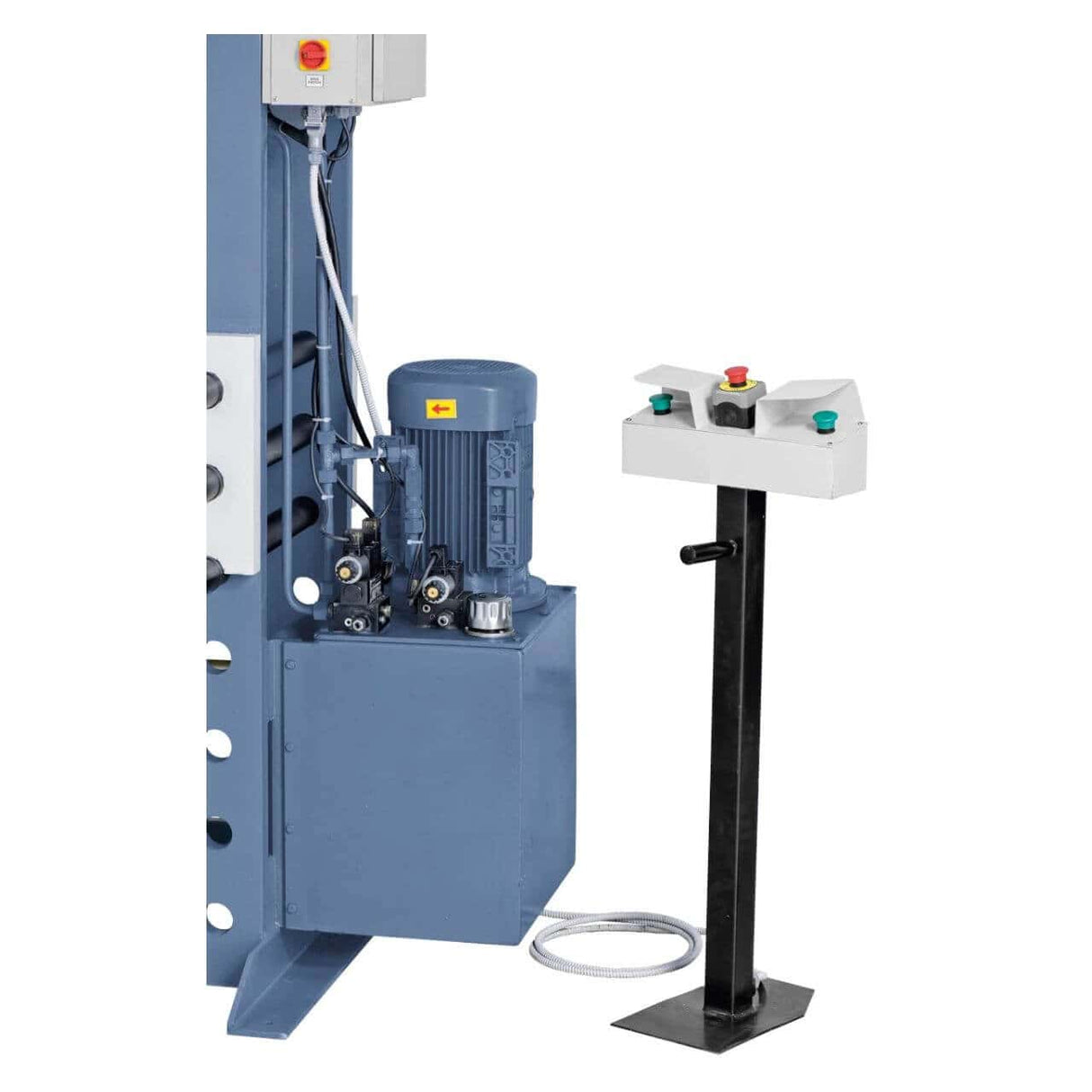

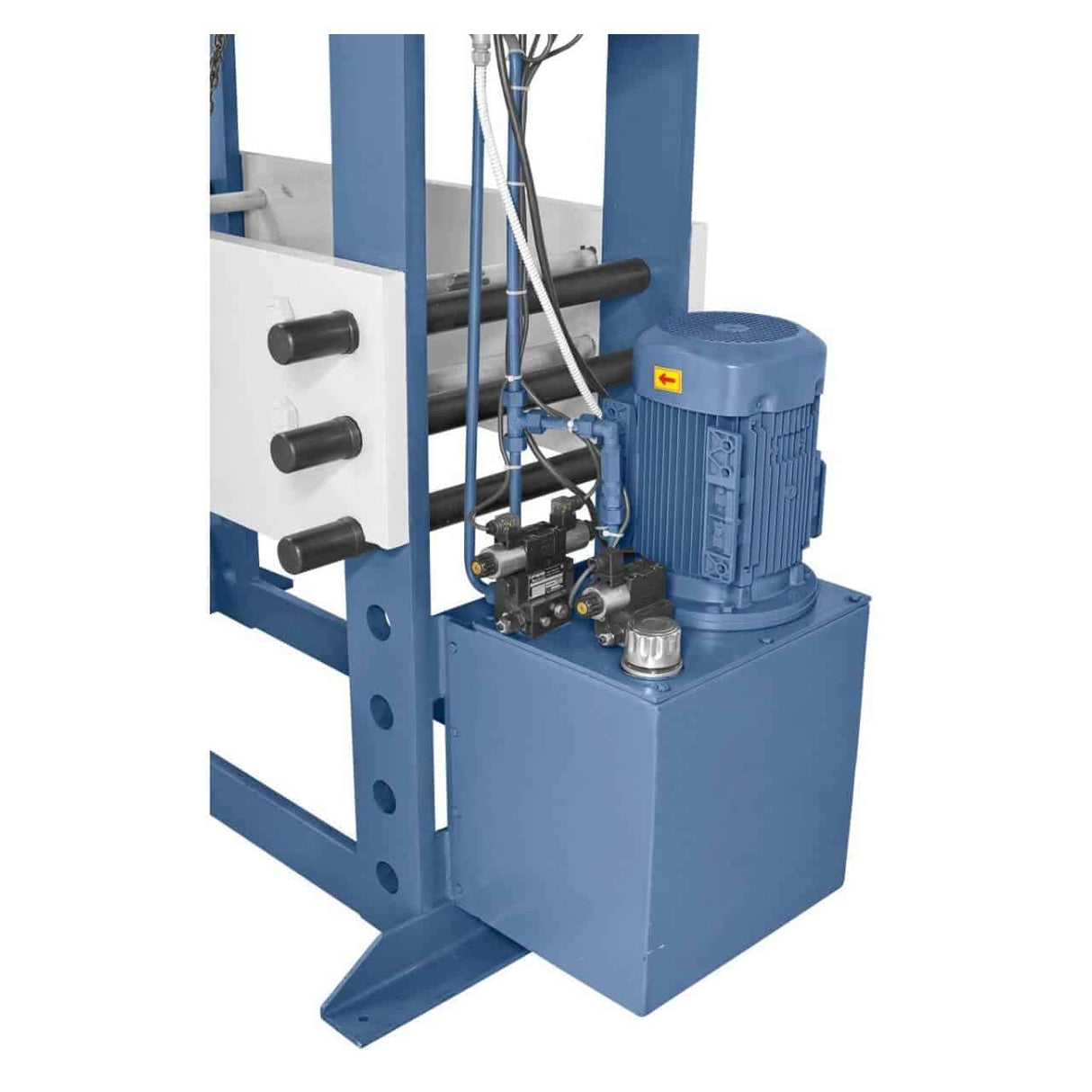

4.0 kW motor for continuous and reliable performance
Complete with pressure gauge, overload valve, and V-blocks
Technical Table:
| Specification | Value |
|---|---|
| Brand | Bernardo |
| Model | BRHP 100 QZ |
| Type | Hydraulic press with movable head |
| Pressing force | 100 ton |
| Passage between uprights | 1000 mm |
| Piston stroke | 400 mm |
| Cylinder diameter | 220 mm |
| Max pressure | 265 bar |
| Max working height | 950 mm |
| Advance speed | 8.6 mm/sec |
| Return speed | 12 mm/sec |
| Motor power | 4.0 kW |
| Dimensions (L x W x H) | 1900 x 800 x 2200 mm |
| Weight | 1250 kg |
Package contents:
Bernardo BRHP 100 QZ hydraulic press

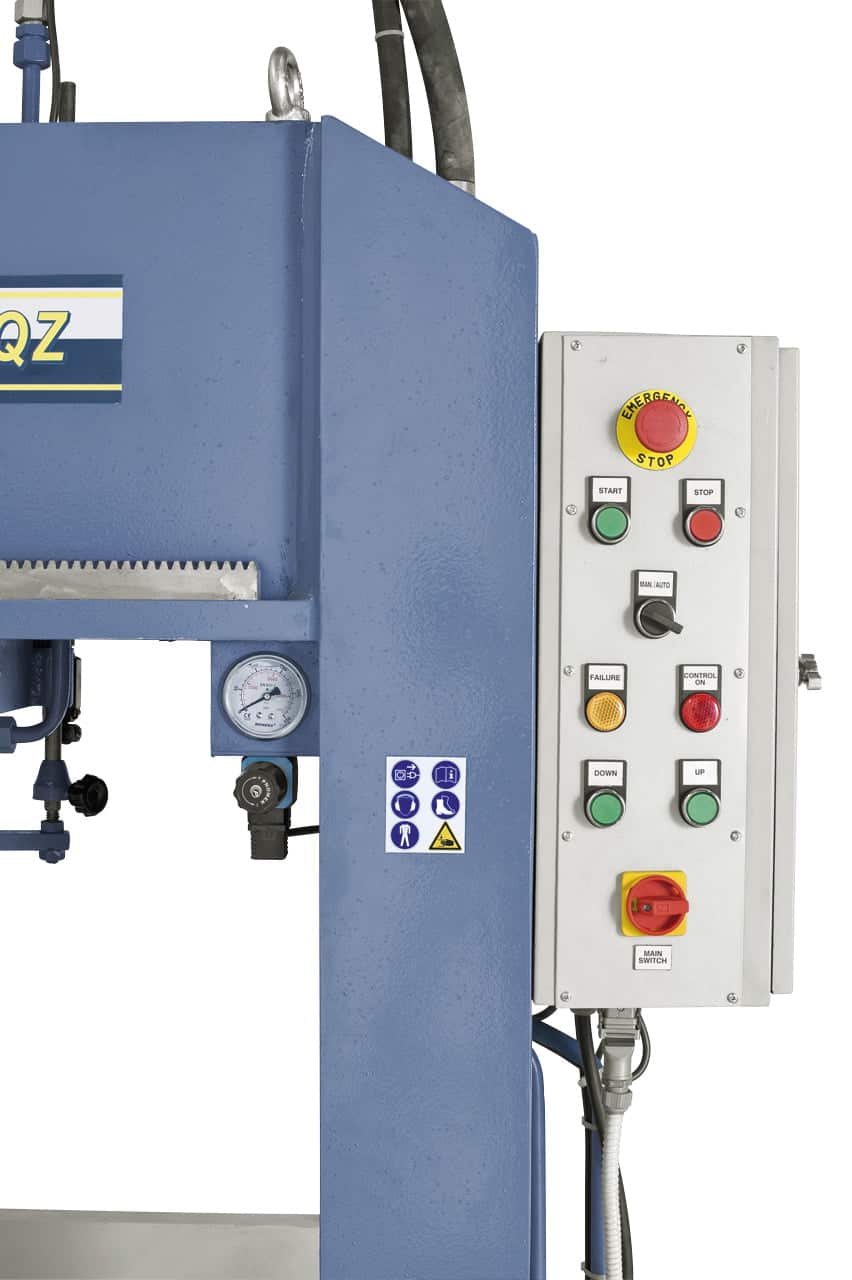

Integrated pressure gauge
Height-adjustable table
Overload valve
Movable cylinder
V-blocks
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working day shipping. Customer support available in Italian.
Frequently Asked Questions
What is the difference between the BHP, HWP, and BRHP QZ series in the Bernardo press range?
The BRHP QZ series has a head with a movable cylinder on four columns (Quick Zone): the cylinder moves horizontally to position itself over any point of the table without moving the workpiece. With the BRHP 100t, it is suitable for pressing off-center parts, asymmetrical machining, and operations where the workpiece cannot be centered under the fixed cylinder.
Does the BRHP 100t force apply even at the minimum piston stroke?
The nominal BRHP 100t force is the maximum force developed at the maximum pressure of the hydraulic system. At the beginning of the stroke (piston at the top of its stroke), the force is the same – it is constant throughout the entire useful stroke. The included pressure gauge shows the pressure in bars: multiplying by the piston area gives the effective force in kN or tons.
Is the pressure gauge included as standard?
Yes – all BHP, HWP, and BRHP Bernardo presses include a pressure gauge for direct reading of the applied force. This is essential for not exceeding the resistance of the pressed components (e.g., maximum interference of a bearing on the shaft) and for operations requiring a specific assembly force.
What foundation does it require?
Presses up to 100t are fastened to the floor with M12/M16 bolts on standard concrete (15–20 cm). For presses over 100t, consult a structural engineer to verify the floor's load capacity based on the base footprint. Customer support available in Italian.
Are spare parts and assistance available?
Original spare parts available with 3–5 working day shipping. Customer support available in Italian.
