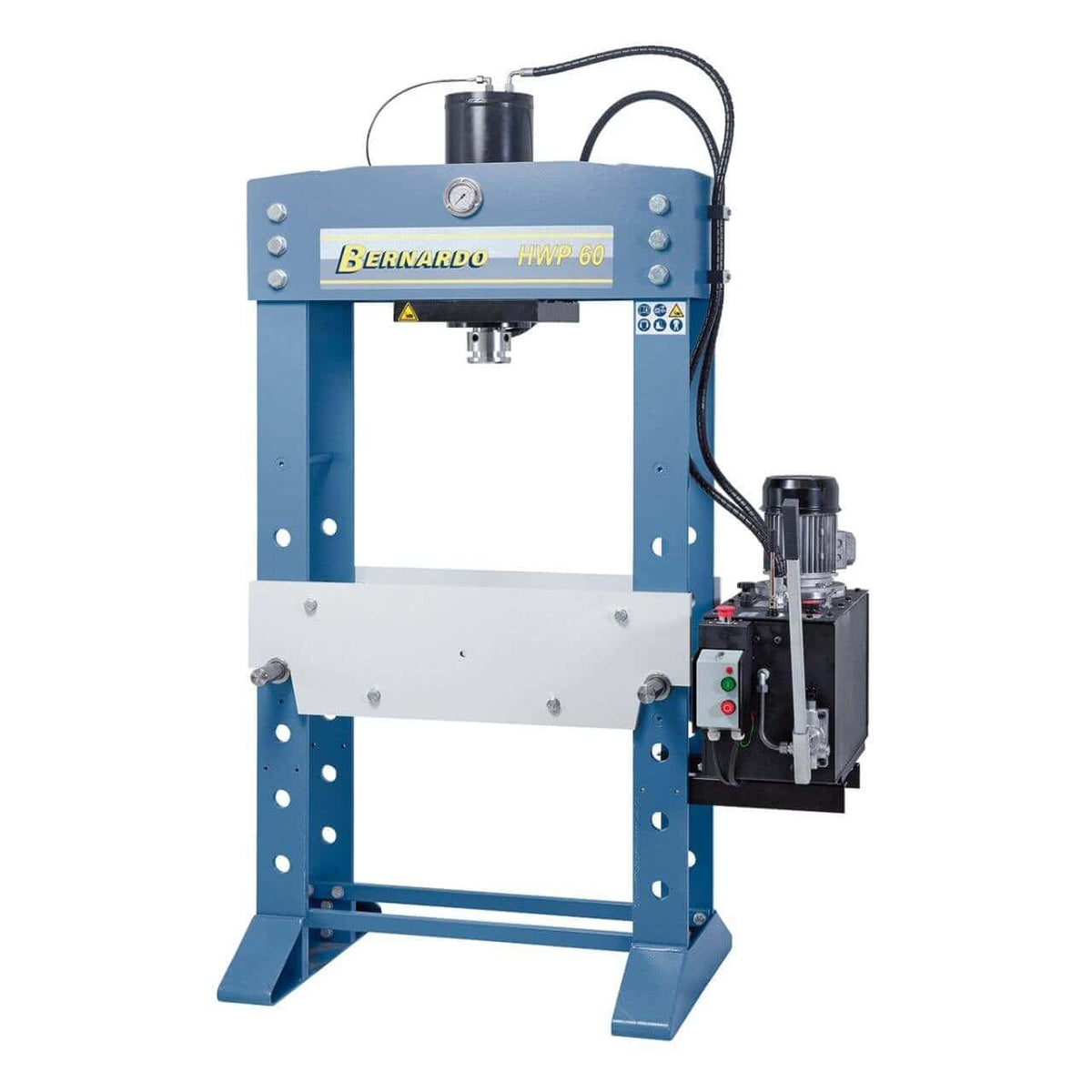

Bernardo HWP 60 – Hydraulic Workshop Press
The Bernardo HWP 60 hydraulic press is designed for assembly work, straightening, load tests, and part inspection. With a pressing force of 60 tons and a piston stroke of 380 mm, it offers reliable and precise performance in workshops and maintenance departments. Thanks to the height adjustment of the table via chain and hydraulic cylinder, it ensures great versatility. The piston can be operated manually with a lever or via a sensitive hydraulic pump, with the possibility of stopping in any position. The advance (8.7 mm/sec), work (2.02 mm/sec), and return (10.79 mm/sec) speeds ensure efficiency and quickness. The robust and compact structure, with a 1.5 kW motor and a weight of 540 kg, makes the HWP 60 a reliable and durable press. Complete with a pressure gauge, adjustable table, and overload valve, it is suitable for mechanical workshops and small industries.
Main Specifications
60-ton pressing force for workshop applications
Piston with 380 mm stroke and 75 mm diameter

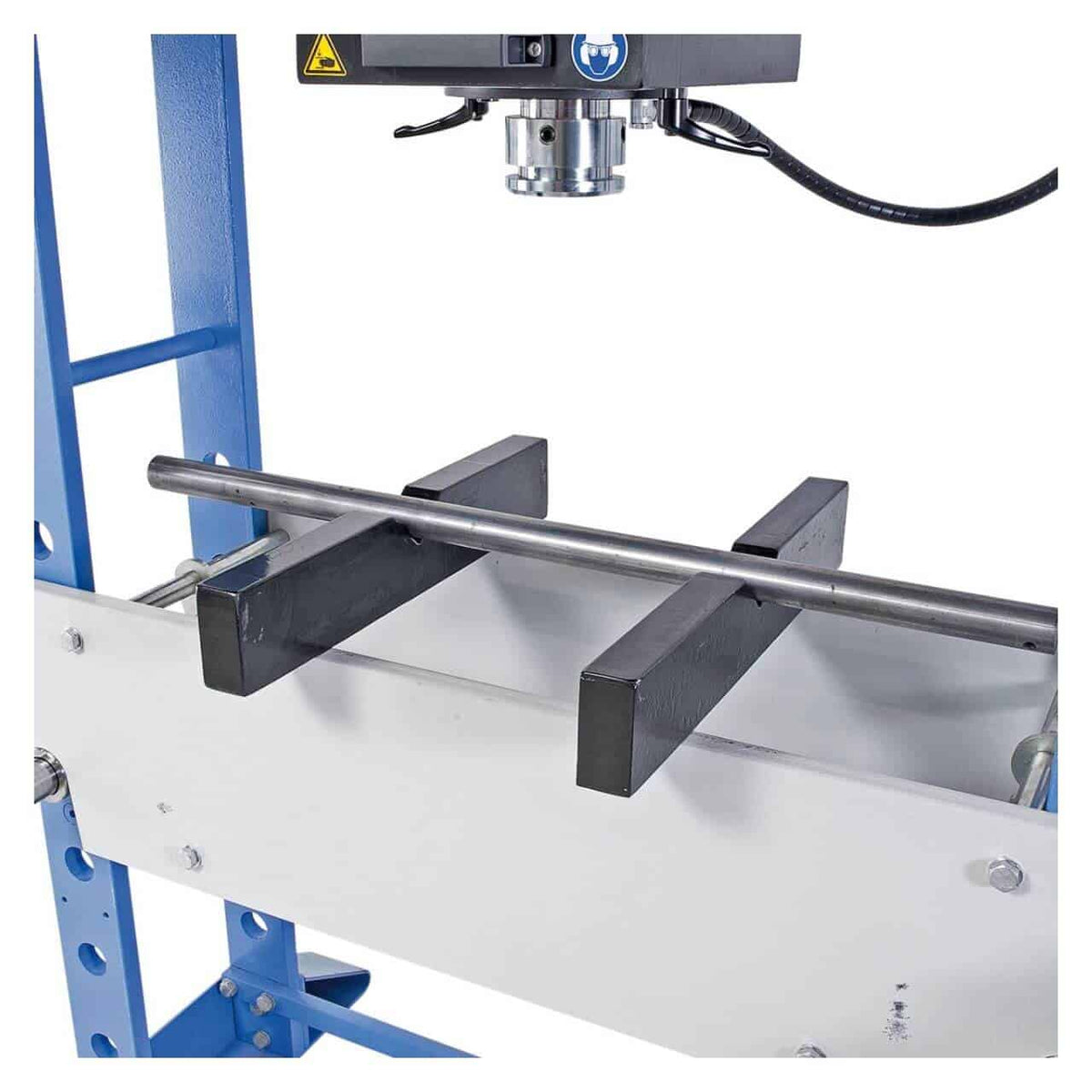

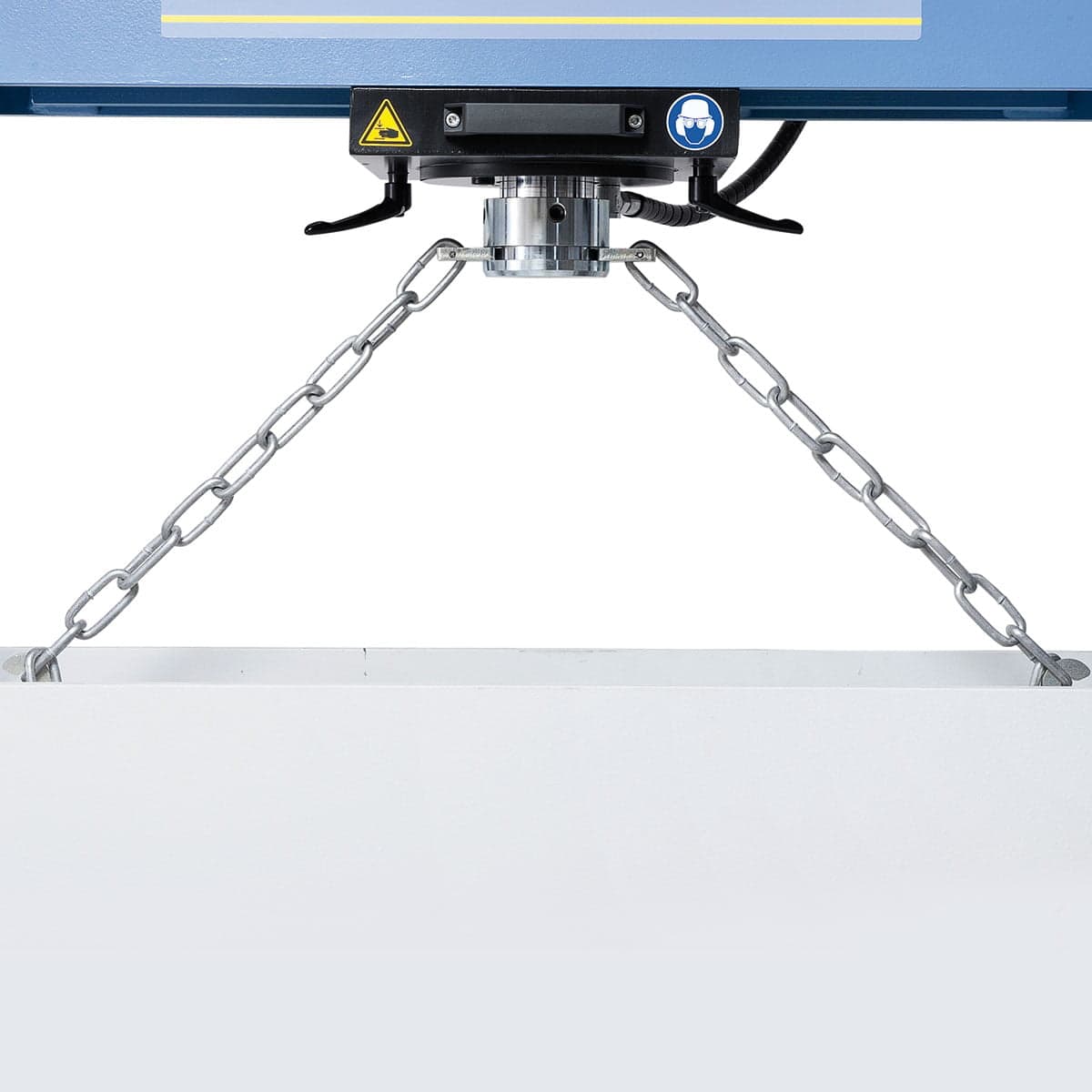

Height-adjustable worktable with chain and hydraulic cylinder

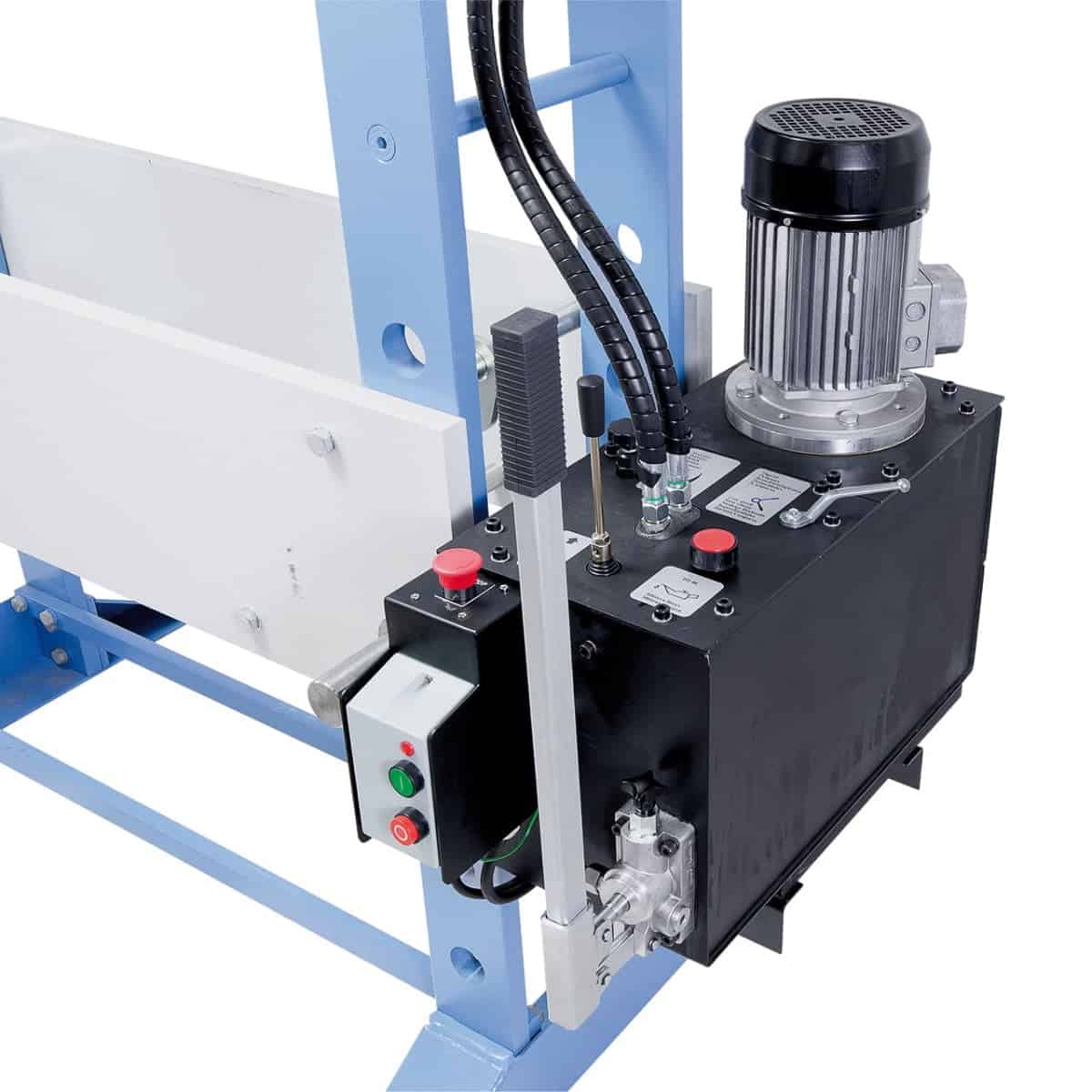

Manual lever operation or via sensitive hydraulic pump
Advance speed 8.7 mm/sec, work speed 2.02 mm/sec, and return speed 10.79 mm/sec
Compact and efficient 1.5 kW motor
Robust steel structure for stability and long life

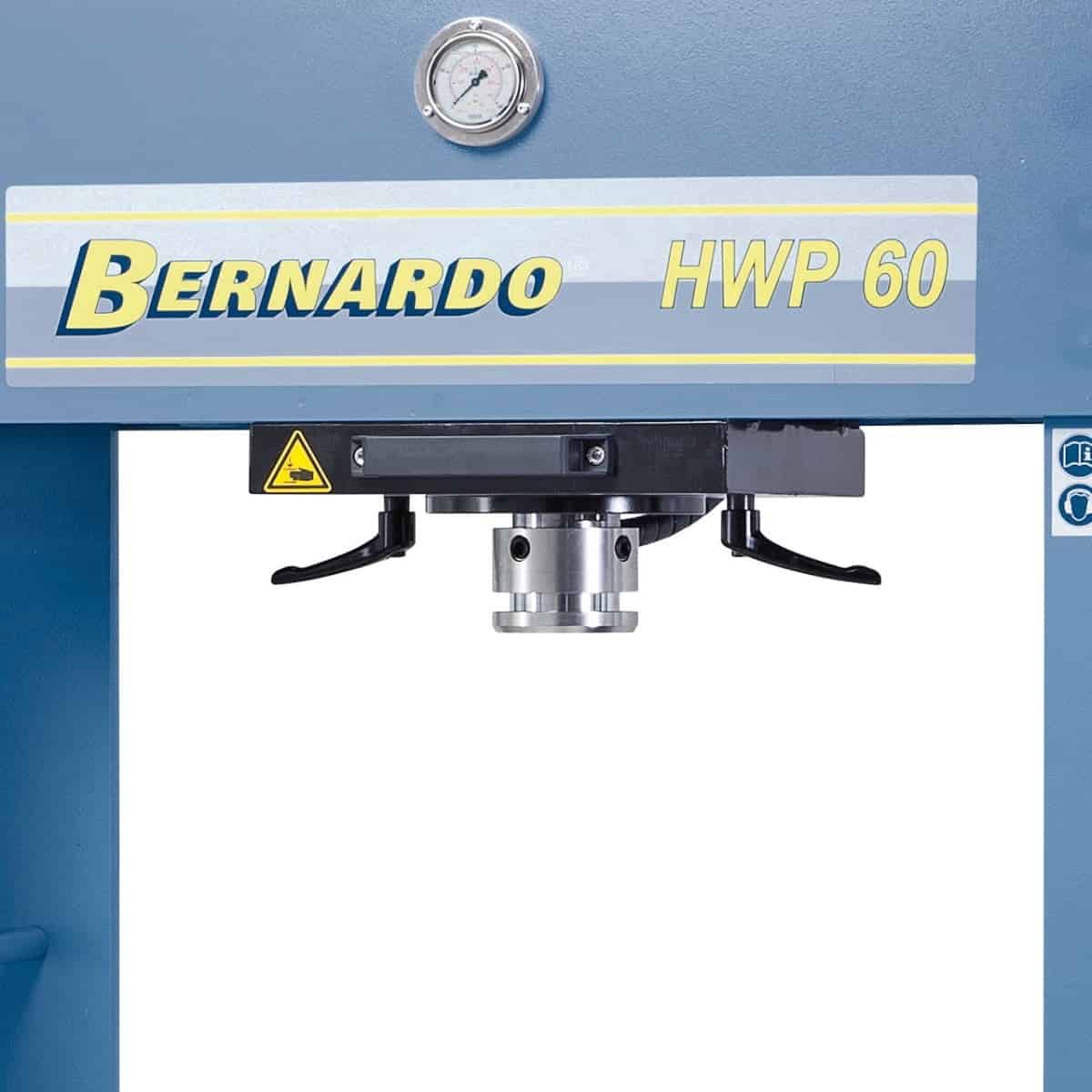

Equipped with pressure gauge and overload valve included
Technical Data:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
HWP 60 |
| Type |
Hydraulic workshop press |
| Pressing force |
60 ton |
| Distance between uprights |
750 mm |
| Piston stroke |
380 mm |
| Piston diameter |
75 mm |
| Max pressure |
259 bar |
| Table width |
345 mm |
| Max working height |
950 mm |
| Advance speed |
8.7 mm/sec |
| Work speed |
2.02 mm/sec |
| Return speed |
10.79 mm/sec |
| Motor power |
1.5 kW |
| Dimensions (L x W x H) |
1315 x 805 x 2120 mm |
| Weight |
540 kg |
Package contents:
Bernardo HWP 60 hydraulic press
Integrated pressure gauge
Adjustable worktable
Overload valve
Logistics
Bernardo Shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
Frequently Asked Questions
What is the difference between the BHP, HWP, and BRHP QZ series in the Bernardo press range?
The HWP series is the upright hydraulic workshop press: compact steel structure, top-sliding cylinder. With HWP 30t, it is suitable for bearing assembly/disassembly operations, shaft straightening, and crimping operations in mechanical workshops and industrial maintenance.
Does the HWP 30t force apply even at the minimum piston stroke?
The HWP 30t nominal force is the maximum force developed at the maximum hydraulic system pressure. At the beginning of the stroke (piston at the top of its stroke) the force is the same – it is constant throughout the useful stroke. The included pressure gauge shows the pressure in bars: multiplying by the piston area gives the effective force in kN or tons.
Is the pressure gauge included as standard?
Yes – all Bernardo BHP, HWP, and BRHP presses include a pressure gauge for direct reading of the applied force. Essential for not exceeding the resistance of pressed components (e.g., maximum interference of a bearing on the shaft) and for operations requiring a specific assembly force.
What foundation does it require?
Presses up to 100t are fixed to the floor with M12/M16 bolts on standard concrete (15–20 cm). For presses over 100t, consult a structural engineer for the floor's load-bearing capacity based on the base footprint. Customer support in Italian available.
Are spare parts and assistance available?
Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
