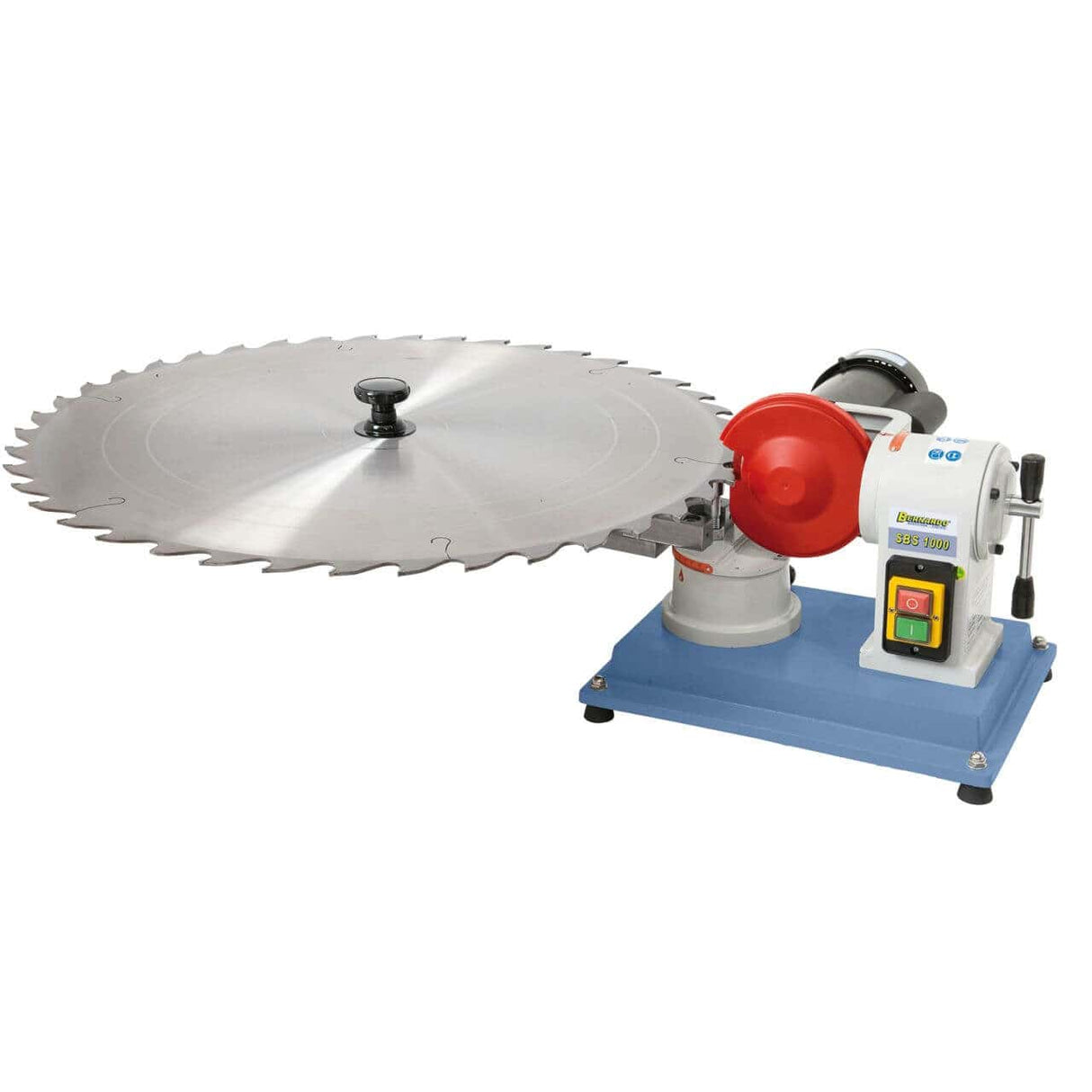

Bernardo SBS 1000 Circular Saw Blade Sharpener – Ø 80–1,000 mm, 230V
Bernardo SBS 1000 Circular Saw Blade Sharpener – Ø 80–1,000 mm, 230V is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Ricevi gli ultimi aggiornamenti su tutte le nostre nuove collezioni, saldi, offerte e date di arrivo dei prodotti.
-
Description
-
Sicurezza del prodotto
-
Reviews
Description
The Bernardo SBS 1000 circular saw blade sharpener sharpens CV and HW/Widia blades from Ø 80 to 1,000 mm, Ø 125 mm diamond grinding wheel, grinding wheel tilt ±20°, blade holder rotation 35° left / 45° right, speed 2,850 rpm, 180 W single-phase 230V motor. Weight approx. 23 kg. Distributed in Italy by Krollit as official Bernardo distributor since 2007.
- Sharpenable blade diameter: Ø 80 – 1,000 mm
- Compatible blades: CV (steel) and HW/Widia (carbide)

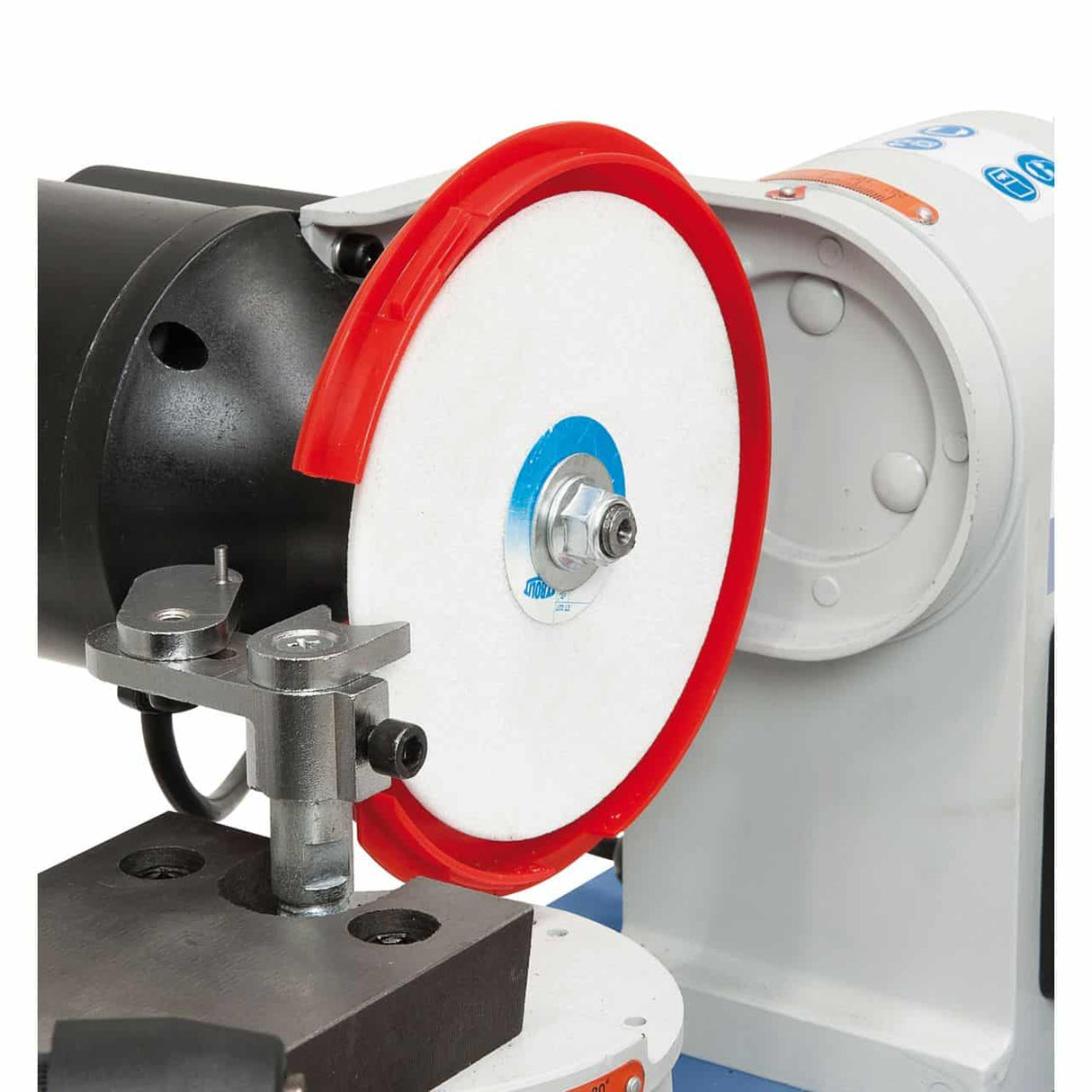

- Diamond grinding wheel: Ø 125 × 13 mm (thickness 10 mm)
- Grinding wheel unit tilt: 20° left / 20° right
- Blade holder rotation: 35° left / 45° right
- Speed: 2,850 rpm
- Motor: 180 W – 230V single-phase
- Weight: approx. 23 kg
Who uses the SBS 1000 and for what
The Bernardo SBS 1000 is identical to the SBS 700 except for the maximum capacity: Ø 1,000 mm instead of 700 mm. Same grinding wheel, same power, same operating logic — but it covers large blades used on panel saws, cutting centers, and large format saws. For woodworking shops and cutting centers working with Ø 800–1,000 mm blades, the SBS 1000 is the only alternative to external sharpening in this price range.
Who is the Bernardo SBS 1000 for
| Profile | Compatibility | Reason |
|---|---|---|
| Woodworking shop with standard blades (≤700 mm) | Not recommended | For blades up to Ø 700 mm, the SBS 700 is sufficient at a lower cost. |
| Cutting center / panel saw | Ideal | Ø up to 1,000 mm: the only benchtop sharpener for large panel saw blades in this price range. |
| Intense industrial production | Adequate | For sharpening hundreds of blades per month, consider automatic sharpeners or external sharpening service. |
Not recommended for: those who only work with blades up to Ø 700 mm (SBS 700 is sufficient); blades with damaged or broken teeth.
Technical specifications
| Specification | Value |
|---|---|
| Sharpenable blade diameter | Ø 80 – 1,000 mm |
| Compatible blades | CV (steel) and HW/Widia (carbide) |
| Diamond grinding wheel (Ø × bore) | 125 × 13 mm (thickness 10 mm) |
| Grinding wheel unit tilt | 20° left / 20° right |
| Blade holder rotation | 35° left / 45° right |
| No-load speed | 2,850 rpm |
| Motor power | 180 W |
| Power supply | 230V – single-phase |
| Dimensions (L × W × H) | 870 × 390 × 300 mm |
| Weight | approx. 23 kg |
Compliance and safety
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery 2006/42/CE |
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Italian customer support available.
Frequently asked questions
What is the difference between SBS 700 and SBS 1000?
The SBS 700 sharpens up to Ø 700 mm (20 kg, 720 mm footprint); the SBS 1000 sharpens up to Ø 1,000 mm (23 kg, 870 mm footprint). Same grinding wheel, same power, same operating principle. The SBS 1000 is only necessary if blades over Ø 700 mm are used.
What machines use Ø 800–1,000 mm blades?
Ø 800–1,000 mm blades are typical for panel saws, CNC woodworking cutting centers, and large format radial saws used in the wood and furniture industry. For artisanal woodworking shops with standard circular saws (Ø 250–350 mm blades), the SBS 700 is more than sufficient.
Are replacement grinding wheels available?
Yes. Original Bernardo replacement diamond grinding wheels are available with 3–5 working days shipping.
How much space is needed in the workshop?
Footprint 870 × 390 × 300 mm. At 23 kg, it can be placed on any stable workbench. The space needed around the machine depends on the size of the blades to be sharpened: for a Ø 1,000 mm blade, a workspace of approximately 1.2 m × 1.2 m is needed.
Does the SBS 1000 sharpen blades with a non-standard center bore?
The SBS 1000 blade holder is compatible with standard circular saw blade center bores (typically Ø 30 and Ø 32 mm). For blades with non-standard bores, adapters may be required. Contact Krollit to verify compatibility with specific bores.
