Bernardo BM 25 SB – Belt-Driven Bench Drill 400 V

Name: Bernardo BM 25 SB – Belt-Driven Bench Drill 400 V
Brand: Bernardo
SKU: 01-1122
Price: 1003.24 EUR
Availability: InStock

€1.003,24 (22% VAT incl.)

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

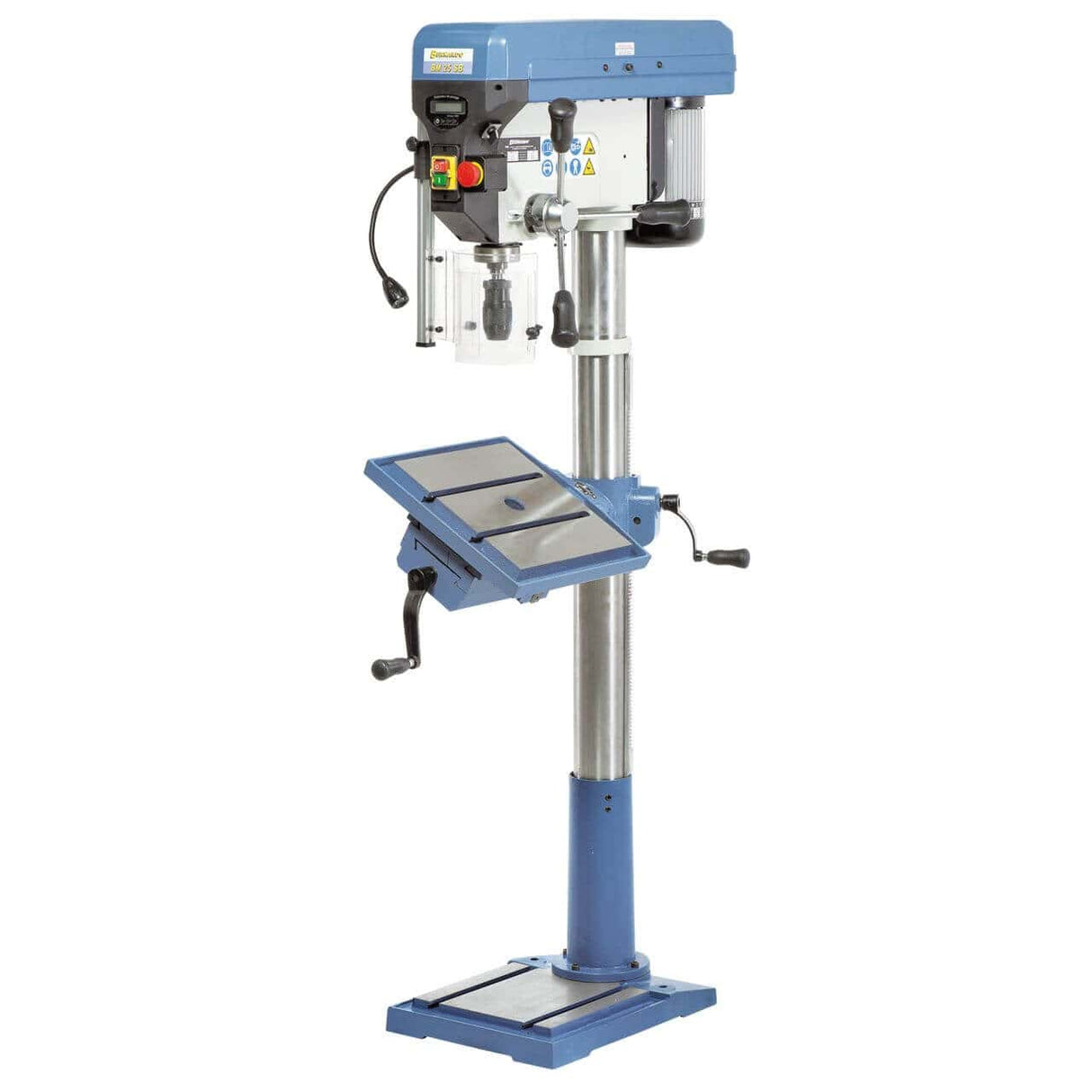

Bernardo Pillar Drill BM 25 SB with V-belt drive and digital display

The Bernardo BM 25 SB pillar drill is a robust and precise machine, suitable for workshops and laboratories that require professional drilling up to 25 mm. It features a digital display for quill travel and an LED light that improves visibility of the work area.

Thanks to its cast iron pulleys and professional quality bearings, it ensures smooth operation and high spindle concentricity. The drilling table, with T-slots and coolant channels, can rotate 360° and be adjusted in height via a rack. The high-torque aluminum motor, compliant with IP54 standards, ensures reliable performance, while the possibility of right/left rotation expands its applications. The machine includes a keyless chuck, safety guards, and a cross laser for high precision.

Key Features

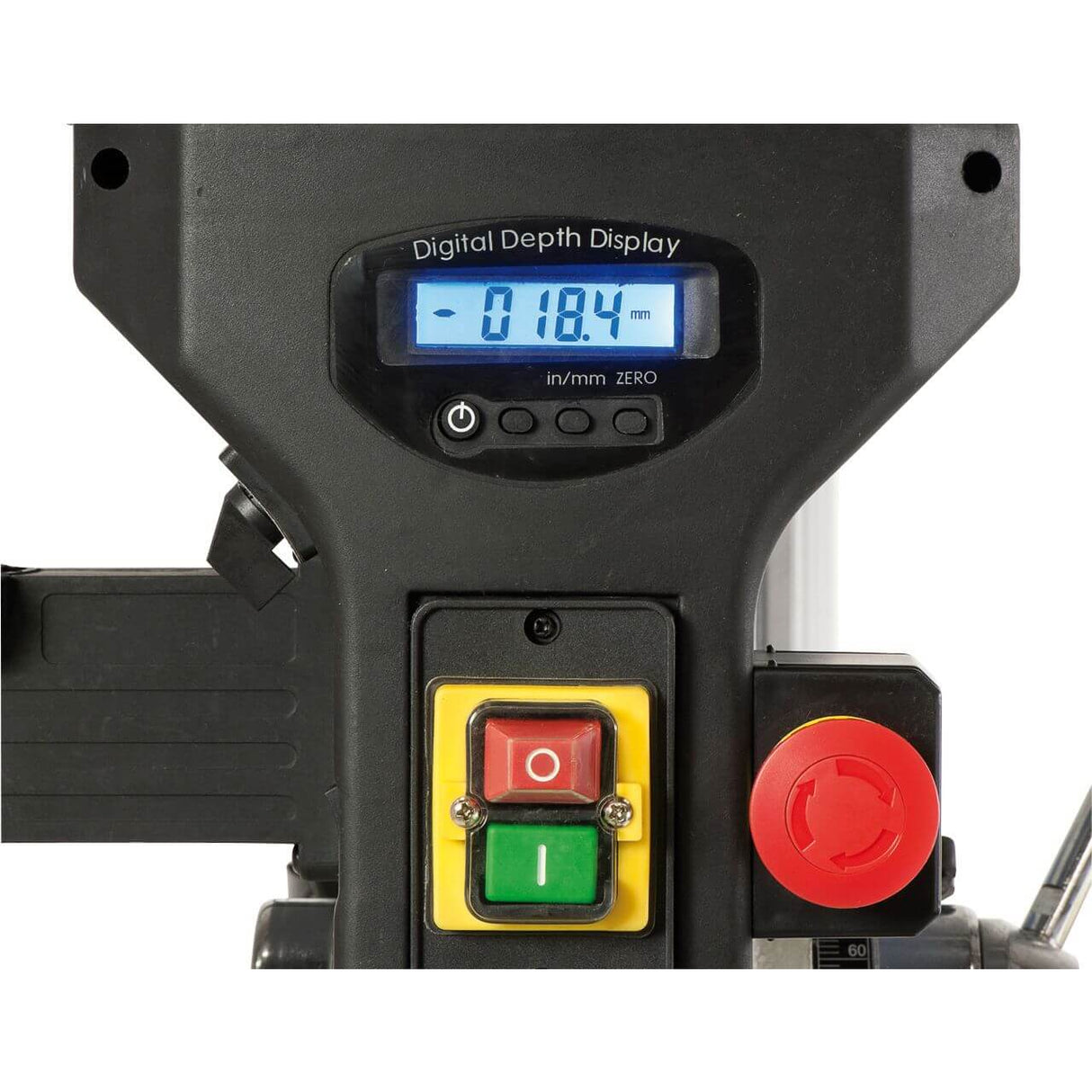

Digital display for quill travel included
Integrated LED lamp to illuminate the work area

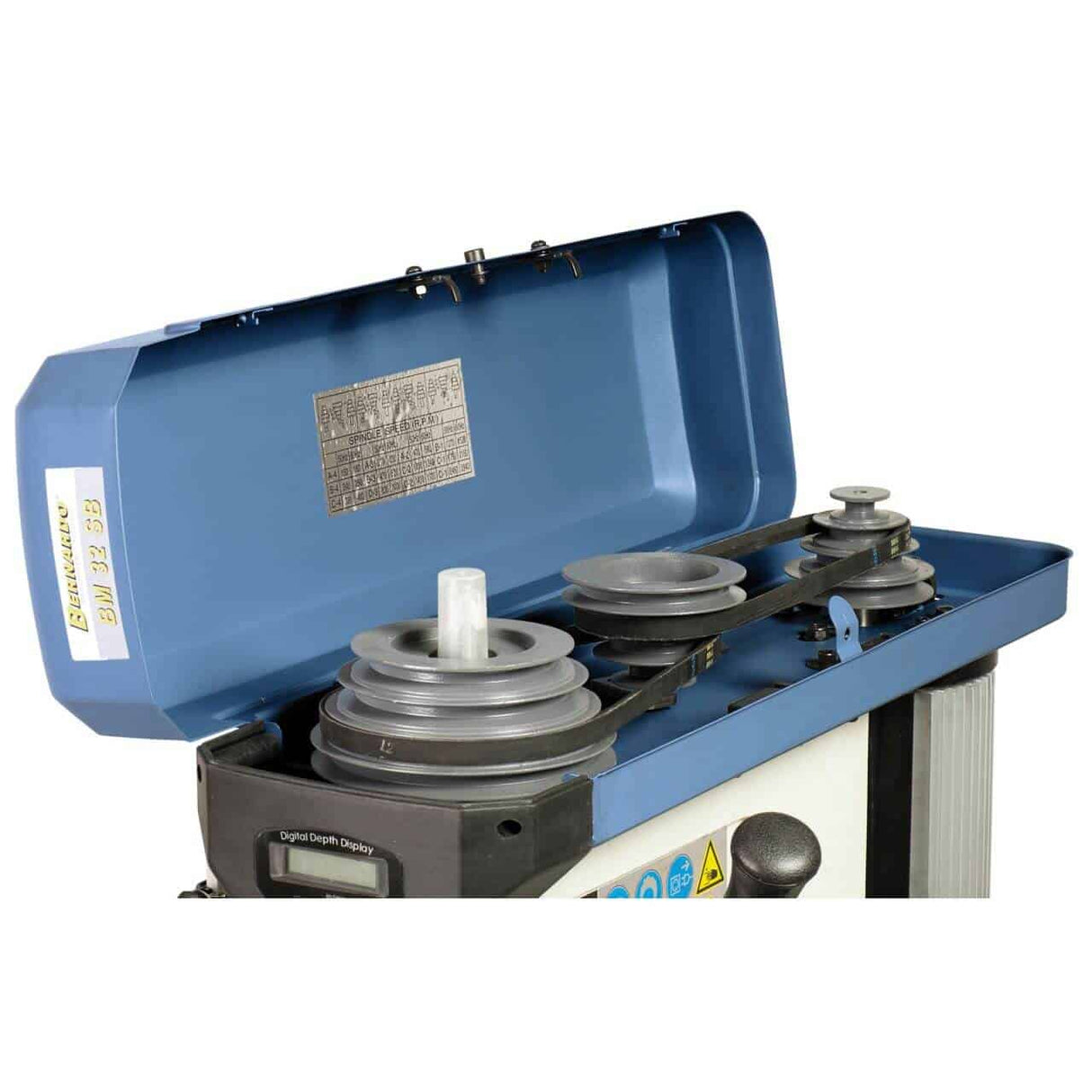

Cast iron pulleys for quiet and smooth operation
Professional quality ball bearings for high concentricity
Work table with T-slots and coolant channels

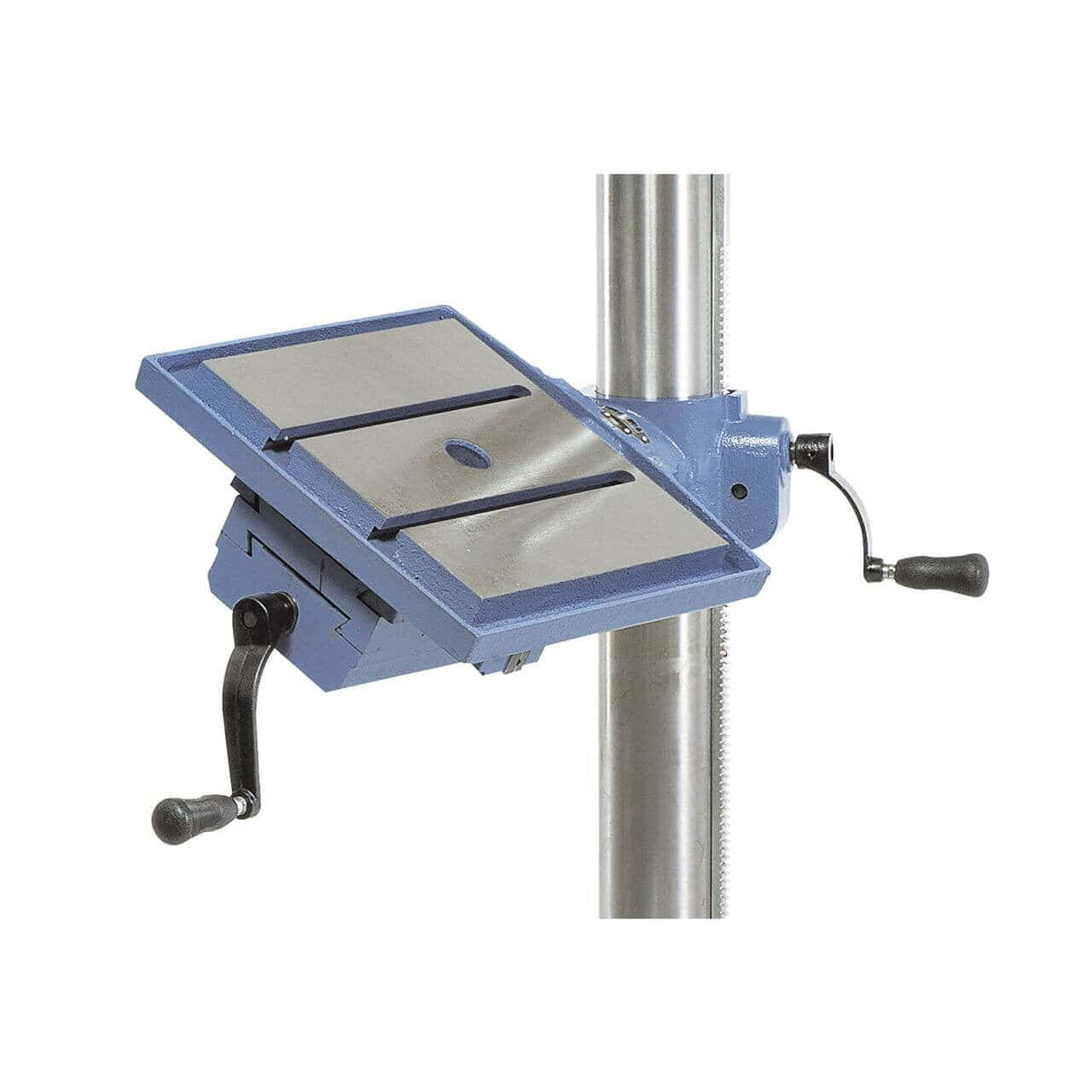

Table tiltable and rotatable 360° with rack height adjustment

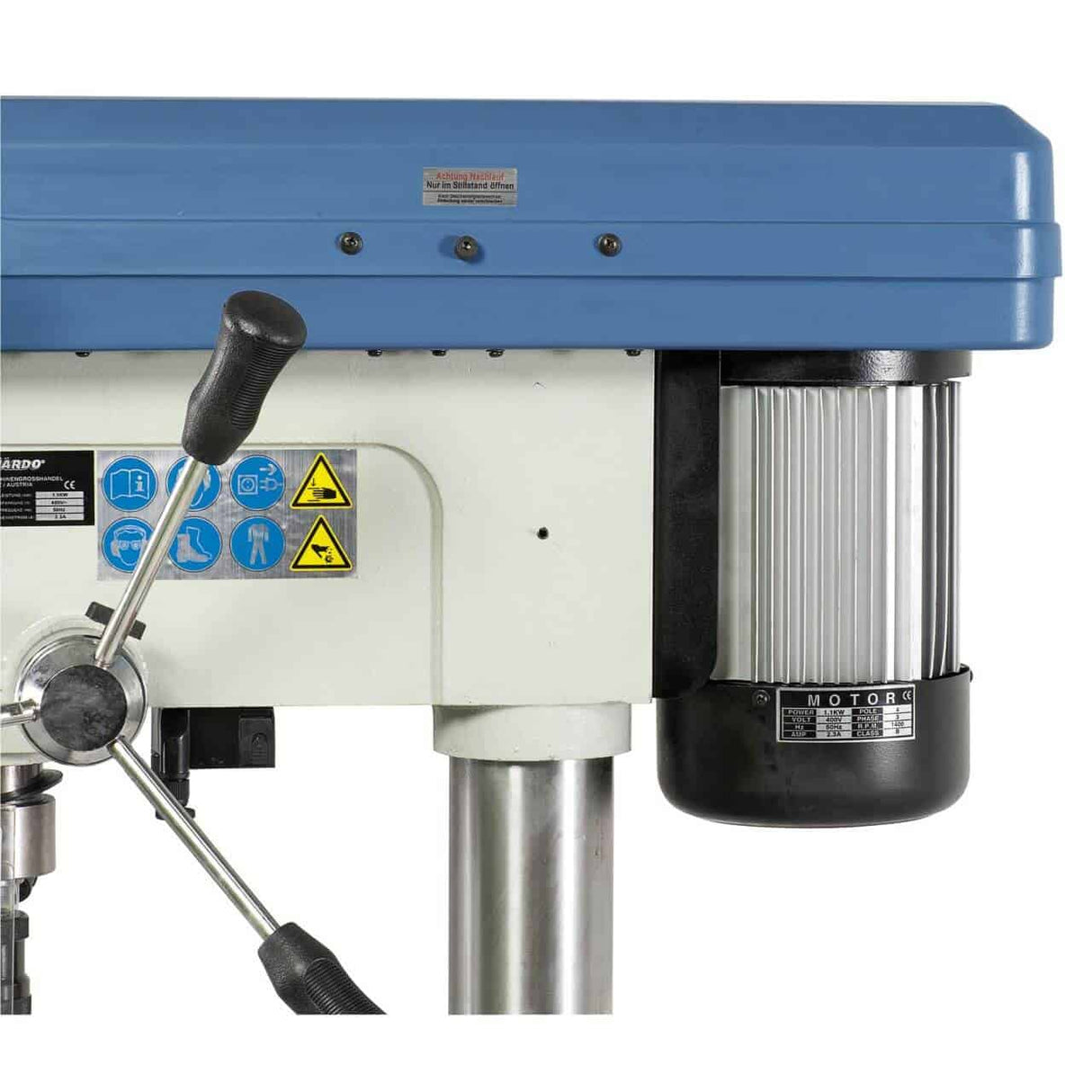

High-torque aluminum motor compliant with IP54
Selectable right/left rotation

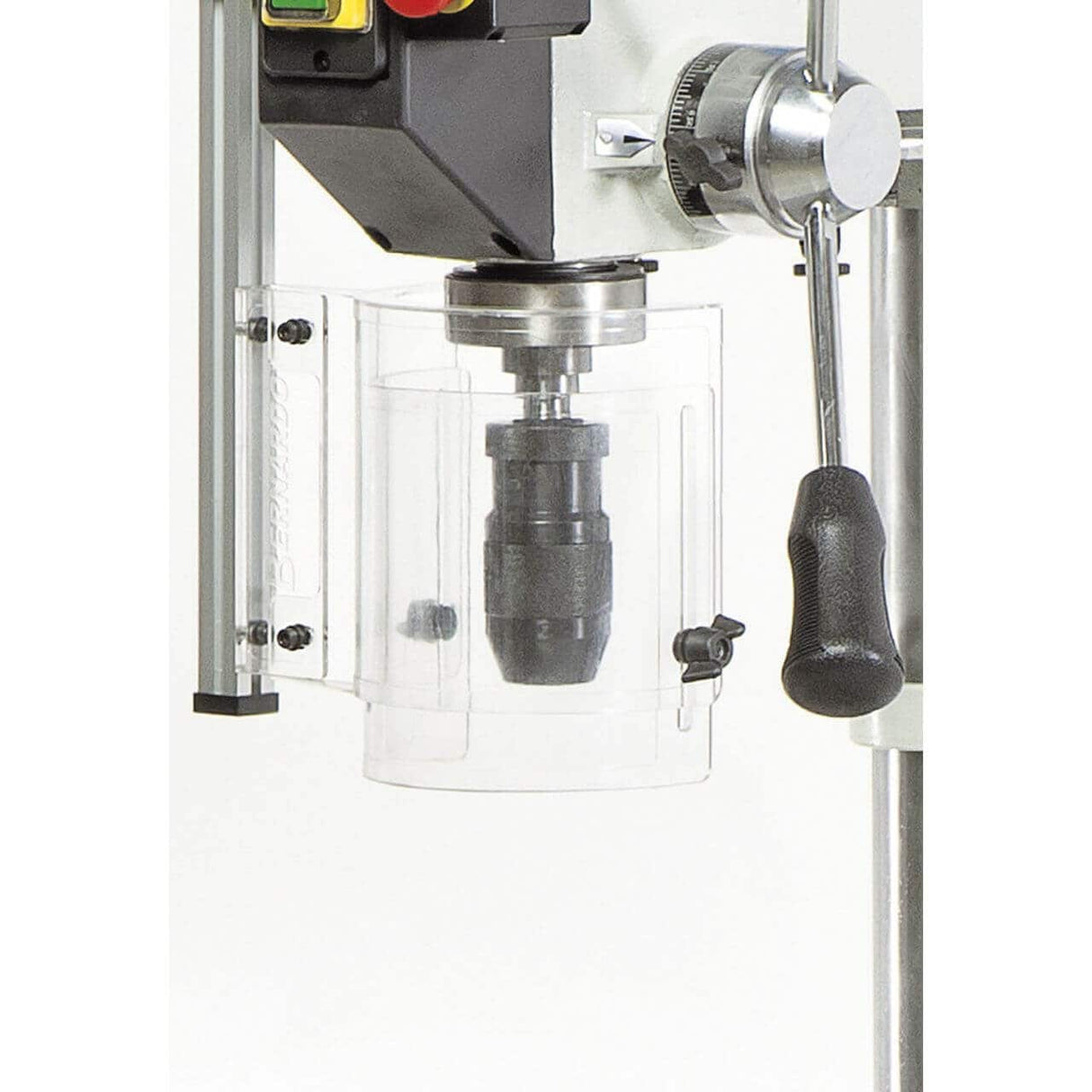

Precision keyless drill chuck included (1–16 mm / B18)
Cast iron base with polished T-slots for increased stability

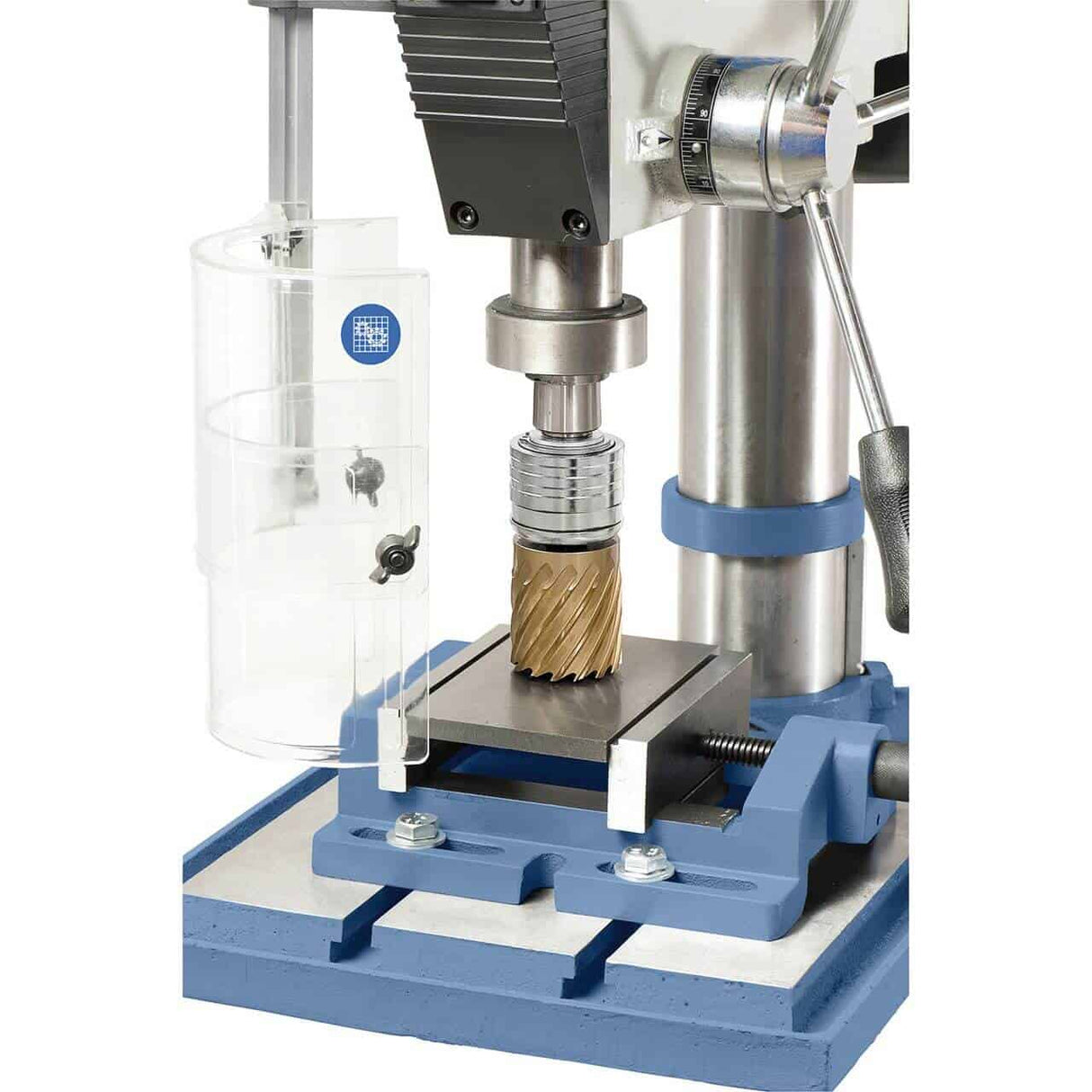

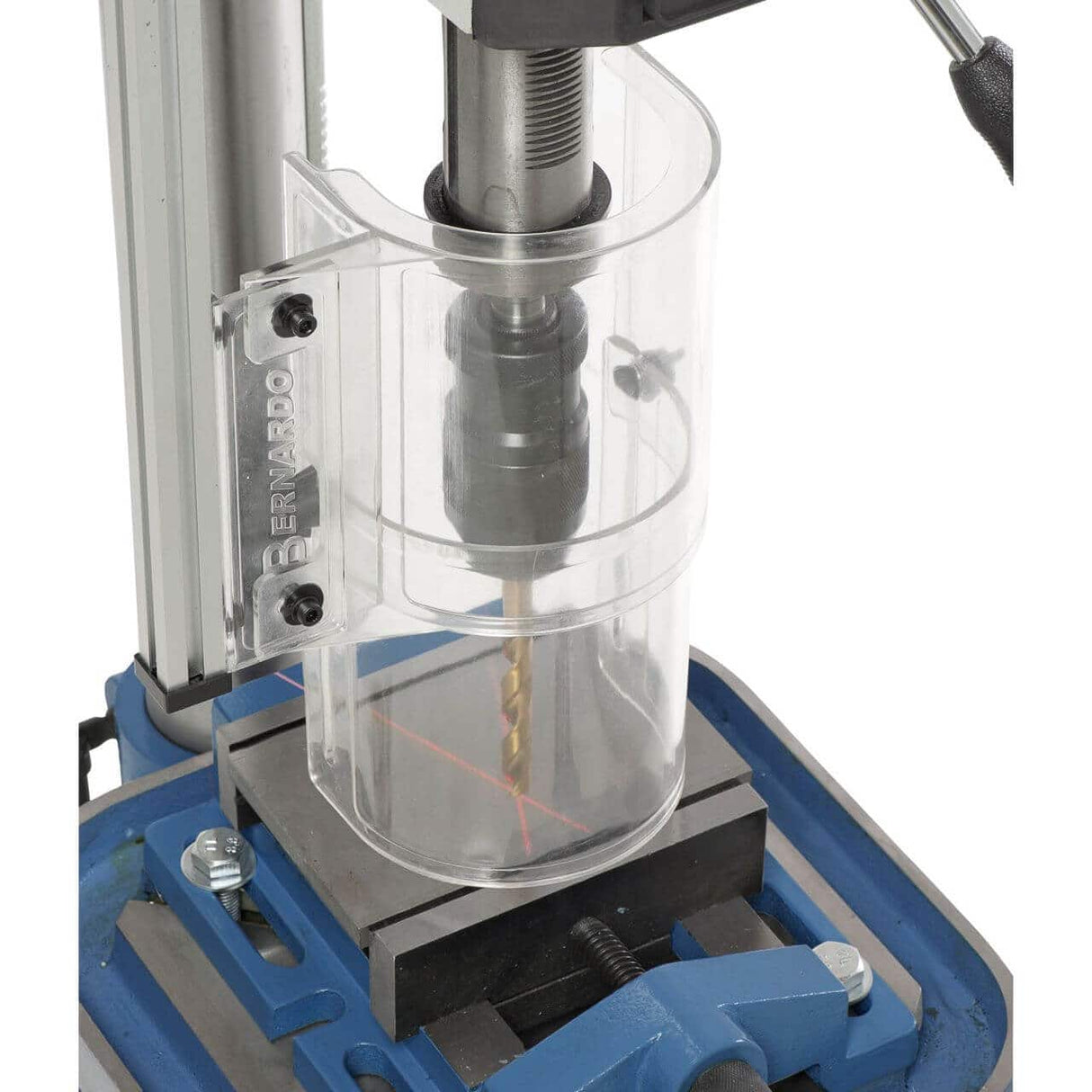

Adjustable guard with microswitch and separate emergency switch

Logistics

Bernardo shipping: 5–9 business days (7 days for Southern Italy). Original spare parts available with 3–5 business day shipping. Customer support available in Italian.

Technical specifications

Technical Specifications

Specification Value

Max. drilling capacity 25 mm

Drill chuck 1 – 16 mm / B18

Spindle taper MT 3

Spindle speed (12) 150 – 2450 rpm

Spindle to column distance 220 mm

Table tilt 360°

Max. spindle to table distance 765 mm

Spindle to base distance 1230 mm

Quill travel 120 mm

Column diameter 92 mm

Table size / T-slots 300 x 300 mm / 14 mm

Usable base area 290 x 270 mm

Motor power S1 100% 1.1 kW / 400 V

Motor power S6 40% 1.6 kW / 400 V

Machine dimensions (L x W x H) 450 x 750 x 1680 mm

Weight approx. 110 kg

Included equipment

Standard equipment

Keyless drill chuck 1–16 mm / B18
Drill arbor MT 3 / B18
Selector for right/left rotation
Integrated LED lamp
Cross laser device
T-nuts
Digital quill travel indicator
Height-adjustable guard with microswitch
Separate emergency switch

Why buy 400 V V-belt Pillar Drill BM 25 SB from Krollit

Purchasing the 400 V V-belt Pillar Drill BM 25 SB from Krollit means choosing not only a machine for metalworking hobbyists, but also concrete support before and after the purchase.
Krollit assists professionals, craftsmen, and workshops in choosing the most suitable machine, offering assistance, technical support, and spare parts management.

Warranty

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

FAQ / Frequently asked questions

Frequently Asked Questions

Belt-driven pillar drill vs. geared pillar drill: which to choose?

V-belt drills (like the Bernardo BM 25 SB) are quieter, less expensive, and have sufficient torque for drilling up to Ø 25 mm in standard steel. Geared drills (GB series) deliver higher torque at low speeds — necessary for deep boring, large diameter tapping, and drilling hard materials over Ø 30 mm. For standard drilling up to Ø 25 mm, belt drive is the correct choice.

Up to what diameter can the Bernardo BM 25 SB drill in steel?

Nominal capacity Ø 25 mm in S235 steel with HSS drill bit. In AISI 304 stainless steel, capacity is reduced by 30–40% — use specific drill bits for stainless steel and reduced speed with coolant. In aluminum, capacity increases by 30%. For holes over Ø 20 mm in steel, always use the lowest available speed and controlled manual feed.

How to choose the correct speed for the material?

Optimal peripheral speed: mild steel 15–25 m/min, stainless steel 8–15 m/min, aluminum 60–100 m/min, plastic 40–80 m/min. The formula: n (rpm) = (v × 1000) / (π × d). For Ø 10 mm drill bits in steel: 500–800 rpm. Too high a speed burns the cutting edge; too low causes vibrations and long chips that wrap around the drill bit. The belt drive allows selection of predefined speeds — choose the one closest to the calculated optimal speed.

400 V power supply: is a special system required?

400 V three-phase — requires an industrial electrical system. Check for three-phase power and the power of the electrical panel before purchasing.

Spare parts available?

Original spare parts available with 3–5 business day shipping. Customer support available in Italian.
