Bernardo Electric Beading Machine MSM 500 C

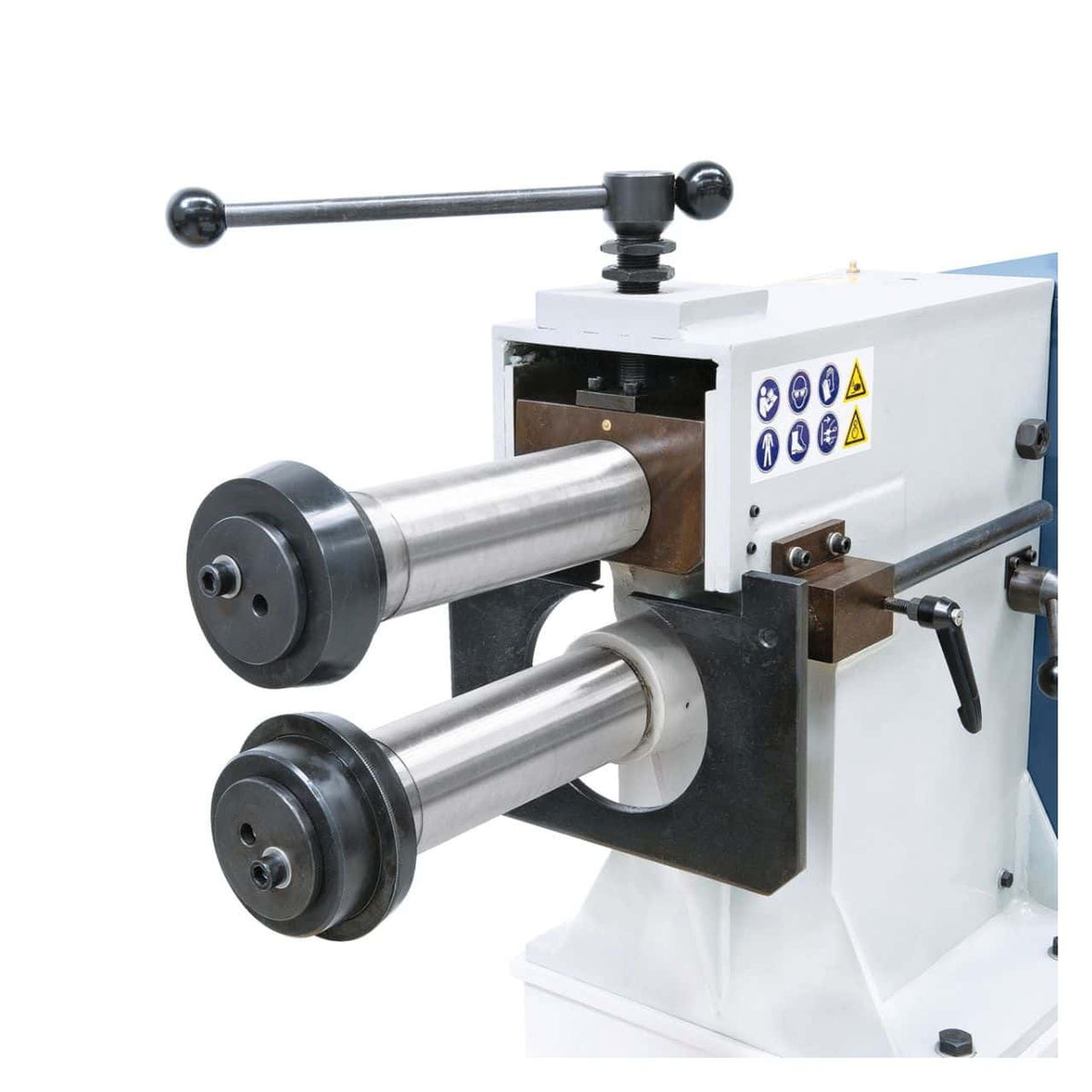

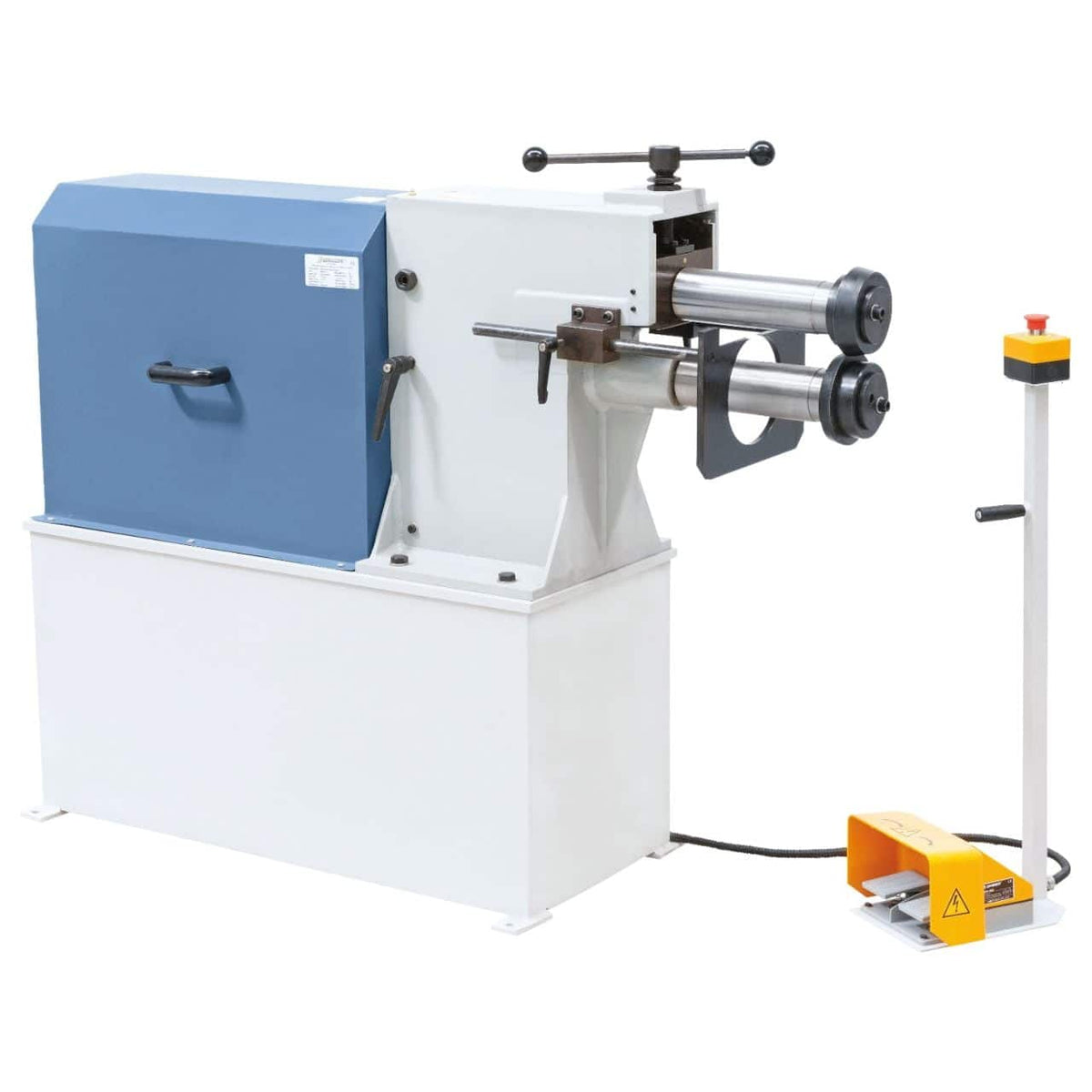

The Bernardo Electric Beading Machine MSM 500 C is a professional, high-performance machine for beading and flanging thick sheet metal. With a capacity of up to 4.0 mm thickness (400 N/mm² steel) and a working depth of 330 mm, it is the choice for workshops and companies that require power and precision. The 80 mm diameter shafts and 135 mm roller distance guarantee maximum robustness. The machine is equipped with a 2.2 kW / 400 V motor, which ensures a constant speed of 15 rpm via a geared motor with brake. Included in the scope of delivery: 4 pairs of beading and flanging rollers, foot pedal with emergency stop, adjustable workpiece stop, and roller wrench. With a weight of 320 kg, it is built to withstand continuous use and guarantee professional results.

---

Main Specifications

• Sheet metal capacity up to 4.0 mm (400 N/mm² steel)
• Working depth 330 mm (with stop)
• Robust shafts Ø 80 mm – roller center distance 135 mm
• 2.2 kW – 400 V motor with gearbox and brake
• Constant speed: 15 rpm

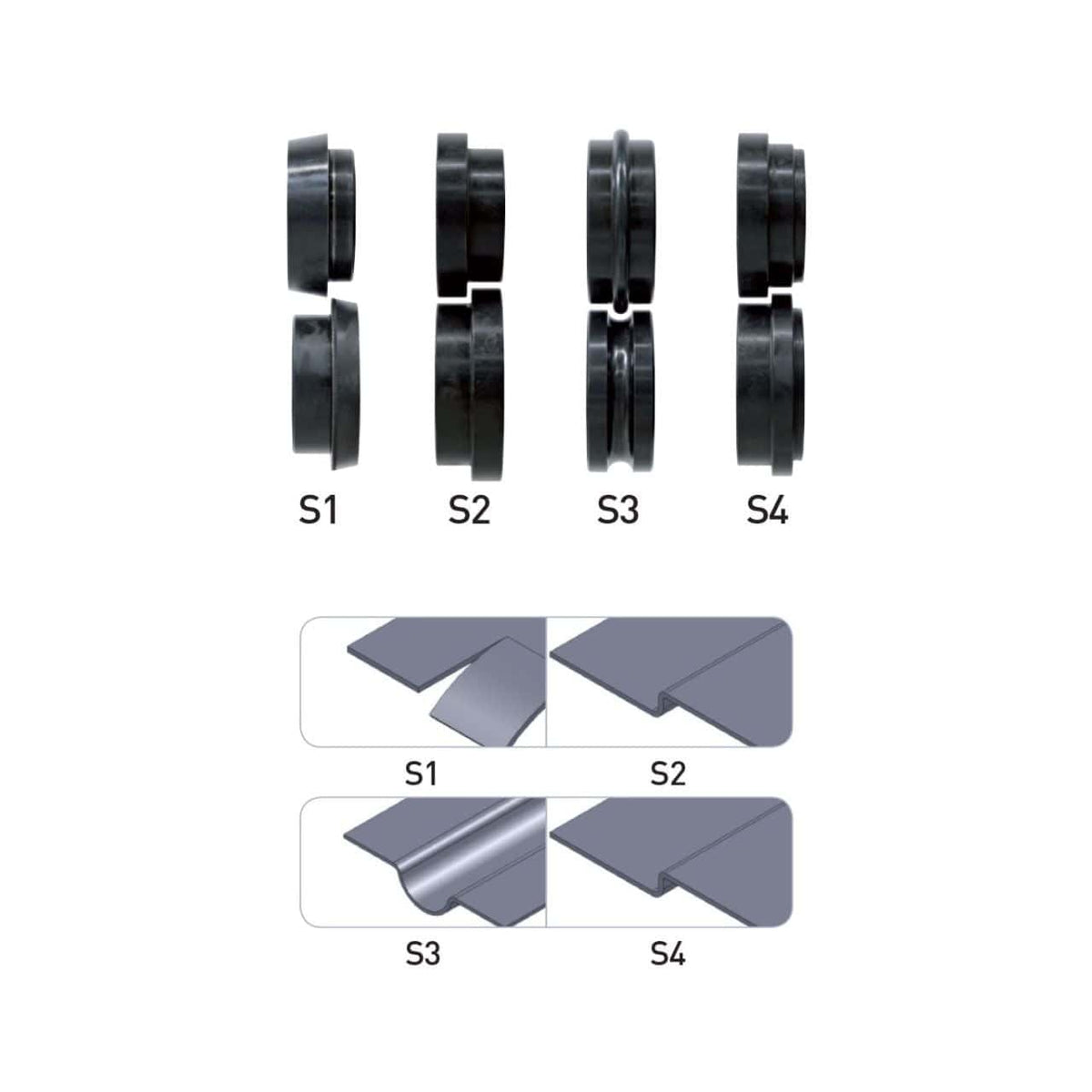

• 4 pairs of beading and flanging rollers included
• Foot pedal with emergency stop for safety
• Heavy and stable construction (320 kg) for intensive professional use

---

Package contents:
• 4 pairs of beading and flanging rollers
• Foot pedal with emergency stop
• Geared motor with brake

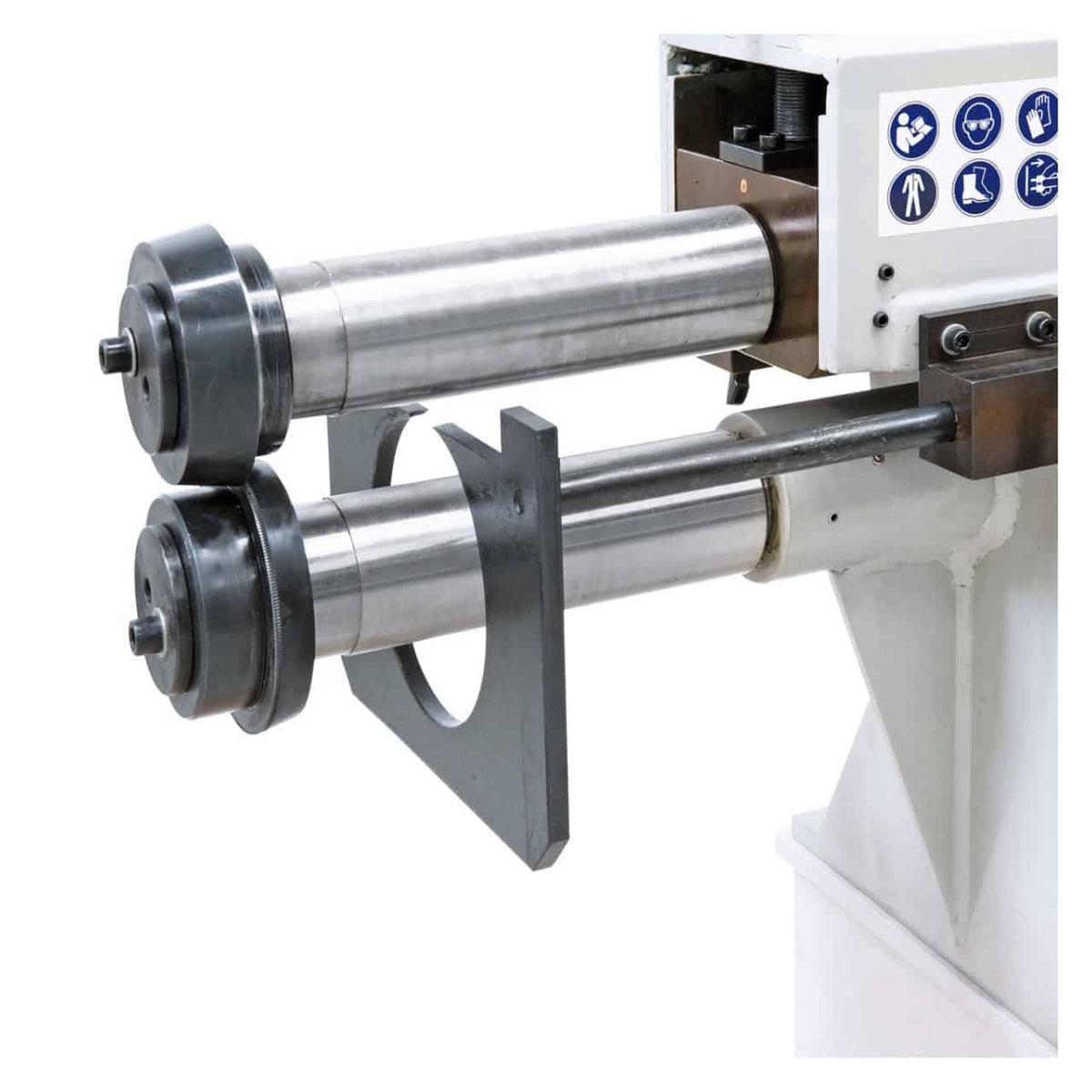

• Adjustable workpiece stop
• Roller wrench

Logistics

Bernardo Shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support in Italian available.

---

Technical table:

Specification	Value
Brand	Bernardo
Model	MSM 500 C
Max. sheet thickness (400 N/mm²)	4.0 mm
Roller center distance	135 mm
Working depth	330 mm (with stop)
Shaft diameter	80 mm
Speed	15 rpm
Motor power	2.2 kW / 400 V
Dimensions (D x W x H)	1550 x 510 x 1200 mm
Weight	approx. 320 kg

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

Frequently asked questions

What is the difference between an MSM sheet metal beading machine and a DR/EBM wood beading machine?

MSM (250, 300, 400, 500 C) beading machines are for metal sheet beading: they create a folded edge on cut sheet metal edges to eliminate sharp edges and stiffen the panel. DR/EBM/PEB beading machines are for wood: they apply PVC, ABS or wood edges to particleboard and MDF panels. Completely different operation — not interchangeable.

What sheet metal thicknesses does the MSM series process?

Bernardo MSM beading machines typically process steel sheet metal up to 1.0–1.5 mm, aluminum up to 2.0 mm. Check the specific limits in the model's technical table. For thicker sheets, hydraulic beading machines or press brakes are needed.

Is the MSM C beading machine manual or motorized?

The C suffix indicates a version with motorized feed — the sheet metal is automatically pulled through the beading rollers at an adjustable speed. The SM 180 S, SM 200, SM 470 versions are manual: the operator guides the sheet through the rollers by hand.

Are spare parts available?

Original spare parts available with 3–5 business days shipping. Customer support in Italian available.

Is assistance available?

Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
