Bernardo Manual Beading Machine SM 250 T

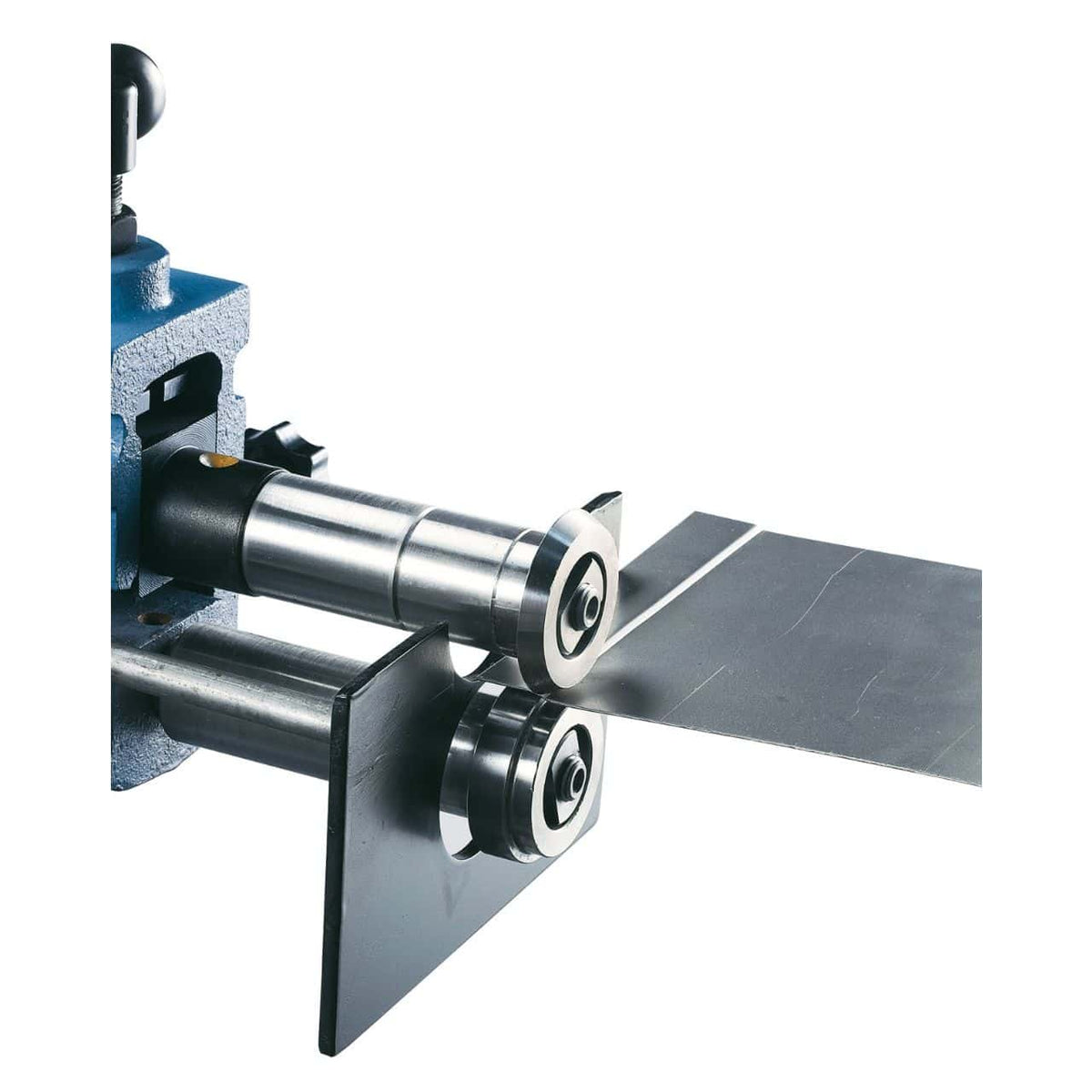

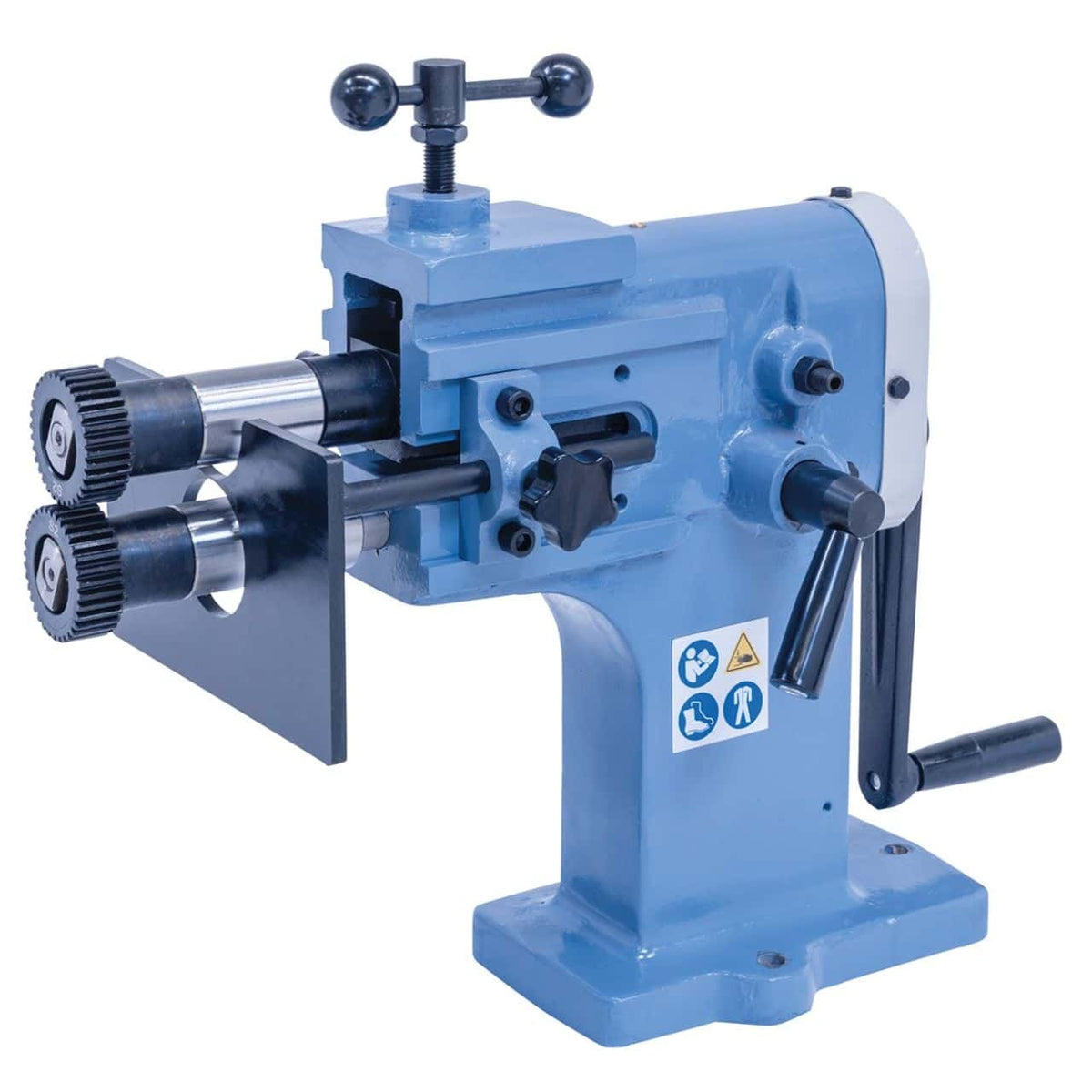

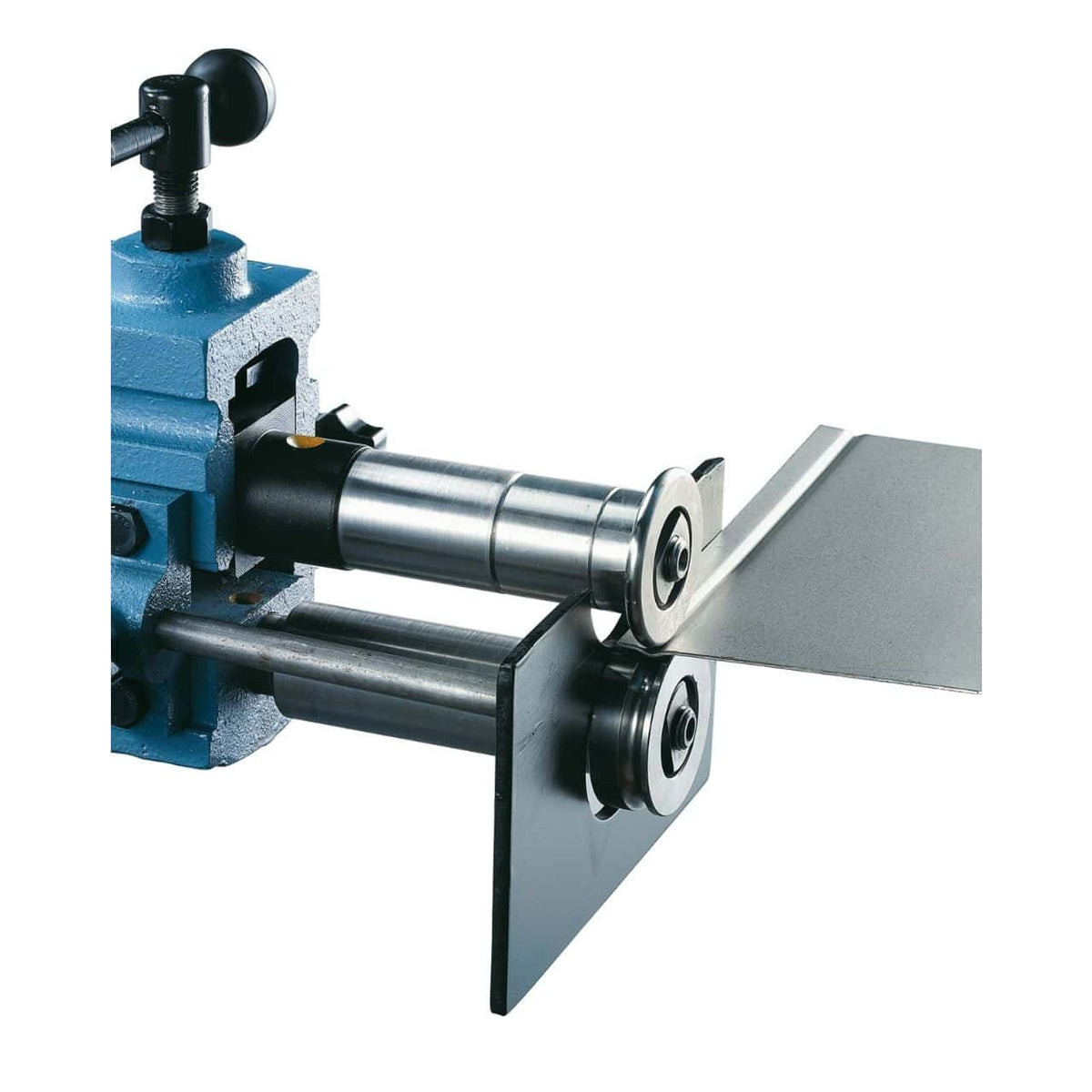

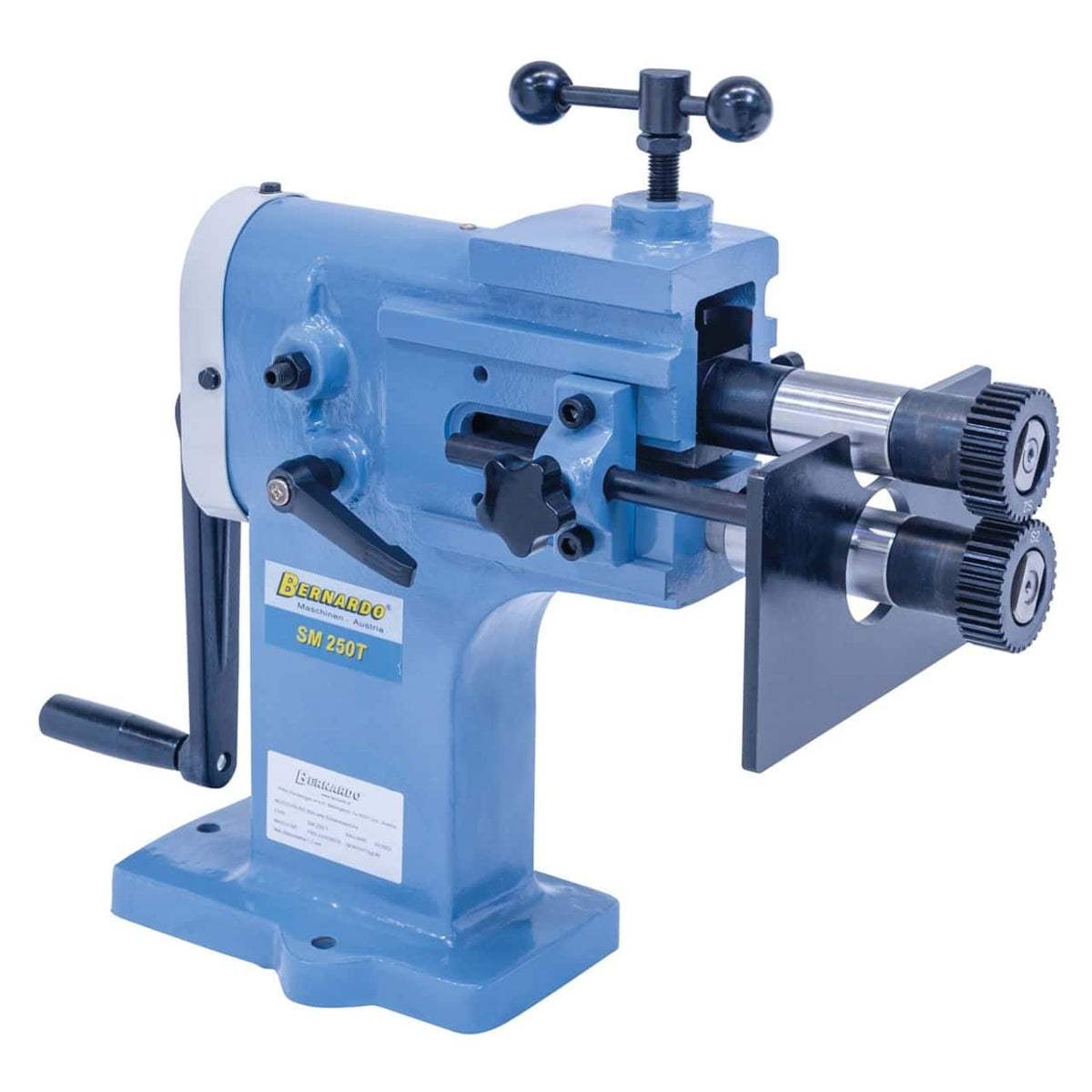

The Bernardo Manual Beading Machine SM 250 T is a robust and precise machine, designed for the economical processing of edges and ribs on sheet metal. Thanks to the 4 pairs of rollers included, different types of swaging and beading can be performed quickly. The rollers are mounted on precision-bearing shafts, ensuring high accuracy and long life. The lower shaft is equipped with an adjustable stop, while the upper one is adjustable to expand machining possibilities. The stable cast iron construction gives the machine solidity and reliability. Furthermore, with the addition of 8 optional pairs of rollers, the user can significantly extend the range of applications. A suitable solution for light carpentry workshops, craft work, and the production of sheet metal parts.
Main specifications
Manual sheet metal beading machine with cast iron structure
4 pairs of rollers for edges and ribs included
Precision guaranteed by shafts mounted on bearings

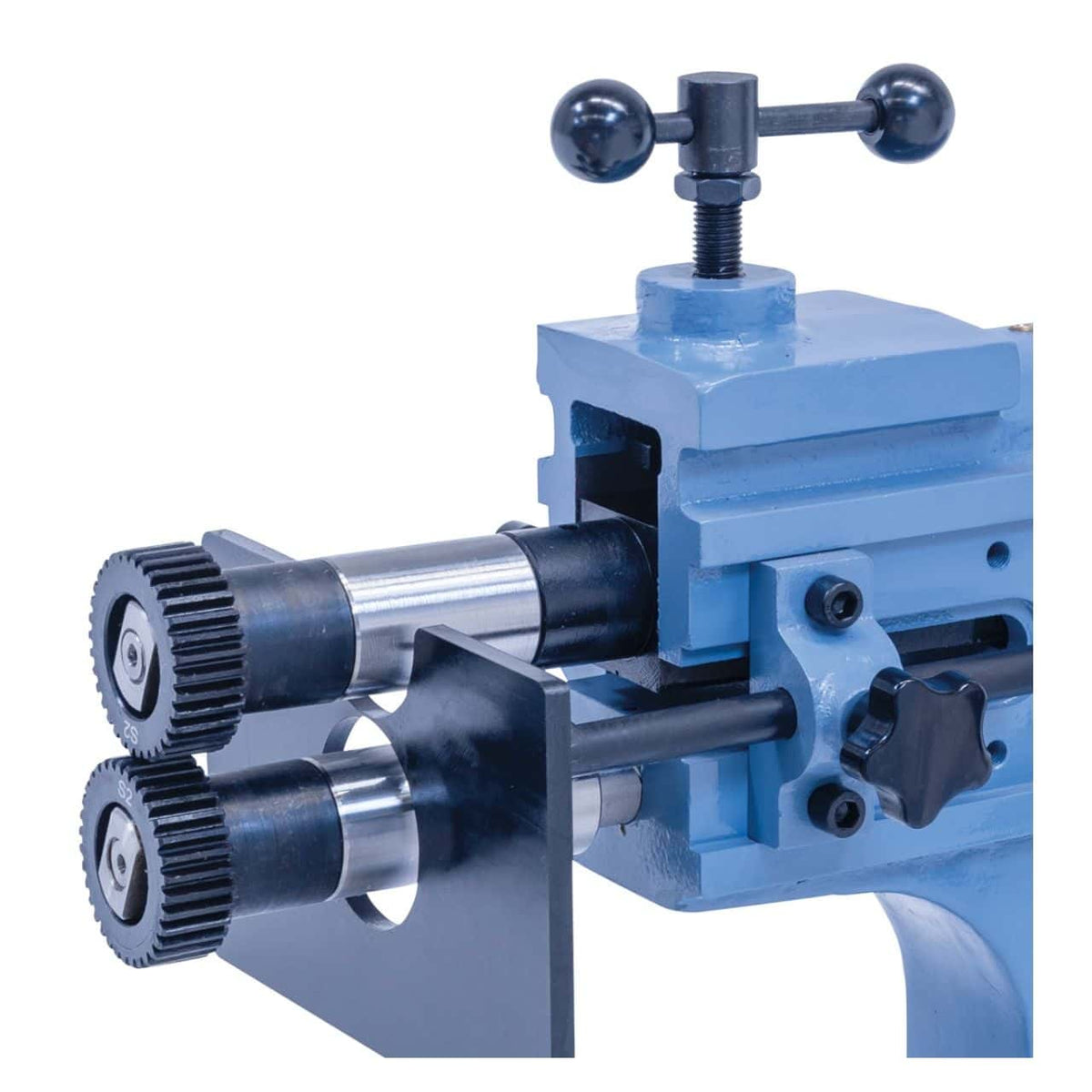

Lower shaft with adjustable stop
Adjustable upper shaft to expand machining possibilities
Compatible with 8 optional pairs of rollers for special uses
Robust construction, easy to use
Technical table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
SM 250 T |
| Type |
Manual beading machine |
| Rollers included |
4 pairs (swaging and beading) |
| Optional rollers |
8 pairs available separately |
| Adjustments |
Adjustable upper shaft, lower stop |
| Structure |
Stable cast iron |
| Applications |
Beading, ribbing and profiles on sheet metal |
Package contents:

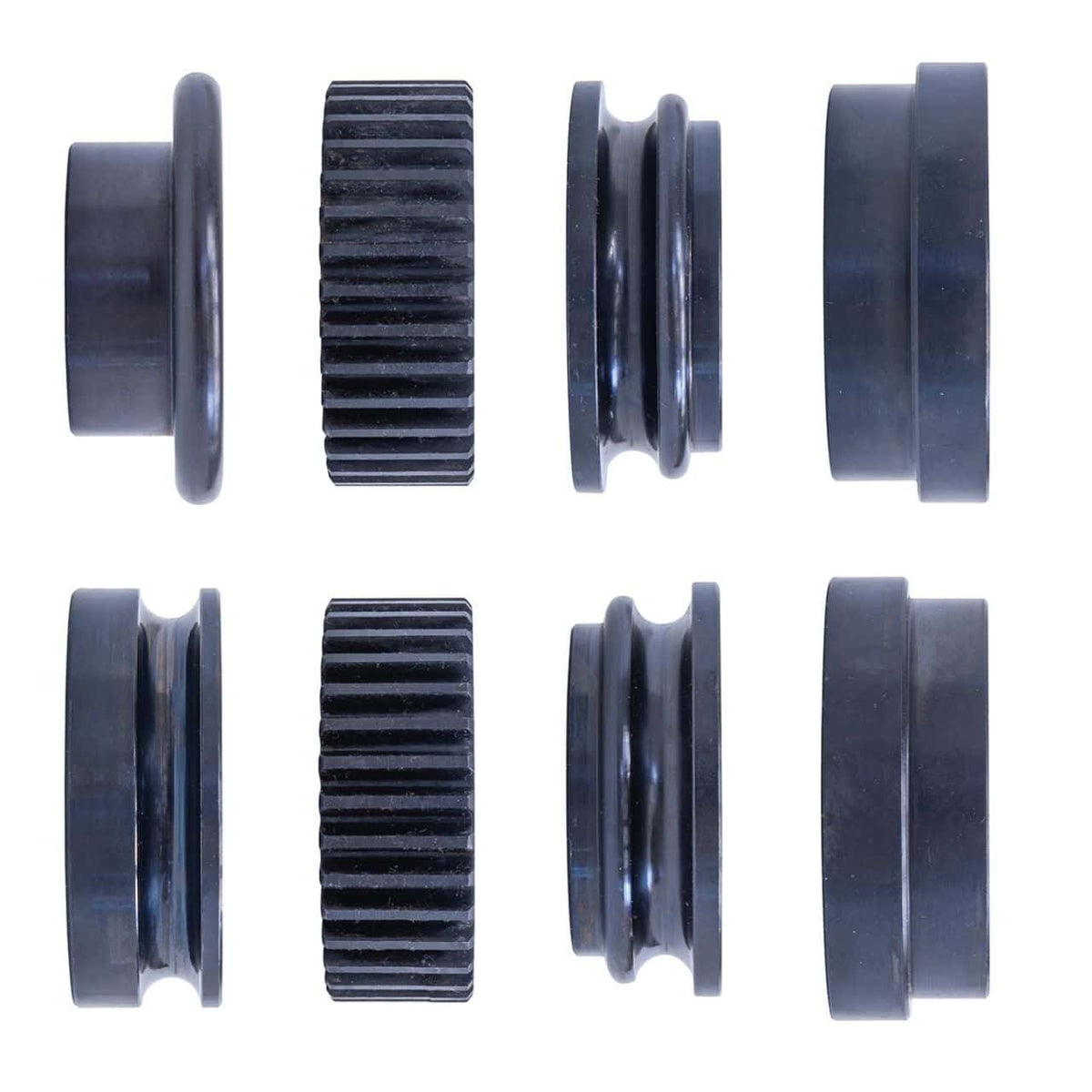

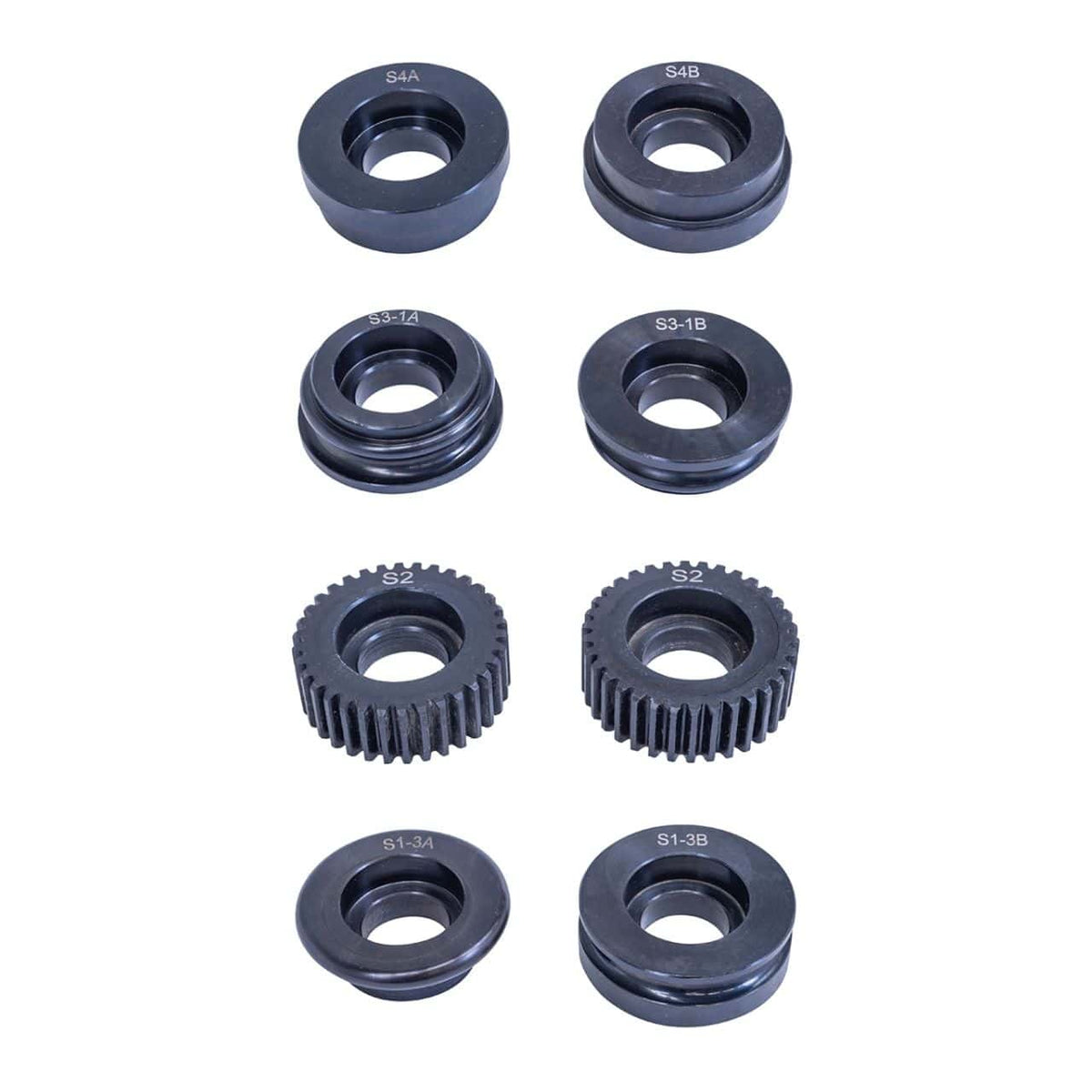

4 pairs of rollers for beading and ribbing
Stop for workpieces
Roller wrench
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer assistance in Italian available.
Frequently asked questions
What is the difference between the SM 250 T and the DR/EBM/PEB series wood edgebanders?
The SM 250 T is a metal sheet beading machine — it forms ribs and edges on steel, aluminum, and copper sheet metal using 4 pairs of interchangeable shaped rollers. The DR, EBM, and PEB edgebanders are for wood and panels: they apply PVC, ABS, or wood edges to chipboard and MDF panels with hot-melt glue. Completely different operation — not interchangeable for material.

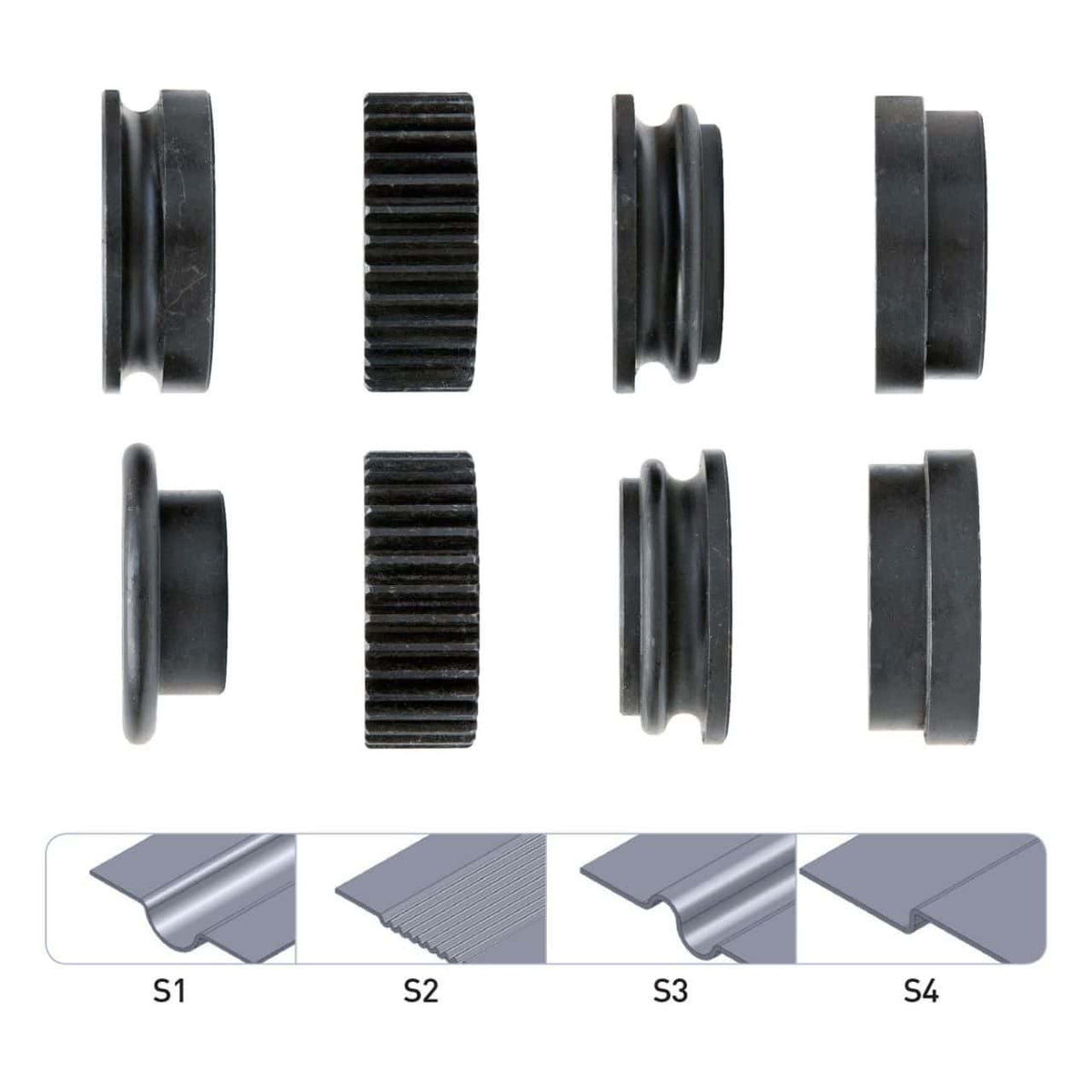

What types of profiles can be created with the 4 pairs of rollers included?
The 4 pairs of rollers included as standard allow for: rolled edges (reinforce cut sheet metal edges, eliminating sharp corners), ribbed edges (stiffen thin panels), grooves, and decorative profiles. Each pair of rollers produces a specific shape — they can be mounted and dismounted with a wrench without special tools.
What sheet metal thicknesses can the SM 250 T work on?
Please check the thickness limits in the model's technical table. Manual sheet metal beading machines of the SM series typically work on mild steel up to 0.8–1.2 mm, aluminum up to 1.5 mm. Thicker sheets require hydraulic beading machines. Customer assistance in Italian available.
Are spare parts and additional rollers available?
Original spare parts available with 3–5 working days shipping. Customer assistance in Italian available.
