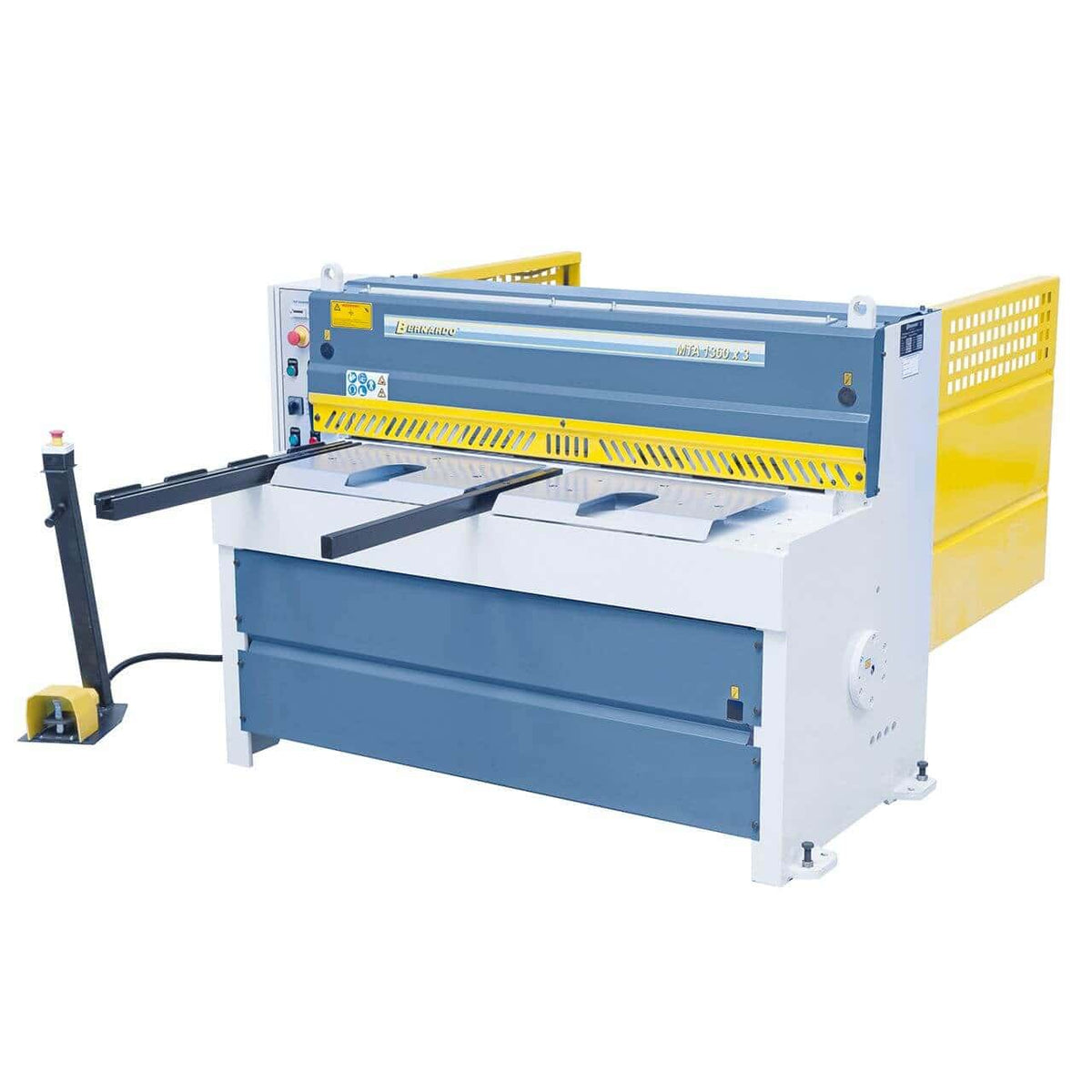

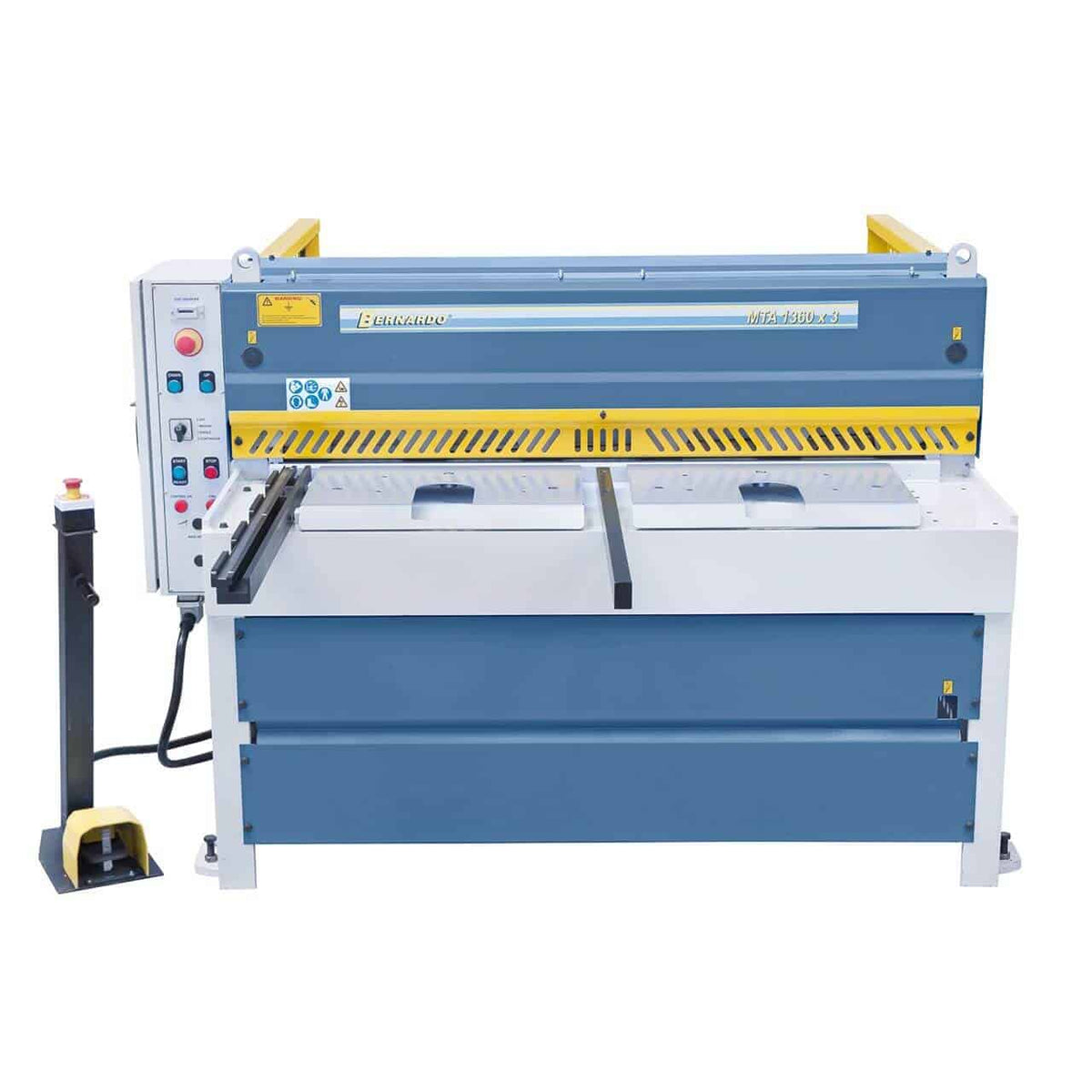

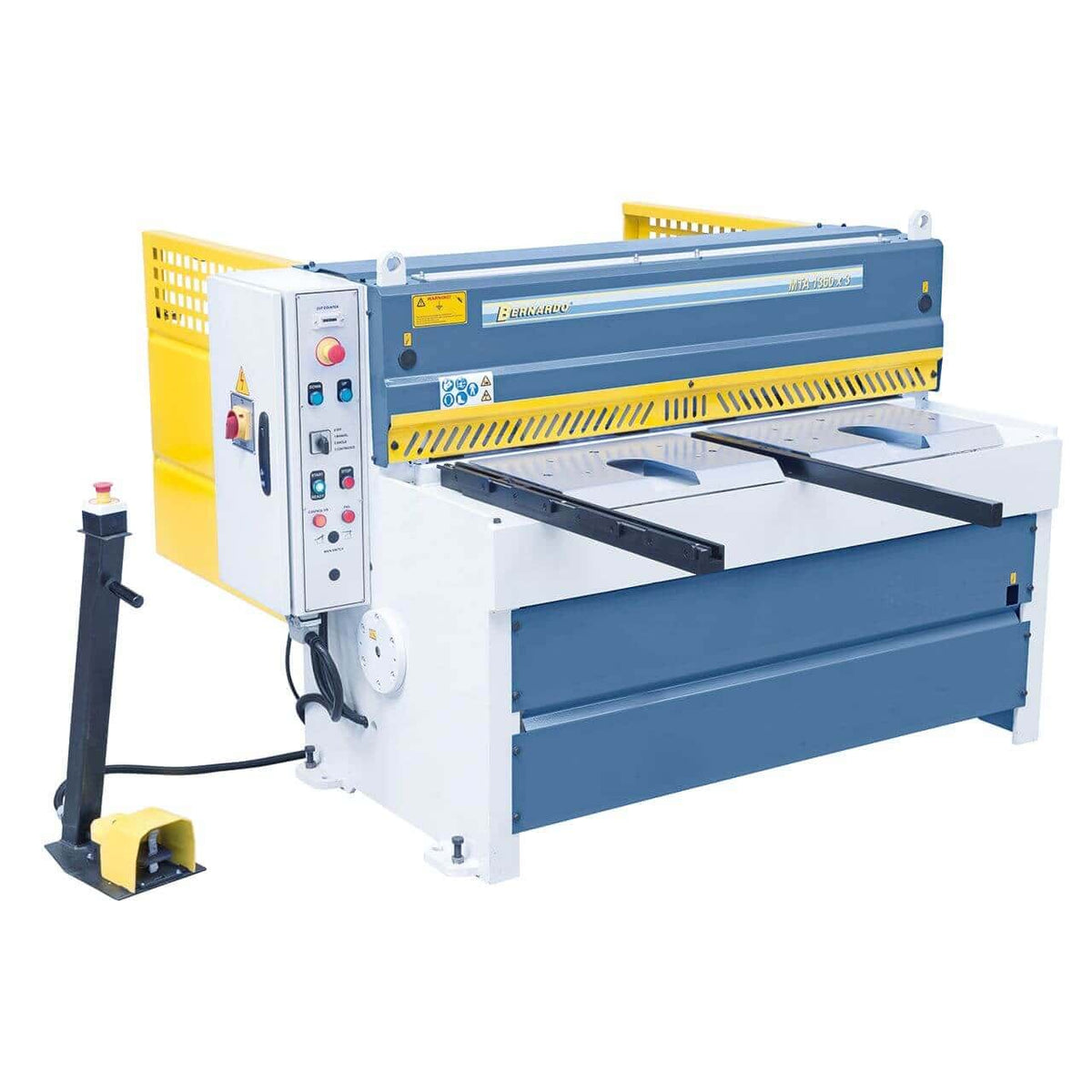

Bernardo MTA 1360 x 3 mm – Motorized Guillotine Shear
The Bernardo MTA 1360 x 3 mm is a motorized guillotine shear designed for professional cutting of steel, brass, aluminum, and copper sheets up to 3 mm thick. With a cutting length of 1360 mm and a cutting angle of 2°30’, it ensures precision and clean surfaces thanks to professional-grade double-edged steel blades. The quick adjustment of the backgauge up to 750 mm via handwheel and the work table with integrated rollers guarantee practicality even when handling large pieces. The machine is equipped with high safety standards, thanks to rear photocell guards and a foot pedal with emergency stop. With a robust welded steel construction and integrated cutting line illumination, the MTA 1360 x 3 mm combines efficiency, reliability, and operating comfort, making it ideal for workshops and industries that require a professional and durable shear.
Key Features:
1360 mm cutting length for professional work
Cutting capacity up to 3 mm thickness (400 N/mm²)
2°30’ cutting angle for precise, burr-free results
Double-edged upper and lower blades made of quality steel

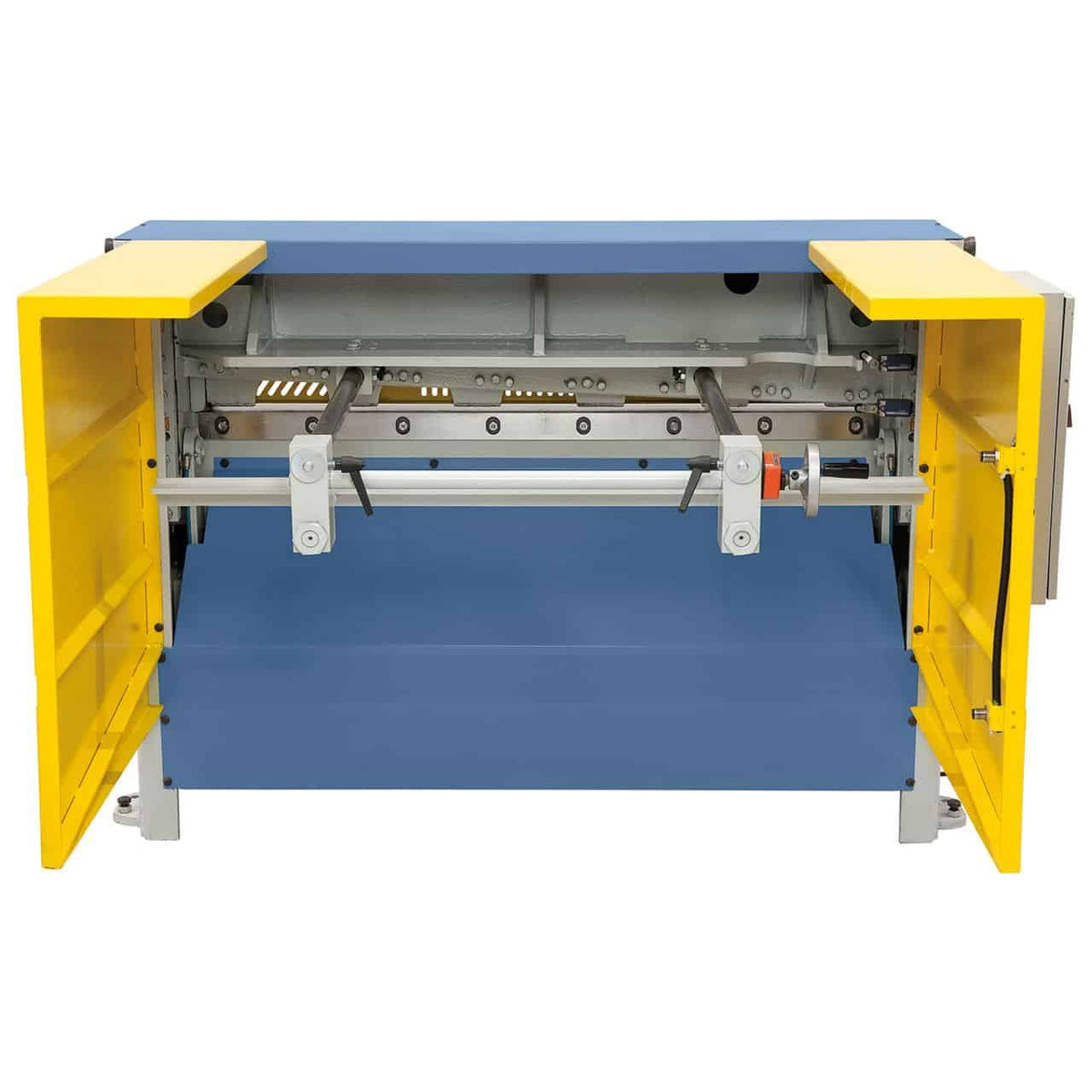

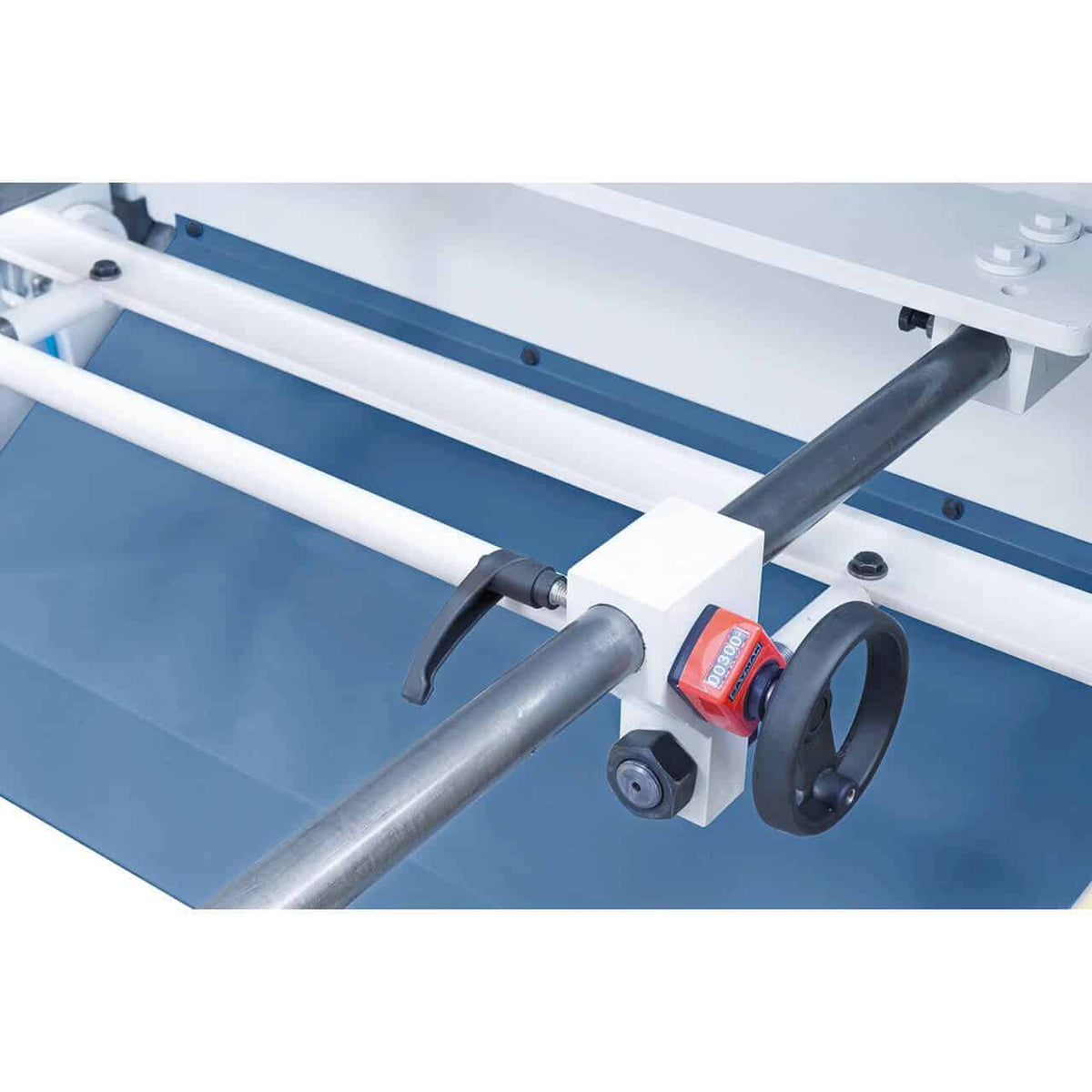

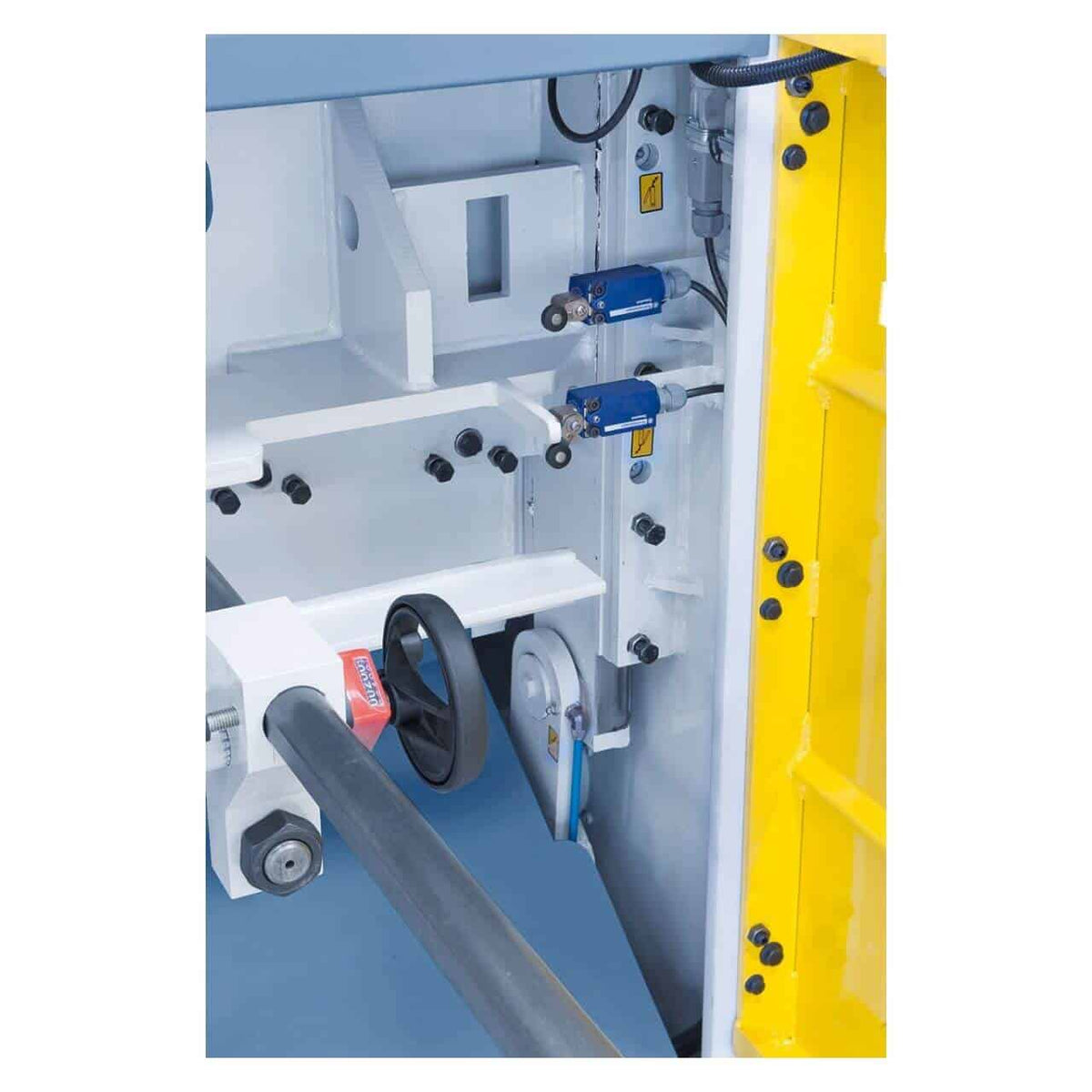

Backgauge adjustable up to 750 mm with handwheel
Cutting line illumination for optimal precision

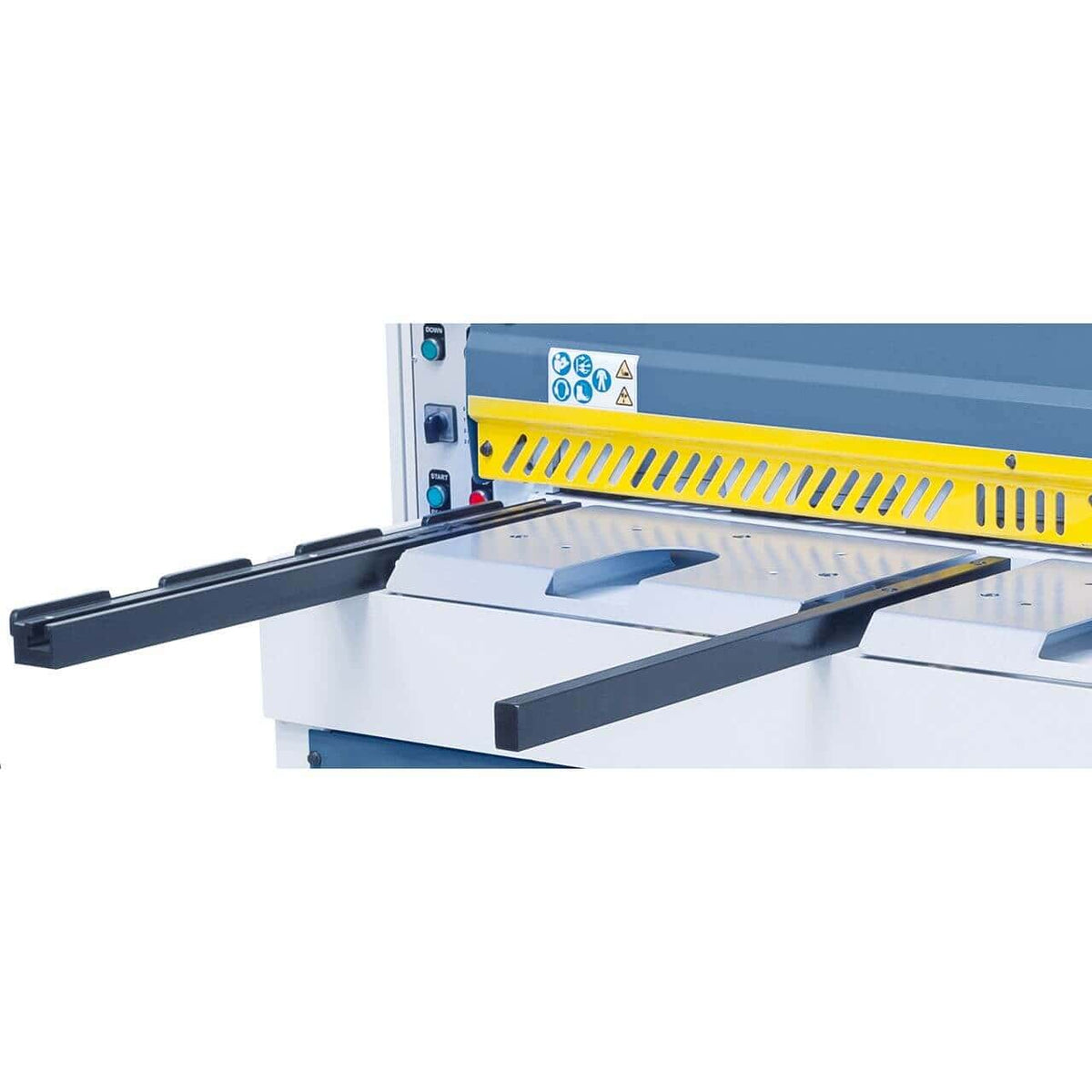

Table with integrated rollers, perfect for large sheets

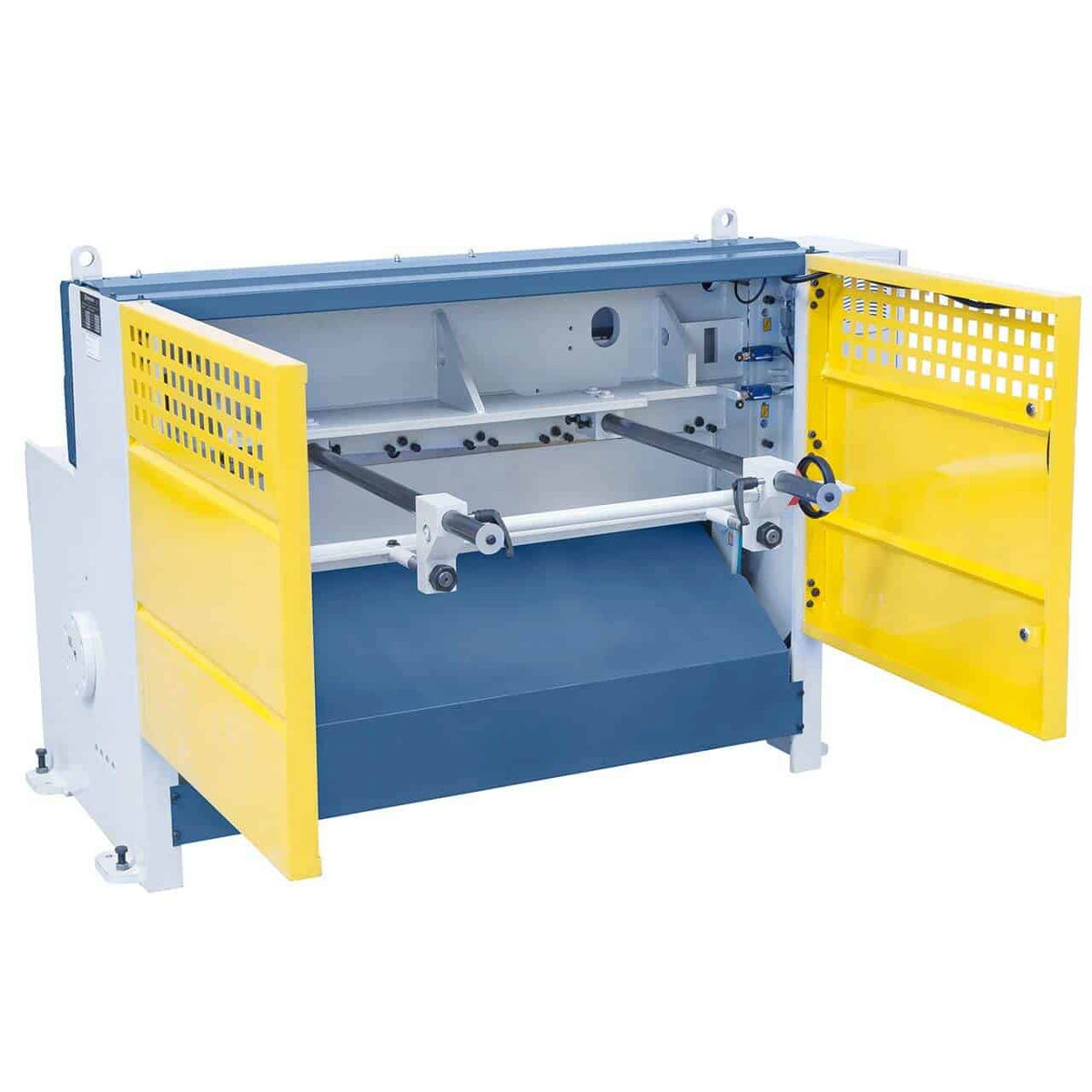

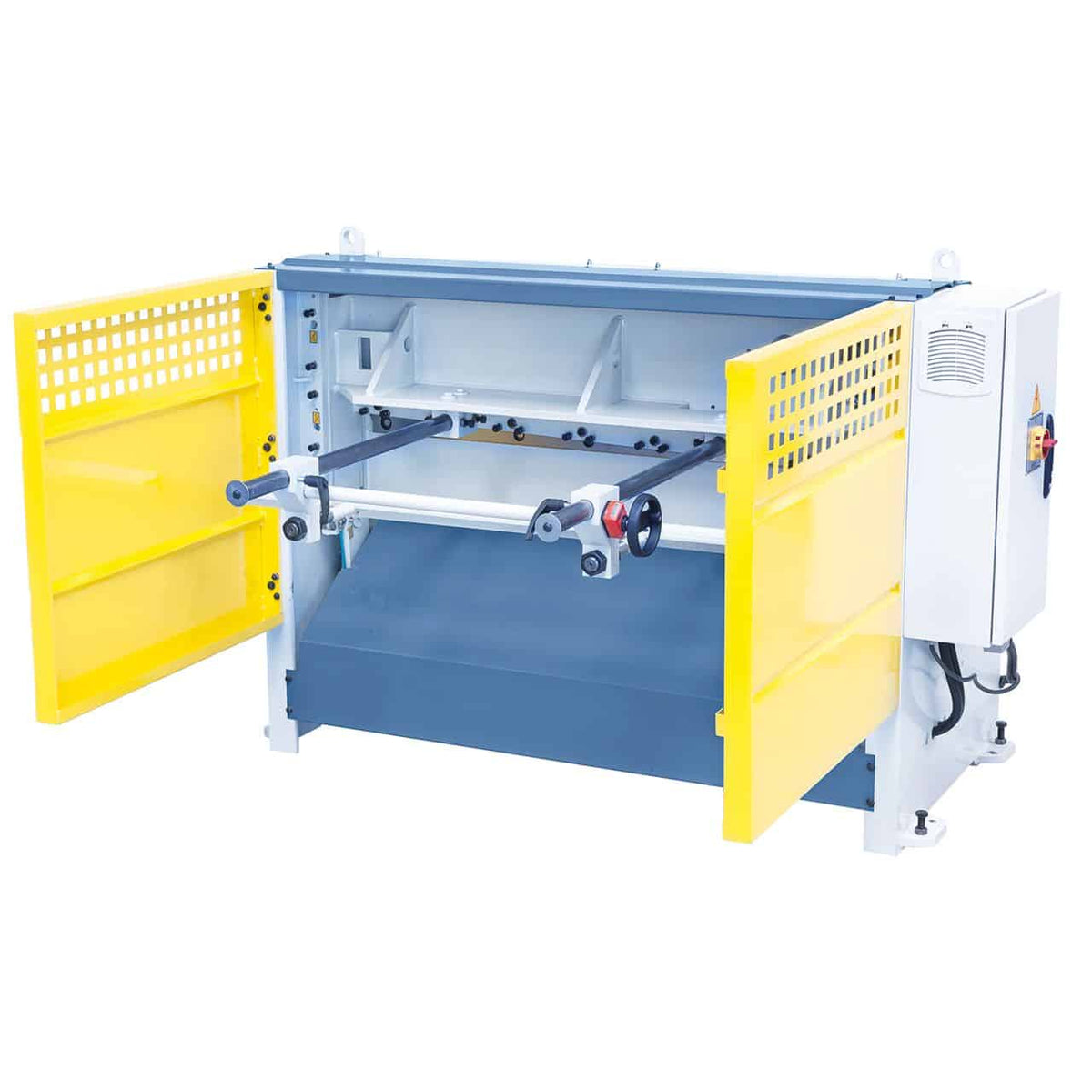

Rear guards with photocells and foot pedal with emergency stop
Robust steel structure for stable and torsion-free operation
Technical Specifications
| Specification |
Value |
| Brand |
Bernardo |
| Model |
MTA 1360 x 3 mm |
| Type |
Motorized guillotine shear |
| Cutting length |
1360 mm |
| Max sheet thickness* |
3 mm |
| Cutting angle |
2°30’ |
| Strokes per minute |
31 |
| Working height |
810 mm |
| Backgauge |
0 – 750 mm |
| Table width |
390 mm |
| Motor power |
3.0 kW |
| Dimensions (L x W x H) |
1930 x 2100 x 1260 mm |
| Weight |
1215 kg |
| *Base material |
400 N/mm² |
Standard equipment
Bernardo MTA 1360 x 3 mm guillotine shear

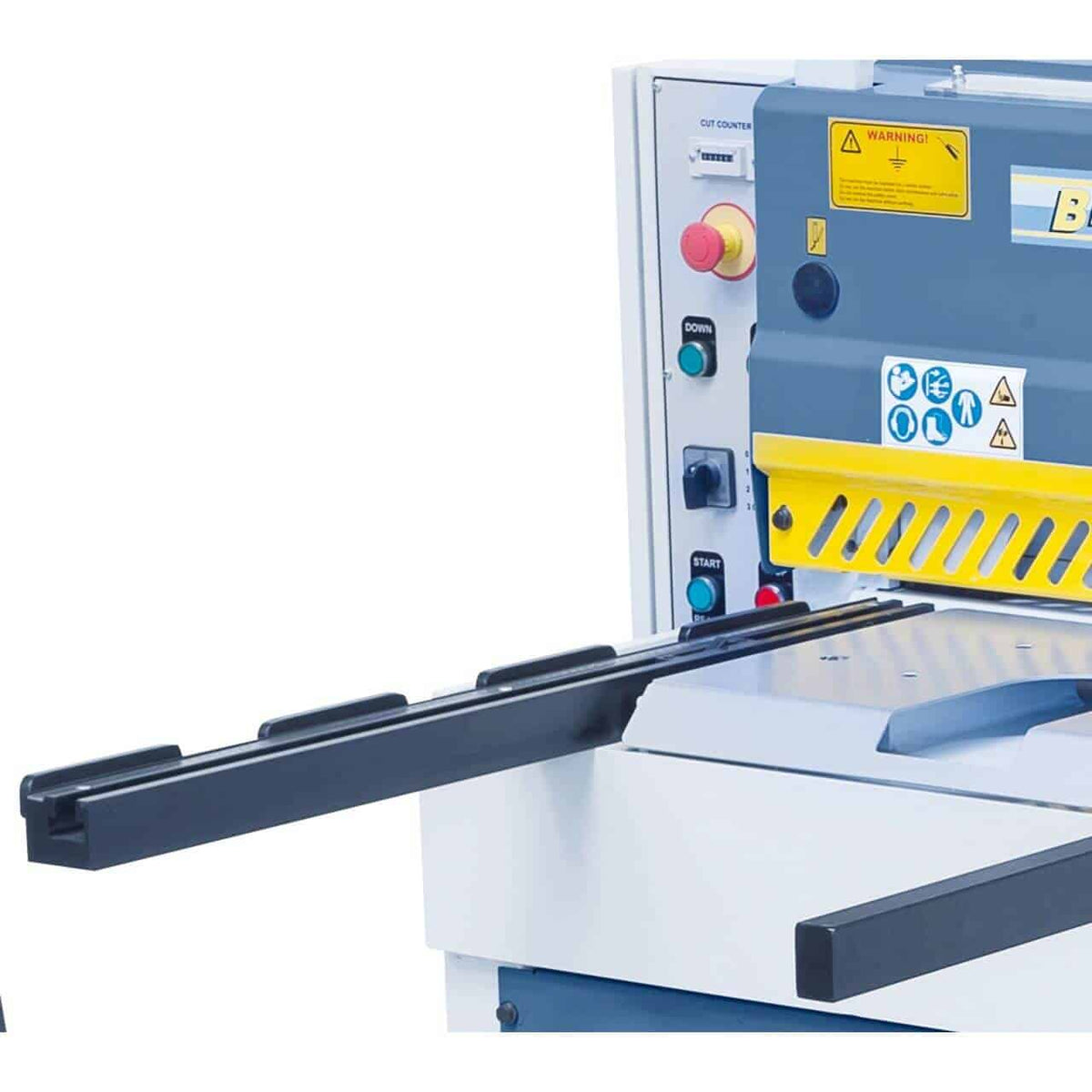

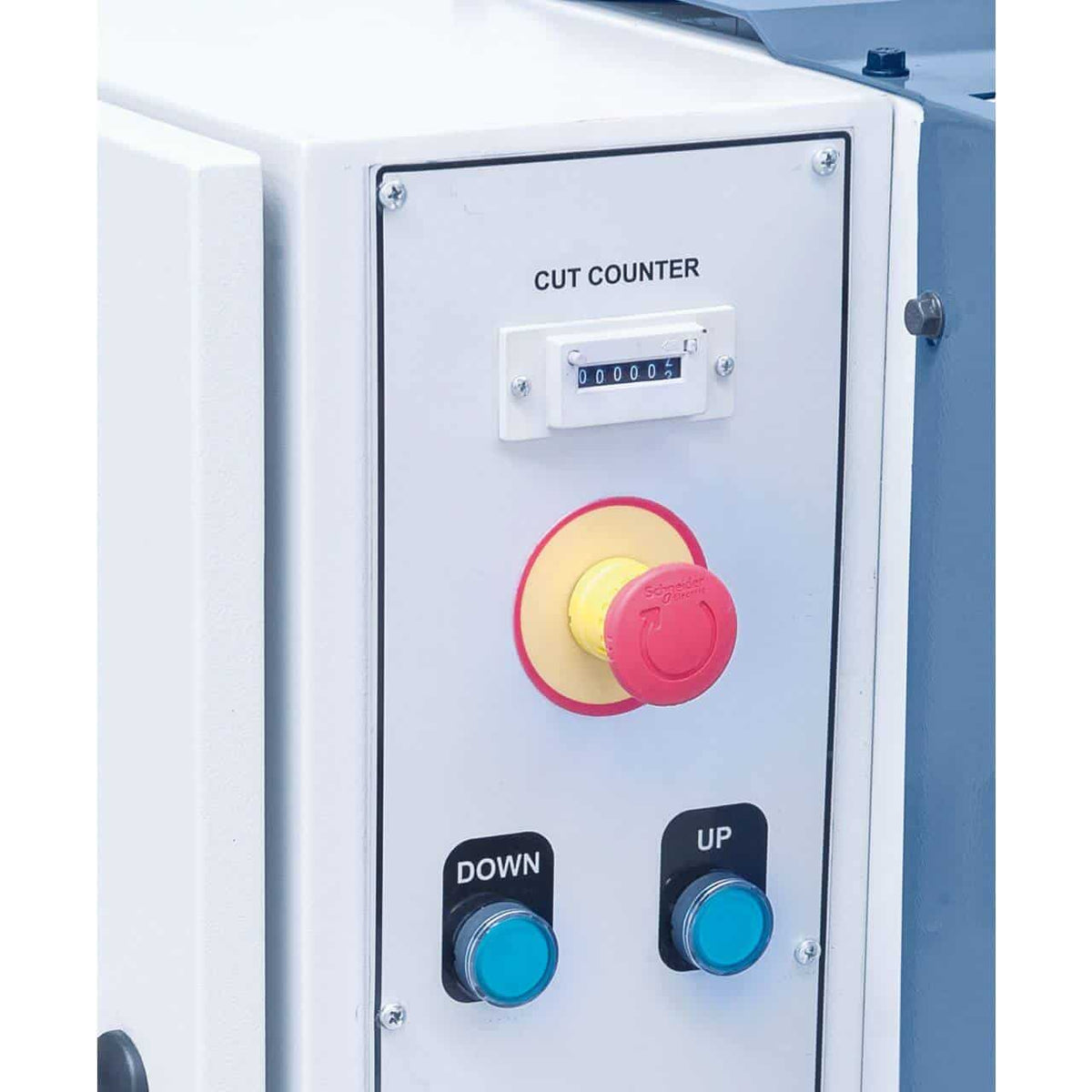

Cut counter
Cutting line illumination
Manual backgauge
Front sheet support
Table with integrated rollers

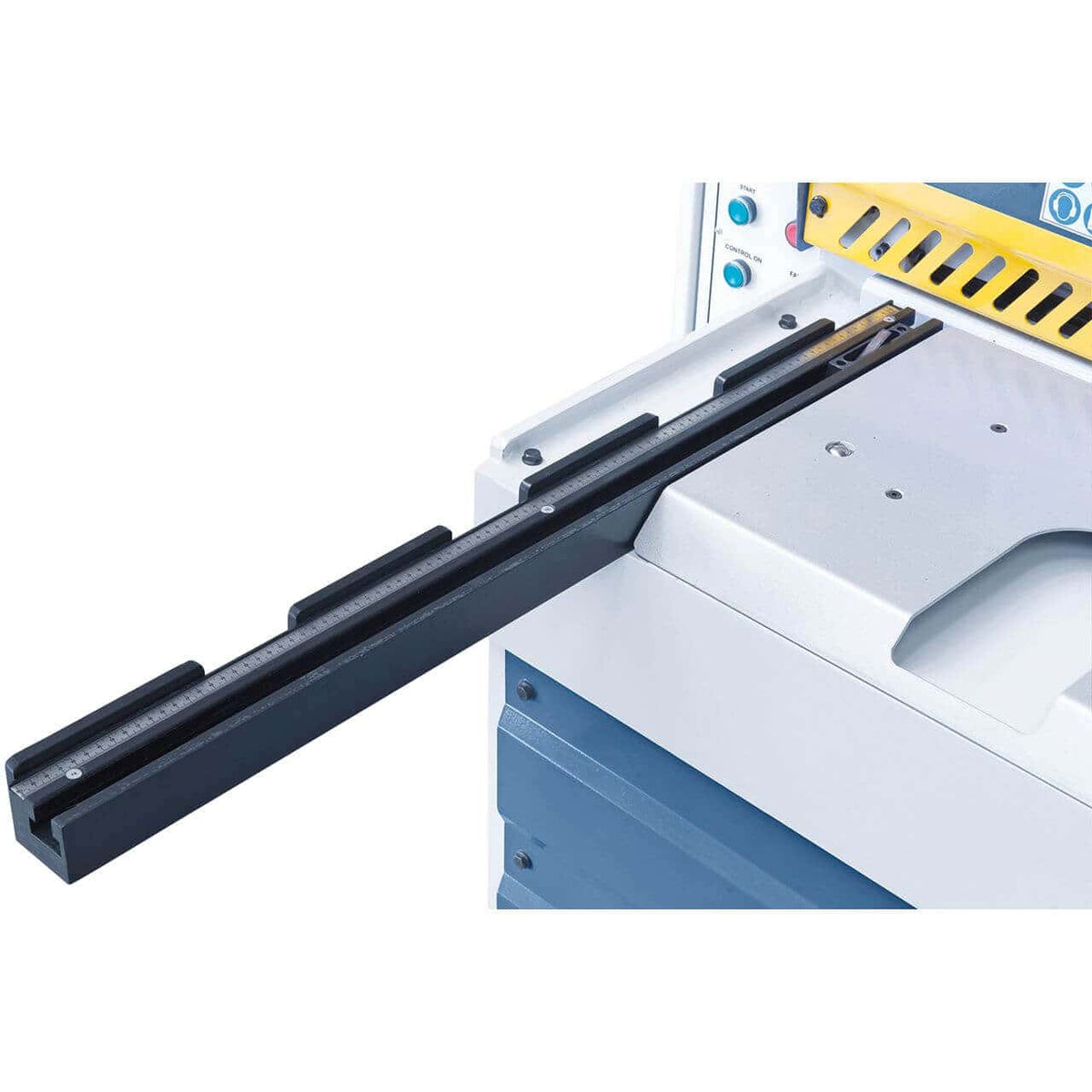

Side guide ruler
Rear guard with photocells

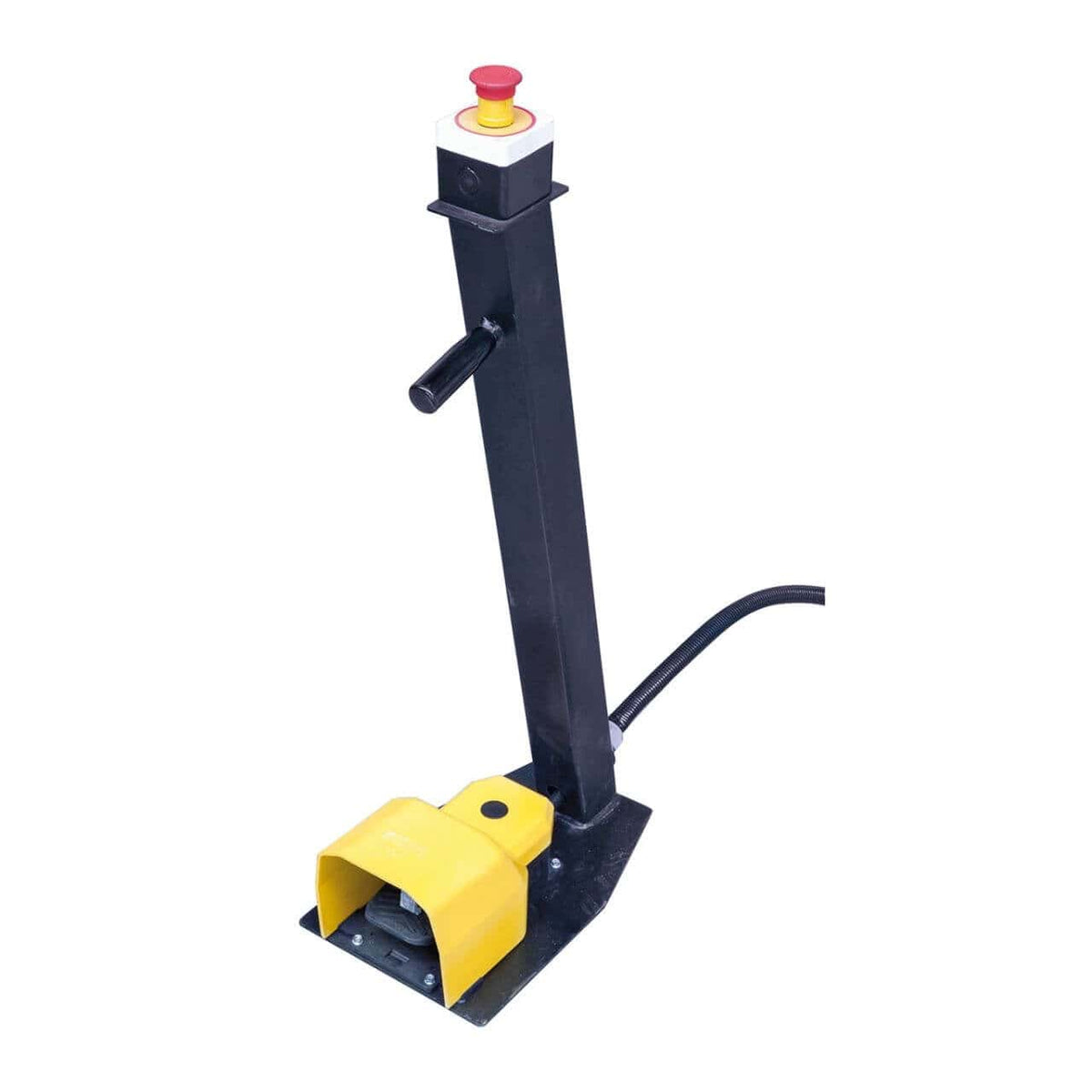

Foot pedal with emergency stop
Tool steel blades
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business day shipping. Customer support available in Italian.
Frequently Asked Questions
What is the difference between MTA, MTE, and MTR series?
MTA: manual structure without NC motorization, for low-volume artisanal production. MTE: motorized with NC, standard welded structure. MTR: motorized with NC and pneumatic sheet support to facilitate positioning of heavy or long sheets. The choice depends on production volume and sheet format.
What is the maximum thickness for stainless steel with the Bernardo MTA 1360 x 3 mm – Guillotine Shear?
The nominal thickness of 3 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approx. 2.0 mm). Always check with Krollit for specific high-strength materials.
Are the blades reversible?
Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades available with 3–5 business day shipping.
Are assistance and spare parts available in Italian?
Original spare parts available with 3–5 business day shipping. Customer support available in Italian.
How much space is needed for installation?
For sheet handling, free space at least equal to the cutting length (1360 mm) is required in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
