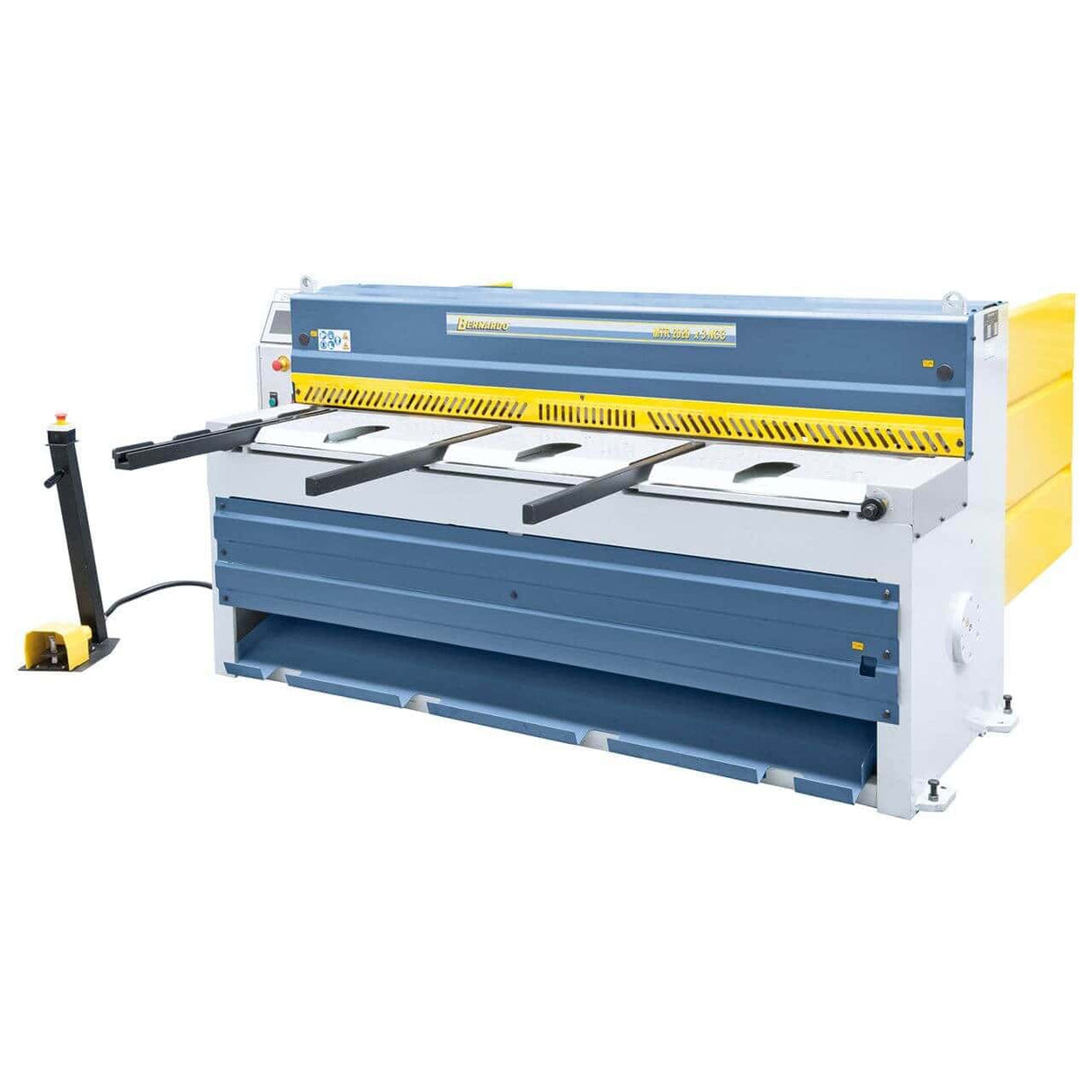

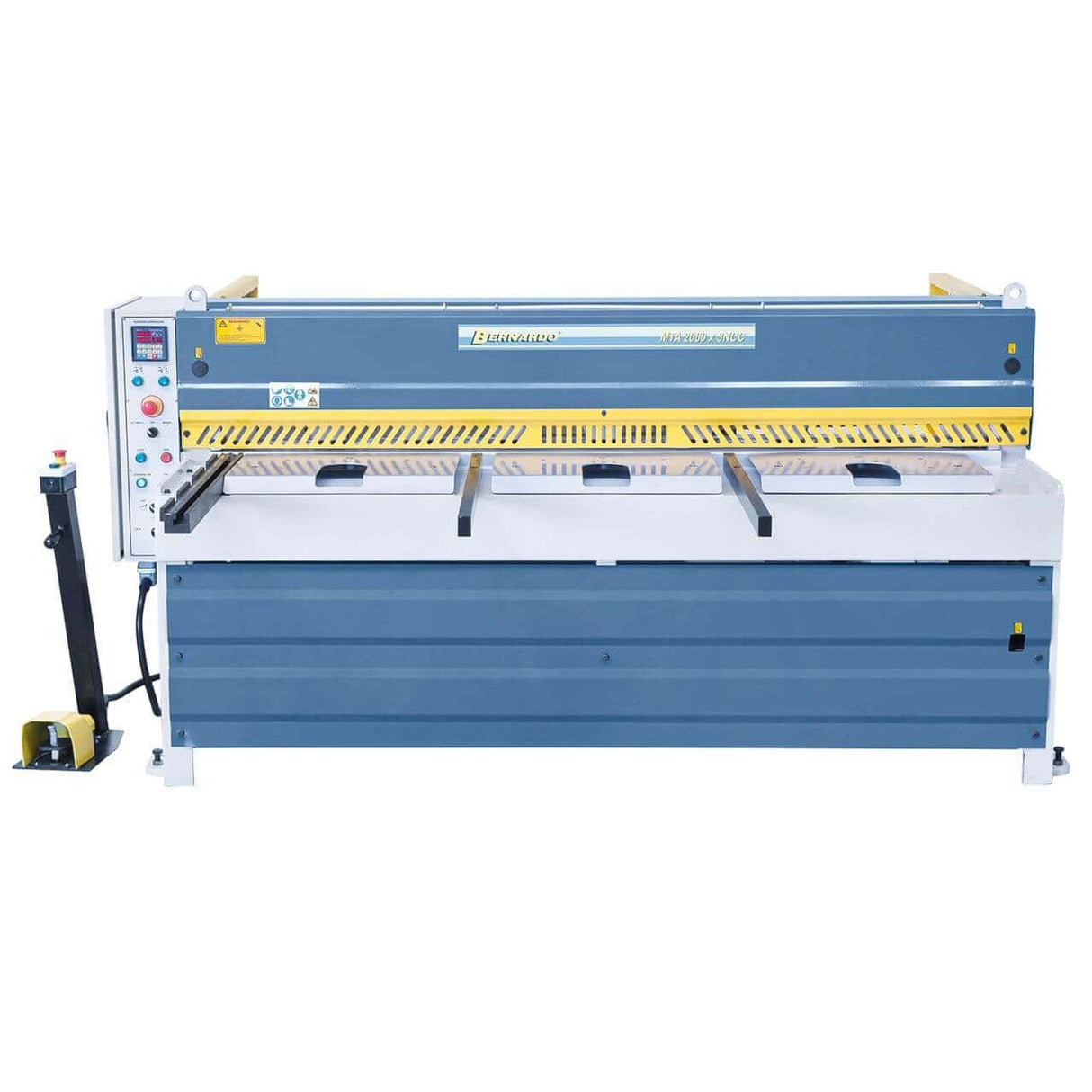

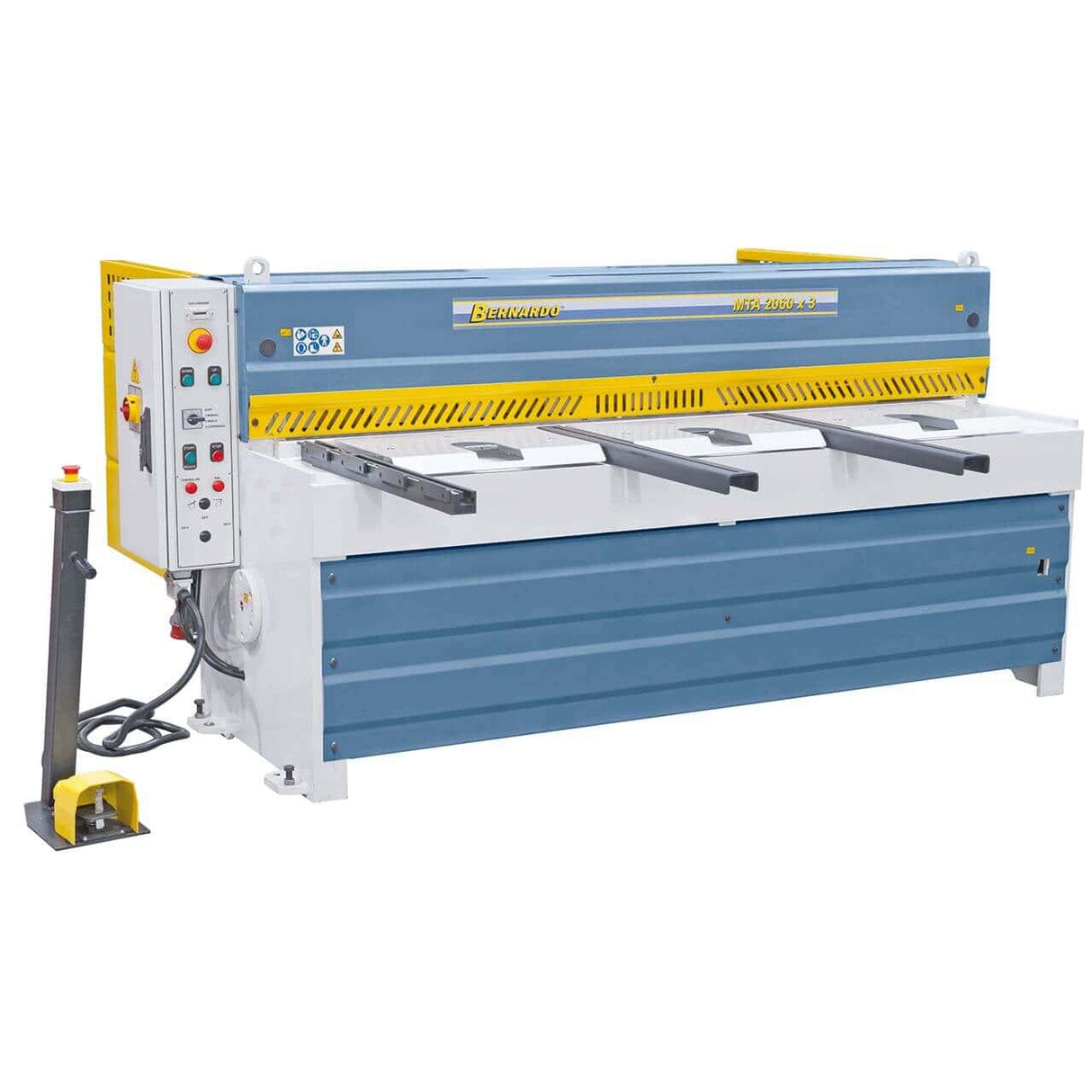

Bernardo MTA 2060 x 3 mm NCC – Motorized Guillotine Shear

Bernardo MTA 2060 x 3 mm NCC – Motorized Guillotine Shear with Pneumatic Sheet Support System

The Bernardo MTA 2060 x 3 mm NCC is an industrial-grade motorized guillotine shear, equipped with a pneumatic sheet support system to ensure precise and stable cuts, especially on thin and large format sheets. With a cutting capacity of up to 3 mm (400 N/mm²) and a working length of 2060 mm, it delivers professional results thanks to its quality double-edged steel blades that ensure clean, burr-free surfaces. The NC motorized back gauge with ball screws and the integrated BRL 401.2 control panel allow for fast and accurate adjustments. The work table with integrated rollers, front support arms, and rear photocell guards simplify sheet handling with complete safety. With a 4.0 kW motor, 35 strokes/min, and a weight of 1710 kg, the MTA 2060 x 3 mm NCC is suitable for workshops and industries that demand reliability, power, and precision.

---

Key Features:
2060 mm cutting length for industrial applications
Cutting capacity up to 3 mm thick (400 N/mm² steel)

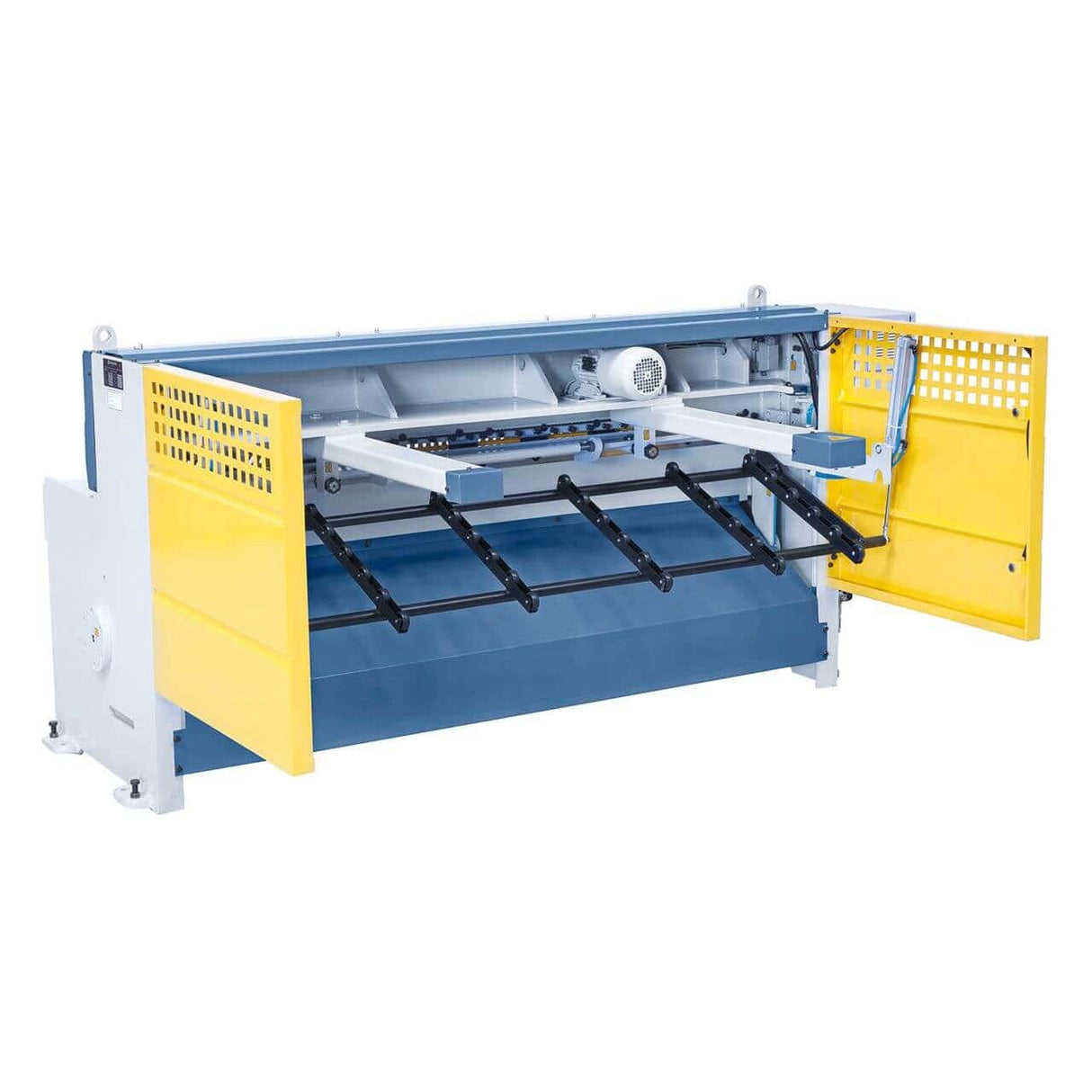

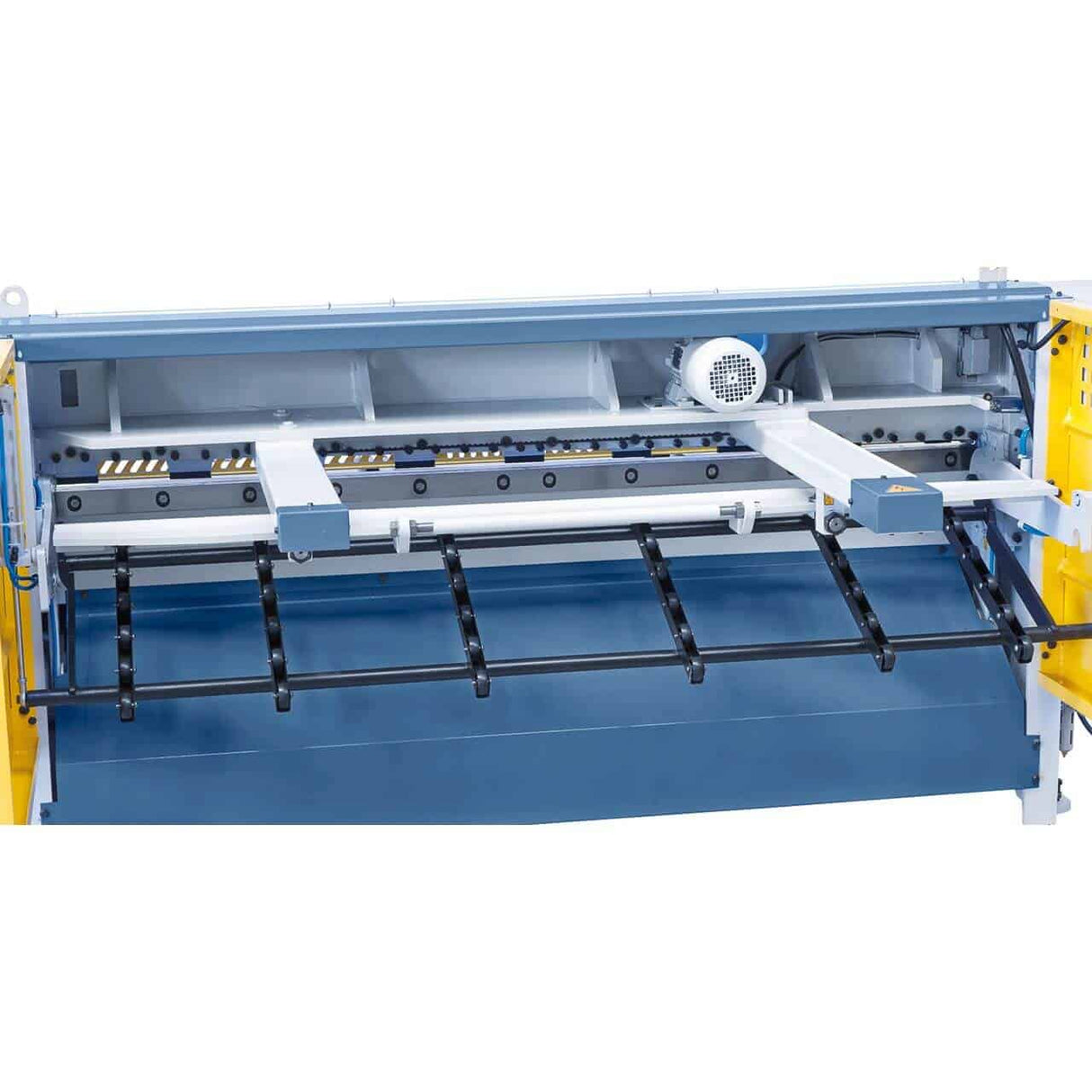

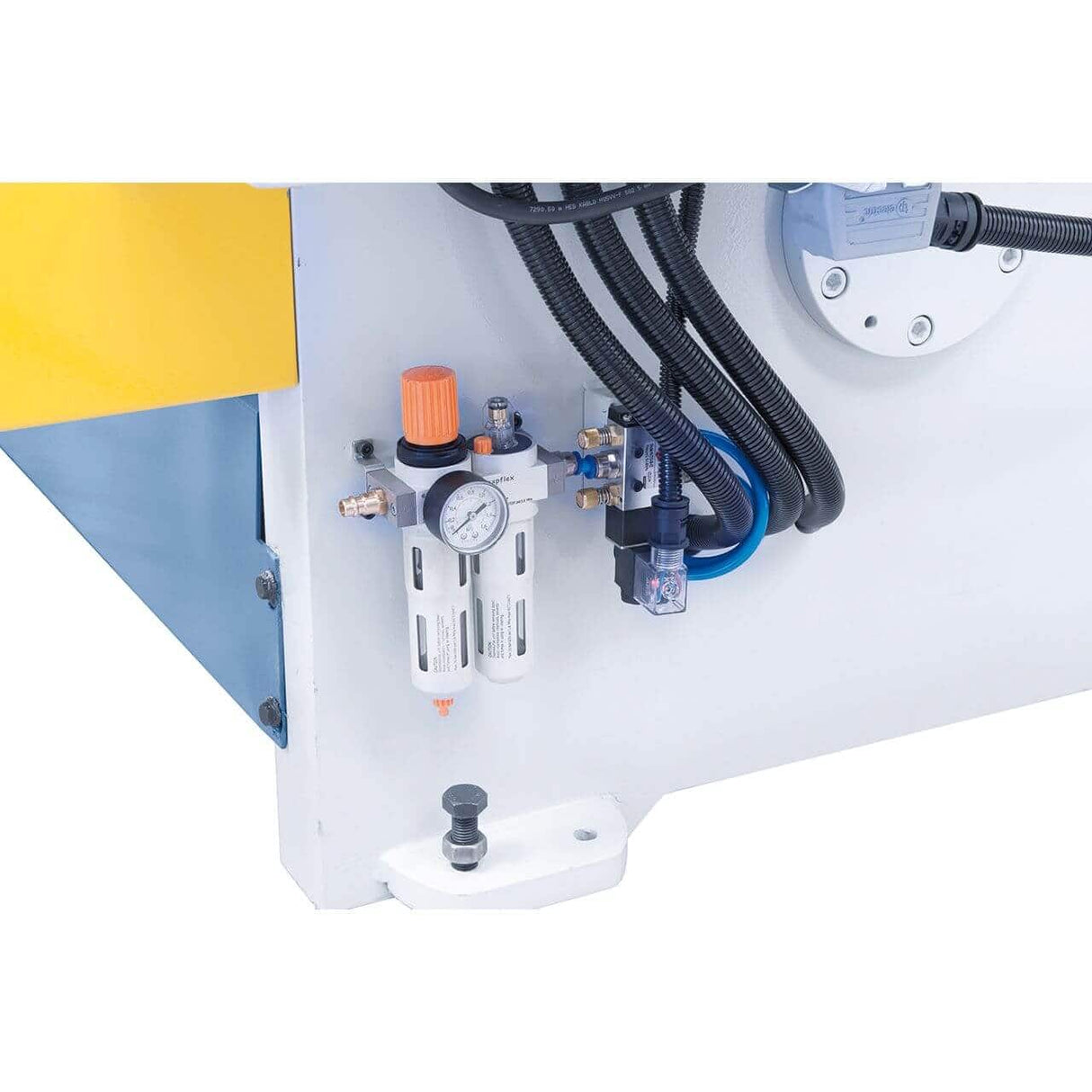

Pneumatic sheet support system, ideal for thin and large format sheets

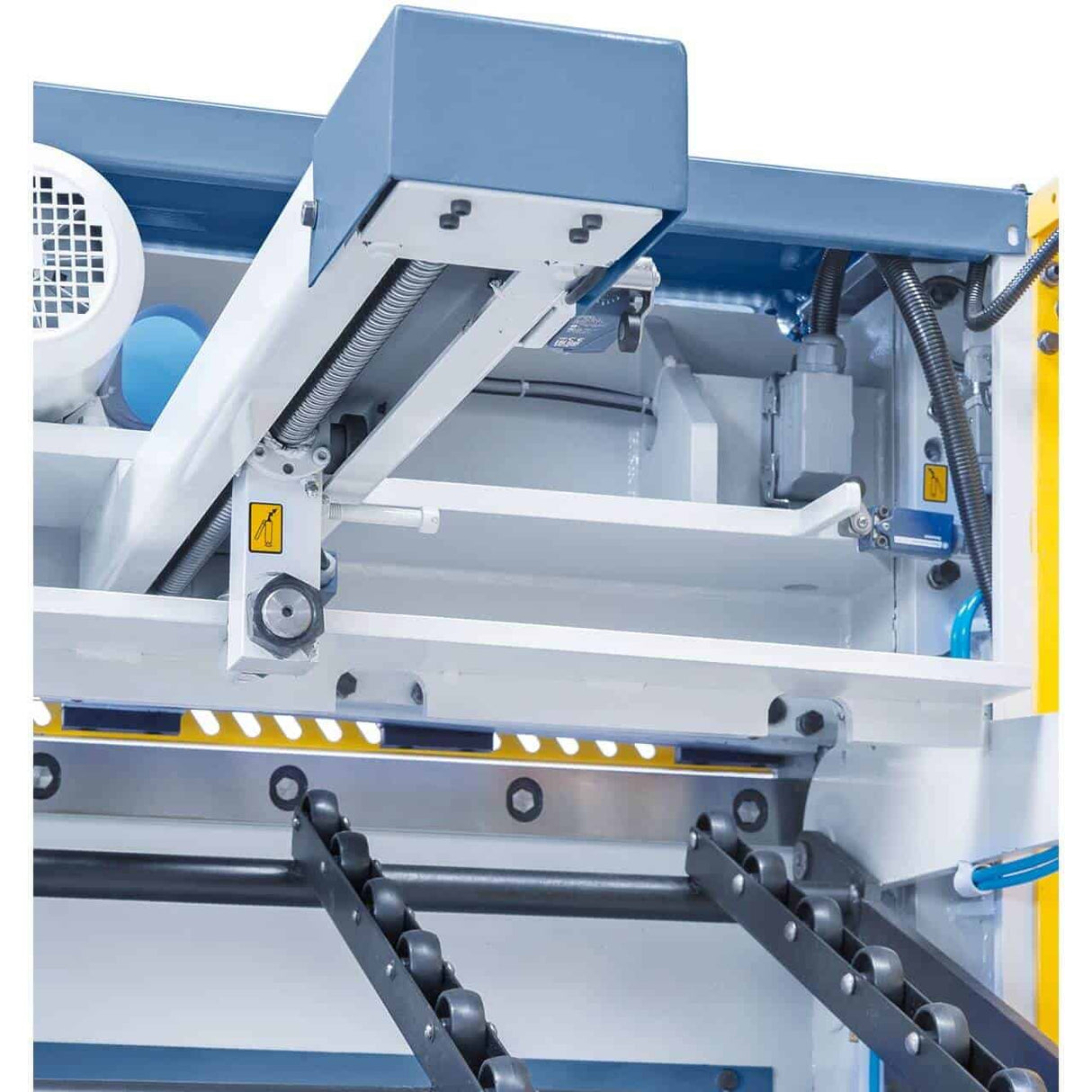

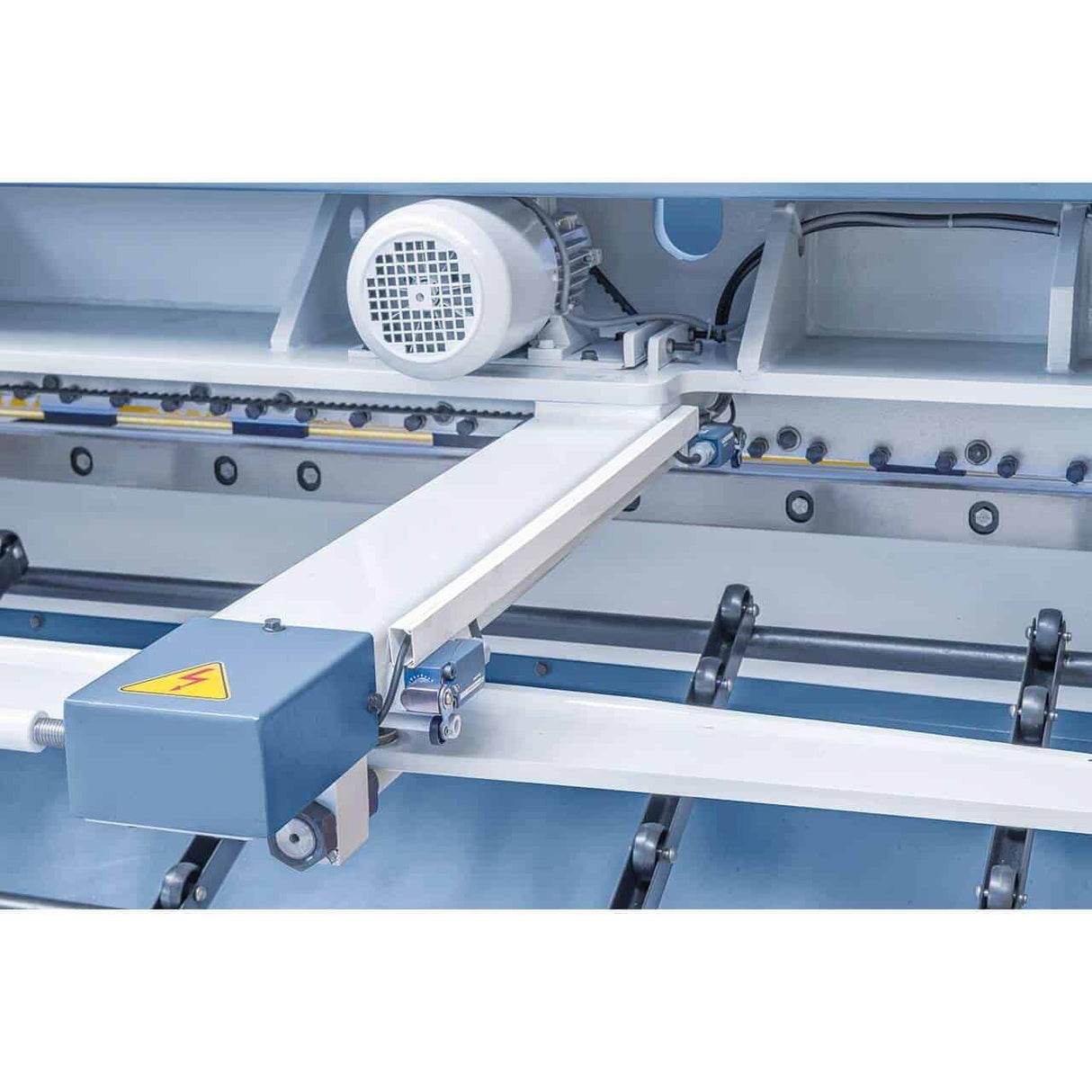

NC motorized back gauge with ball screws

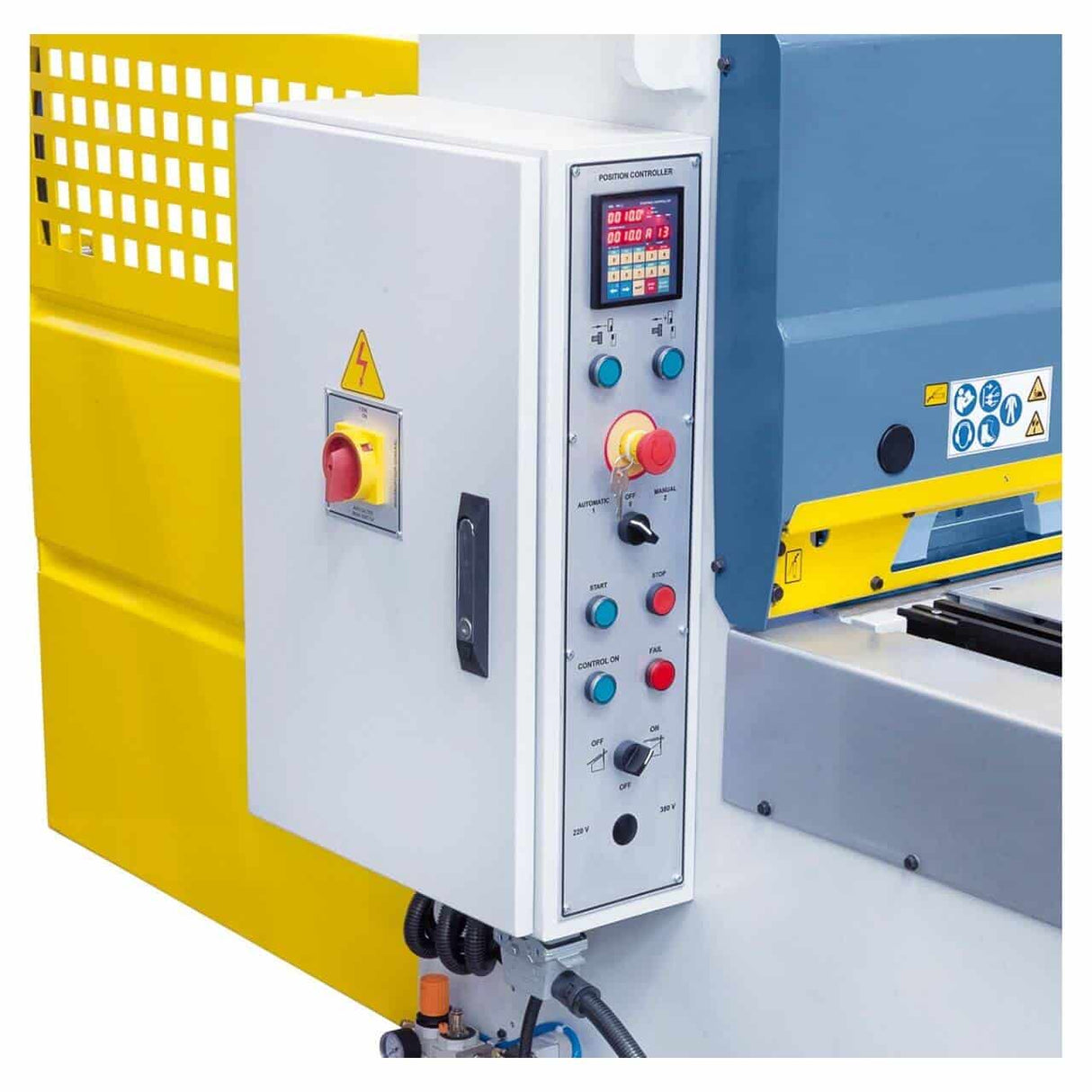

BRL 401.2 NC control for precise and intuitive adjustments
High-quality double-edged upper and lower blades
Table with integrated rollers and front support arms
Cutting line illumination for greater precision
Rear photocell guards and foot pedal with emergency stop
Robust and torsion-free steel structure

---

---

Logistics

Bernardo shipping: 5–9 working days (7 days for Southern Italy). Heavy machine: coordinate unloading equipment with Krollit. Original spare parts available with 3–5 working day shipping. Customer support available in Italian.

Technical Specifications

Specification	Value
Brand	Bernardo
Model	MTA 2060 x 3 mm NCC
Type	Motorized guillotine shear with pneumatic support
Cutting Length	2060 mm
Max Sheet Thickness*	3 mm
Cutting Angle	1°30’
Strokes per Minute	35
Working Height	805 mm
Back Gauge	0 – 750 mm (NC motorized)
Table Width	455 mm
Motor Power	4.0 kW
Dimensions (L x W x H)	2620 x 2100 x 1200 mm
Weight	1710 kg
*Base Material	400 N/mm²

Standard Equipment

Bernardo MTA 2060 x 3 mm NCC Guillotine Shear
Cut counter
Cutting line illumination
NC motorized back gauge
Pneumatic sheet support system
Front sheet support arms
Table with integrated rollers

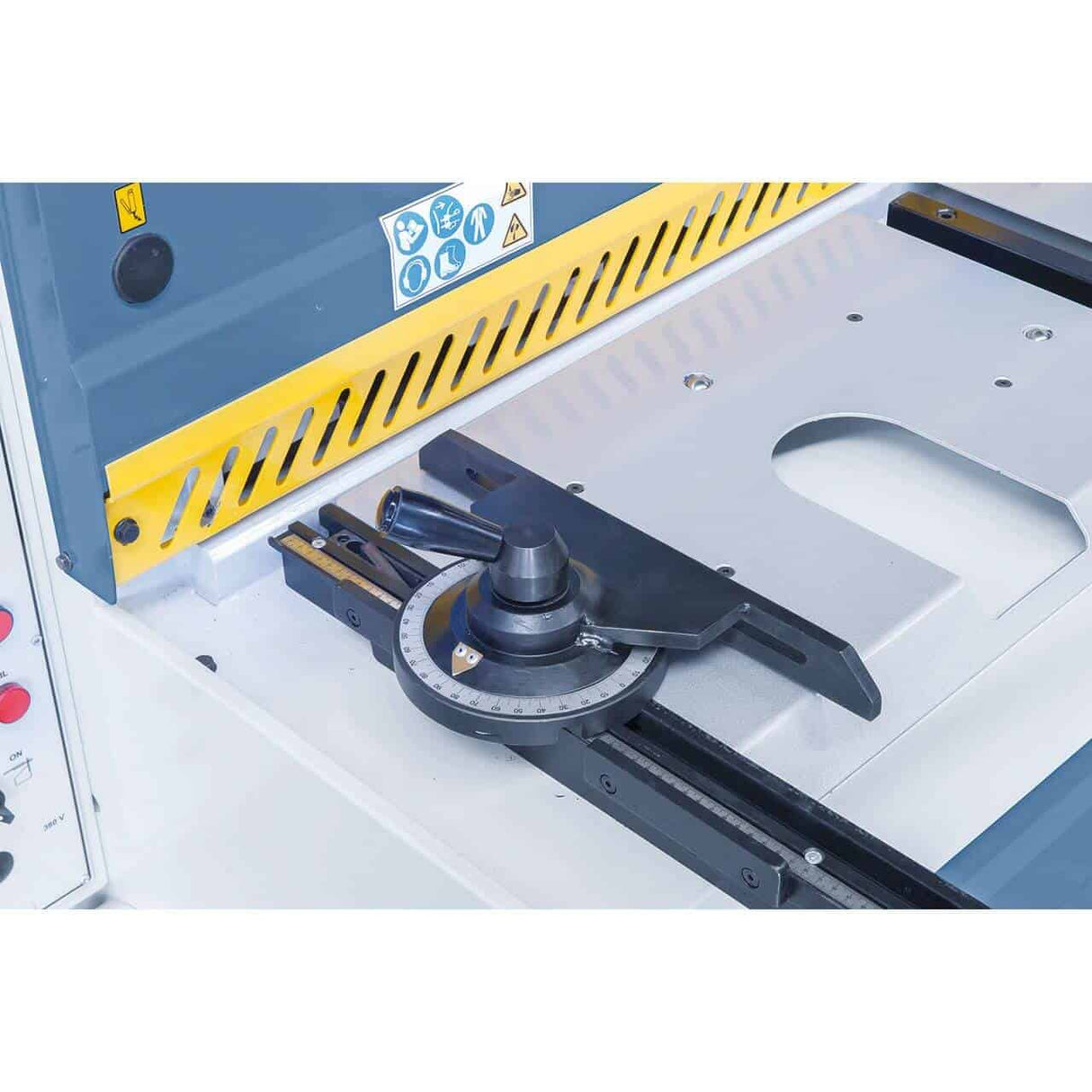

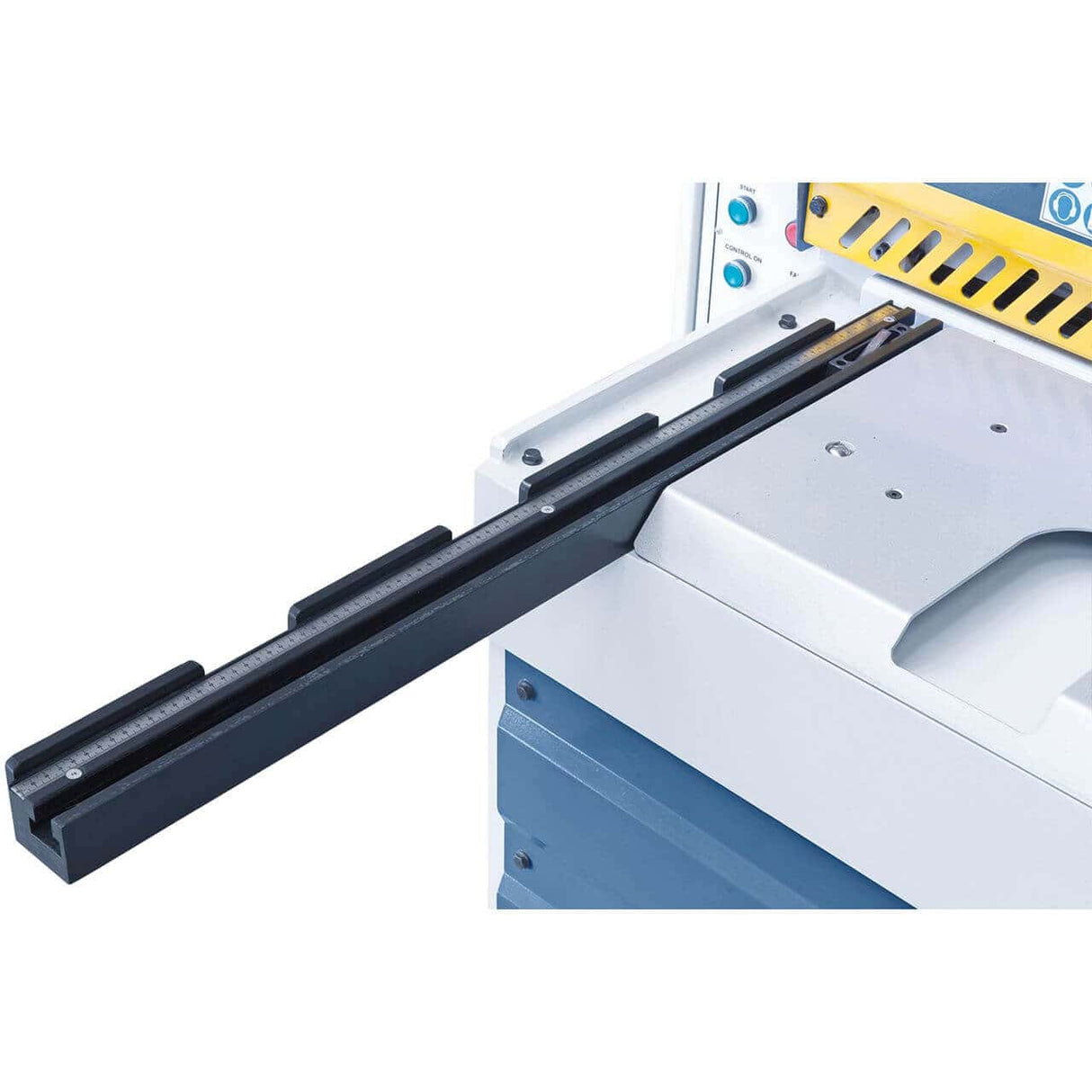

Side stop ruler

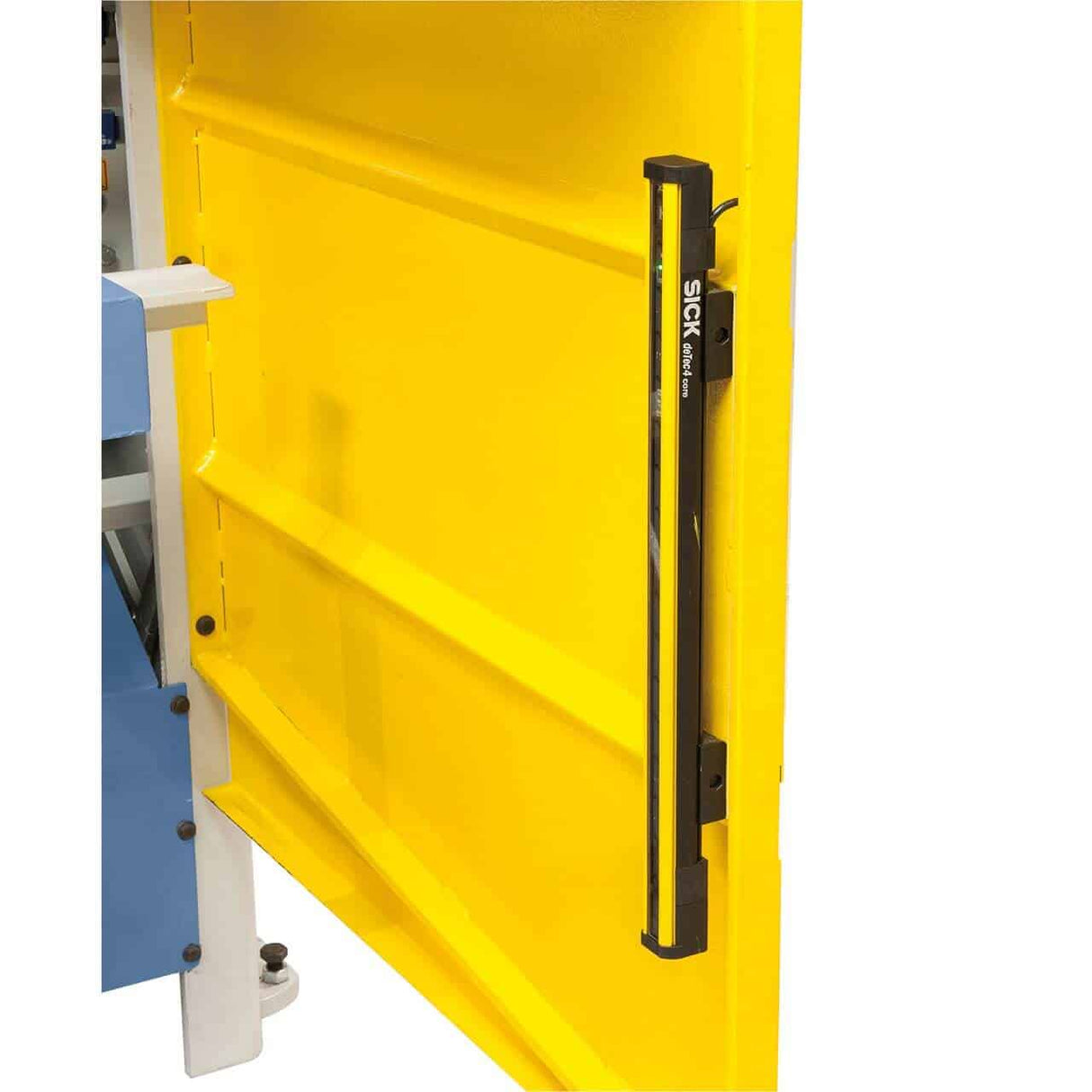

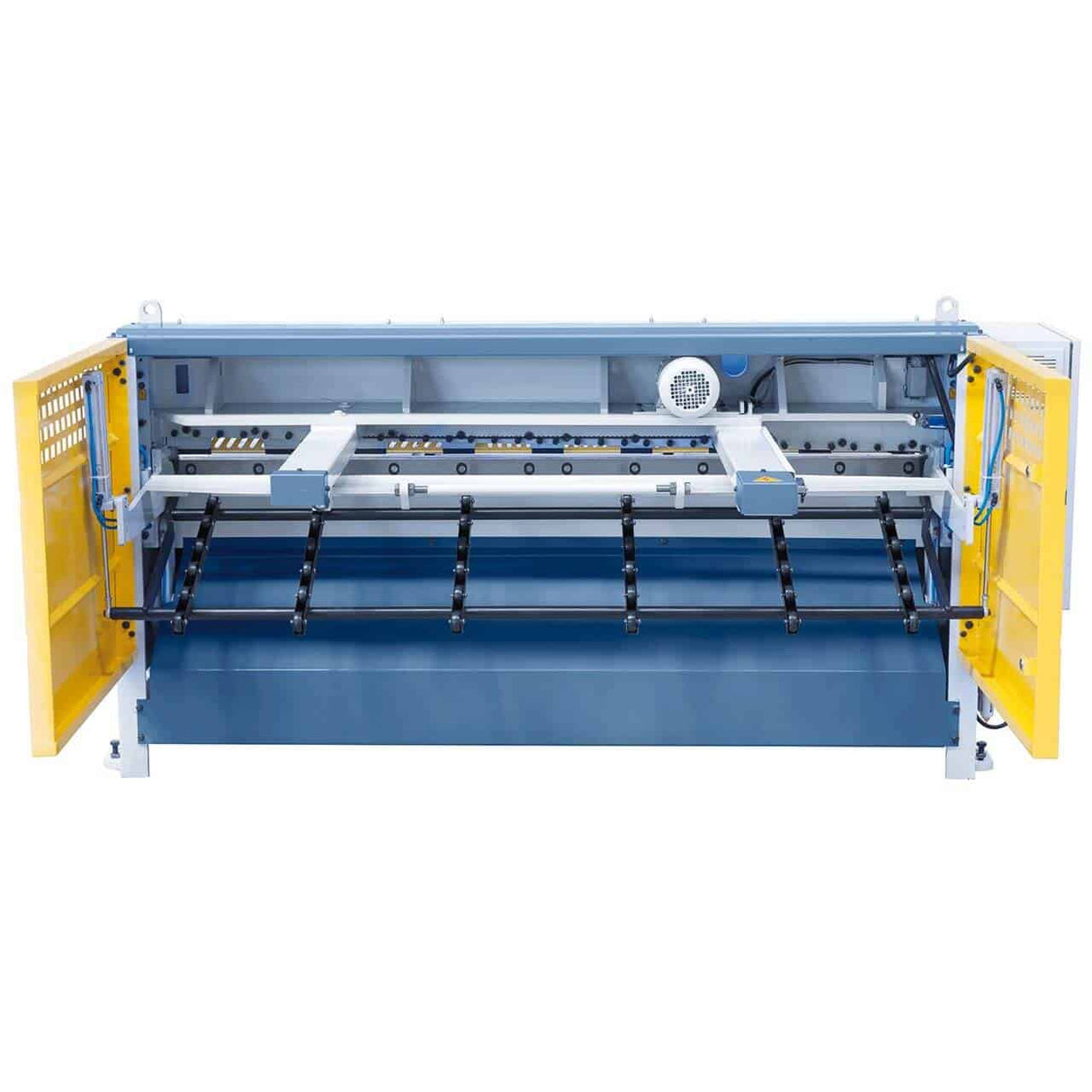

Rear photocell guards
Foot pedal with emergency stop
Tool steel blades

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

Frequently Asked Questions

What is the difference between MTA, MTE, and MTR series?

MTA: manual structure without NC motorization, for low-volume artisanal production. MTE: motorized with NC, standard electro-welded structure. MTR: motorized with NC and pneumatic sheet support to facilitate the positioning of heavy or long sheets. The choice depends on production volume and the format of the sheets being processed.

What is the maximum thickness for stainless steel with the Bernardo MTA 2060 x 3 mm NCC – Shear?

The nominal thickness of 3 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approximately 2.0 mm). Always check with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades are available with 3–5 working day shipping.

Are assistance and spare parts available in Italian?

Original spare parts available with 3–5 working day shipping. Customer support available in Italian.

How much space is needed for installation?

For sheet handling, at least free space equal to the cutting length (2060 mm) is needed in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
