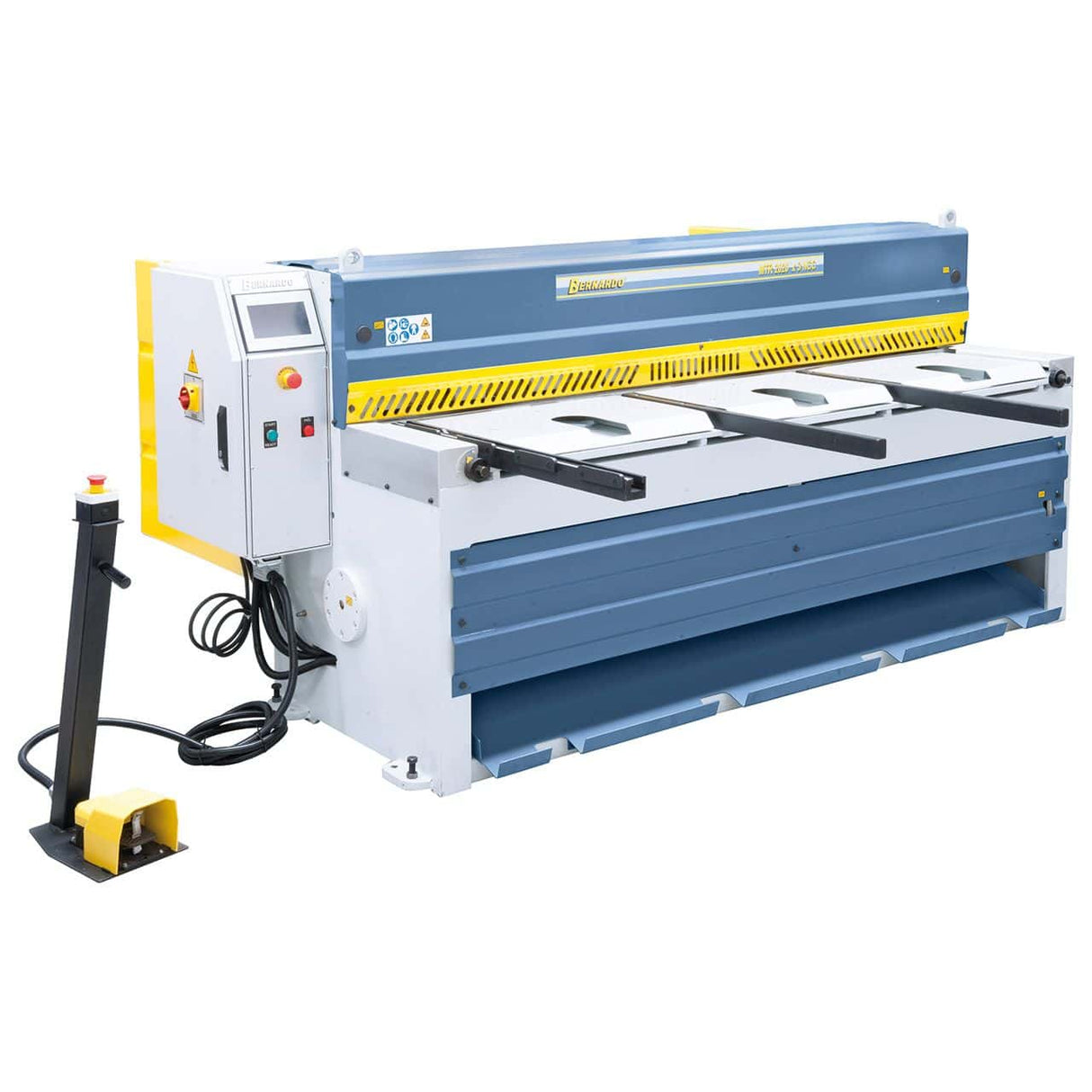

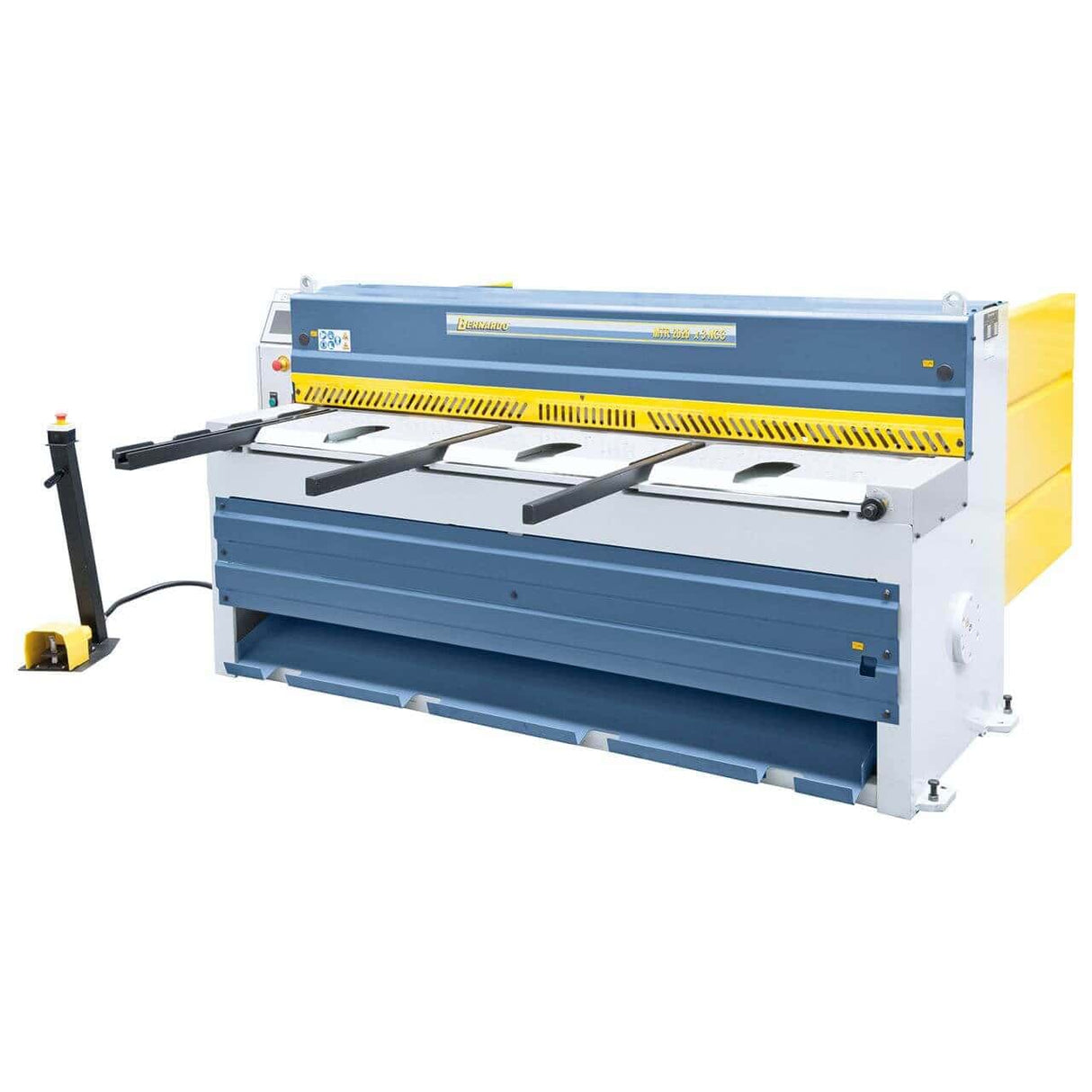

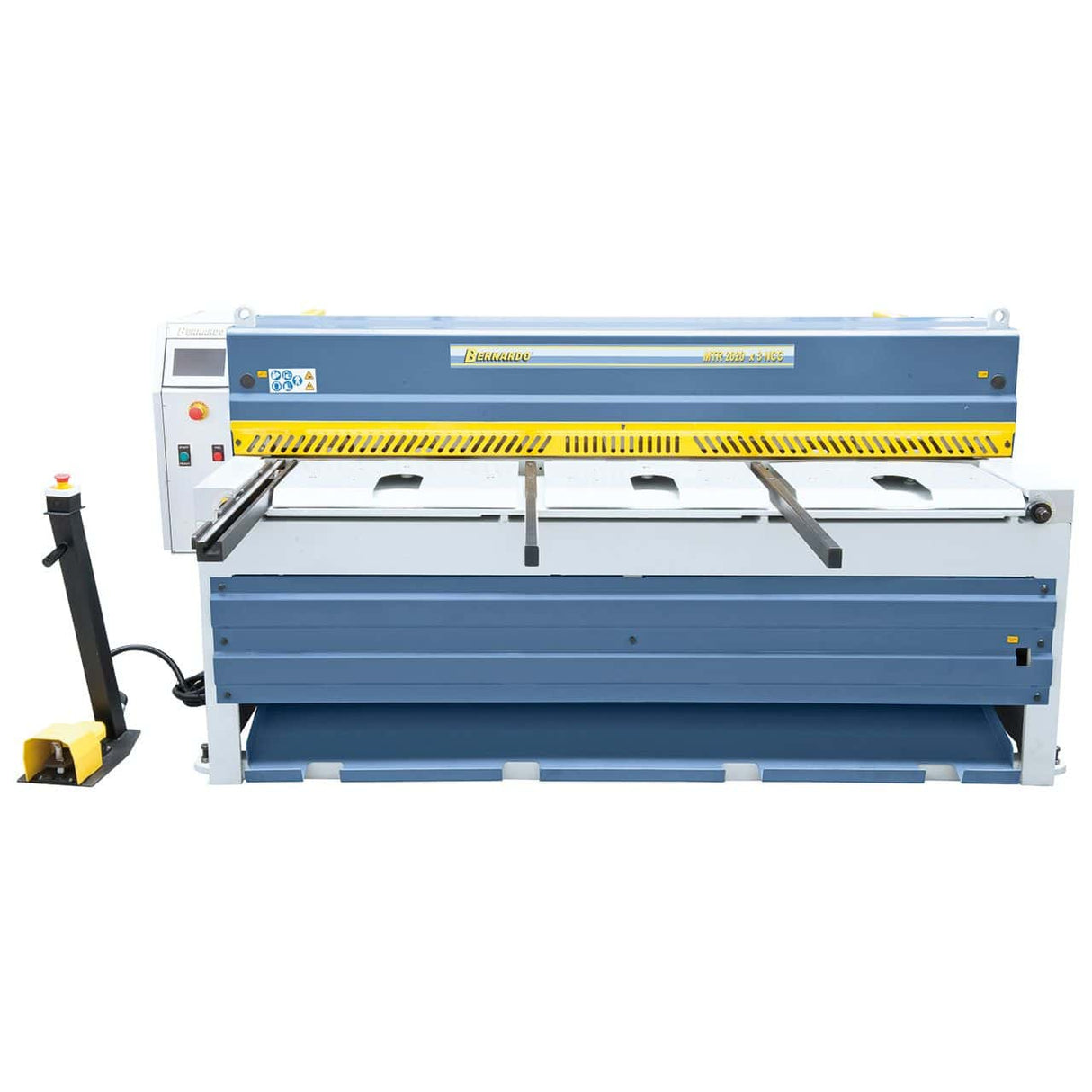

Bernardo MTR 2060 x 3 mm NCC – Motorized Guillotine Shear

Bernardo MTR 2060 x 3 mm NCC – Motorized Guillotine Shear with Pneumatic Sheet Support System

The Bernardo MTR 2060 x 3 mm NCC is a state-of-the-art motorized guillotine shear, designed for precise and safe cuts on steel, aluminum, copper, and brass sheets up to 3 mm thick (400 N/mm²). With a cutting length of 2020 mm and a 1°30’ angle, it ensures clean, burr-free surfaces thanks to its high-quality steel dual-edge upper and lower blades. The Fuji control with touch screen, motorized NC backgauge with ball screws, and the pneumatic sheet support system guarantee precision and maximum practicality even for thin or large sheets. The table with integrated rollers, the side ruler with scale, and the option to mount an angular cutting device increase versatility. With a 4.0 kW motor, 31 strokes/min, and a weight of 1800 kg, the MTR 2060 x 3 mm NCC is the choice for workshops and industries seeking a robust, safe, and technologically advanced shear.

---

Key Features:
2020 mm cutting length for industrial applications
Capacity up to 3 mm thickness (400 N/mm² steel)

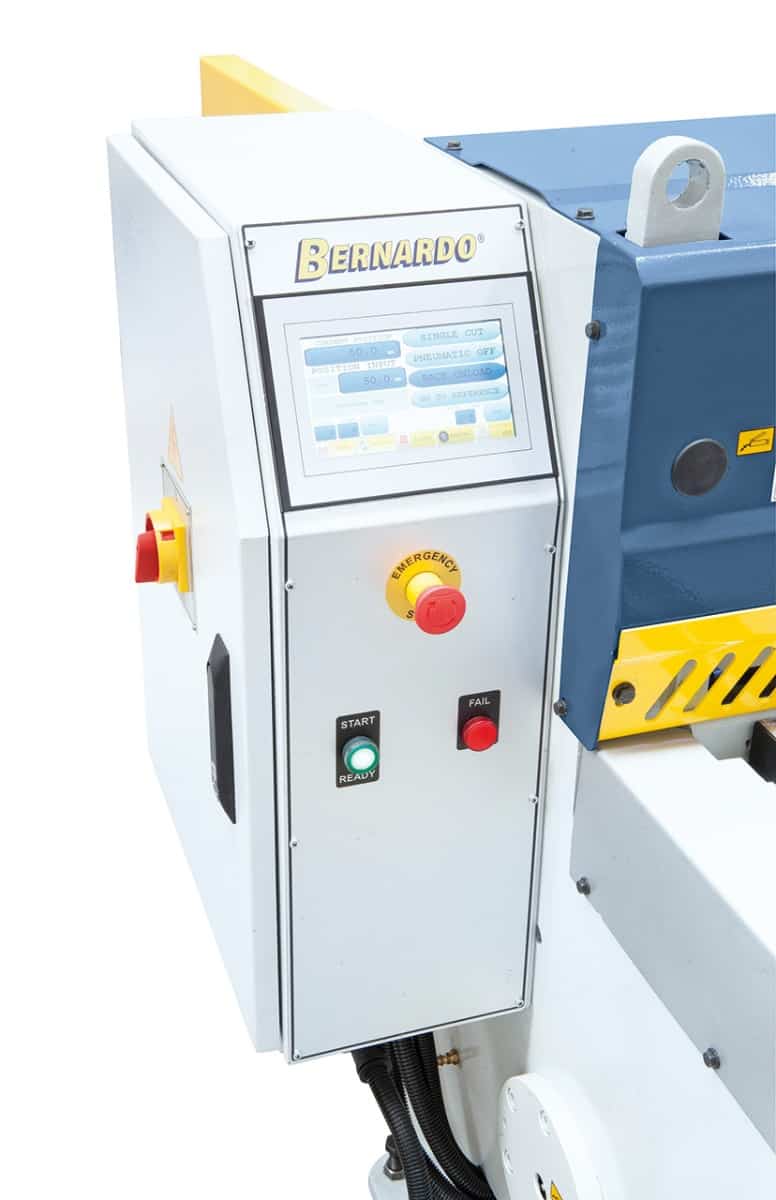

Fuji control with touch screen for intuitive management

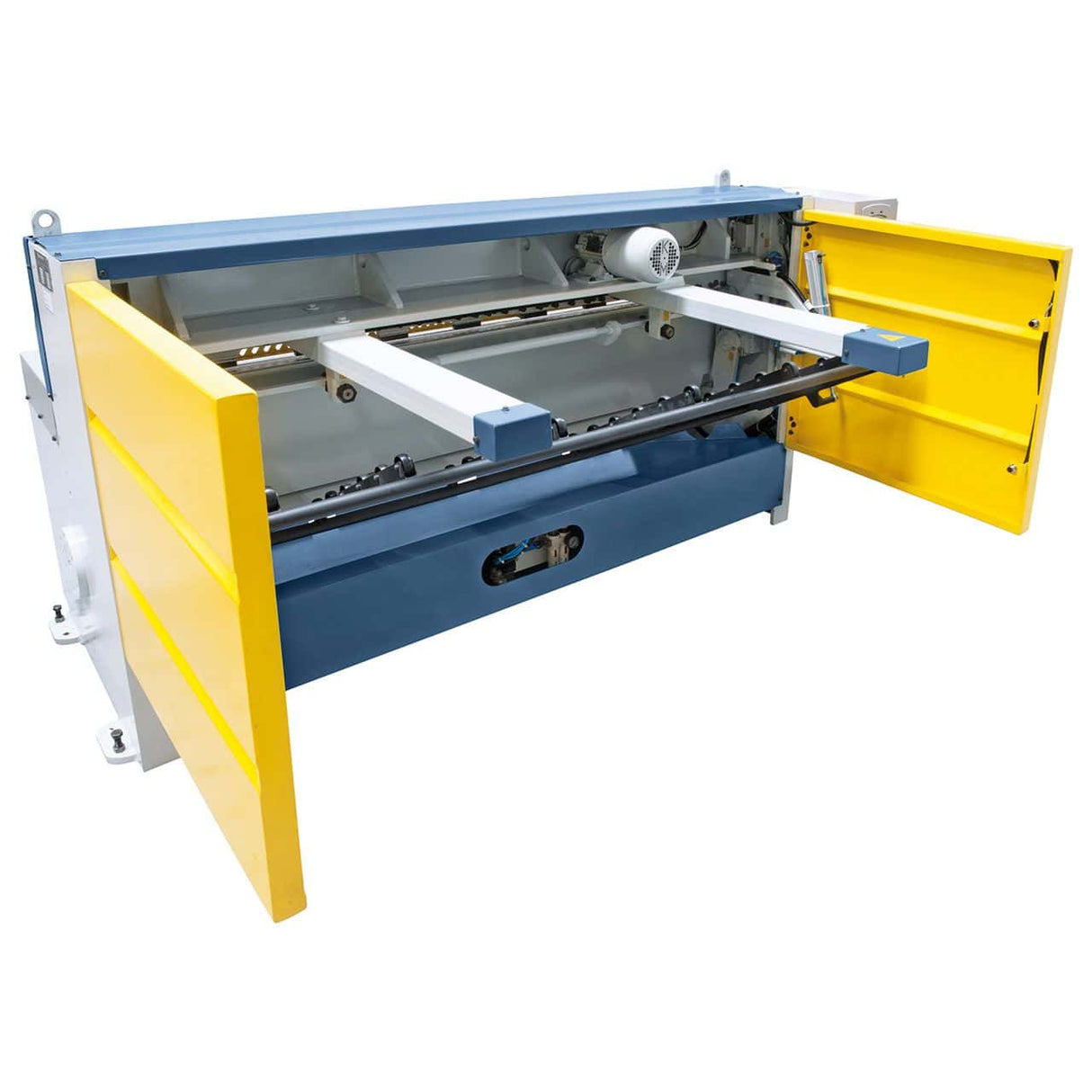

Motorized NC backgauge with ball screws

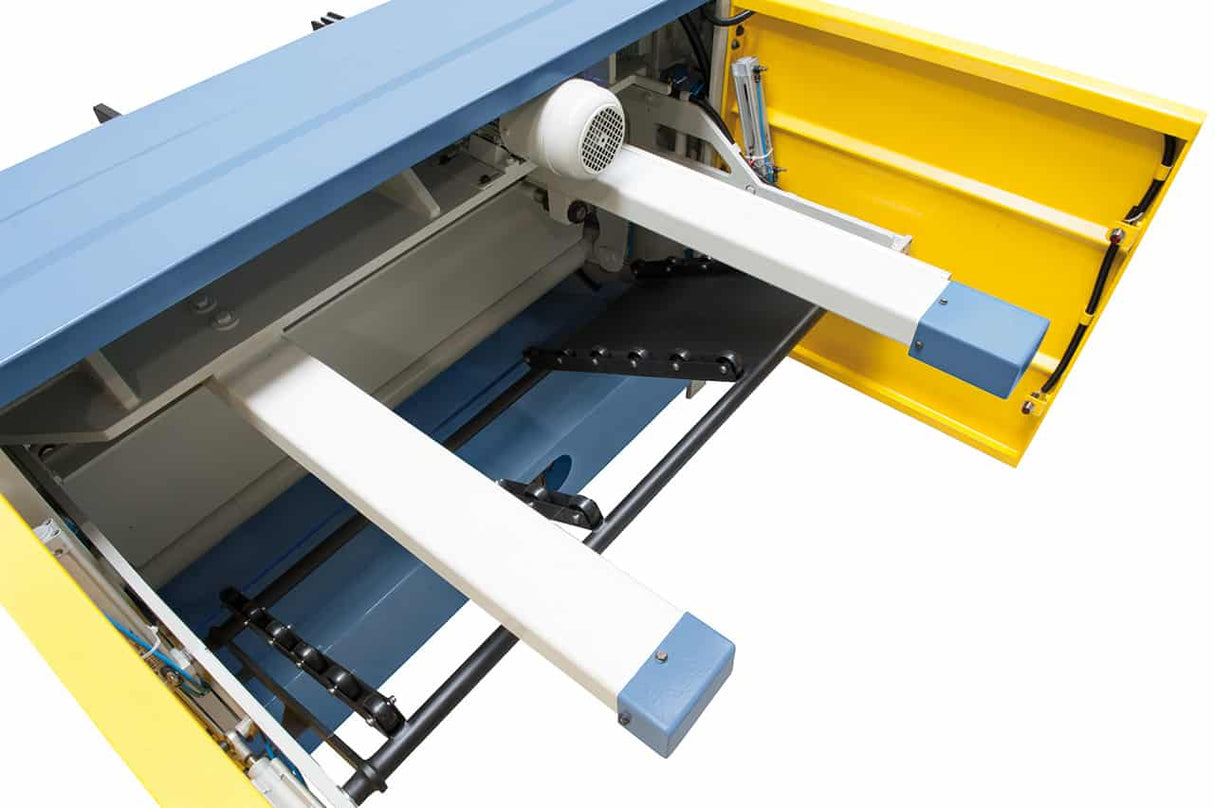

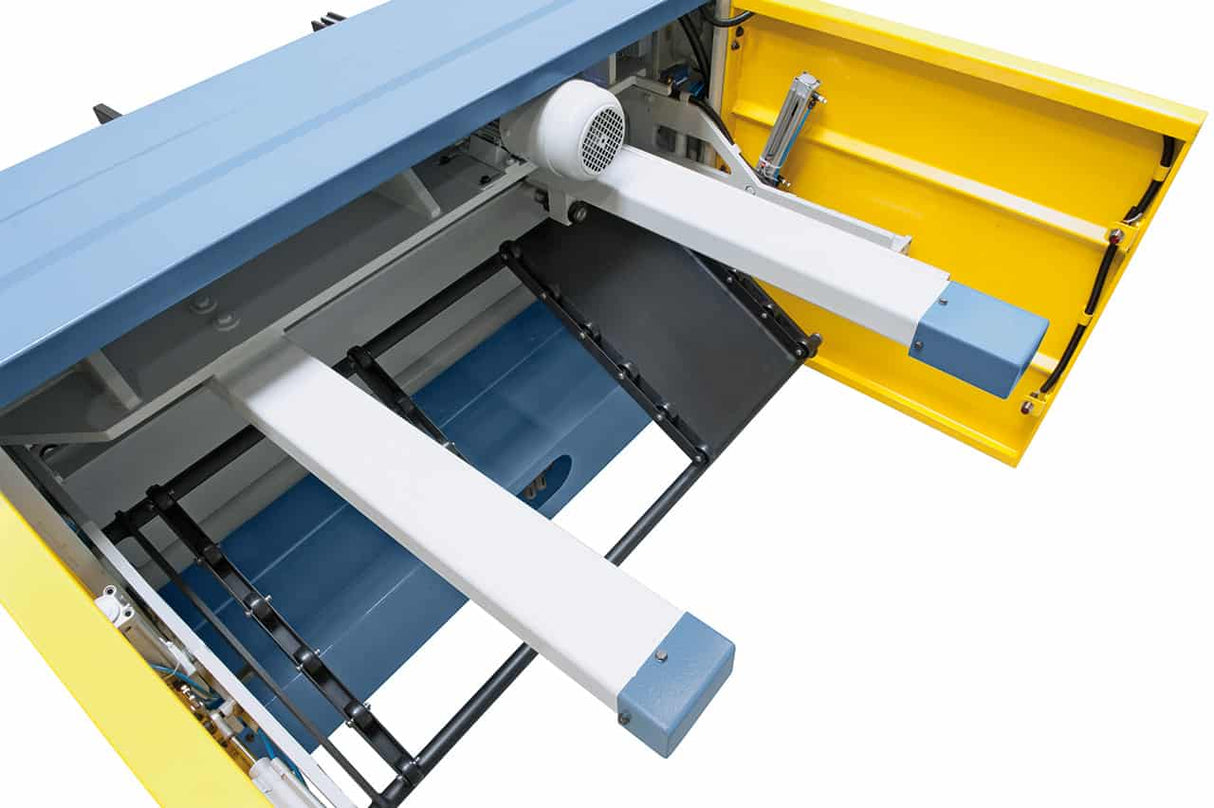

Pneumatic sheet support system, ideal for thin sheets
Dual-edge upper and lower blades made of hardened steel
Table with integrated rollers and front support for large sheets
Cutting line illumination with silhouette for greater precision
Safety photocells and foot pedal with emergency stop
Welded steel structure, robust and torsionally rigid

---

Technical Specifications

Specification	Value
Brand	Bernardo
Model	MTR 2060 x 3 mm NCC
Type	Motorized guillotine shear with NC and pneumatic support
Cutting Length	2020 mm
Max. Sheet Thickness*	3 mm
Cutting Angle	1°30’
Strokes per Minute	31
Working Height	810 mm
Backgauge	0 – 750 mm (motorized NC)
Table Width	390 mm
Motor Power	4.0 kW
Dimensions (L x W x H)	2570 x 2200 x 1280 mm
Weight	1800 kg
*Base Material	400 N/mm²

---

Standard Equipment

Bernardo MTR 2060 x 3 mm NCC Guillotine Shear
Front blade gap adjustment
Cutting line illumination
Motorized NC backgauge
Pneumatic sheet support system

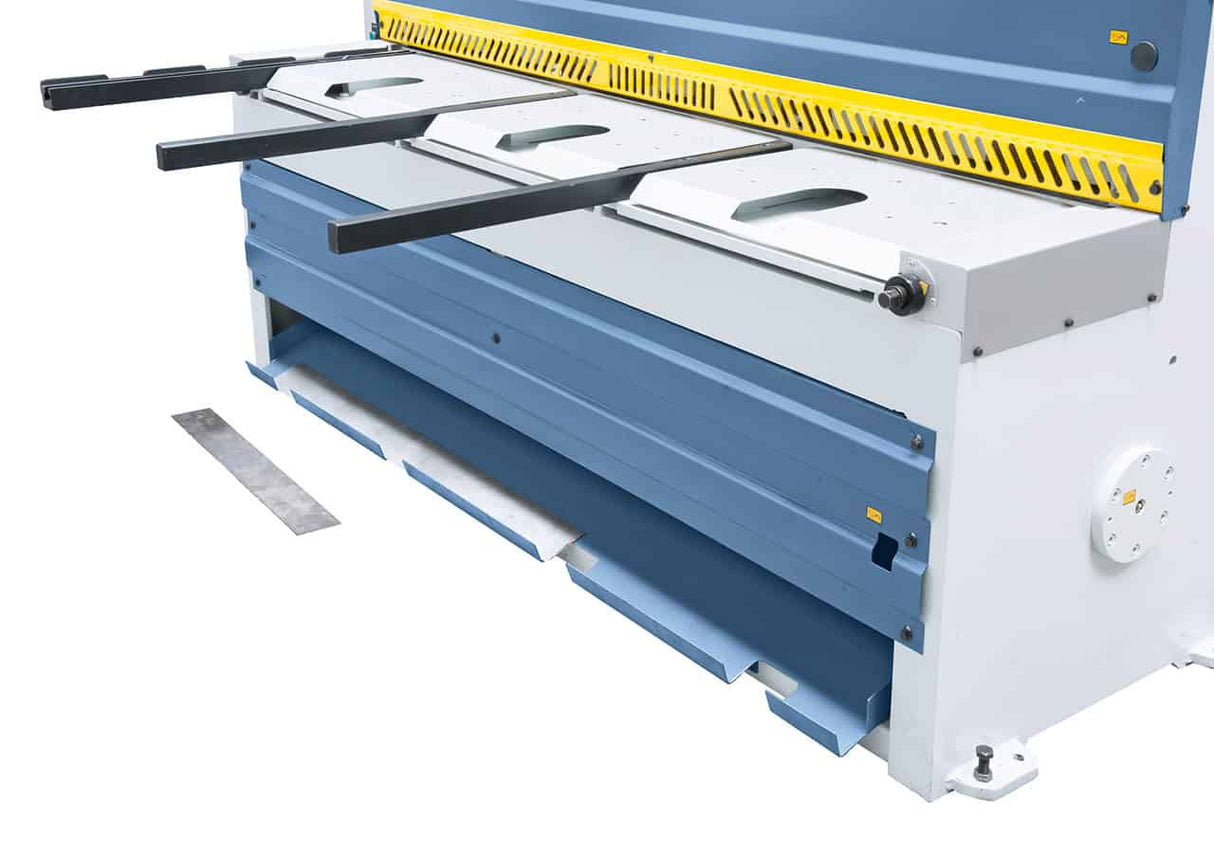

Front sheet support
Table with integrated rollers

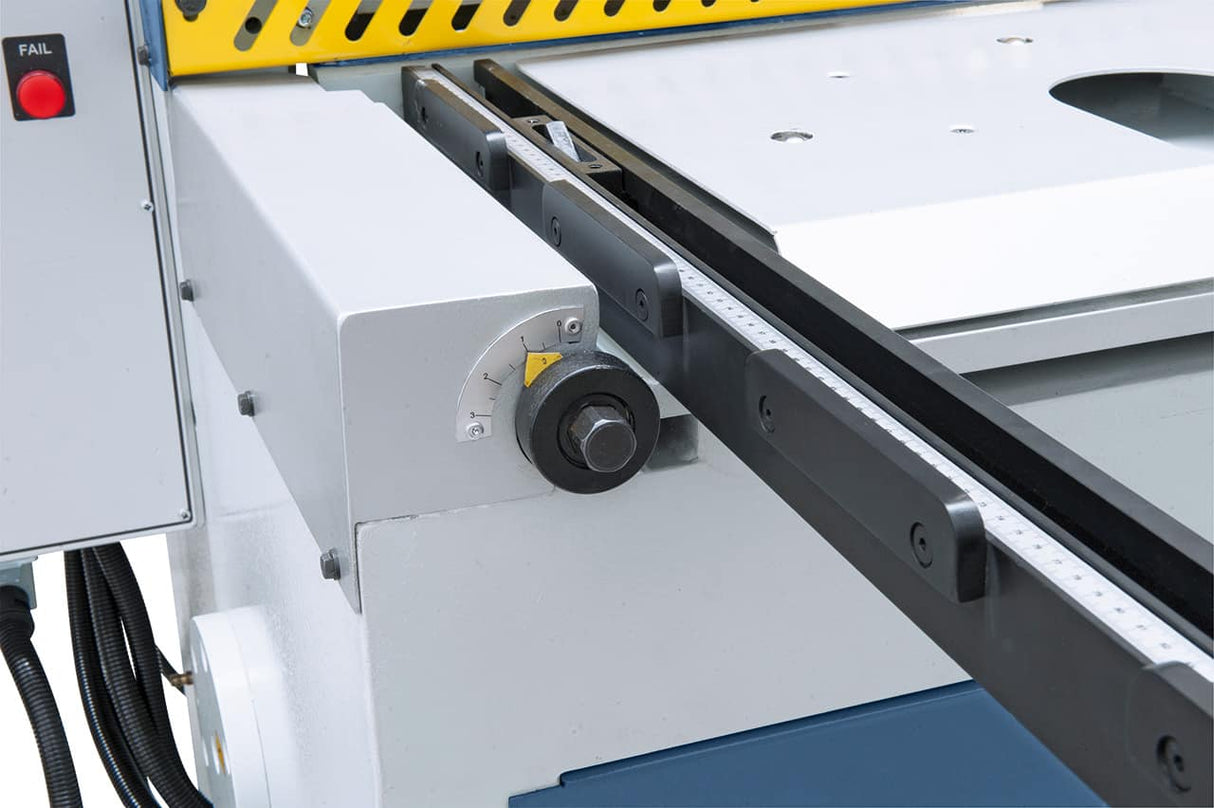

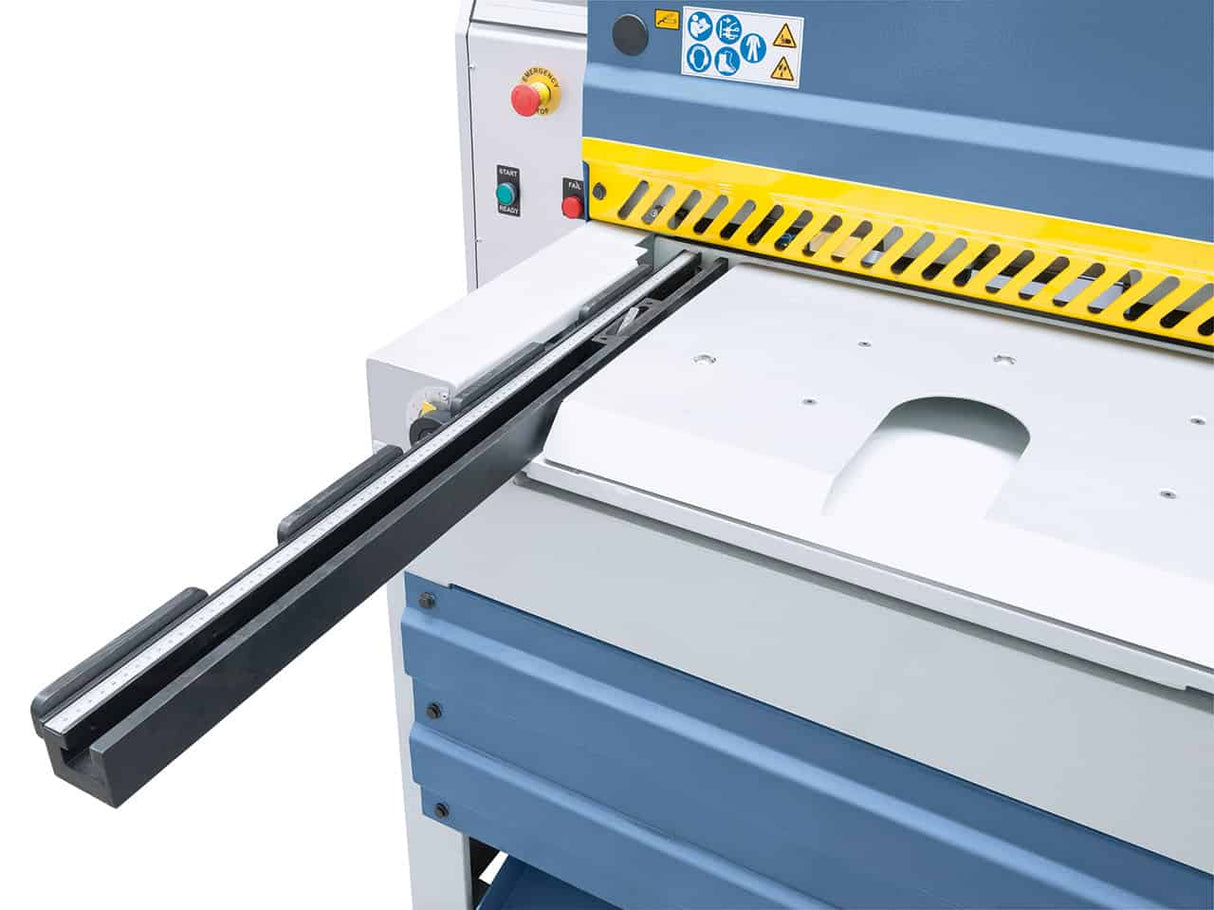

Side ruler with scale
Fuji control panel with touch screen

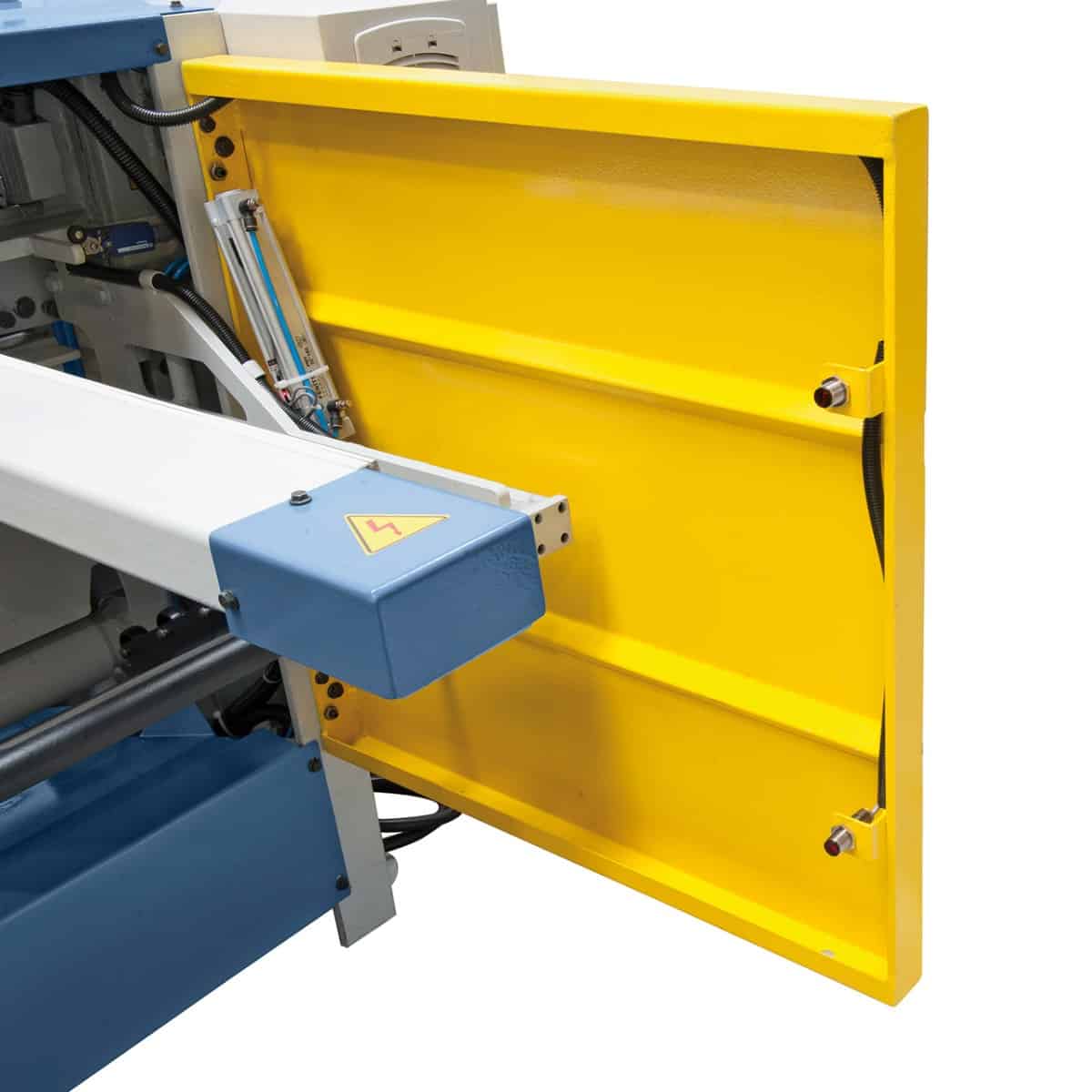

Photocell safety guards
Foot pedal with emergency stop
Tool steel blades

Logistics

Bernardo Shipping: 5–9 business days (7 days for Southern Italy). Heavy machine: coordinate unloading equipment with Krollit. Original spare parts available with 3–5 business days shipping. Customer support available in Italian.

Frequently Asked Questions

What is the difference between the MTA, MTE, and MTR series?

MTA: manual structure without NC motorization, for low-volume craft production. MTE: motorized with NC, standard electro-welded structure. MTR: motorized with NC and pneumatic sheet support to facilitate the positioning of heavy or long sheets. The choice depends on production volume and the format of the sheets being processed.

What is the maximum thickness for stainless steel with the Bernardo MTR 2060 x 3 mm NCC – Guillotine Shear?

The nominal thickness of 3 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approx. 2.0 mm). Always check with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades are available with 3–5 business days shipping.

Are assistance and spare parts available in Italian?

Original spare parts are available with 3–5 business days shipping. Customer support is available in Italian.

How much space is needed for installation?

For sheet handling, clear space at least equal to the cutting length (2060 mm) is needed in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
