Bernardo Hydraulic Notching Machine HA 200 x 6 VSW

Bernardo Hydraulic Notching Machine HA 200 x 6 VSW

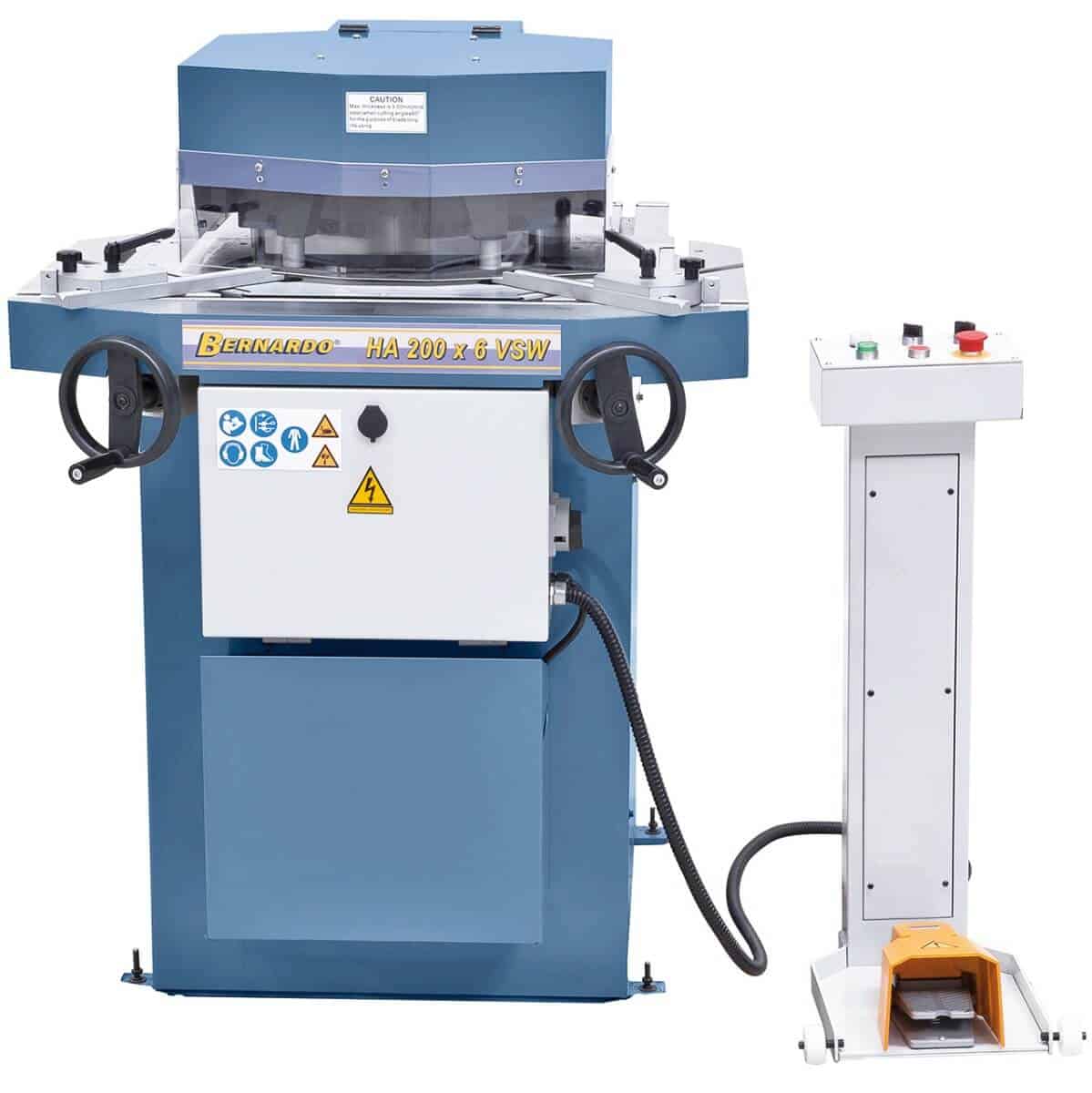

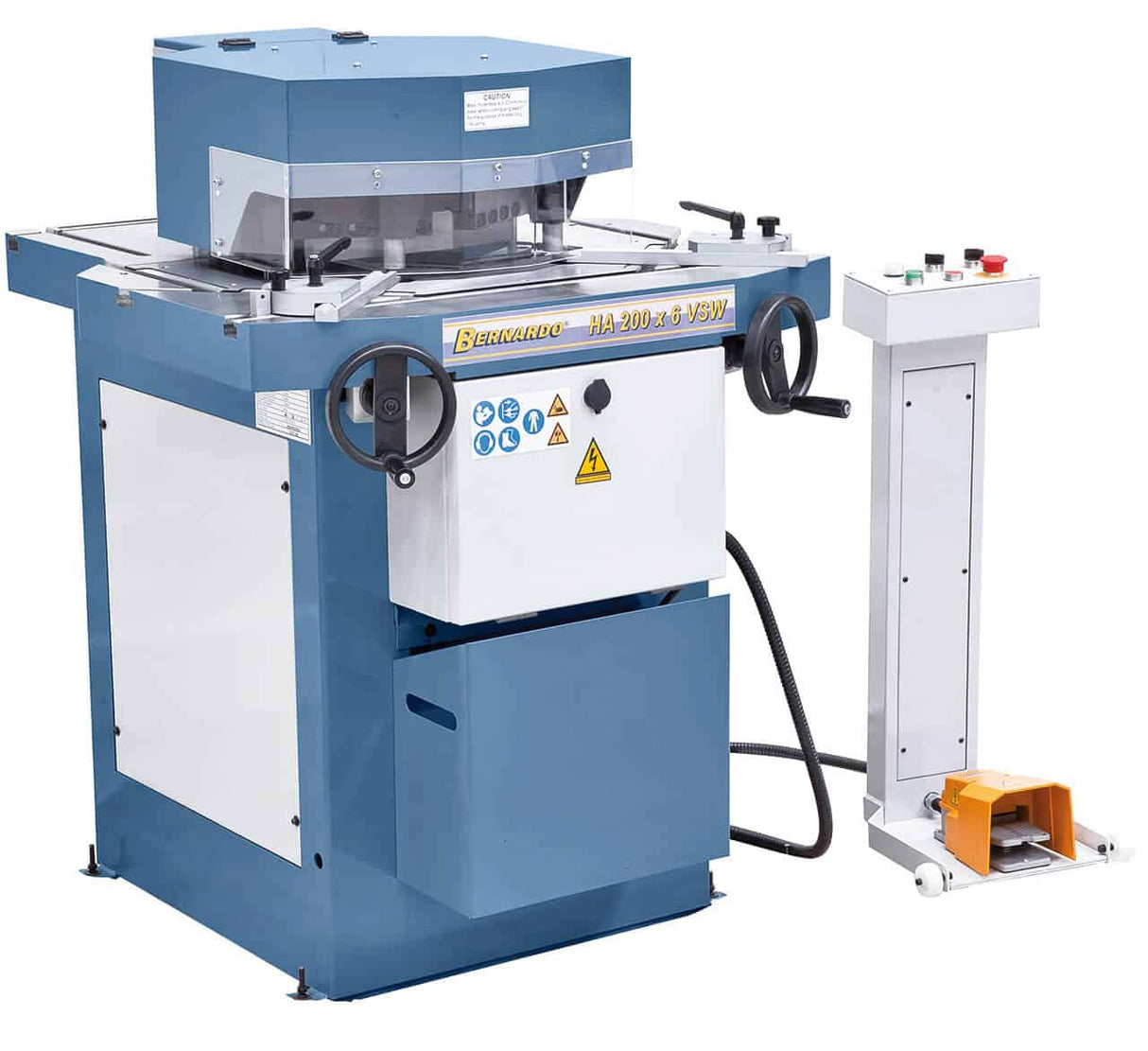

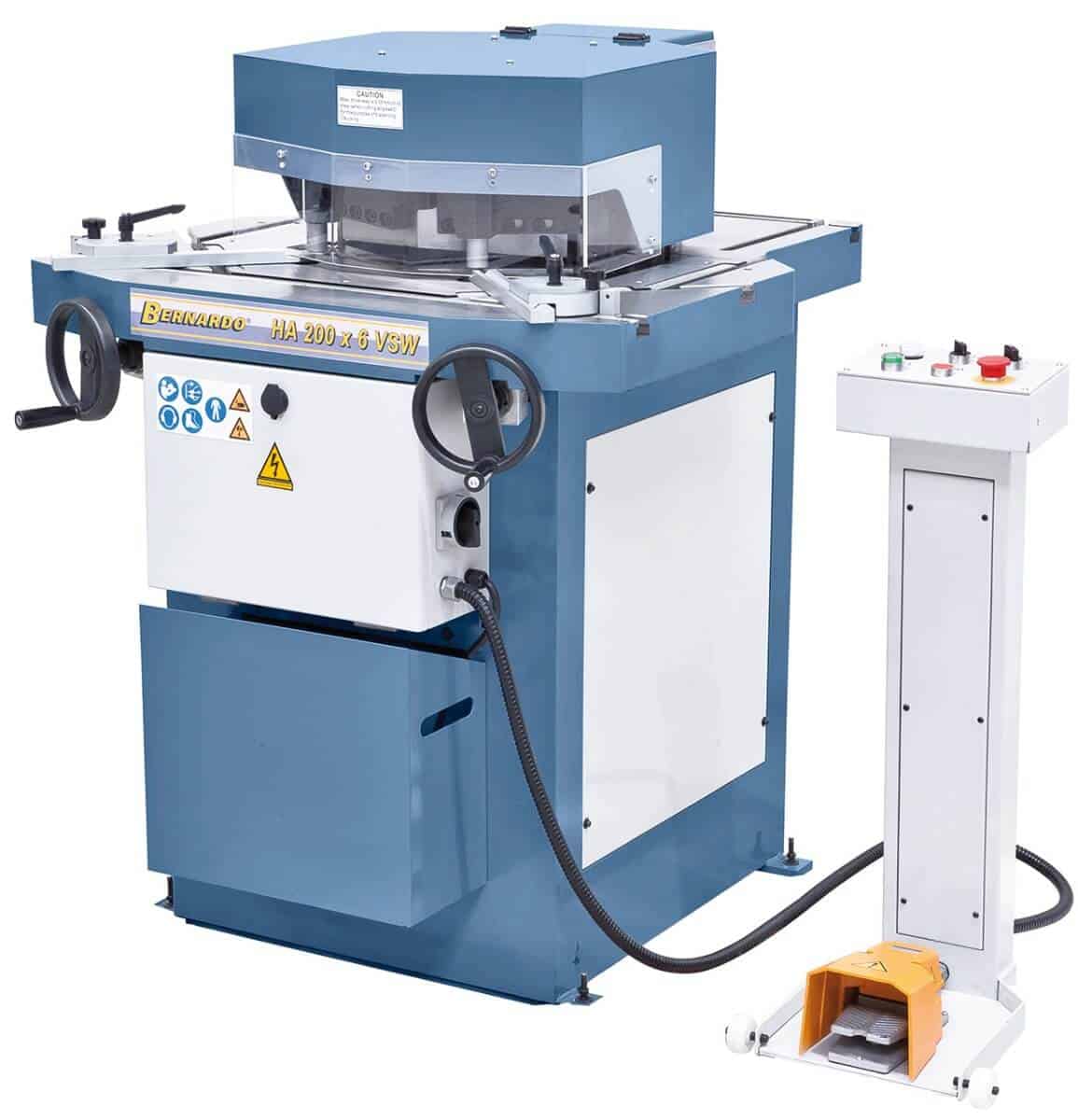

The Bernardo Hydraulic Notching Machine HA 200 x 6 VSW is a versatile and robust machine, designed for angular cutting and punching of sheet metal. It can process thicknesses up to 6 mm (400 N/mm²) and 3 mm for materials with a resistance of 600 N/mm². Thanks to its 24 strokes/minute speed and adjustable cutting angle from 30° to 140°, it offers great flexibility and precision in processing. The 900 x 990 mm table with a height of 940 mm provides ample operating space. The integrated punching unit allows holes up to Ø 35 mm on 6 mm thickness, expanding the machine's range of use. Equipped with a 4.0 kW/400 V motor and a structure weighing over 1000 kg, it ensures stability and long durability. With safety devices and standard accessories included, it is the complete choice for workshops and metal fabrication companies.

---

Main specifications

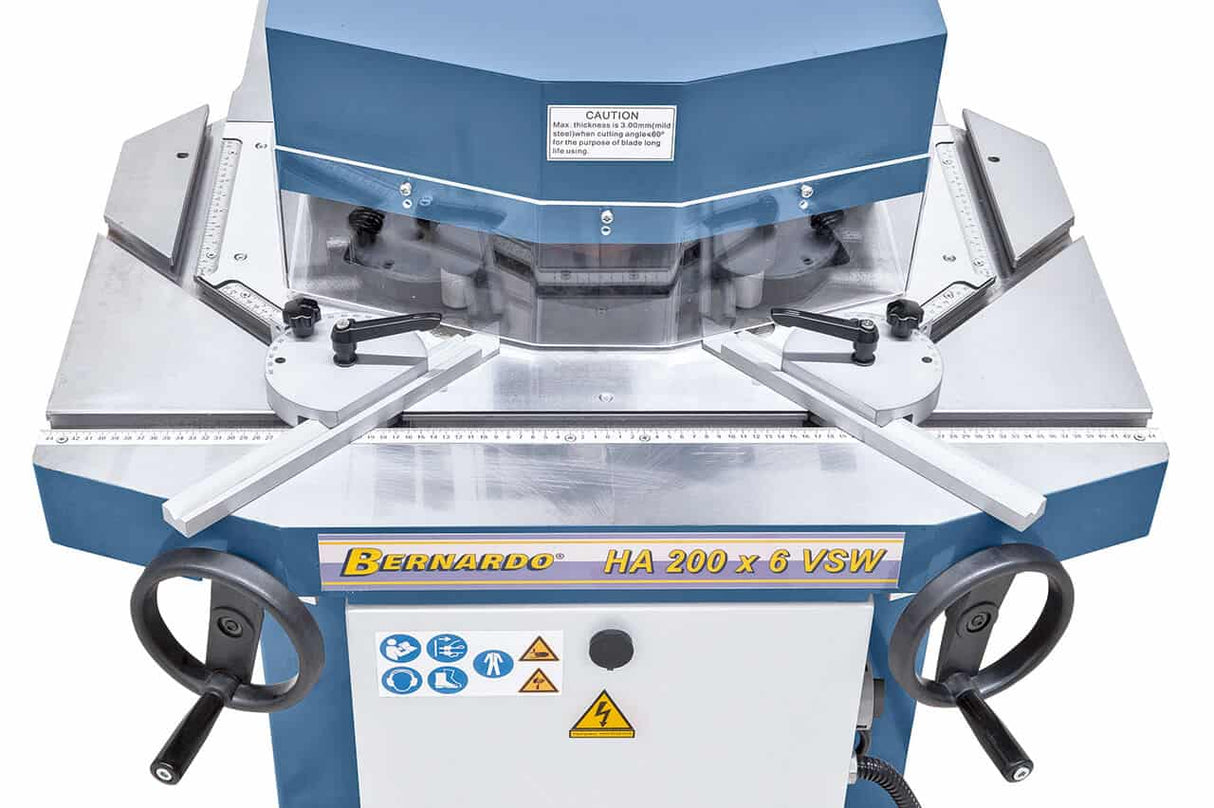

Adjustable cutting angle from 30° to 140°
Cutting capacity up to 6 mm (400 N/mm²) and 3 mm (600 N/mm²)
Work table 900 x 990 mm with height 940 mm
Working speed 24 strokes/minute

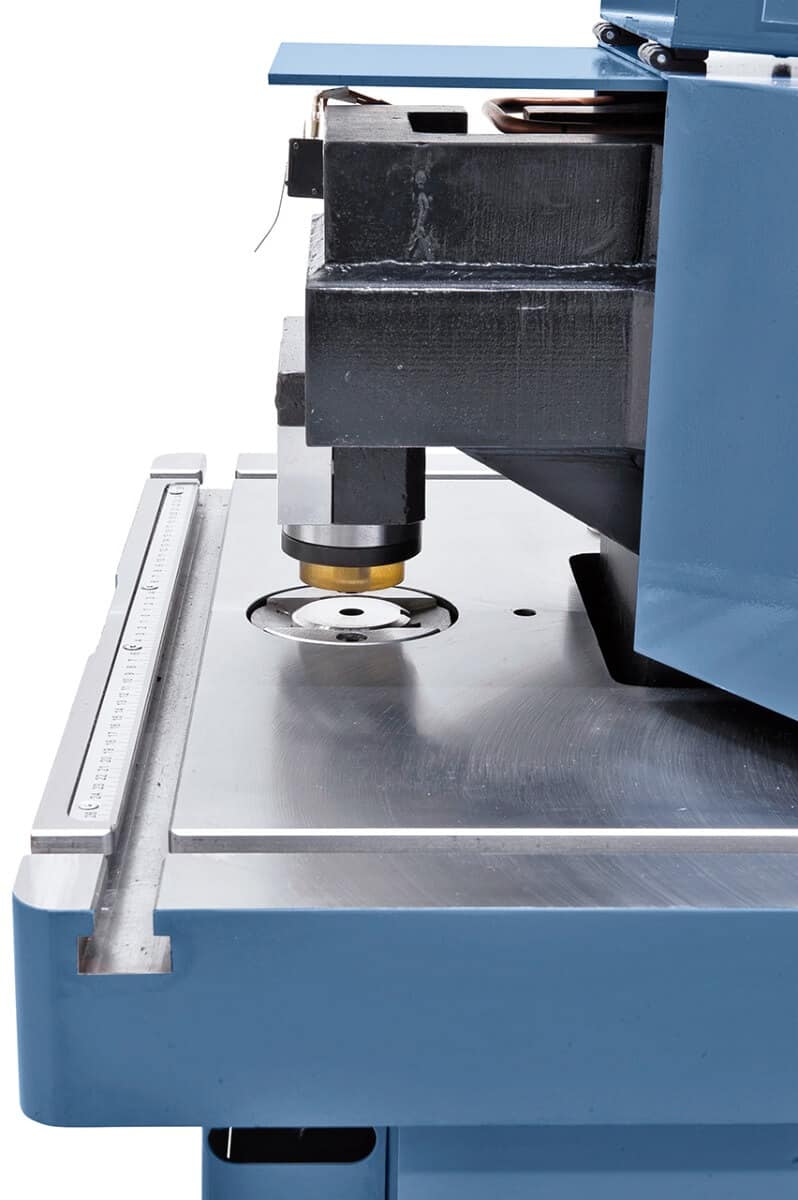

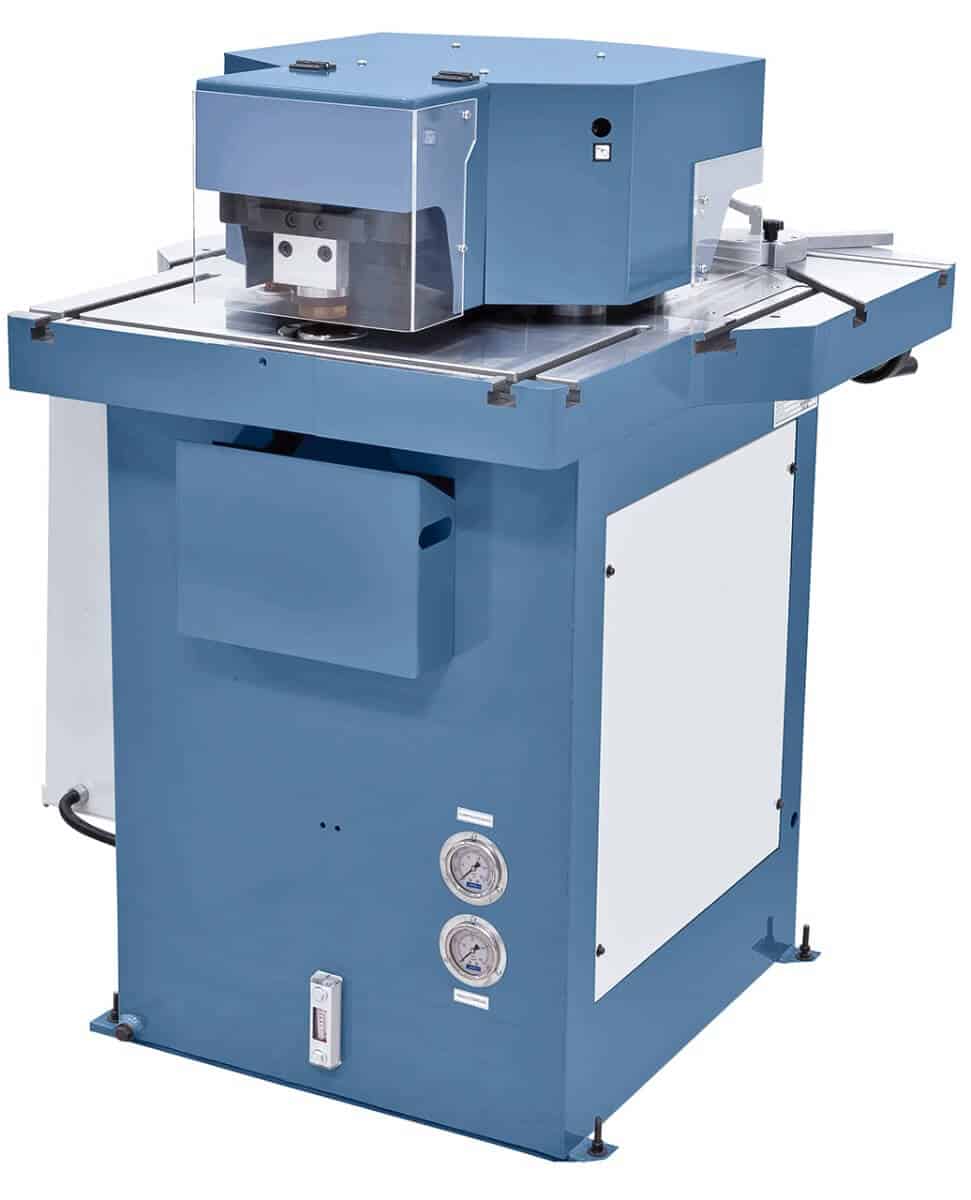

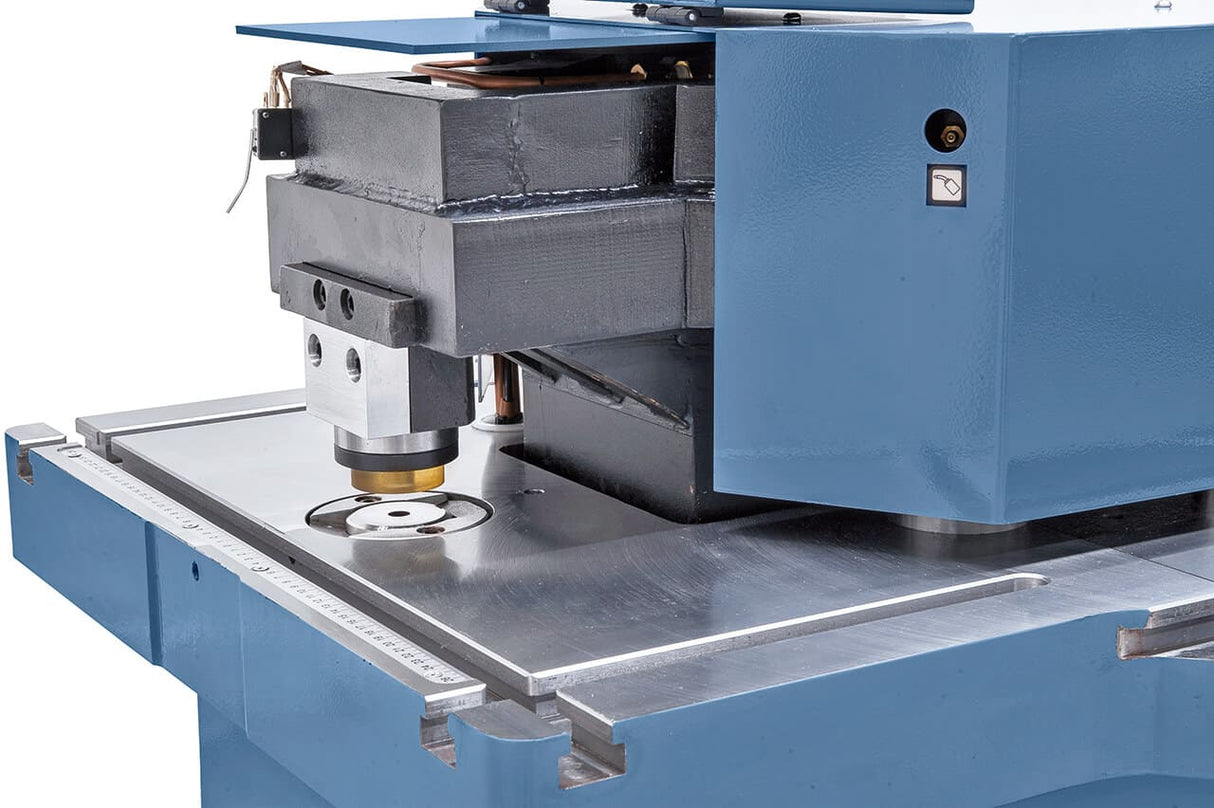

Integrated punching unit up to Ø 35 mm
Motor 4.0 kW / 400 V
Massive 1020 kg structure for stability and durability

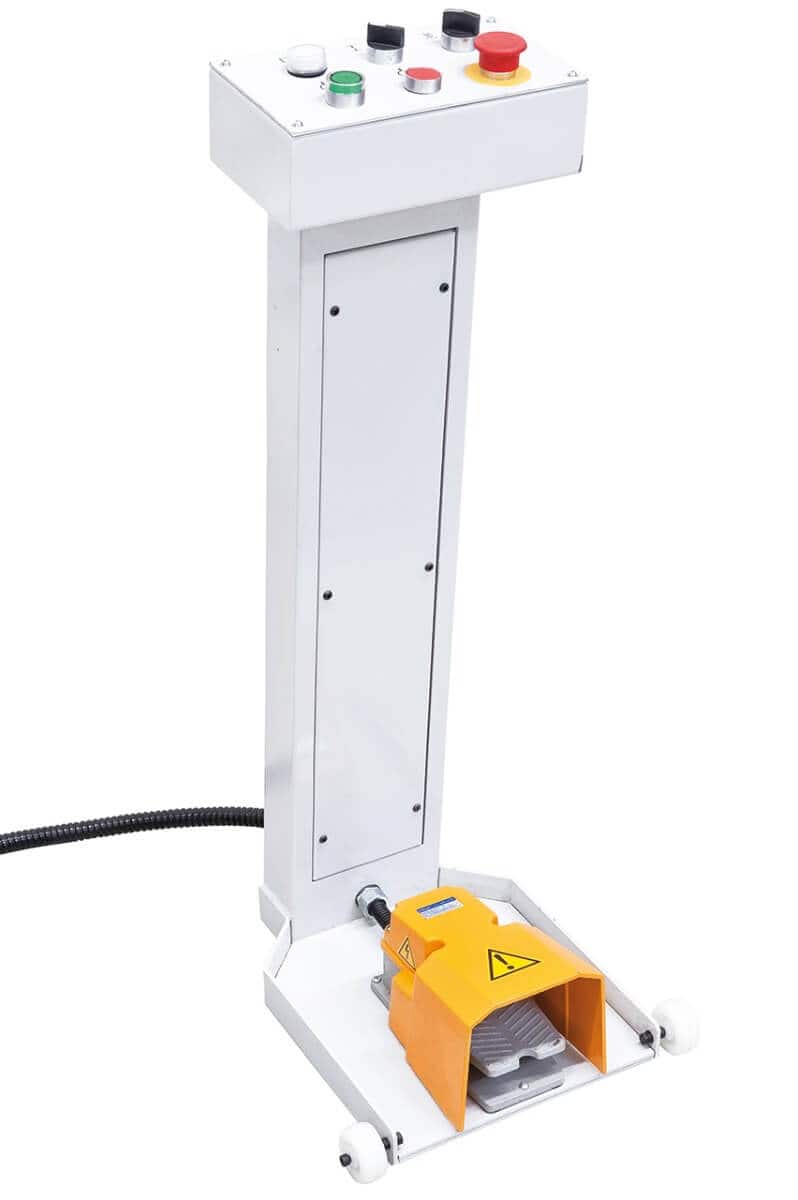

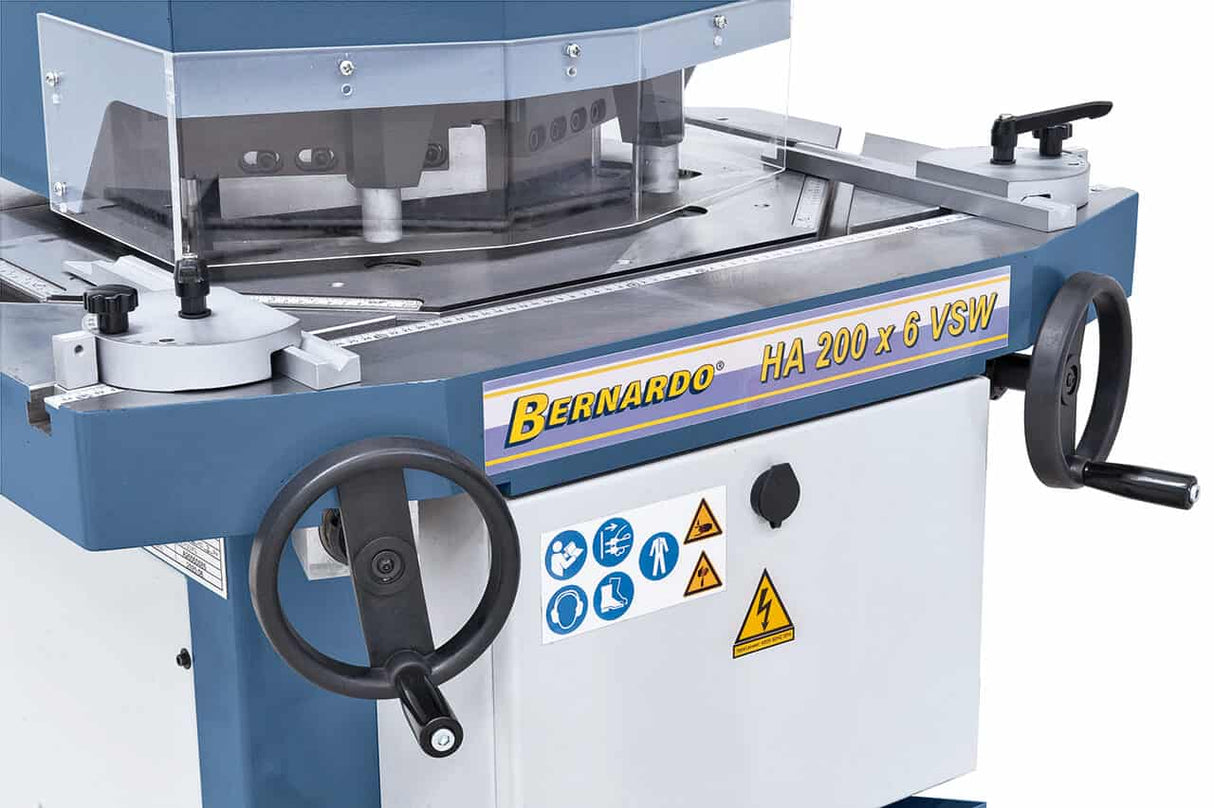

Safety devices with emergency foot pedal and plexiglass guards

---

Technical table:

Specification	Value
Brand	Bernardo
Model	HA 200 x 6 VSW
Max. sheet thickness (400 N/mm²)	6.0 mm
Max. sheet thickness (600 N/mm²)	3.0 mm
Cutting length	200 x 200 mm
Cutting angle	30° – 140°
Strokes/minute	24
Table dimensions	900 x 990 mm
Table height	940 mm
Punching unit – max. hole	Ø 35 mm
Max. punching thickness	6.0 mm
Motor power	4.0 kW / 400 V
Machine dimensions (L x W x H)	900 x 990 x 1200 mm
Weight	approx. 1020 kg

---

Package contents:
Set of cutting blades
Punches and dies Ø 12 mm

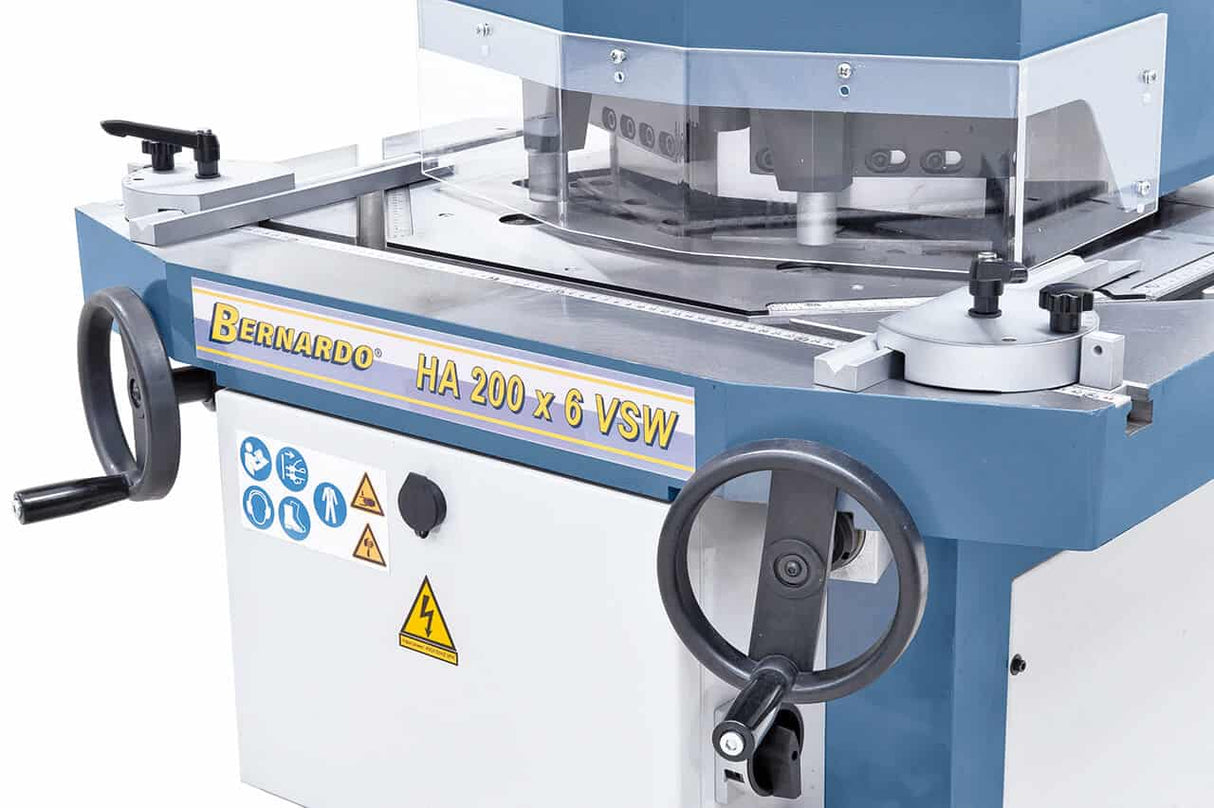

2 adjustable material stops

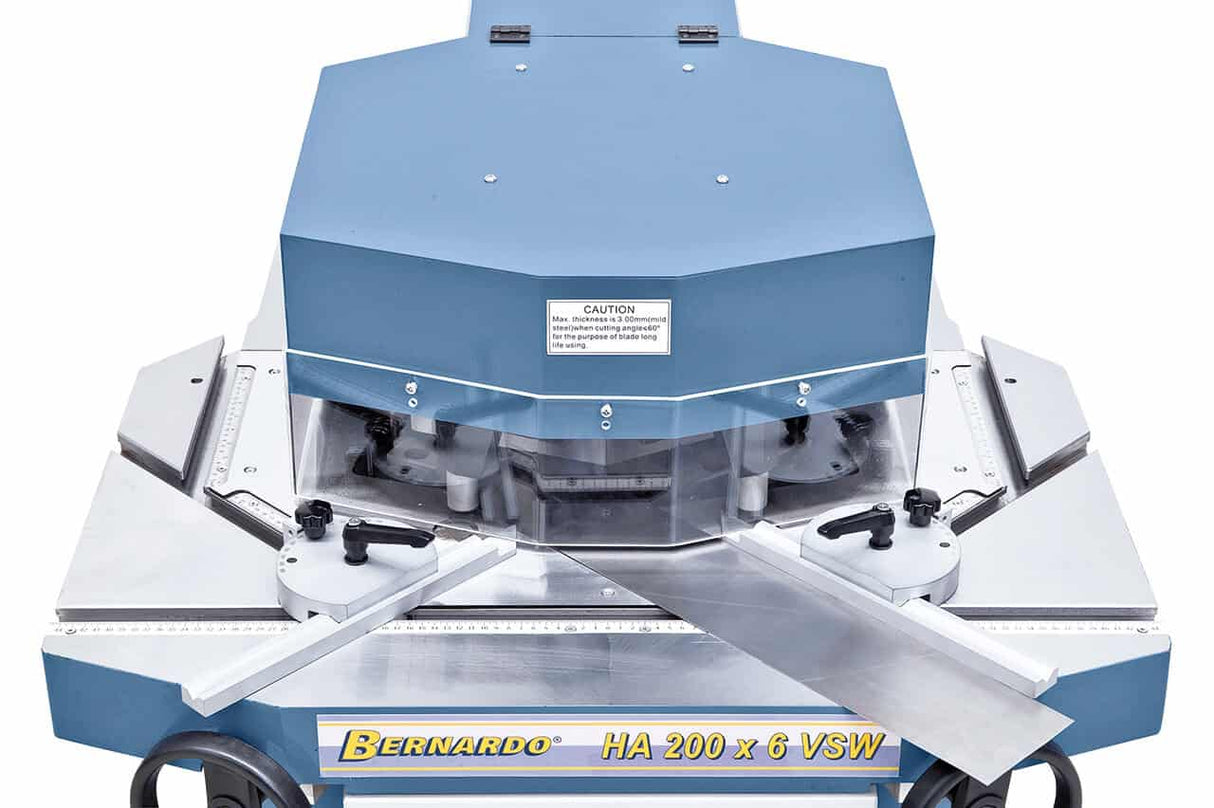

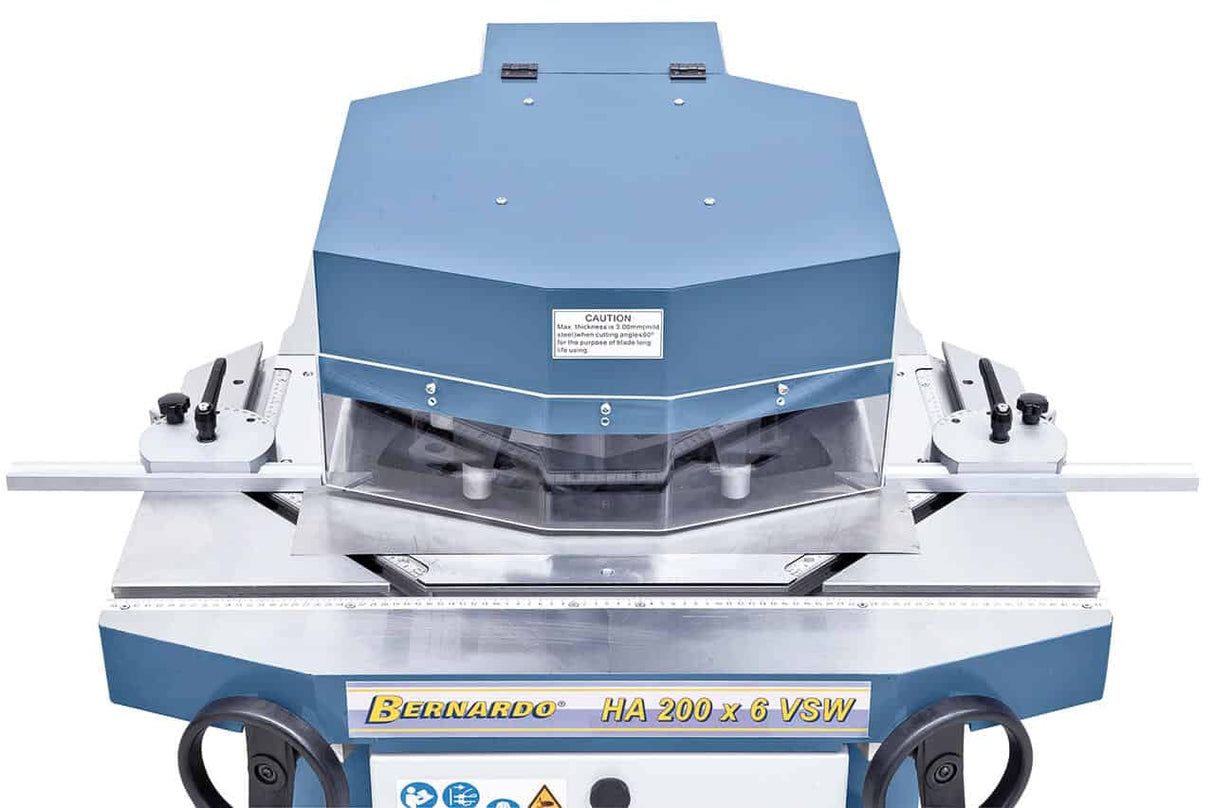

Plexiglass guard
Foot pedal with emergency stop

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer service available in Italian.

Frequently Asked Questions

What is the difference between AK manual and HA hydraulic notching machines?

AK manual notching machines (80–150 mm) are lever-operated — suitable for artisanal production with limited volumes on sheet metal up to 3 mm. HA hydraulic notching machines (200–250 mm) have motorized hydraulic drive: superior cutting force, greater sheet metal capacity (up to 6.5 mm), larger cutting lengths, and series production with less fatigue. The HA is the choice for continuous professional production.

What is the maximum thickness on stainless steel with the HA?

The nominal capacity refers to S235 steel (400 N/mm²). On AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40%. On aluminum, it increases by 30–50%. Check with Krollit for specific high-strength materials.

Are the cutting knives replaceable?

Yes. The cutting knives and dies are replaceable when worn. Original Bernardo replacement knives available with 3–5 working days shipping.

Does the HA 200 VSW have integrated variable angle cutting?

Yes. The VSW suffix indicates that the HA 200 VSW notching machine has the variable angle cutting function — it allows making angles other than 90° for the production of non-standard shapes. The standard HA 250 version only cuts at a fixed 90°.

Are assistance and spare parts available?

Original spare parts available with 3–5 working days shipping. Customer service available in Italian.
