Bernardo SP 200 PN Jointer – 400V
Bernardo SP 200 PN Jointer – 400V is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Ricevi gli ultimi aggiornamenti su tutte le nostre nuove collezioni, saldi, offerte e date di arrivo dei prodotti.
-
Description
-
Sicurezza del prodotto
-
Reviews
Description

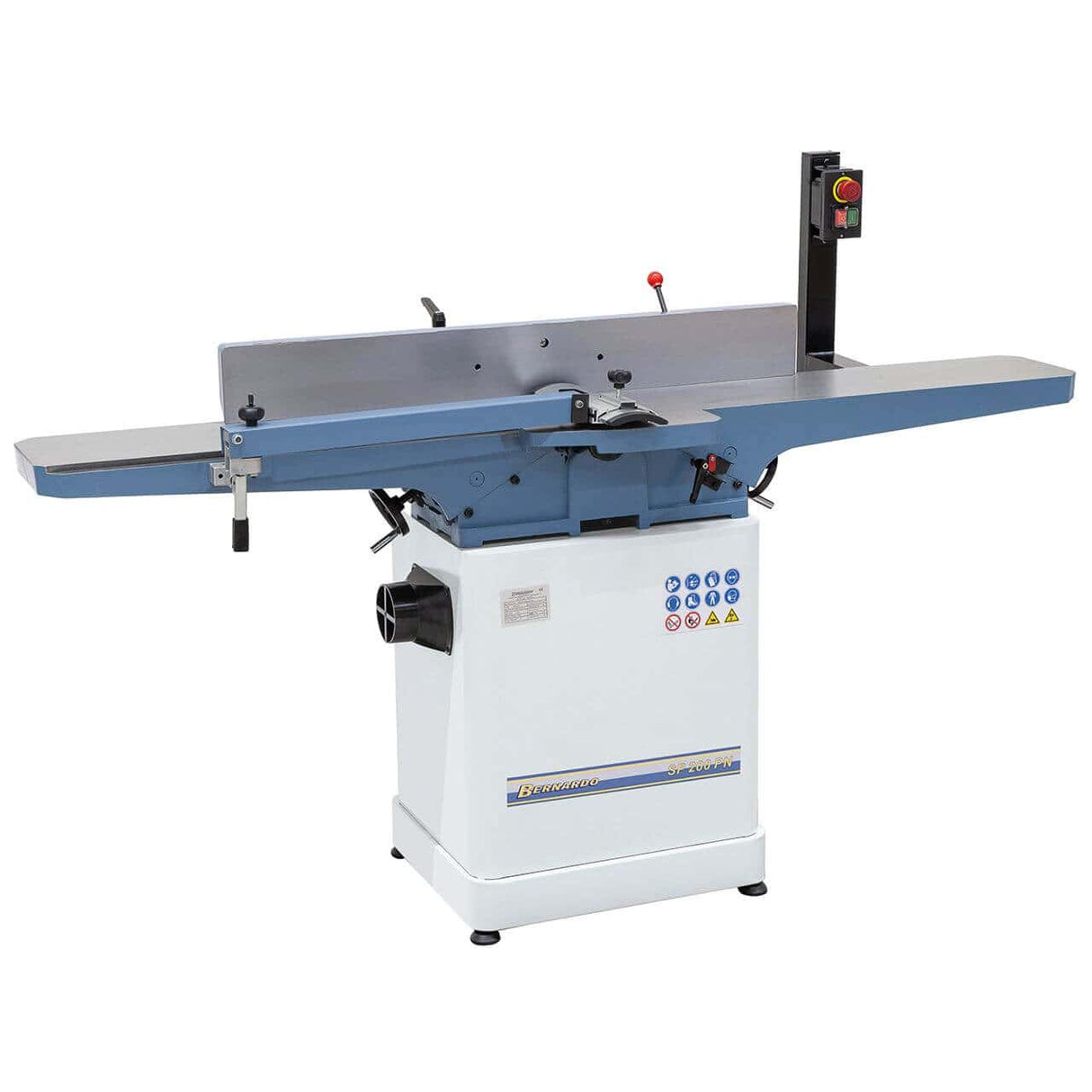

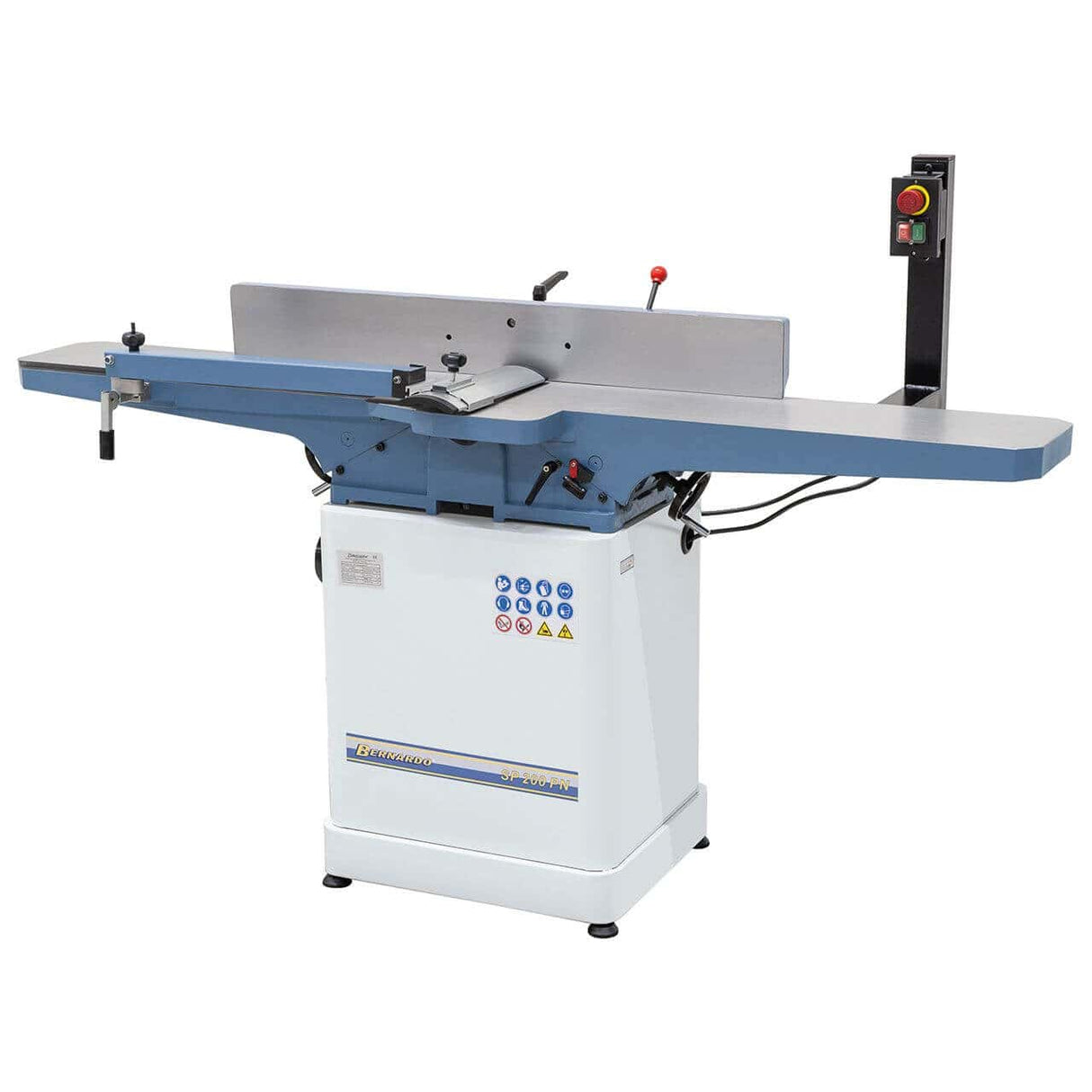

The Bernardo SP 200 PN – 400V planer offers a planing width of 200 mm, a total table length of 1,805 mm (880 mm infeed + 880 mm outfeed), a Ø 72 mm cutter block with 4 HSS knives at 4,800 rpm, a maximum cutting depth of 8 mm, and a 2.2 kW three-phase 400V motor. Weight 181 kg. This machine is for surface planing only; it does not have a thicknessing function. Manufactured in Austria, distributed in Italy by Krollit as the official Bernardo distributor since 2007.
- Function: surface planing only (jointer)
- Planing width: 200 mm
- Total table length: 1,805 mm (880 infeed + 880 outfeed)

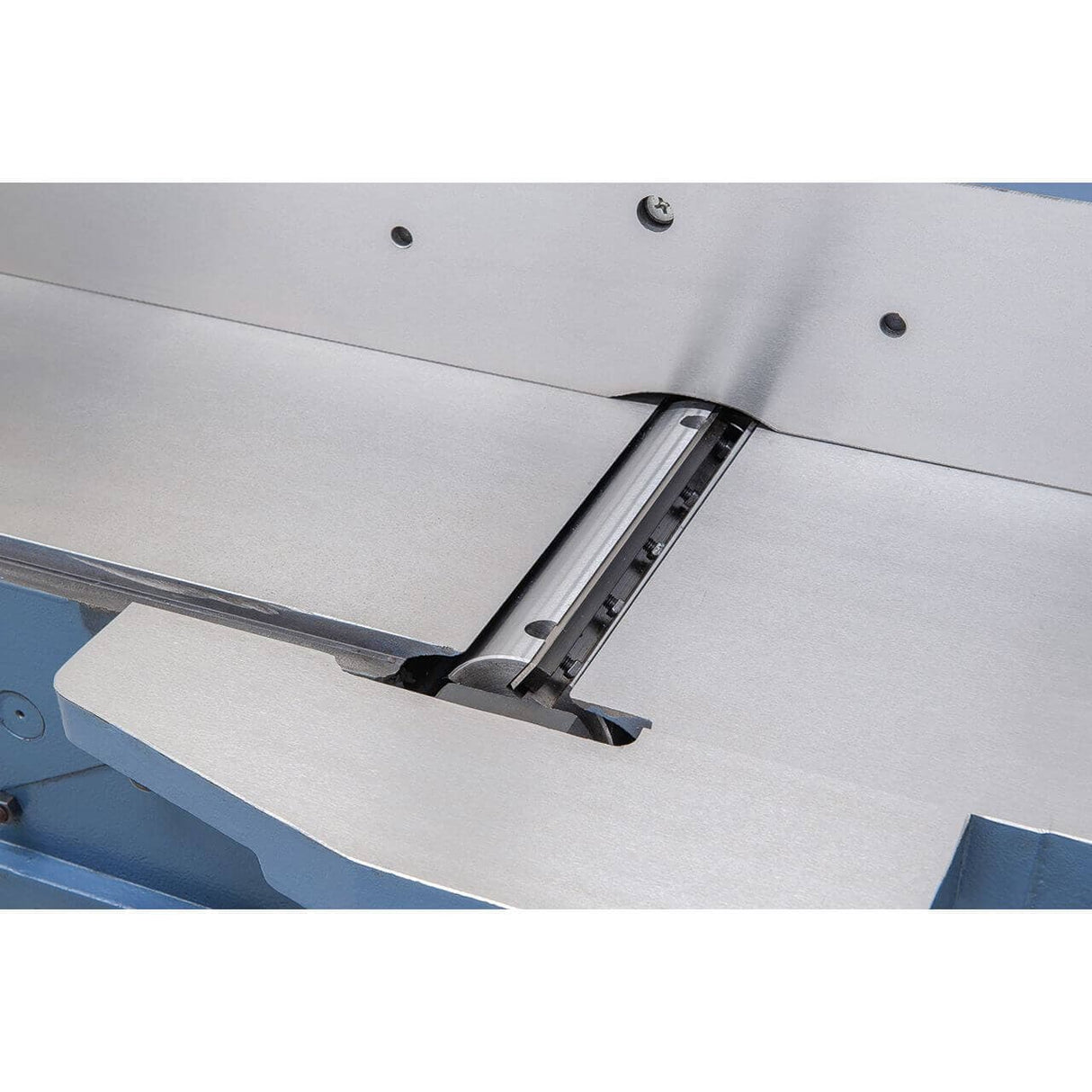

- Cutter block: Ø 72 mm – 4 HSS knives – 4,800 rpm
- Max. cutting depth: 8 mm
- Motor: 2.2 kW S1 / 3.0 kW S6 – 400V three-phase
- Weight: 181 kg
Who uses the SP 200 PN – 400V and for what
The Bernardo SP 200 PN – 400V is the version with HSS knives (4 knives, not TCT) of the three-phase SP 200: same long table of 1,805 mm, same Ø 72 mm cutter block at 4,800 rpm, same 2.2 kW motor, but with 4 HSS knives instead of the 36 TCT inserts of the SP 200 PS. "PN" indicates normal knives. The choice between SP 200 PN and SP 200 PS depends on the preference for cutting edge technology and intensity of use: the PN has a lower purchase cost, the PS has lower maintenance over time. For window and door manufacturers and parquet producers with separate thicknessers who value the long 1,805 mm table for long and narrow pieces.
SP 200 PN vs SP 200 PS: which to choose
Same structure, same motor, same weight (181 kg), same table (1,805 mm). The PN is fitted with 4 HSS knives, sharpening every 1-4 weeks. The PS is fitted with 36 TCT inserts, rotation every 6-10 weeks per insert. Lower purchase cost for PN; higher maintenance cost over time. For those who do not want to change technology and already have experience with HSS sharpening, the PN is the natural choice.
Krollit logistics and support
Bernardo shipping in 5-9 business days (7 days to the South). Original Bernardo spare parts available from stock with 3-5 business day shipping. Customer support available in Italian.
Who is the Bernardo SP 200 PN – 400V for
| Profile | Compatibility | Reason |
|---|---|---|
| Passionate hobbyist | Not recommended | Professional 181 kg jointer with three-phase. For hobby use, consider combined planer/thicknesser machines. |
| Window/door manufacturer / parquet producer | Recommended | 1,805 mm table for long planks and beams, 200 mm width, 4 HSS knives at 4,800 rpm: suitable for reference surfacing on long and narrow pieces in three-phase. |
| Joinery with separate thicknesser | Suitable | For those who prefer HSS knives over TCT and have three-phase available. For those who want minimal maintenance, consider SP 200 PS. |
Not suitable for: workshops without three-phase 400V (choose SP 200 PN – 230V); pieces over 200 mm wide; those who also need a thicknessing function.
Jointer (surface planer)
| Specification | Value |
|---|---|
| Planing width | 200 mm |
| Infeed table | 880 mm |
| Outfeed table | 880 mm |
| Total table length | 1,805 mm |
| Table height | 840 mm |
| Cutter block – diameter | Ø 72 mm |
| Knives | 4 pcs HSS |
| Cutter block speed | 4,800 rpm |
| Max. cutting depth | 8 mm |

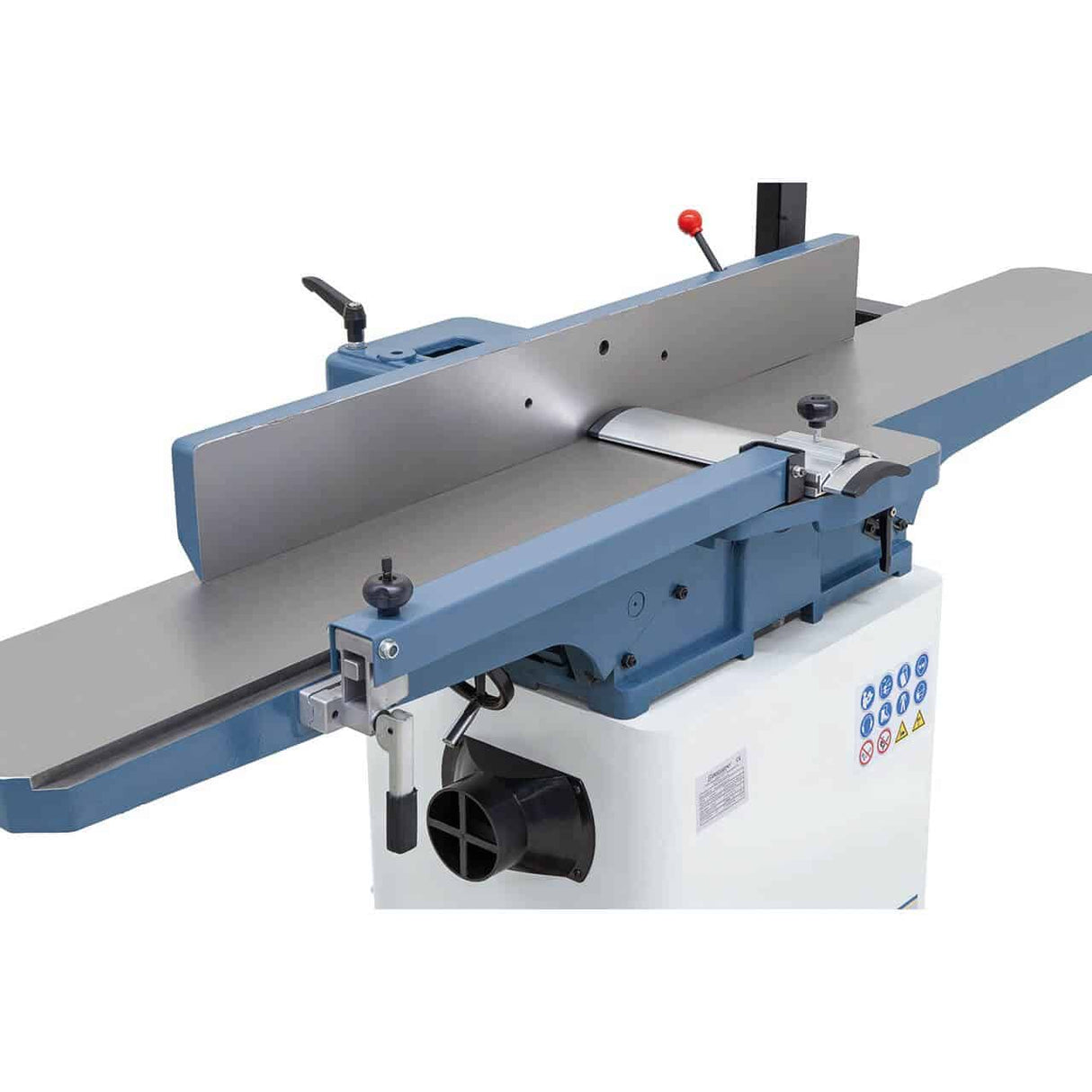

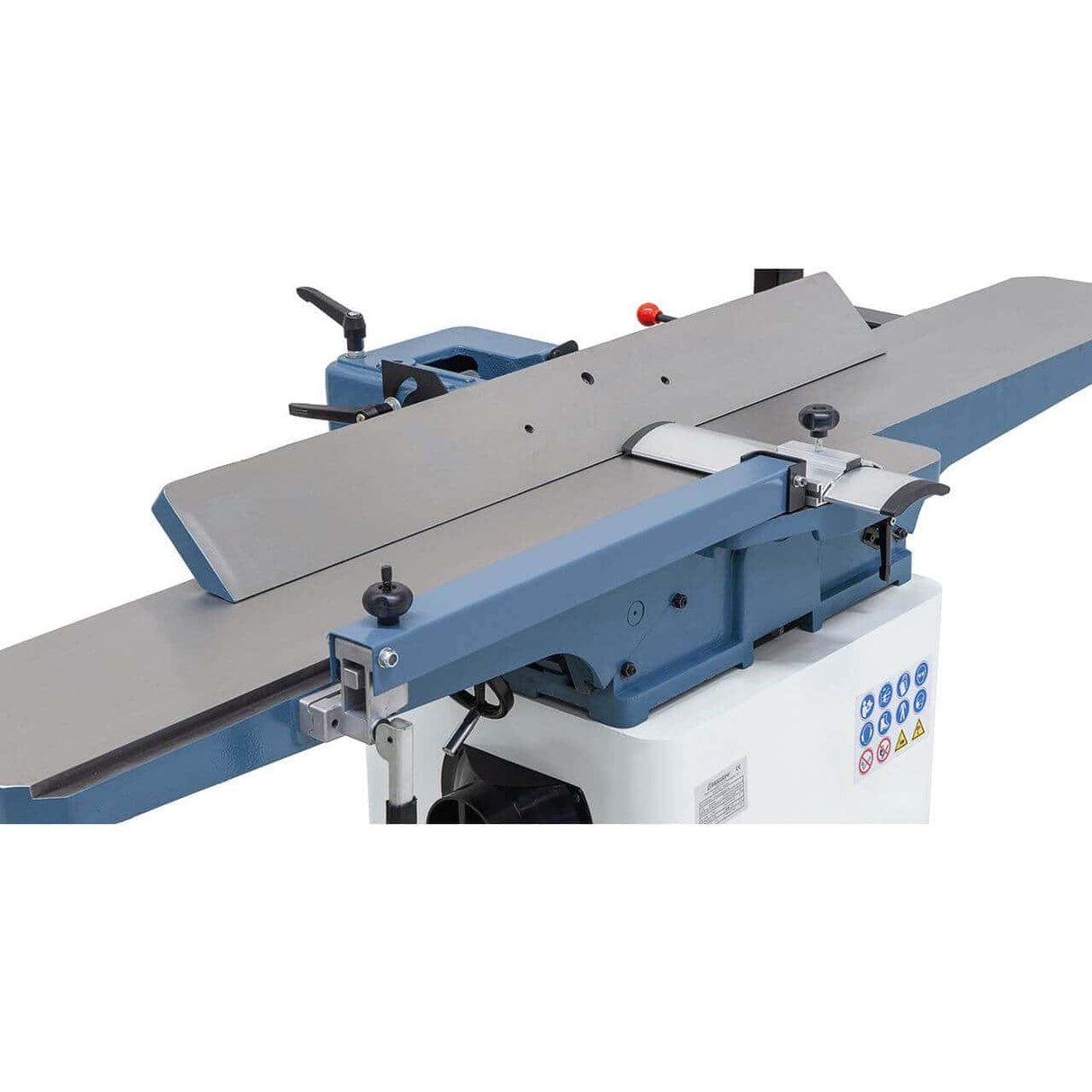

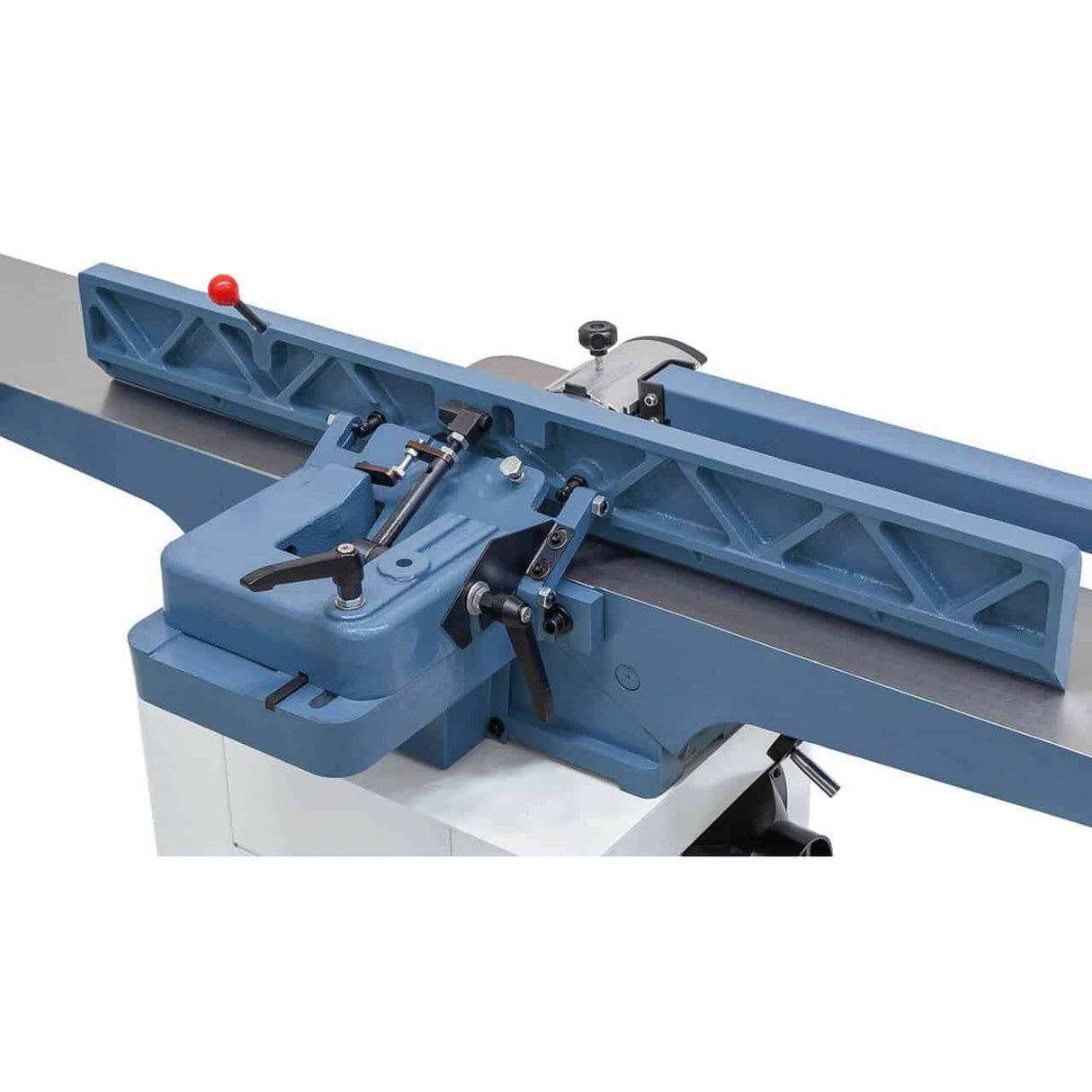

| Fence | 1,020 × 125 mm, tiltable 90°–45° |
| Dust port | Ø 100 mm |
Motor and power supply
| Specification | Value |
|---|---|
| Motor power S1 (100%) | 2.2 kW (3.0 HP) |
| Motor power S6 (40%) | 3.0 kW (4.0 HP) |
| Power supply | 400V – three-phase |
Dimensions and weight
| Specification | Value |
|---|---|
| Machine dimensions (L × W × H) | 1,805 × 660 × 1,200 mm |
| Net weight | 181 kg |
Compliance and safety
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery 2006/42/EC |
Standard equipment
- 4 HSS knives fitted
- Knife setting gauge
Frequently asked questions
What is the difference between SP 200 PN and SP 200 PS?
The SP 200 PN is fitted with 4 HSS knives; the SP 200 PS is fitted with 36 TCT inserts. Same Ø 72 mm cutter block, same speed (4,800 rpm), same table (1,805 mm), same motor, same weight (181 kg). The PN has a lower purchase cost and requires periodic sharpening; the PS has a higher purchase cost but almost no cutting edge maintenance. The choice depends on technological preference and intensity of use.
Does the SP 200 PN have a thicknessing function?
No. It is exclusively a surface planer. For the combined planer/thicknesser function at 200 mm, the ADH 250 P – 400V or the PT 260 – 400V are the closest alternatives in terms of width.
How often should the 4 HSS knives be sharpened?
In professional use (6-8 hours/day) on medium woods, sharpening is necessary every 2-3 weeks. On hardwoods every 1-2 weeks. Original Bernardo spare knives available from Krollit stock with 3-5 business day shipping.
How much space is needed in the workshop?
The machine footprint is 1,805 × 660 × 1,200 mm. For handling long workpieces, clear space of at least 2 m in front and behind is required. With 181 kg Bernardo shipping.
What is the difference between SP 200 PN – 400V and SP 200 PN – 230V?
No structural difference: same operational specifications. The only difference is the power supply: three-phase 400V vs single-phase 230V. With three-phase available, the 400V version is preferable for more uniform motor torque.
