Description

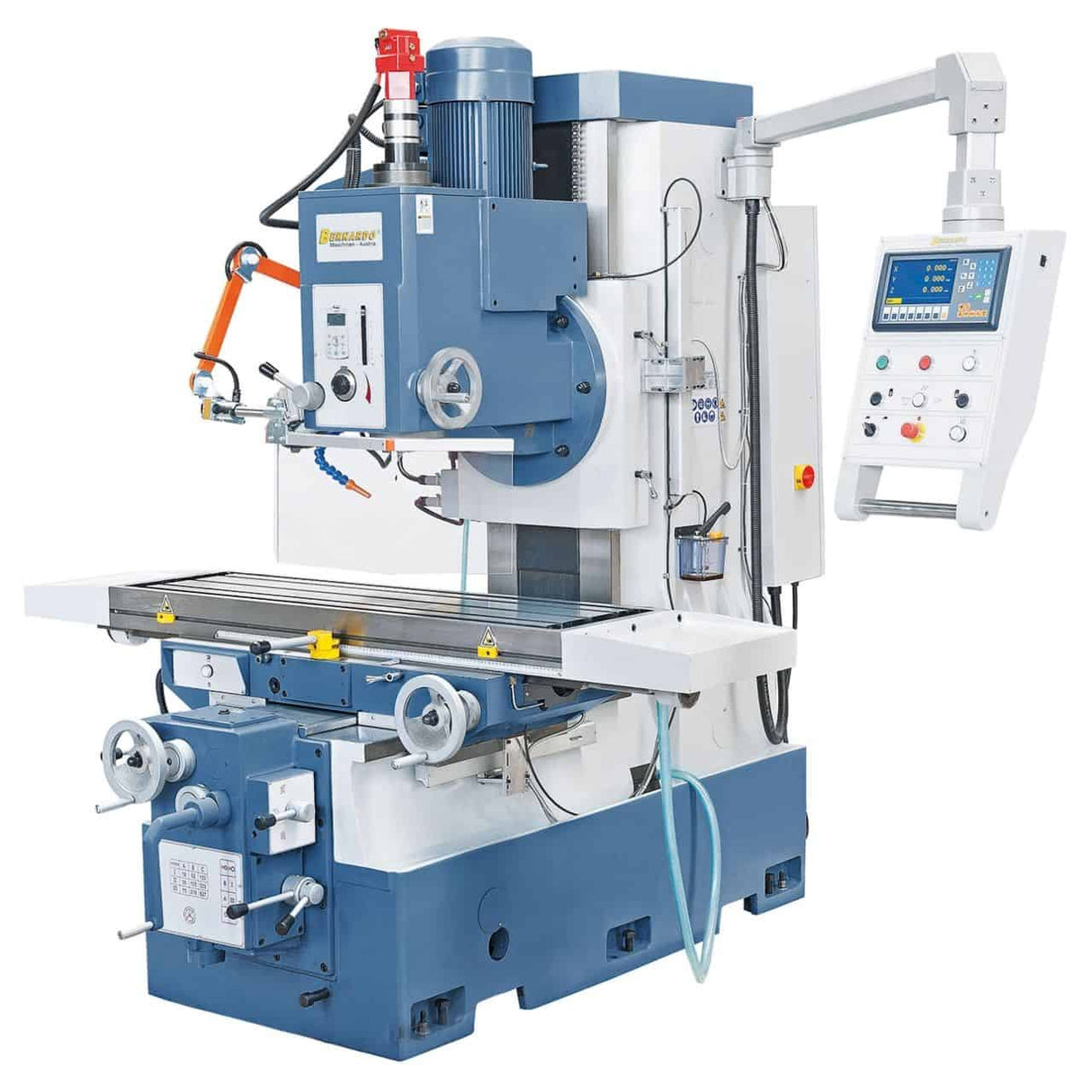

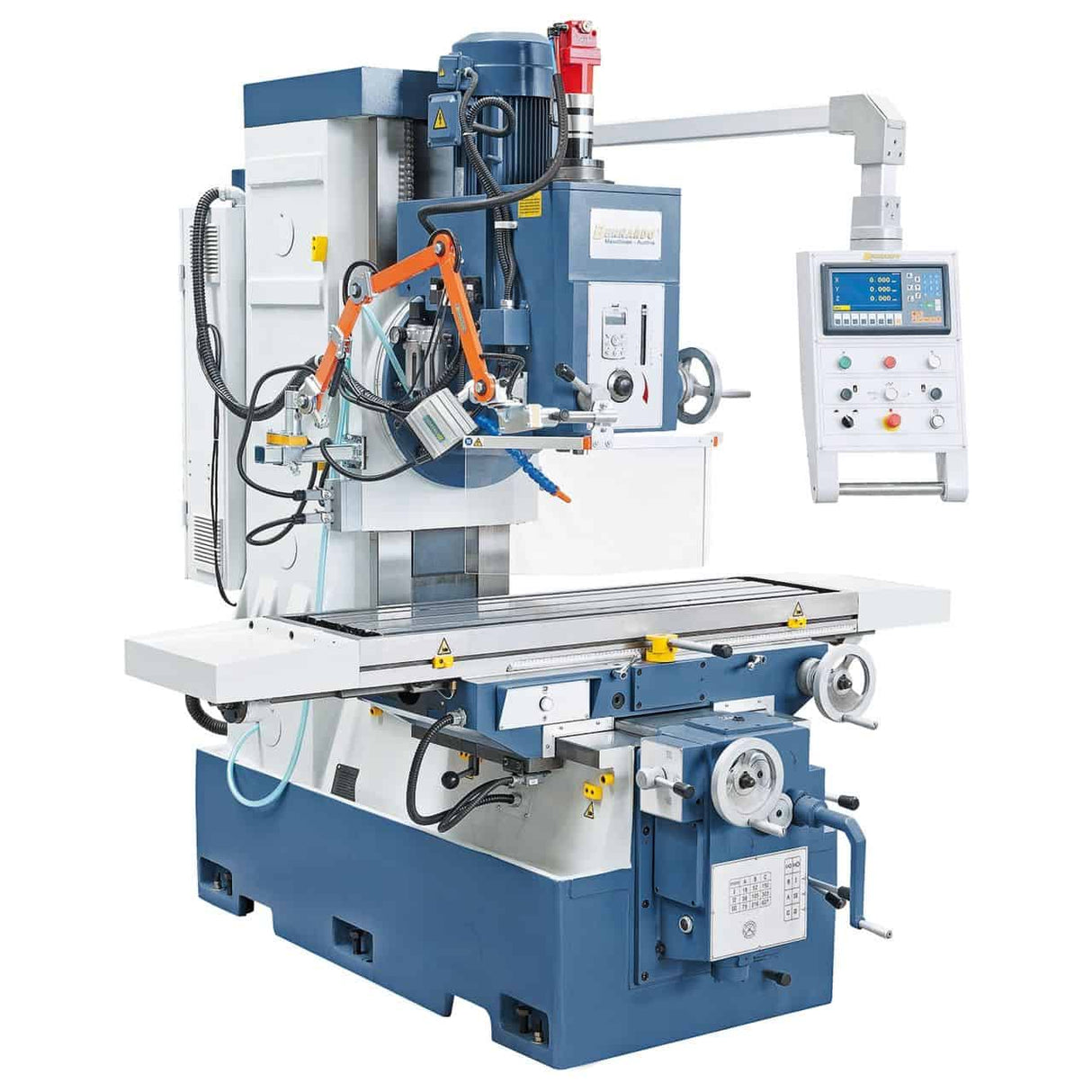

The Bernardo BFM 200 milling machine offers a 1400 × 400 mm table, ISO 50 spindle taper, 20–1,800 rpm (continuous) spindle speed, 950 mm X-travel / 410 mm Y-travel / 520 mm Z-travel, 520 mm spindle-to-column distance, and a −30°/+30° head tilt. Distributed in Italy by Krollit as an official Bernardo distributor since 2007.

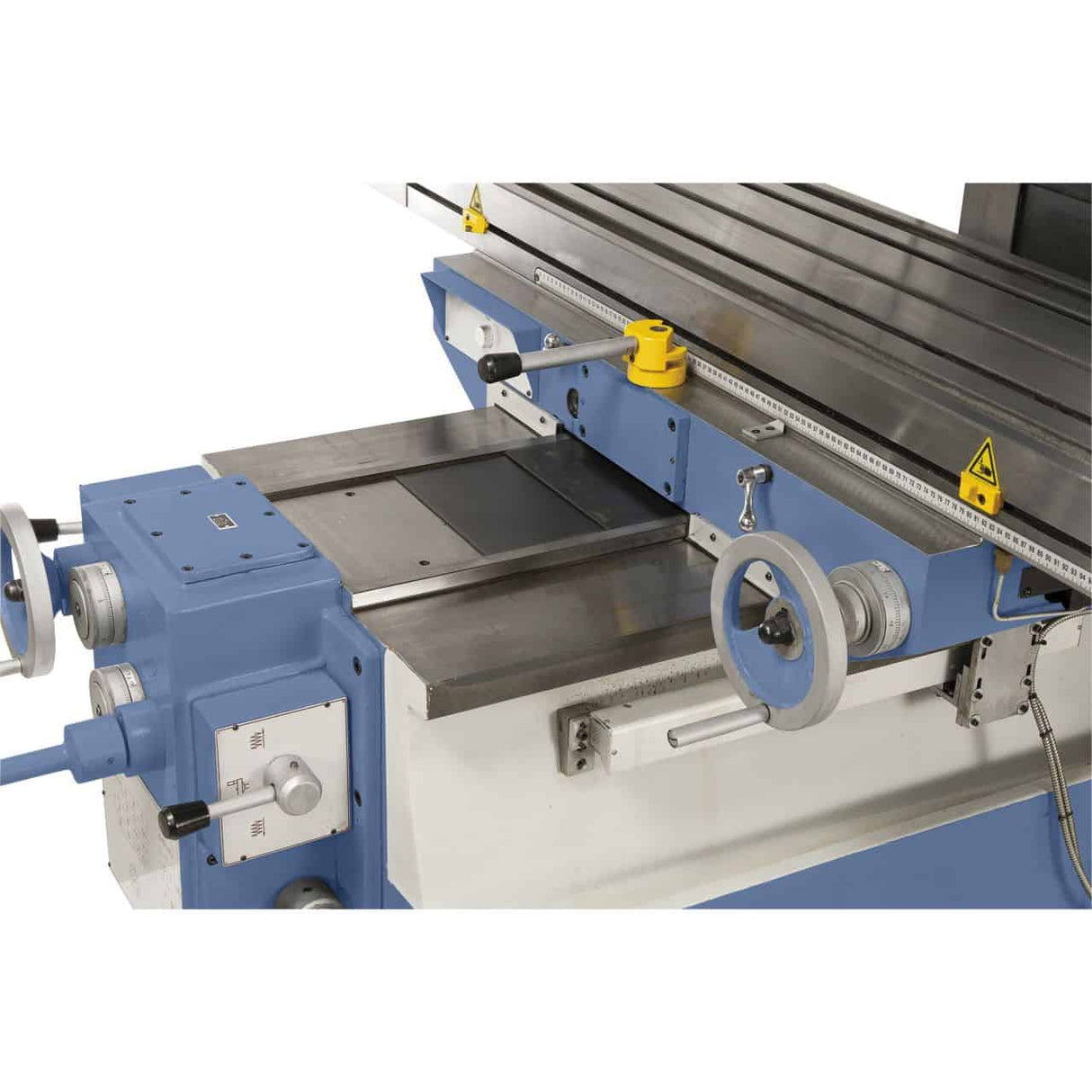

- Table dimensions: 1400 × 400 mm

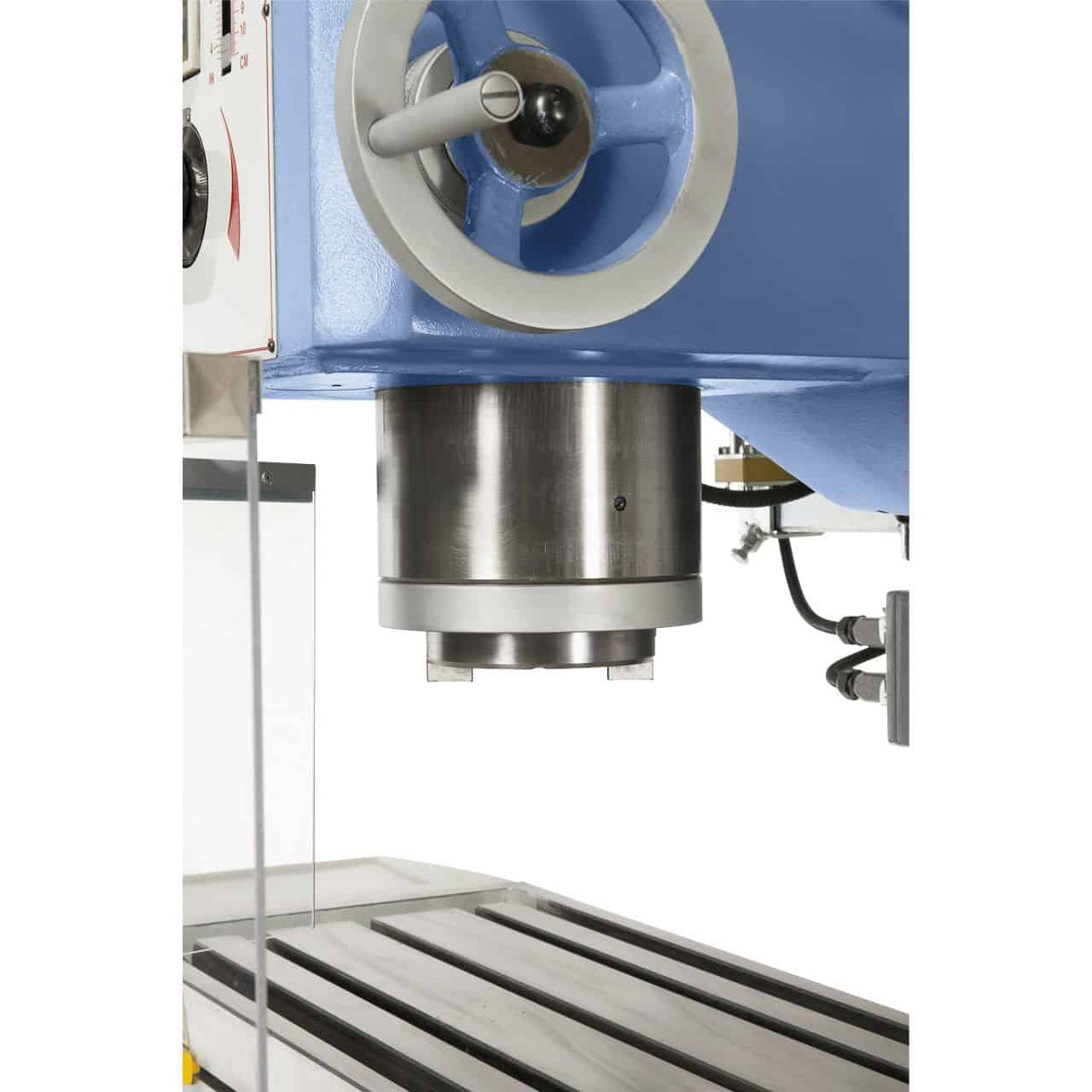

- Spindle taper: ISO 50

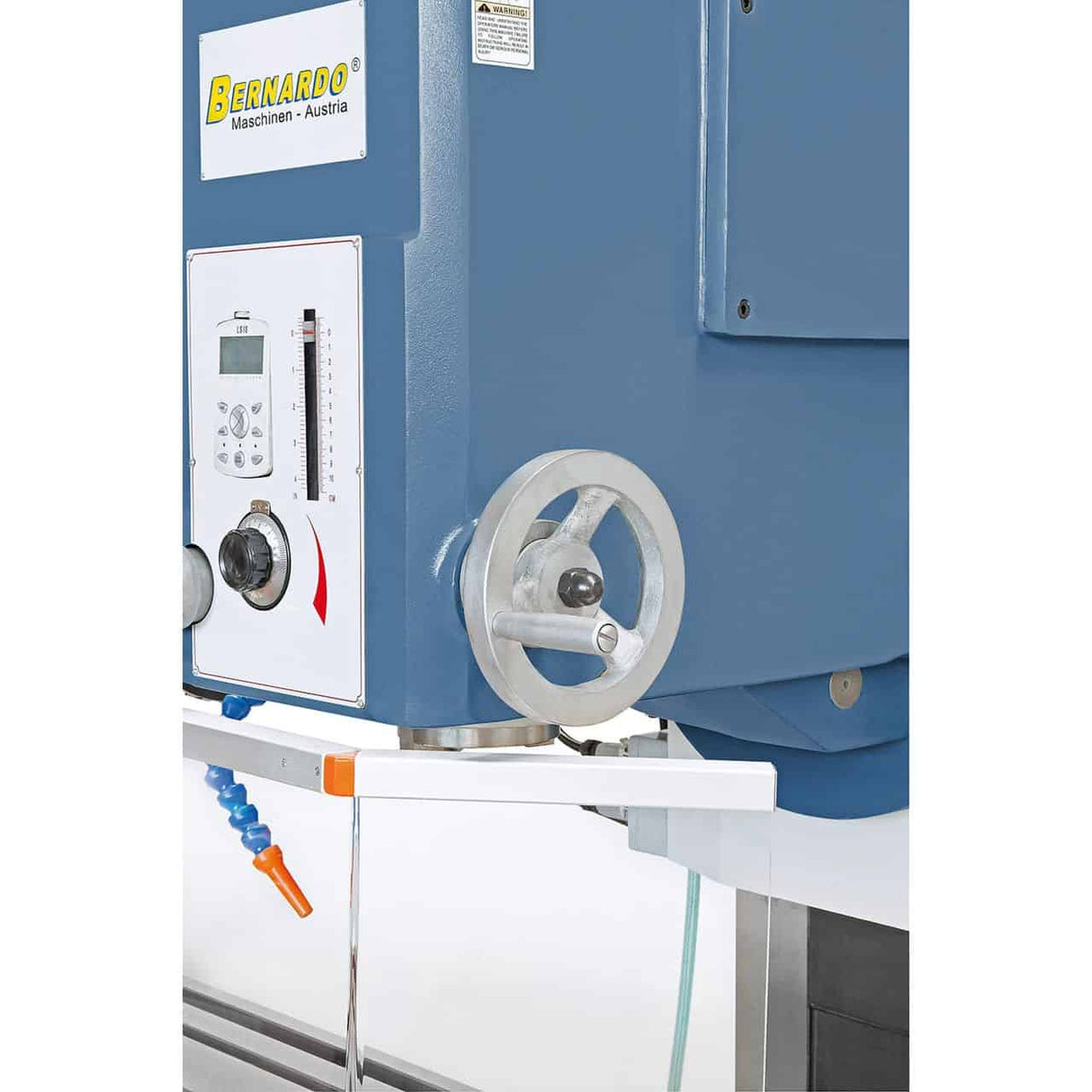

- Spindle speed: (continuous) 20–1,800 rpm
- Longitudinal travel (X): 950 mm
- Cross travel (Y): 410 mm
- Vertical travel (Z): 520 mm
- Spindle – column distance: 520 mm

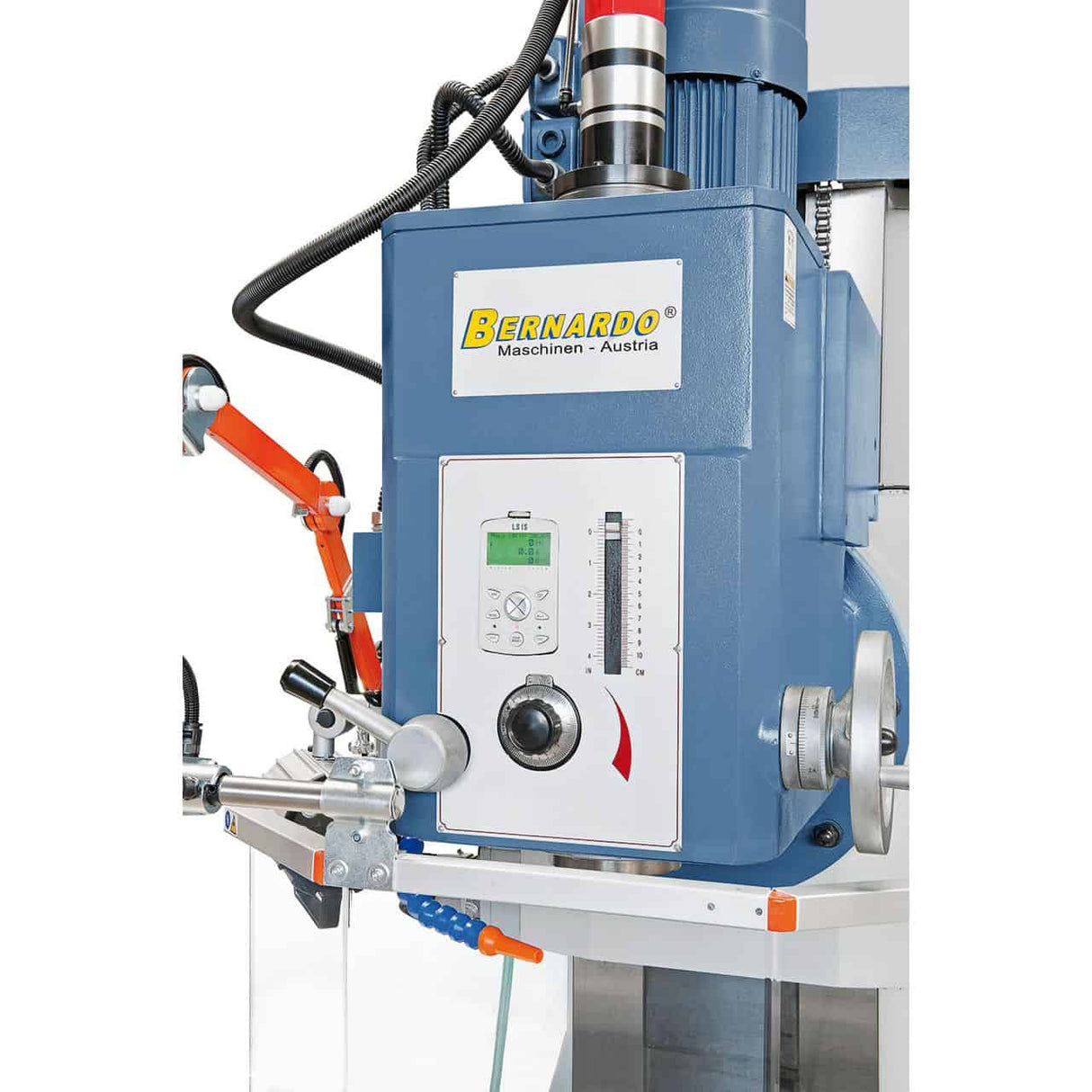

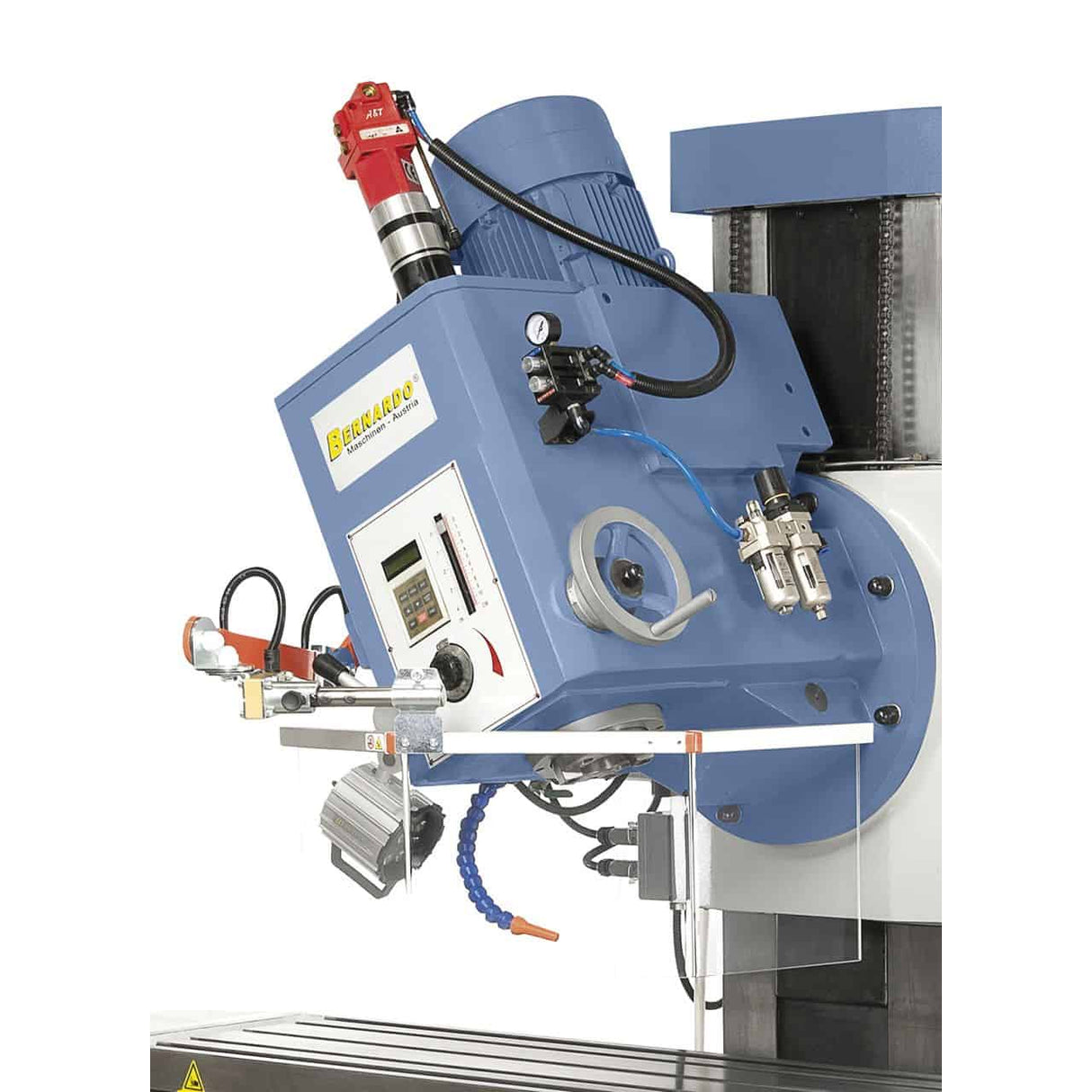

- Spindle head tilt: −30°/+30°
Who uses the BFM 200 and for what
The Bernardo BFM 200 is a universal bench/workshop milling machine for metalworking: peripheral and face milling, drilling, boring, threading, and surfacing on steel, aluminum, and cast iron. With a 1400 × 400 mm table, ISO 50 taper, and 950 mm longitudinal travel, it covers the mid-to-high industrial range. Continuous speed adjustment from 20–1,800 rpm: maximum flexibility for heavy milling and finishing on the same spindle. The −30°/+30° tilting head allows for bevel milling and angled operations without rotating the workpiece. In Krollit customers' workshops, it is used by mechanical workshops, equipment manufacturers, and machining centers for precision parts.
Who is the Bernardo BFM 200 for
| Profile | Compatibility | Reason |
|---|---|---|
| Hobbyist | Not suitable | Professional workshop milling machine. |
| Professional mechanical workshop | Ideal | 1400 × 400 mm table, ISO 50, 950 mm X-travel: for precision milling on standard-sized parts. |
| Industrial production | Adequate | For high-volume series production, consider CNC milling centers. |
Technical specifications
| Specification | Value |
|---|---|
| Table dimensions | 1400 × 400 mm |
| Spindle taper | ISO 50 |
| Spindle speed | (continuous) 20–1,800 rpm |
| Longitudinal travel (X) | 950 mm |
| Cross travel (Y) | 410 mm |
| Vertical travel (Z) | 520 mm |
| Spindle – column distance | 520 mm |
| Spindle head tilt | −30°/+30° |
| Feeds (X/Y) | (9) 18–627 mm/min |
| Dimensions (L × W × H) | N/A mm |
| Weight | N/A kg |
Compliance and safety
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery 2006/42/CE |
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer support available in Italian.
Frequently Asked Questions
What is the difference between ISO 40 and ISO 50 taper?
ISO 40 is the standard for medium-sized professional milling machines (BFM 180, WFM 750/800/850, MFM 230). ISO 50 is the heavy industrial standard for large-format milling machines (BFM 200, BFM 2100 Servo): larger diameter taper, larger tools, greater rigidity in heavy milling. The BFM 200 uses ISO 50.
Does the BFM 200 have automatic feed?

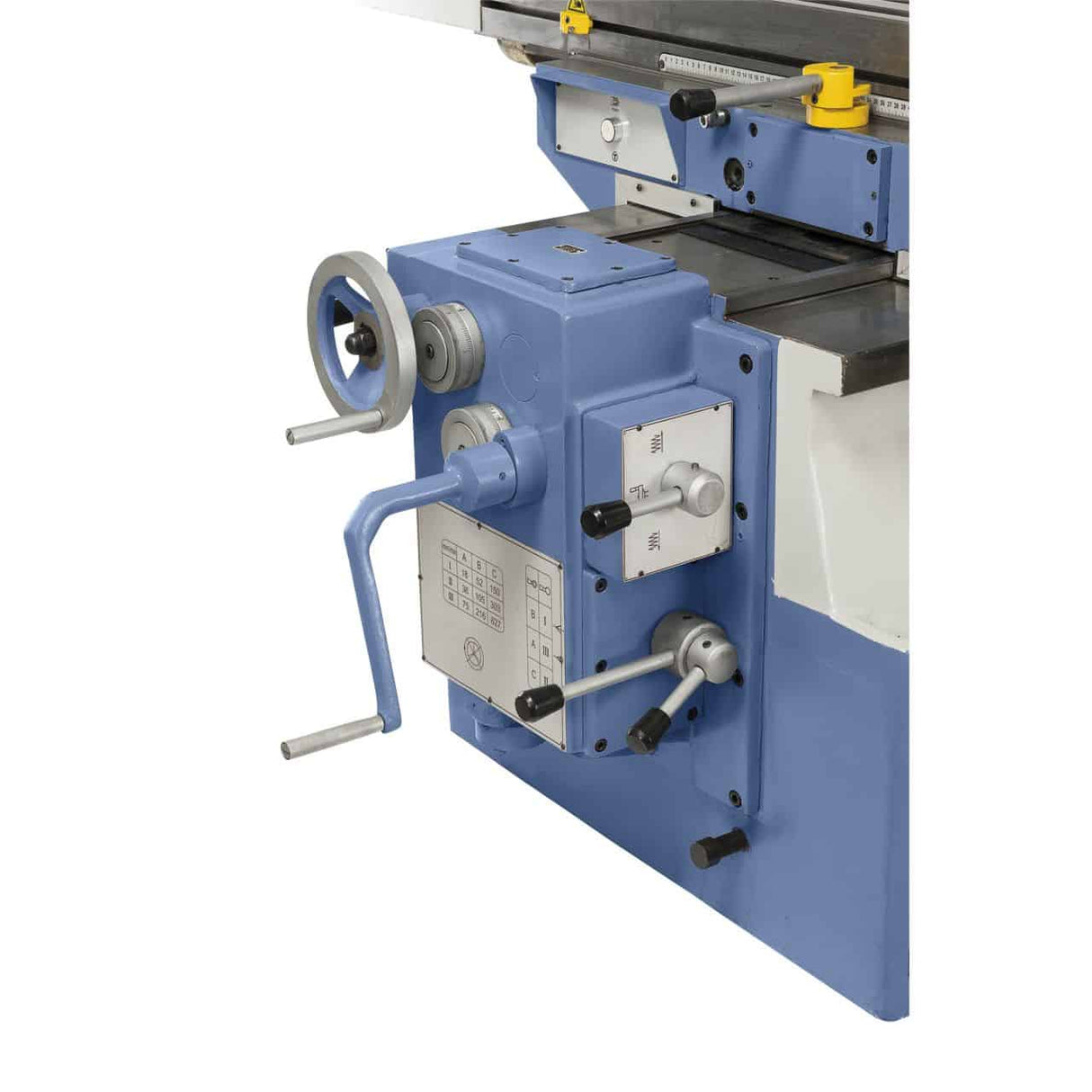

The BFM 200 has manual feed on all three axes. For motorized automatic feeds, consider the Servo versions of the WFM range.
What cutting fluid is used?
For steel: 5–8% water+soluble oil emulsion. For aluminum: neat cutting oil or kerosene. For cast iron: dry cutting (cast iron produces lubricating graphite). Always check compatibility with the specific material.
Are spare parts and assistance available?
Original Bernardo spare parts available with 3–5 working days shipping. Customer support available in Italian.
How much space is needed in the workshop?
Footprint N/A mm. For workpiece handling, clear space is needed on all sides of the table equal to the longitudinal travel (950 mm) in front and behind.
