Benchtop drill-milling machine Bernardo KF 10 HS with Vario speed 100-5,000 rpm and 400 mm table
Benchtop drill-milling machine Bernardo KF 10 HS with Vario speed 100-5,000 rpm and 400 mm table is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Product safety
-
Reviews
Description

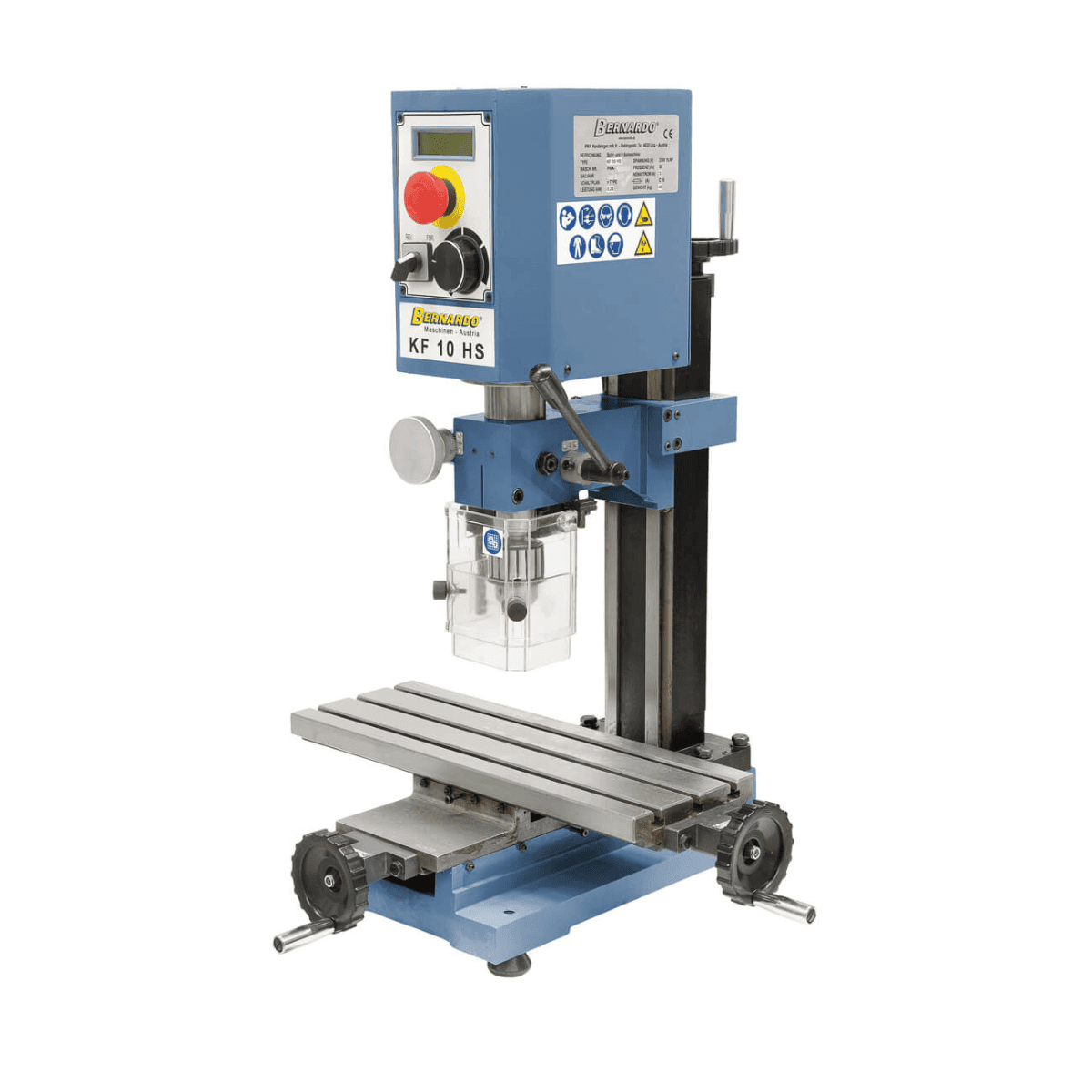

The Bernardo KF 10 HS is a compact benchtop drill-milling machine for model making, hobbies, and small workshops, with drilling capacity in steel up to Ø10 mm, face milling Ø20 mm, a 0.35 kW motor, and speeds of 100–5,000 rpm. It weighs 50 kg and has an MT 2 taper. Krollit, official Bernardo distributor since 2007.
- Drilling in steel Ø10 mm
- Max face milling Ø20 mm
- Max end milling Ø10 mm
- Spindle speed 100–5,000 rpm (Vario)
- Spindle taper MT 2, travel 30 mm
- Cross table 400 x 145 mm, X/Y travel 330 / 170 mm
- Motor 0.25 kW (S1) / 0.35 kW (S6) 230 V
- Weight 50 kg
Who uses the KF 10 HS and for what
Model makers, advanced hobbyists, and small workshops choose this machine for precision machining of small parts: drilling aluminum and mild steel components up to Ø10 mm, milling slots and small surfaces, and chamfering metal parts. The machine's compactness (50 kg weight, 520 x 480 x 750 mm dimensions) makes it a suitable solution for workbenches in home workshops, technical schools, and training centers.
Its place in the Bernardo range
The Bernardo KF 10 HS is positioned in the entry-level segment of benchtop drill-milling machines. Above this machine, the range offers more structured models such as the KF 25 D Vario (110 kg) and the BF 25 Super (165 kg), with greater drilling capacity and a larger table. Below the KF 10 HS, there are no professional drilling/milling combined machines: for purely hobbyist simple drilling uses, the TB bench drills from the same Bernardo range can be considered.
Krollit Logistics and Support
Bernardo shipping in 5-9 business days (7 days to the South). For original Bernardo spare parts, shipping in 3-5 business days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official Bernardo distributor since 2007.
Who is the KF 10 HS for
| Profile | Compatibility | Reason |
|---|---|---|
| Model makers and advanced hobbyists | Suitable | Drilling Ø10 mm and milling Ø20 mm on small parts, 50 kg benchtop weight |
| Technical schools and training centers | Suitable | Compact machine 520 x 480 x 750 mm, MT 2 taper, standard 230 V power supply |
| Professional workshops for continuous use | Not suitable | 0.35 kW motor and 10 mm capacity oriented towards occasional use, not series production |
Not suitable for: series production, machining hard steels over Ø10 mm, continuous milling cycles in mechanical workshops (for these uses, BF 25 Super or higher models are required).
Machining capacity
| Drilling in steel | Ø10 mm |
| Max face milling | Ø20 mm |
| Max end milling | Ø10 mm |
Spindle and speed
| Spindle taper | MT 2 |
| Spindle travel | 30 mm |
| Spindle speed (Vario) | 100–5,000 rpm |
| Right/left rotation | Yes, standard for threading |
Table and head

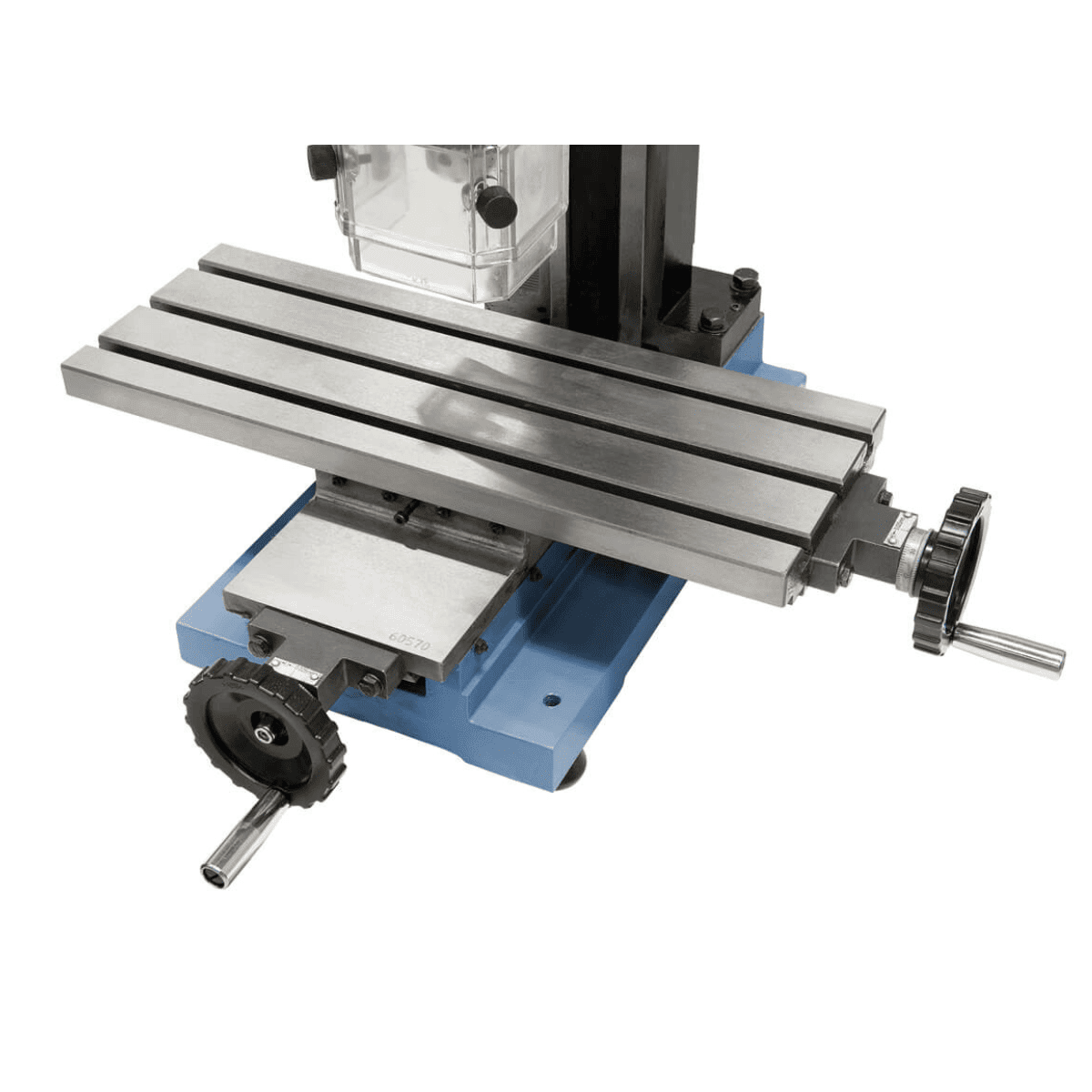

| Table dimensions | 400 x 145 mm |
| Table travel (X / Y) | 330 / 170 mm |
| T-slots | 8 mm |

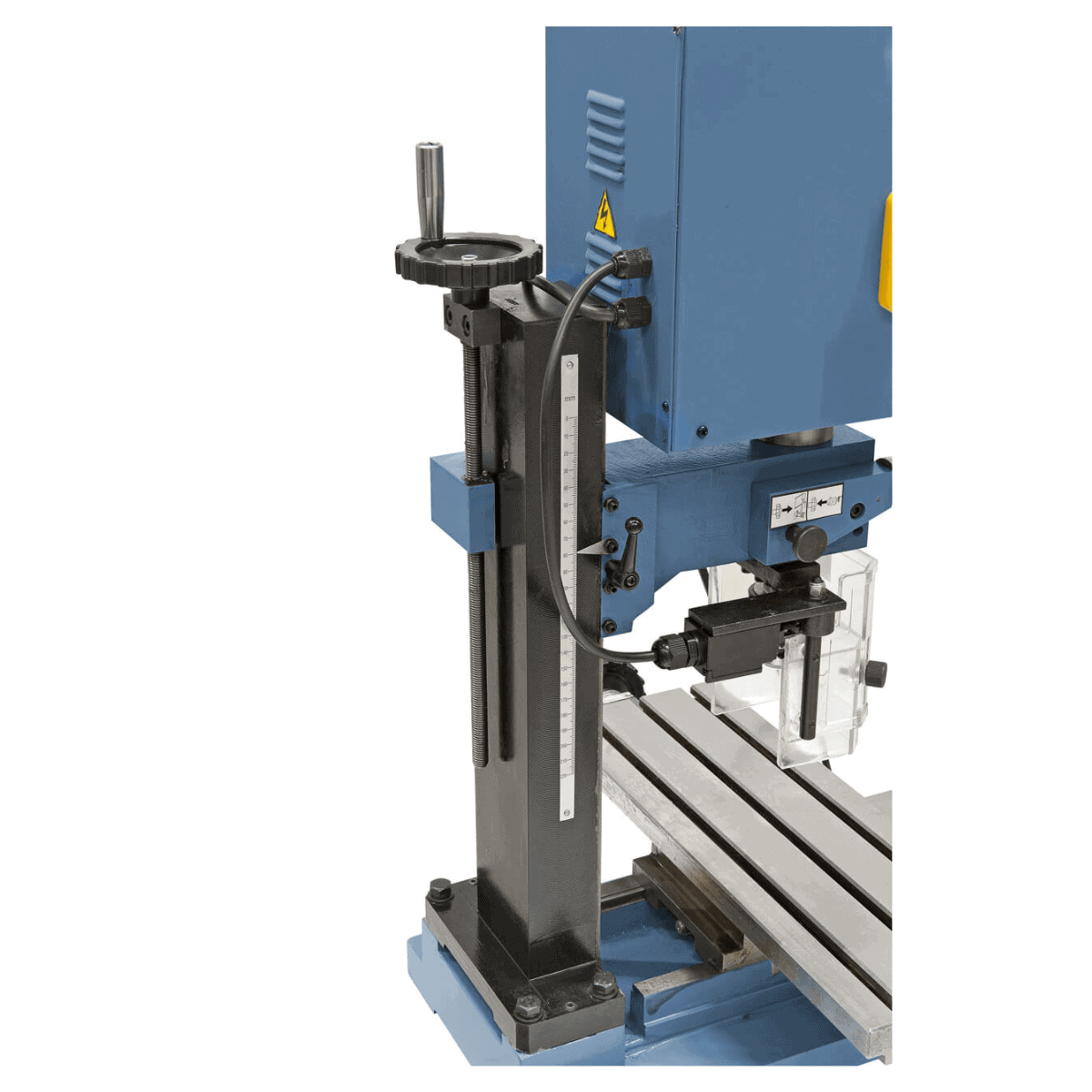

| Head height adjustment | 170 mm |
| Spindle-column distance | 140 mm |
| Spindle-table distance | 90–260 mm |
Motor and dimensions
| Motor power S1 100% | 0.25 kW |
| Motor power S6 40% | 0.35 kW |
| Voltage | 230 V |
| Machine dimensions (L x W x H) | 520 x 480 x 750 mm |
| Weight | 50 kg |
Standard equipment
- Chuck 1-10 mm / B12
- Spindle arbor MT 2 / B12
- Drawbar M10

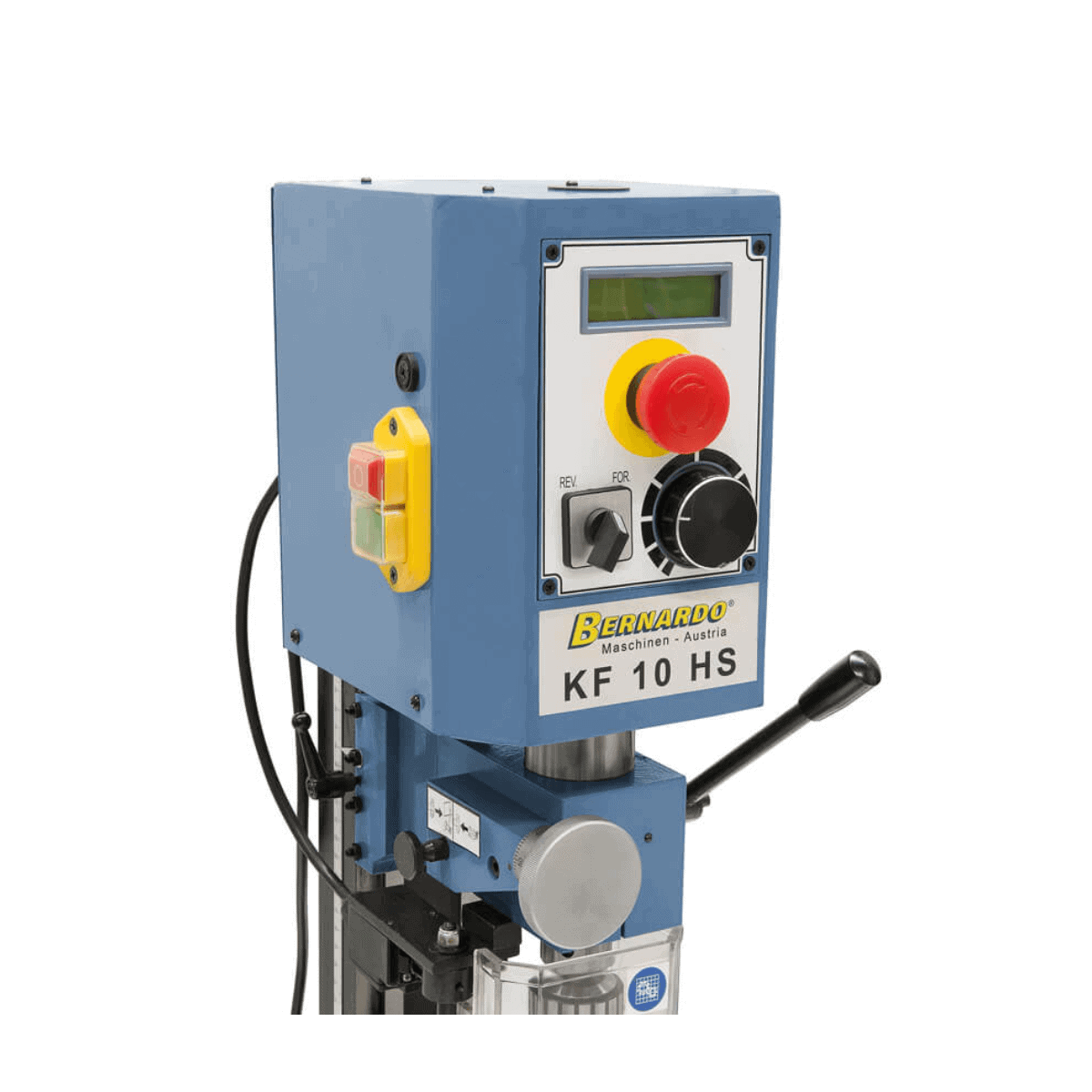

- Digital speed display
- Digital spindle travel display

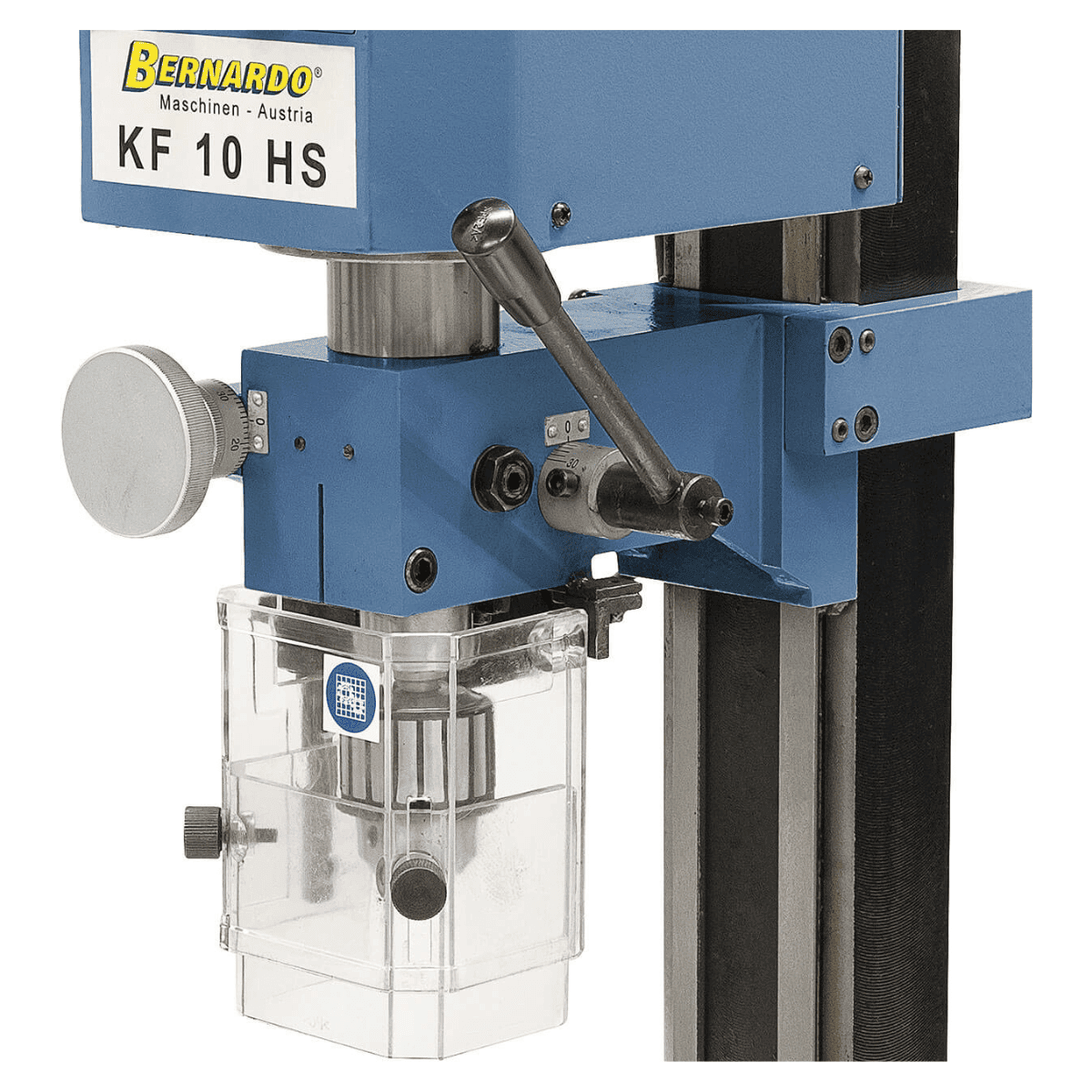

- Height-adjustable protection with microswitch
- Tool set
Frequently Asked Questions
What are the drilling and milling capacities of the KF 10 HS?
Drilling in steel up to Ø10 mm, face milling up to Ø20 mm, end milling up to Ø10 mm.
The stated capacities refer to standard unhardened steels (e.g., C40, S235). For harder materials or alloys, the actual capacity may be lower: in this case, it is advisable to reduce the rotation speed and feed rate to avoid stressing the spindle and tools.
How is the spindle speed adjusted on the KF 10 HS?
The machine has continuously adjustable Vario speed in the range of 100–5,000 rpm.
Vario adjustment allows fine-tuning the speed to the material and tool diameter without having to change belts or gears. For face milling mild steels, one typically works in the low range, while for small diameter holes in aluminum, the high range is used.
What power supply and motor does the KF 10 HS have?
0.25 kW (S1 continuous) / 0.35 kW (S6 intermittent) motor with 230 V power supply.
The motor operates with a standard 230 V single-phase power supply, found in all workshop and laboratory environments. The S6 40% rating indicates that the motor can deliver maximum power for intermittent cycles, while the S1 100% rating indicates the nominal power for continuous use.
What are the table dimensions, travels, and spindle taper of the KF 10 HS?
Cross table 400 x 145 mm with X/Y travels of 330 / 170 mm, MT 2 spindle taper, 30 mm spindle travel.
The MT 2 spindle taper is an international standard: accessories (self-tightening chucks, milling arbor holders, reduction arbors) are commonly available. The table travels allow for machining parts that fall within the effective useful dimensions (X/Y travels net of fixturing space).
How much does the KF 10 HS weigh and what type of installation does it require?
The machine weighs approximately 50 kg and is designed for installation on a sturdy workbench, with a standard 230 V domestic electrical connection.
The reduced weight of 50 kg allows for manual positioning (with two people) and installation on standard benches. However, always check the load-bearing capacity of the bench and the presence of a flat surface to avoid deflection during milling.
