Bernardo WK 20 FH - Workshop Press 20 Ton

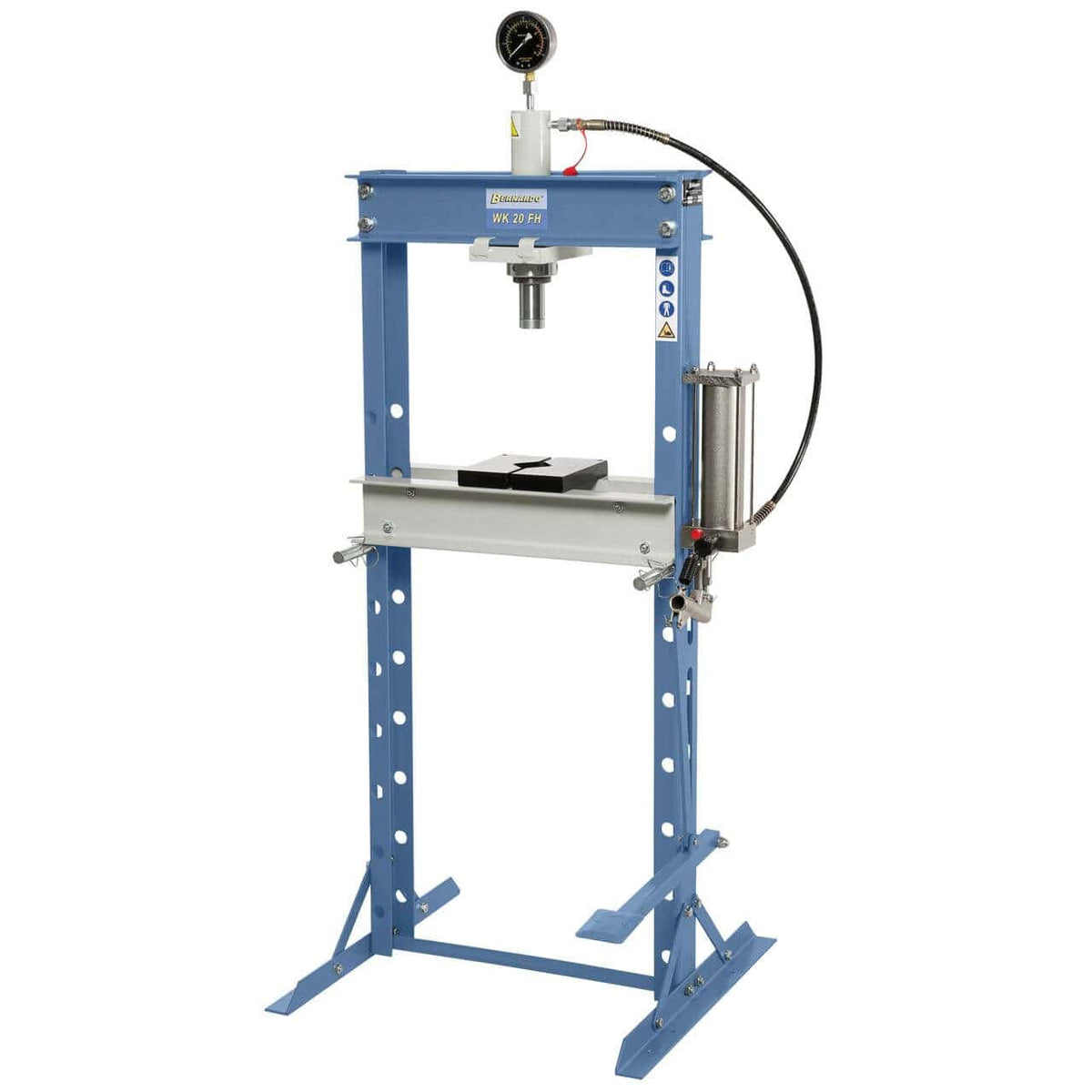

Bernardo WK 20 FH – 20-ton Workshop Press

The Bernardo WK 20 FH is a robust workshop press with a 20-ton pressing force, suitable for straightening, pressing, bending, and assembling gears, bushings, and washers. It features a single-stage manual hydraulic pump and automatic piston return, with the standard foot pedal included for practical and safe piston advancement. The work table is height-adjustable with locking pins, allowing it to adapt to various processes and workpiece sizes. The welded steel structure ensures stability and long-lasting durability even with intensive use. Thanks to the integrated pressure gauge, pressure can be monitored simply and precisely. At 94 kg, the WK 20 FH represents a solid, efficient press offering the best value for money for mechanical workshops, artisans, and maintenance laboratories.

---

Key Specifications

Pressing force 20 tons
Single-stage manual hydraulic pump with automatic piston return
Standard foot pedal included for piston advancement
Height-adjustable work table with locking pins
Laterally movable cylinder (400 mm) for greater versatility
Integrated pressure gauge for pressure control
Robust welded steel structure
Suitable for straightening, bending, pressing, and assembling components

---

Package contents:
Bernardo WK 20 FH workshop press
Single-stage manual hydraulic pump
Foot pedal for piston advancement
Height-adjustable table
Integrated pressure gauge

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working day shipping. Customer service in Italian available.

---

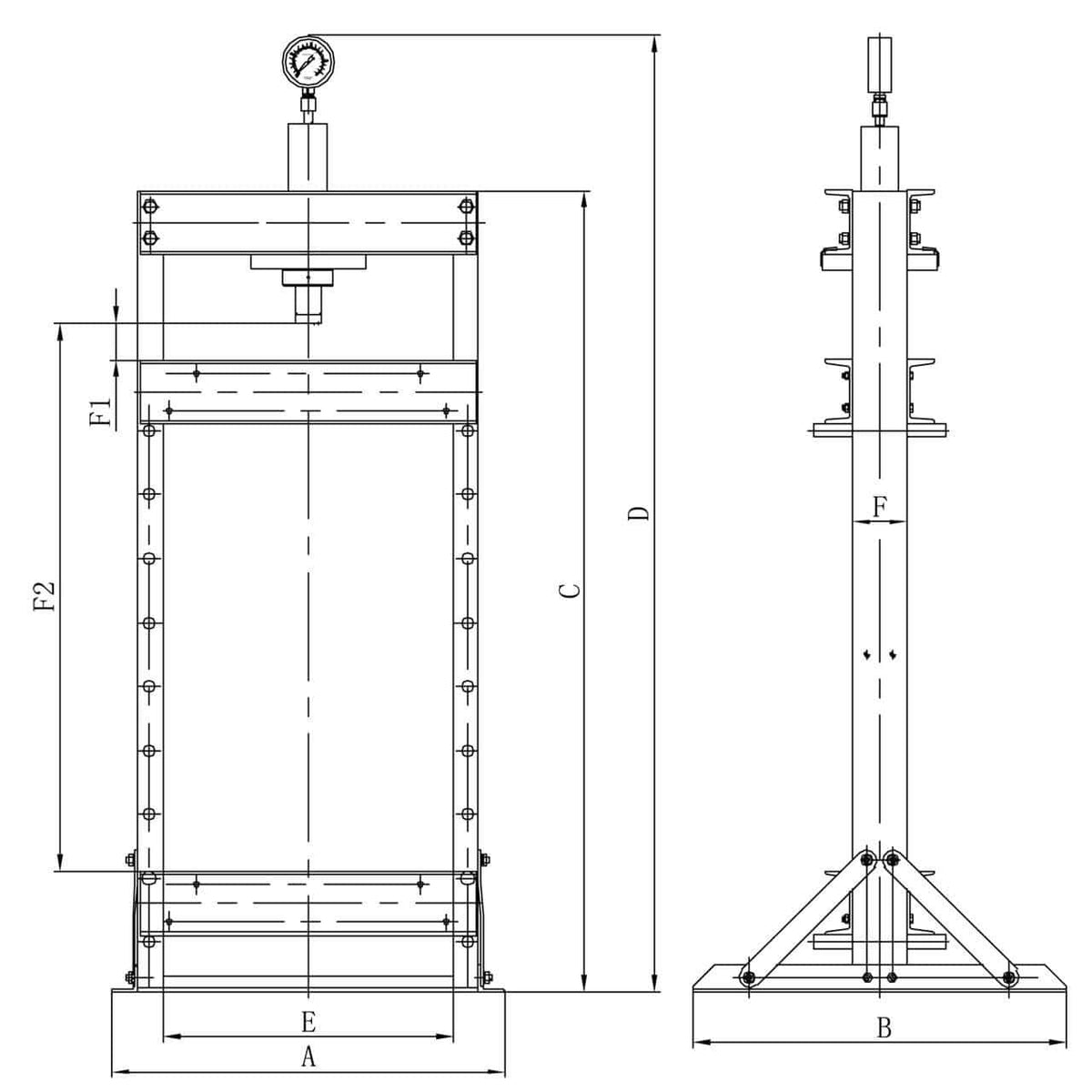

Technical table:

Specification	Value
Brand	Bernardo
Model	WK 20 FH
Pressing force	20 tons
Piston stroke	185 mm
Table width	210 mm
Working height (E)	540 mm
Cylinder – table distance (F1)	40 mm
Cylinder – table distance (F2)	1000 mm
Sliding cylinder (M)	400 mm
Overall width (A)	750 mm
Overall depth (B)	700 mm
Minimum height (C)	1510 mm
Maximum height (D)	1800 mm
Weight	94 kg

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

Frequently Asked Questions

What is the difference between WK (manual) and PWK (pneumatic)?

WK presses have manual hydraulic operation — the operator pumps the lever to pressurize the cylinder. PWK presses are operated by compressed air at 6–8 bar: the piston descends automatically by pressing the pedal, with constant speed and force regardless of the operator. PWKs are more productive for repetitive serial operations; WKs are more economical and do not require a pneumatic system.

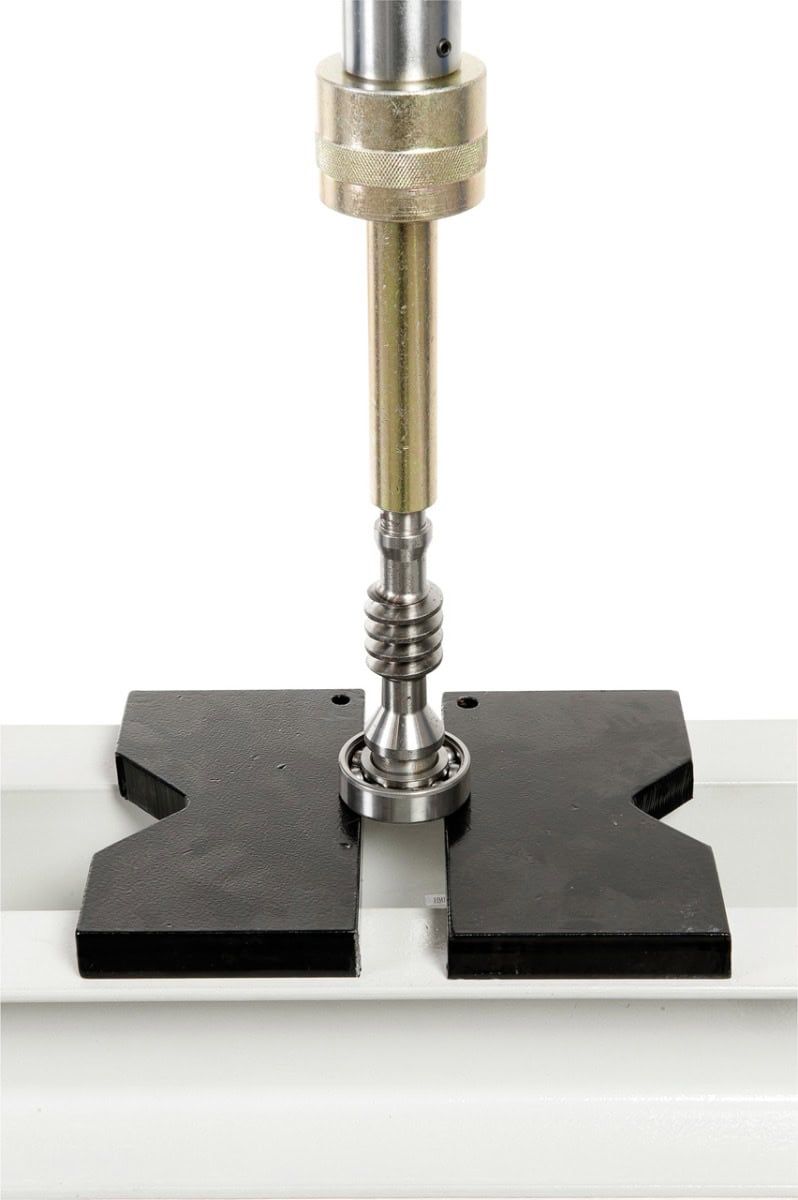

Can the WK / PWK press bearings and bushings?

Yes. This is the main operation for which they are designed: insertion and removal of bearings, bushings, plain bearings, pins, and inserts. With the correct force (calculated based on the diameter and interference of the fit), the operation is safe and precise. For H7/p6 fits on steel: force ≈ 1–3 kN per mm of diameter.

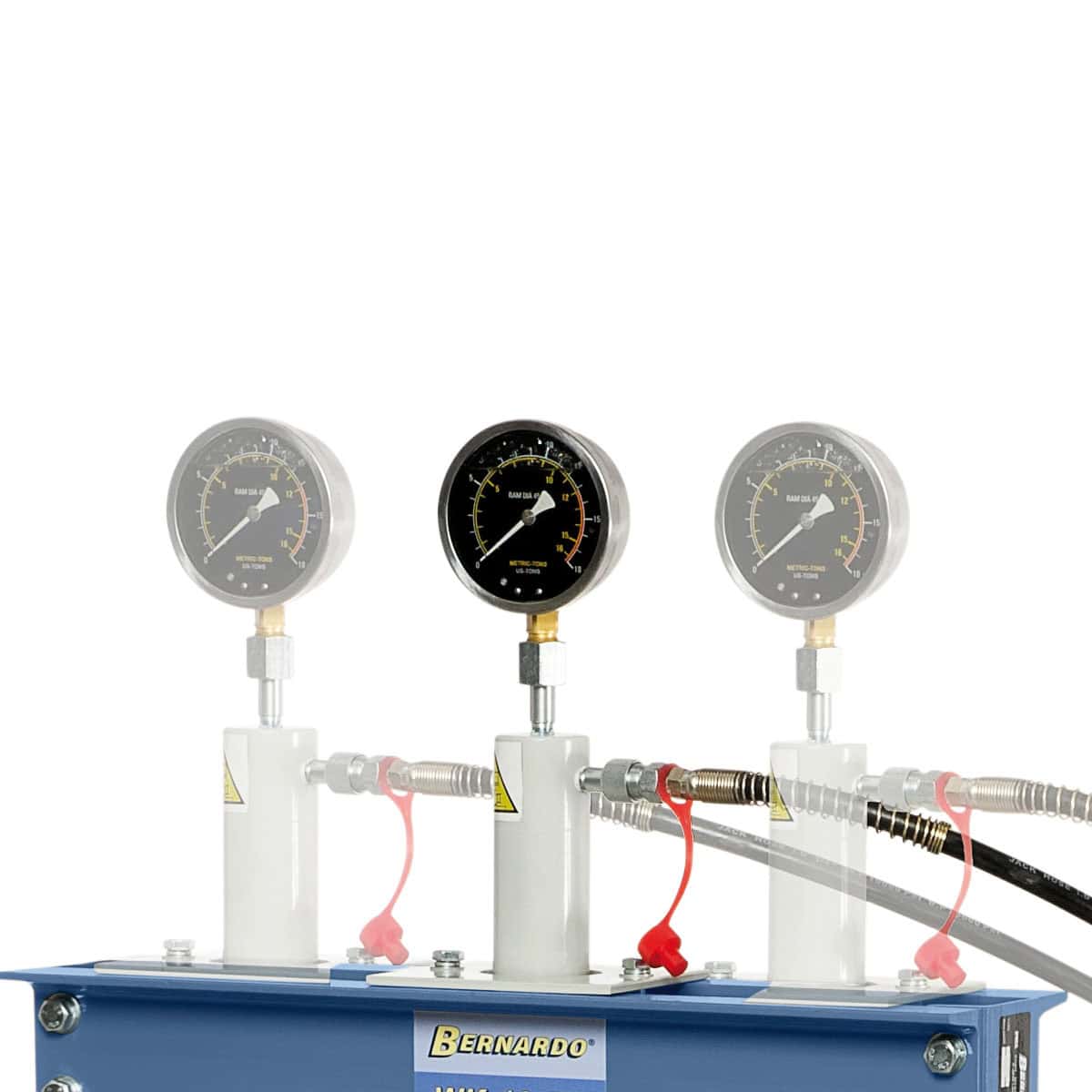

Is the pressure gauge included as standard?

Yes — all Bernardo WK and PWK presses include a pressure gauge for direct reading of the applied force in tons. Essential for not exceeding the maximum force of the fit and preventing damage to the pressed components.

Spare parts available?

Original Bernardo spare parts (seals, valves, pressure gauges) available with 3–5 working day shipping. Customer service in Italian available.

What foundation does it require?

WK and PWK presses do not require a special foundation — a standard industrial floor (15–20 cm concrete) is sufficient. Versions up to 50T are fixed to the floor with standard M12 bolts.
