Bernardo Radial Drill RD 1600 x 60 NC Vario

Bernardo Radial Drill RD 1600 x 60 NC Vario – NC Technology, Servo Feed and Touchscreen Control

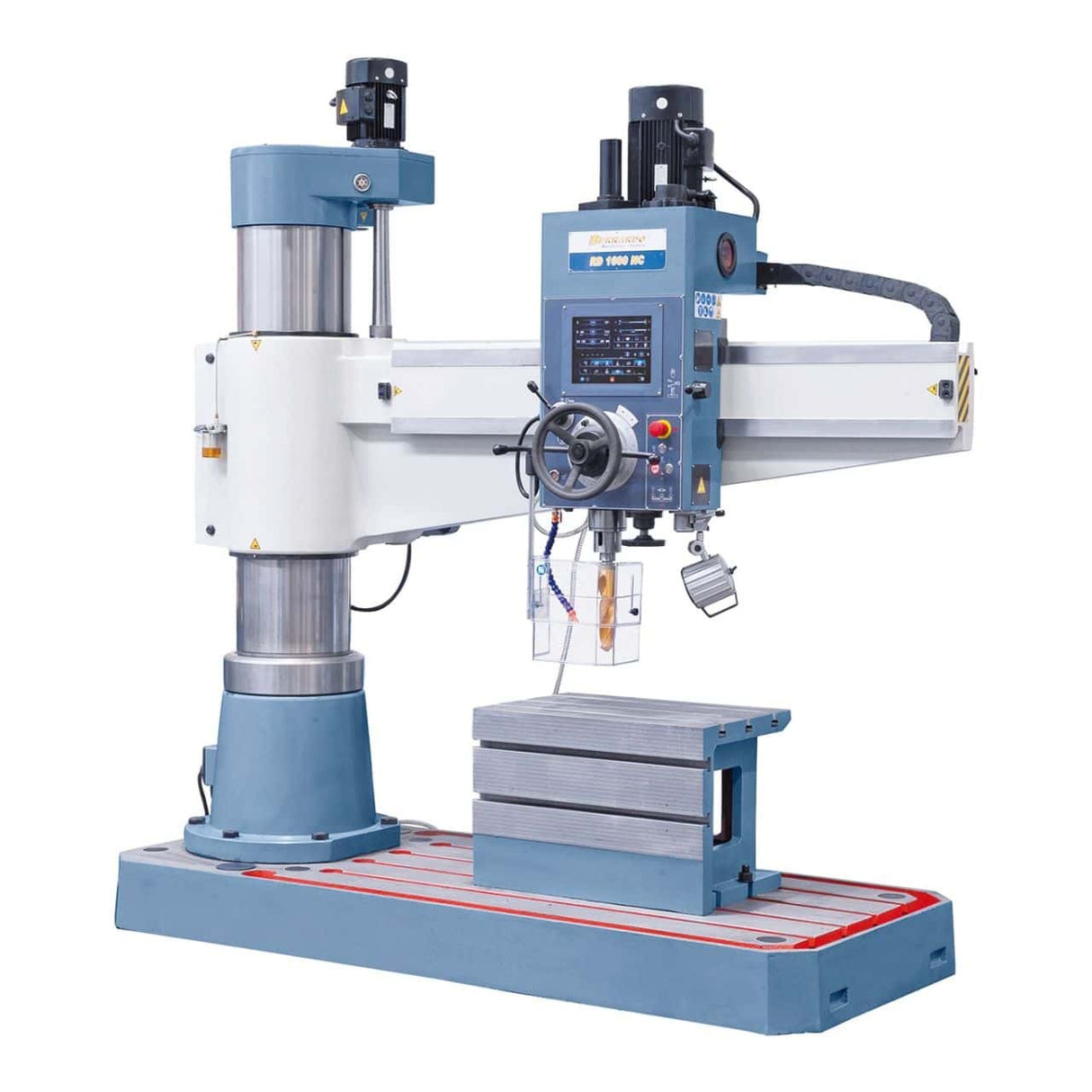

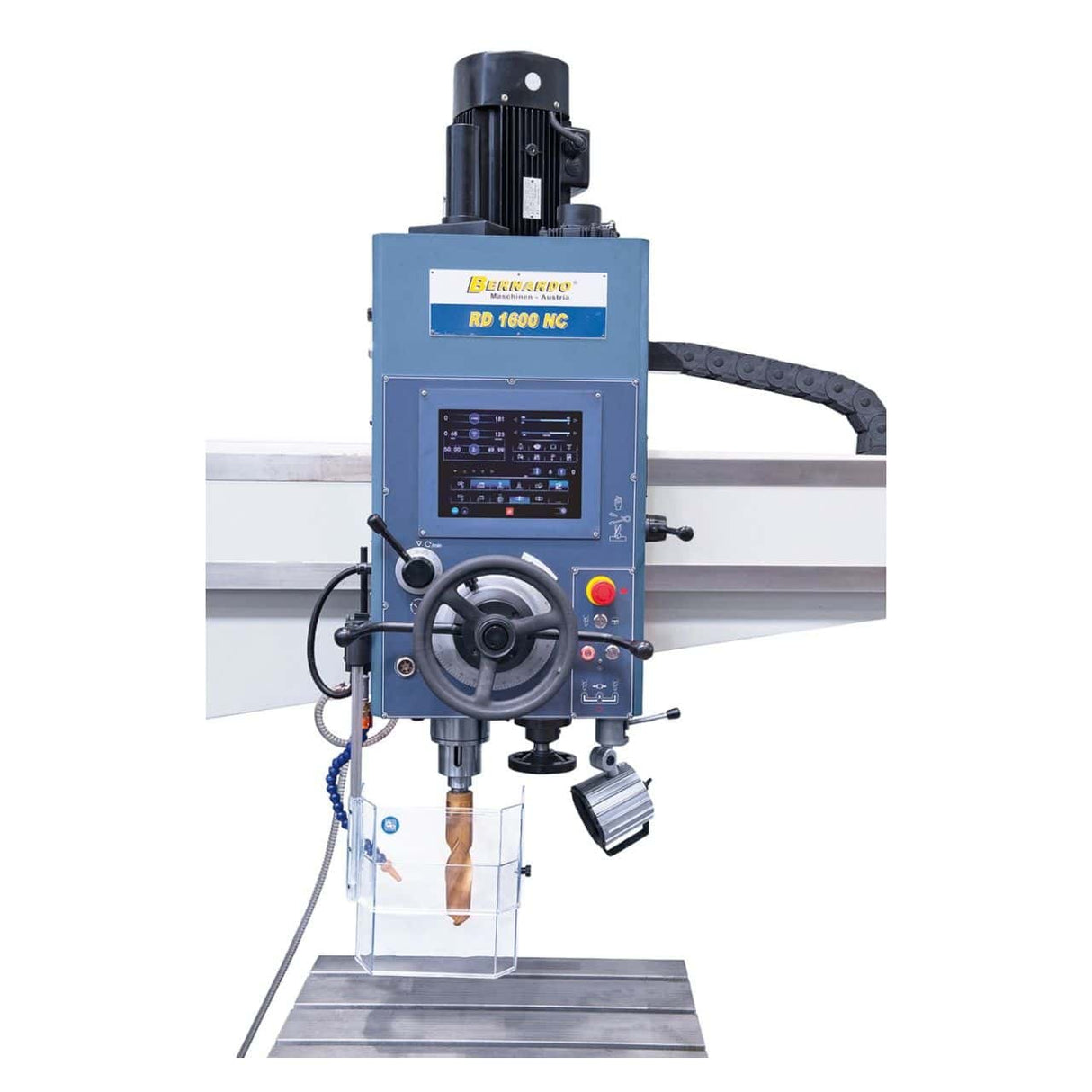

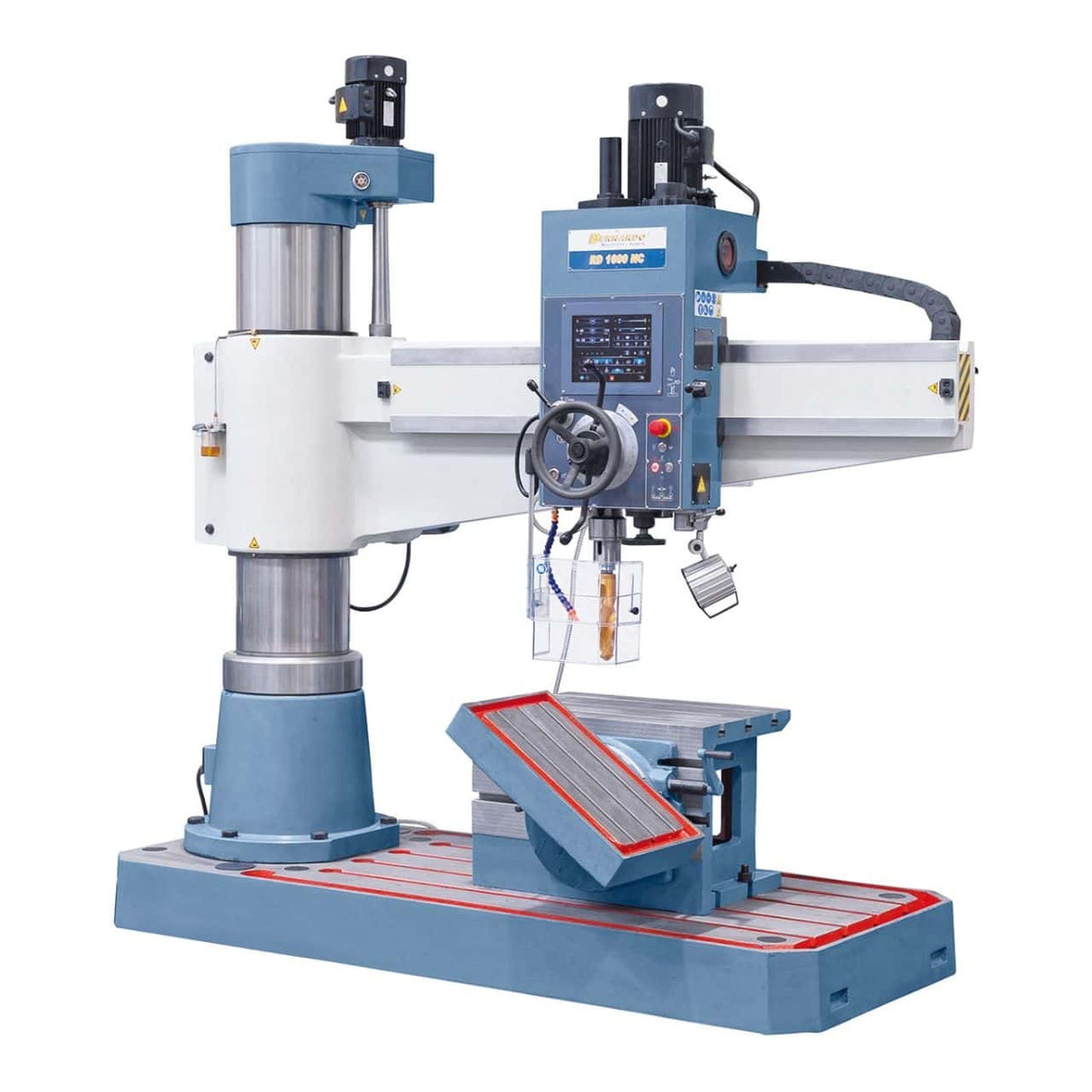

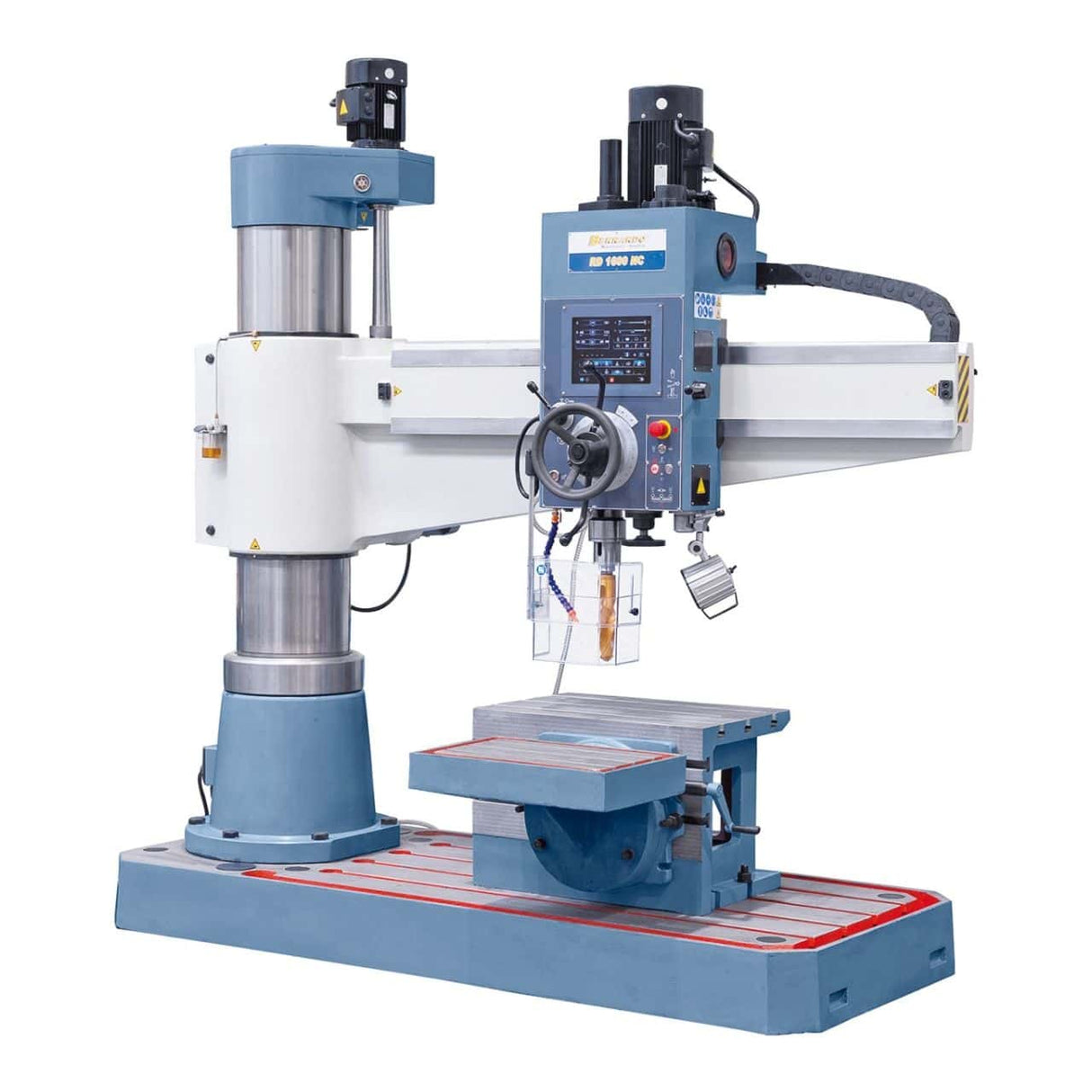

The Bernardo RD 1600 x 60 NC Vario radial drill is an advanced industrial machine, designed for professional drilling, counterboring, reaming, and tapping operations up to M45. Thanks to the NC control with touchscreen, all settings such as speed, drilling depth, and feeds can be adjusted intuitively and precisely.

The spindle is servo-assisted for constant and controlled feeding, while the speed is continuously variable (38–2000 rpm) with digital readout. The robust structure with a 1250 mm radial arm and reinforced column ensures stability and absence of vibrations even under heavy loads.

The arm and head are adjustable with hydraulic clamps, while the counterweight on the spindle ensures optimal balance. Included as standard: cooling pump, adjustable guard, lifting motor, inverter, LED light, and large box table.

---

Main Specifications

Drilling up to Ø 60 mm and tapping up to M45

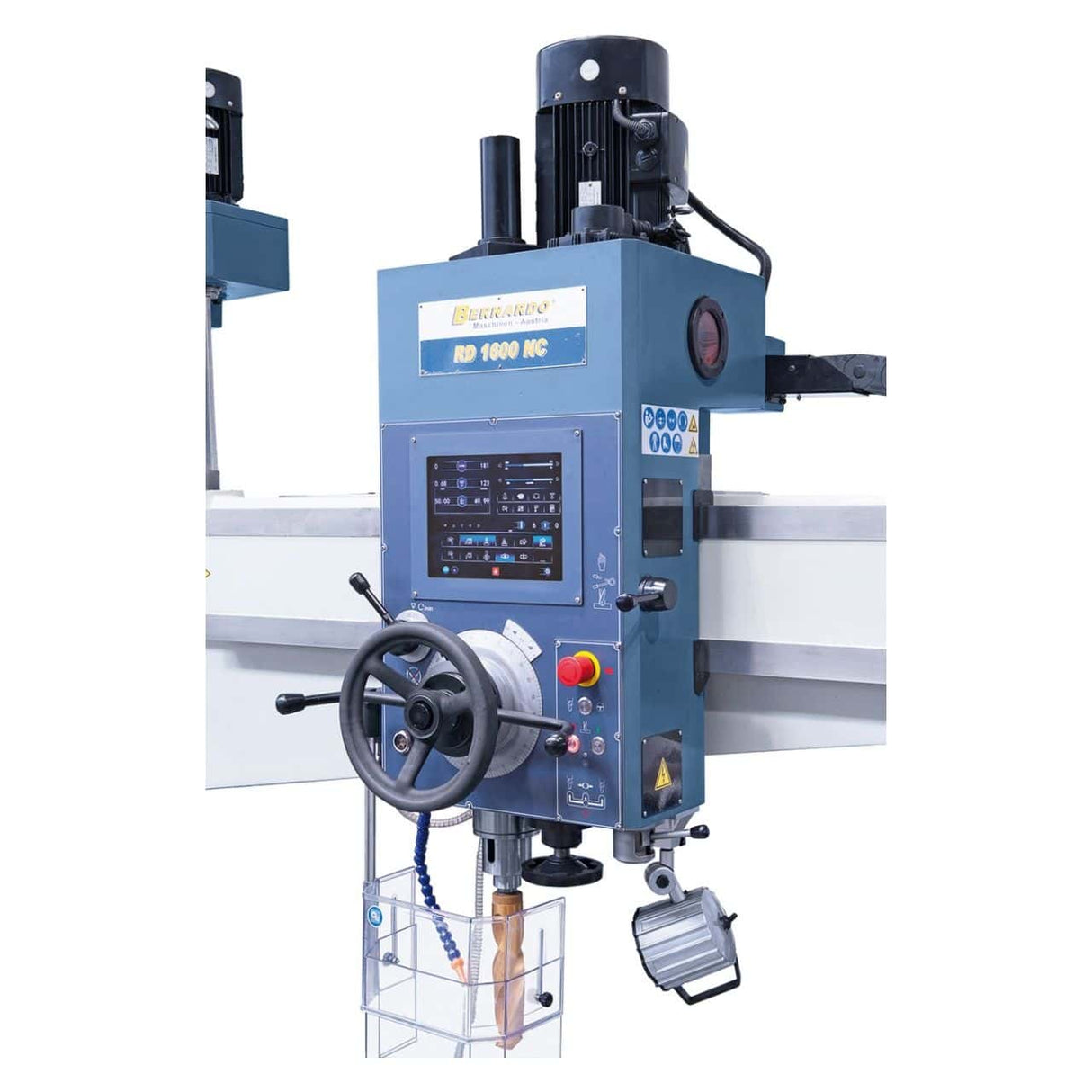

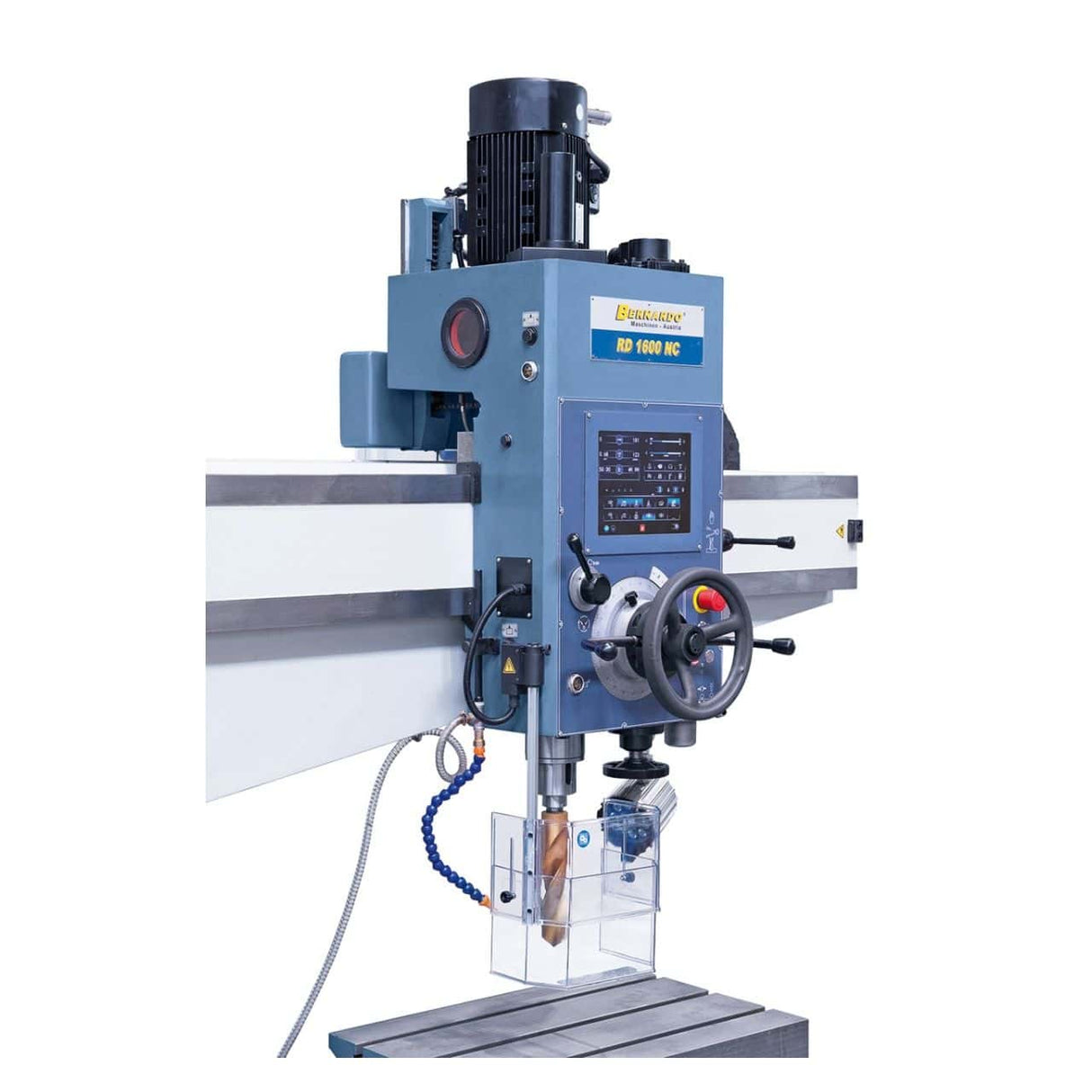

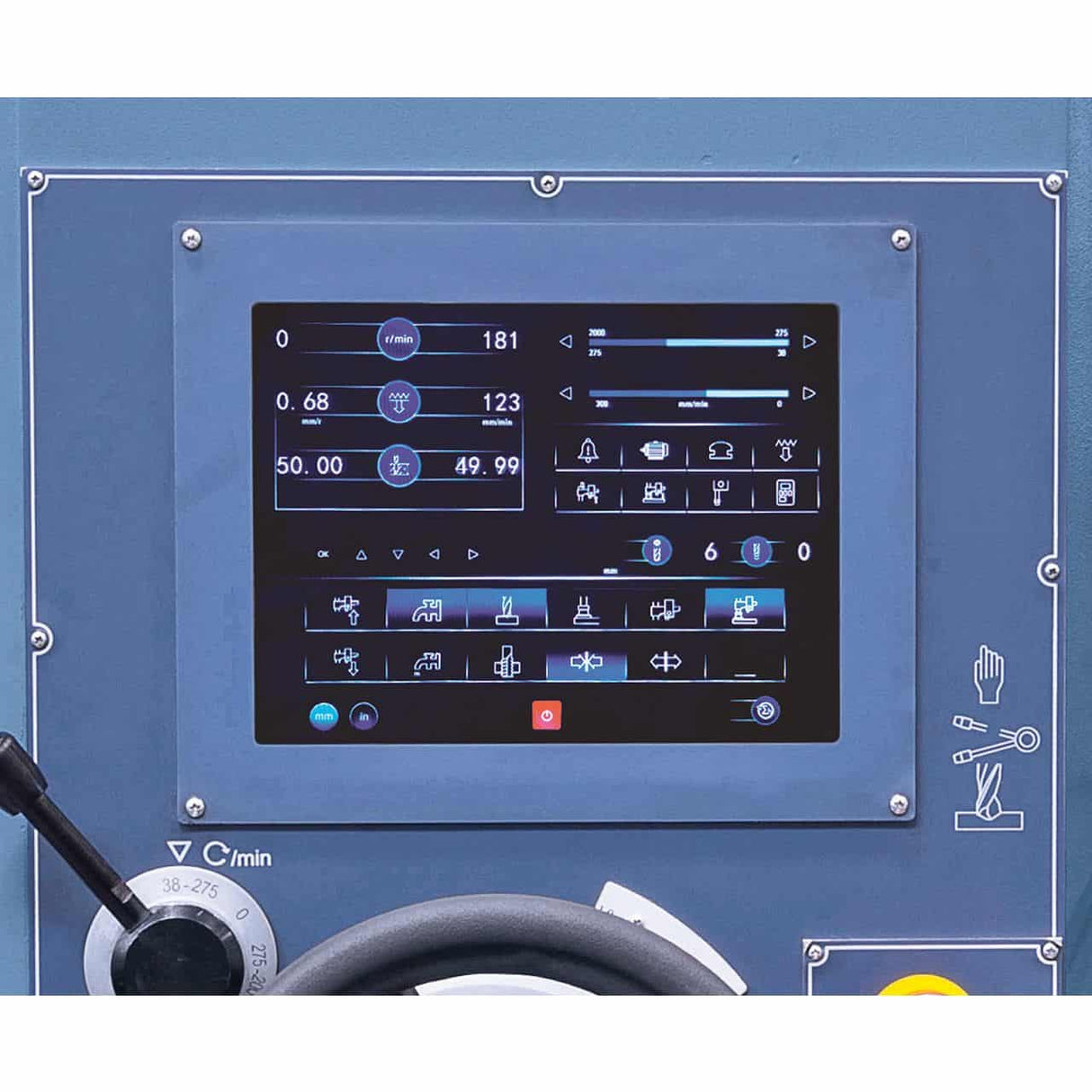

NC control with touchscreen for all settings
Servo motor for spindle quill feed up to 300 mm/min
Continuously variable speed (38–2000 rpm) with digital display
Electronic adjustment of drilling depth with value control
Radial arm with 1250 mm horizontal travel
Vertical headstock travel 585 mm and spindle travel 315 mm

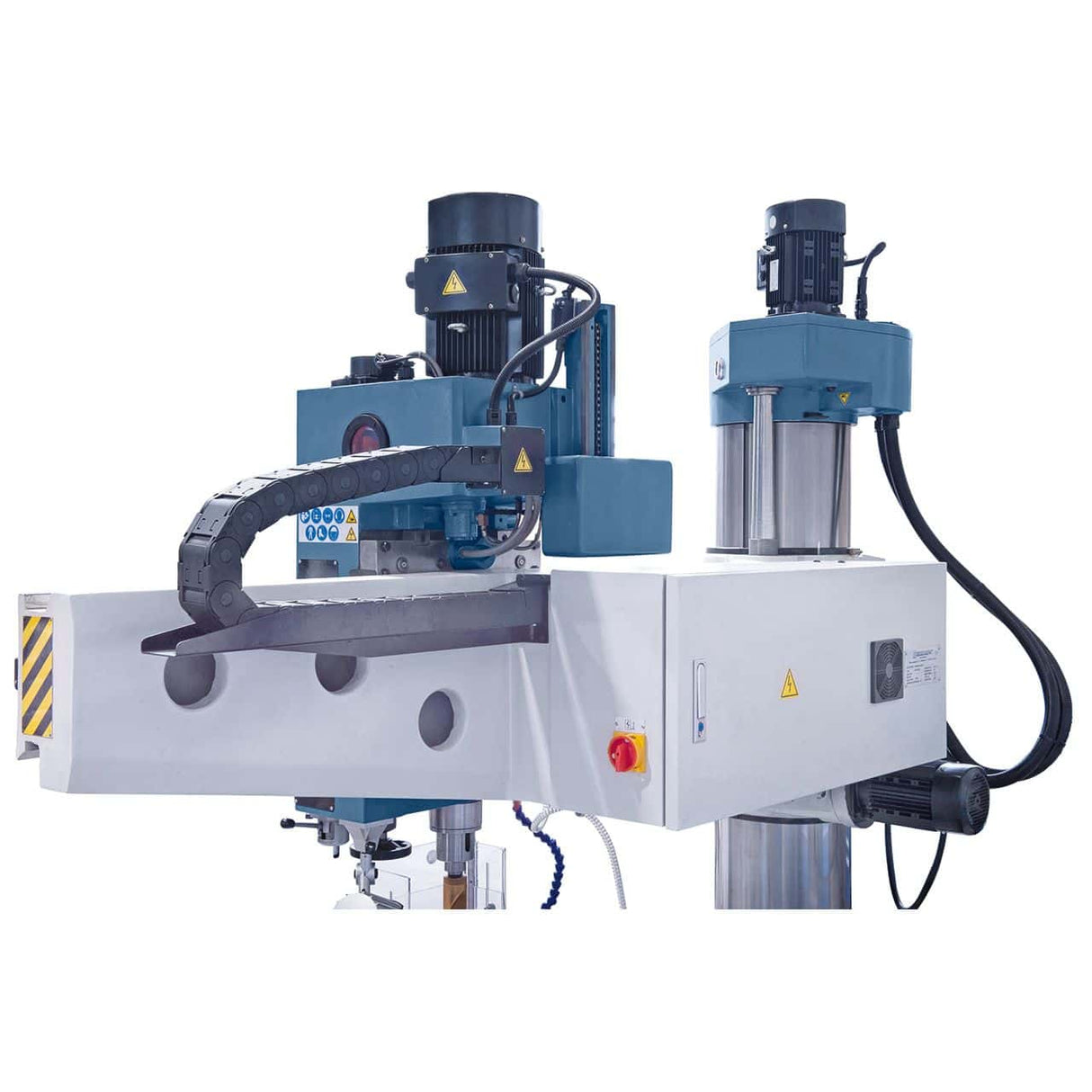

Arm and head with independent hydraulic clamping
Hardened and polished guides on the radial arm
Integrated counterweight on the spindle for perfect balance
Massive 3800 kg structure to eliminate vibrations
Cooling pump, LED light, and adjustable guard included

---

Technical table:

Specification	Value
Max. drilling capacity	60 mm
Max. tapping capacity	M45
Spindle–column distance min./max.	350 – 1600 mm
Vertical headstock movement	585 mm
Horizontal head travel	1250 mm
Spindle travel	315 mm
Spindle taper	MT 5
Spindle speed	38 – 275 / 275 – 2000 rpm
Automatic feeds	0 – 300 mm/min (servo-assisted)
Spindle–box table distance	165 – 750 mm
Spindle–base distance	665 – 1250 mm
Clamping area base	1740 x 980 mm

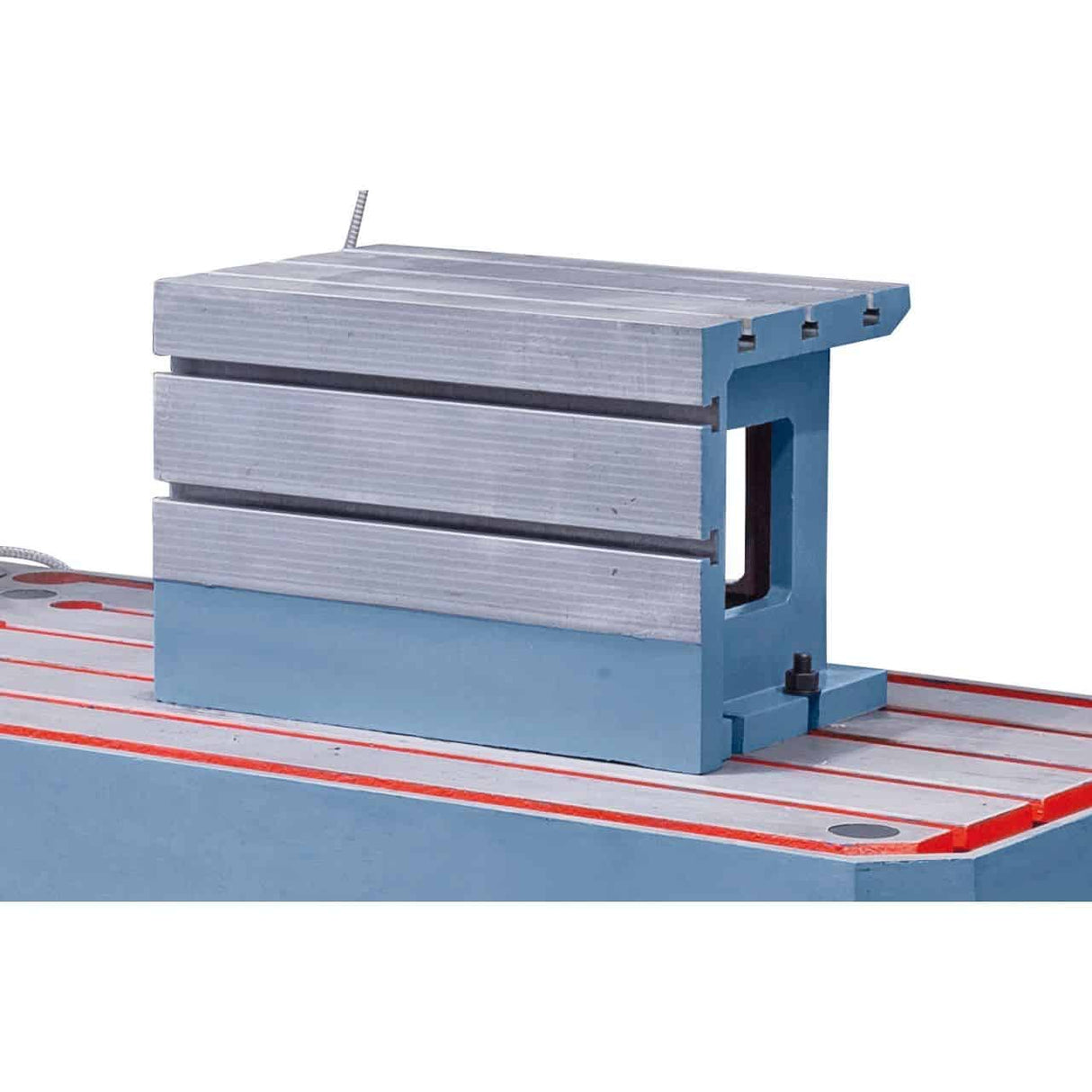

Box table dimensions	750 x 500 x 500 mm
Motor power	4.0 kW
Machine dimensions (L x W x H)	2490 x 1050 x 2780 mm
Weight	approx. 3800 kg

---

Package contents:
Box table 750 x 500 x 500 mm
Spindle arbor
Morse sleeves MT 5/4, MT 4/3, MT 3/2

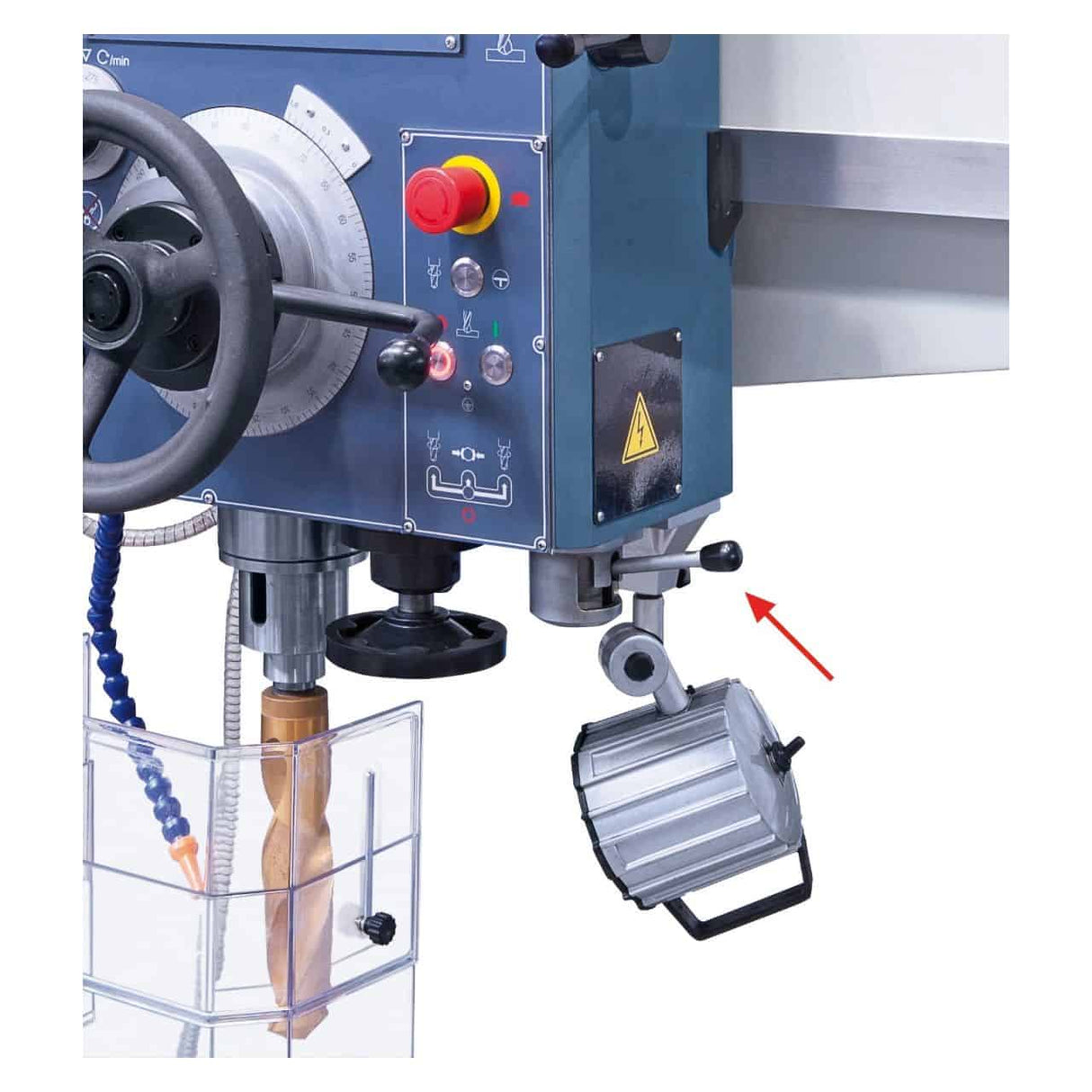

LED work light
Initial fill Shell Tellus 46

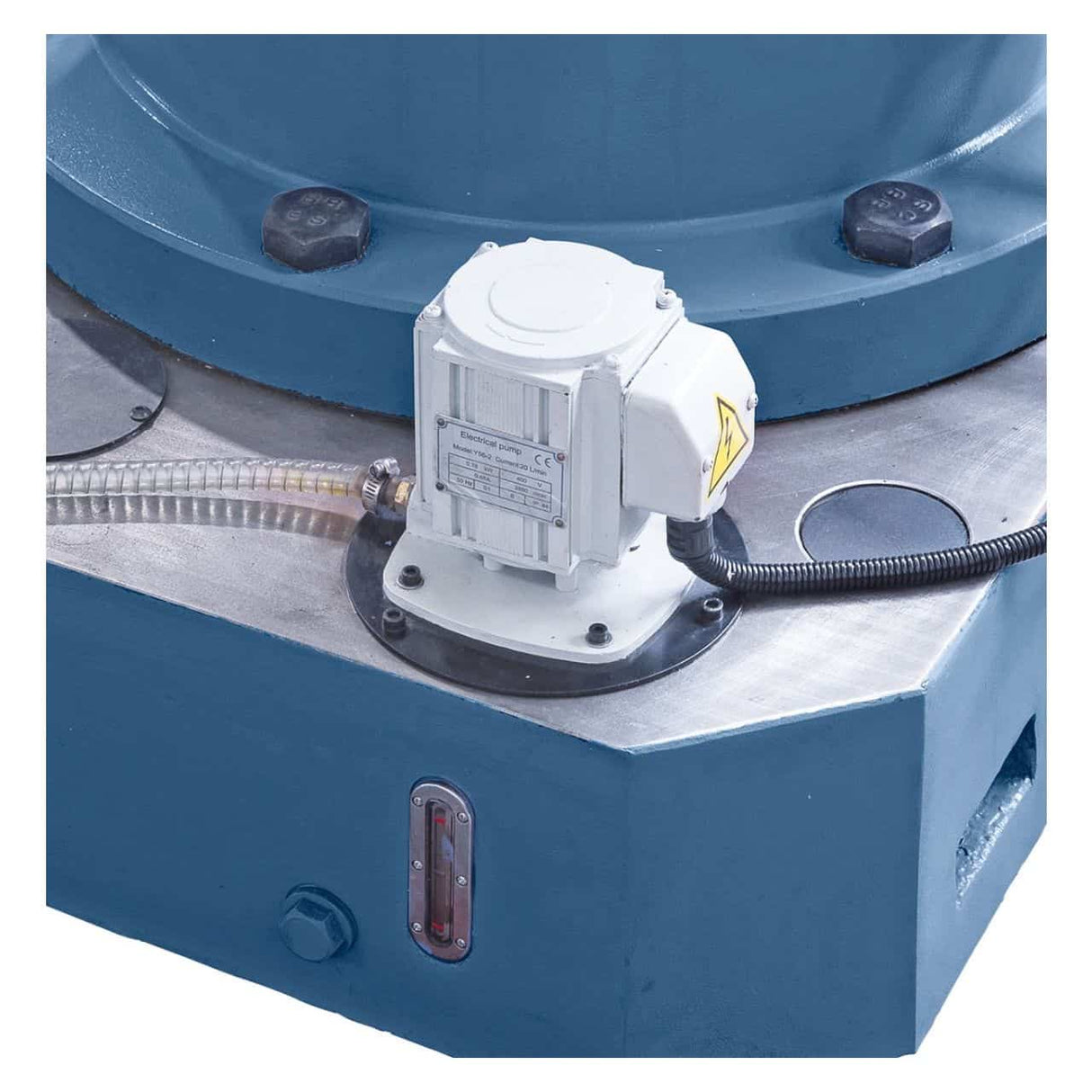

Cooling device
NC touchscreen
Servo motor for spindle feed

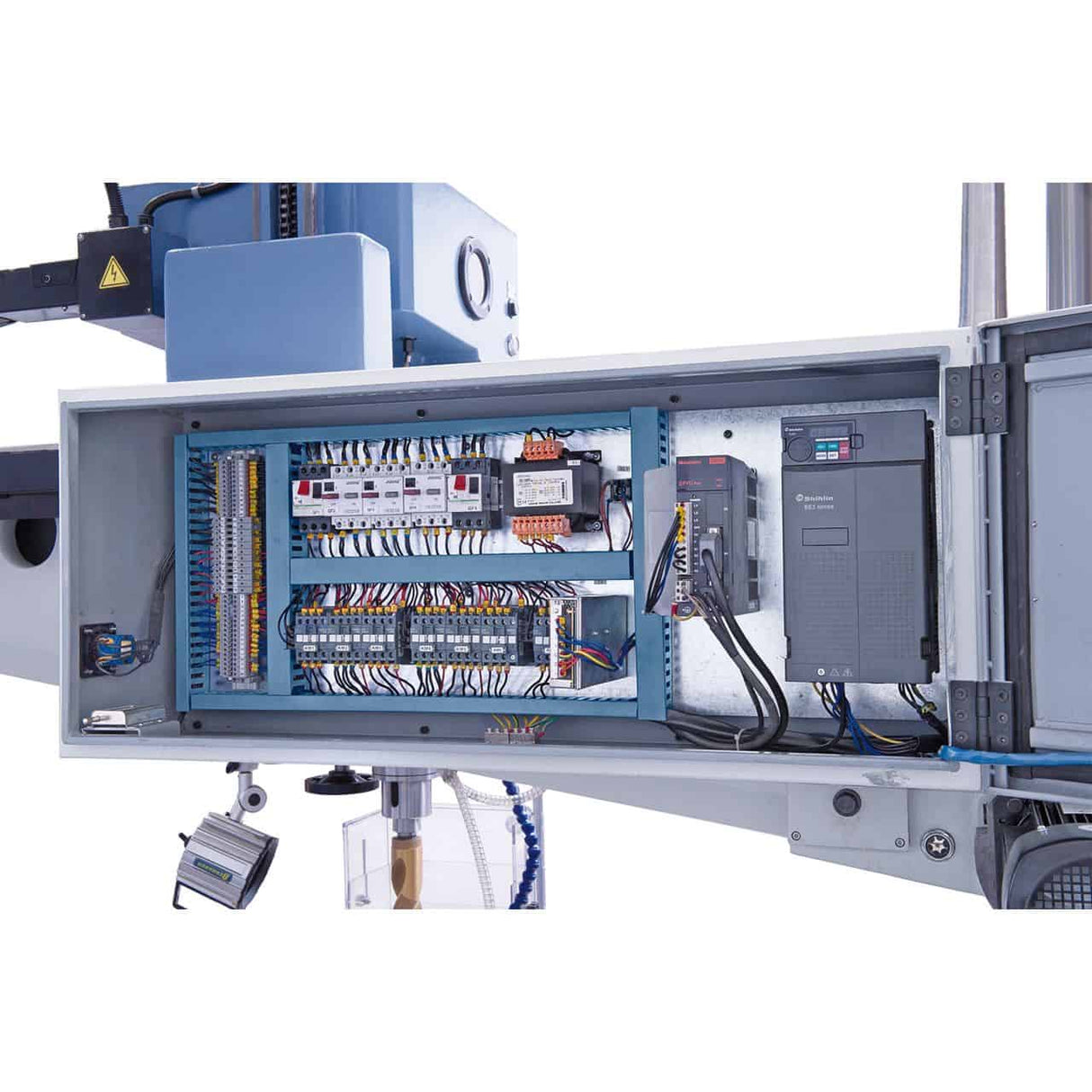

Frequency inverter

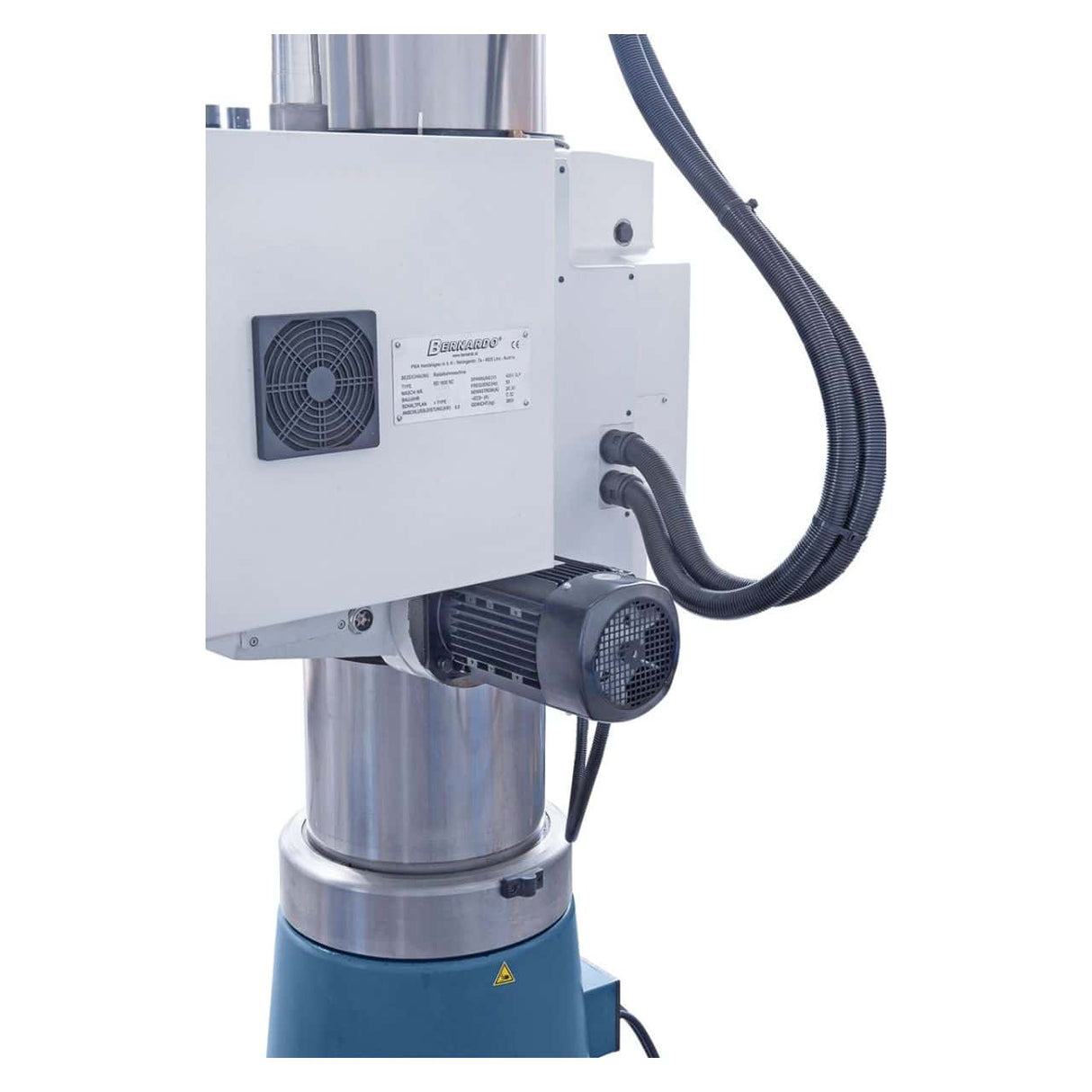

Lifting motor
Hydraulic motor
Height-adjustable guard
Tool set

Why purchase Radial Drill RD 1600 x 60 NC Vario from Krollit

Purchasing the Radial Drill RD 1600 x 60 NC Vario from Krollit means choosing not only a professional metalworking machine but also concrete support before and after purchase.
Krollit assists professionals, artisans, and workshops in selecting the most suitable machine, offering assistance, technical support, and spare parts management.

Logistics

Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Italian customer support available.

Frequently Asked Questions

What is a radial drill and when is it needed compared to a pillar drill?

In a pillar drill, the workpiece moves to center the drill bit over the hole. In a radial drill, it's the spindle that moves: the radial arm translates along the column (height) and rotates around it (angle), positioning the spindle exactly over the drilling point on fixed, heavy workpieces that are not easily moved. It's the choice for large workpieces, metal fabrication, and operations on already assembled machines.

Is the radial arm motorized or manual?

It depends on the model. Basic versions of the RD series have manual arm movement with screw clamping. NC or Vario versions may have Z-axis motorization. Check the model specifications in the technical table.

What is the purpose of right/left (R/L) spindle rotation?

Left (L) rotation allows the use of left-hand milling cutters and the loosening of left-hand threaded screws. It is also useful for manual tapping operations where advancement (right) and retraction (left) are alternated to break the chip.

Spare parts and assistance available?

Original Bernardo spare parts available with 3–5 business days shipping. Italian customer support available.

How much space is needed for installation?

The rotation radius of the arm determines the minimum operating area. Leave free space equal to the arm's radius on all sides of the column. For machines over 500 kg, coordinate with Krollit for the necessary unloading equipment.
