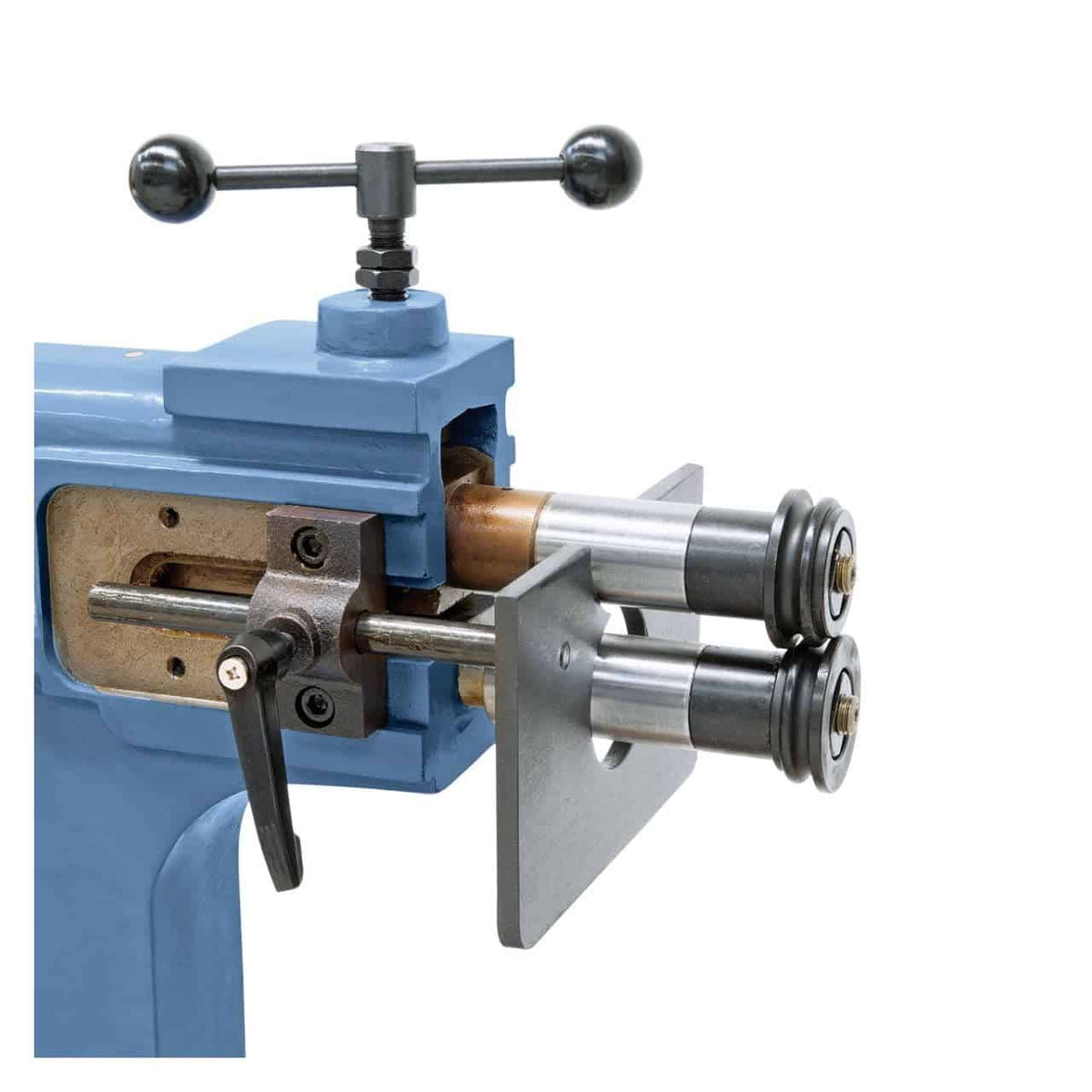

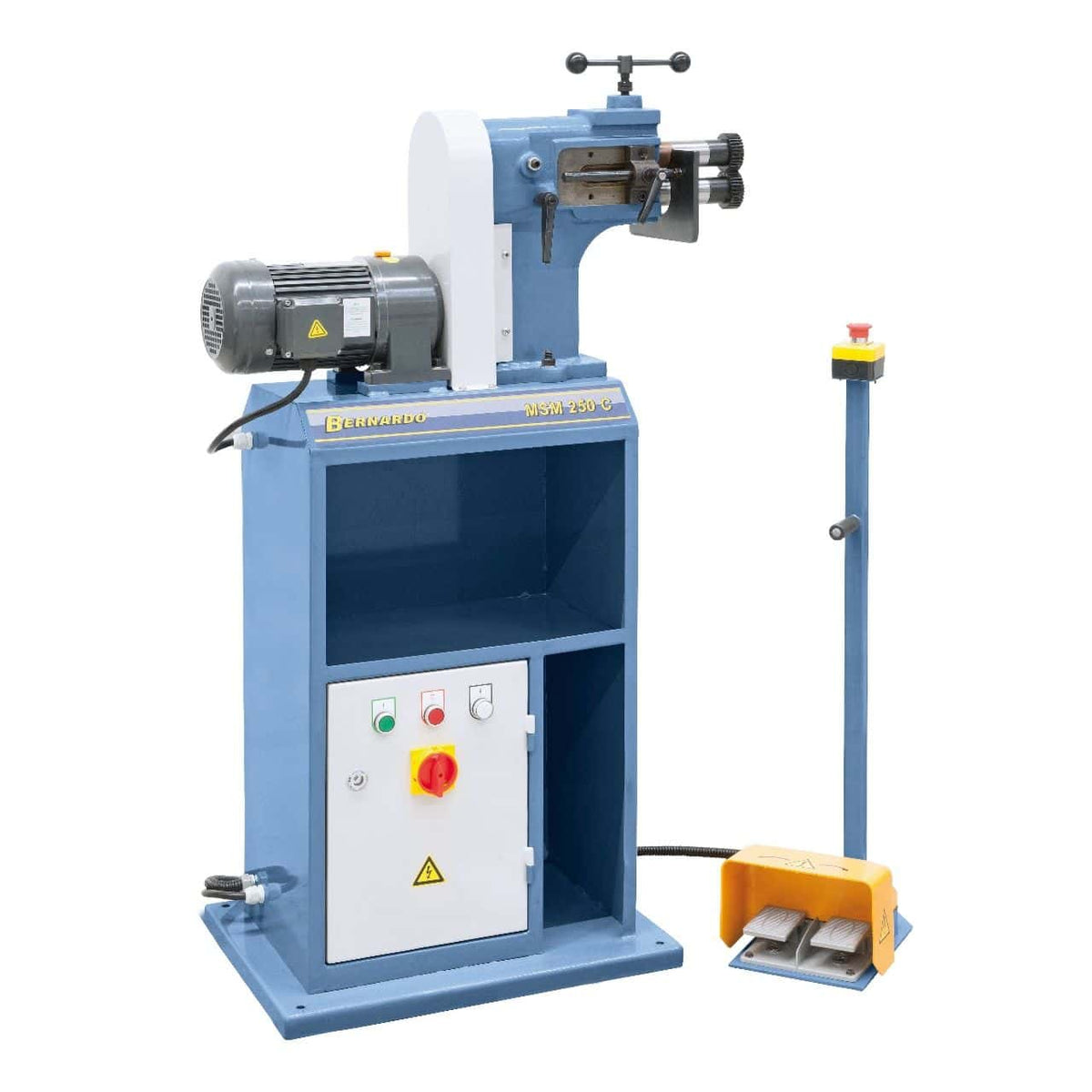

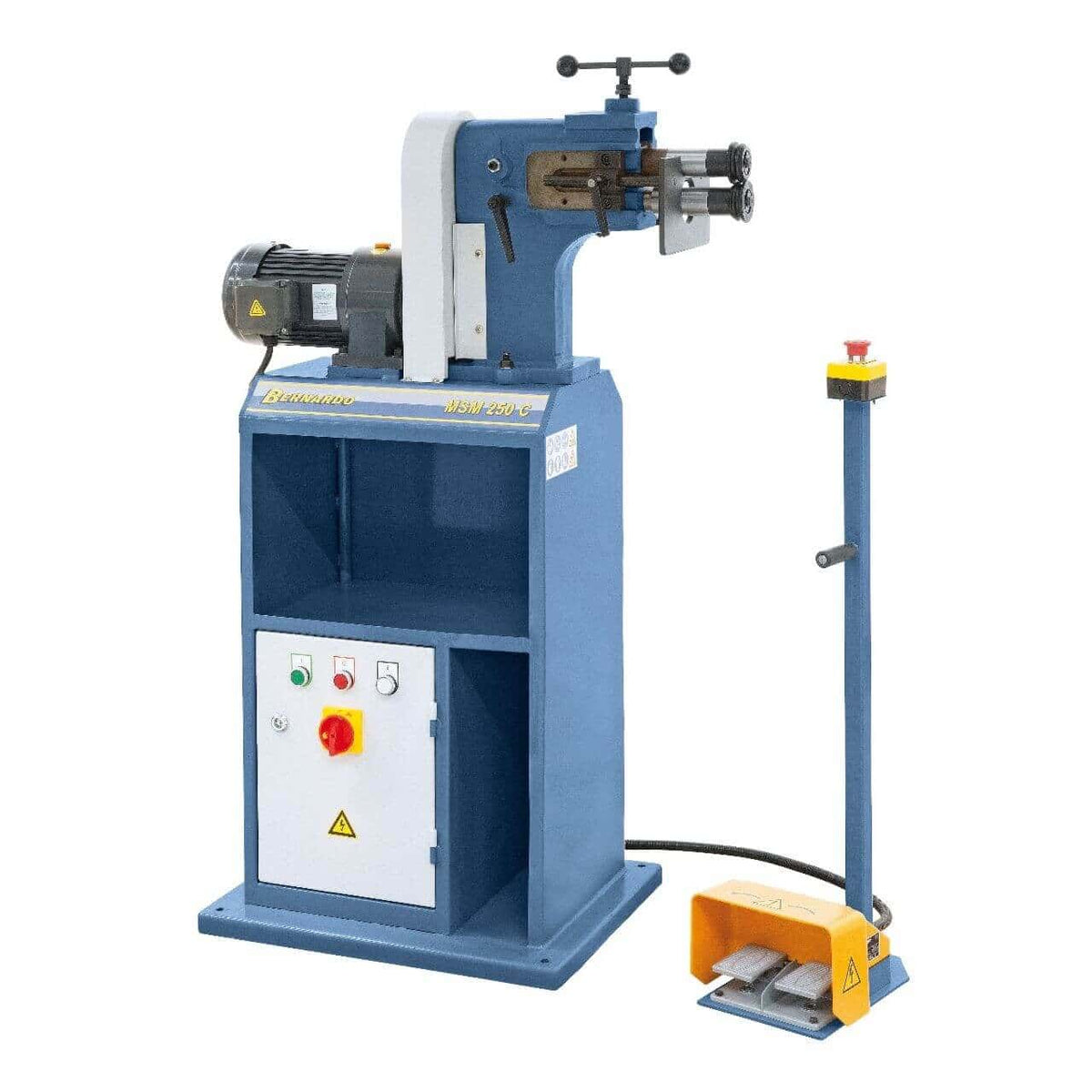

Bernardo Electric Beading Machine MSM 250 C

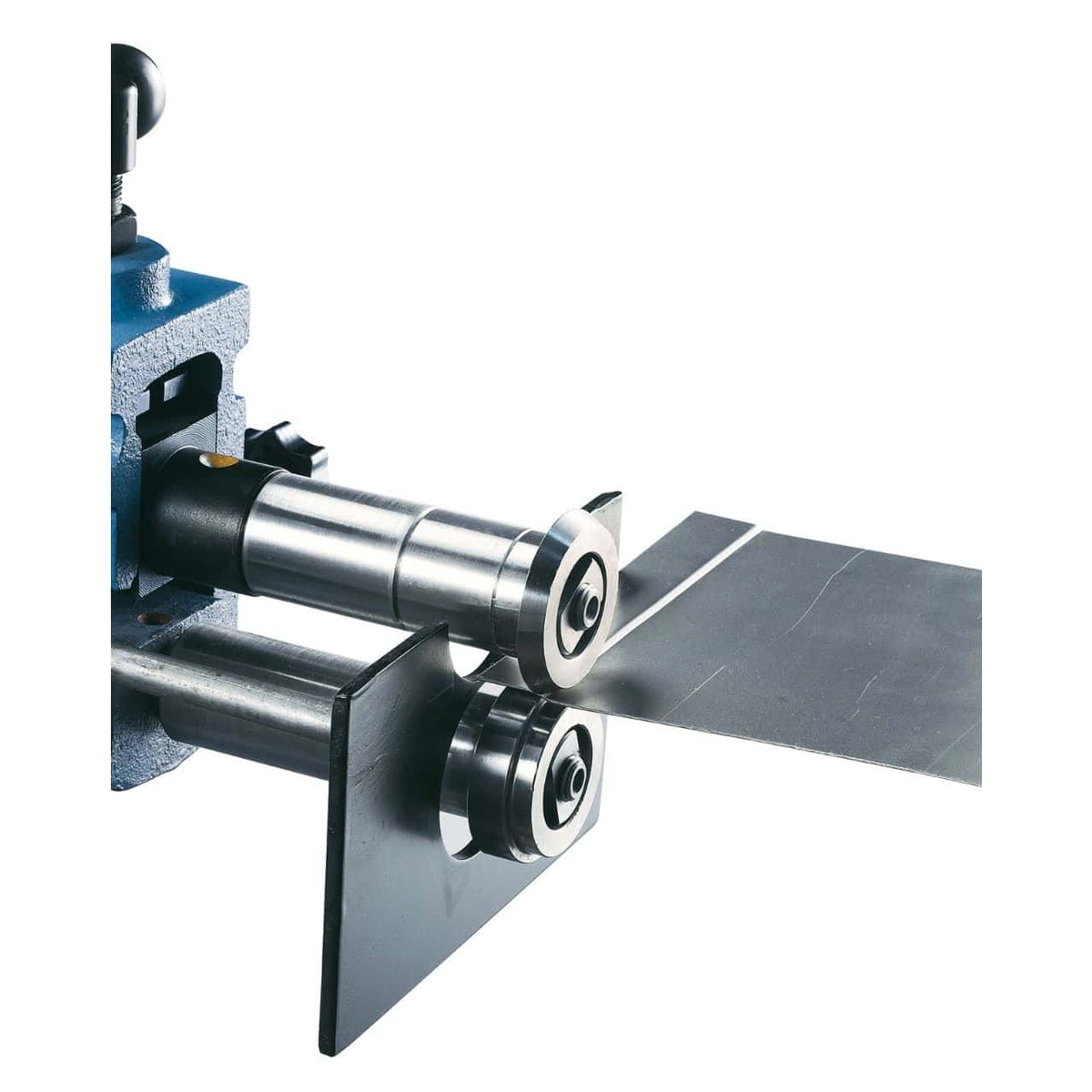

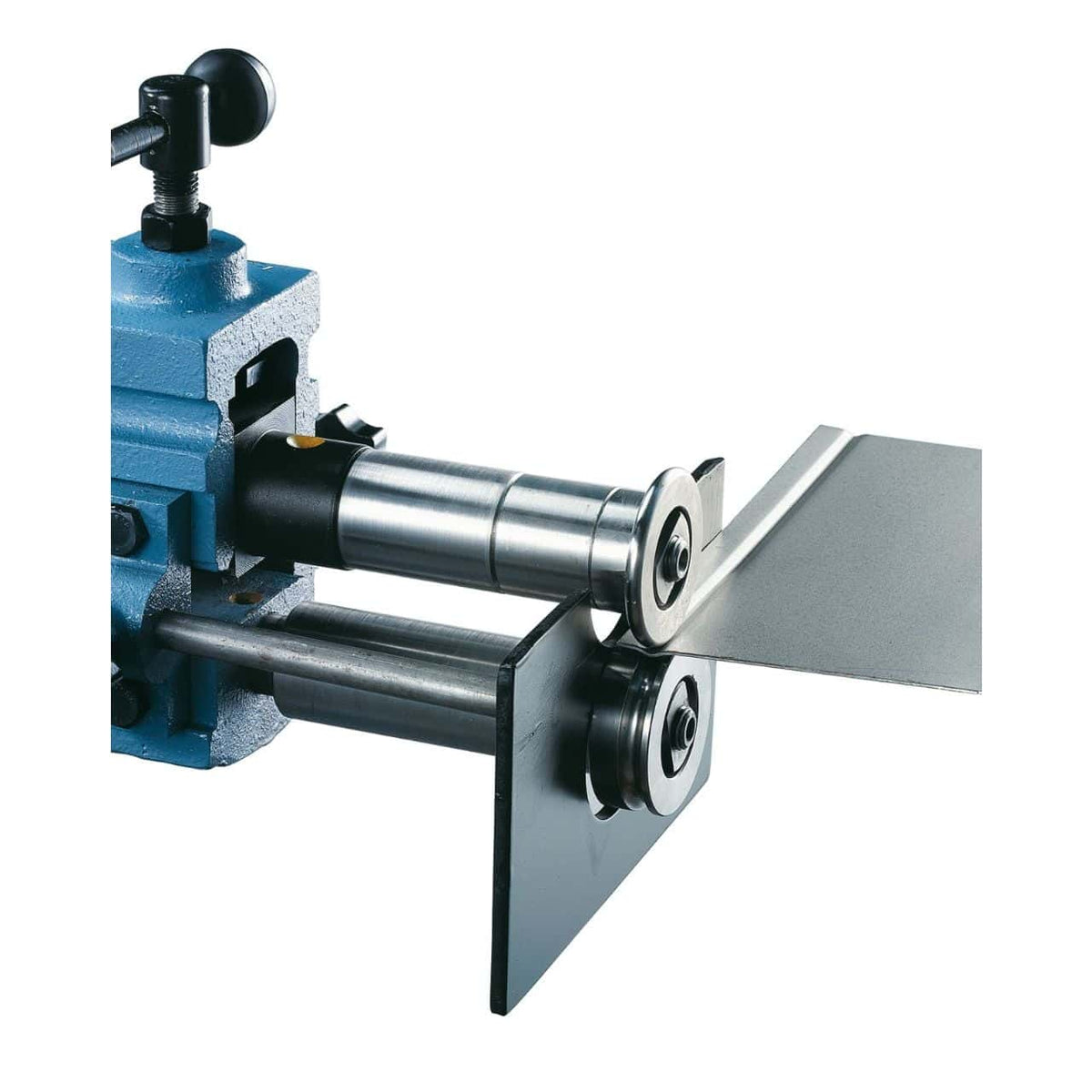

The Bernardo Electric Beading Machine MSM 250 C is a professional machine for beading and flanging sheet metal up to 1.2 mm thick (400 N/mm² steel). With a working depth of 250 mm (reduced to 140 mm with stop mounted) and 26 mm diameter shafts, it allows for precise and uniform processing. The constant speed of 32 rpm, generated by a 0.75 kW / 400 V electric motor, guarantees productivity and quality even with continuous use. The robust 125 kg structure ensures stability and long life. Included in the delivery are 4 pairs of rollers for beading and flanging, adjustable workpiece stop, foot pedal with emergency stop, and roller wrench. A reliable and safe solution for professional workshops, metalworking, and advanced artisanal work.
Main Specifications
• Sheet metal capacity up to 1.2 mm (400 N/mm² steel)
• Working depth 250 mm (140 mm with stop)
• 26 mm shafts with roller center distance 62 mm
• Constant rotation speed: 32 rpm
• 0.75 kW – 400 V electric motor

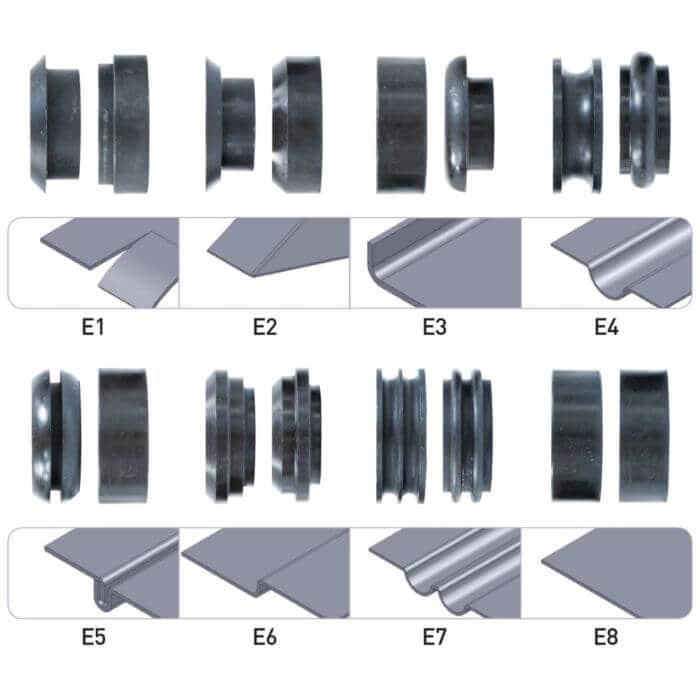

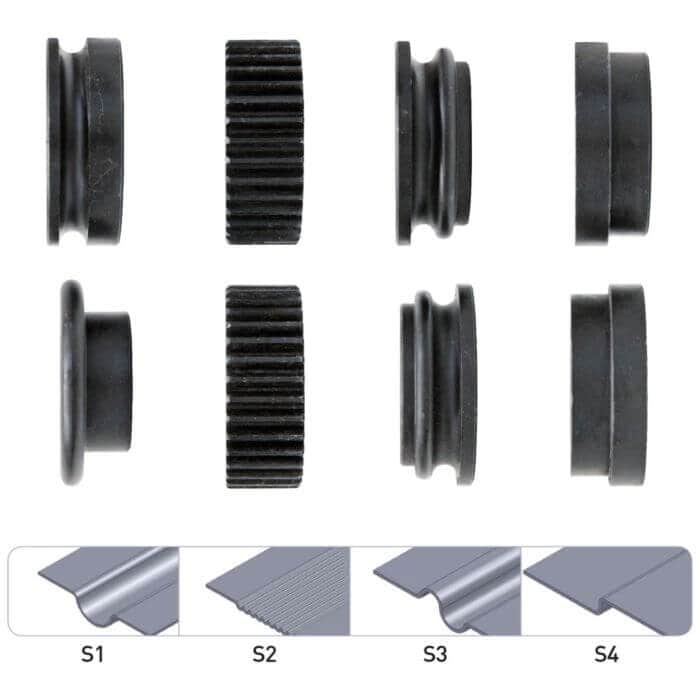

• 4 pairs of rollers included for beading and flanging
• Foot pedal with emergency stop for safety
• Robust and stable structure (125 kg)
Technical table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
MSM 250 C |
| Max. sheet thickness (400 N/mm²) |
1.2 mm |
| Roller center distance |
62 mm |
| Working depth |
250 mm (140 mm with stop) |
| Shaft diameter |
26 mm |
| Speed |
32 rpm |
| Motor power |
0.75 kW / 400 V |
| Dimensions (D x W x H) |
860 x 450 x 1350 mm |
| Weight |
approx. 125 kg |
Package contents:
• 4 pairs of rollers for beading and flanging
• Foot pedal with emergency stop
• Adjustable workpiece stop
• Roller wrench
Logistics
Bernardo shipping: 5–9 business days (7 days in the South). Original spare parts available with 3–5 business day shipping. Customer support available in Italian.
Frequently Asked Questions
What is the difference between MSM sheet metal beading machines and DR/EBM woodworking edge banding machines?
MSM beading machines (250, 300, 400, 500 C) are for metal sheet beading: they create a folded edge on cut sheet metal edges to eliminate sharp edges and stiffen the panel. DR/EBM/PEB edge banding machines are for wood: they apply PVC, ABS, or wood edges to chipboard and MDF panels. Completely different operation — not interchangeable.
What sheet metal thicknesses can the MSM series process?
Bernardo MSM beading machines typically process steel sheet up to 1.0–1.5 mm, aluminum up to 2.0 mm. Check specific limits in the model's technical table. Thicker sheets require hydraulic beading machines or press brakes.
Is the MSM C beading machine manual or motorized?
The suffix C indicates a version with motorized feed — the sheet metal is automatically pulled through the beading rollers at an adjustable speed. Versions SM 180 S, SM 200, SM 470 are manual: the operator guides the sheet through the rollers by hand.
Are spare parts available?
Original spare parts available with 3–5 business day shipping. Customer support available in Italian.
Is assistance available?
Original spare parts available with 3–5 business day shipping. Customer support available in Italian.
