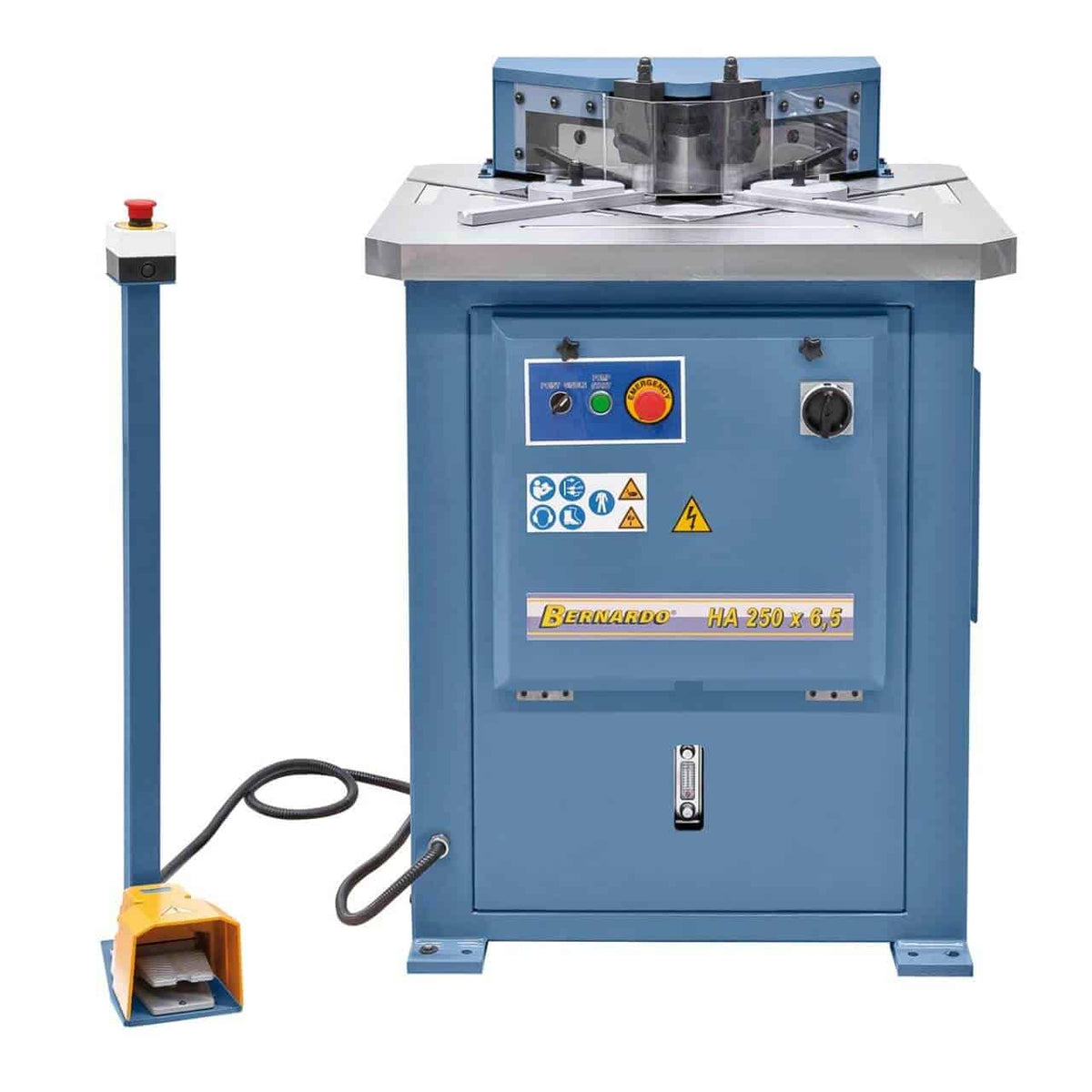

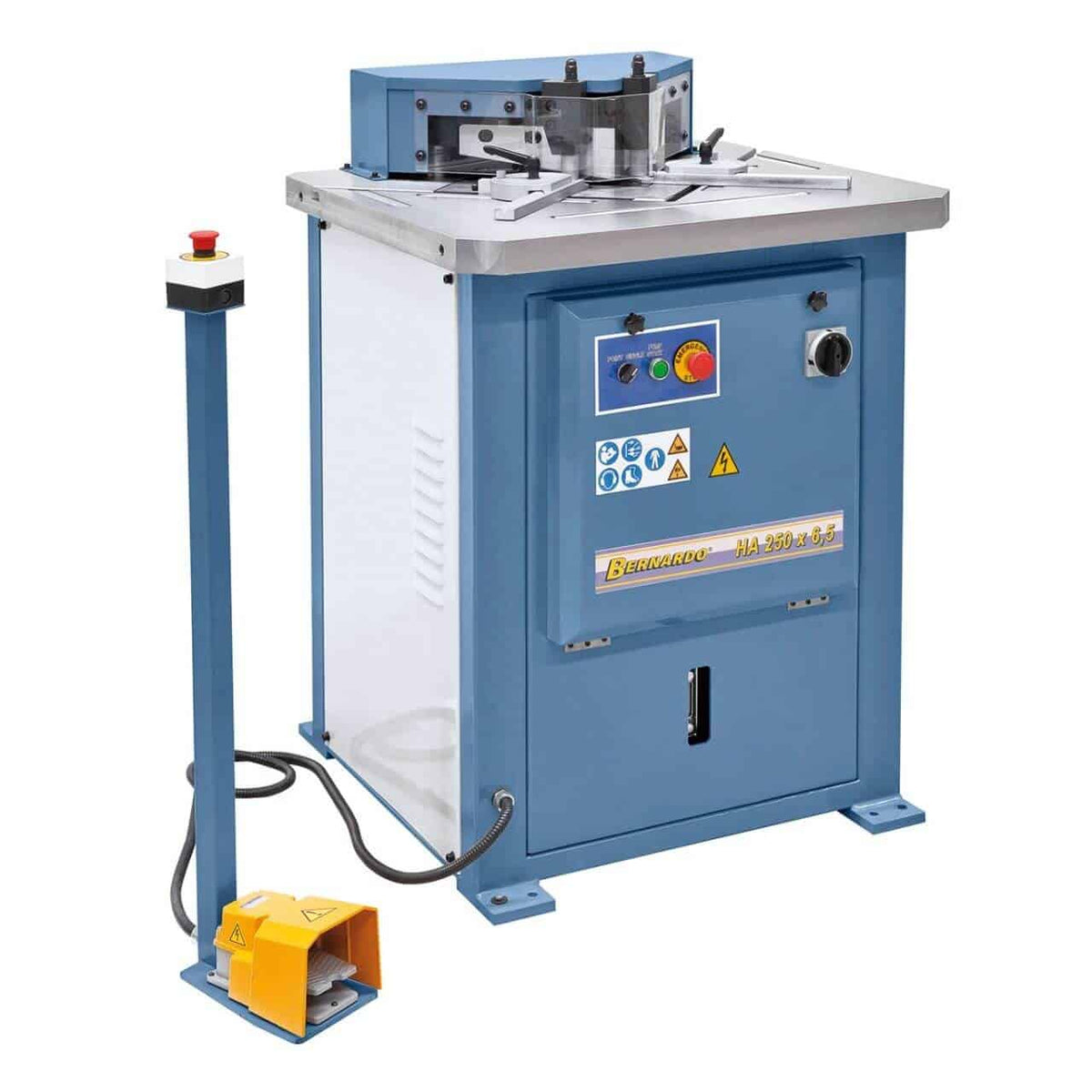

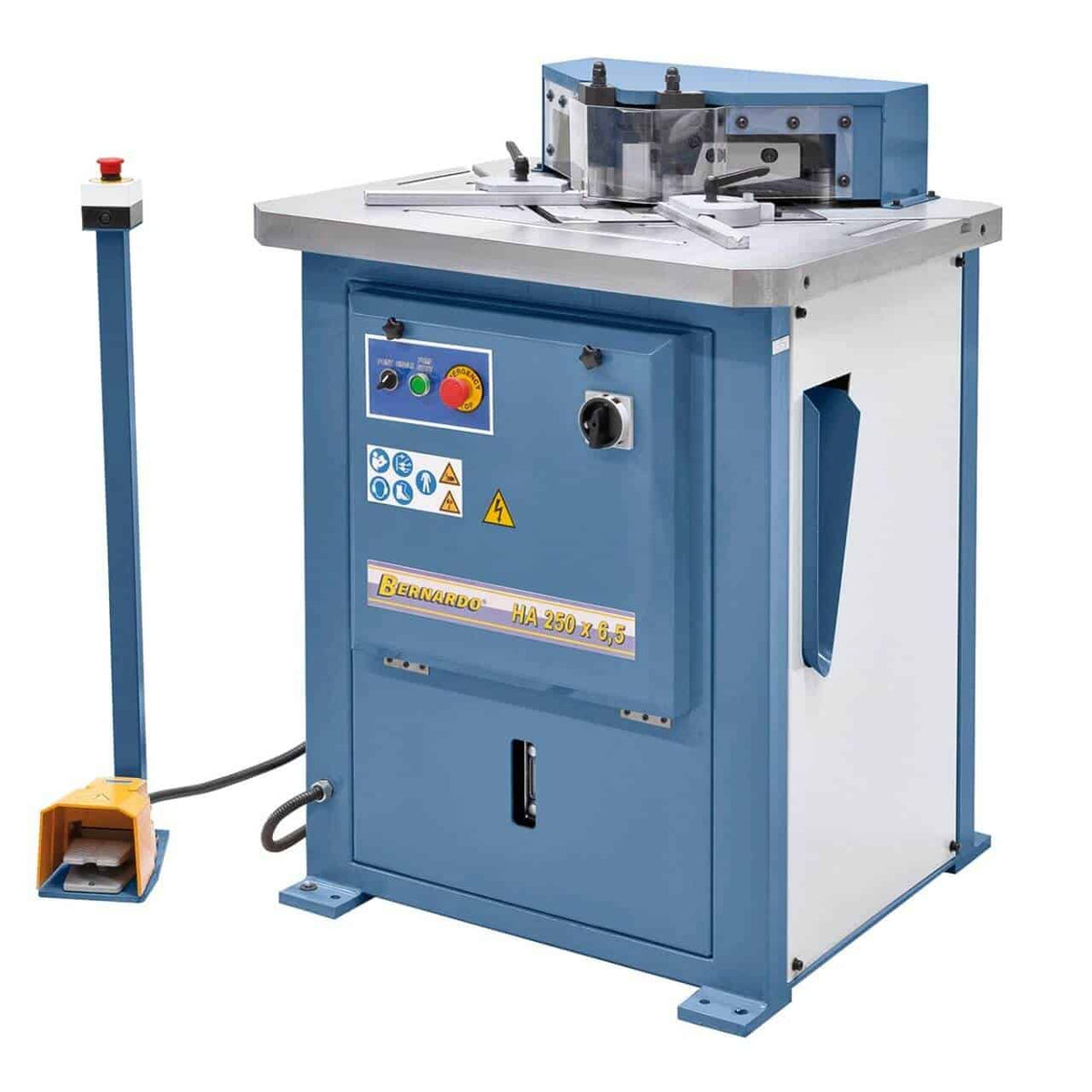

Bernardo Hydraulic Notching Machine HA 250 x 6.5

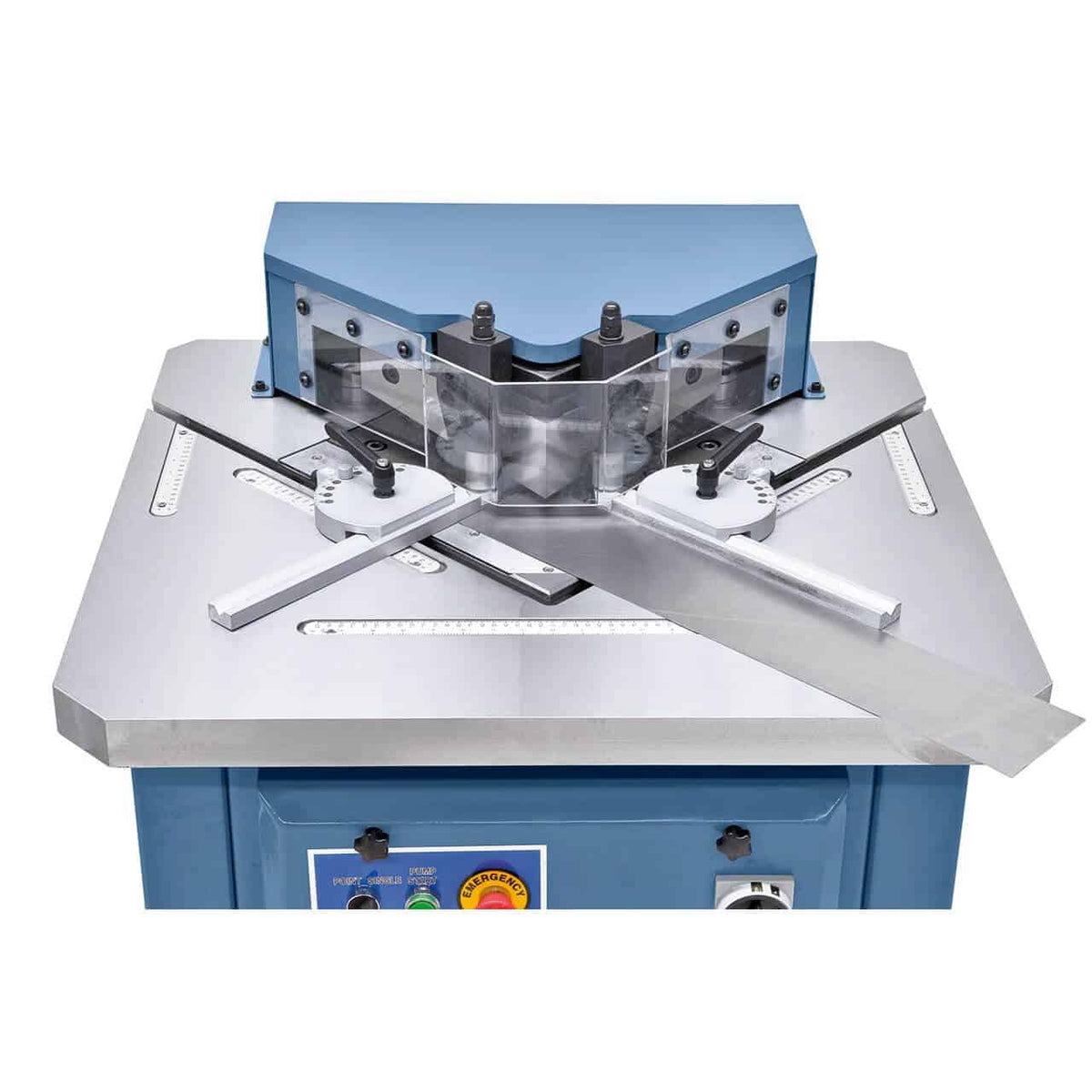

The Bernardo Hydraulic Notching Machine HA 250 x 6.5 is a professional machine designed for precise and clean notching on steel and other metal sheets. With a maximum capacity of 6.5 mm (400 N/mm²) and 3.5 mm for materials with 600 N/mm² tensile strength, it guarantees versatility and robustness in processing. The cutting length is 250 x 250 mm with a fixed 90° angle, suitable for standard notching and carpentry work. With a frequency of 24 strokes/minute and a table measuring 810 x 750 mm at an ergonomic height of 950 mm, it ensures practicality and productivity. The 4.0 kW/400 V motor and 630 kg weight make it a stable and durable machine. Safety accessories included are a plexiglass guard and a foot pedal with emergency stop.
Main specifications
Cutting capacity: up to 6.5 mm (400 N/mm²) and 3.5 mm (600 N/mm²)
Cutting length 250 x 250 mm at 90°
Working speed 24 strokes/minute
Work table 810 x 750 mm at 950 mm height
4.0 kW / 400 V motor
Robust 630 kg structure for maximum stability

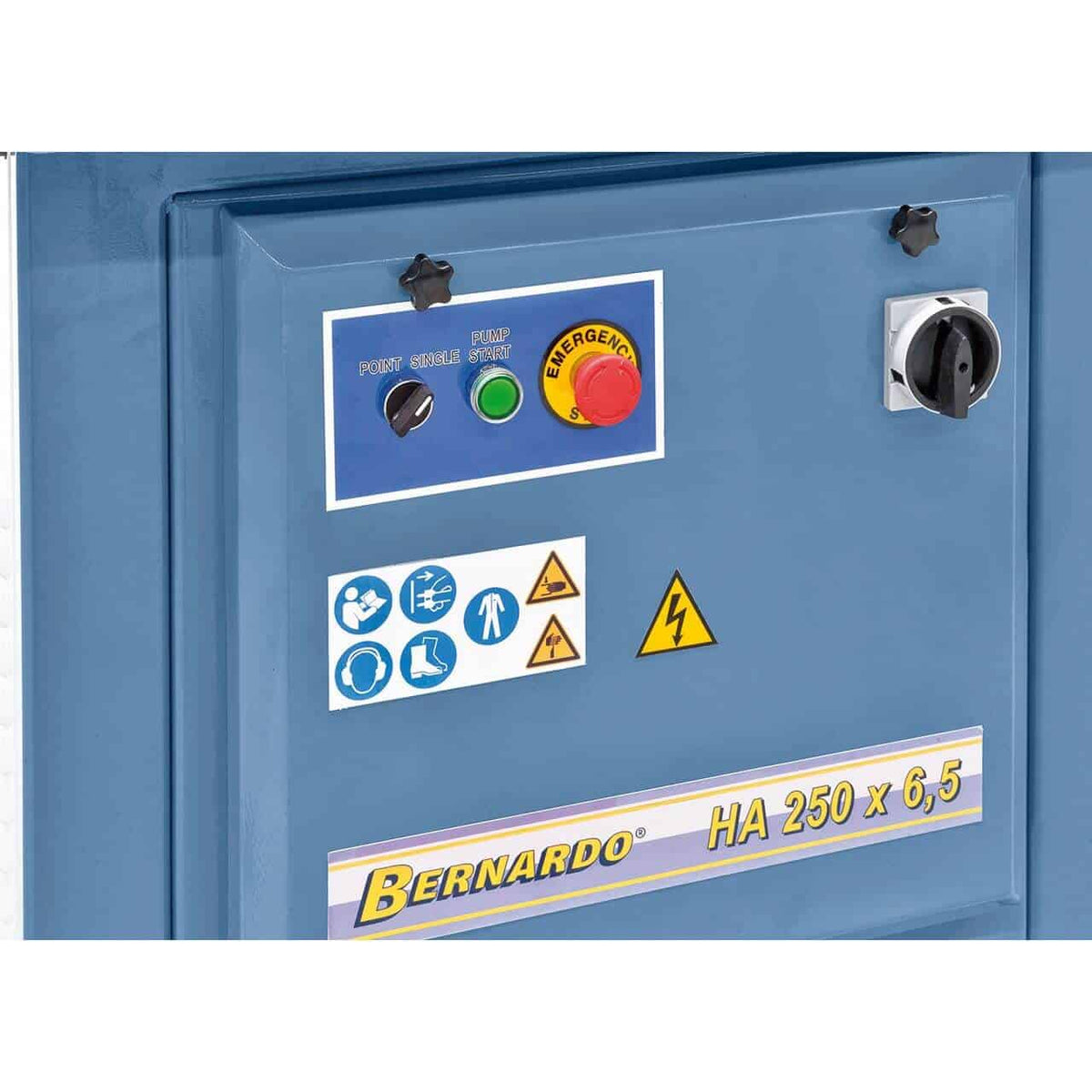

Equipped with safety guards and foot pedal with emergency stop
Technical table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
HA 250 x 6.5 |
| Max. sheet thickness (400 N/mm²) |
6.5 mm |
| Max. sheet thickness (600 N/mm²) |
3.5 mm |
| Cutting length |
250 x 250 mm |
| Cutting angle |
90° |
| Strokes/minute |
24 |
| Table dimensions |
810 x 750 mm |
| Table height |
950 mm |
| Motor power |
4.0 kW / 400 V |
| Machine dimensions (L x W x H) |
810 x 750 x 1150 mm |
| Weight |
approx. 630 kg |
Package contents:
Set of cutting blades

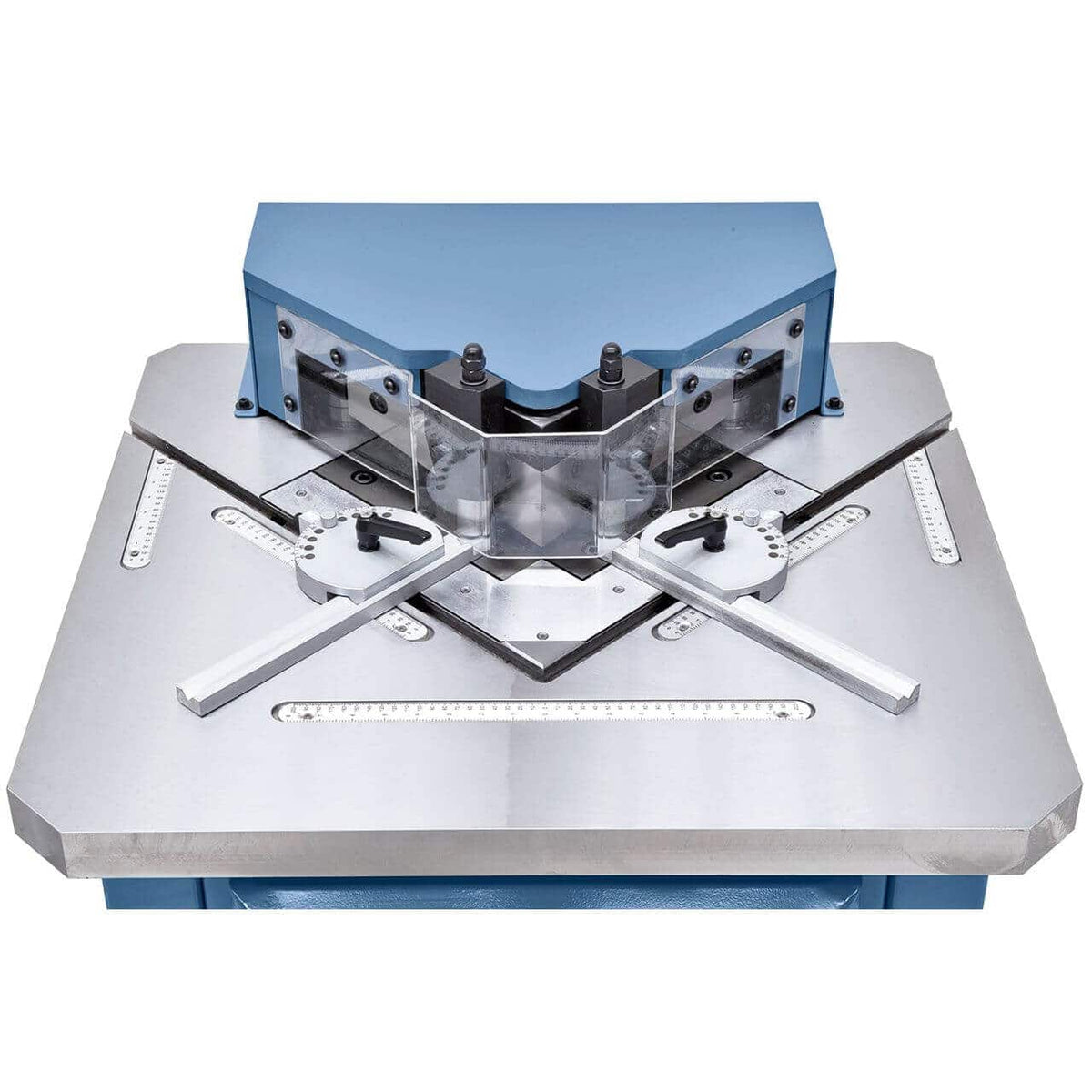

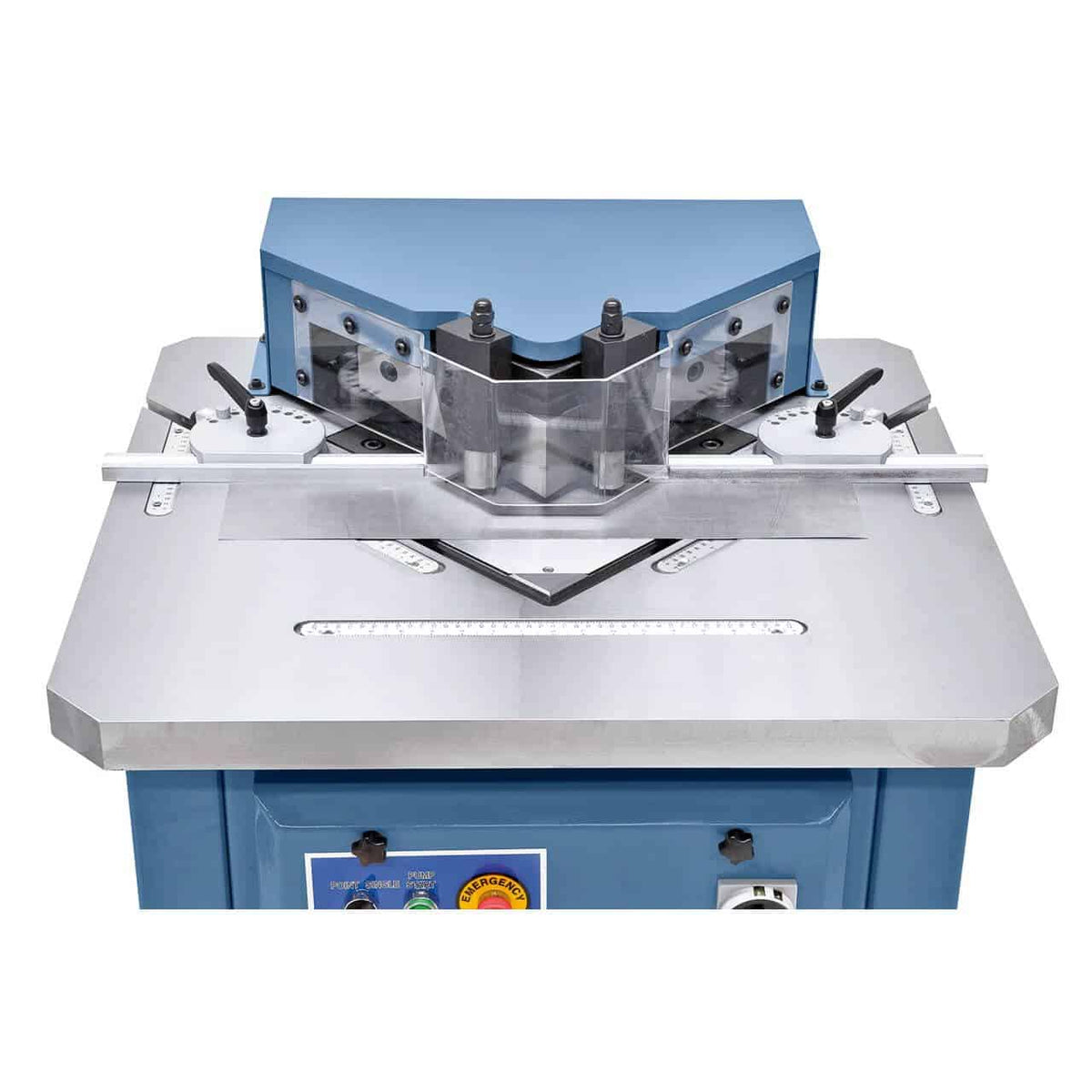

2 adjustable material stops
Plexiglass guard

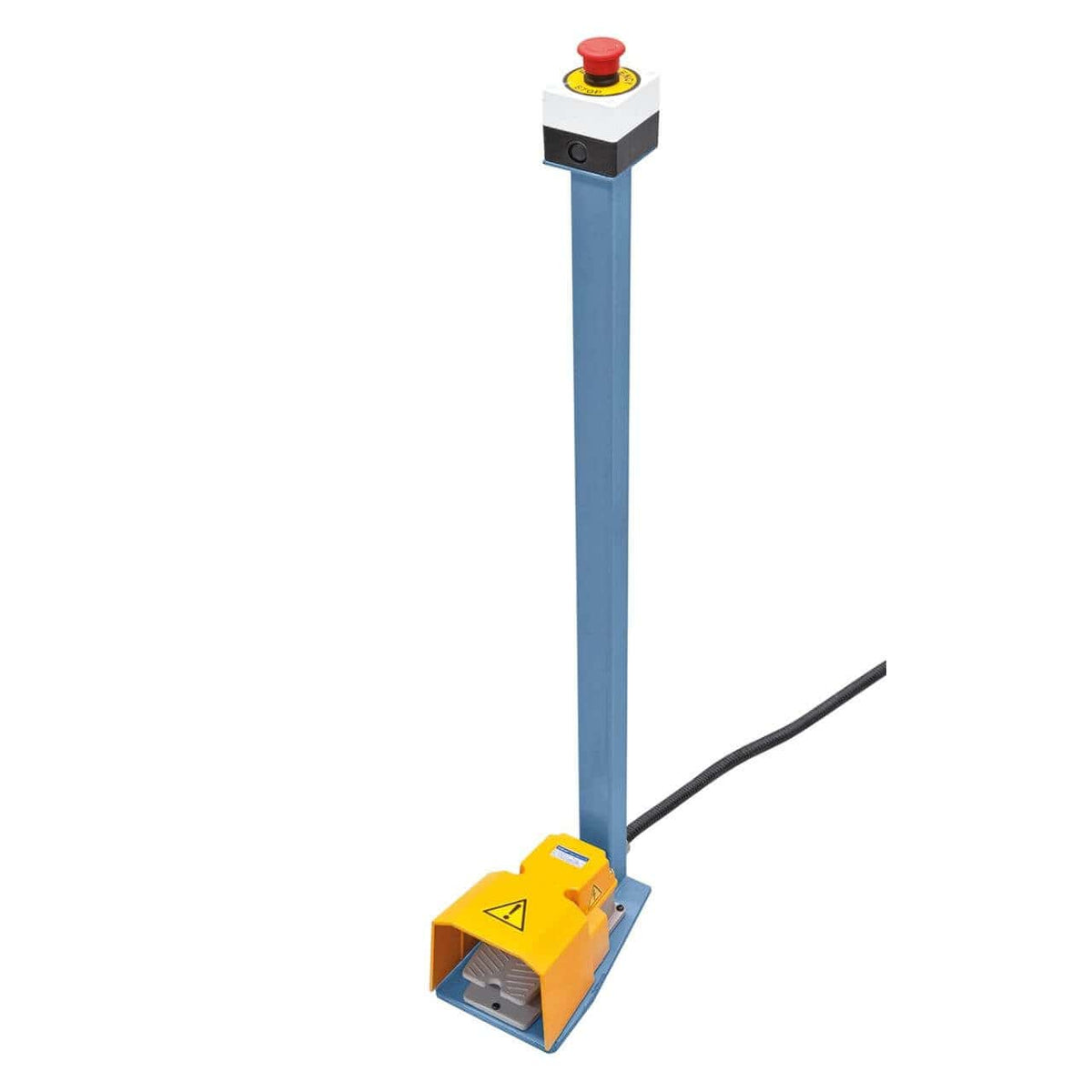

Foot pedal with emergency stop
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business day shipping. Customer service available in Italian.
Frequently Asked Questions
What is the difference between AK manual and HA hydraulic notching machines?
AK manual notching machines (80–150 mm) are lever-operated—suitable for artisan production with limited volumes on sheets up to 3 mm. HA hydraulic notching machines (200–250 mm) have motorized hydraulic drive: superior cutting force, greater sheet capacity (up to 6.5 mm), larger cutting lengths, and series production with less effort. The HA is the choice for continuous professional production.
What is the maximum thickness for stainless steel with the HA?
The nominal capacity refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40%. For aluminum, it increases by 30–50%. Check with Krollit for specific high-strength materials.
Are the cutting knives replaceable?
Yes. The cutting knives and dies are replaceable when worn. Original Bernardo spare knives available with 3–5 business day shipping.
Does the HA 200 VSW have integrated oblique cutting?
Yes. The VSW suffix indicates that the HA 200 VSW notching machine has the variable oblique cutting function—it allows for different angles from 90° for the production of non-standard shapes. The standard HA 250 version only cuts at a fixed 90°.
Is assistance and spare parts available?
Original spare parts available with 3–5 business day shipping. Customer service available in Italian.
