Bernardo | SKU: 06-1049

Bernardo Manual Notching Machine AK 80 F for Sheet Metal

Name: Bernardo Manual Notching Machine AK 80 F for Sheet Metal
Brand: Bernardo
SKU: 06-1049
Price: 576.02 EUR
Availability: InStock

€576,02 (22% VAT incl.)

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

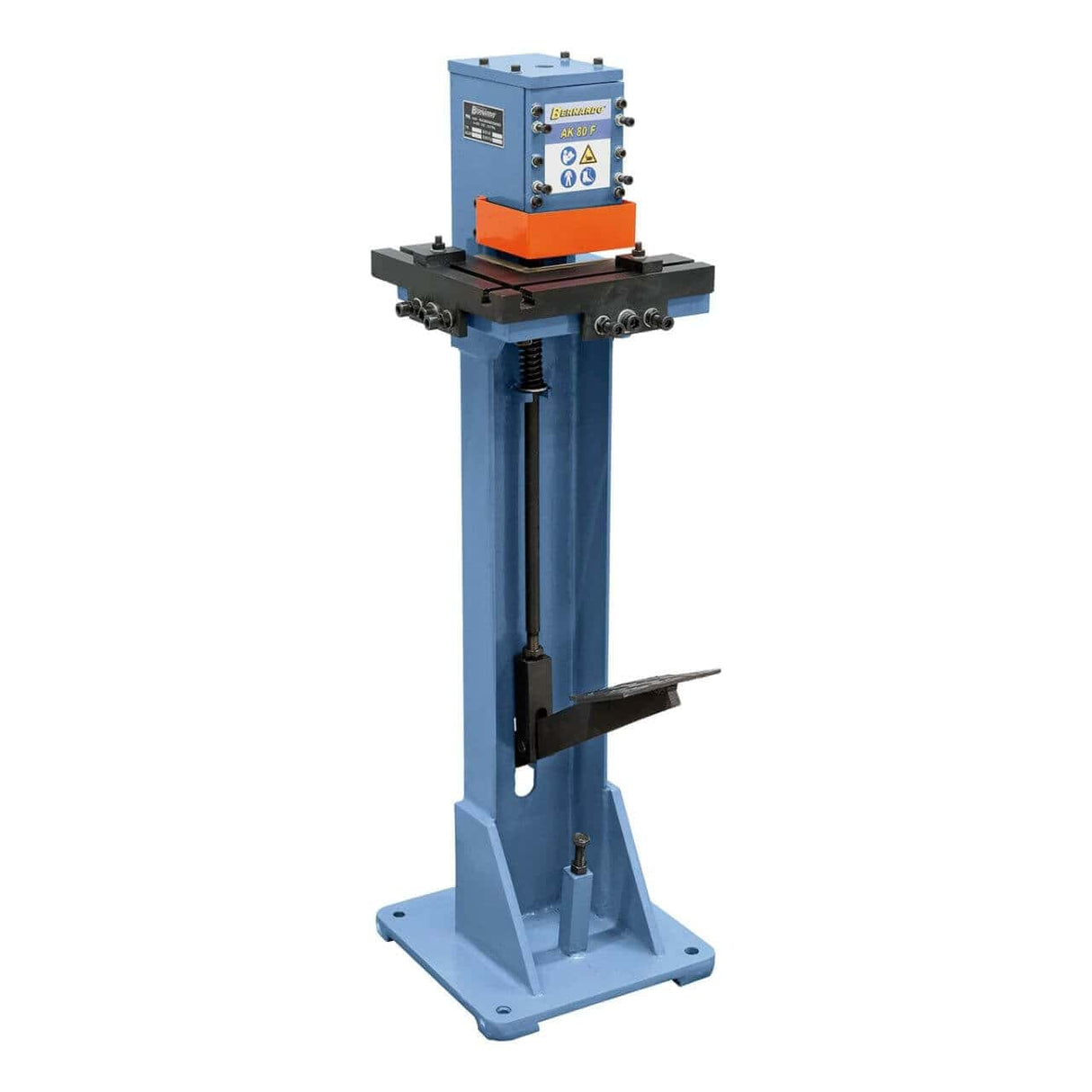

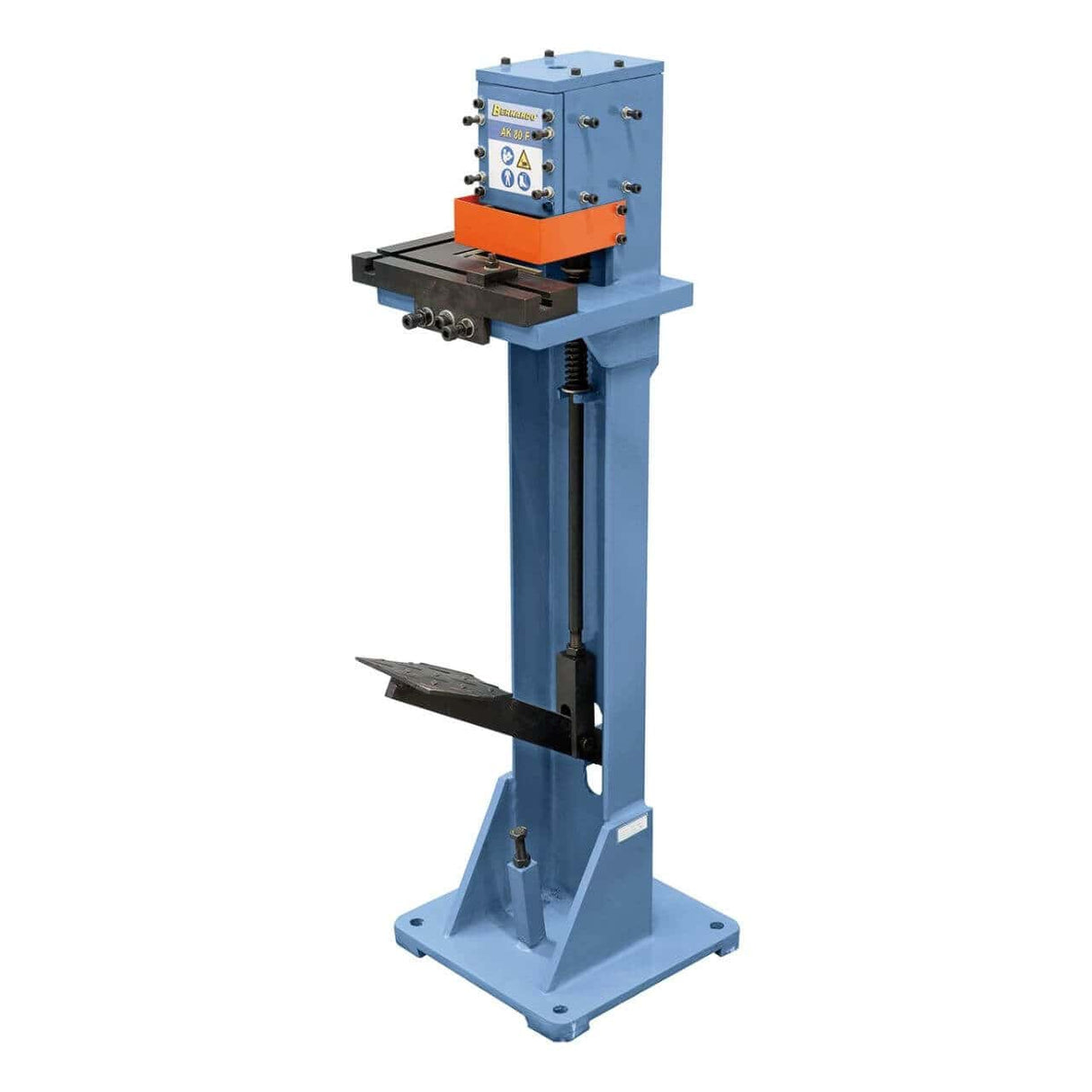

Bernardo AK 80 F Manual Notcher

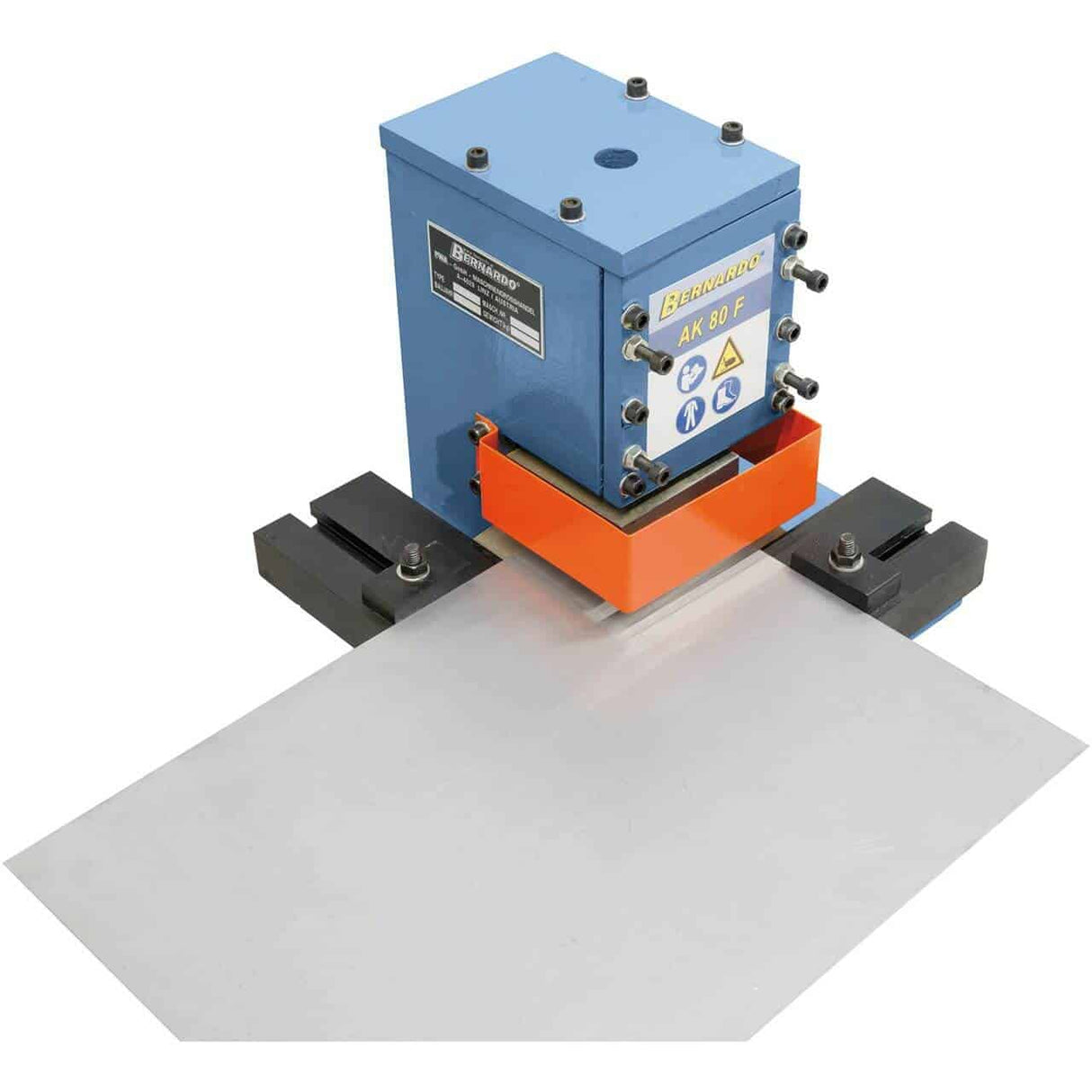

The Bernardo AK 80 F manual notcher is a compact and functional machine for simple and precise notching on thin sheet metal. With a cutting capacity of up to 1.5 mm (400 N/mm²) and a maximum length of 80 x 80 mm at 90°, it is suitable for small workshops, laboratories, and schools. The 30 mm stroke ensures clean and uniform cuts, while the 260 x 260 mm work table provides stable support. Equipped with a foot-operated pedal, it allows you to work with your hands free for correct material positioning. Its compact structure (only 74 kg with stand) makes it easy to place even in small spaces. Complete with protection, cutting blades, and side guides, it is an economical and practical solution for light notching.

Main Specifications

Cutting capacity up to 1.5 mm (400 N/mm²)
Maximum cutting length 80 x 80 mm at 90°
30 mm stroke for precise and uniform cuts

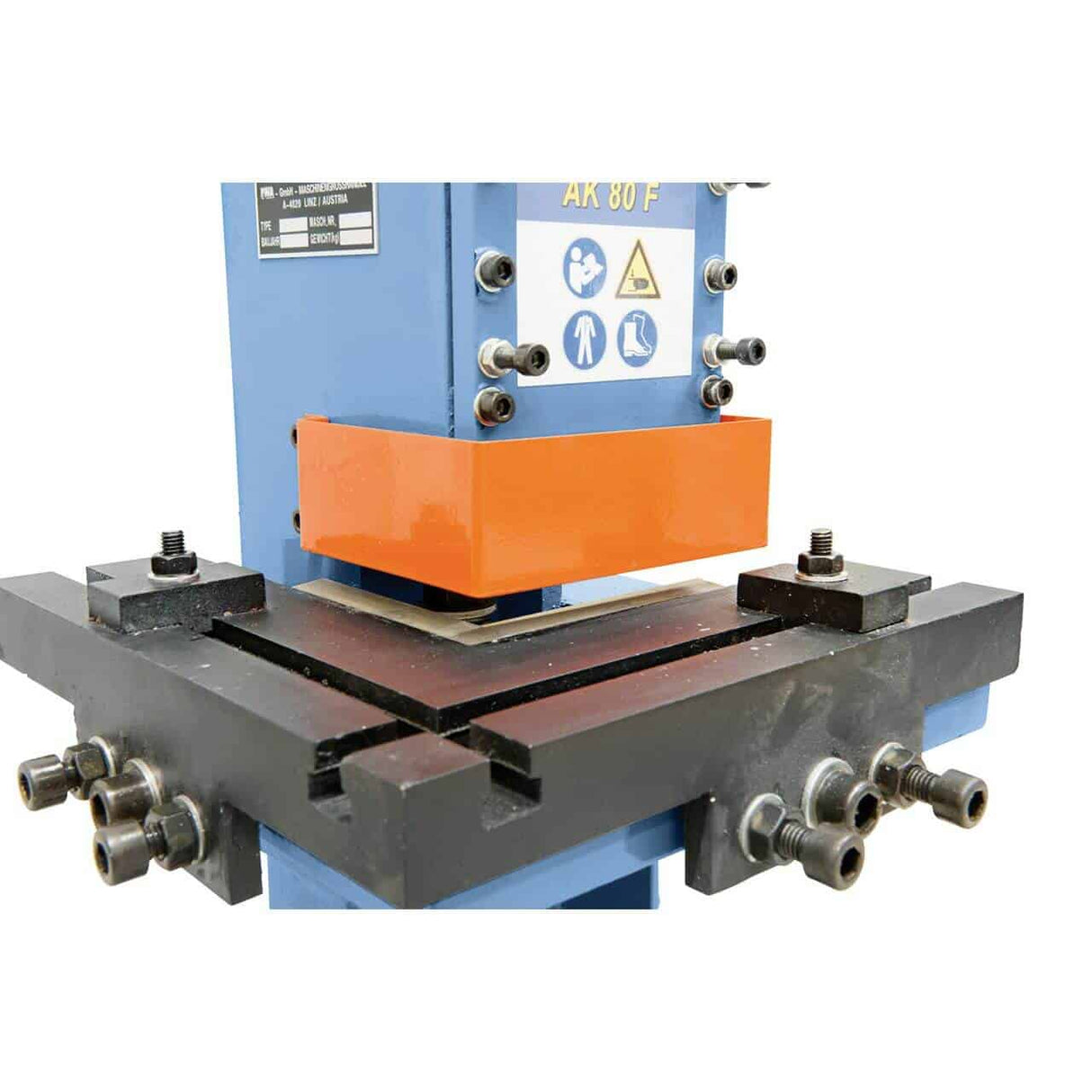

260 x 260 mm work table
Compact and lightweight structure (74 kg with stand)
Foot pedal operation for hands-free working
Includes cutting blades, side guides, and protection

Package contents:
Set of cutting blades
2 side guides for material
Safety guard
Foot pedal
Stand

Logistics

Bernardo shipping: 5–9 working days (7 days in the South). Original spare parts available with 3–5 working days shipping. Customer support in Italian available.

Technical specifications

Technical table:

Specification	Value
Brand	Bernardo
Model	AK 80 F
Max. sheet thickness (400 N/mm²)	1.5 mm
Max. cutting length at 90°	80 x 80 mm
Cutting angle	90°
Stroke	30 mm
Table dimensions	260 x 260 mm
Machine dimensions (L x W x H)	320 x 400 x 1050 mm
Weight	approx. 74 kg (with stand)

Warranty

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

FAQ / Frequently asked questions

Frequently Asked Questions

What is a notcher and what is it used for?

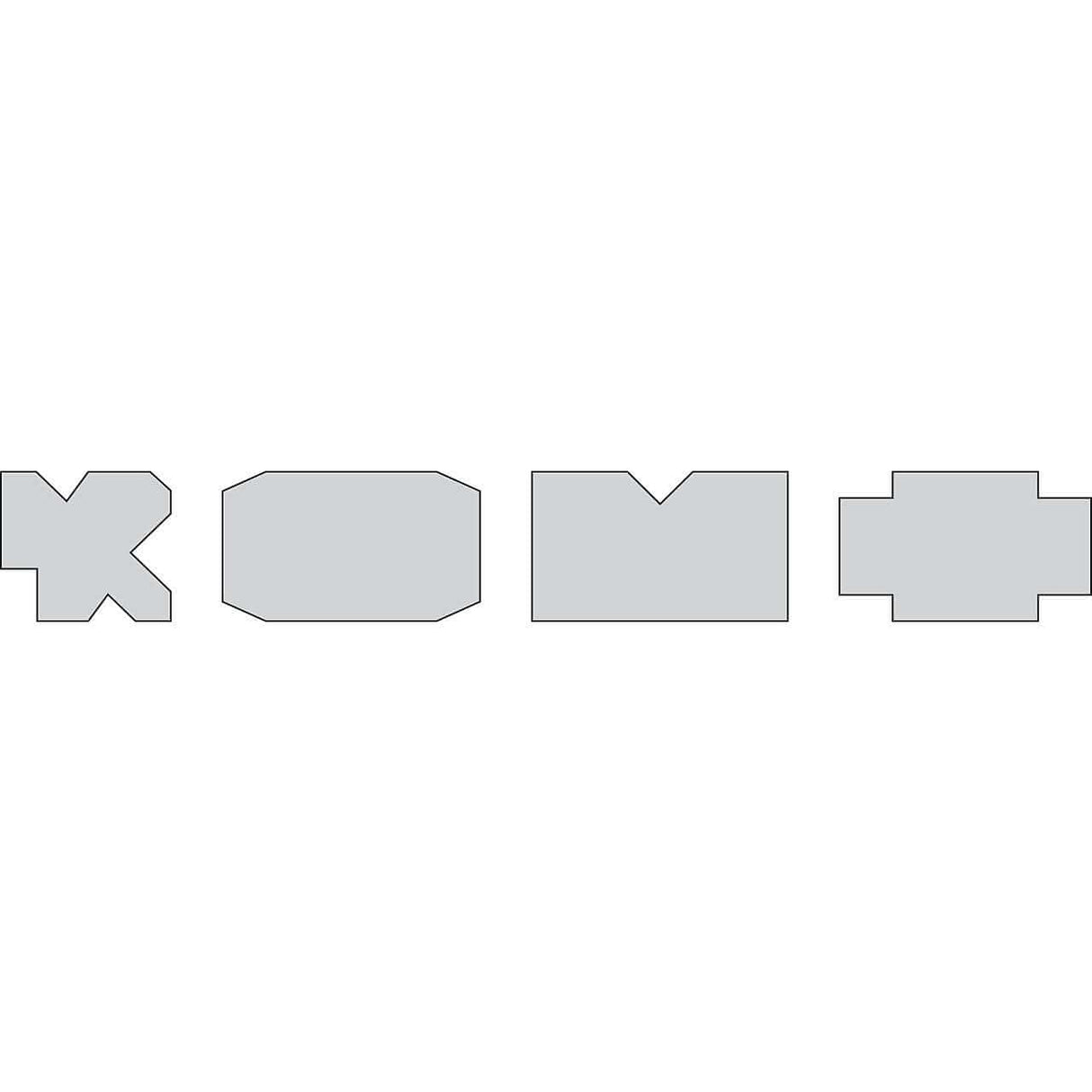

A notcher (or "corner notcher") cuts square corners on sheet metal to allow it to be bent at 90° without overlapping material. It is essential for the production of boxes, trays, containers, and sheet metal profiles: without notching, the corner remains closed and the sheet metal does not bend correctly. The AK Bernardo series cuts 90° angles on sheet metal up to 3 mm in sizes from 80 × 80 to 150 × 150 mm.

What is the difference between AK 80 F, AK 100, AK 125, and AK 150?

The number indicates the maximum size of the corner cut (side of the square): AK 80 F → 80 × 80 mm, AK 100 → 100 × 100 mm, AK 125 → 125 × 125 mm, AK 150 → 150 × 150 mm. The thickness capacity varies slightly between models (from 2.5 to 3.0 mm). The suffix F indicates the version with fast feed. The choice depends on the maximum size of the corner to be cut.

Does the maximum thickness also apply to stainless steel and aluminum?

No. The nominal capacity refers to S235 steel (400 N/mm²). For AISI 304 stainless steel, it is reduced by 30–40%. For aluminum, it increases by 30–50%. Check with Krollit for specific alloys.

Are the cutting blades replaceable?

Yes. The cutting blades wear out and are replaceable. Original Bernardo replacement blades are available with 3–5 working days shipping.

Is assistance available?

Original Bernardo spare parts available with 3–5 working days shipping. Customer support in Italian available.
