HS 10 Lever Shear for Sheet Metal and Round Bars

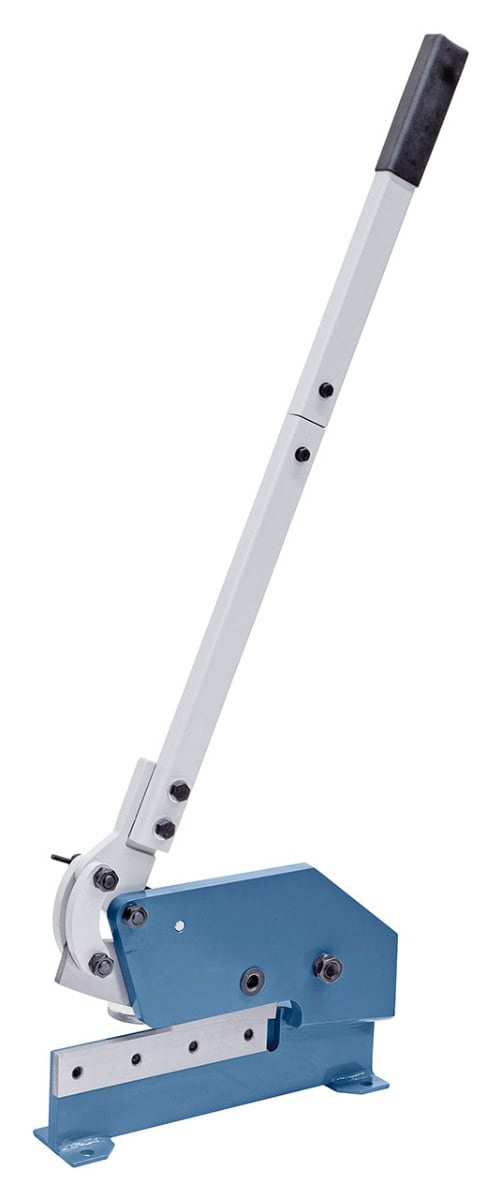

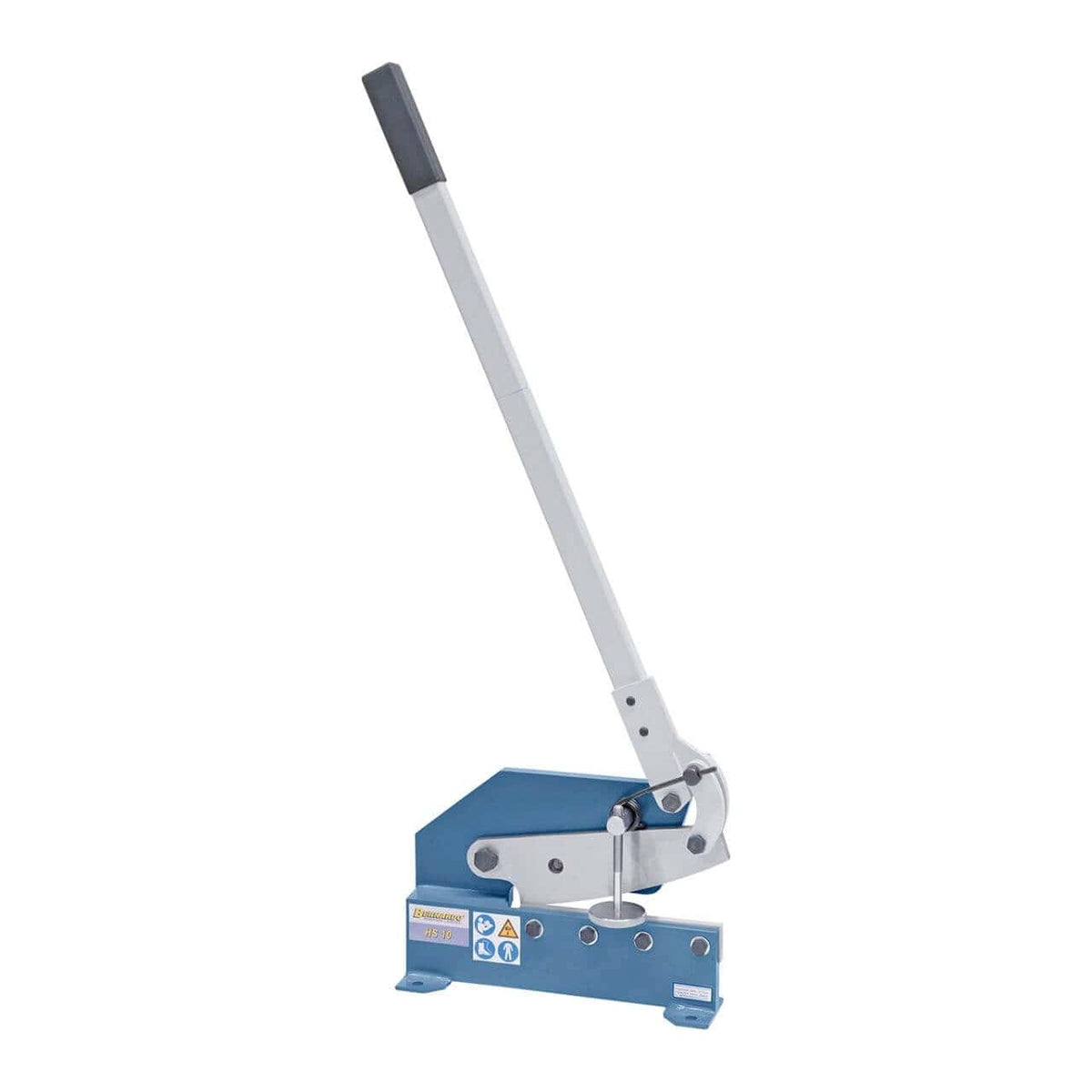

Bernardo Lever Shear HS 10

The Bernardo Lever Shear HS 10 is a robust and versatile manual shear, designed for cutting sheet metal, round bars, and flat steel. It is ideal for blacksmiths, installers, and training workshops thanks to its optimized cutting geometry which reduces operator effort. It offers a maximum cutting length of 210 mm and a capacity of up to 4.0 mm on sheet metal (400 N/mm², not over the entire length). It can also cut round bars up to Ø 13 mm and flat steel up to 70 x 5 mm. The machine body, made of robust steel sheet, is pre-drilled for mounting on a workbench. The upper blade features a through hole for cutting round bars, while the height-adjustable hold-down device prevents twisting of the sheet metal. With a weight of 23 kg, it is stable and safe, yet suitable for craft and professional workshops.

---

Key features:
Cutting capacity: sheet metal up to 4.0 mm (400 N/mm², not over the entire length)
Capacity for round bar Ø 13 mm and flat bar 70 x 5 mm
Maximum cutting length 210 mm with 255 mm blade

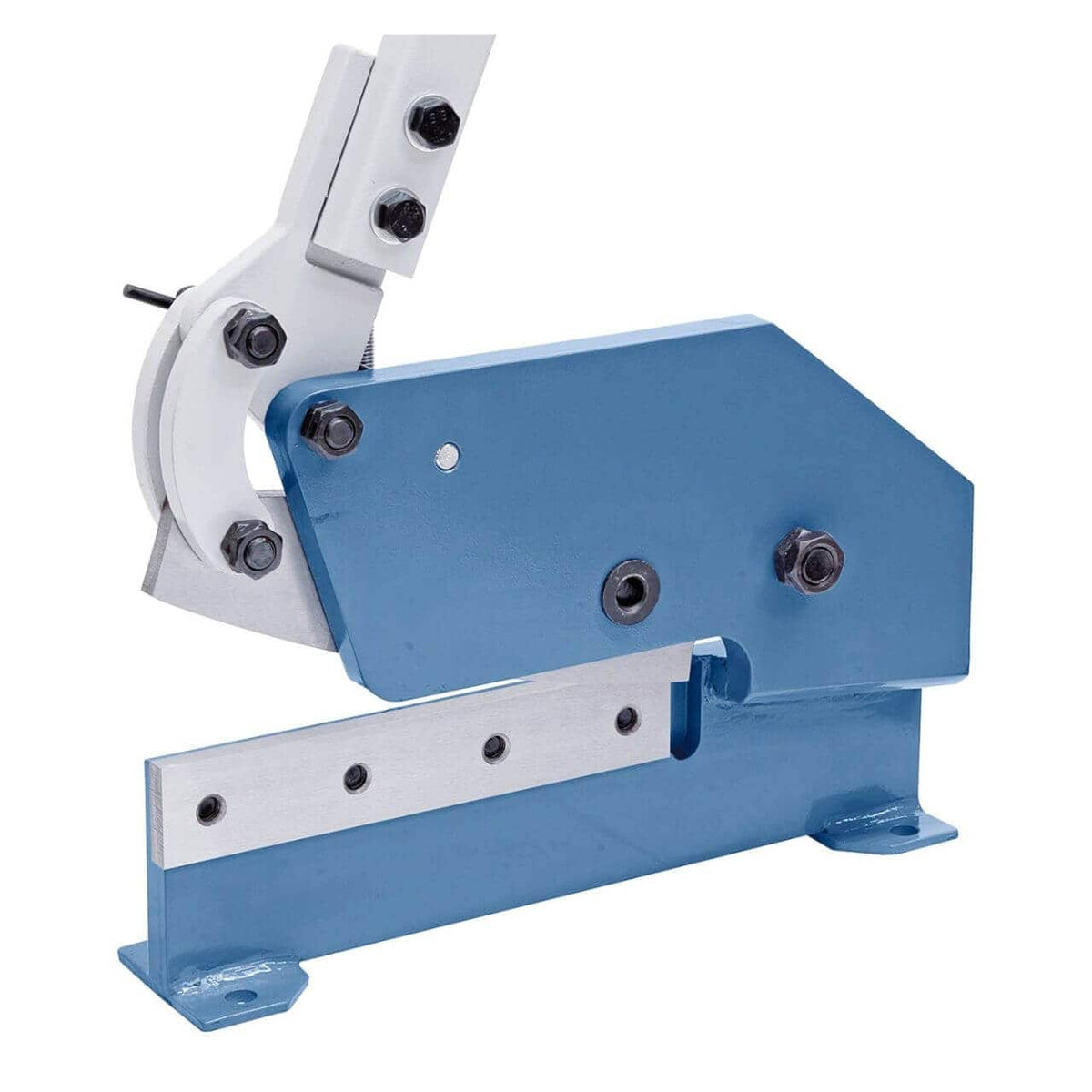

Upper blade with through hole for cutting round bars

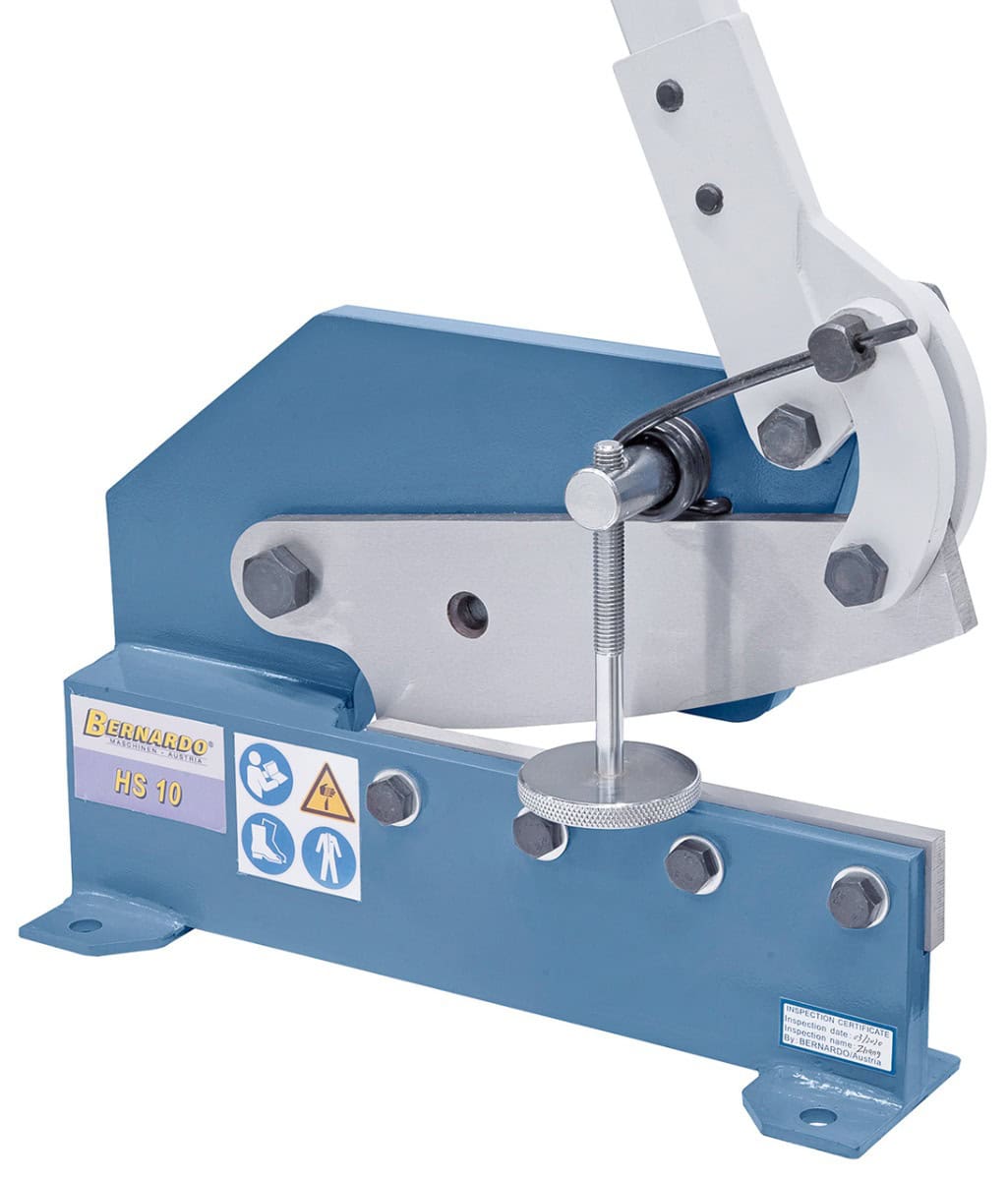

Height-adjustable hold-down device to prevent sheet metal twisting
Optimized geometry to reduce cutting effort
Robust steel machine body with holes for workbench mounting
Weight 23 kg, stable and safe for professional use

---

---

Logistics

Bernardo shipping: 5–9 working days (7 days in the South). Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

Technical specifications

Specification	Value
Brand	Bernardo
Model	HS 10
Max. cutting length	210 mm
Sheet metal capacity (400 N/mm²)*	4.0 mm
Round material capacity	Ø 13 mm
Flat steel capacity	70 x 5 mm
Blade length	255 mm
Dimensions (L x W x H)	130 x 400 x 400 mm (1130 mm incl. lever)
Weight	approx. 23 kg

Standard equipment

Complete HS 10 lever shear
Height-adjustable hold-down device
Upper blade with through hole

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

Frequently Asked Questions

What is the maximum thickness for aluminum and stainless steel?

The nominal thickness of 1.5 mm refers to S235 steel (400 N/mm²). For aluminum, the capacity increases by 30–50% (approx. 2.1 mm). For AISI 304 stainless steel, the capacity decreases by 30–40% (approx. 1.0 mm).

Are the blades replaceable?

Yes. The cutting blades are replaceable when worn or damaged. Original Bernardo spare blades available with 3–5 working days shipping.

Does it require fixed installation or can it be used on a workbench?

Most Bernardo lever shears are fixed to a workbench or floor with bolts. They do not require a special foundation. More compact versions can also be used with a workbench vise.

Can the Bernardo Lever Shear HS 10 also cut copper and brass?

Yes. Copper and brass have lower resistance than S235 steel: the actual capacity for copper is similar to aluminum (approx. 2.1 mm). For specific alloys, contact Krollit for verification.

Are assistance and spare parts available?

Original spare parts available with 3–5 working days shipping. Customer support available in Italian.
