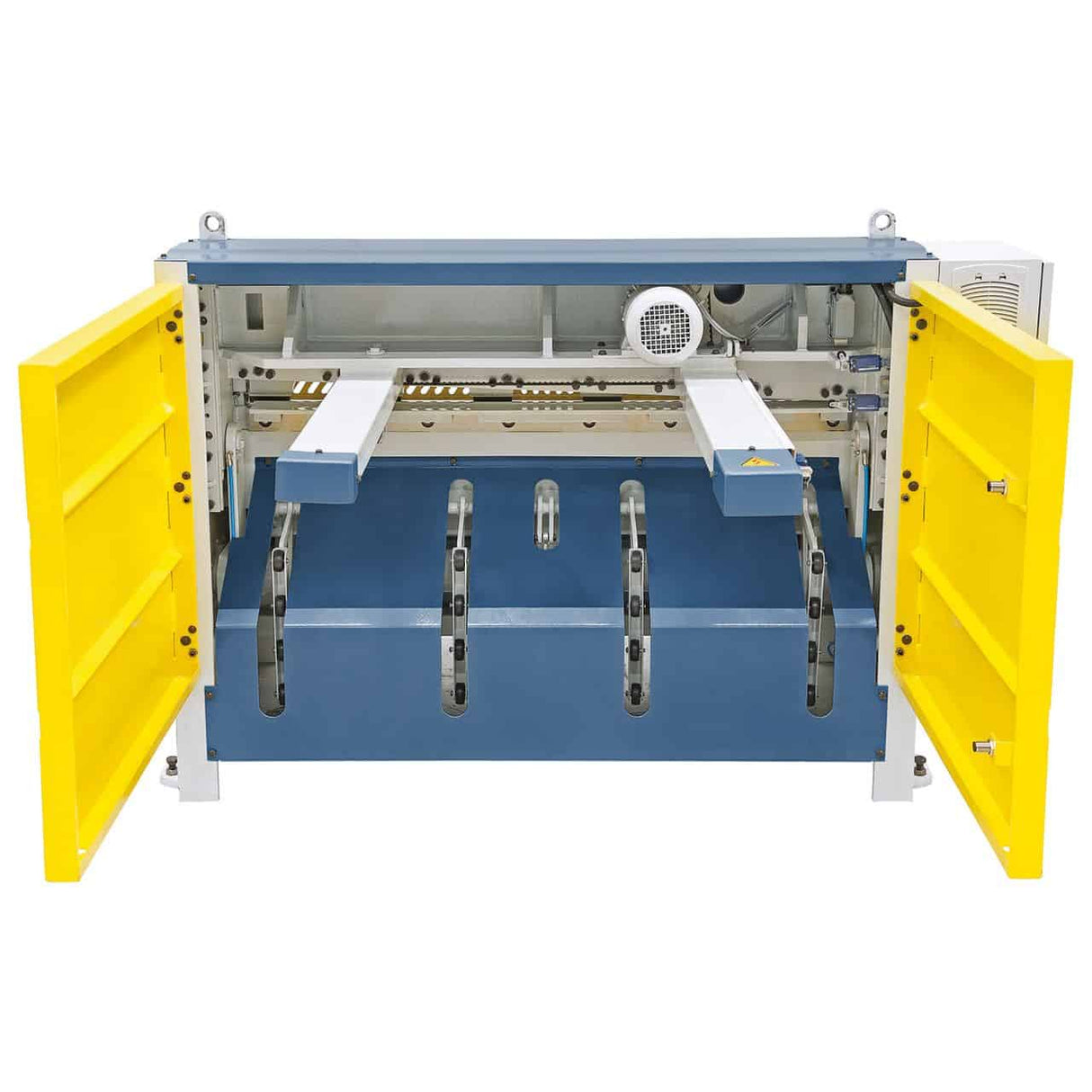

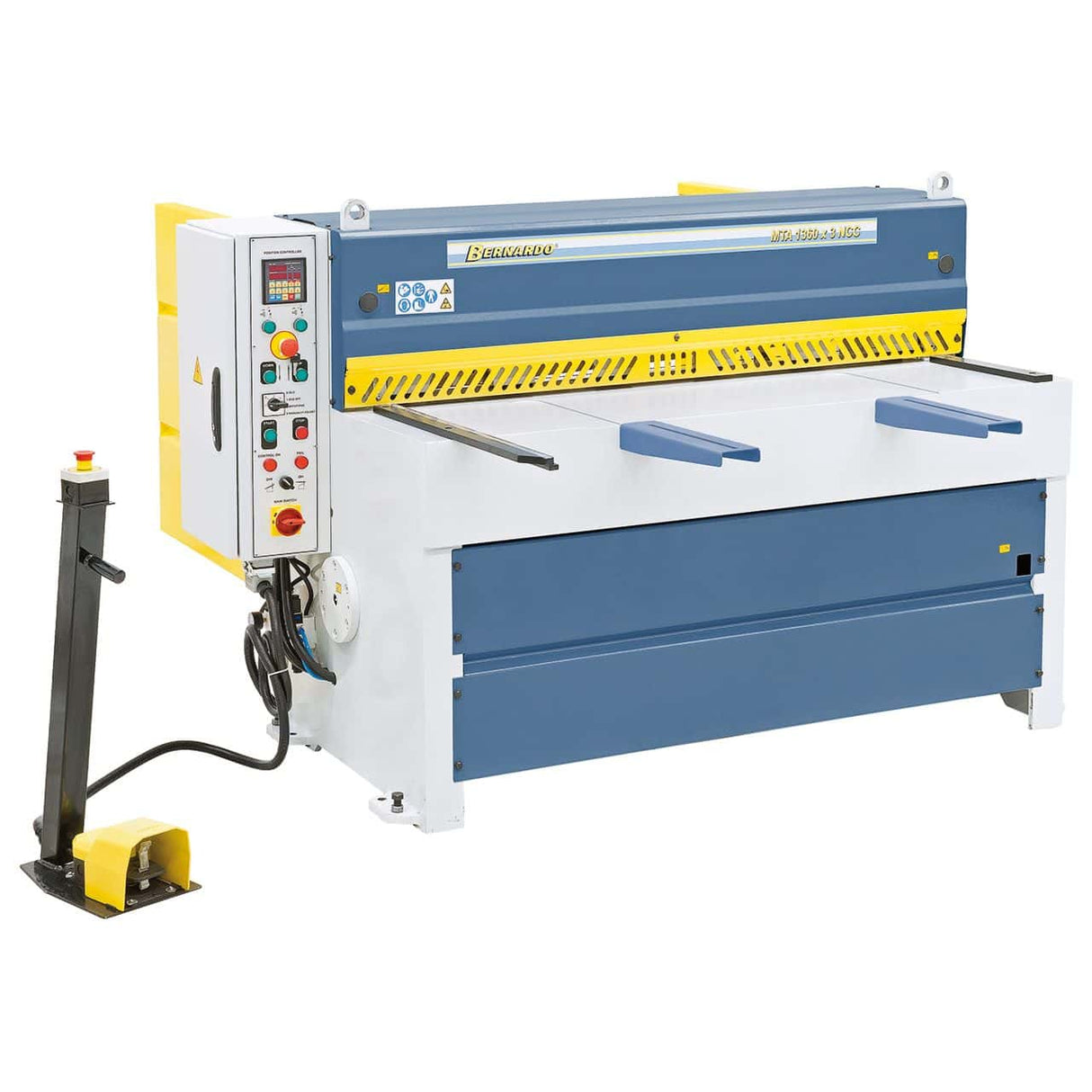

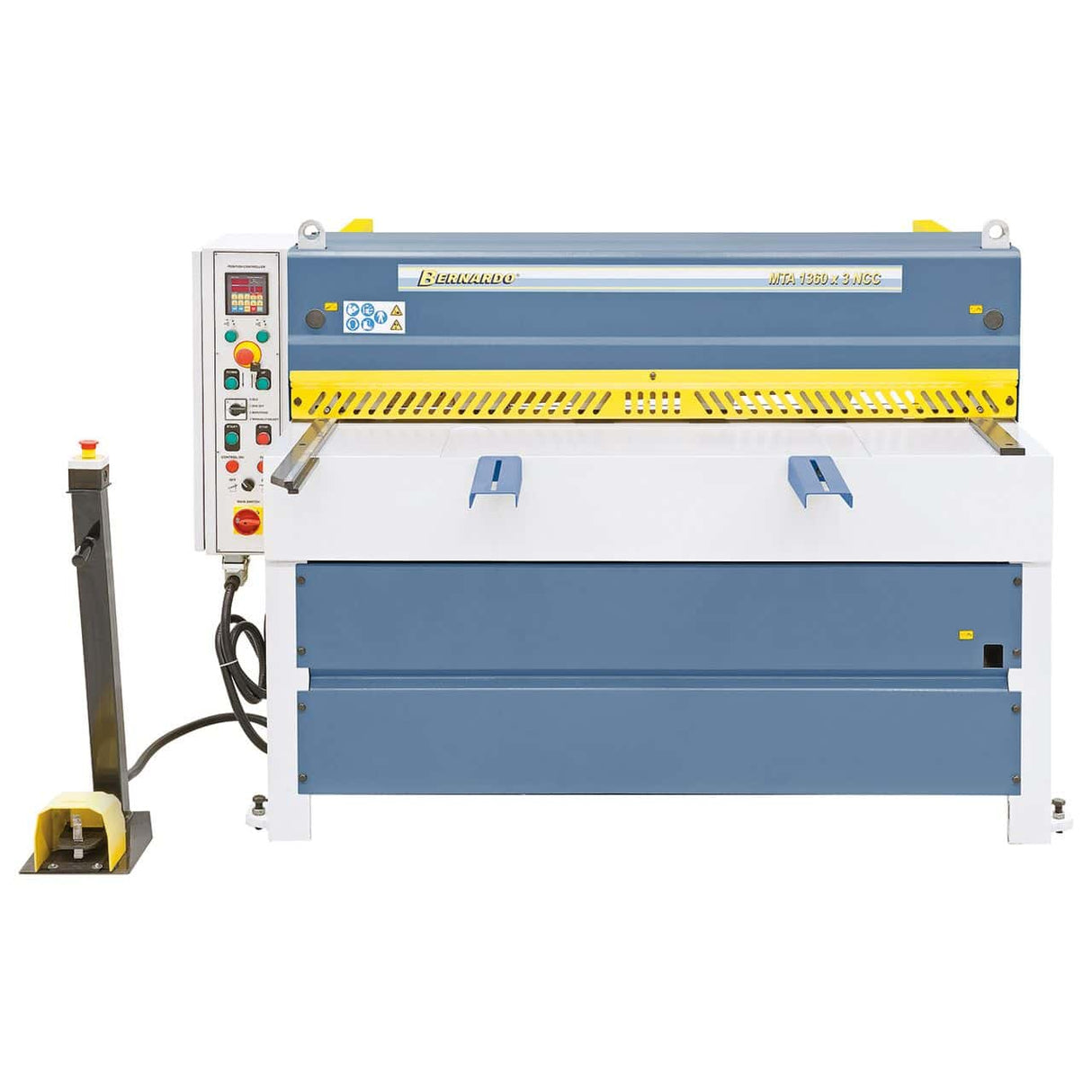

Bernardo MTA 1360 x 3 mm NCC – Motorized Guillotine Shear

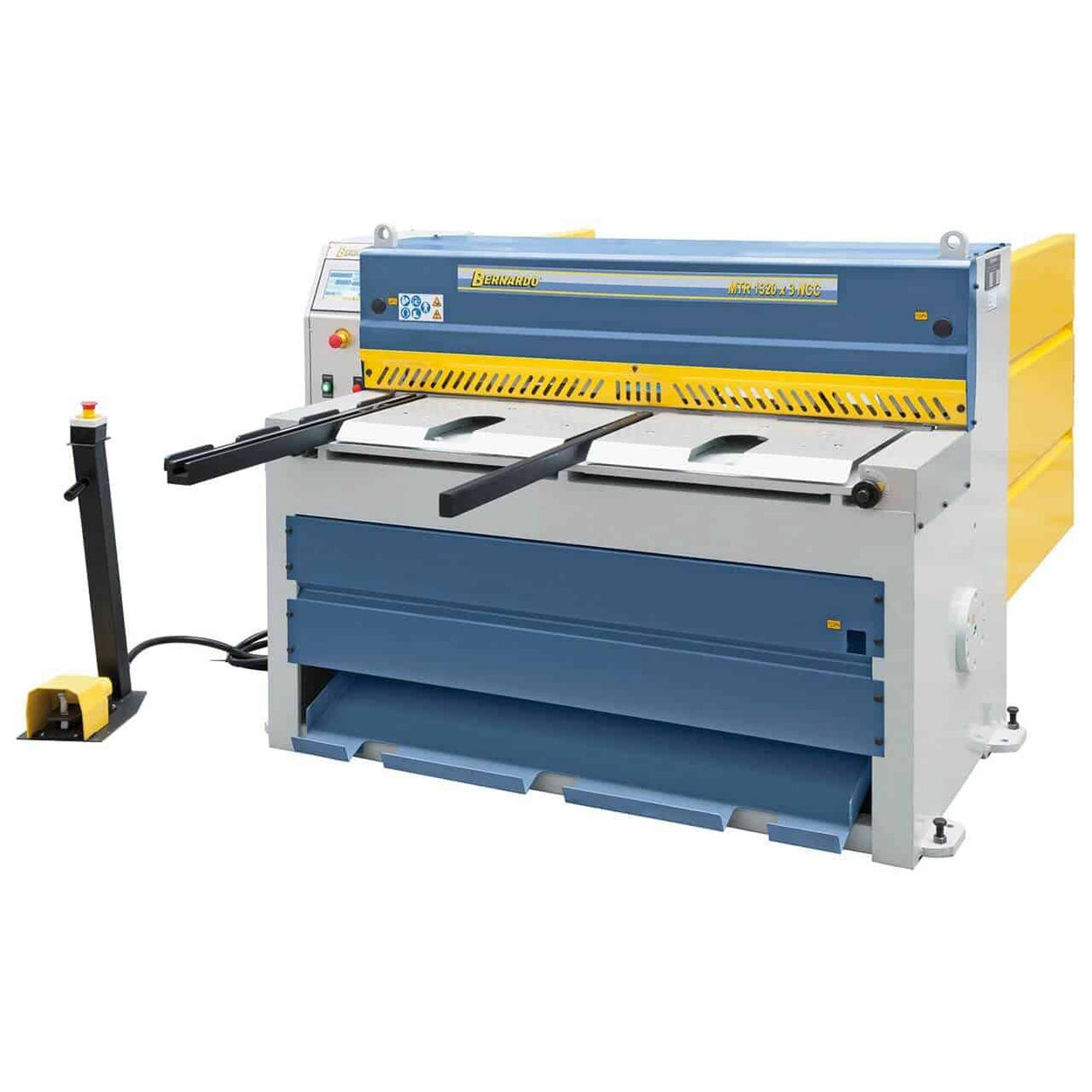

Bernardo MTA 1360 x 3 mm NCC – Motorized Guillotine Shear with Pneumatic Sheet Support System

The Bernardo MTA 1360 x 3 mm NCC is a high-end motorized guillotine shear, equipped with a pneumatic sheet support system to ensure high precision and practicality in cutting thin sheets and large formats. With a cutting length of 1360 mm and a capacity of up to 3 mm thickness (400 N/mm²), it guarantees clean and burr-free cuts thanks to its high-quality double-edged steel blades. The motorized backgauge with ball screws and integrated NC control offers precision and speed in adjustments. The machine is equipped with rear photocell guards, a table with integrated rollers, a side ruler, and front supports to facilitate material handling. With a robust welded steel construction, 31 strokes/min, and a 3.0 kW motor, the MTA 1360 x 3 mm NCC combines power, safety, and efficiency, ideal for workshops and industries requiring a professional and reliable shear.

---

Main features:
1360 mm cutting length for professional applications
Cutting capacity up to 3 mm (400 N/mm² steel)

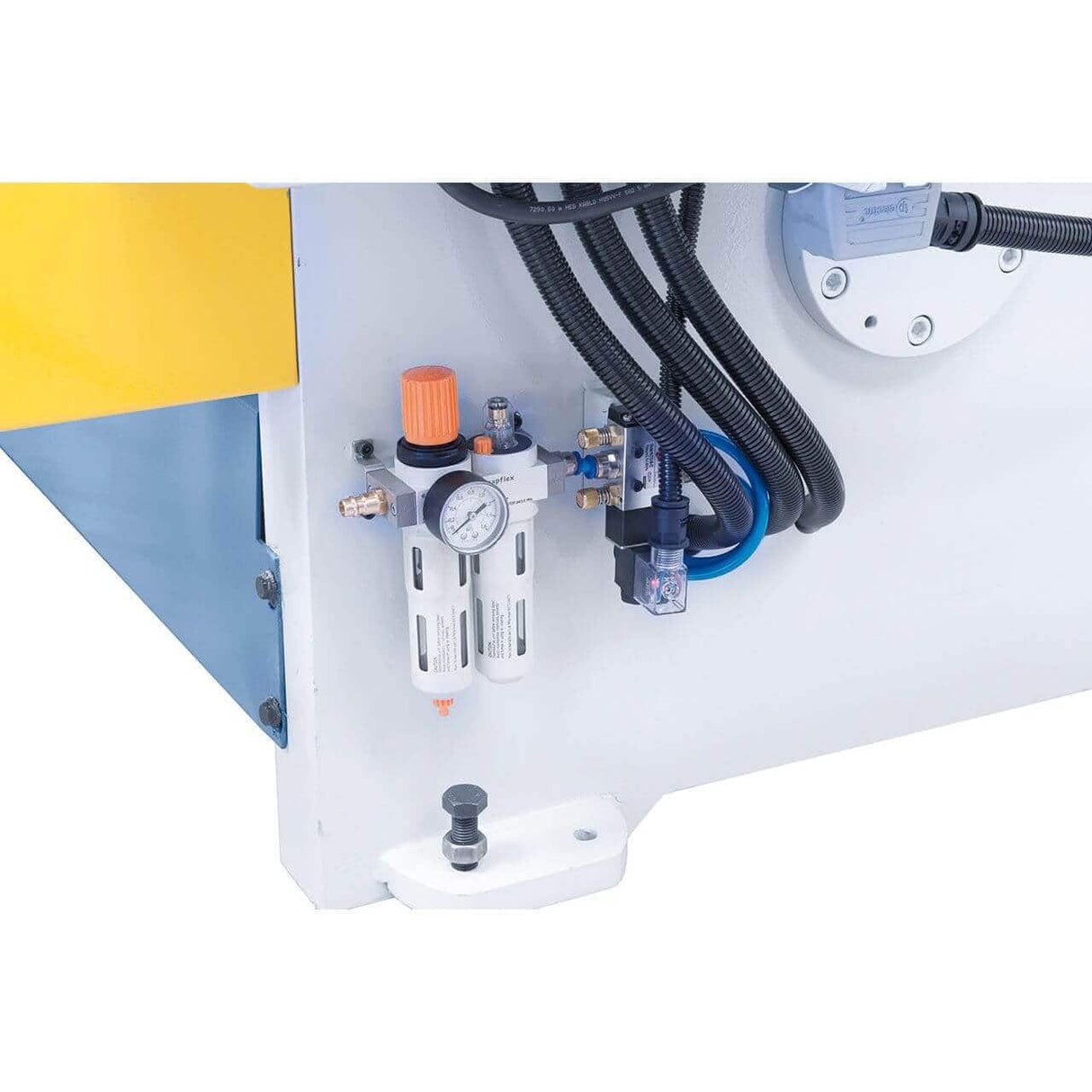

Pneumatic sheet support system, perfect for thin sheets

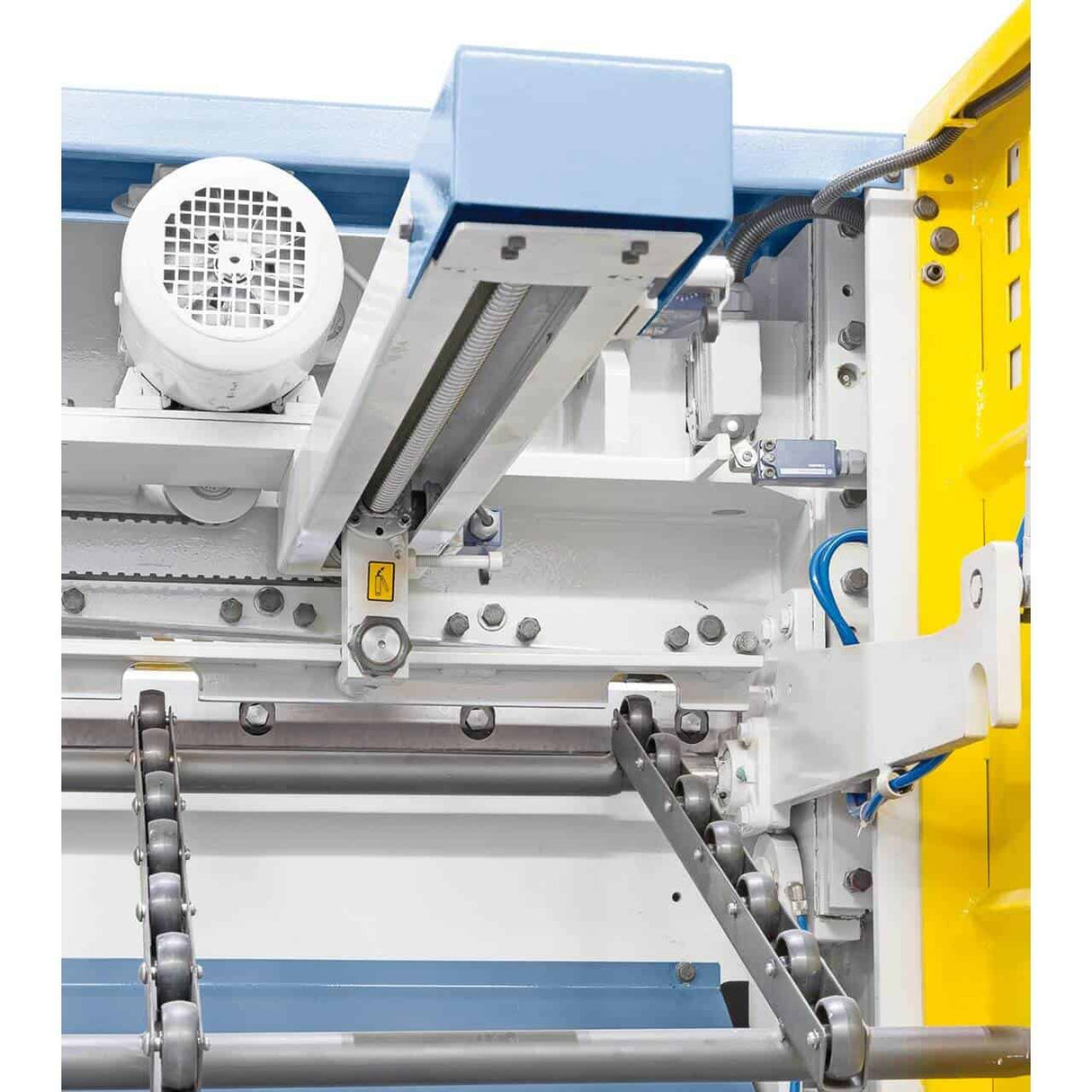

Motorized backgauge with ball screws

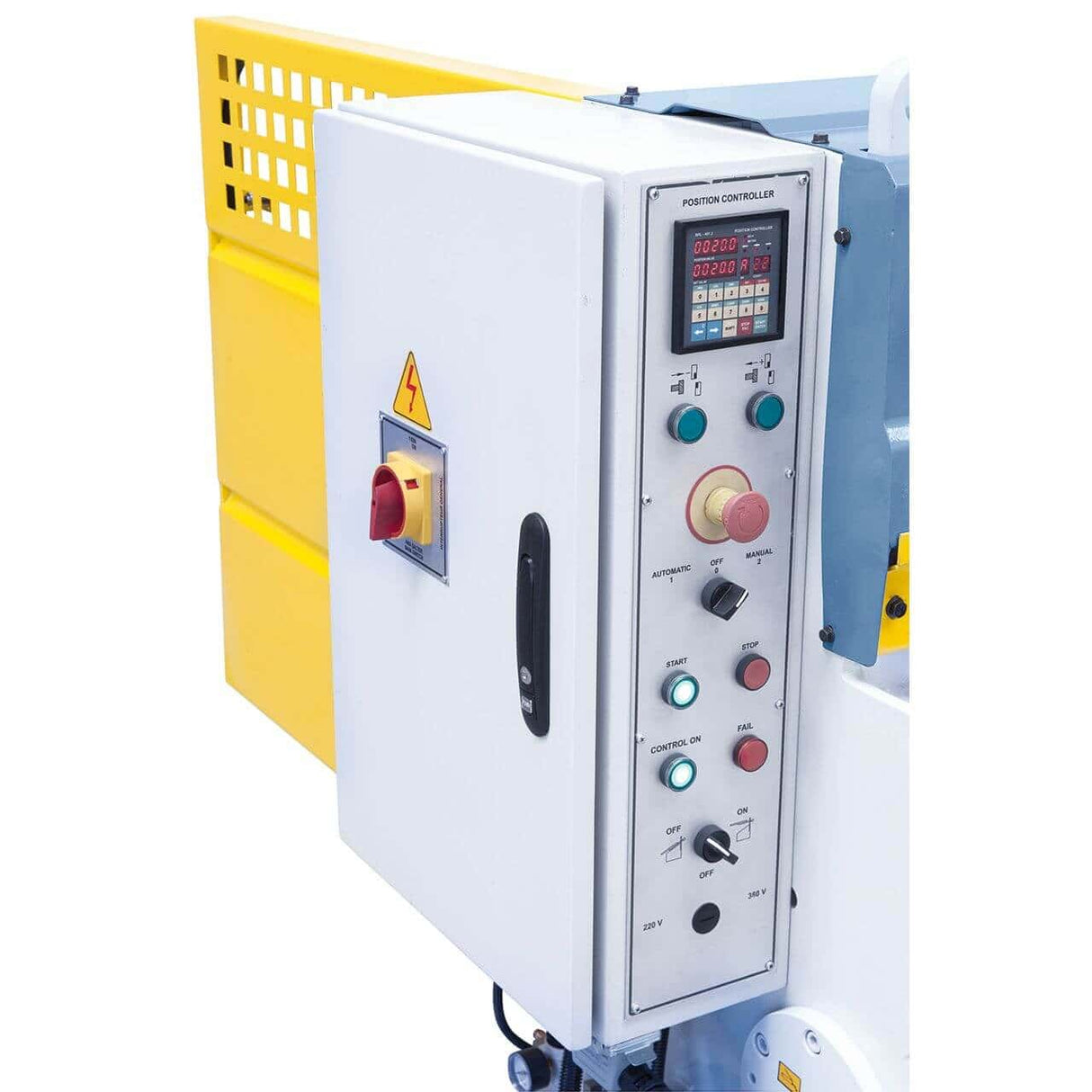

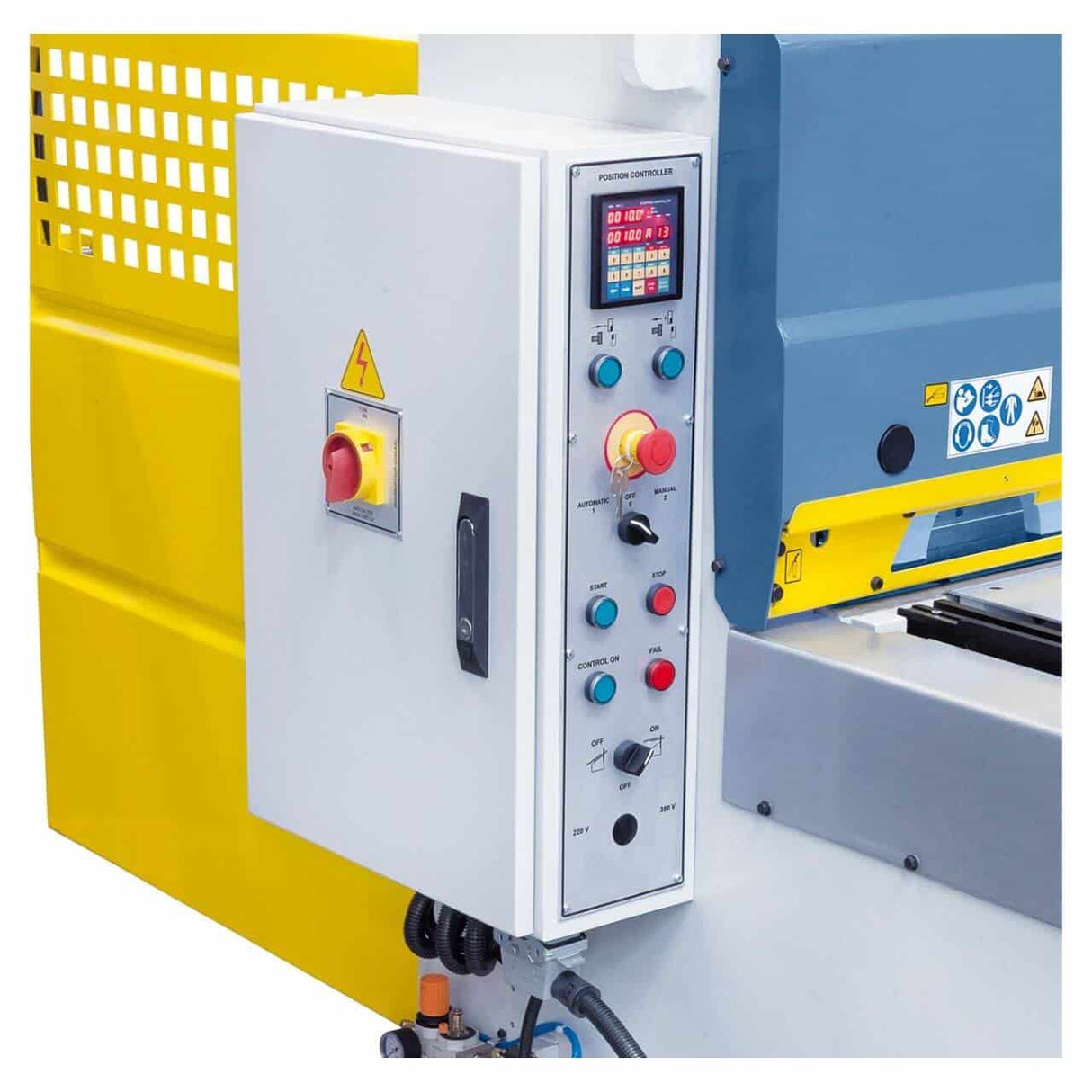

Integrated NC BRL 401.2 control panel for simple and precise control
High-quality double-edged upper and lower steel blades
Table with integrated rollers and front support arms for large sheets
Cutting line illumination for precise operations
Photocell guards and foot pedal with emergency stop

---

Technical Specifications

Specification	Value
Brand	Bernardo
Model	MTA 1360 x 3 mm NCC
Type	Motorized guillotine shear with NC control
Cutting length	1360 mm
Max sheet thickness*	3 mm
Cutting angle	2°30’
Strokes per minute	31
Working height	810 mm
Backgauge	0 – 750 mm (motorized)
Table width	390 mm
Motor power	3.0 kW
Dimensions (L x W x H)	1930 x 2100 x 1260 mm
Weight	1240 kg
*Base material	400 N/mm²

---

Standard equipment

Bernardo MTA 1360 x 3 mm NCC guillotine shear
Stroke counter
Cutting line illumination
Motorized NC backgauge

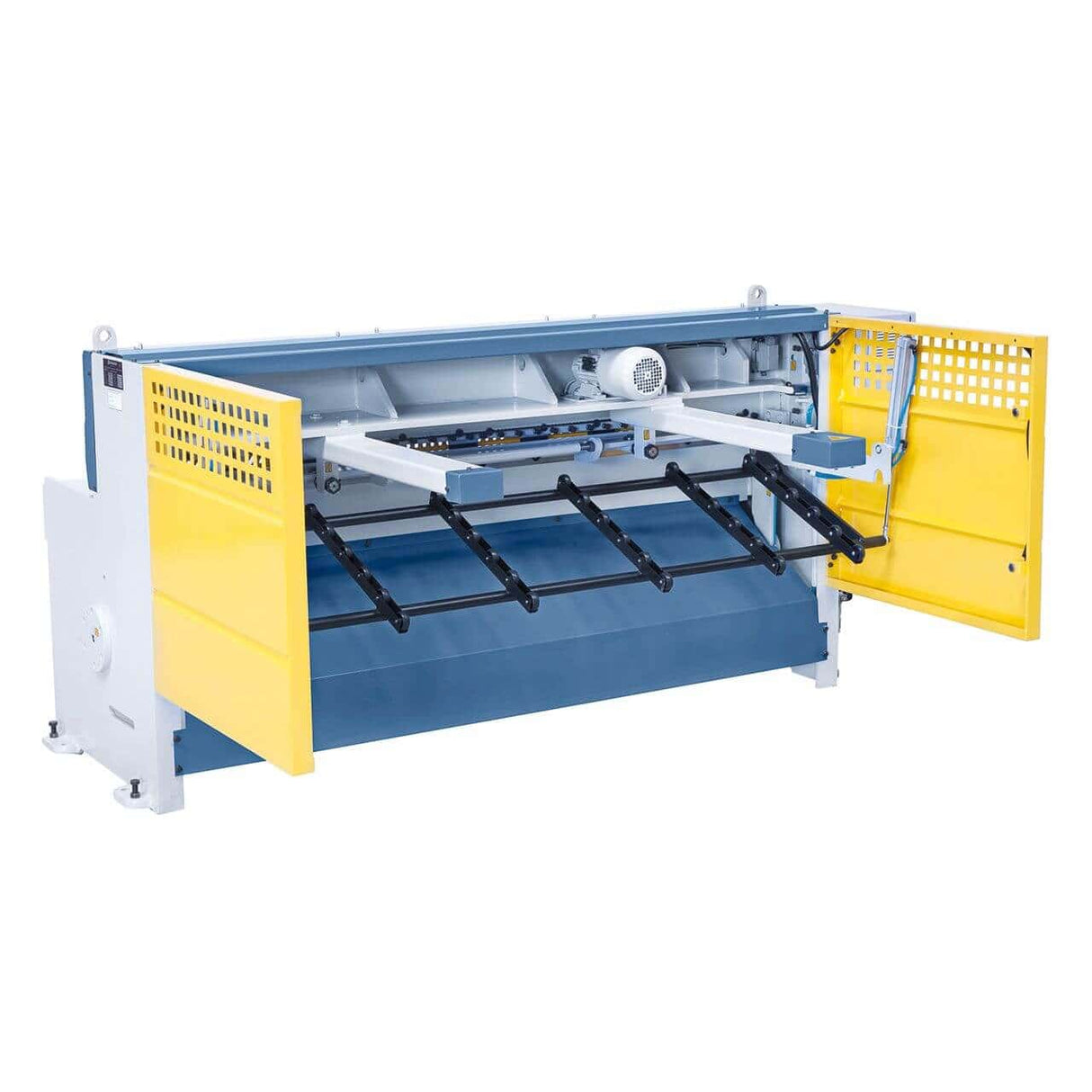

Pneumatic sheet support system
Front sheet supports
Table with integrated rollers

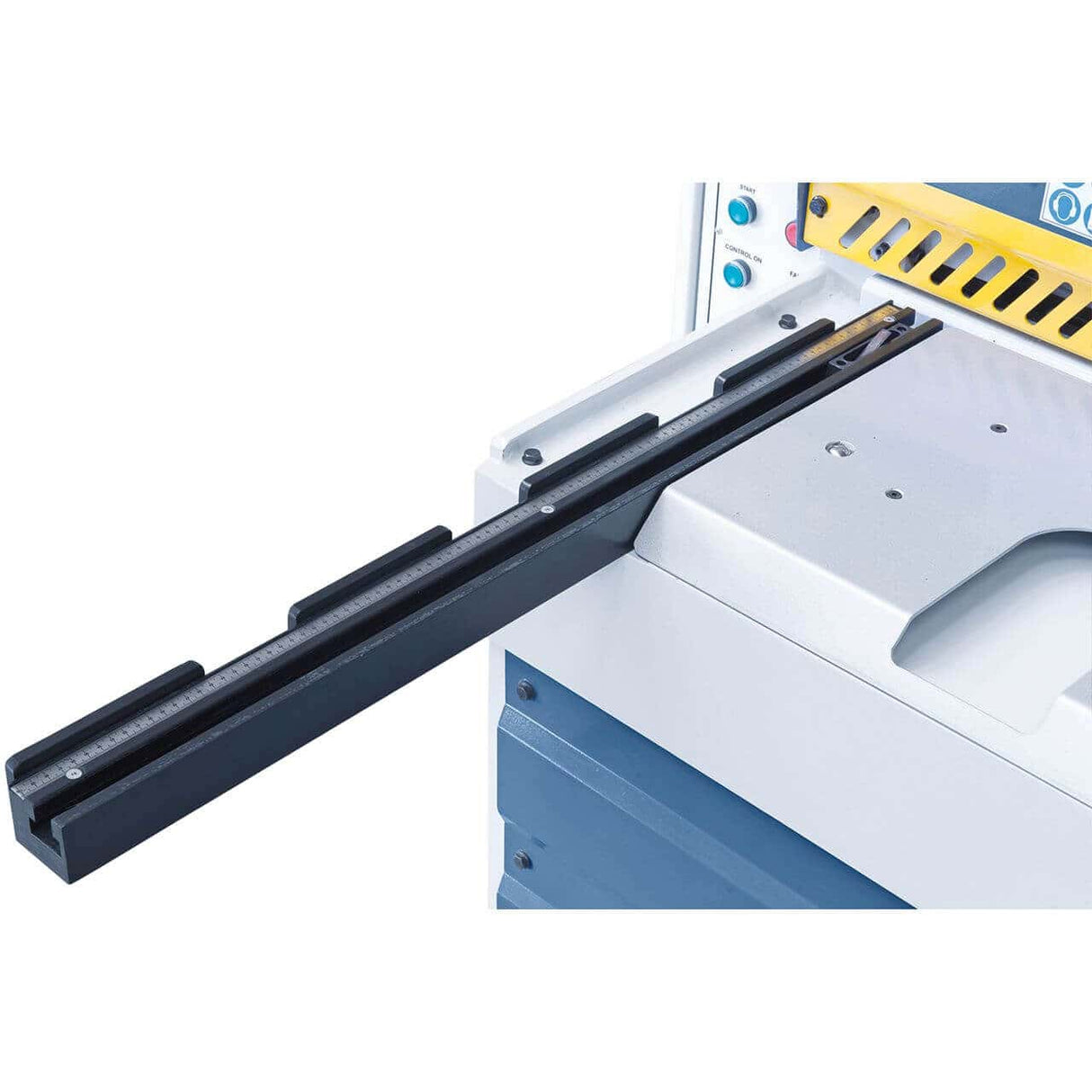

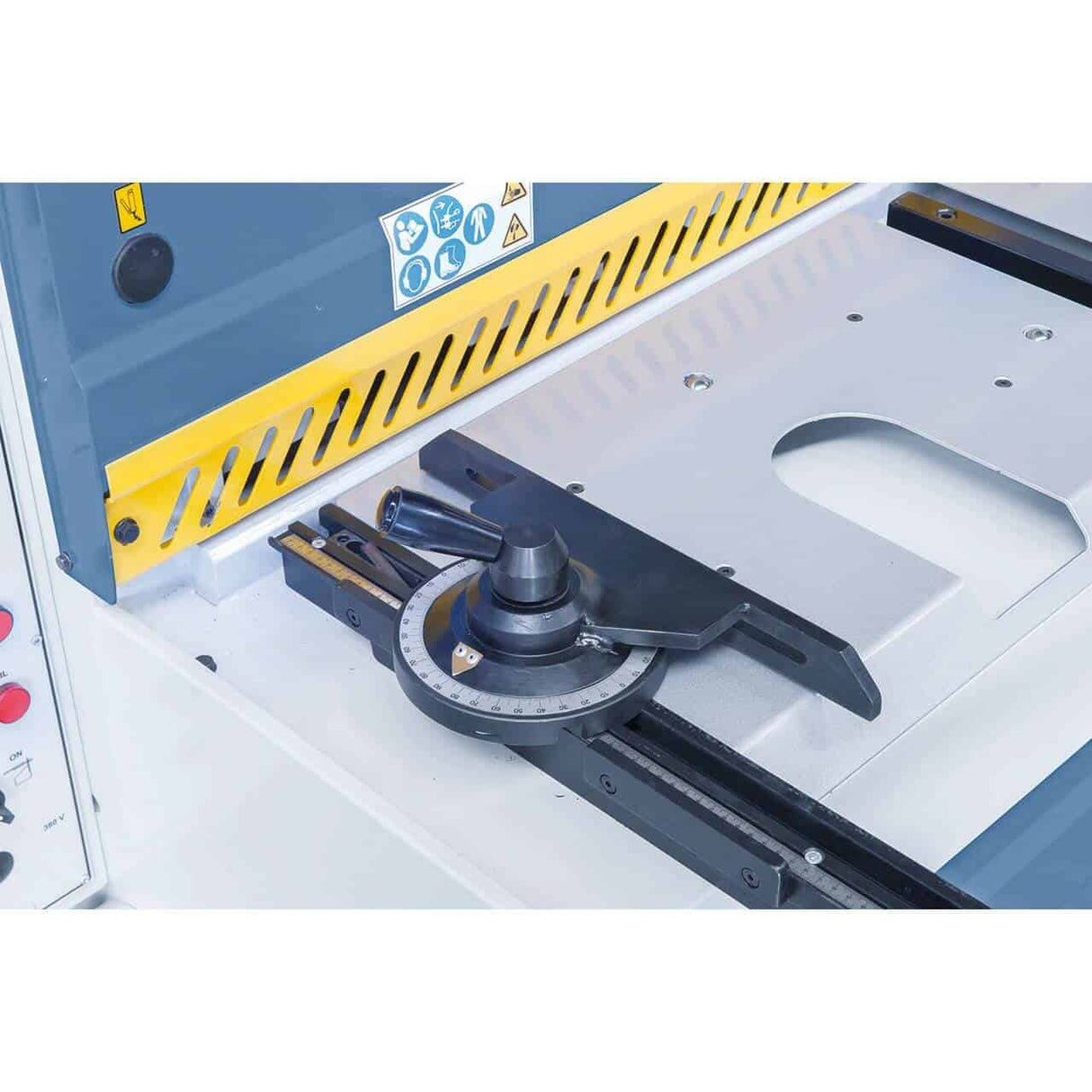

Side stop ruler

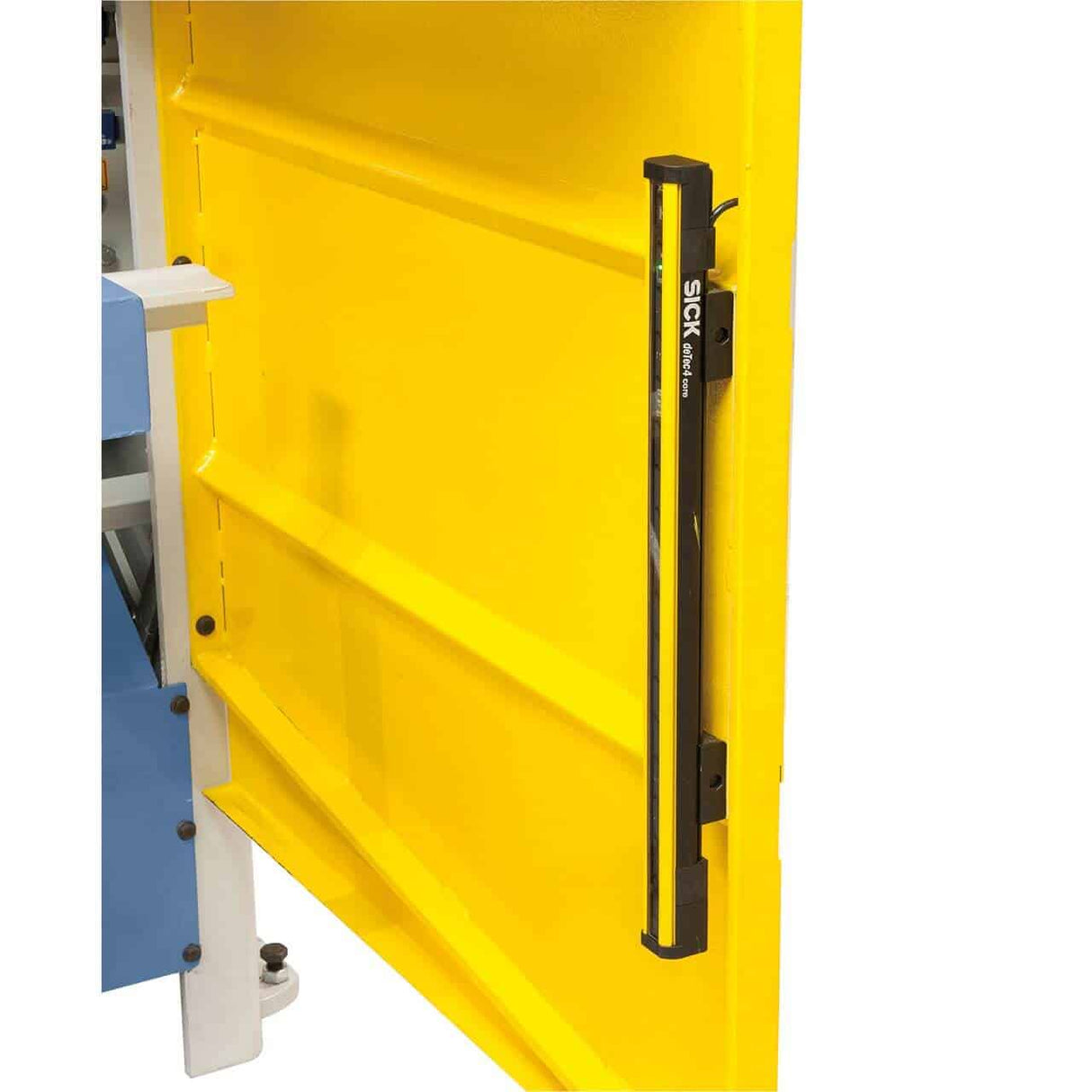

Rear photocell guards

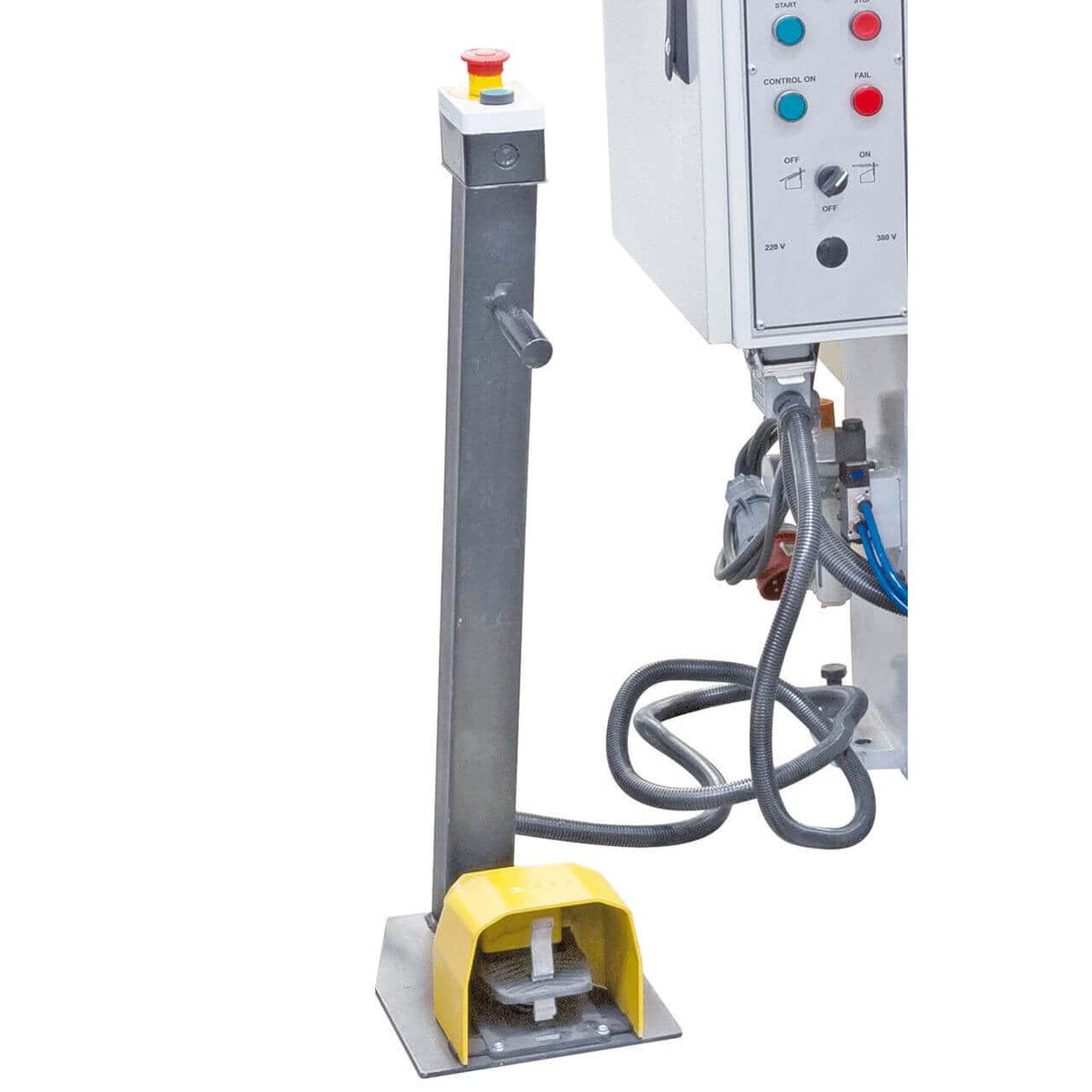

Foot pedal with emergency stop
Tool steel blades

Logistics

Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support available in Italian.

Frequently Asked Questions

What is the difference between MTA, MTE, and MTR series?

MTA: manual structure without NC motorization, for low-volume artisanal production. MTE: motorized with NC, standard welded structure. MTR: motorized with NC and pneumatic sheet support to facilitate the positioning of heavy sheets or long formats. The choice depends on the production volume and the format of the processed sheets.

What is the maximum thickness for stainless steel with the Bernardo MTA 1360 x 3 mm NCC – Shear?

The nominal thickness of 3 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), the capacity is reduced by 30–40% (approximately 2.0 mm). Always check with Krollit for specific high-strength materials.

Are the blades reversible?

Yes. The shear blades have 4 cutting edges: when one edge wears out, the blade is rotated to expose the next cutting edge. Original Bernardo replacement blades available with 3–5 business days shipping.

Is assistance and spare parts available in Italian?

Original spare parts available with 3–5 business days shipping. Customer support available in Italian.

How much space is needed for installation?

For handling sheets, free space at least equal to the cutting length (1360 mm) is needed in front of and behind the machine. Coordinate with Krollit for weight specifications and necessary unloading equipment.
