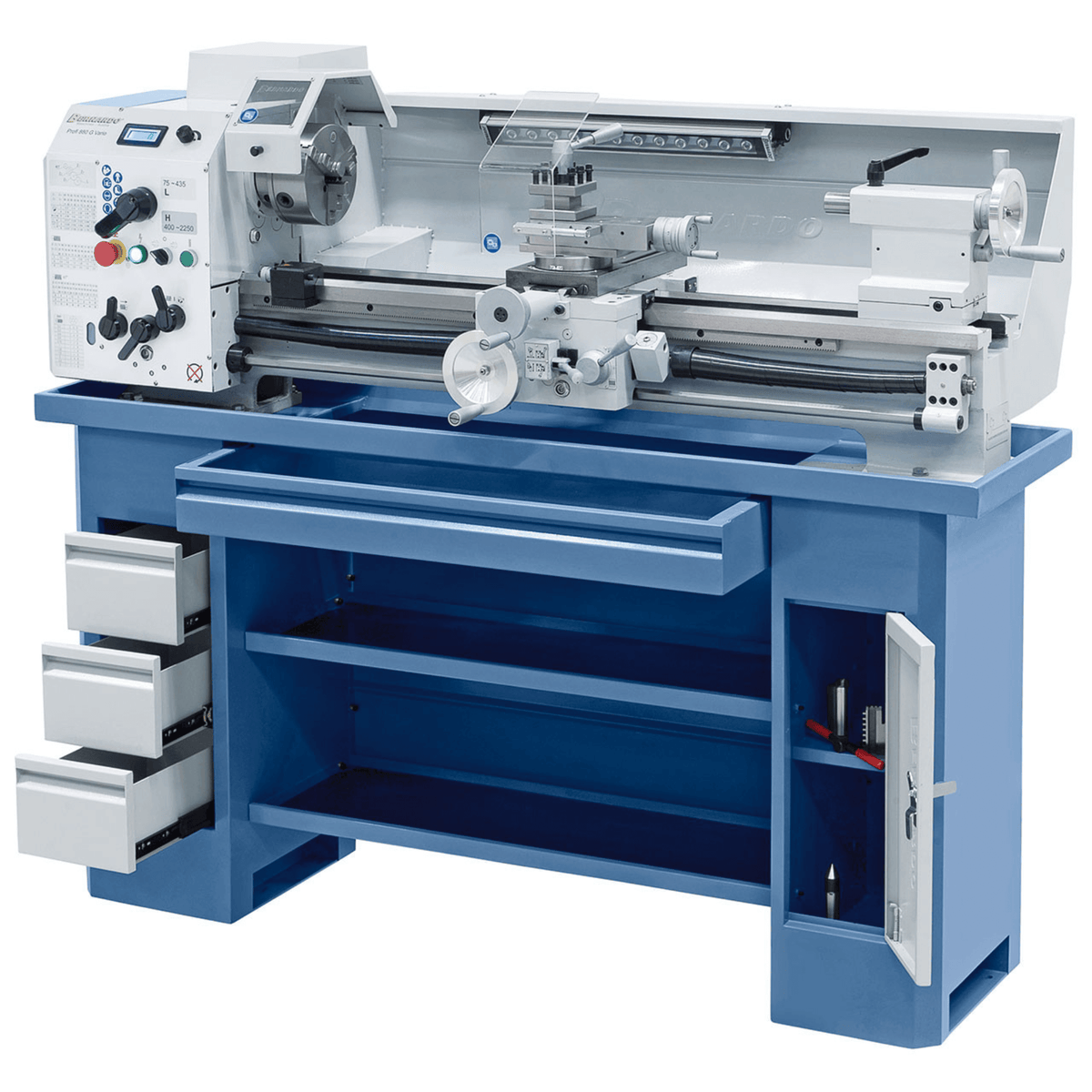

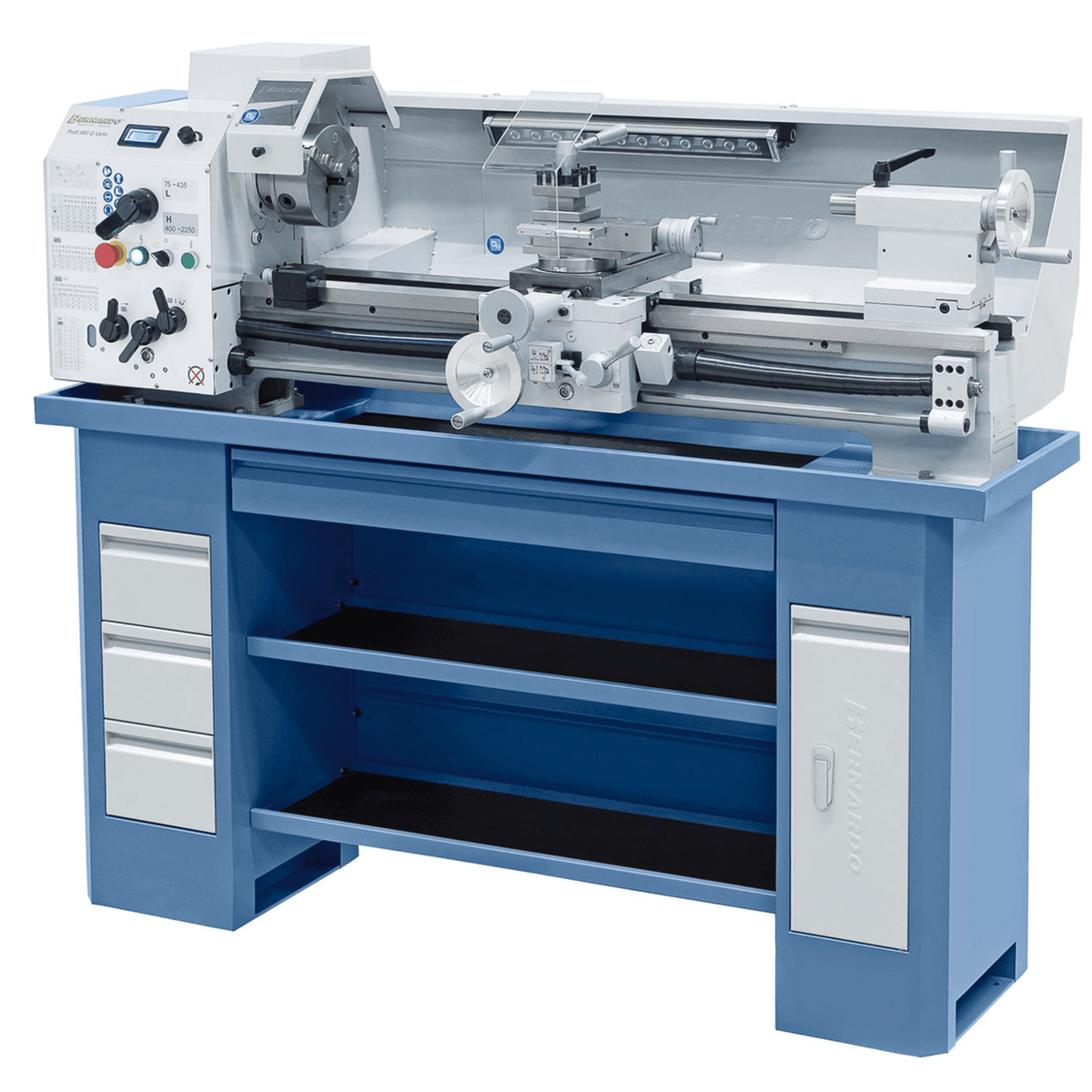

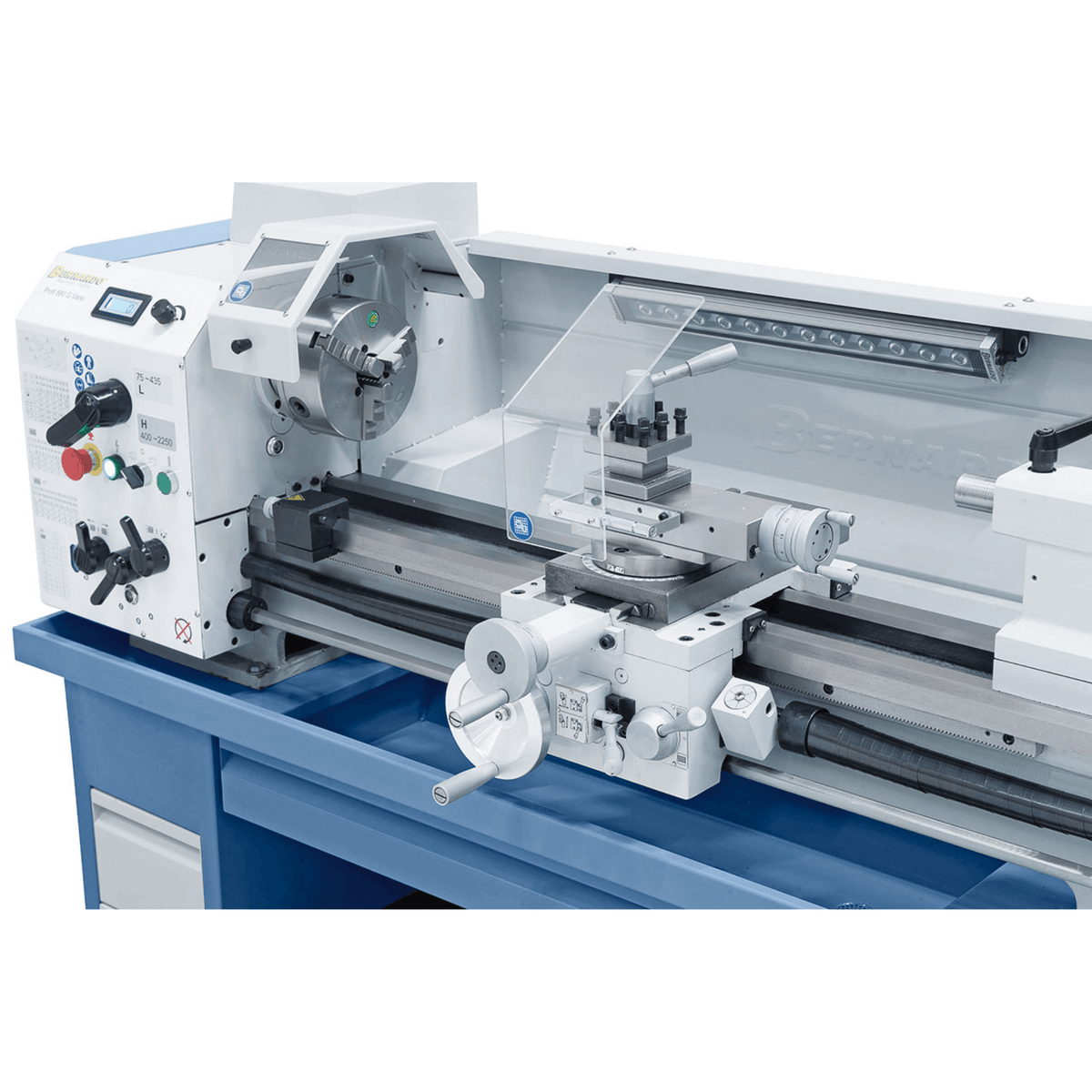

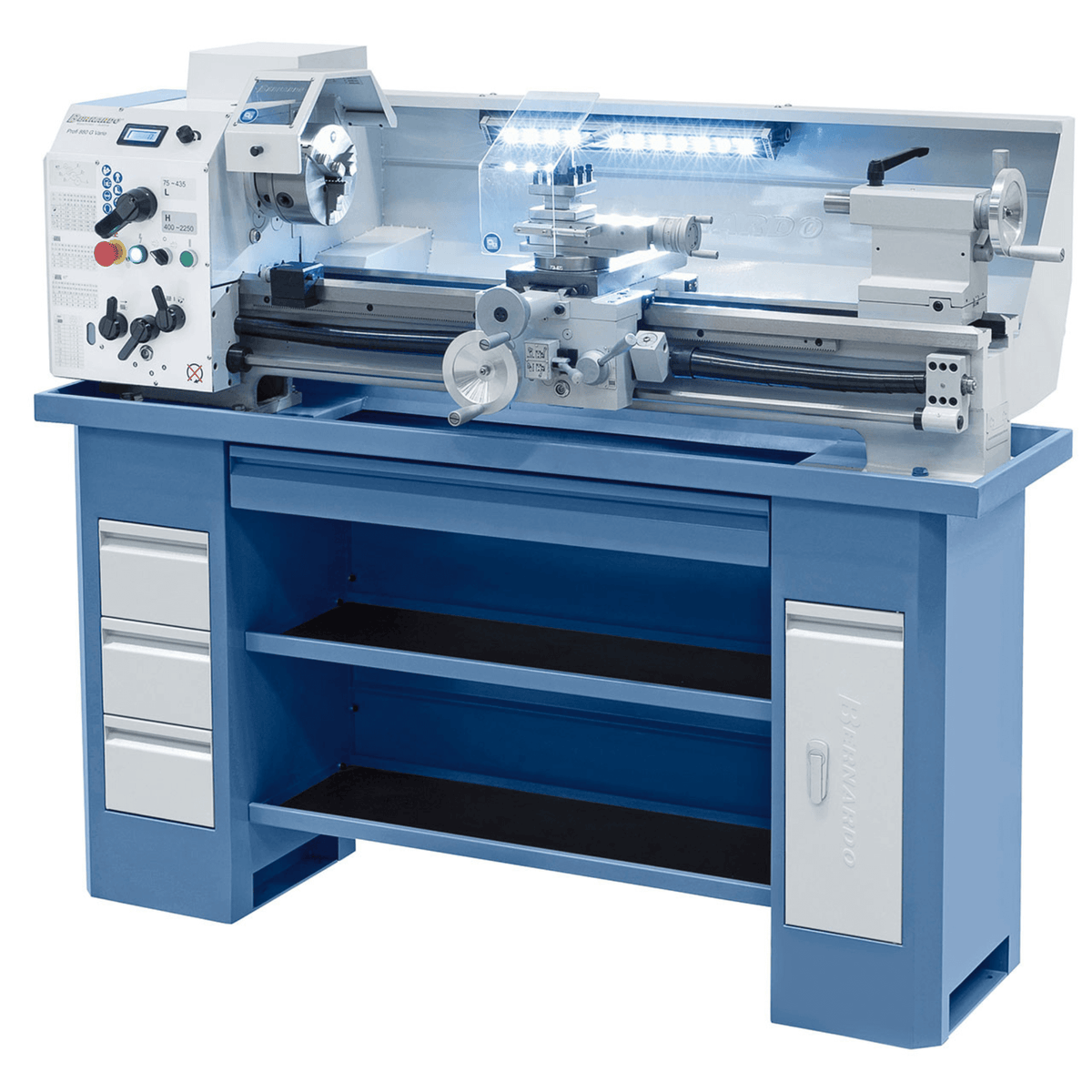

Bernardo Profi 880 G Vario / 400 V Lathe
The Bernardo Profi 880 G Vario / 400 V lathe is designed for professionals and workshops that require power, precision, and versatility. With a center distance of 880 mm and a swing over bed of 320 mm, it allows for the machining of medium-sized workpieces with great stability. The spindle with a 38 mm bore and D1-4 mount according to DIN 55029 ensures compatibility and safety. The frequency inverter provides variable speed control between 75 and 2250 rpm, adapting to every machining operation. Equipped with a digital speed display, LED light, and automatic feeds, this lathe combines comfort and high performance. Suitable for precision turning, metric and inch threading, it offers a robust 255 kg structure that increases its stability and longevity.
Main Specifications
• Distance between centers: 880 mm
• Center height: 160 mm – Swing over bed Ø 320 mm

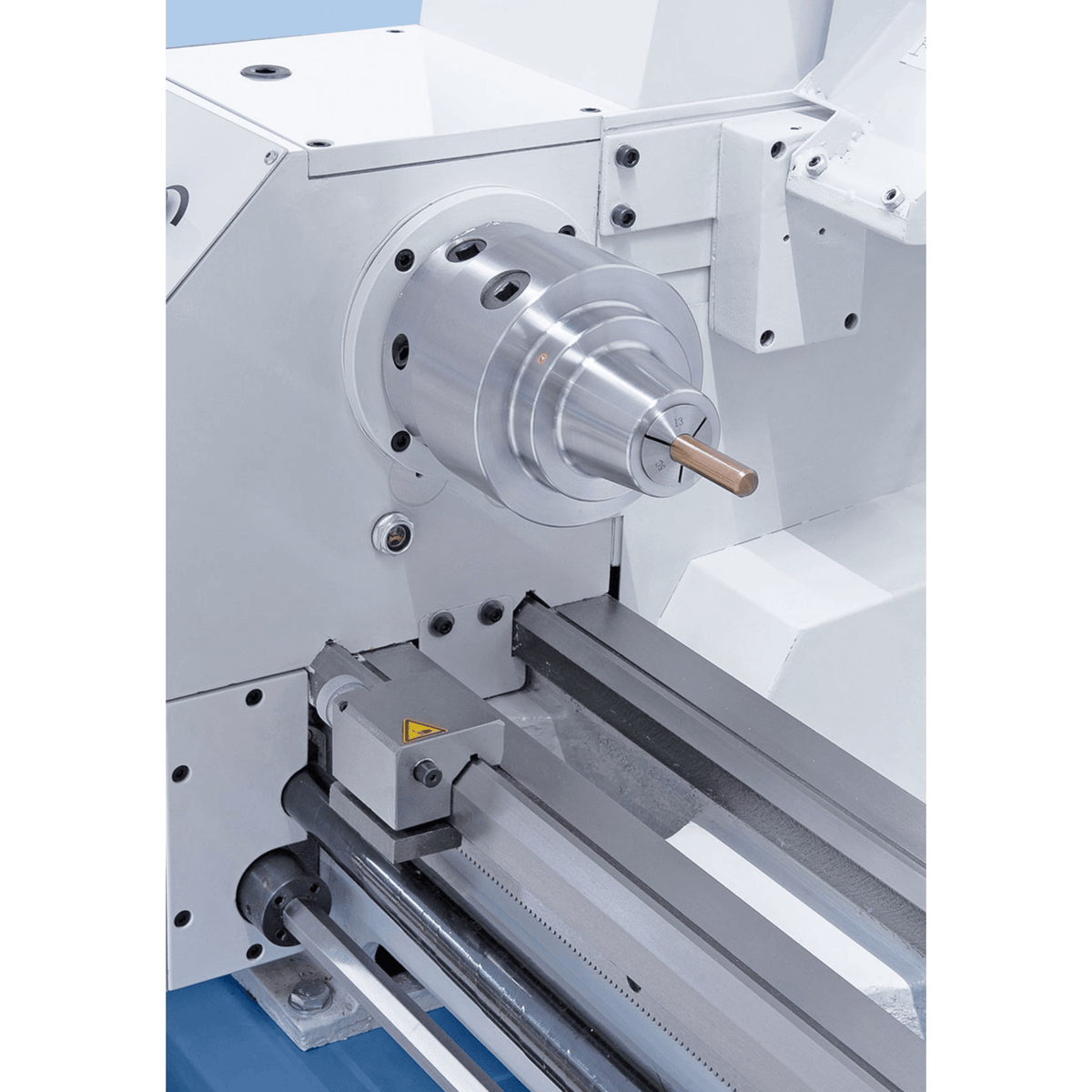

• Spindle bore: 38 mm with D1-4 mount (DIN 55029)
• Variable speed range: 75–2250 rpm with frequency inverter
• Metric threads (18): 0.2 to 3.5 mm / Inch threads (21): 8 to 56 TPI
• Automatic longitudinal and cross feeds with 15 ratios
• Tailstock quill travel: 100 mm (MT3)

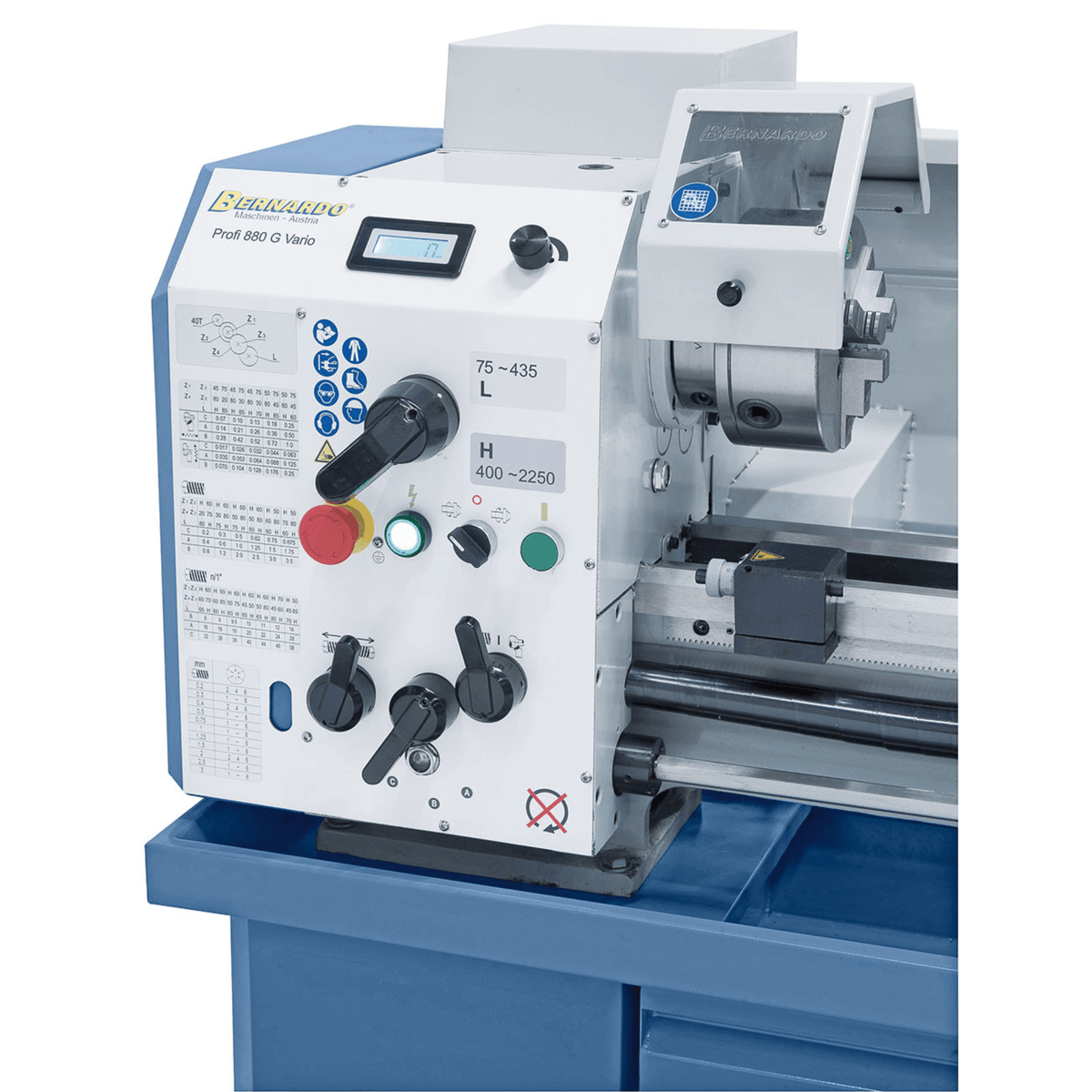

• Digital speed display and integrated LED light
• Machine dimensions: 1660 × 650 × 570 mm
• Weight: 255 kg – robust and stable structure
Technical table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
Profi 880 G Vario / 400 V |
| Distance between centers |
880 mm |
| Center height |
160 mm |
| Swing over bed |
320 mm |
| Spindle bore |
38 mm |
| Spindle mount |
DIN 55029, D1-4 |
| Lathe speed |
75–435 / 400–2250 rpm |
| Longitudinal feeds |
(15) 0.07–1.0 mm/rev |
| Cross feeds |
(15) 0.017–0.25 mm/rev |
| Metric threads |
(18) 0.2–3.5 mm |
| Inch threads |
(21) 8–56 TPI |
| Tailstock travel |
100 mm (MT3) |
| Motor power output S1 |
1.5 kW / 400 V |
| Motor power input S6 |
2.2 kW / 400 V |
| Machine dimensions |
1660 × 650 × 570 mm |
| Weight |
approx. 255 kg |
| Power supply |
400 V three-phase |
Package contents:

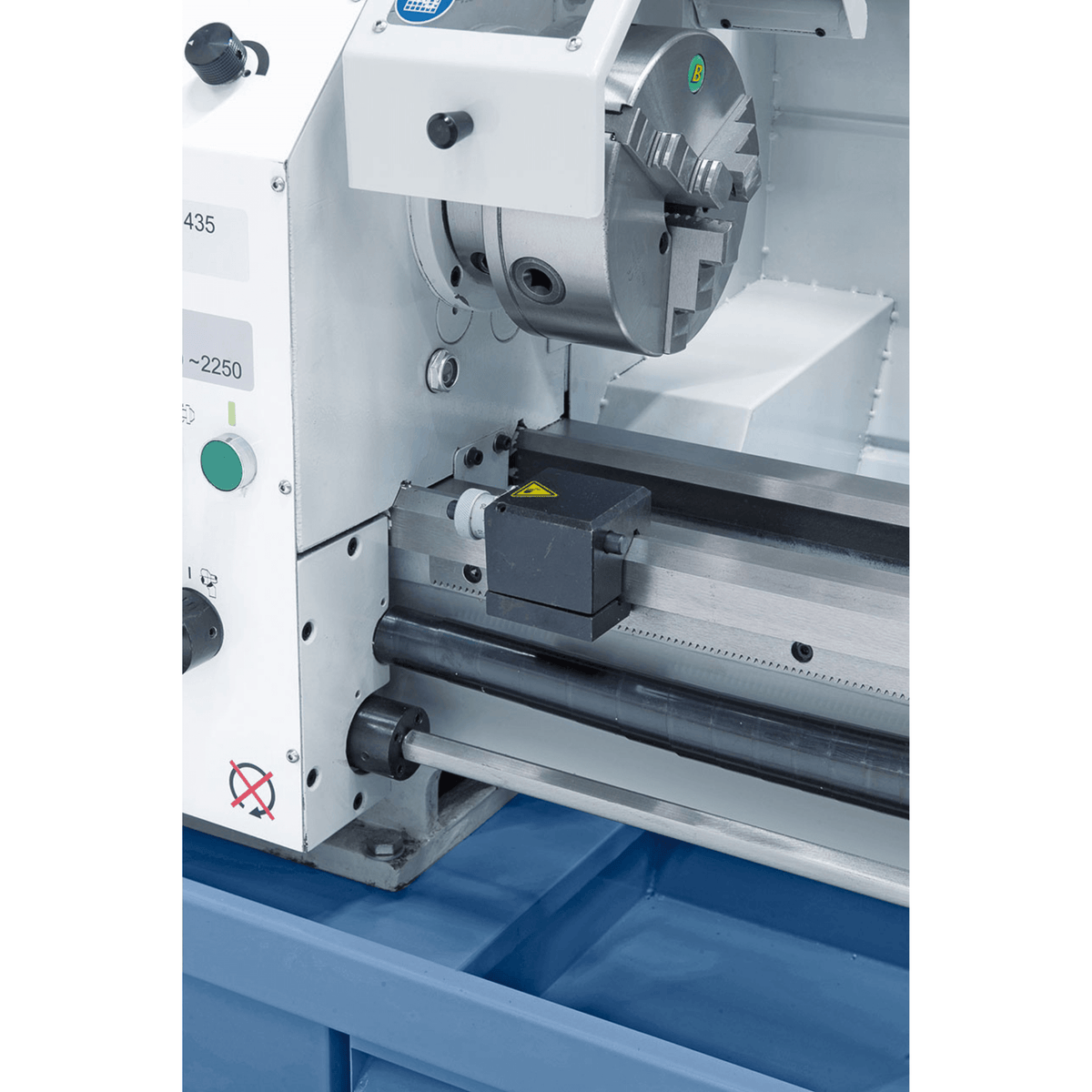

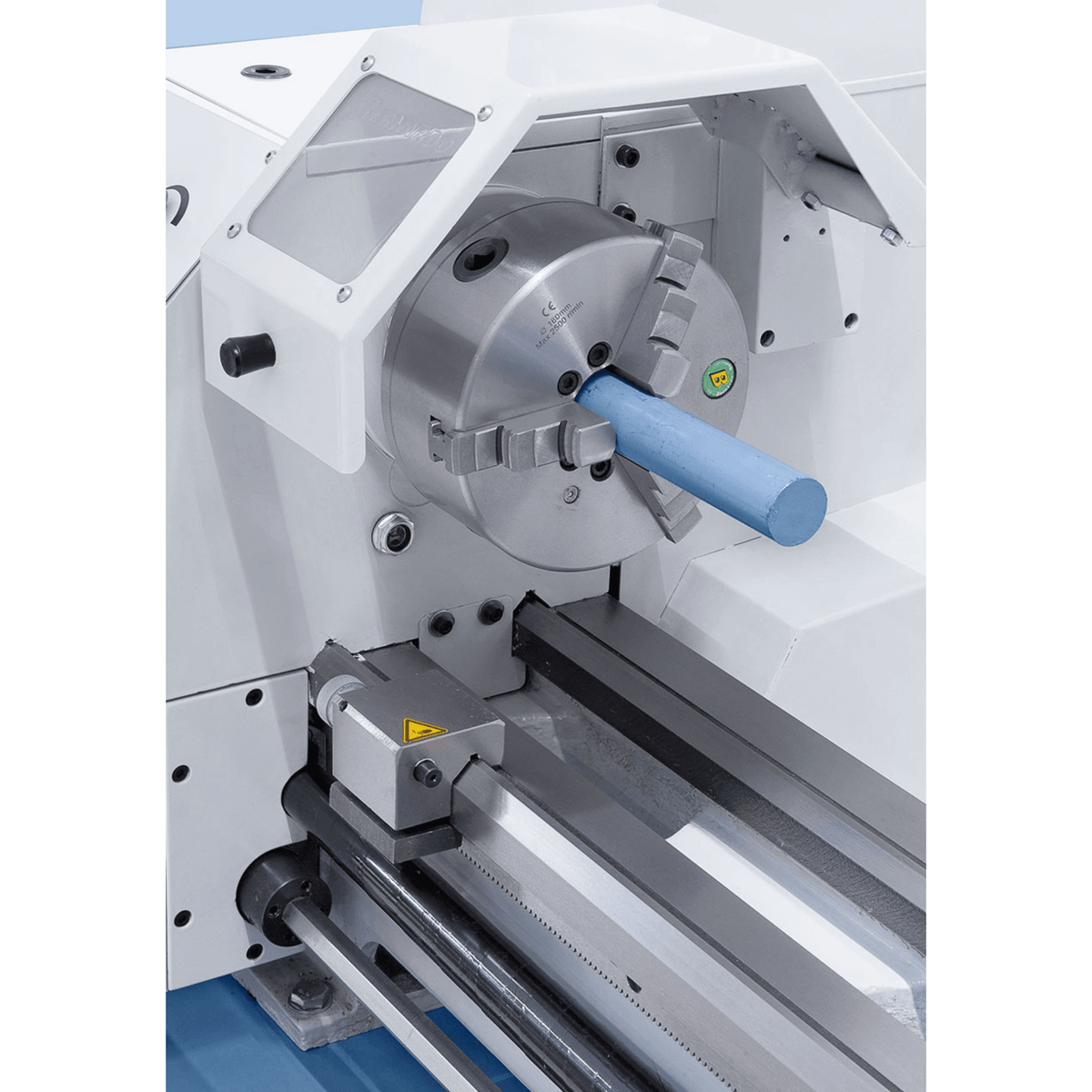

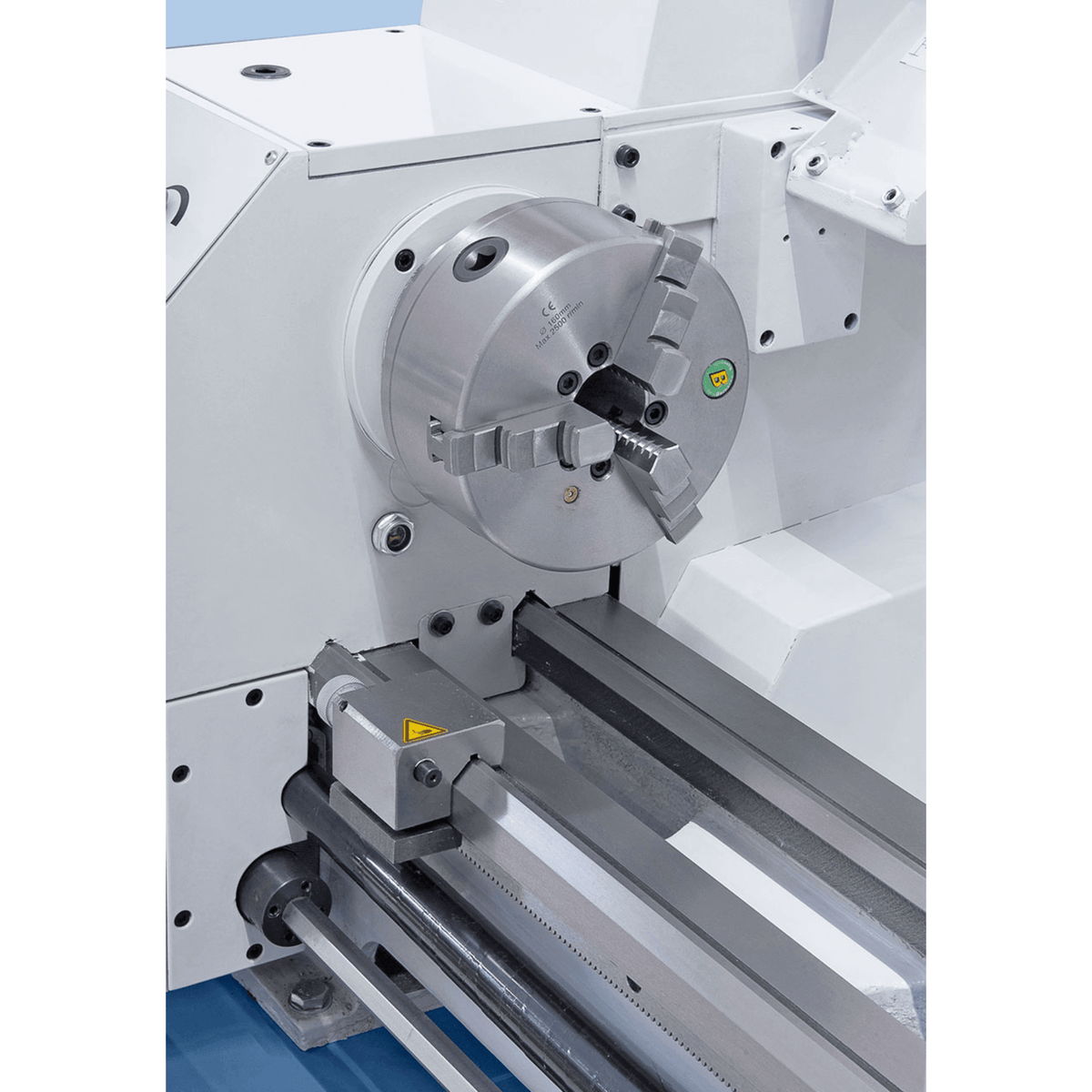

• 3-jaw self-centering chuck Ø 160 mm / D4 mount
• Fixed centers

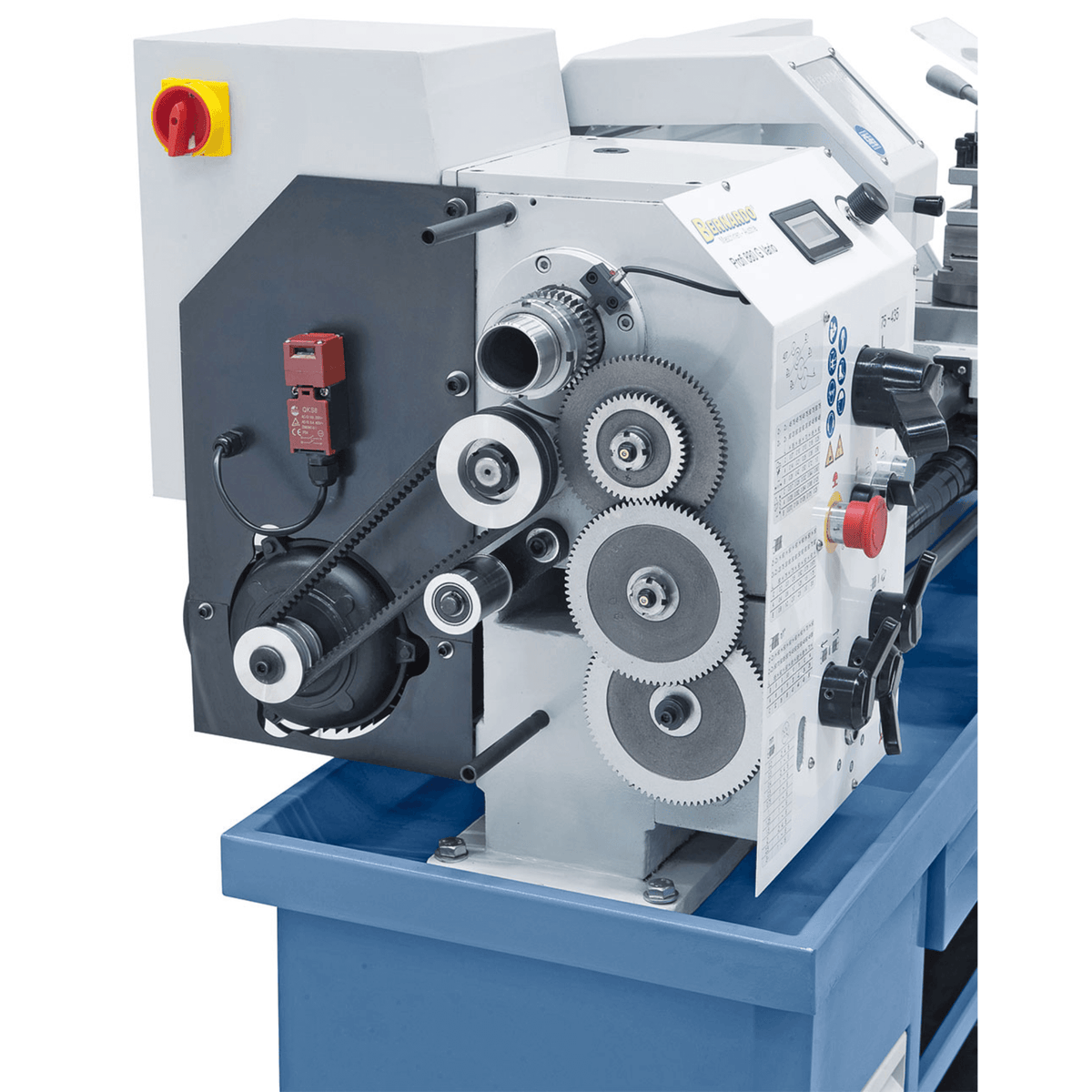

• Set of spare gears
• 4-position tool post
• Safety clutch
• Micrometer longitudinal stop
• Cross slide with top support
• Integrated frequency inverter
• Digital speed display
• Thread indicator

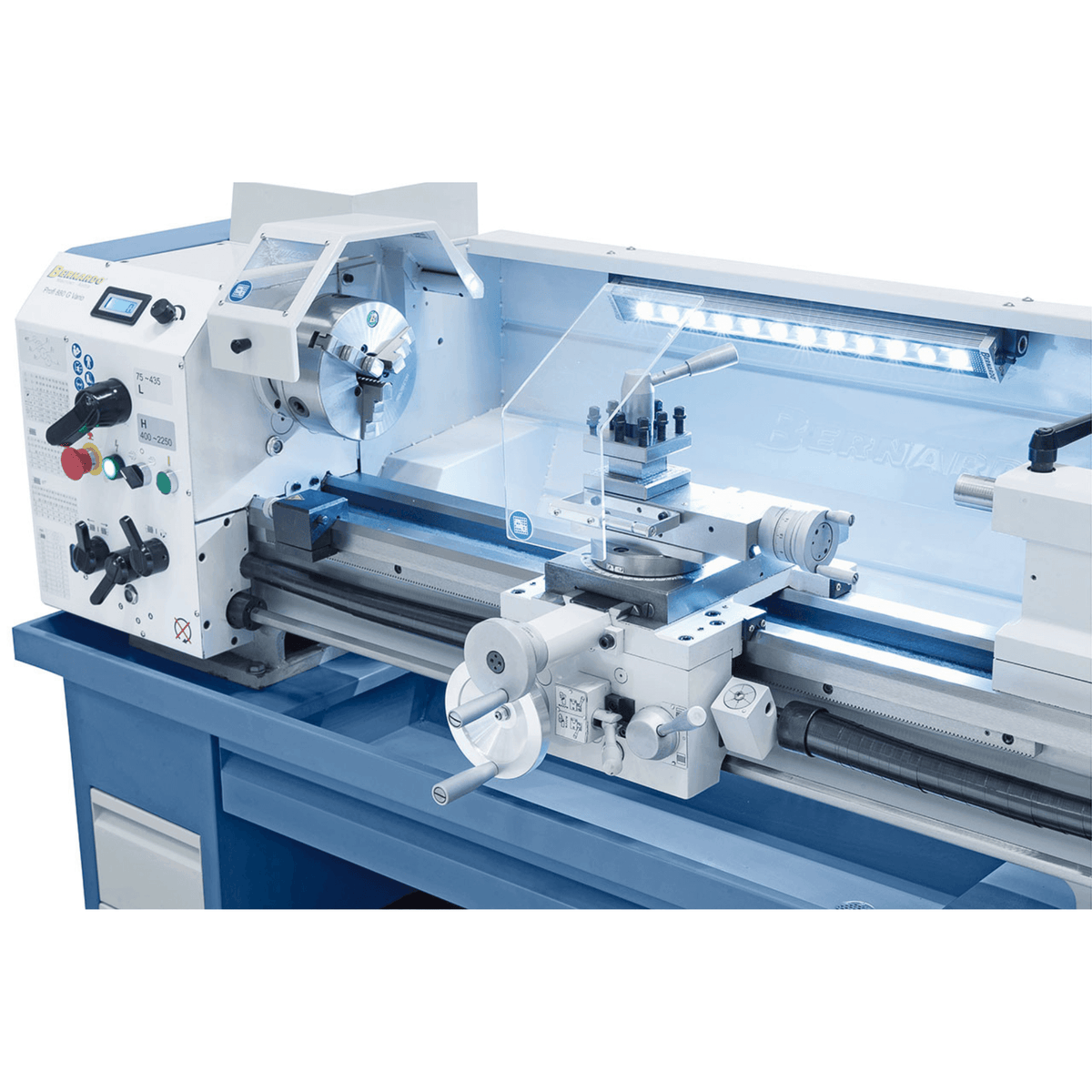

• Machine LED light
• Spindle guard and splash guard
• Lead screw cover
• Tool kit
Logistics
Bernardo shipping: 5–9 working days (7 days for Southern Italy). Original spare parts available with 3–5 working day shipping. Customer support available in Italian.
Frequently asked questions
What is the difference between Hobby and Profi in the Bernardo lathe range?
The Hobby series is designed for advanced hobbyists and small workshops: lower speeds, single-phase or medium-power three-phase motors, center distances up to 750 mm. The Profi series is for continuous professional use: more powerful motors, extended speeds, center distances up to 3000 mm, greater structural rigidity for machining hard materials. The suffix G indicates gear change; Vario indicates continuous speed regulation.
What do the suffixes "G" and "Vario" in the name mean?
G (Getriebe) indicates geared speed change — more torque at low speeds, suitable for hard steels and large sections. Vario indicates continuous mechanical variator — speed can be adjusted without stopping the machine, suitable for quickly switching between roughing and finishing. Vario models have less torque at low speeds than G models, but more operational flexibility.
Is the 3-jaw self-centering chuck included as standard?

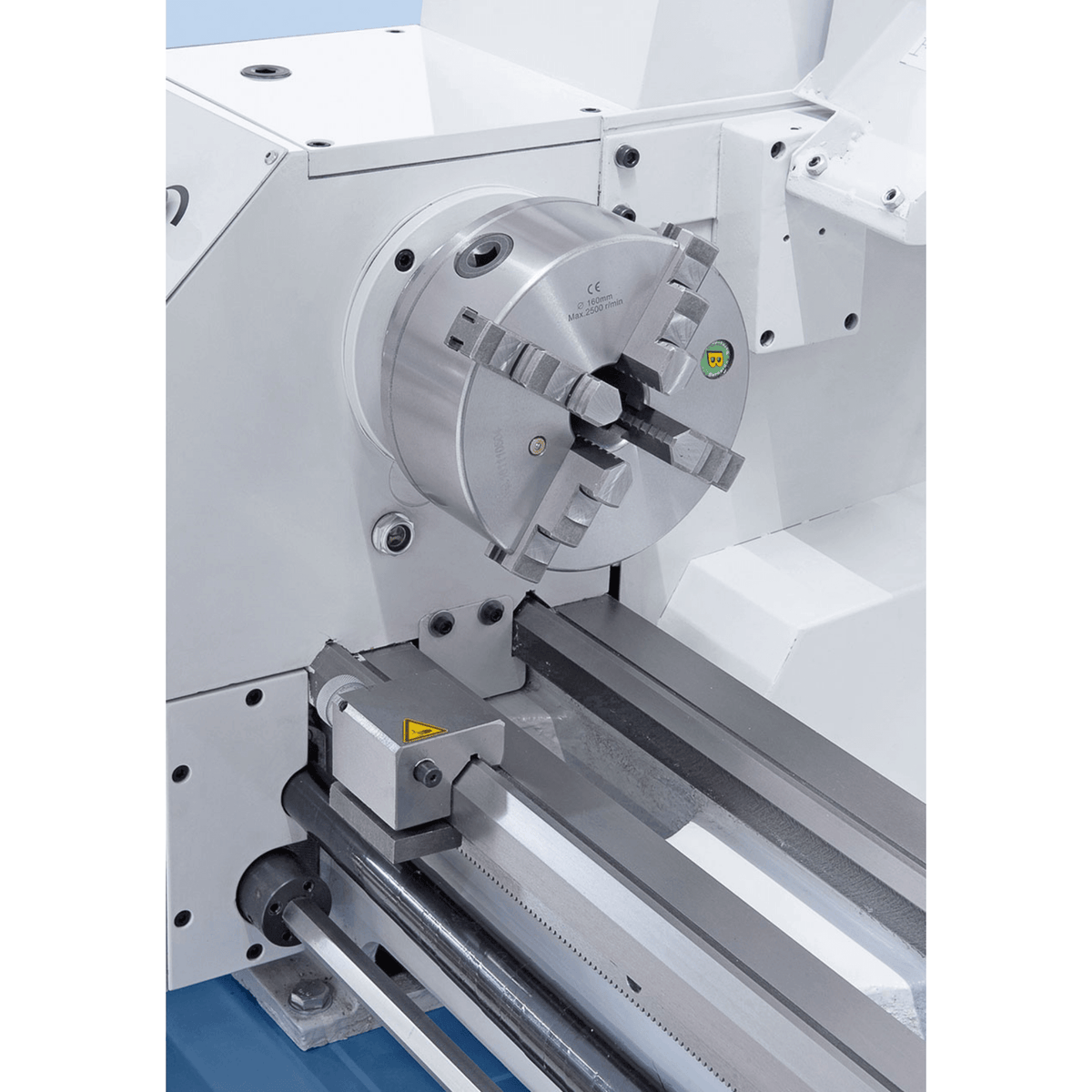

Yes — Hobby and Profi Bernardo lathes include a 3-jaw self-centering chuck, live center, and basic tools as standard. Optional accessories (4-jaw chuck, steady rest, follow rest, collets) are available separately from Krollit.
Are spare parts and assistance available?
Original spare parts available with 3–5 working day shipping. Customer support available in Italian.
How much space is needed in the workshop?
Consider at least the center distance free in front of and behind the lathe for workpiece handling, plus 80 cm on each side. For lathes over 300 kg, coordinate with Krollit for the necessary unloading equipment.
