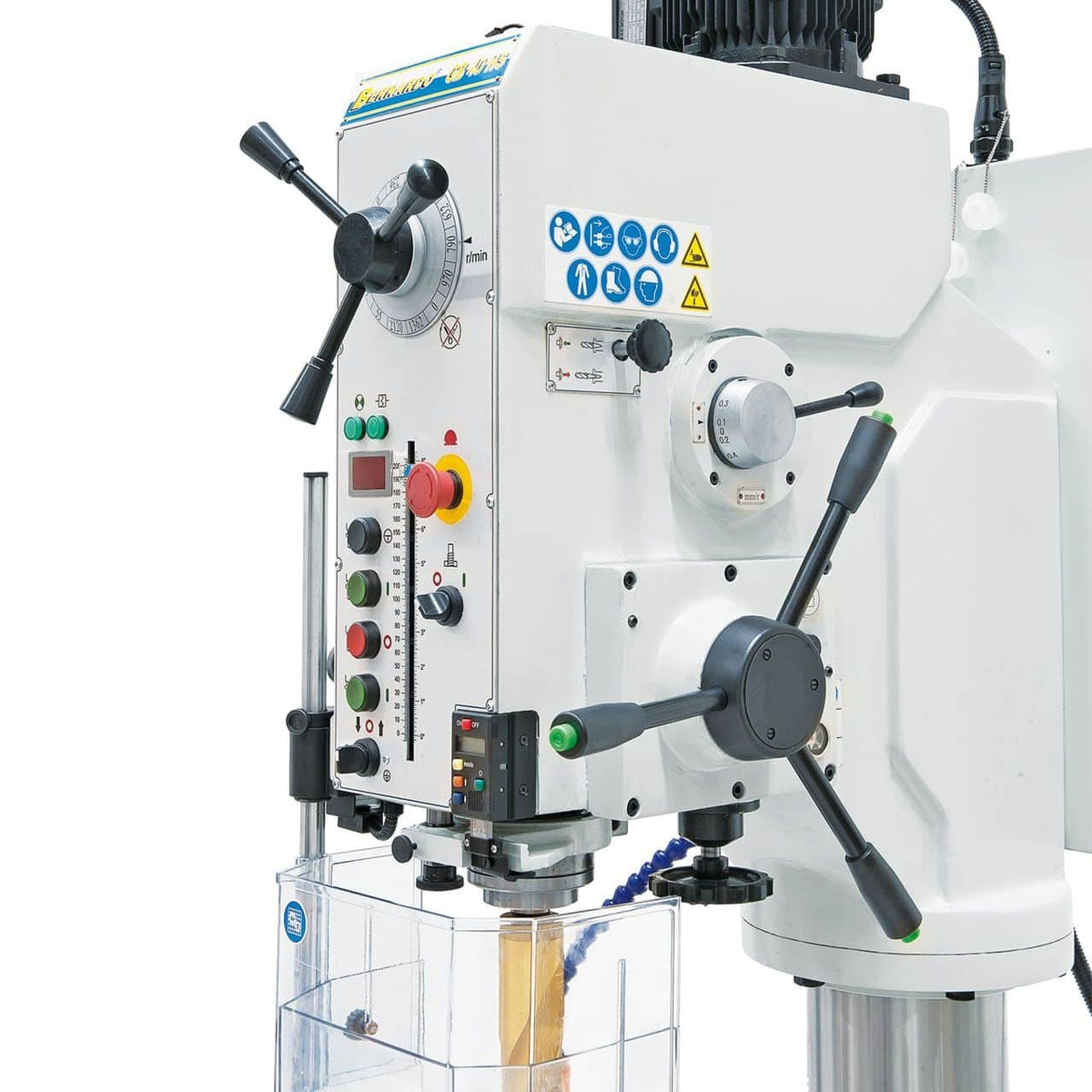

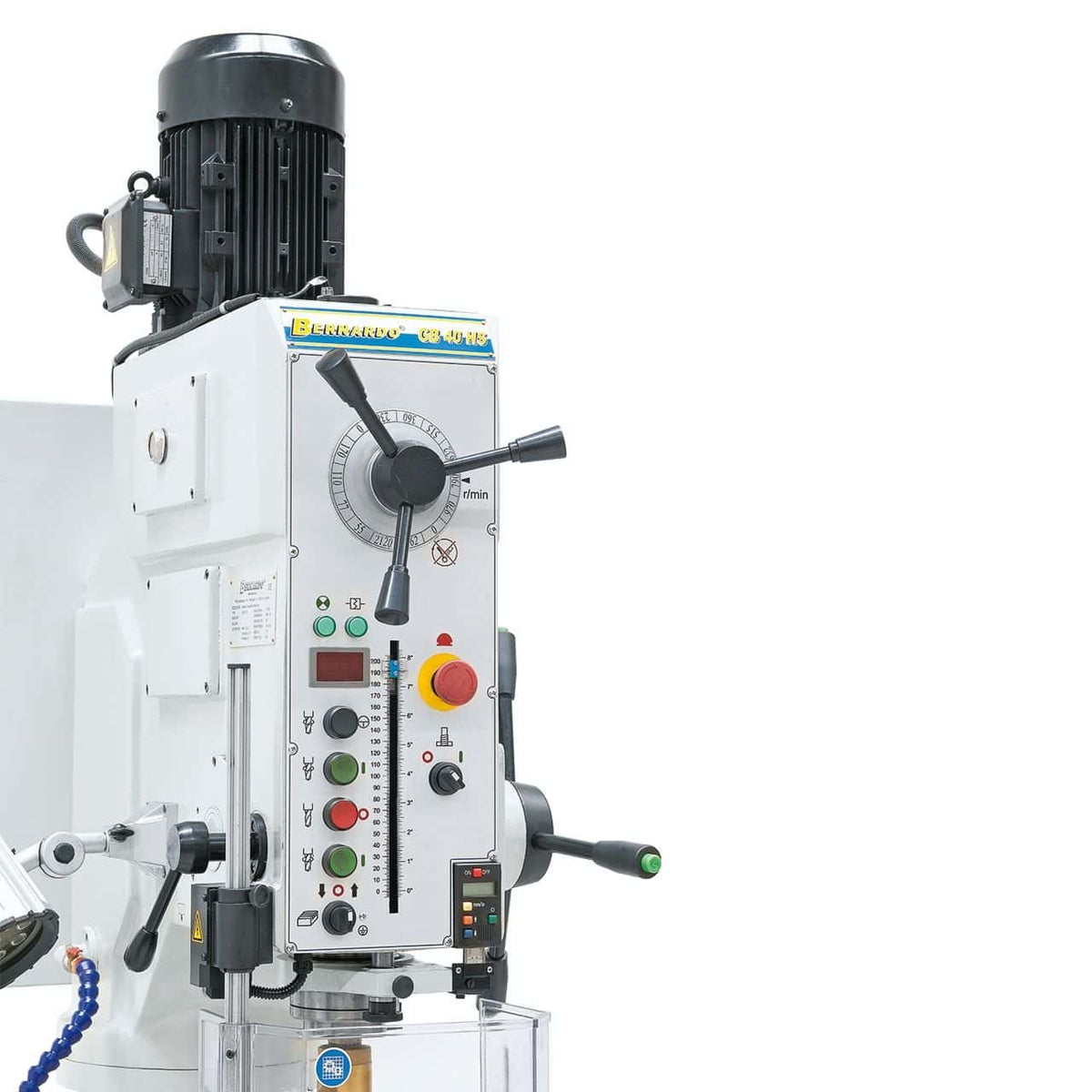

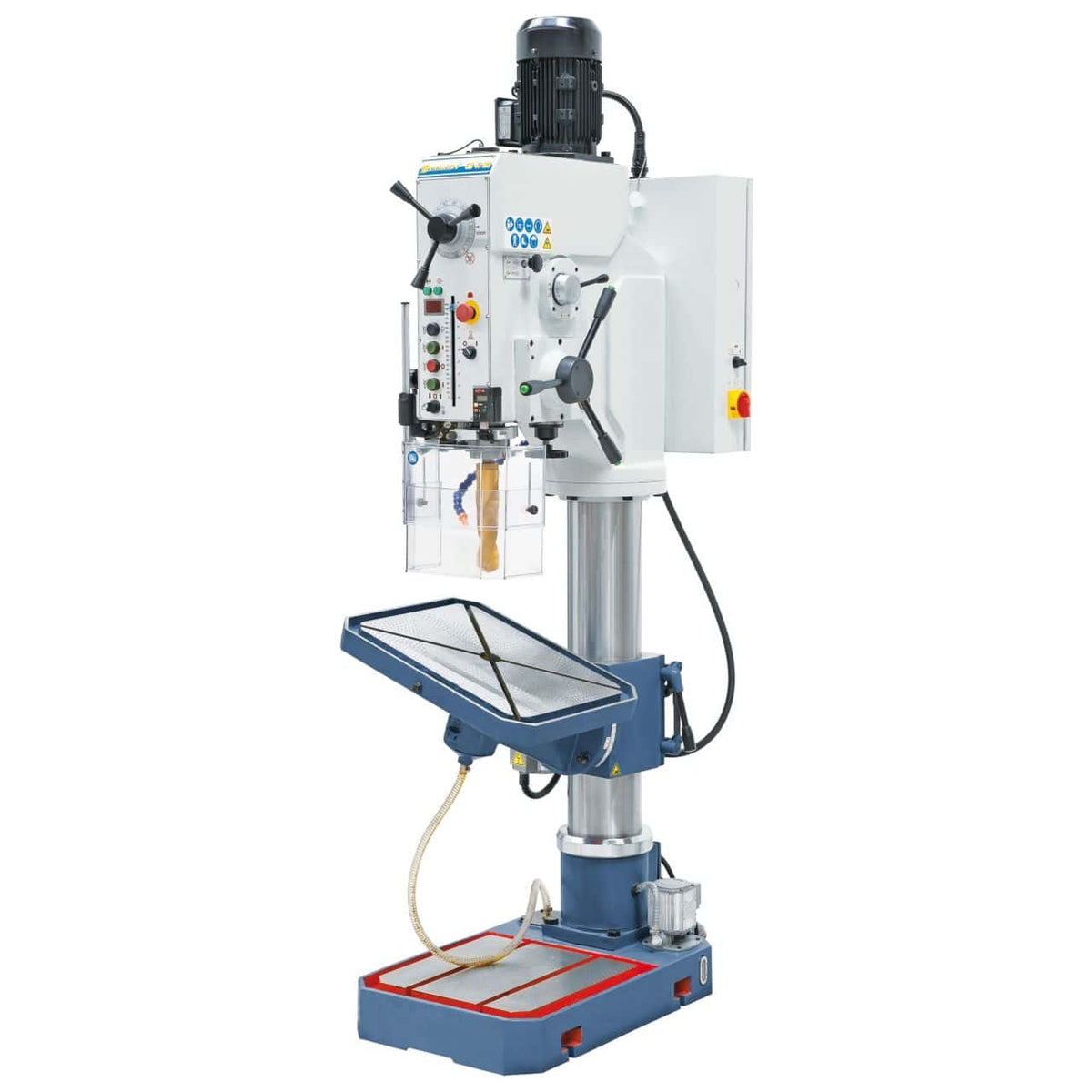

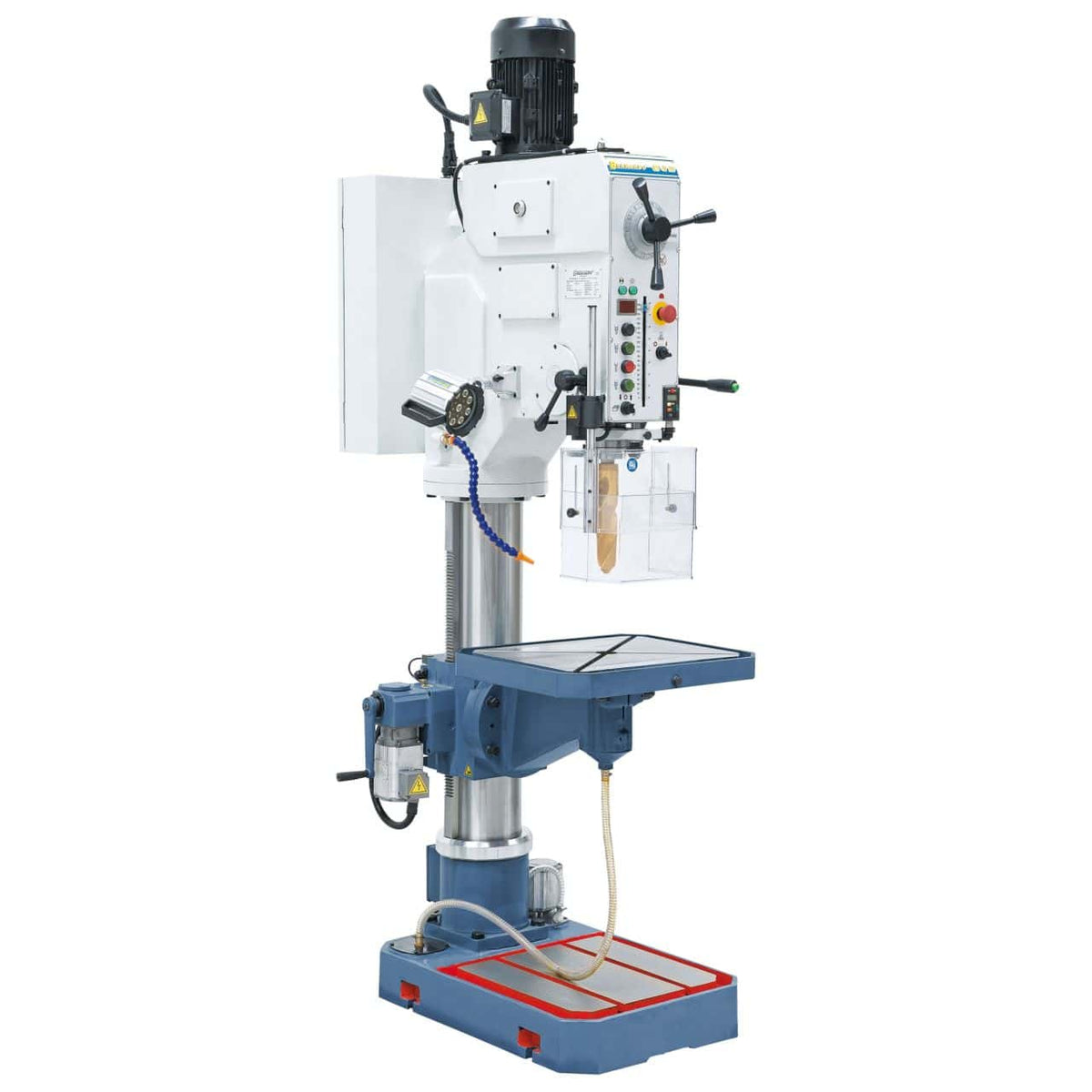

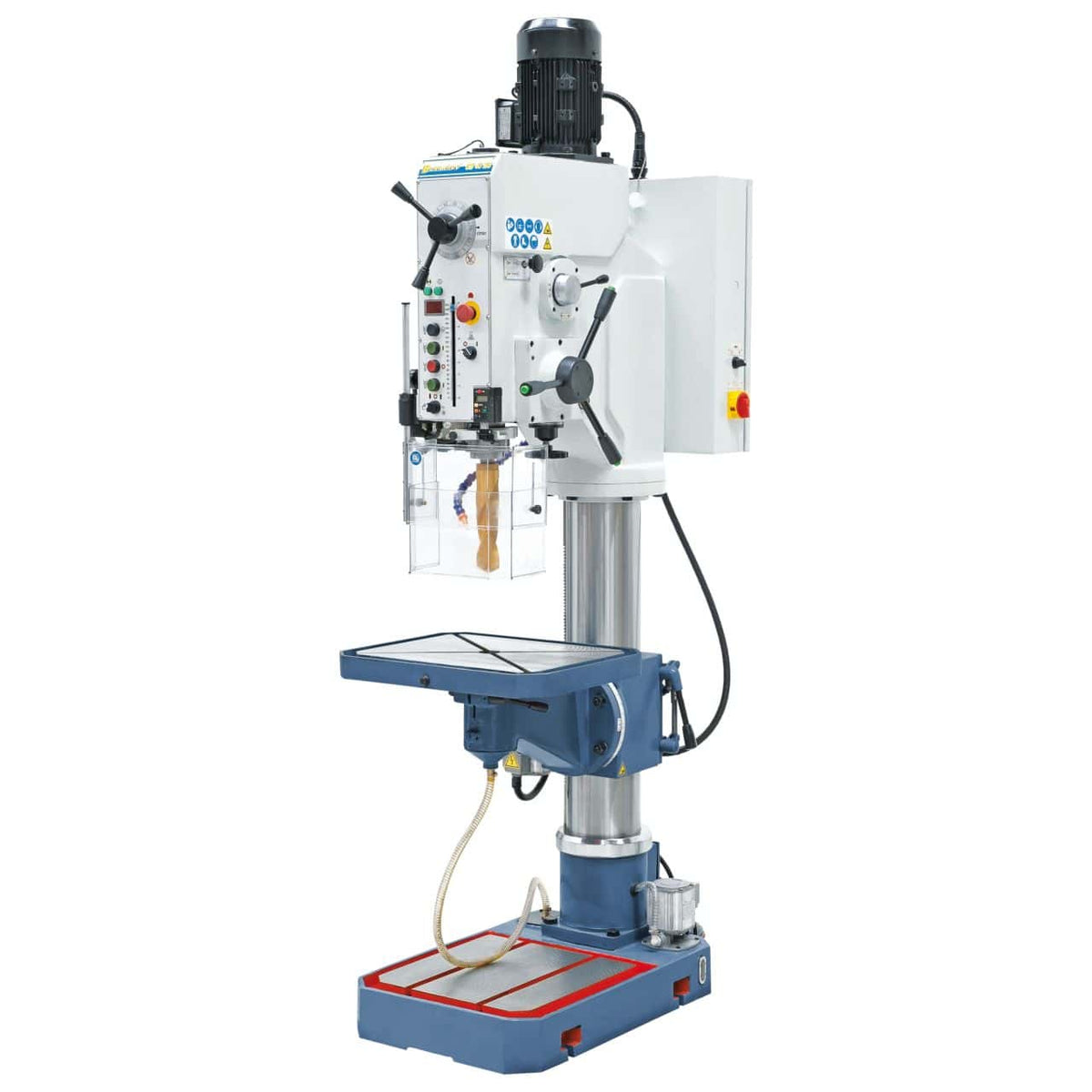

The Bernardo GB 40 HS is a professional pillar drill with a speed of 55 – 2120 rpm / 12, 2.2 kW motor, and a weight of 563 kg. Krollit, official Bernardo distributor since 2007.
- Drilling capacity in steel: 40 mm
- Drilling capacity in cast iron: 45 mm
- Max. thread: M32
- Drill chuck: 1 – 13 mm / B 16
- Morse taper: MK 4
- Spindle speed / Number of stages: 55 – 2120 rpm / 12
Who uses the GB 40 HS and for what
Mechanical workshops and carpentry shops use the GB 40 HS for precision drilling on steel and cast iron, tapping with a tapping chuck, and repetitive work on pieces of various sizes.
Its place in the Bernardo range
The Bernardo GB 40 HS is part of the Bernardo pillar drill range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping 3-5 working days from Krollit warehouse. Italian customer support available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the GB 40 HS for?
The GB 40 HS is recommended for the following professional profiles:
-
Mechanical workshops and carpentry: precision drilling on steel and cast iron, tapping with a tapping chuck.
-
Maintenance technicians and repair shops: repetitive drilling work on pieces of various sizes.
-
Occasional hobby use: professional machine: for domestic use, consider compact bench models.
Working capacity
| Drilling capacity in steel |
40 mm |
| Drilling capacity in cast iron |
45 mm |
| Hole travel |
200 mm |
Spindle, tools and speed
| Drill chuck |
1 – 13 mm / B 16 |
| Morse taper |
MK 4 |
| Spindle speed / Number of stages |
55 – 2120 rpm / 12 |
| Max. spindle – table distance |
580 mm |
| Spindle – base plate distance |
1185 mm |

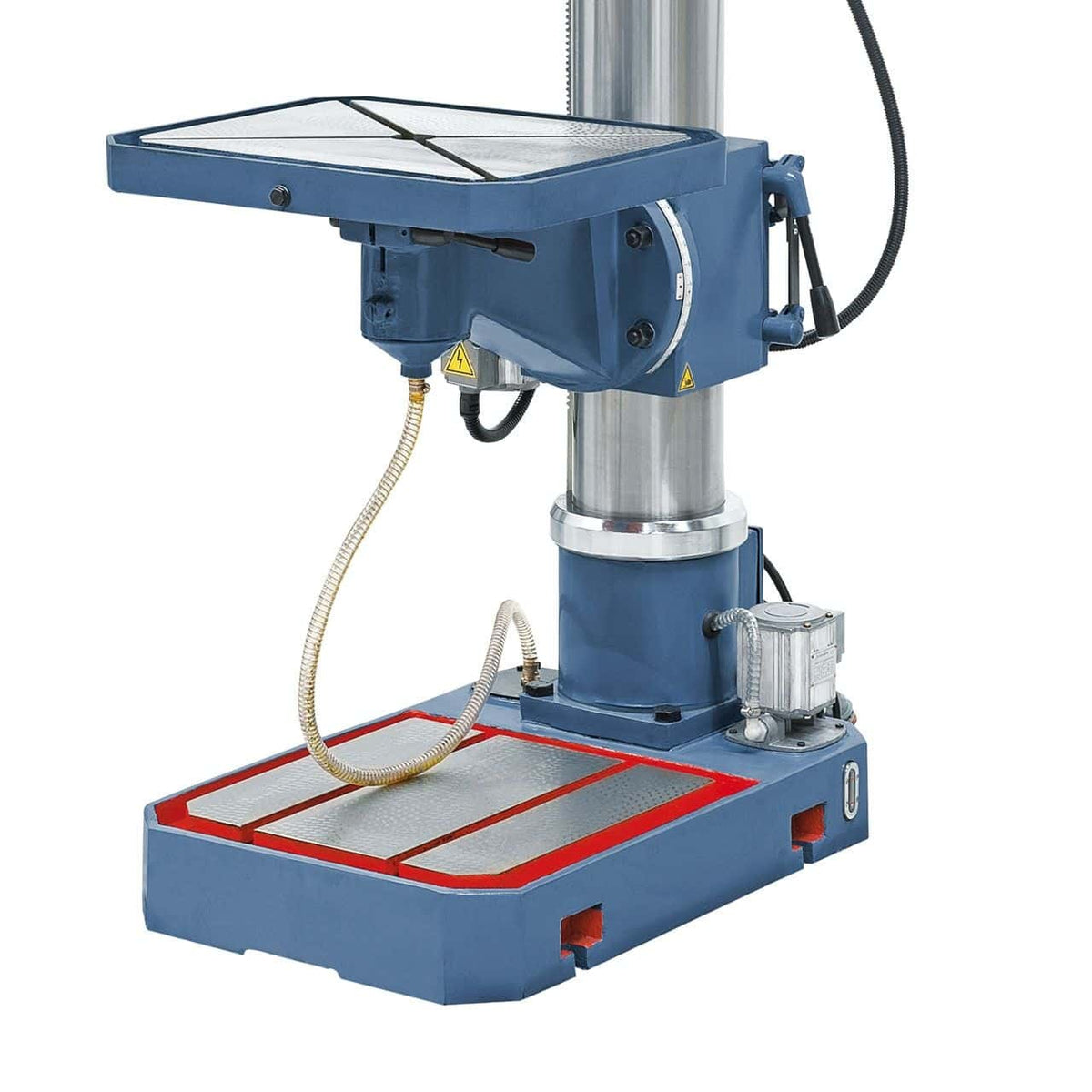

Table, dimensions and geometry
| Arm length |
355 mm |
| Column diameter |
180 mm |
| Table size / T-slot dimensions |
580 x 460 mm / 14 mm |
| Weight approx. |
563 kg |
Other specifications
| Max. thread |
M32 |
| Feed area |
0.1 / 0.2 / 0.3 / 0.4 mm/rev |
| Machine dimensions (L x W x H) |
700 x 950 x 2280 mm |
| Motor power |
2.2 kW |
Standard equipment
- Protective Cover with Limit Switch: For increased safety, the machine is equipped with an adjustable protective cover with a limit switch.
- Spindle arbor MK 4 / B 16
- Drill chuck 1 – 13 mm / B 16
- Electromagnetic spindle feed
- Height-adjustable protective cover
Frequently asked questions
What is the drilling capacity of the GB 40 HS?
See the "Drilling capacity" data in the machine's technical table.
The capacity refers to standard unhardened steel. On harder materials or alloyed steels, the actual capacity may be lower: reduce speed and feed to avoid stressing the spindle and tools.
How is the spindle speed adjusted?
Via mechanical belt or gear change in stepped models, via inverter or variator in Vario models.
Vario models allow continuous adjustment, while stepped models require moving the belt to different pulleys. Correct speed selection based on drill bit diameter and material extends tool life.
What spindle taper and type of tools does it support?
See "Spindle taper" in the technical table: typically MT 2, MT 3 or MT 4 depending on the model.
MT (Morse Taper) connections are international standards and accessories (arbors, keyless chucks, reductions) are commonly available on the market. Krollit supplies original Bernardo accessories.
Does the drill allow tapping with a tapping chuck?
Only models with standard right/left rotation allow tapping with automatic tap release.
Check the "Right/left rotation" or "Tapping" specification: drills without mechanical reversal are not suitable for repetitive tapping.
What is the machine's weight and what installation does it require?
The weight varies from about 25 kg (compact bench models) to over 250 kg (Profi industrial models).
Bench models are installed on a sturdy bench, while pillar or radial models require floor mounting with expansion anchors for stability during drilling.
