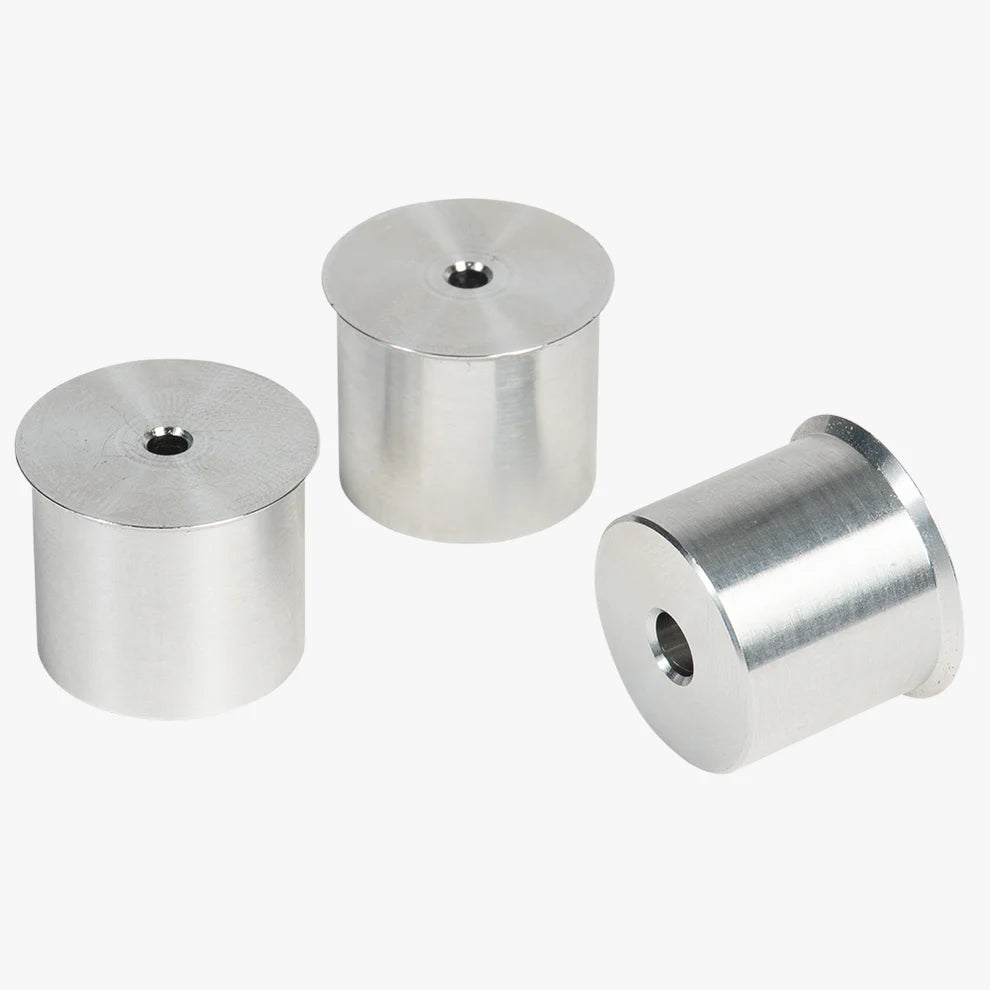

Aluminium indexing dogs for UJK Parf system – set of 3

The re-reamer dogs are inserted into the existing 20 mm holes of the top adjacent to the area where new holes are to be added. The 3 mm hole in the center of each dog acts as a pilot hole for the 3 mm drill bit of the Parf MkII system, which uses these references to position the guide block in the exact position for drilling new holes at a 96 mm pitch in continuity with the existing grid.

Without the re-reamer dogs, adding new holes to an existing grid would require manual remeasurement of positions, with the risk of introducing cumulative errors. The dogs ensure that the new holes are aligned with the original precision of the Parf MkII system.

The set includes 3 dogs, which is the minimum number to define the positioning of a new row or column of holes using the Pythagorean theorem principle of the Parf MkII system. Three dogs in known positions of the existing grid provide the three reference points needed by the system to ensure perpendicularity and alignment of the new holes.

Yes. Re-reamer dogs are compatible with both versions of the Parf drilling system: MkI and MkII. The 3 mm hole in the center of the dog is sized for the 3 mm pilot drill bit included in both versions of the system.

Yes. If one or more 20 mm holes on the top have been damaged or excessively enlarged due to wear, the re-reamer dogs inserted into adjacent intact holes provide the necessary reference points to redrill the damaged hole in the exact position with the Parf MkII system. The result is a new hole at the original tolerance in the correct grid position.

Re-reamer dogs have a 3 mm central hole for positioning the pilot drill bit of the Parf MkII system. Anchor dogs have an M8 threaded hole for attaching clamps and jigs. Re-reamer dogs are accessories exclusively for expanding and repairing the hole grid; anchor dogs are accessories for clamping and jig construction.
