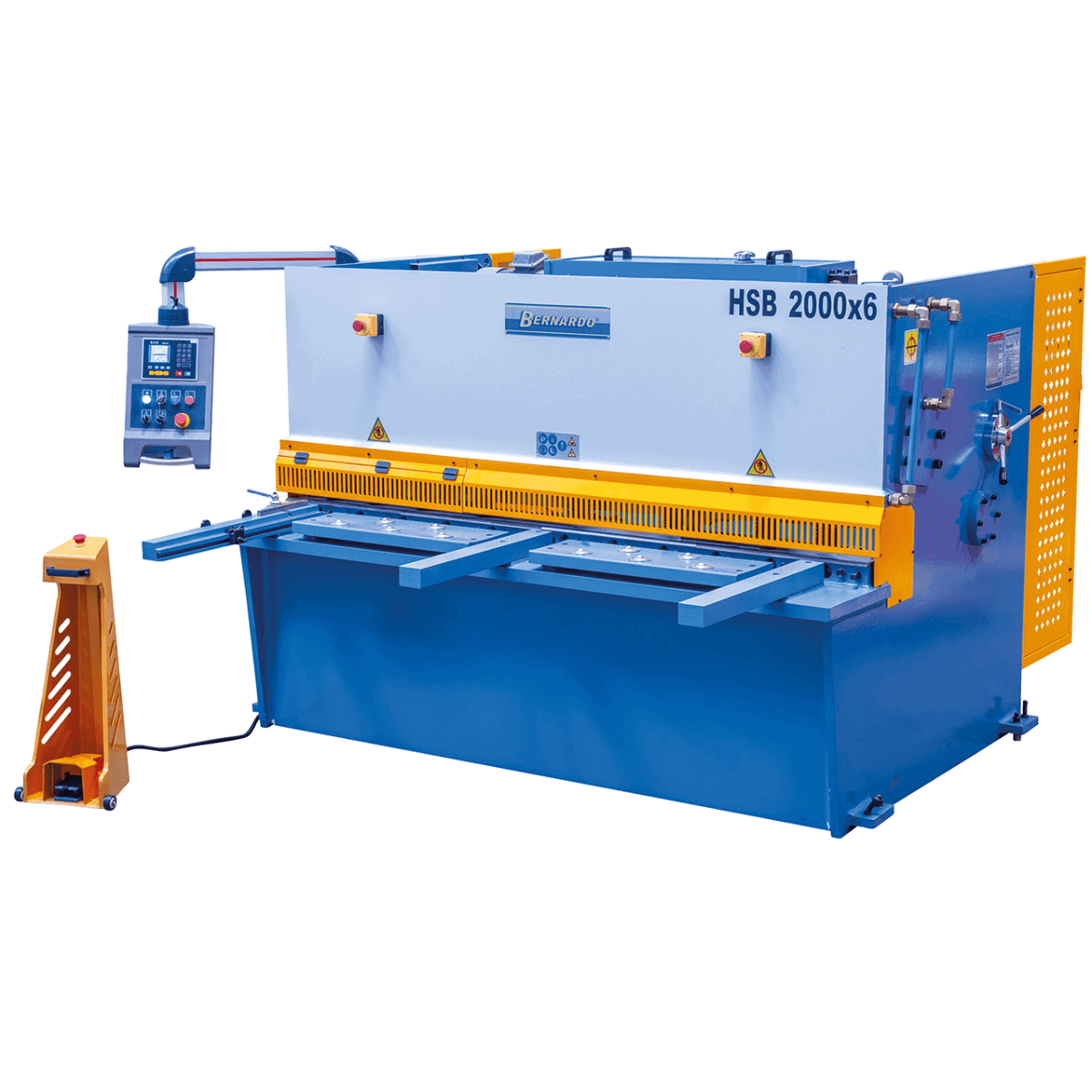

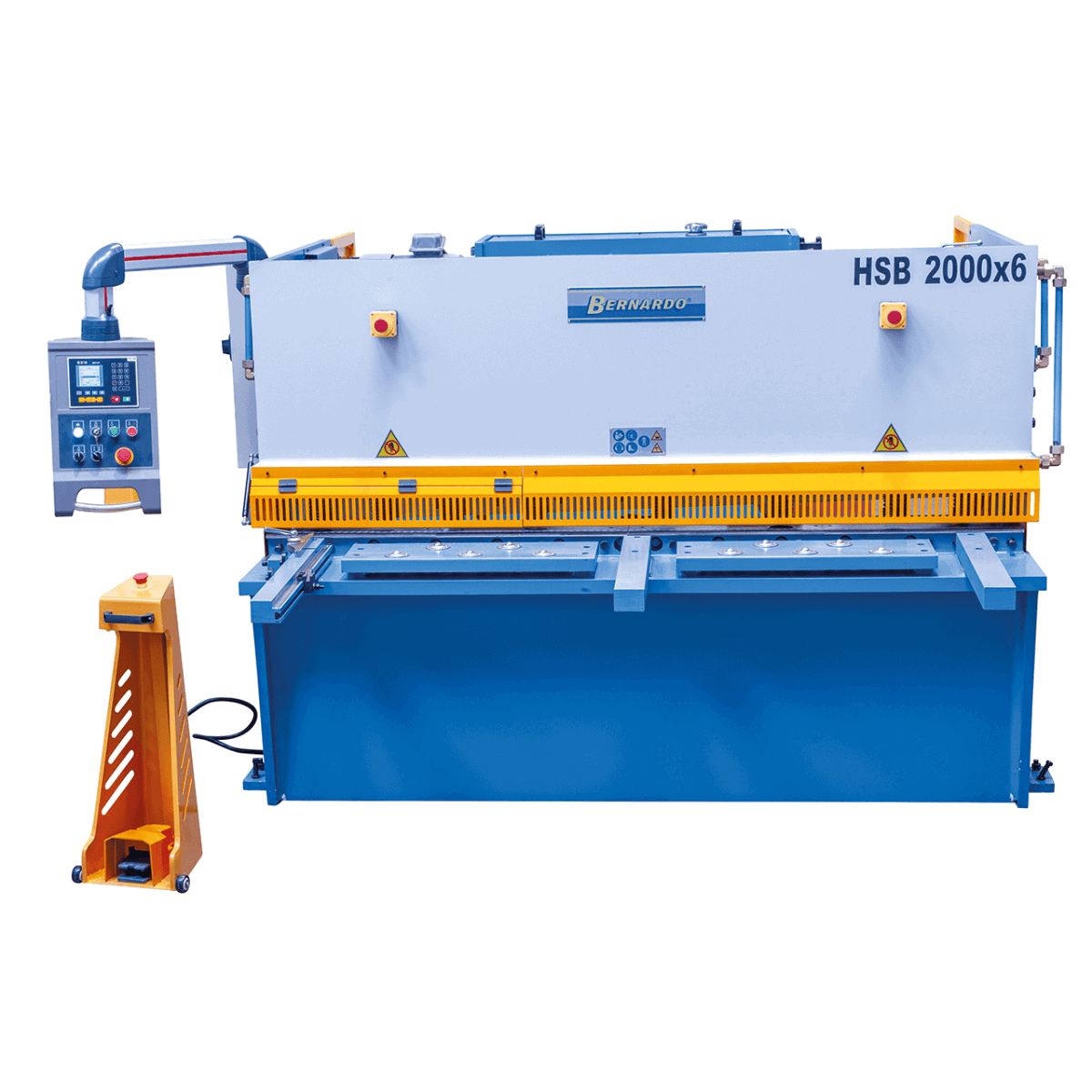

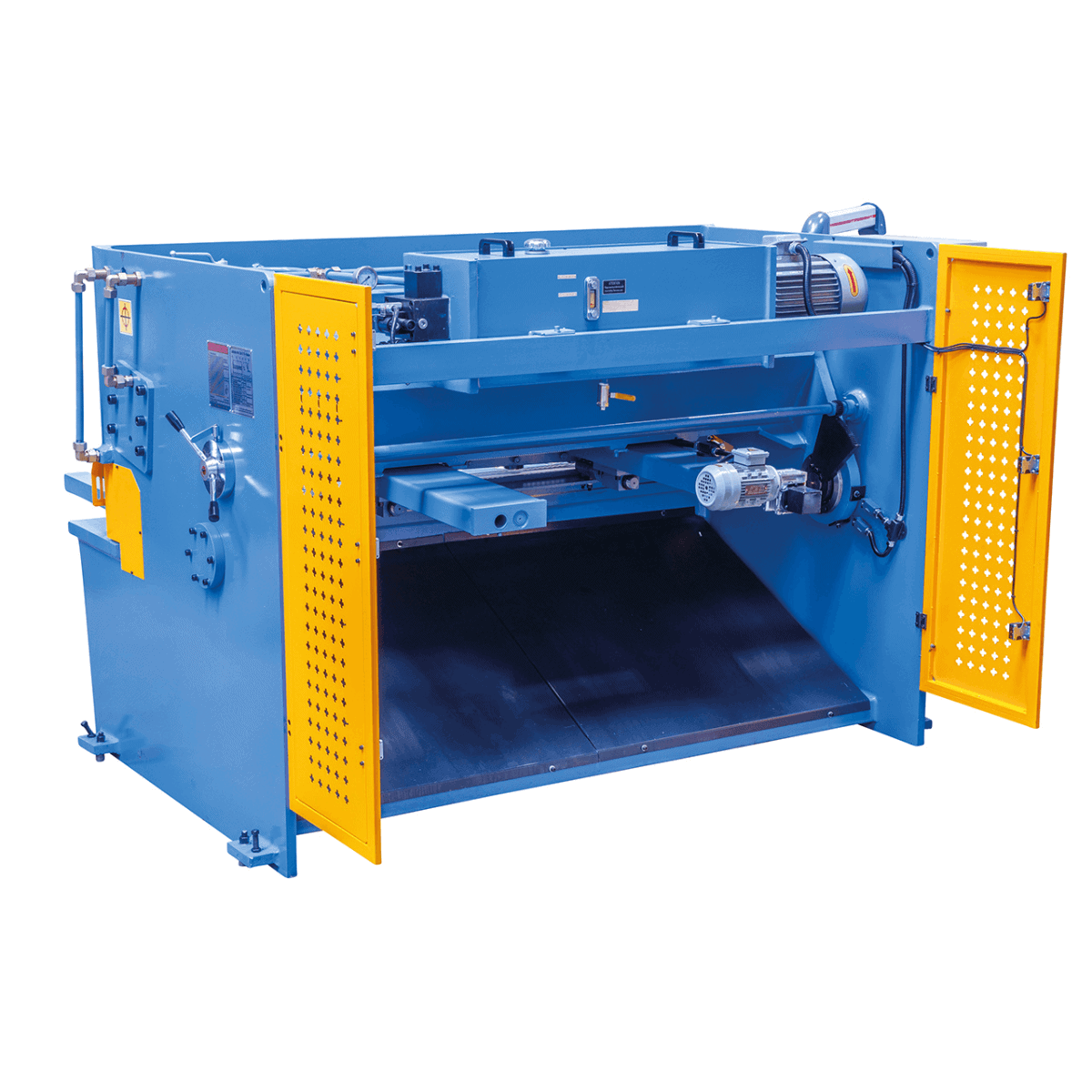

Bernardo HSB 2000 x 6 Hydraulic Guillotine Shear
-
Description
-
Sicurezza del prodotto
-
Reviews
Description
The Bernardo HSB 2000 x 6 is a hydraulic guillotine shear for professional use, with a 7.5 kW motor, weighing 3550 kg. Krollit, official Bernardo distributor since 2007.
- Brand: Bernardo
- Model: HSB 2000 x 6
- Cutting length: 2000 mm
- Max. sheet thickness (400 N/mm²): 6 mm
- Cutting angle: 1°30’

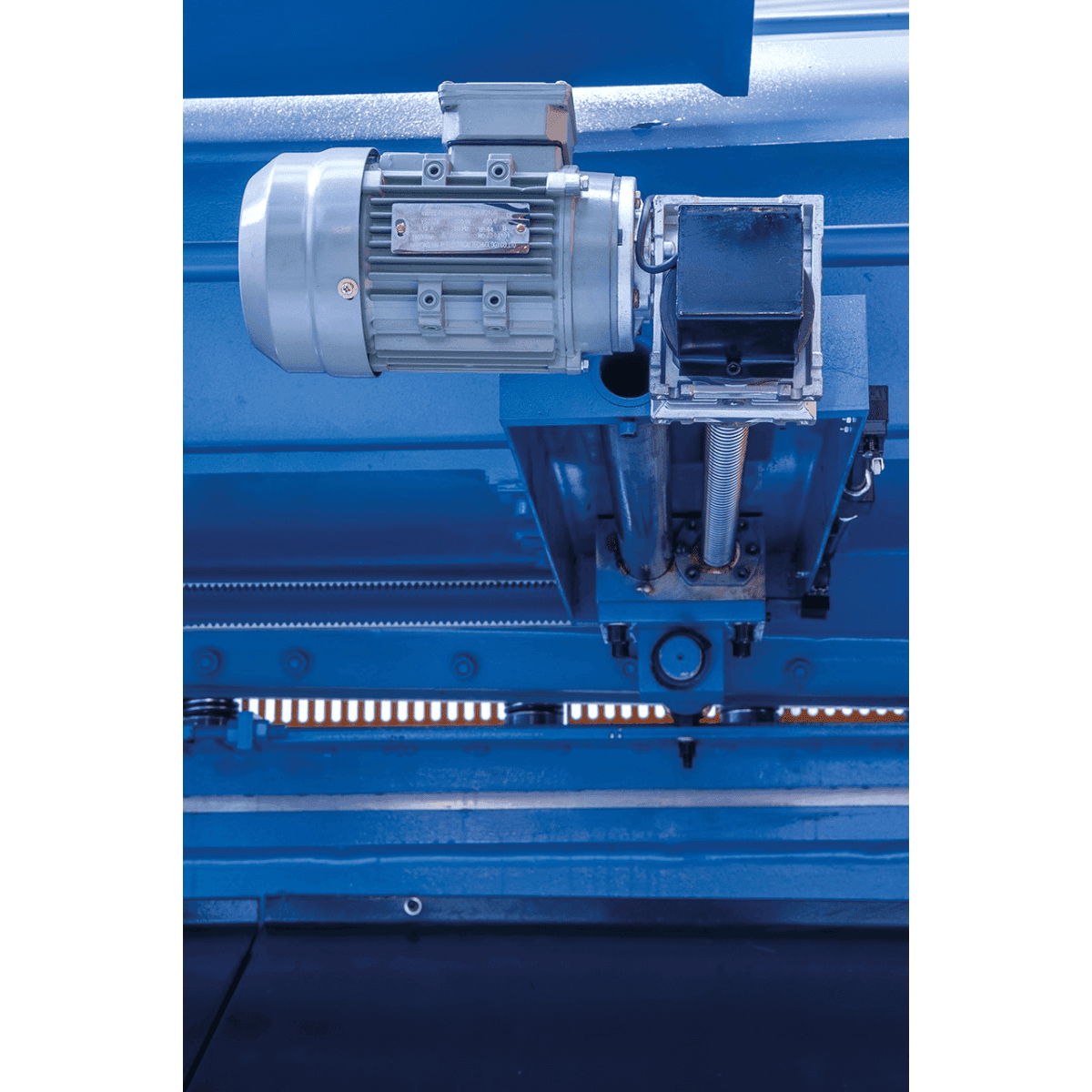

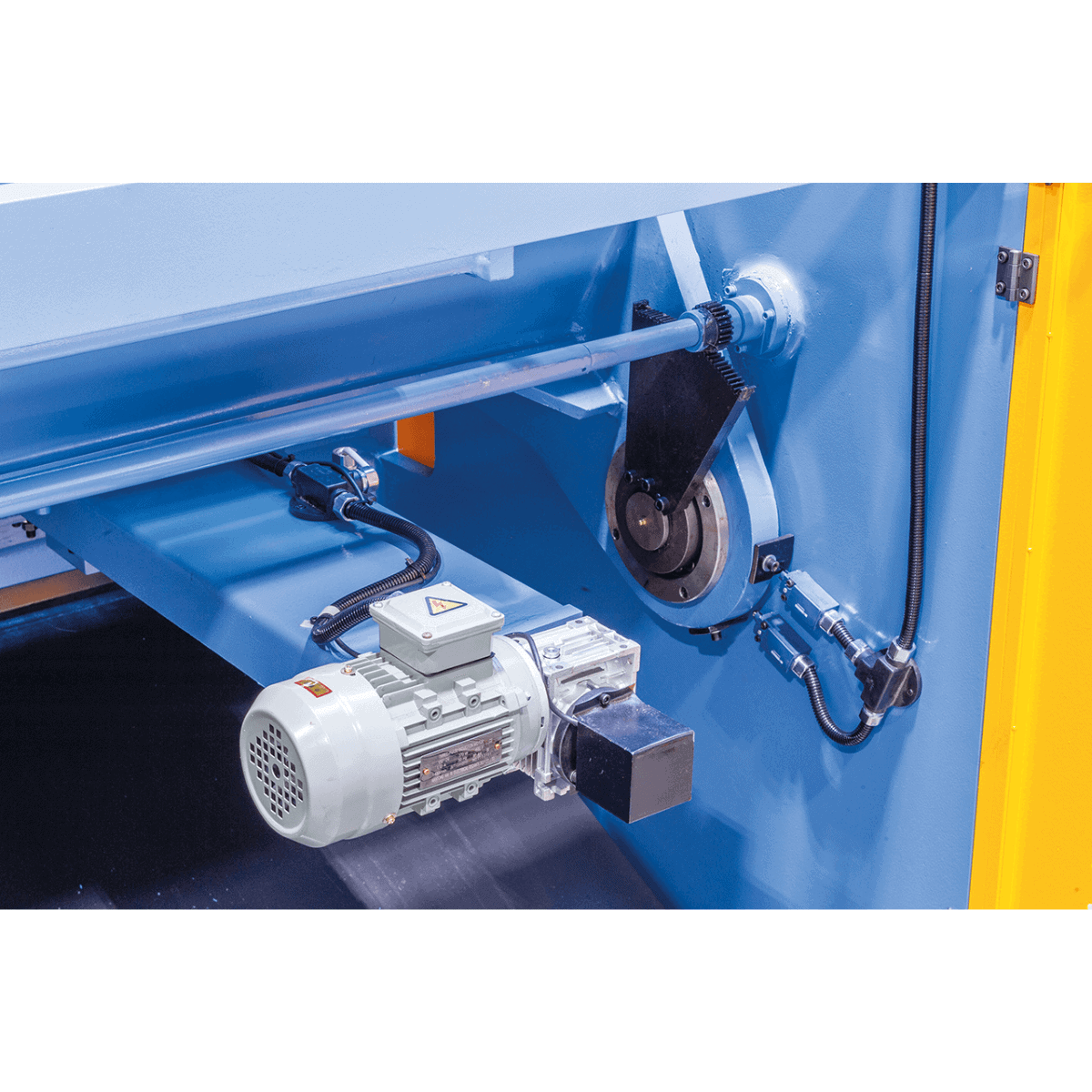

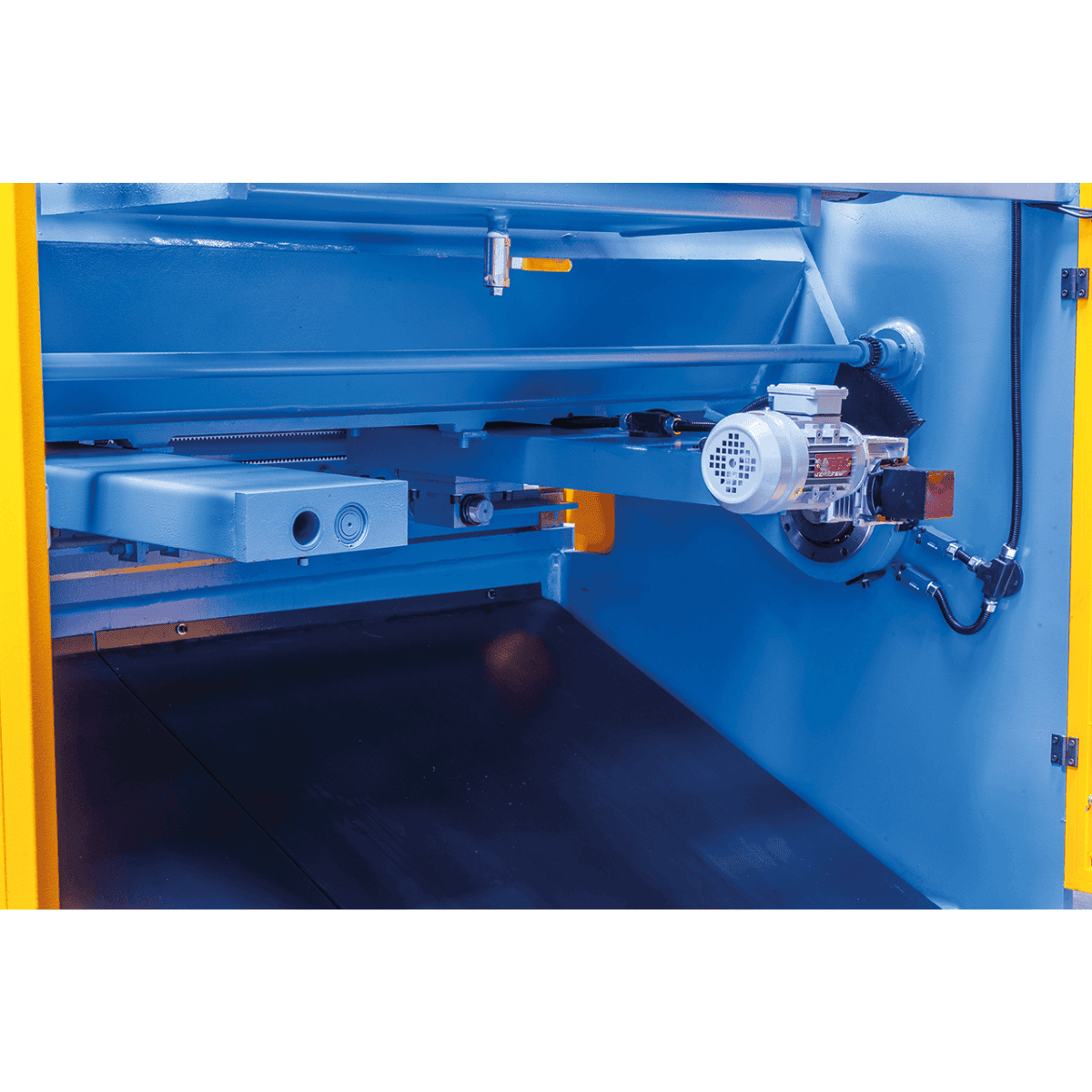

- Motorized back gauge: 0 – 600 mm
- Strokes per minute: 12

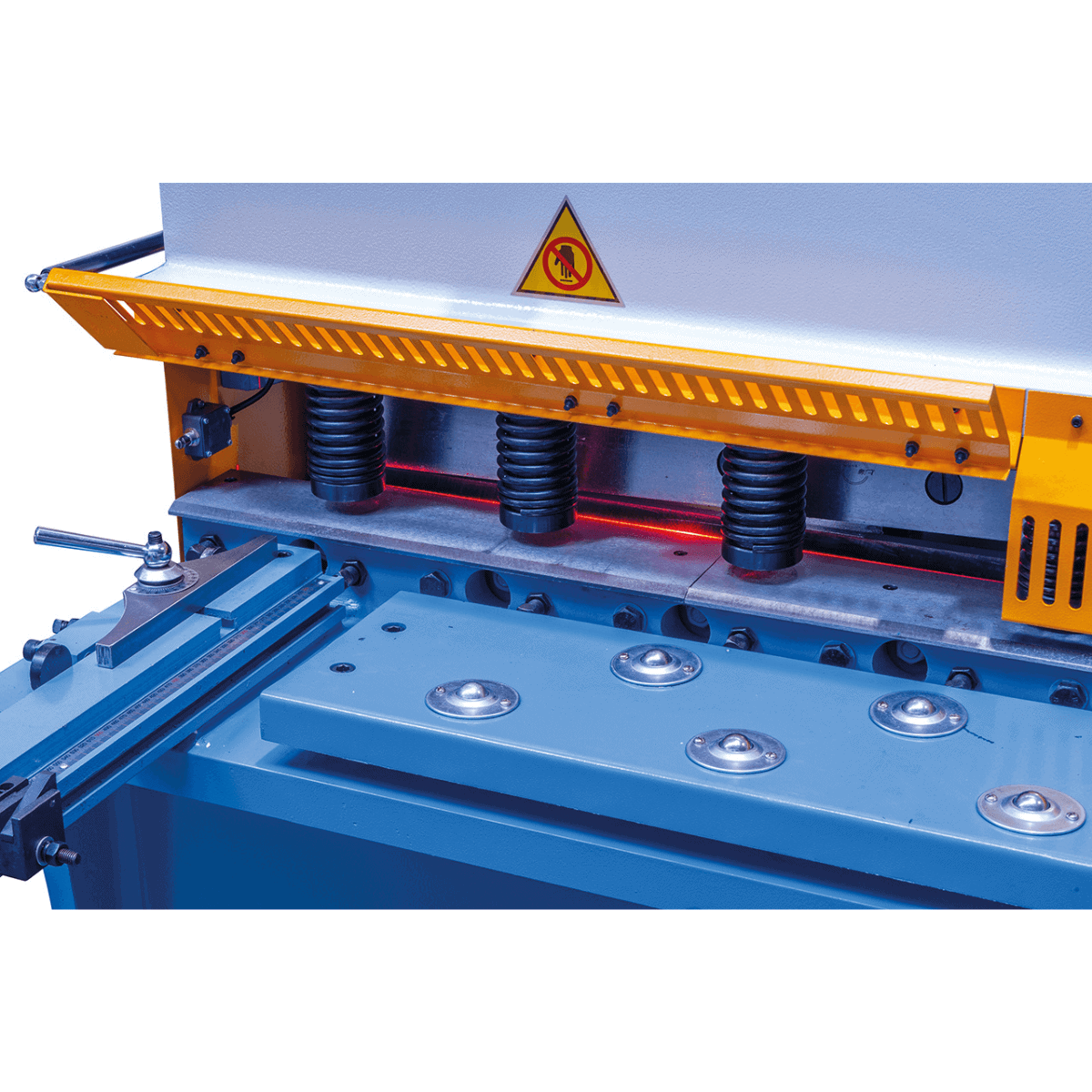

- Number of hold-downs: 8 pieces
Who uses the HSB 2000 x 6 and for what
Metal fabrication shops and sheet metal workshops use the HSB 2000 x 6 for straight cutting of steel, aluminum, and stainless steel sheets, with repetitive cycles on standard sheets.
Its place in the Bernardo range
The Bernardo HSB 2000 x 6 is part of the Bernardo guillotine shear range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit Logistics and Support
Machine shipping in 5-9 working days (7 days to Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the HSB 2000 x 6 for
| Profile | Compatibility | Reason |
|---|---|---|
| Metal fabrication shops and sheet metal workshops | Suitable | Straight cutting of steel, aluminum, and stainless steel sheets |
| Series sheet metal processing | Suitable | Repetitive cycles on standard sheets up to declared thicknesses |
| Shaped and curved cuts | Not indicated | The shear only performs straight cuts: for shapes, consider punch presses or lasers |
Not indicated for: shaped and curved cuts (the shear only performs straight cuts: for shapes, consider punch presses or lasers).
Working capacity
| Cutting length | 2000 mm |
| Cutting angle | 1°30’ |
Table and dimensions
| Strokes per minute | 12 |
| Table height | 800 mm |
| Machine length | 2800 mm |
| Height | 1670 mm |
Motor and power supply
| Motor power | 7.5 kW |
Other specifications
| Brand | Bernardo |
| Model | HSB 2000 x 6 |
| Max. sheet thickness (400 N/mm²) | 6 mm |
| Motorized back gauge | 0 – 600 mm |
| Number of hold-downs | 8 pieces |

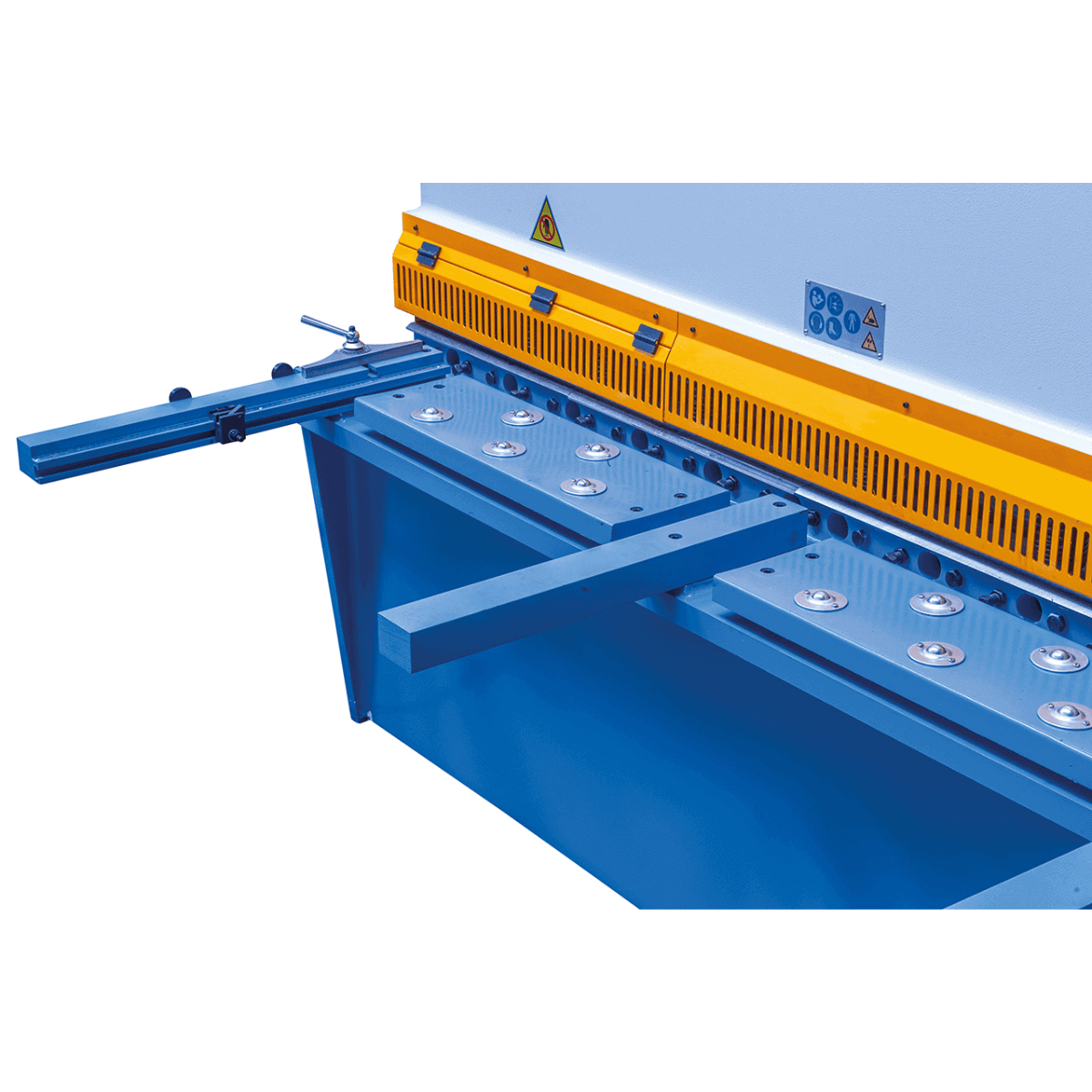

| Support arms | 3 pieces |
| Oil tank | 215 litres |
| Depth | 2800 mm |
| Weight | 3550 kg |
Frequently Asked Questions
What sheet thickness can it cut?
See "Cutting capacity" in the technical table: typically 1 to 6 mm on mild steel.
The capacity refers to S235 steel. For stainless steel or high-strength alloys, the actual capacity is lower (approximately 70-80% of the declared value).

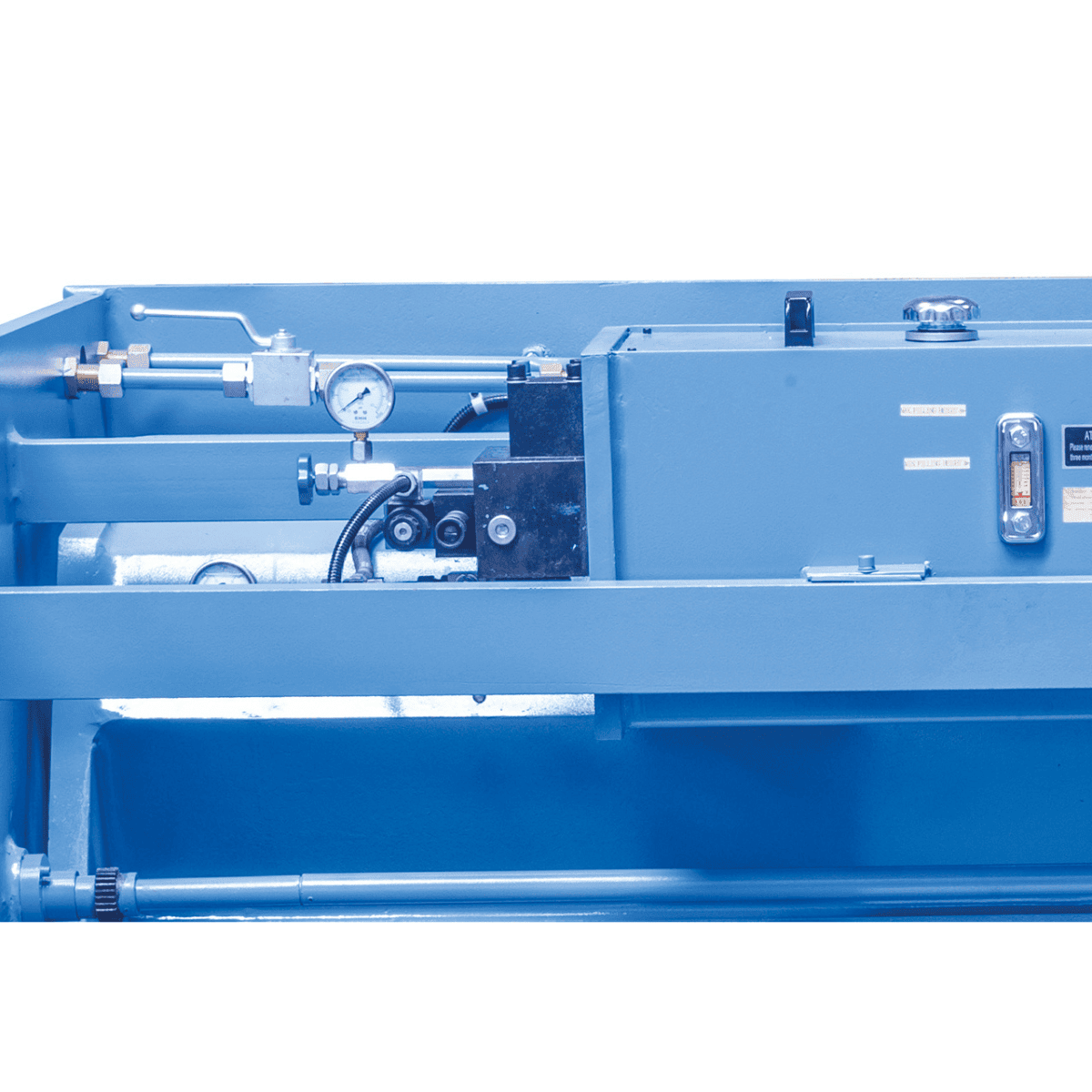

How does the hydraulic system work?
Hydraulic unit with electric pump and cylinders that actuate the movable blade against the fixed blade.
The hydraulic system requires periodic maintenance with specific hydraulic oil. The pressure is factory-set for nominal capacity.
What cutting length does it offer?
The effective length is indicated in the technical table (typically 1,000-3,000 mm).
The cutting length determines the maximum size of the workpiece that can be processed in a single pass. For longer pieces, multiple passes with repositioning are required.
Does the machine have a guide and backstops?

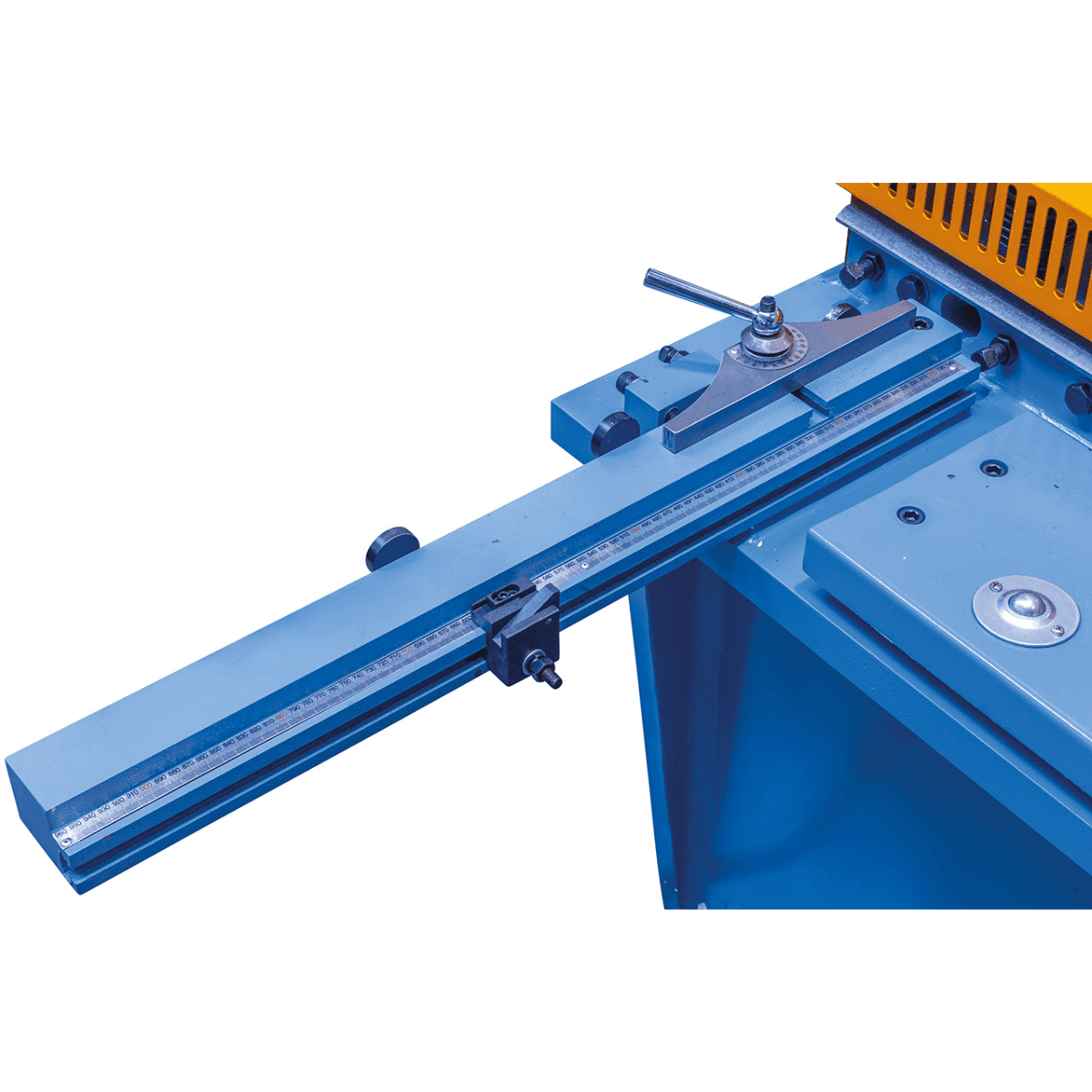

Yes, professional hydraulic shears have a rear guide with an adjustable backstop.
The backstop allows for repeated cuts of the same size without the need for marking. Advanced models offer CNC for automatic positioning.
What electrical power does it require?
See "Motor power" in the technical table: typically 4 to 22 kW (400 V three-phase).
Shears are industrial machines that require a dedicated 400 V three-phase power line. Check the power absorbed at startup to correctly size the cables.
