Bernardo HSB 3200 x 10 – Hydraulic shear for sheet metal up to 10 mm

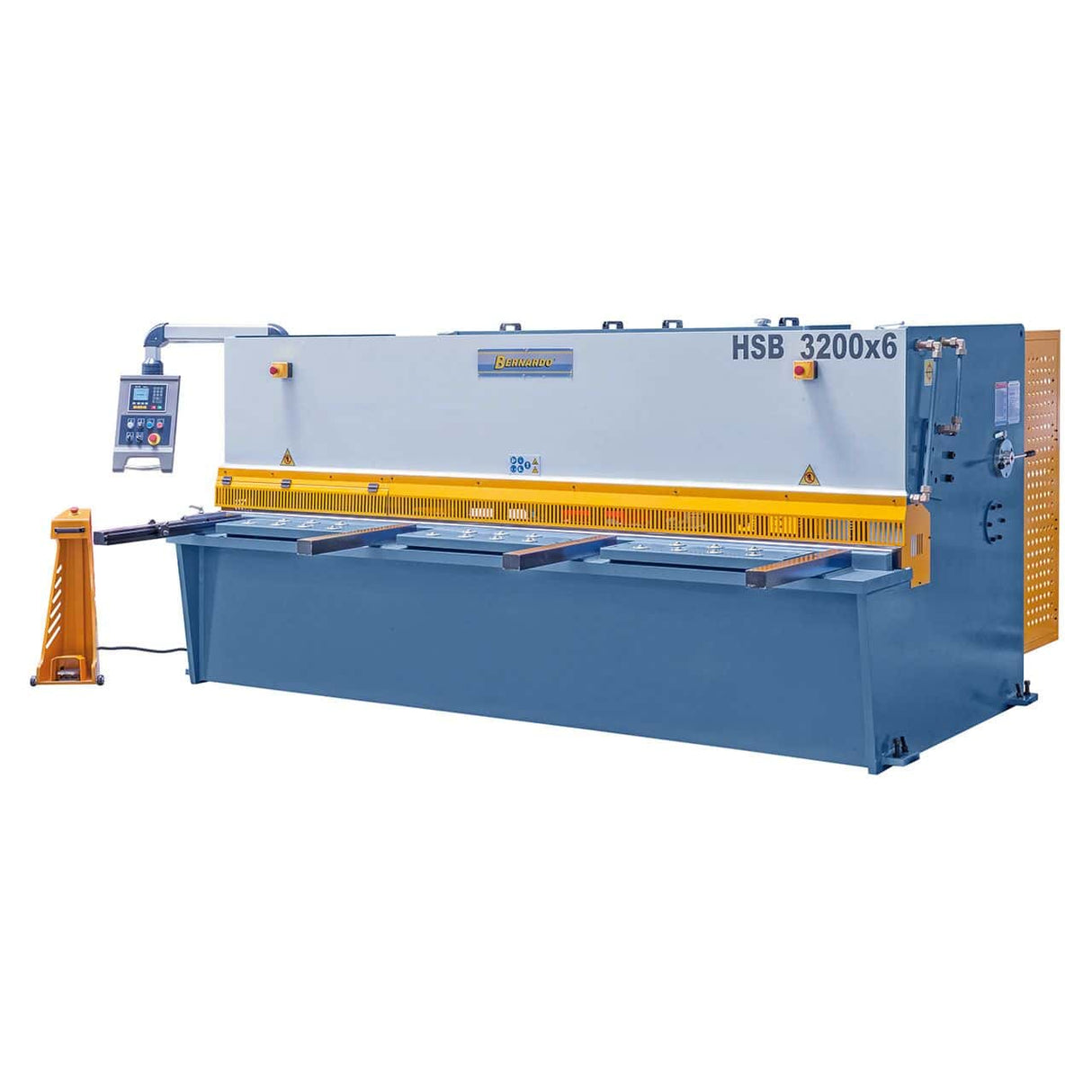

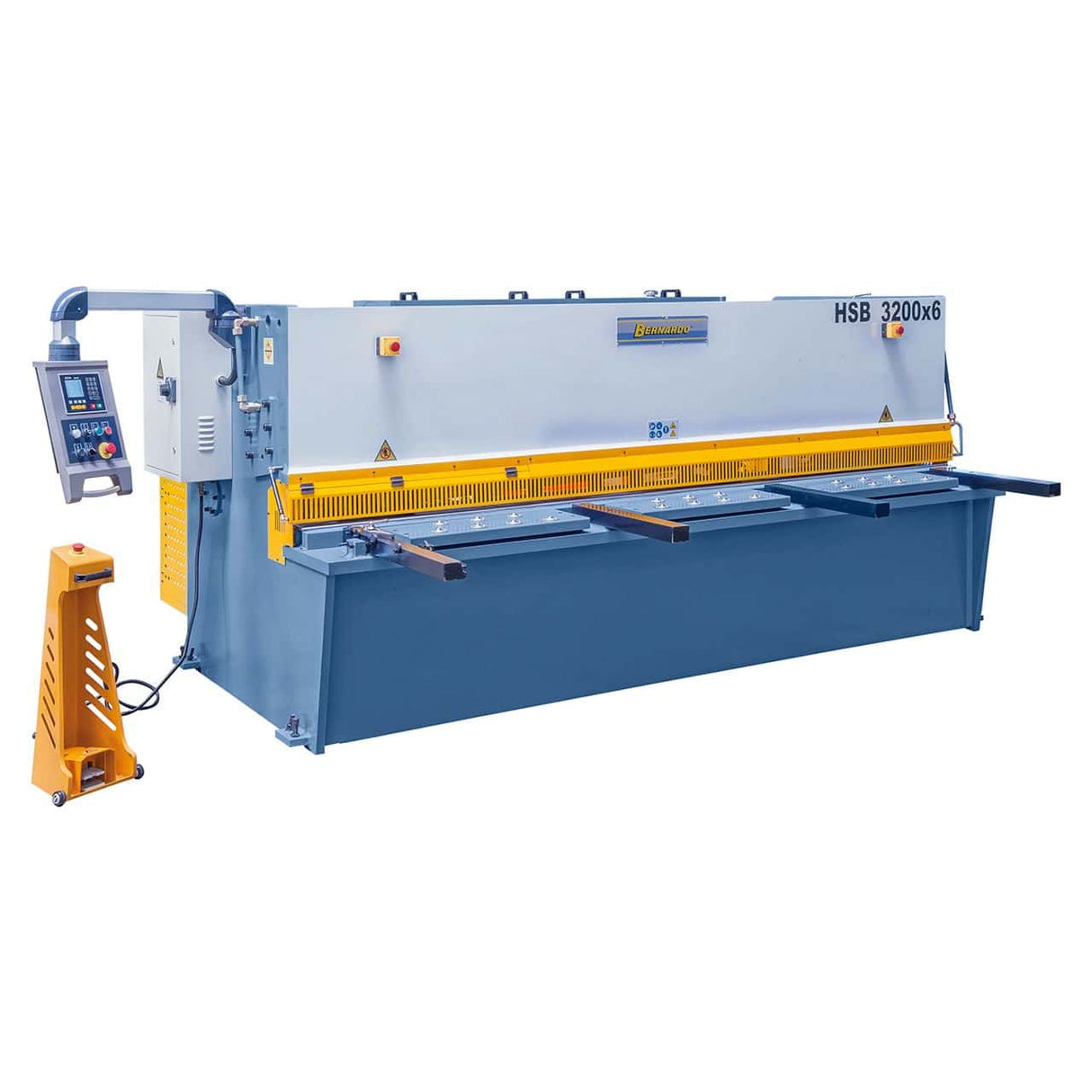

Bernardo Hydraulic Shear HSB 3200 x 10

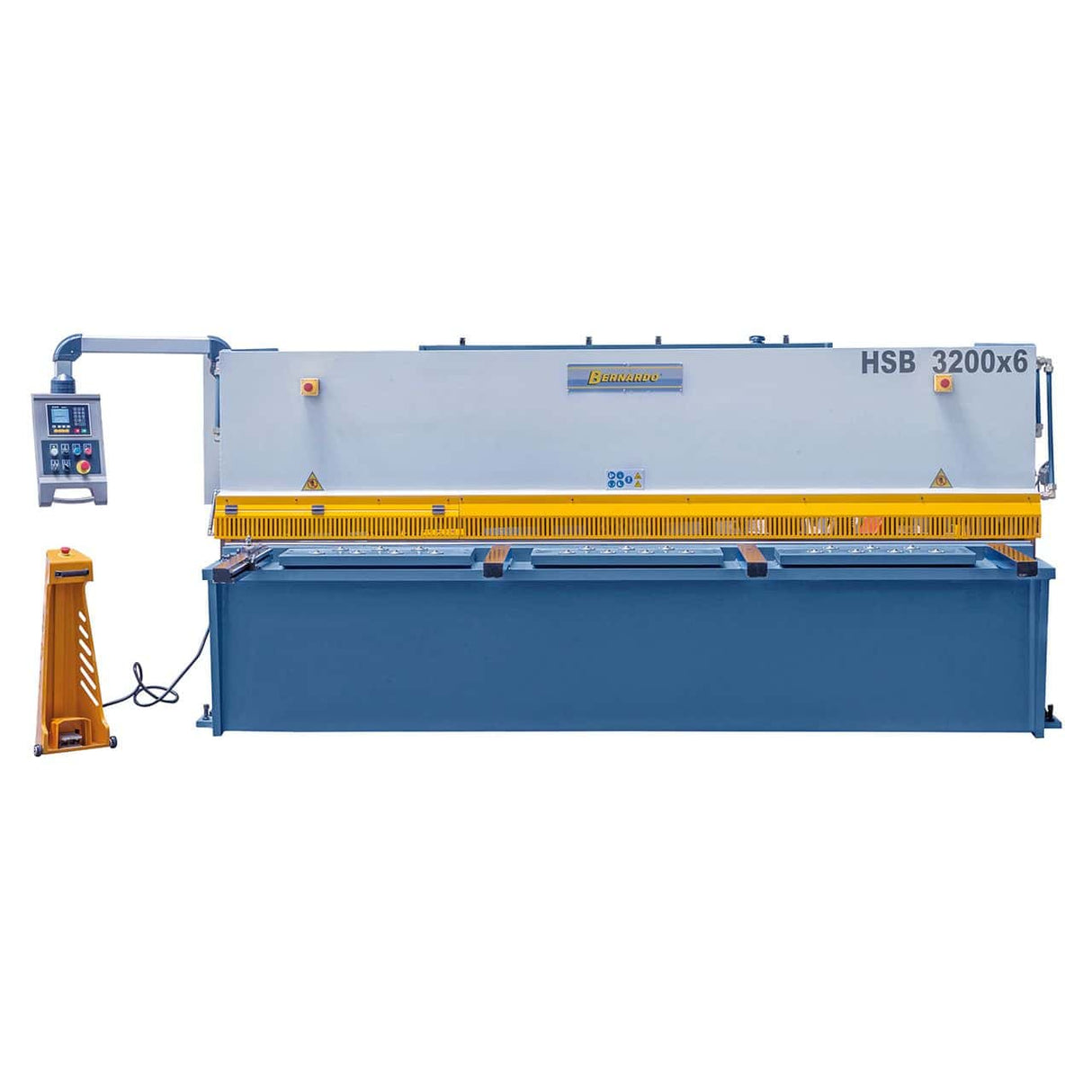

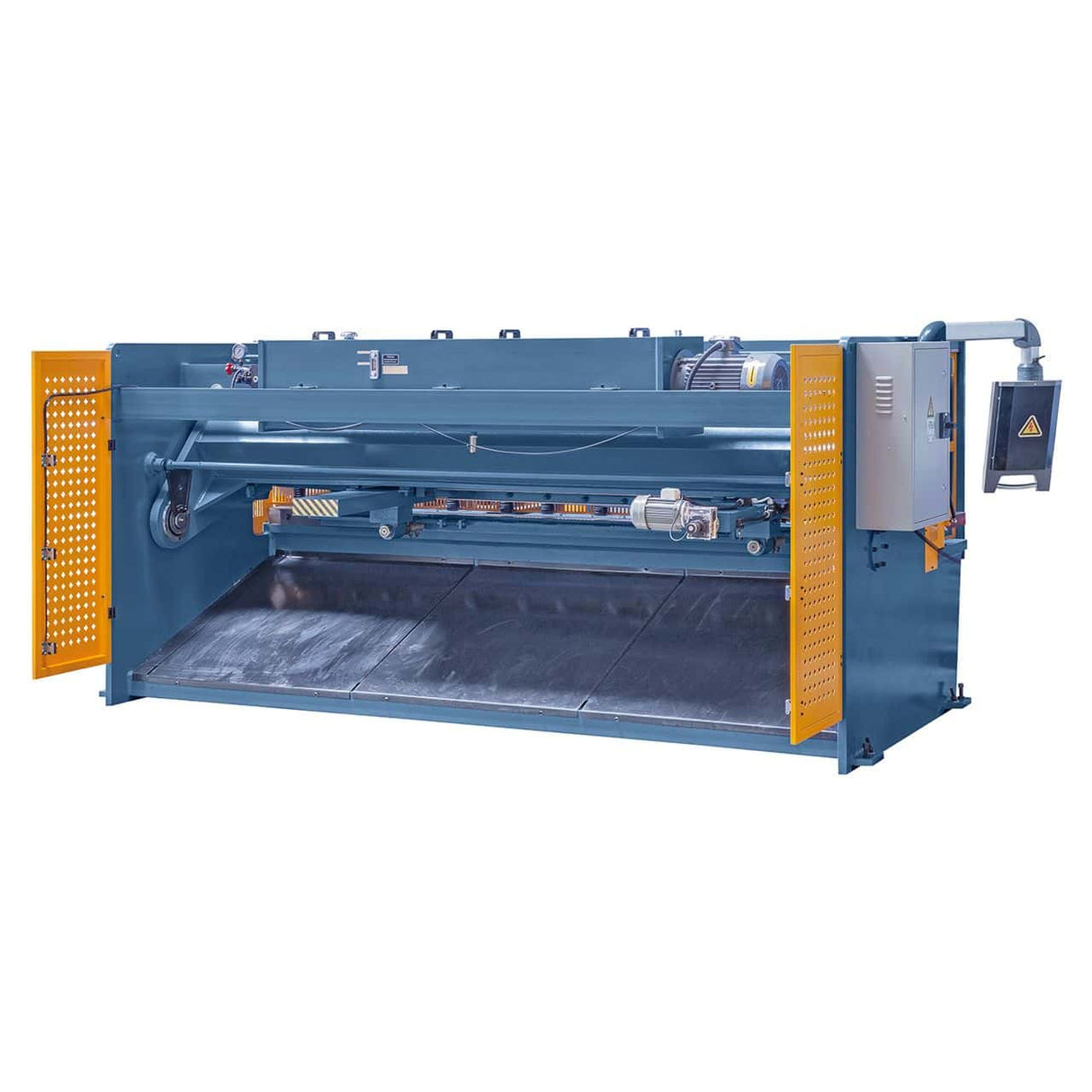

The Bernardo HSB 3200 x 10 hydraulic shear is a high-performance industrial machine, ideal for efficient and safe cutting of sheet metal up to 3200 mm in length and 10 mm in thickness (400 N/mm²). The solid welded steel structure ensures distortion-free processing, while integrated cutting line illumination with shadow contour guarantees high precision. The CNC motorized backgauge, adjustable from 20 to 800 mm, allows for quick and accurate cuts. The low-angle cutting bar (1°50’) ensures optimal finishes, while the front support arms and integrated roller table facilitate the handling of large panels. Safety is guaranteed by protective grids, photocells, and a foot pedal with emergency stop. With a powerful 11 kW motor and a weight of 8300 kg, the HSB 3200 x 10 is perfect for workshops and manufacturing facilities requiring reliability, robustness, and precision.

---

Key Features:
Welded steel structure for distortion-free processing
Cutting capacity: up to 3200 mm length and 10 mm thickness

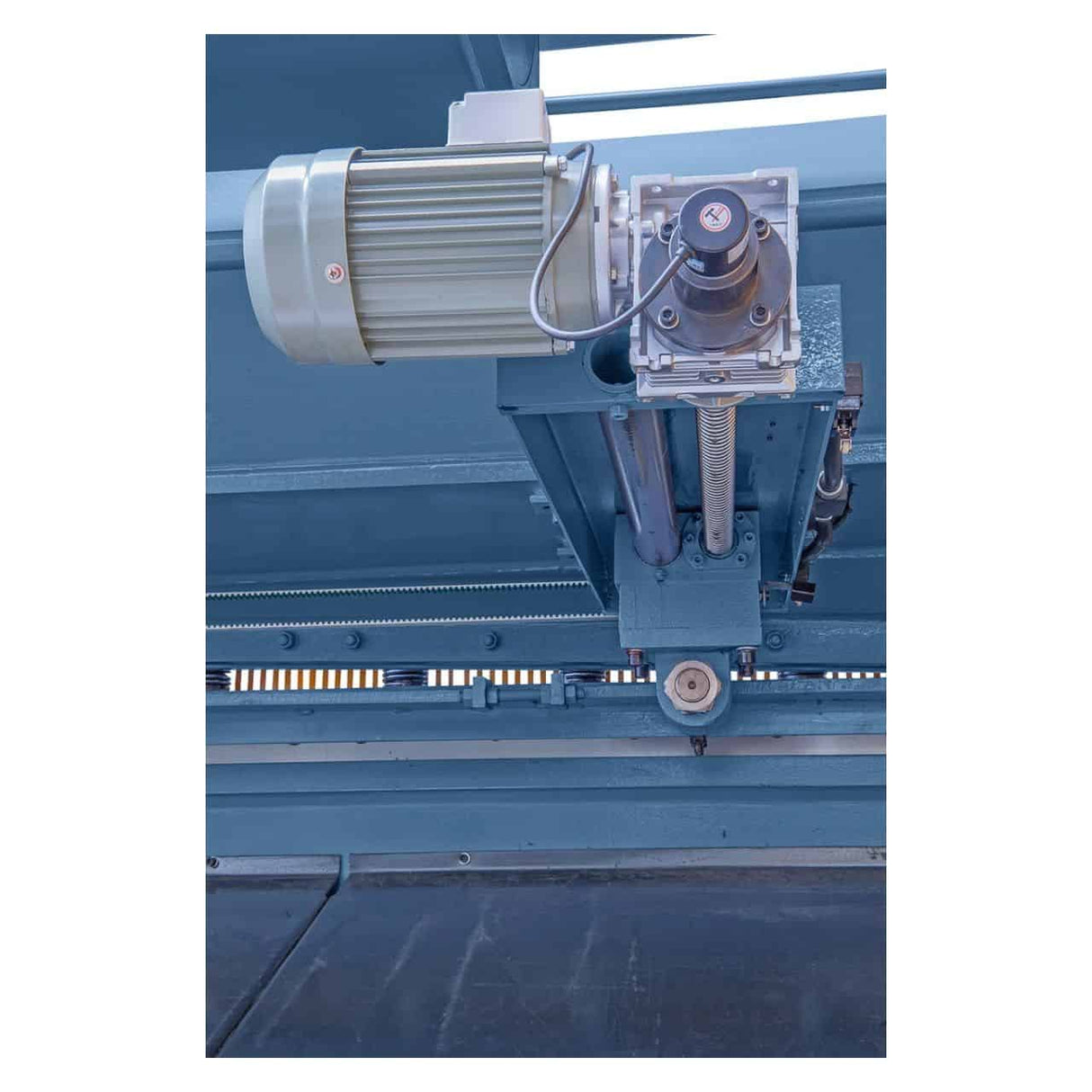

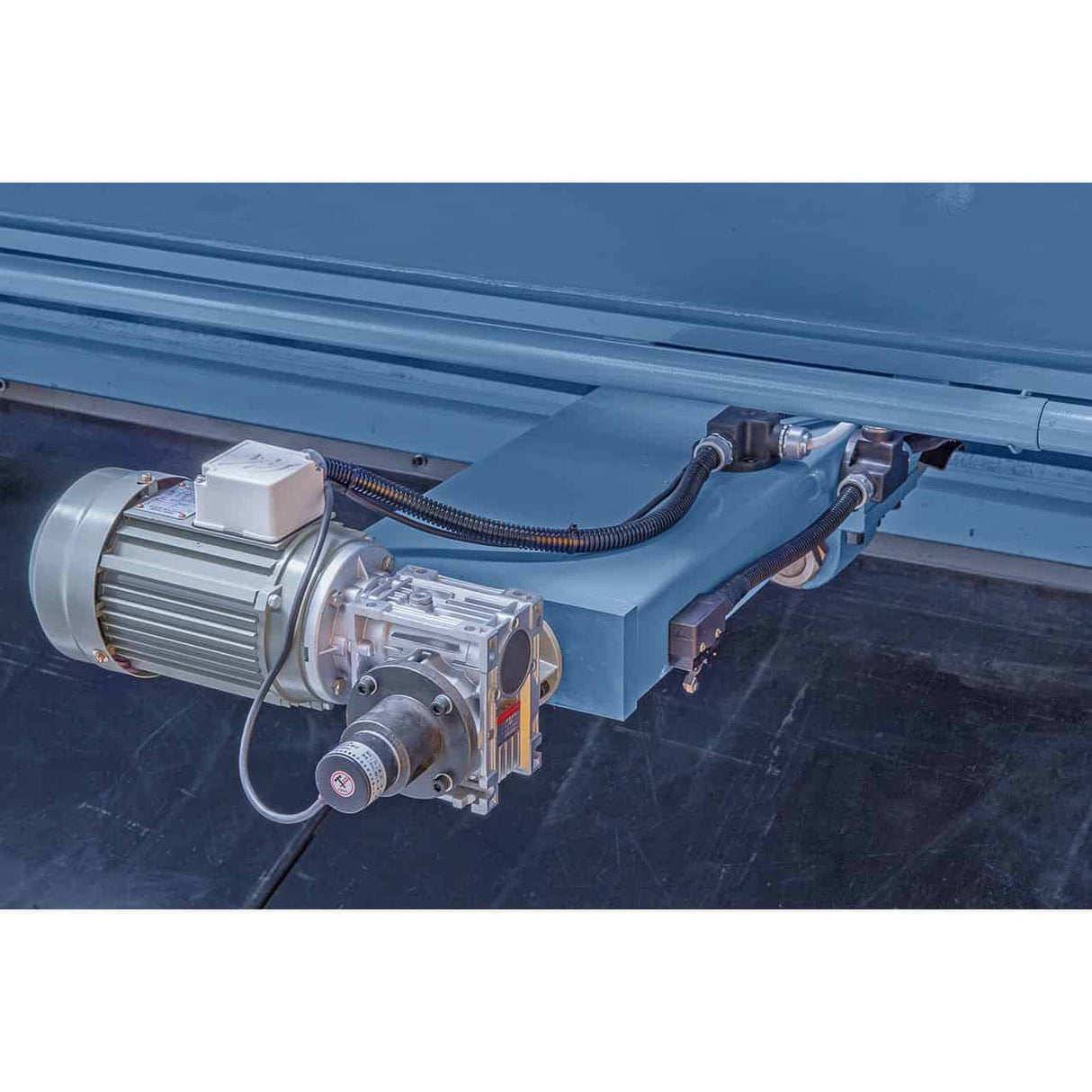

Motorized CNC backgauge (20–800 mm)
Integrated cutting line illumination with shadow contour
Low-angle cutting bar (1°50’) for optimal results

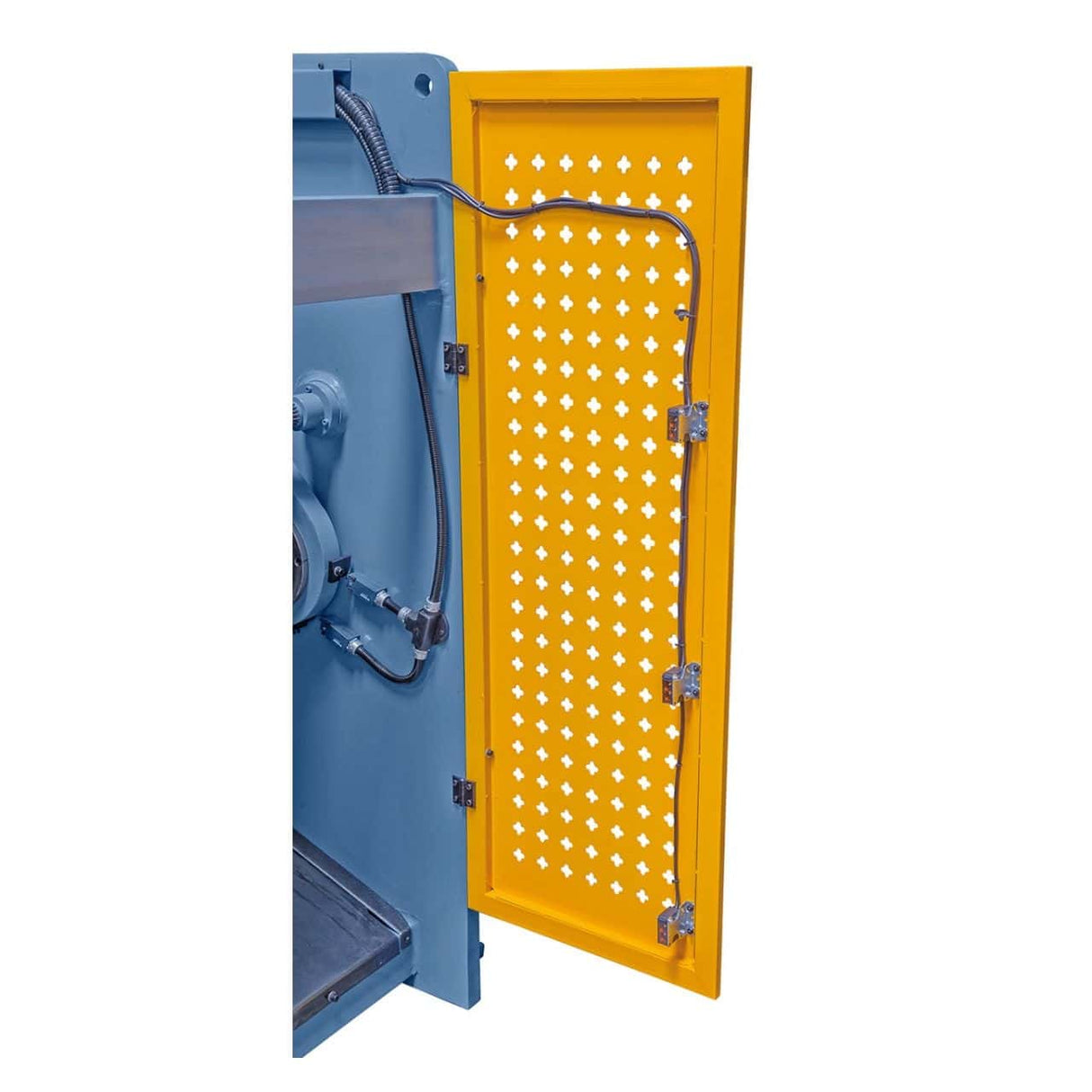

Safety with photocells, protective grids, and emergency foot pedal

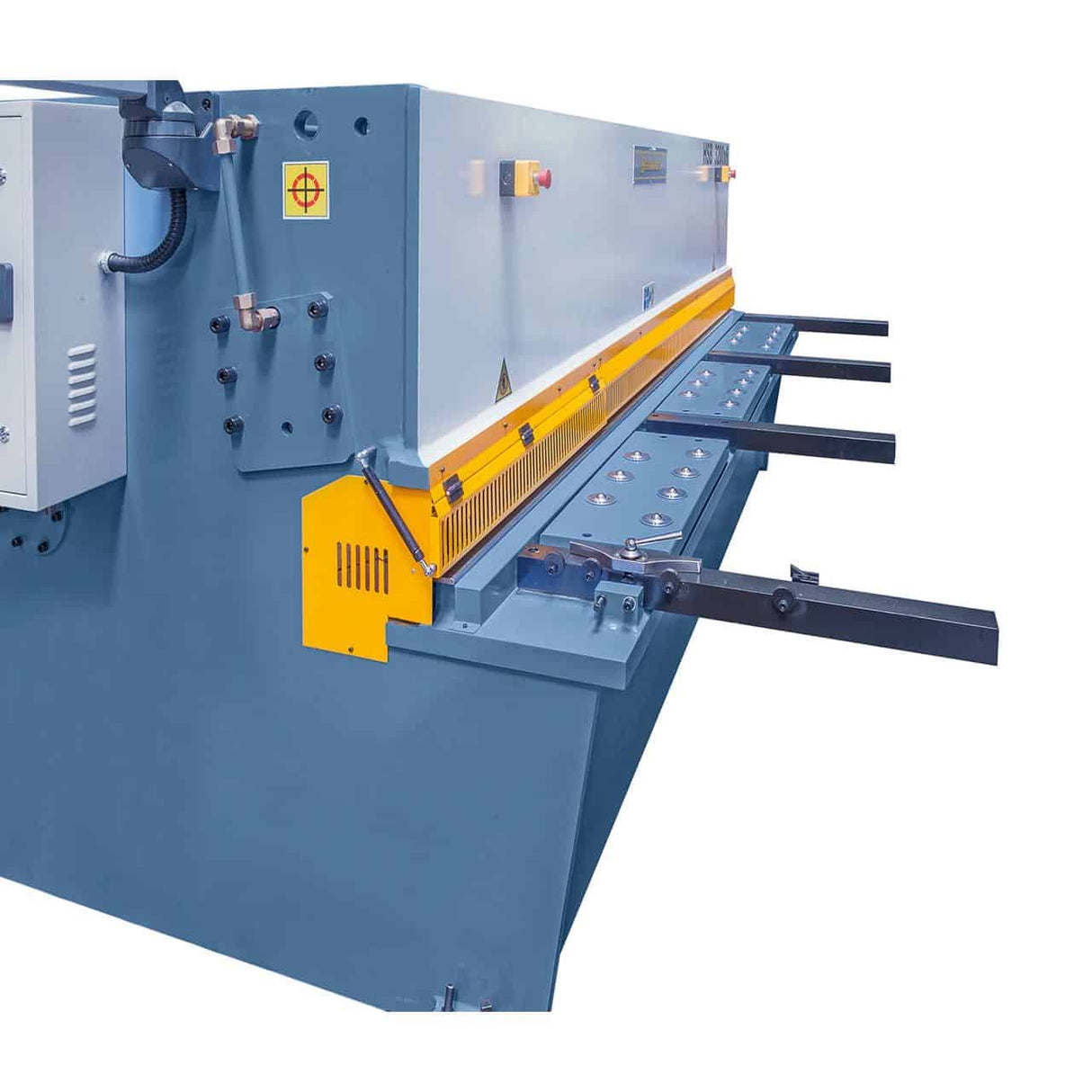

Support arms and integrated roller table for large panels

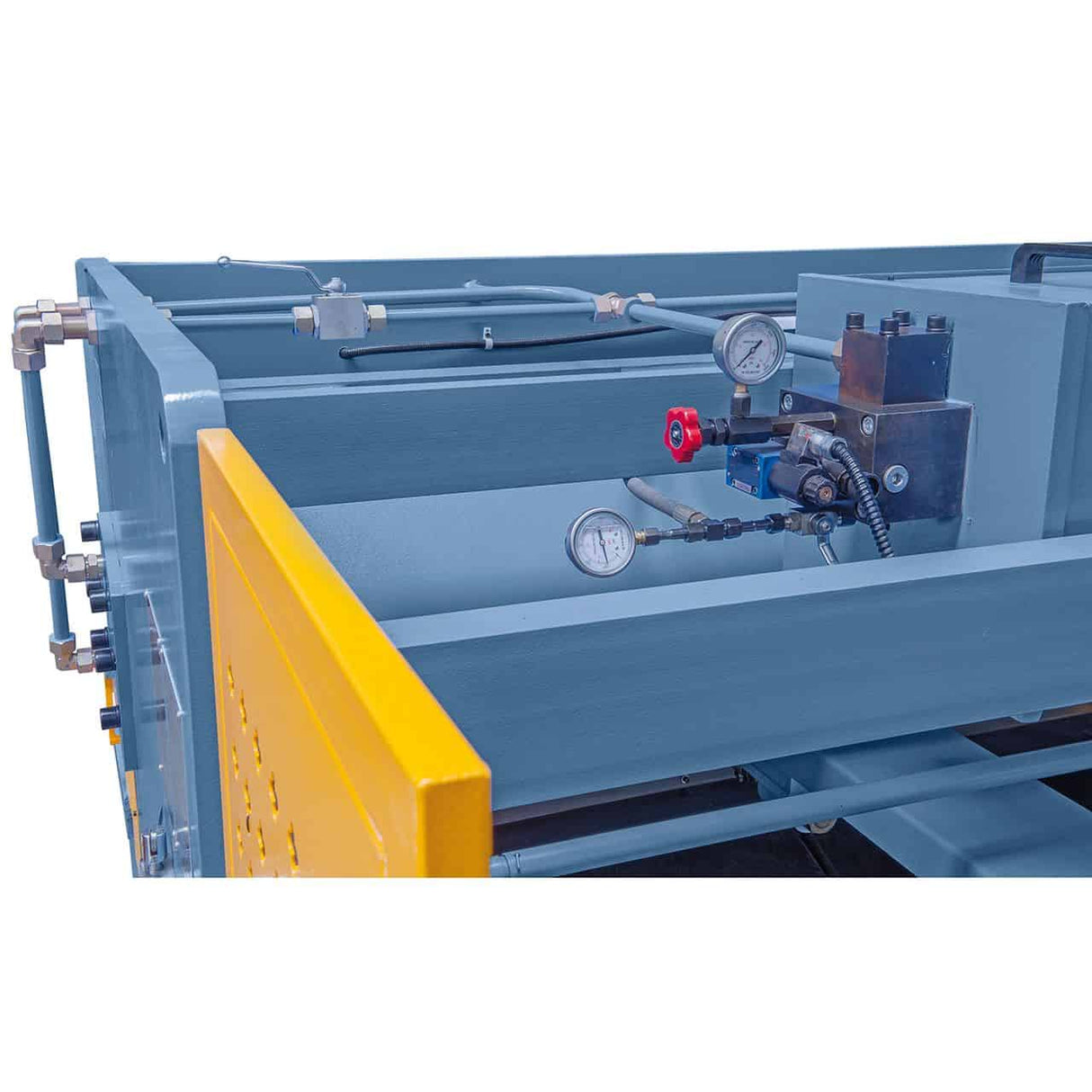

11 kW hydraulic motor with 215-liter oil tank

---

Technical Specifications

Specification	Value
Brand	Bernardo
Model	HSB 3200 x 10
Cutting length	3200 mm
Max. sheet thickness (400 N/mm²)	10 mm
Cutting angle	1°50’
Motorized backgauge	20 – 800 mm
Strokes per minute	10
Number of hold-downs	14 pieces
Throat depth	150 mm
Table height	800 mm
Support arms	4 pieces
Oil tank	215 liters
Motor power	11.0 kW
Machine length	3950 mm
Depth	2790 mm
Height	1850 mm
Weight	8300 kg

---

Standard Equipment

Bernardo HSB 3200 x 10 hydraulic shear

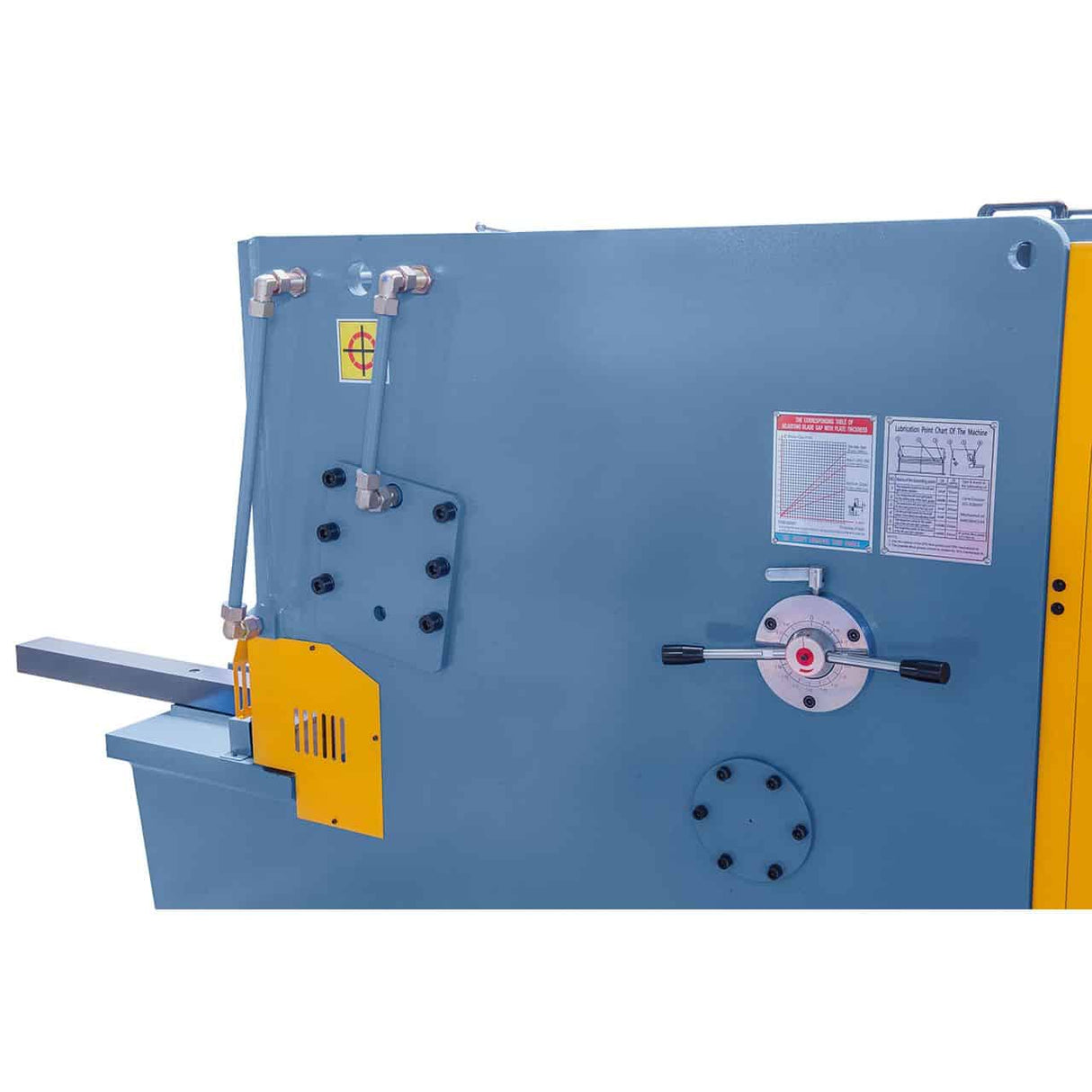

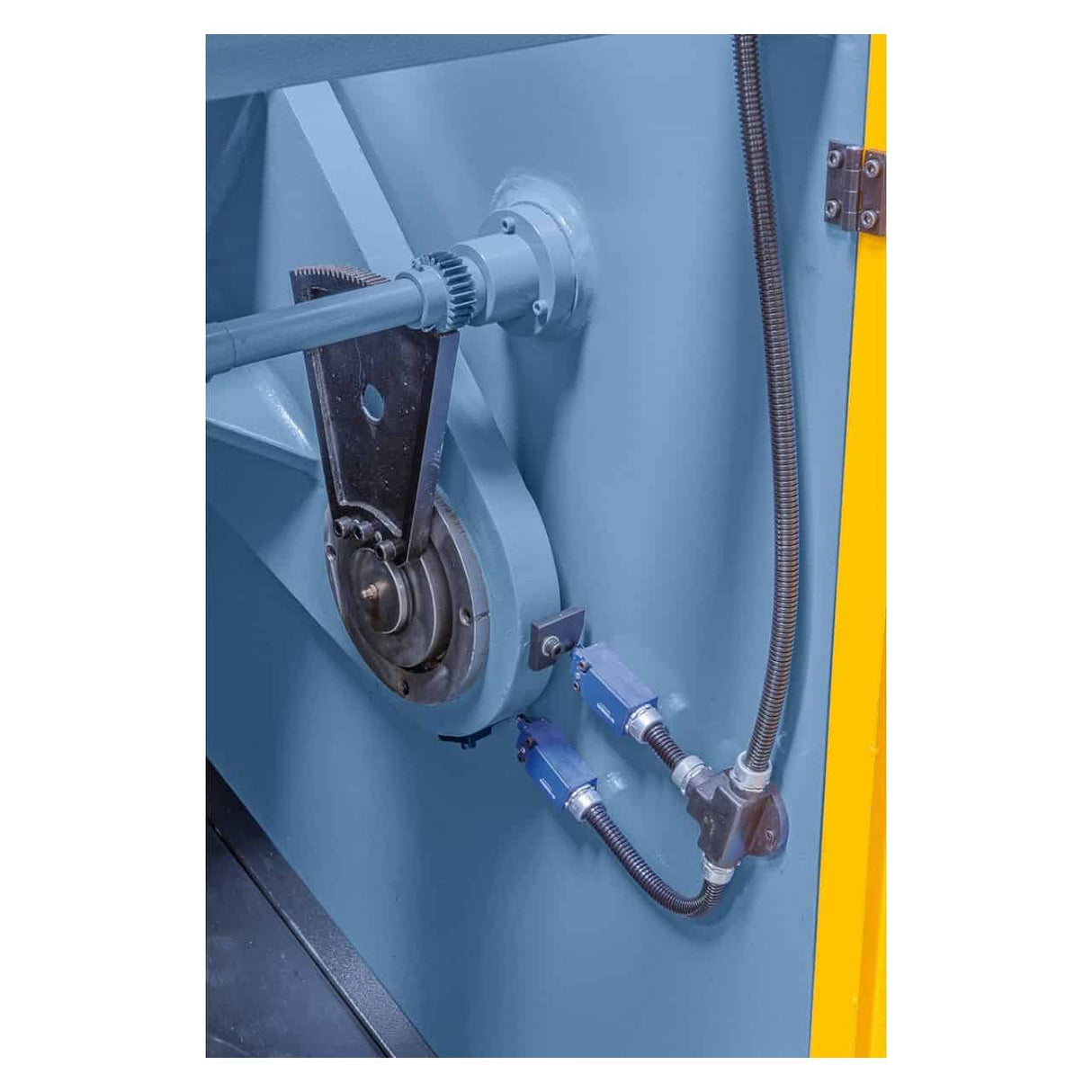

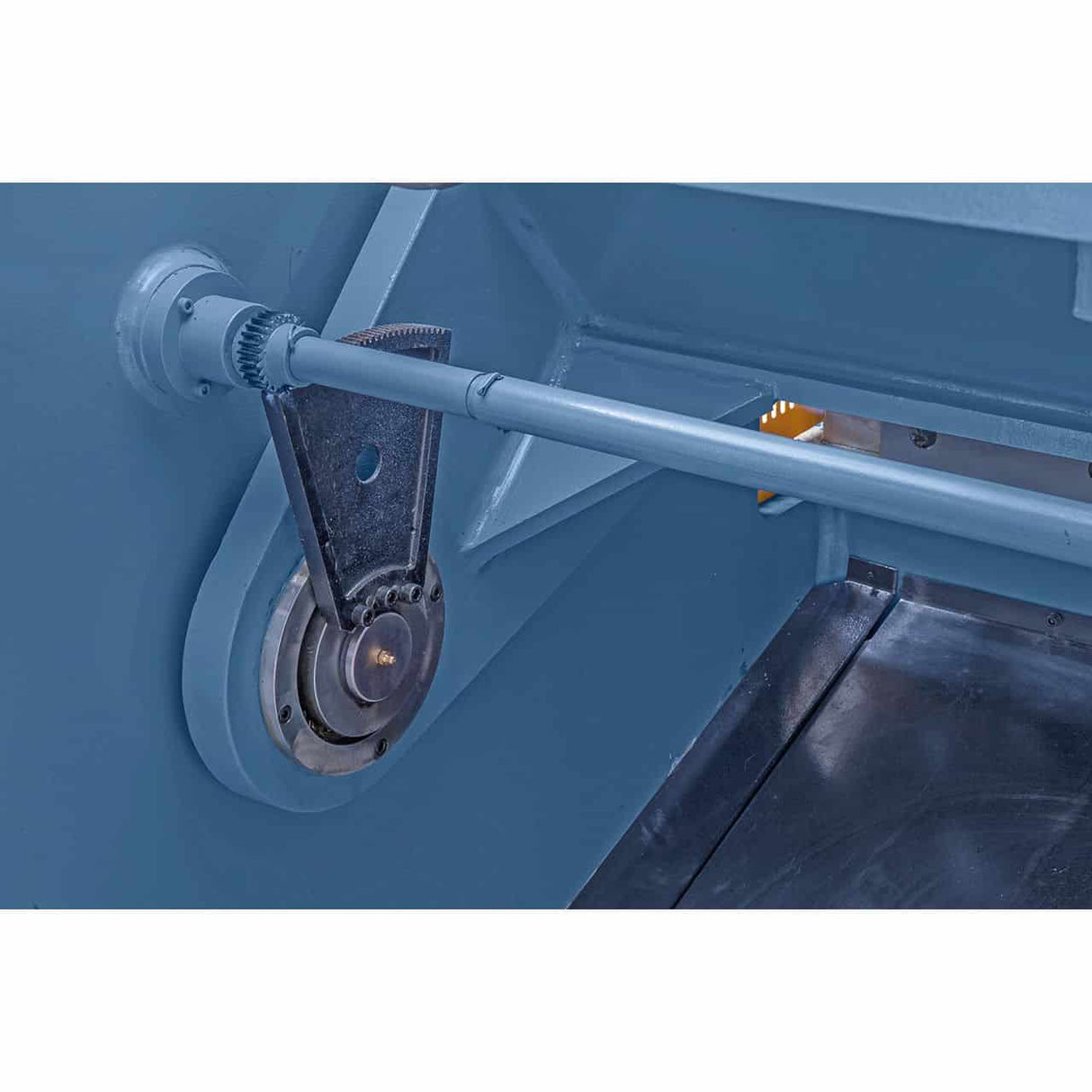

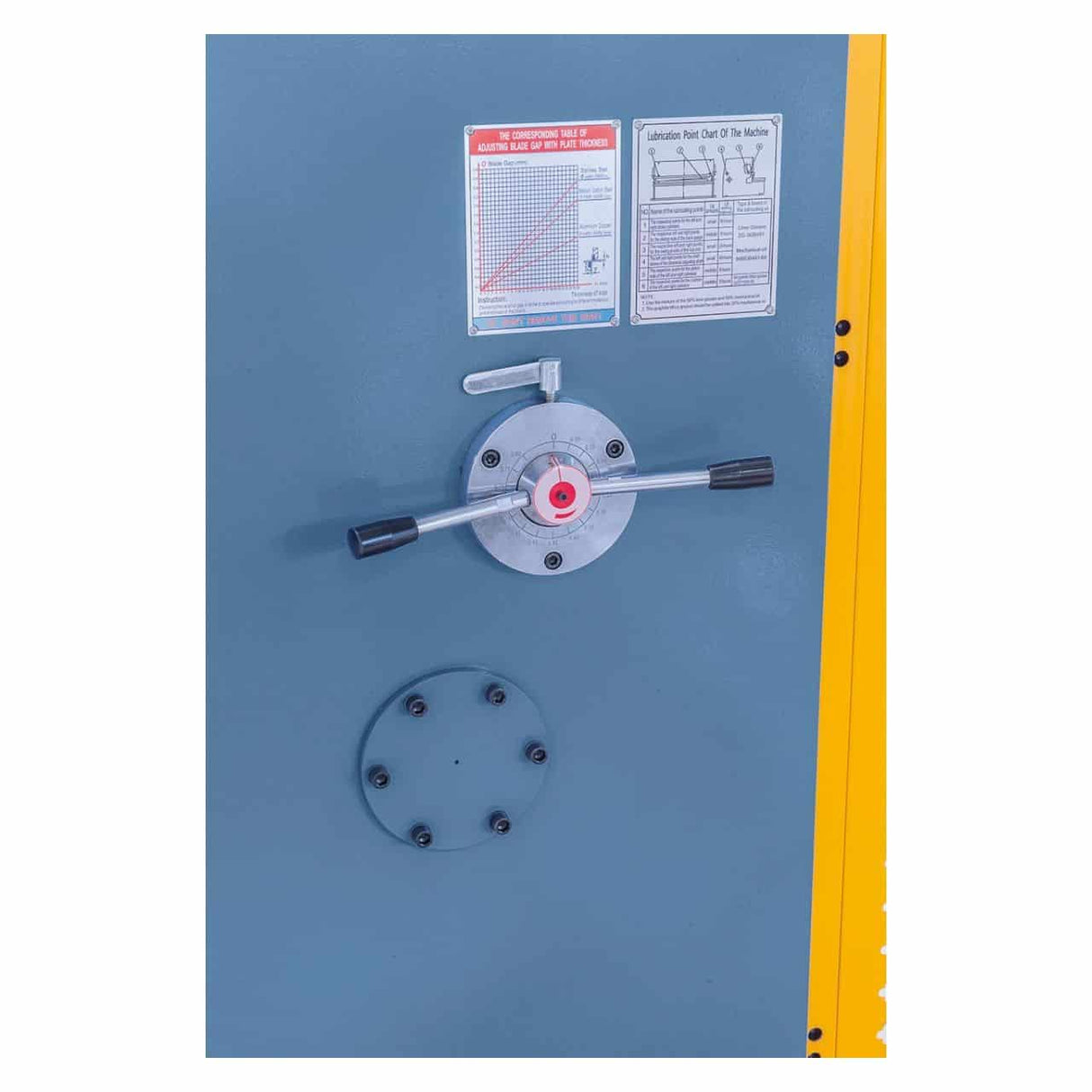

Blade gap adjustment
Cutting area illumination

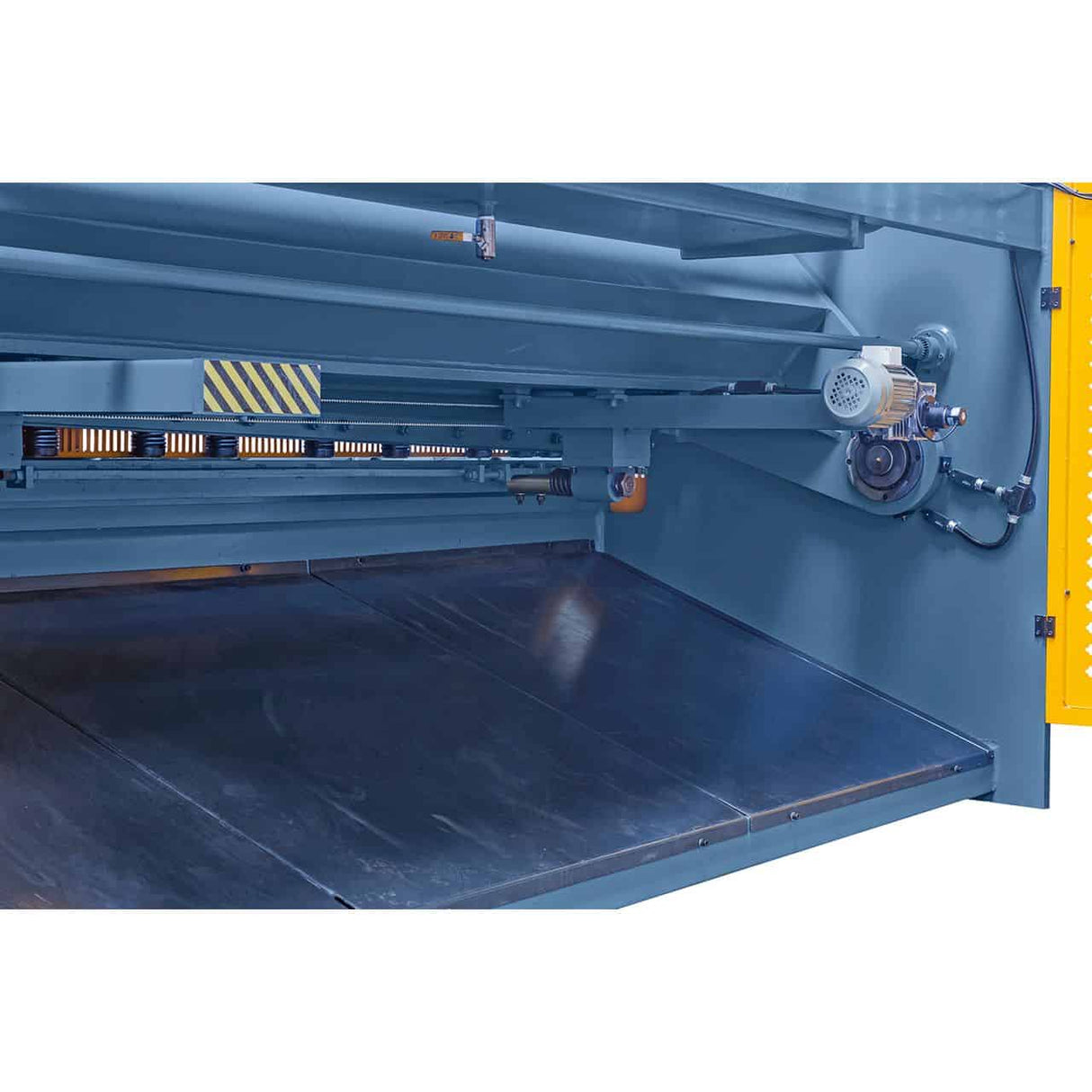

Motorized CNC backgauge

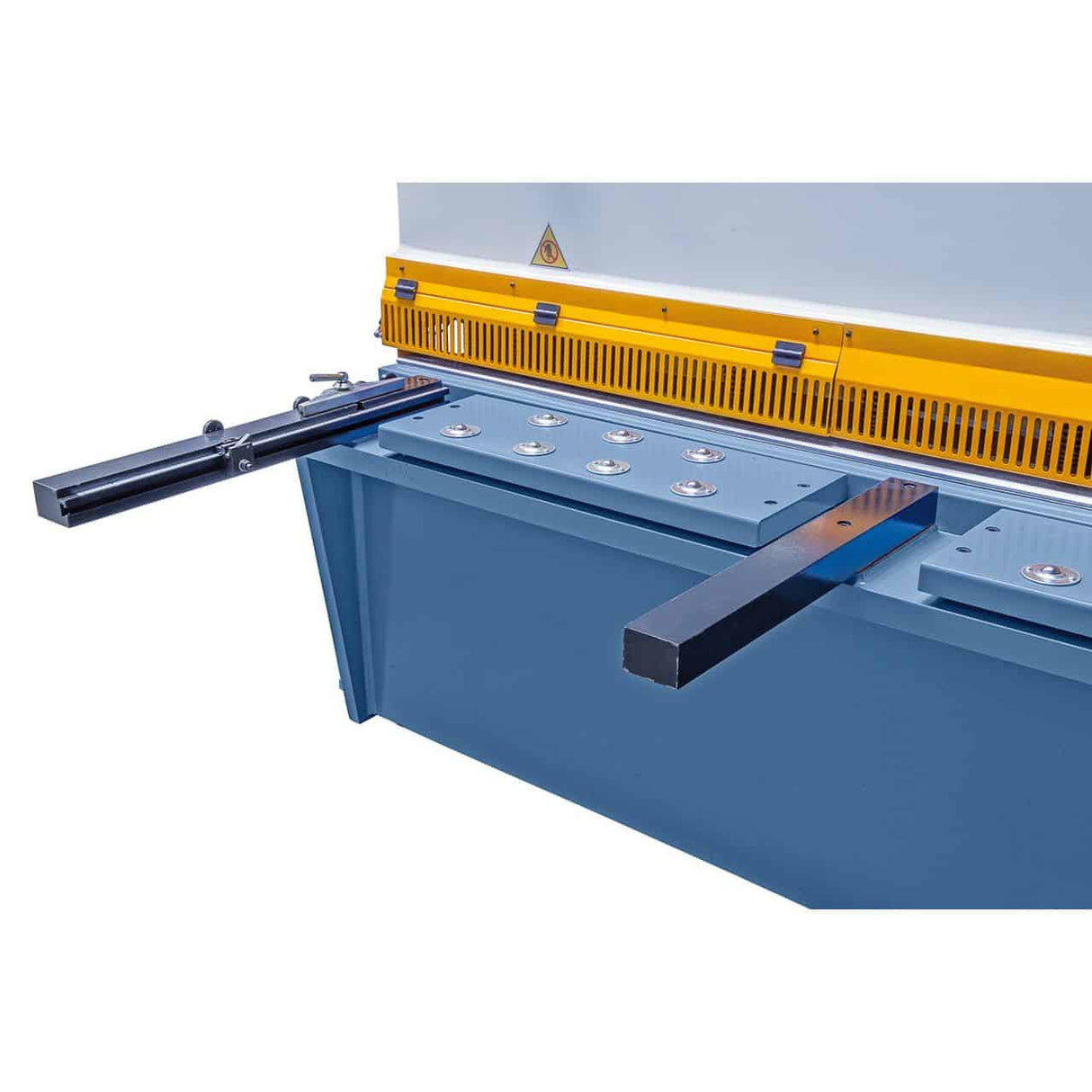

Front sheet supports

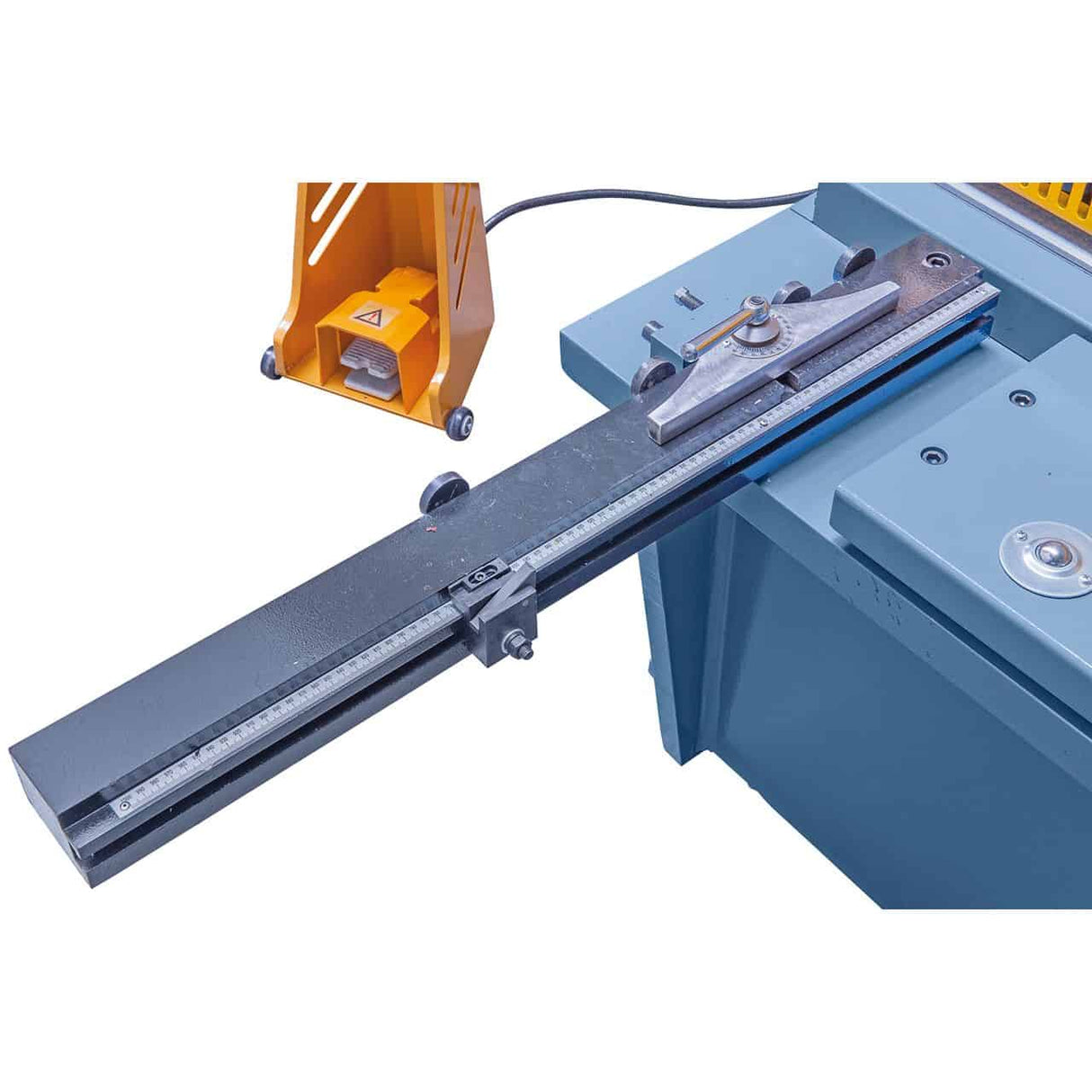

Side and angle stop

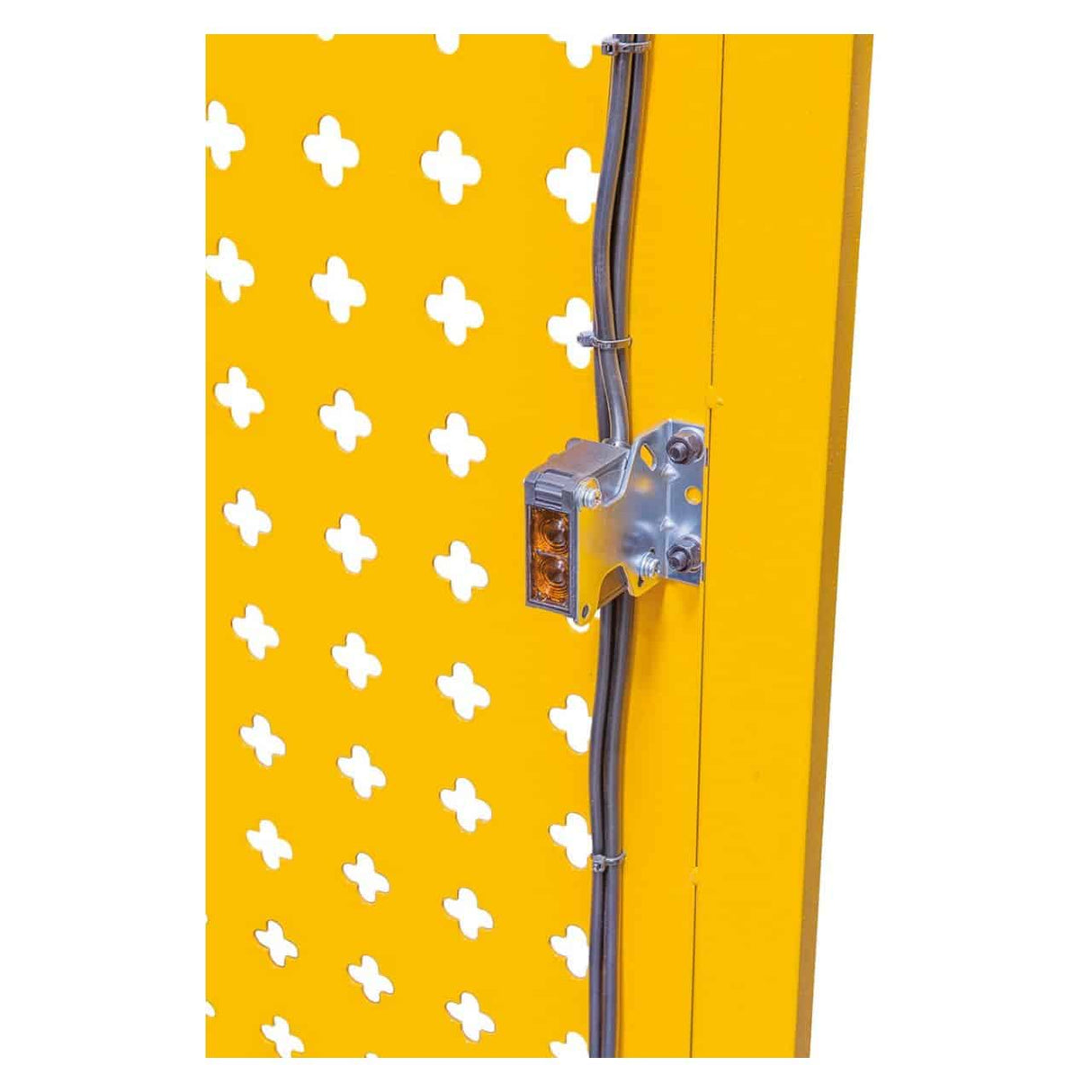

Protective sheet metal with photocells

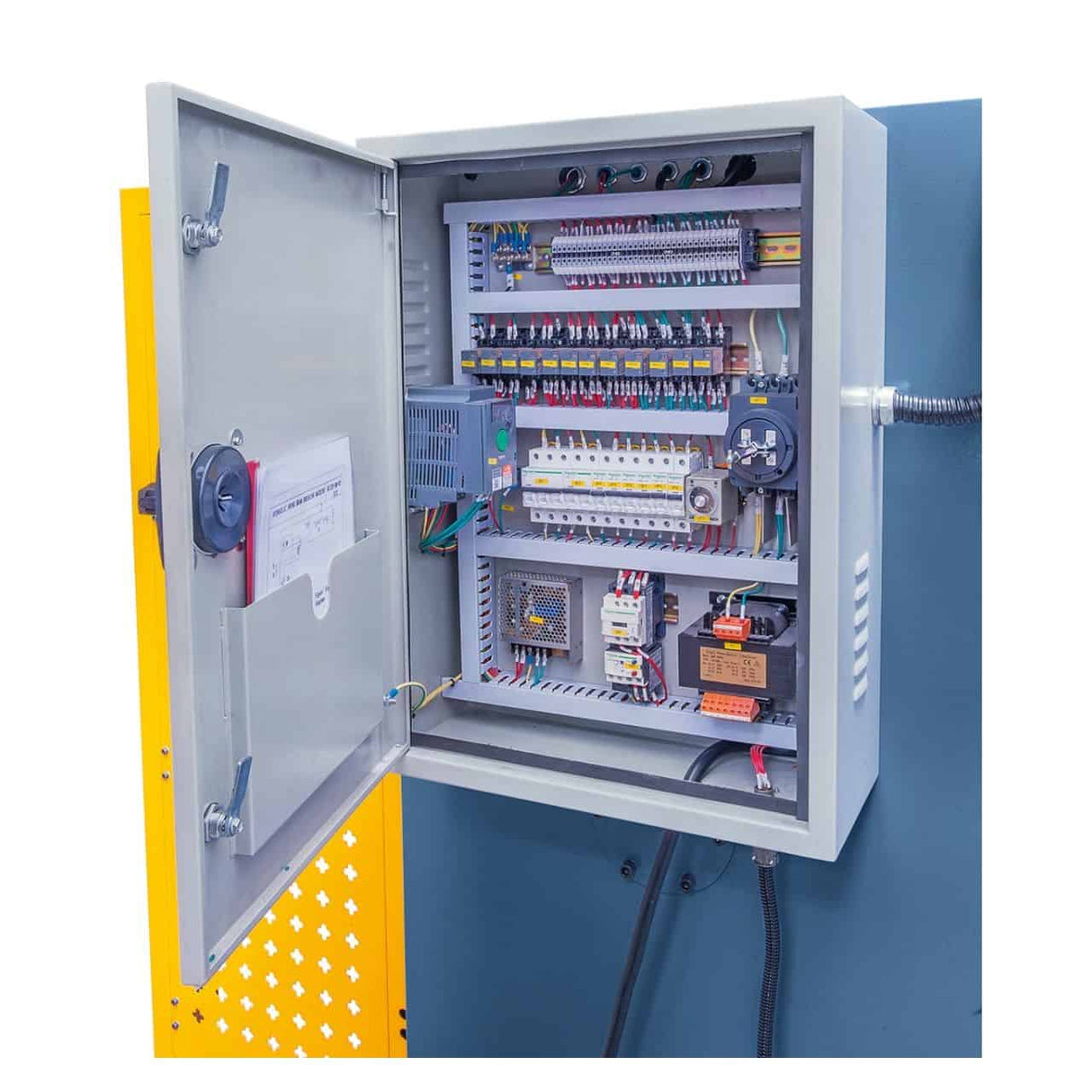

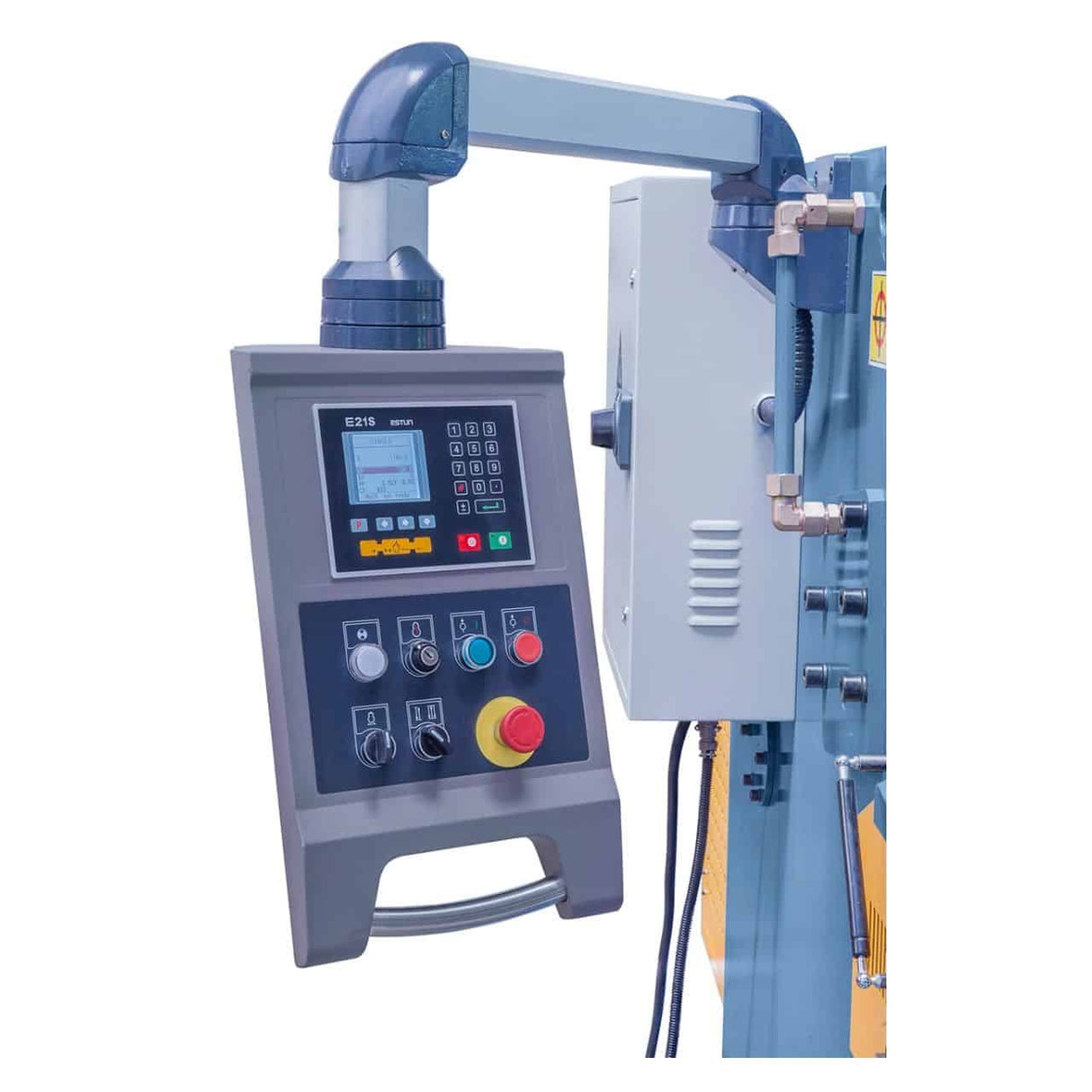

ES21S CNC control unit

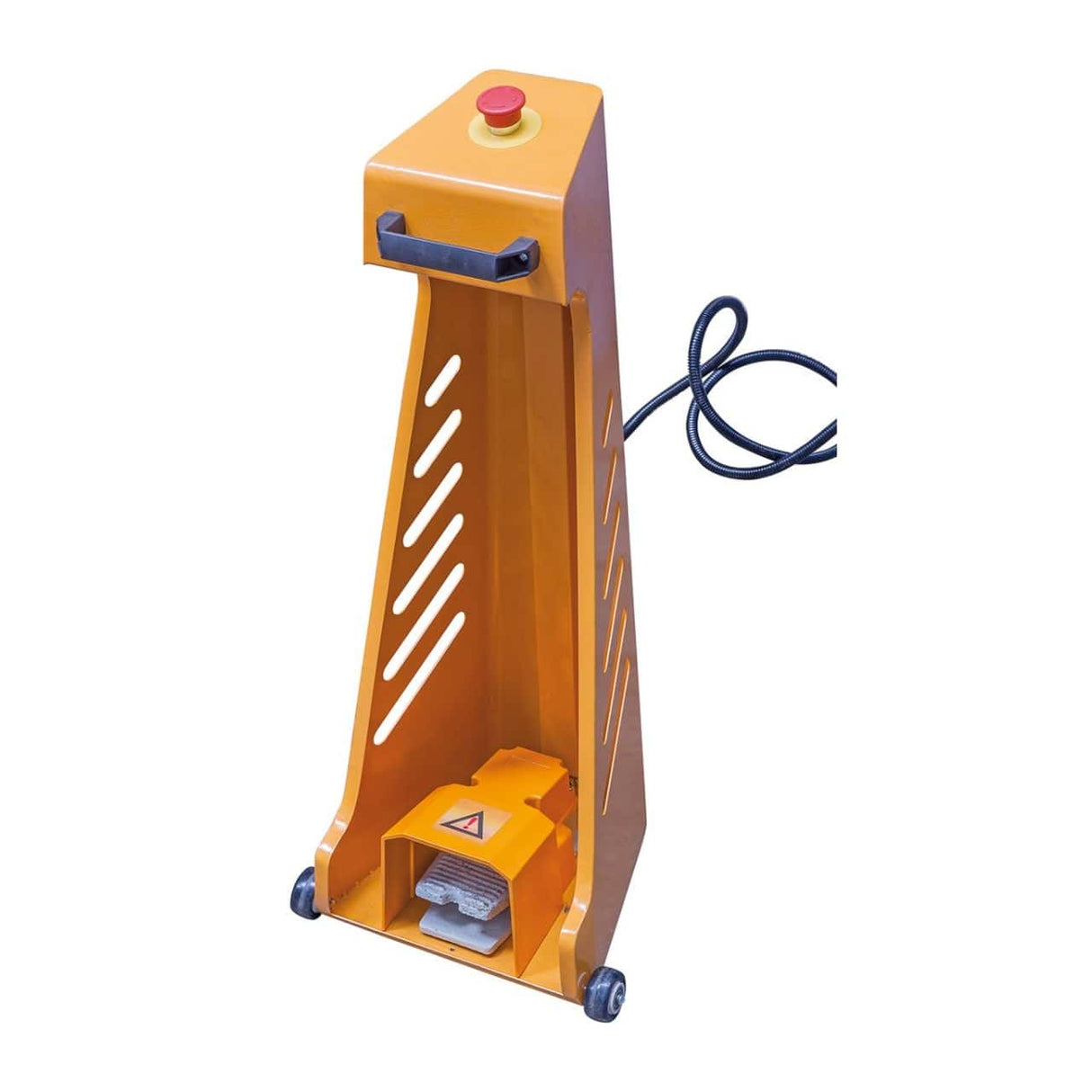

Foot pedal with emergency stop
Tool steel blades

Logistics

Bernardo shipping: 5–9 business days (7 days to Southern Italy). Large machine: coordinate unloading equipment with Krollit. Original spare parts available with 3–5 business day shipping. Customer support available in Italian.

Frequently Asked Questions

Does this shear have integrated CNC control?

Yes. Bernardo HKS and HSB series hydraulic shears come standard with the ES21S CNC control, which manages the automatic cutting cycle, backgauge programming, and diagnostics. The CNC panel allows for programming repeated cycles without manual intervention between cuts.

What is the maximum thickness for stainless steel?

The nominal thickness of 10 mm refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (600 N/mm²), capacity is reduced by 30–40% (approximately 6.5 mm). Please check with Krollit for specific materials.

Are the blades reversible and how long do they last?

Yes. The blades have 4 reversible cutting edges. Durability depends on the material cut and thickness: on standard mild steel, blades last for thousands of cuts before replacement. Original Bernardo blades are available with 3–5 business day shipping.

Is a special foundation required?

Large hydraulic shears require an adequate industrial floor. For machines over 3,000 kg, consult a structural engineer. Coordinate with Krollit before ordering for complete installation specifications.

How much space is needed in the workshop?

Minimum clear space equal to the cutting length (3200 mm) in front of and behind the machine. For coil sheets, add the space for the uncoiler. Contact Krollit for complete machine dimensions.
