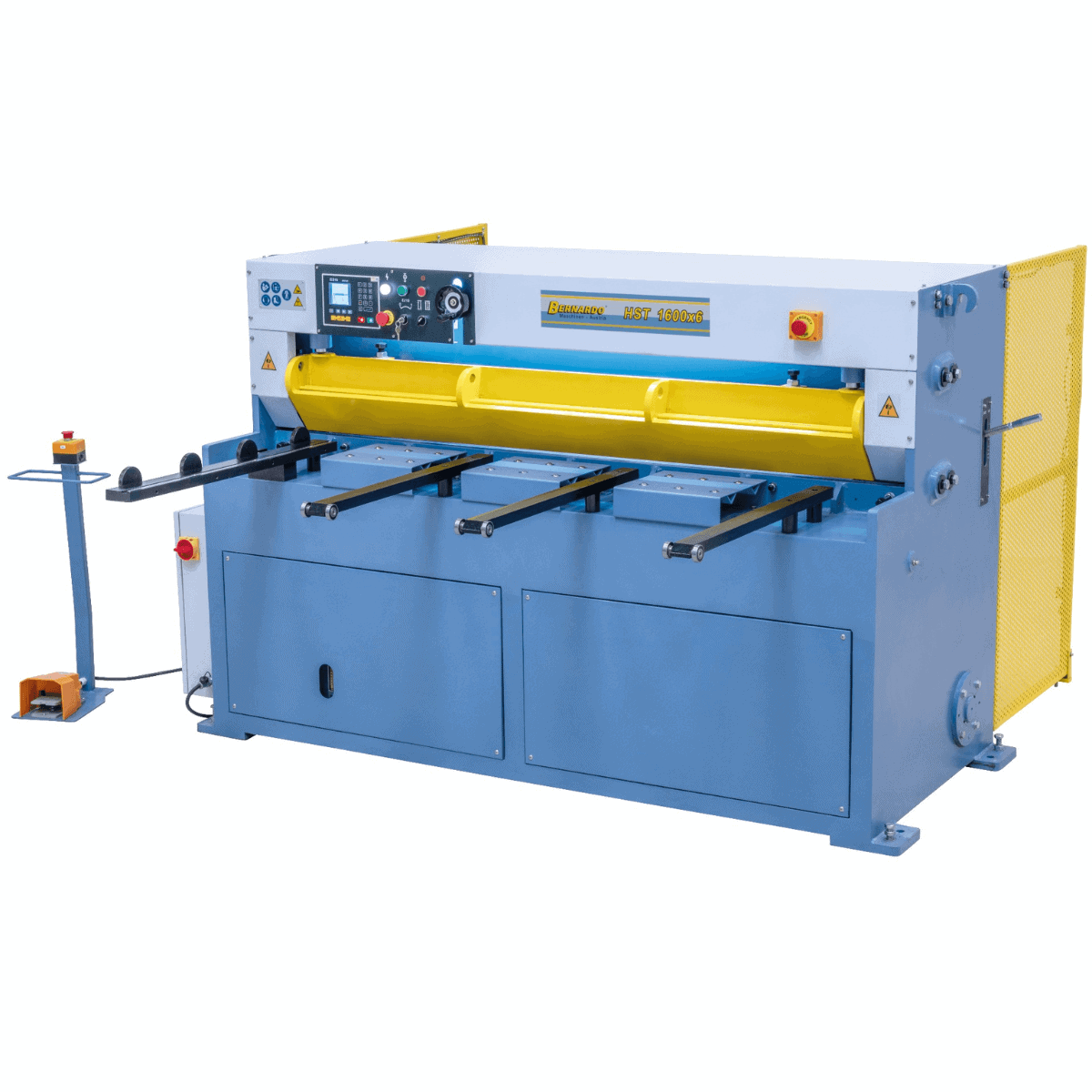

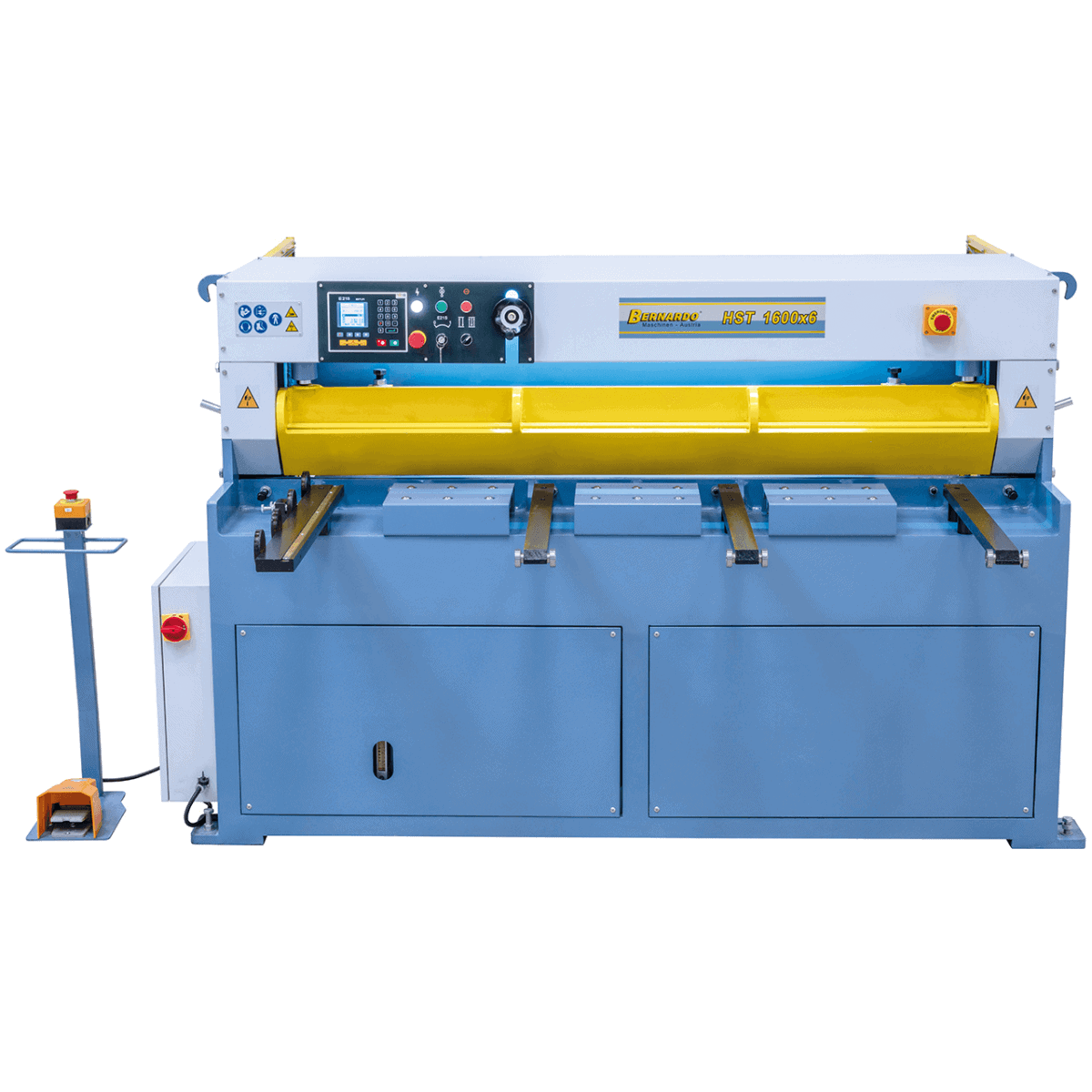

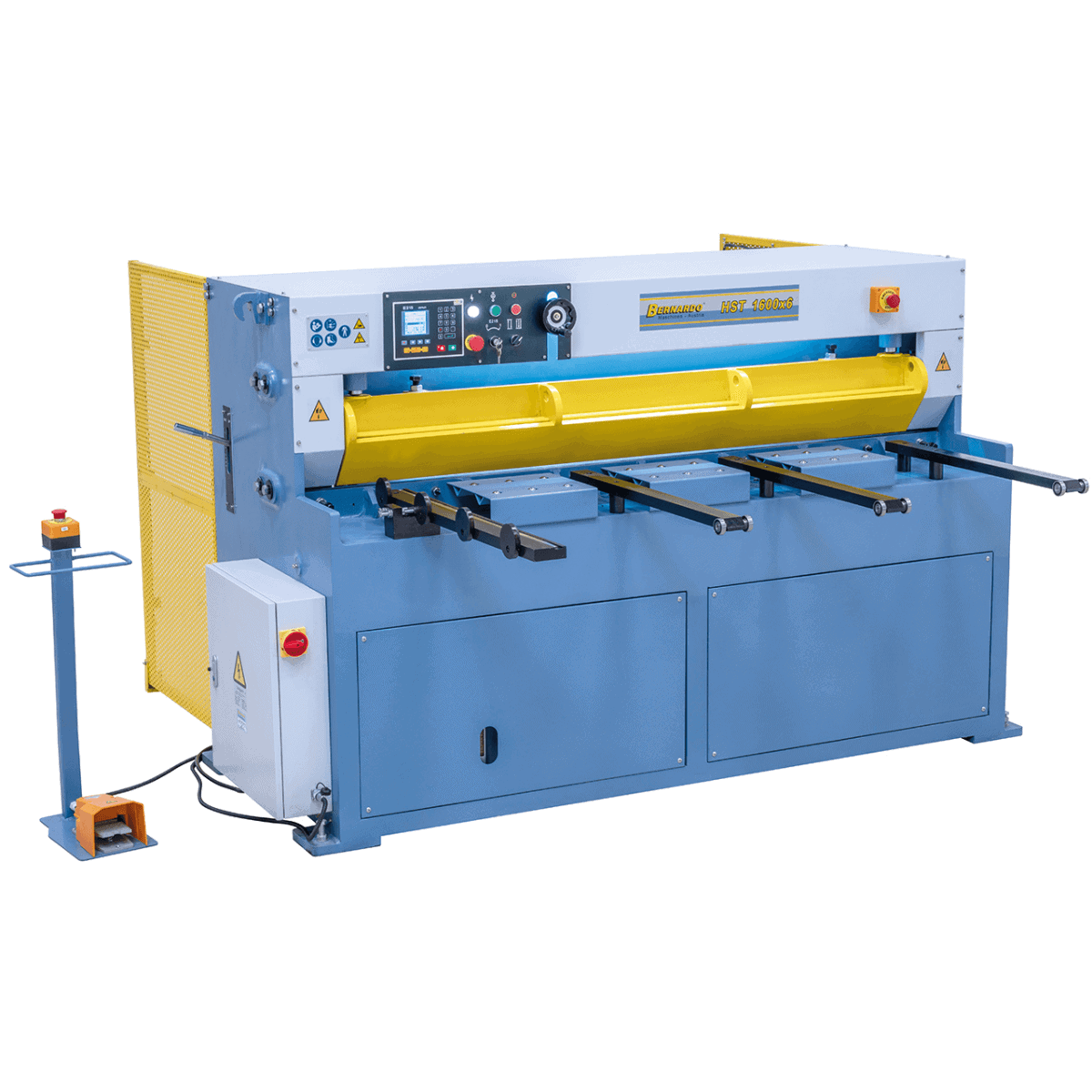

Bernardo HST 1600 x 4 Hydraulic Guillotine Shear
-
Description
-
Sicurezza del prodotto
-
Reviews
Description
Bernardo HST 1600 x 4 is a hydraulic guillotine shear for professional use, with a 5.5 kW motor, weighing 2250 kg. Krollit, official Bernardo distributor since 2007.
- Brand: Bernardo
- Model: HST 1600 x 4
- Cutting length: 1600 mm
- Max. sheet thickness (400 N/mm²): 4 mm
- Cutting angle: 2°

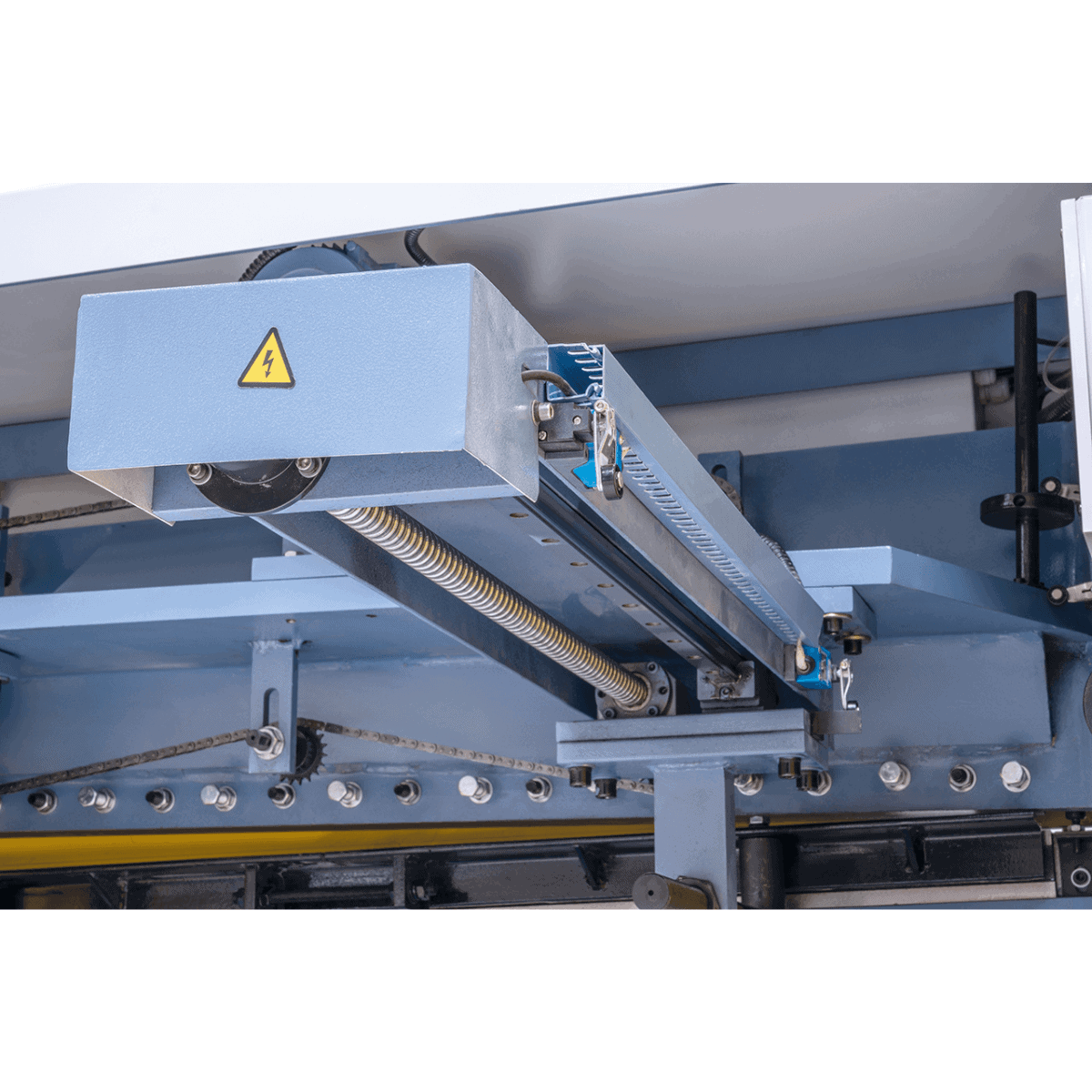

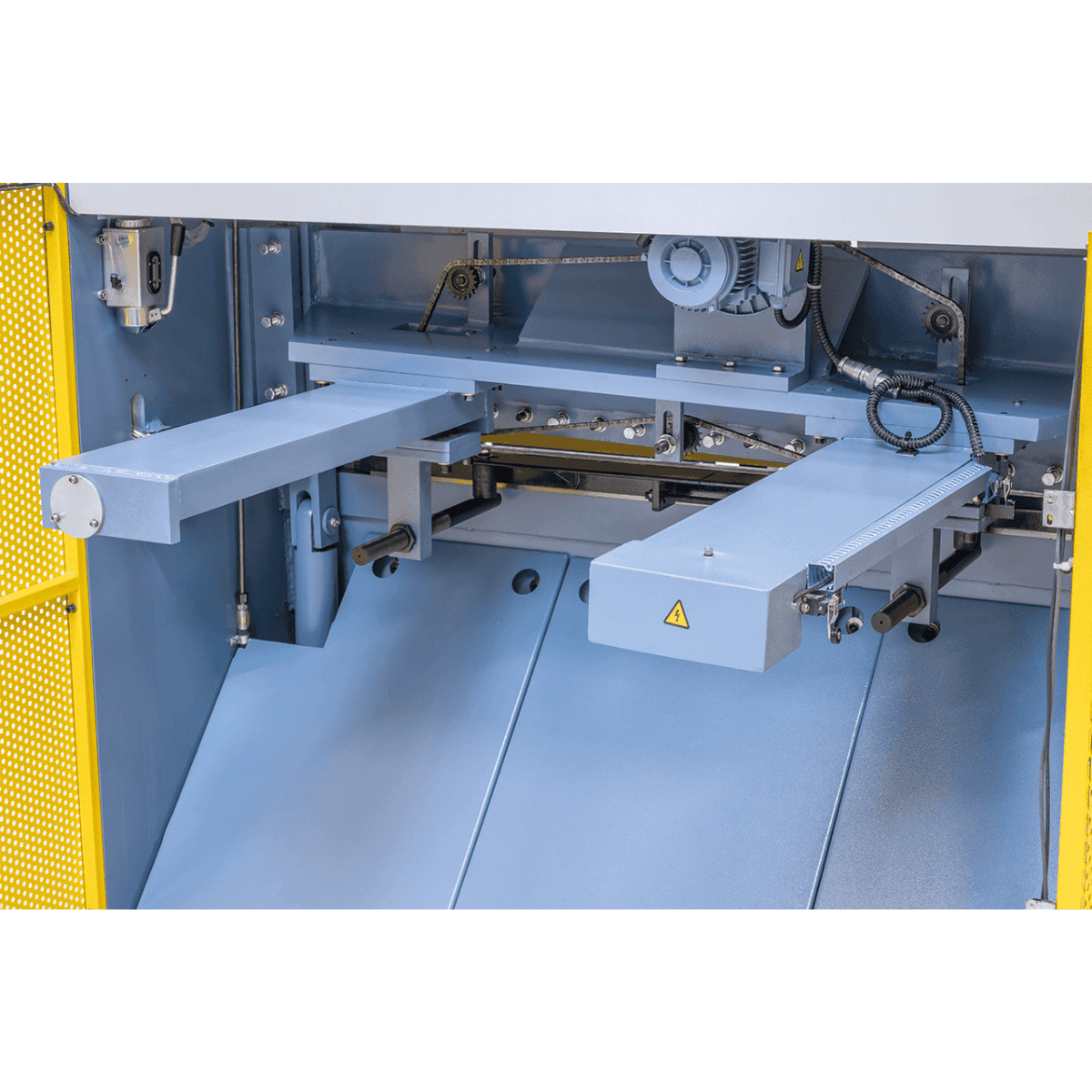

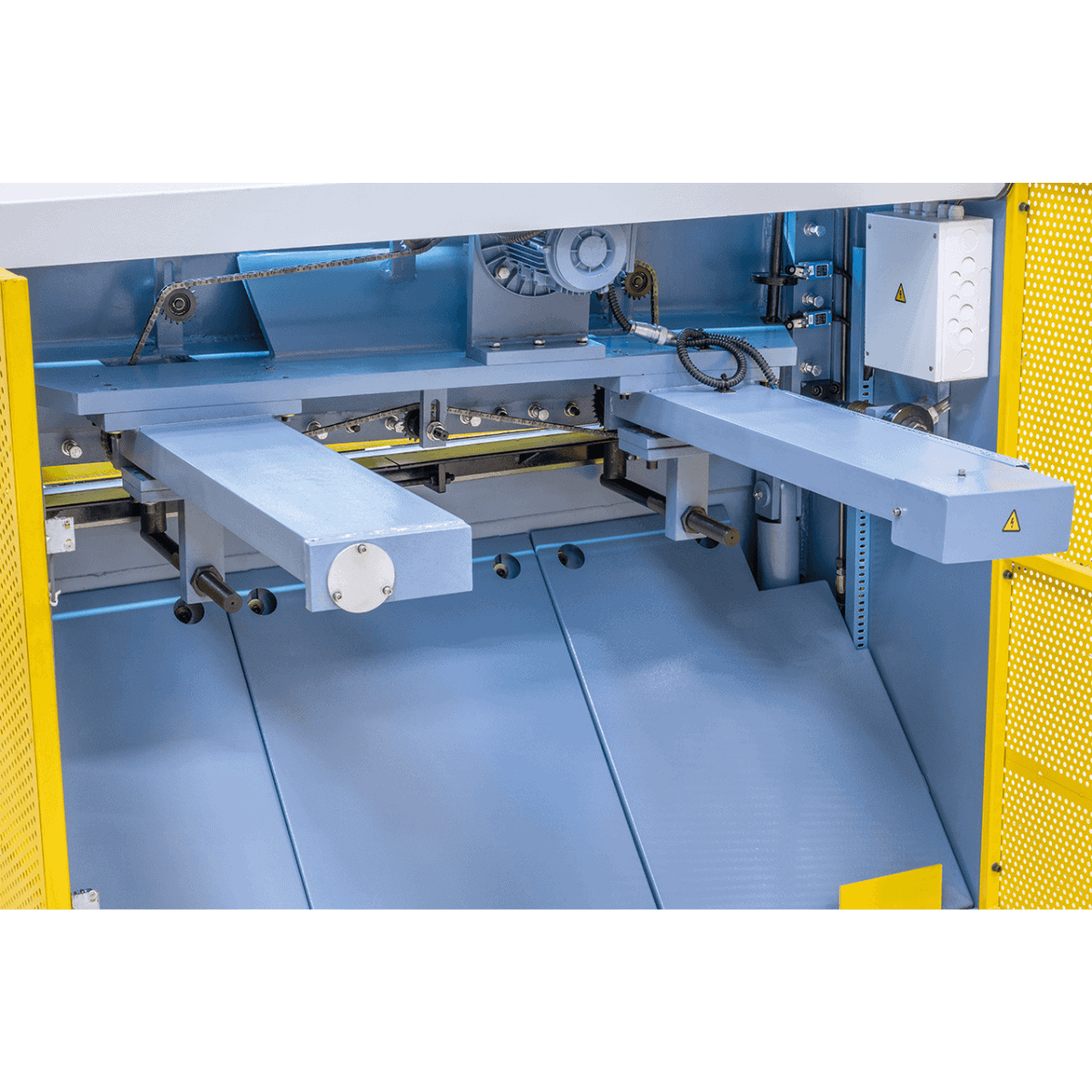

- Motorized backgauge: 0 – 700 mm
- Strokes per minute: 16
- Hold-downs: 1 piece
Who uses the HST 1600 x 4 and for what
Metal fabricating shops and sheet metal workshops use the HST 1600 x 4 for straight cutting of steel, aluminum, and stainless steel sheets, with repetitive cycles on standard sheets.
Its place in the Bernardo range
The Bernardo HST 1600 x 4 is part of the Bernardo guillotine shear range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Italian-speaking customer service available for technical documentation, product sheets, and spare parts order management. Krollit is an official distributor since 2007.
Who the HST 1600 x 4 is for
| Profile | Compatibility | Reason |
|---|---|---|
| Metal fabricating shops and sheet metal workshops | Suitable | Straight cutting of steel, aluminum, and stainless steel sheets |
| Series sheet metal processing | Suitable | Repetitive cycles on standard sheets up to declared thicknesses |
| Shaped and curvilinear cuts | Not recommended | The shear only performs straight cuts: for shapes, consider punch presses or lasers |
Not recommended for: shaped and curvilinear cuts (the shear only performs straight cuts: for shapes, consider punch presses or lasers).
Processing capacity
| Cutting length | 1600 mm |
| Cutting angle | 2° |
Table and dimensions
| Strokes per minute | 16 |
| Table height | 850 mm |
| Machine length | 2370 mm |
| Height | 1365 mm |
Motor and power supply
| Motor power | 5.5 kW |
Other specifications
| Brand | Bernardo |
| Model | HST 1600 x 4 |
| Max. sheet thickness (400 N/mm²) | 4 mm |
| Motorized backgauge | 0 – 700 mm |
| Hold-downs | 1 piece |

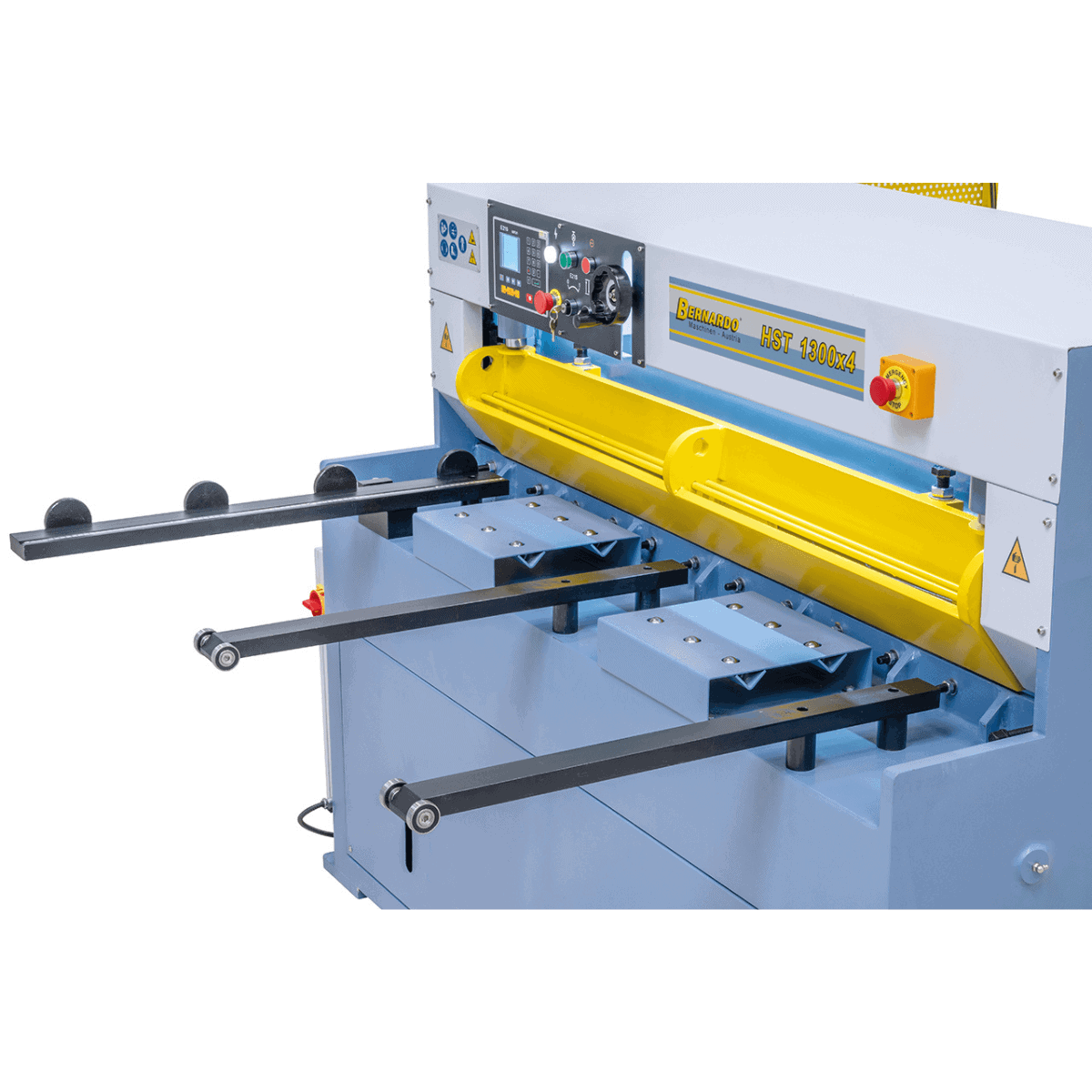

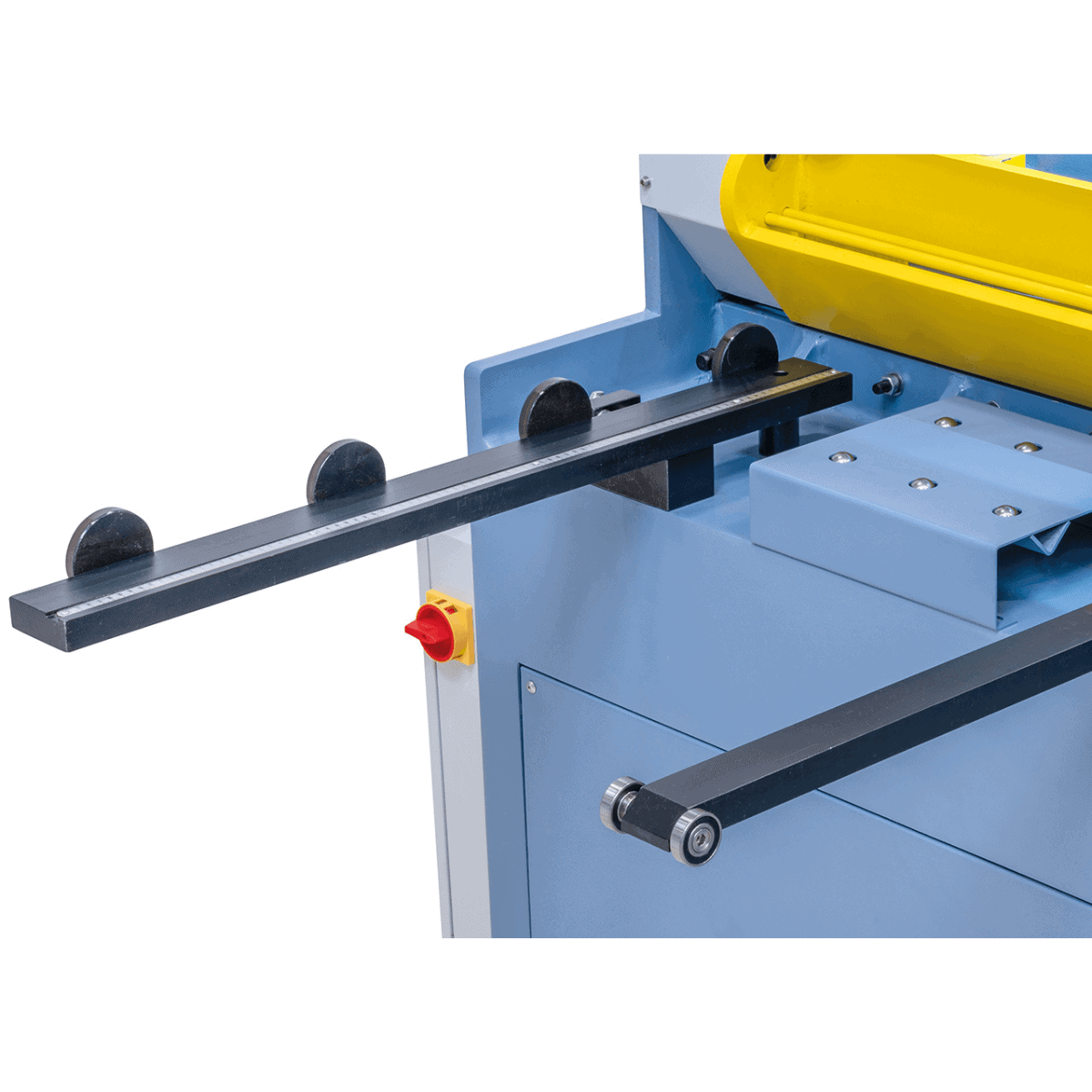

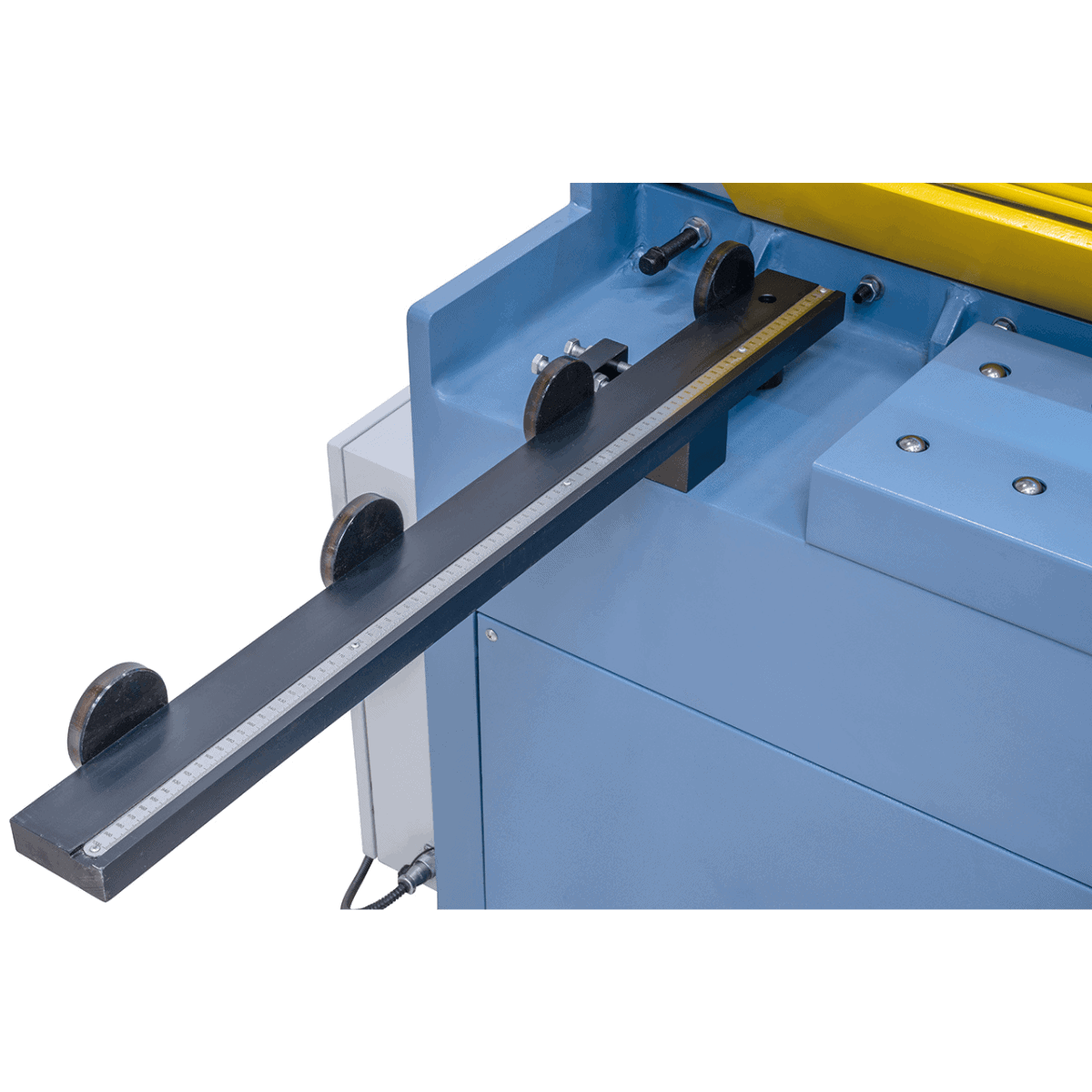

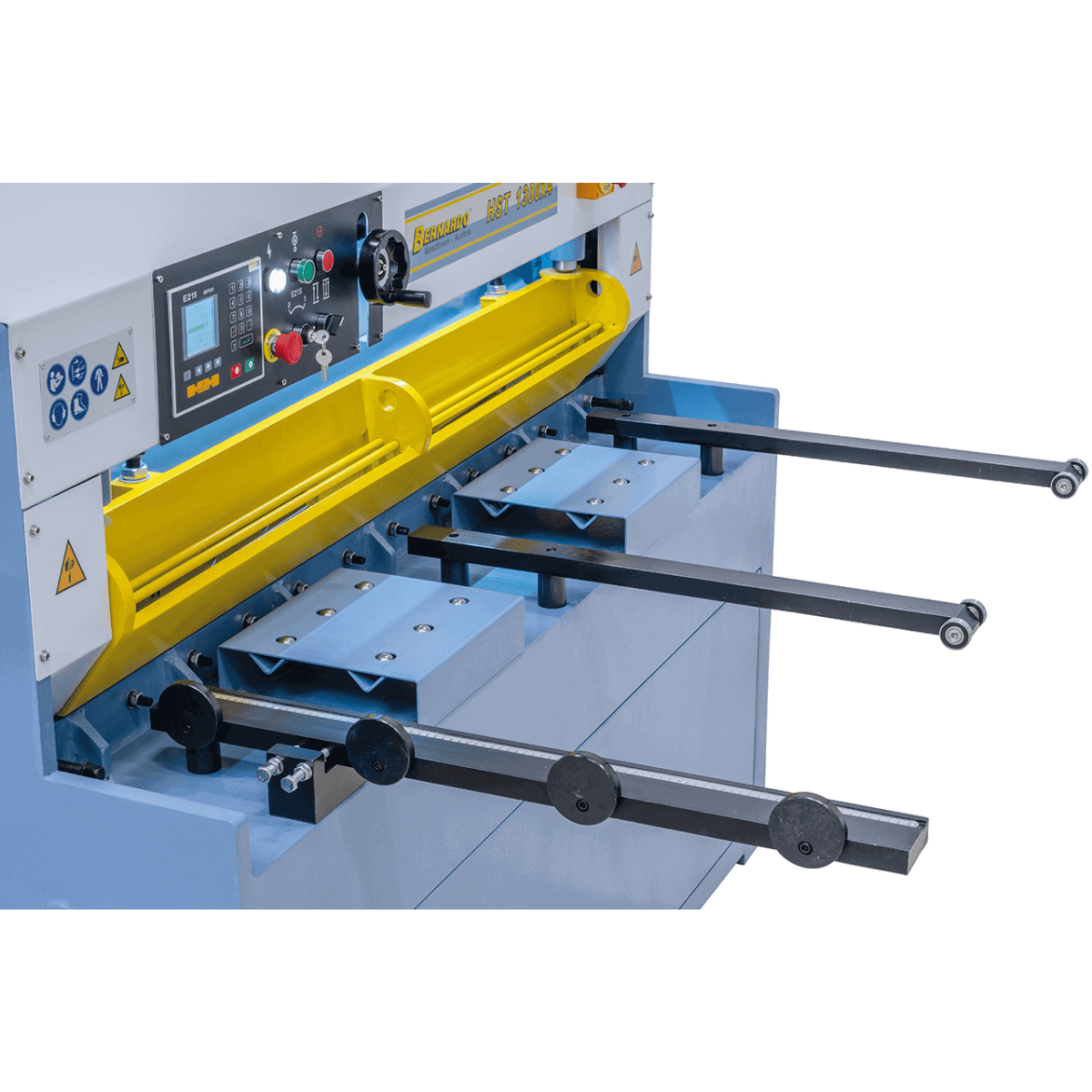

| Support arms | 4 pieces |
| Oil tank | 80 liters |
| Depth | 2140 mm |
| Weight | 2250 kg |
Frequently Asked Questions
What sheet thickness can it cut?
See "Cutting capacity" in the technical table: typically 1 to 6 mm on mild steel.
The capacity refers to S235 steel. For stainless steel or high-strength alloys, the actual capacity is lower (about 70-80% of the declared value).

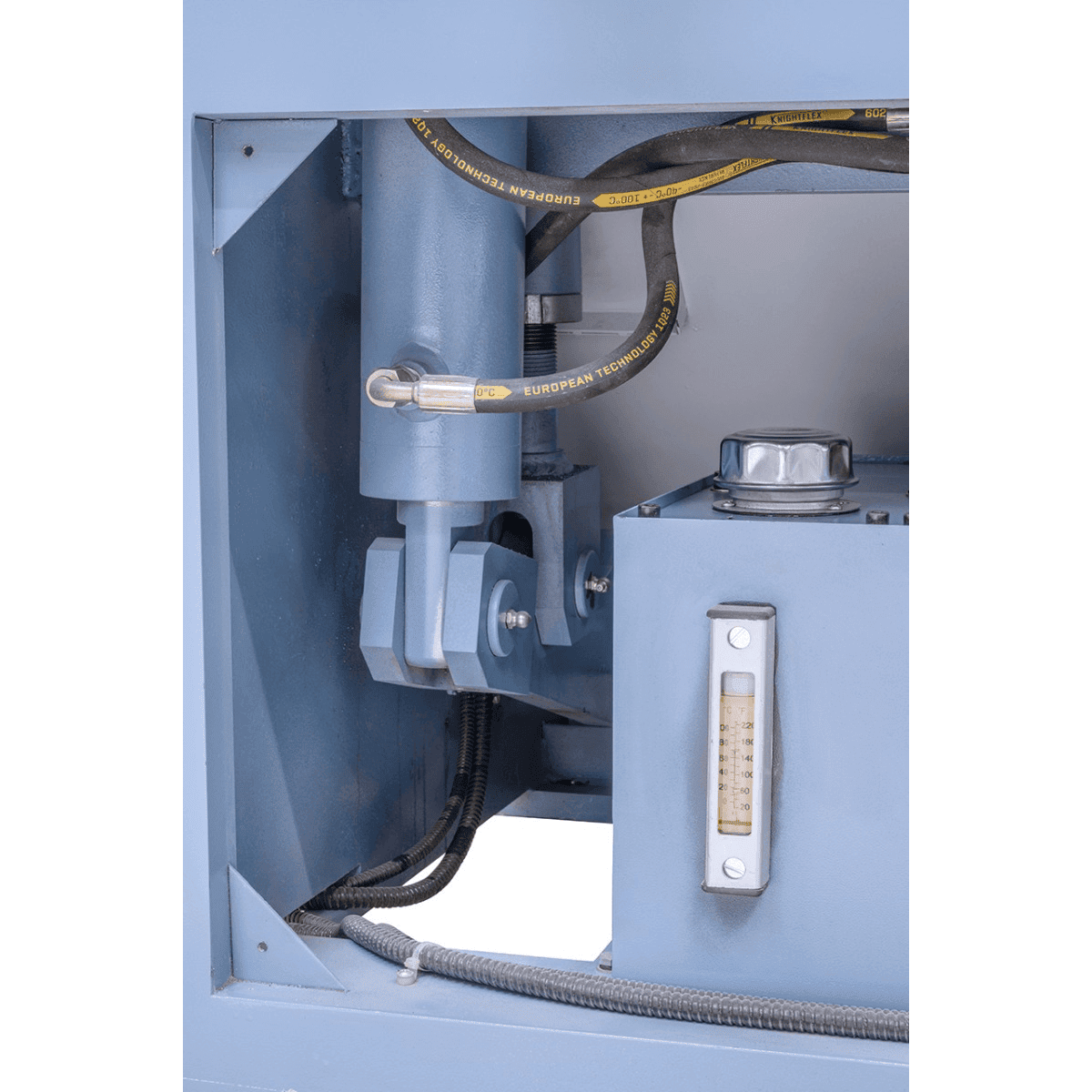

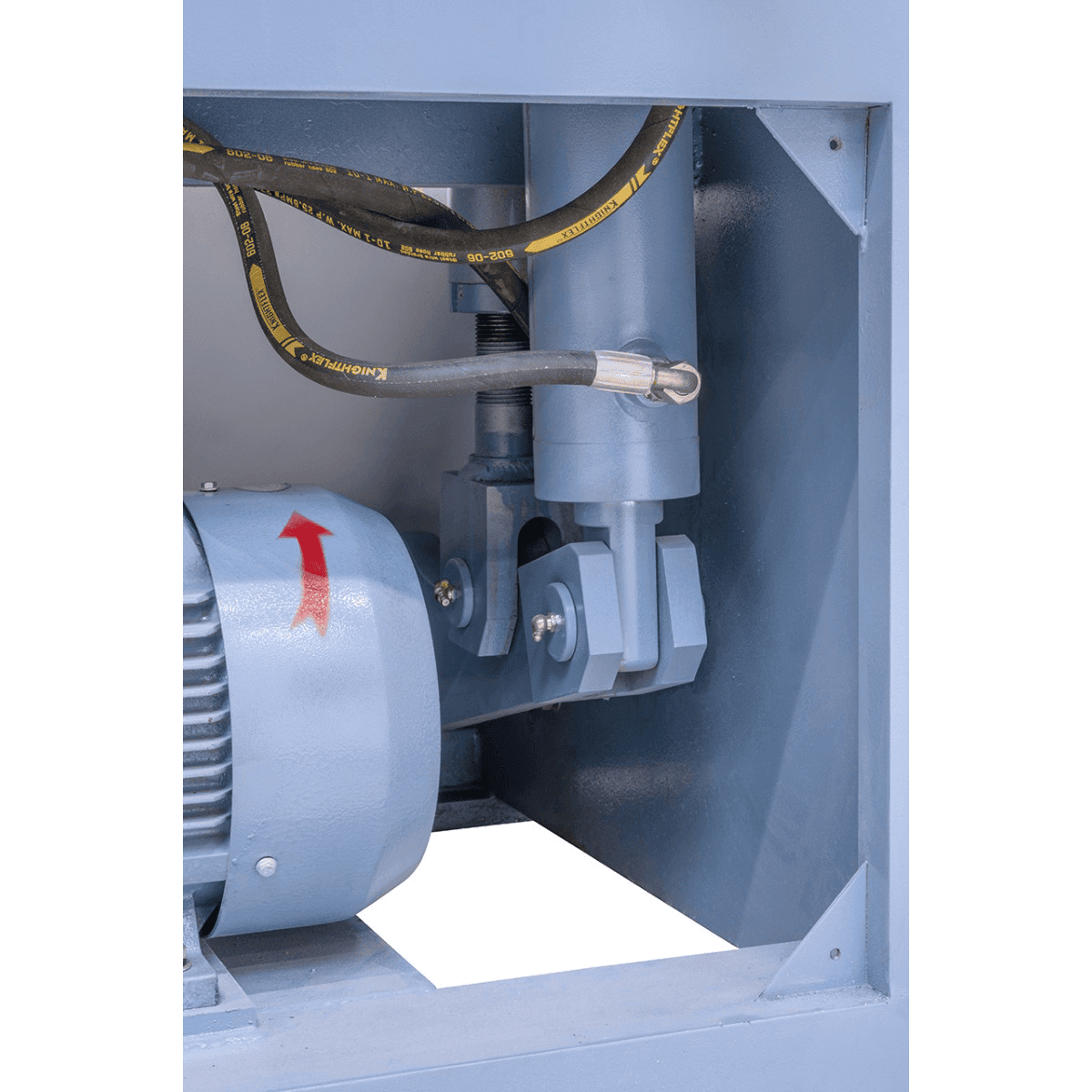

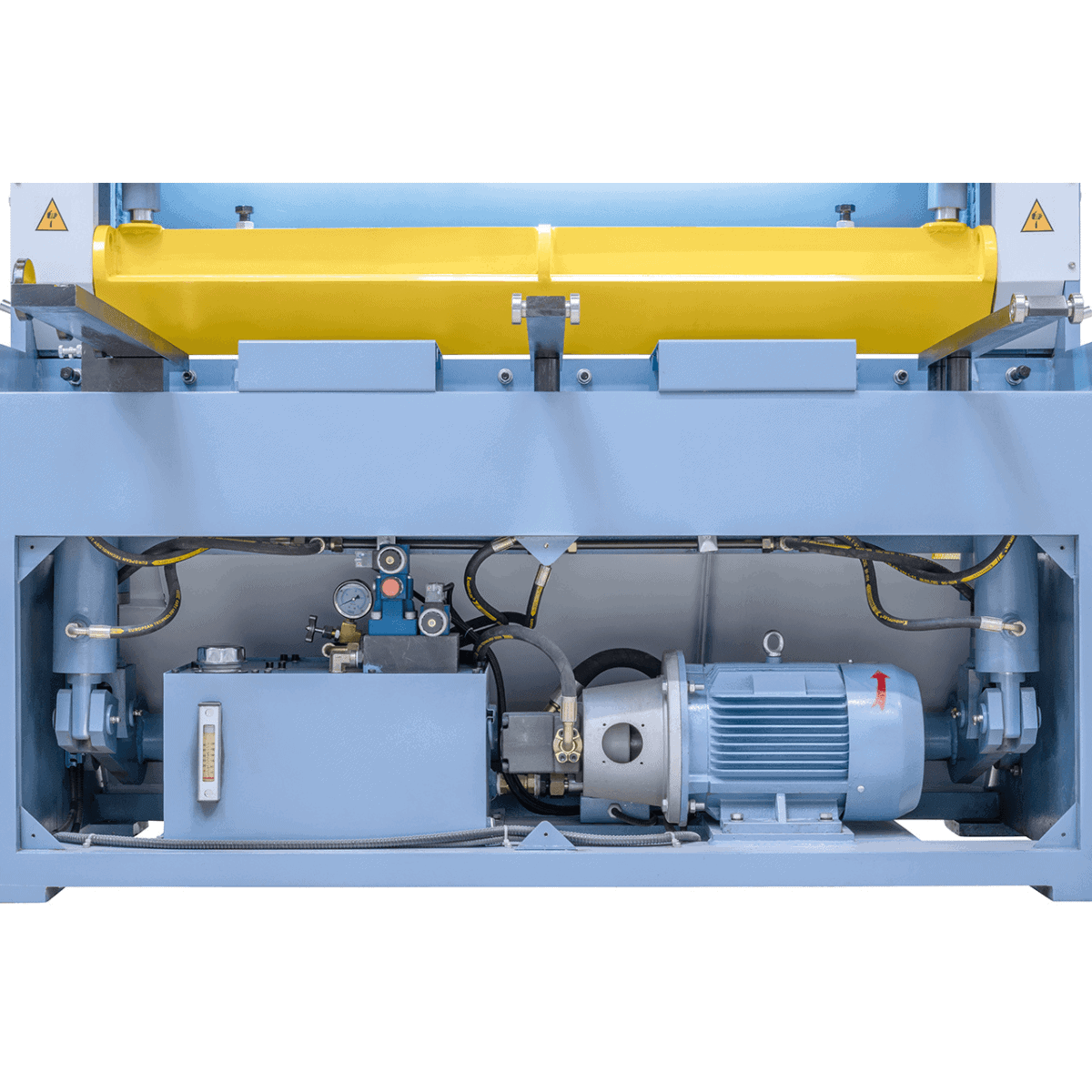

How does the hydraulic system work?
Hydraulic unit with electric pump and cylinders that drive the moving blade against the fixed blade.
The hydraulic system requires periodic maintenance with specific hydraulic oil. The pressure is factory-set for nominal capacity.
What cutting length does it offer?
The effective length is indicated in the technical table (typically 1,000-3,000 mm).
The cutting length determines the maximum size of the workpiece that can be processed in a single pass. For longer pieces, multiple passes with repositioning are required.

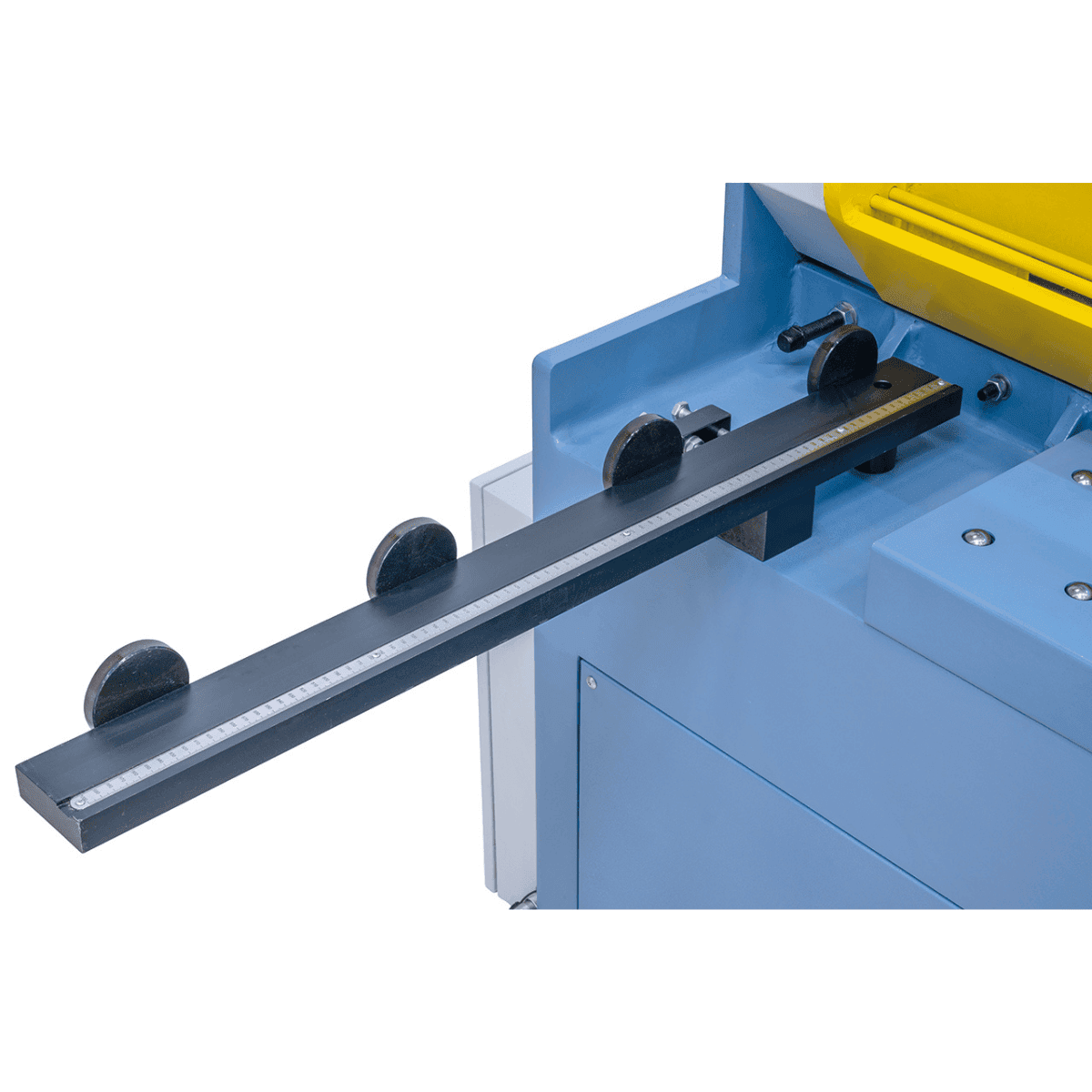

Does the machine have a guide and backstops?
Yes, professional hydraulic shears have a rear guide with an adjustable backstop.

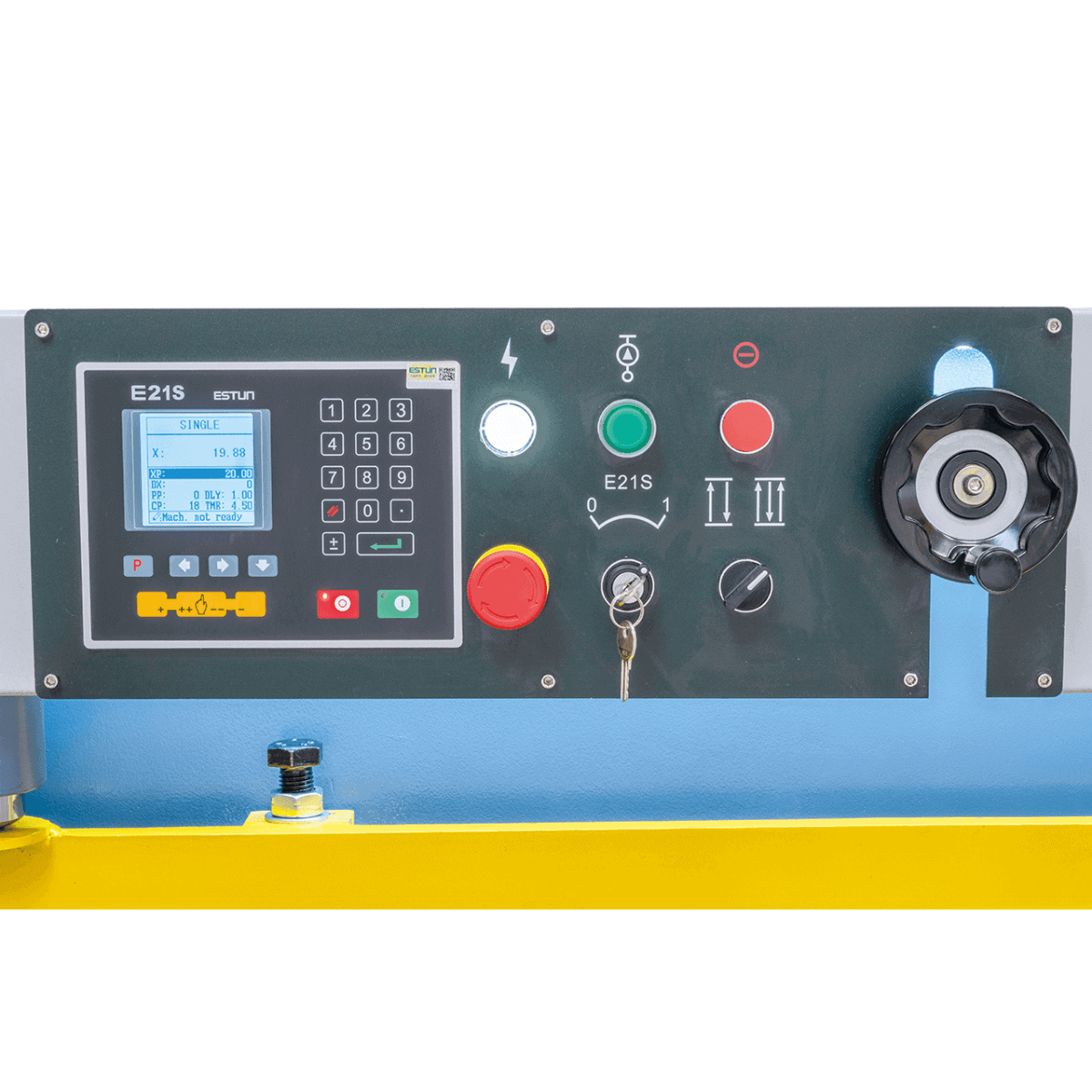

The backstop allows repeated cuts to the same measurement without the need for marking. Advanced models offer CNC for automatic positioning.

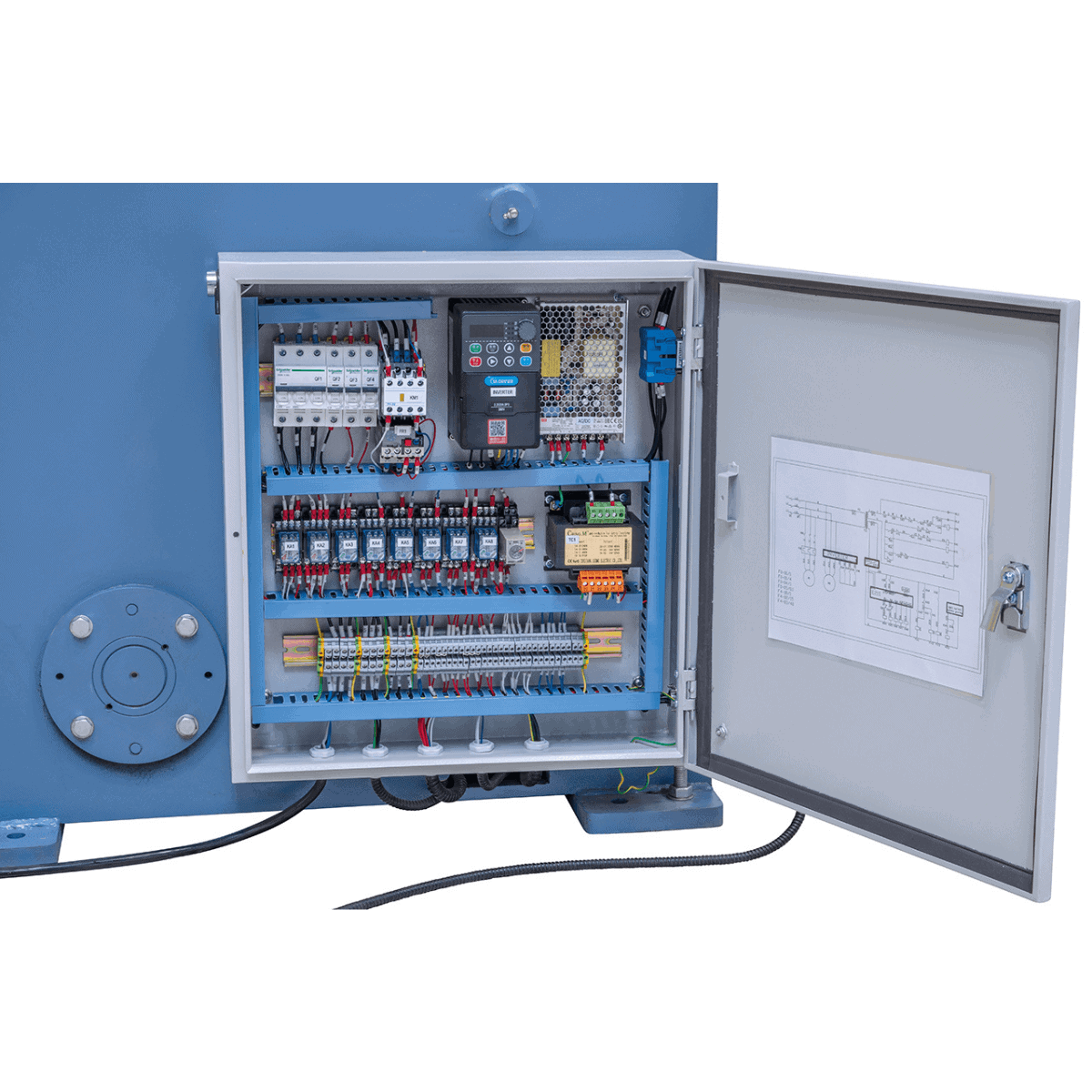

What electrical power does it require?
See "Motor power" in the technical table: typically 4 to 22 kW (400 V three-phase).
Shears are industrial machines that require a dedicated 400 V three-phase power line. Check the absorbed power at start-up to correctly size the cables.
