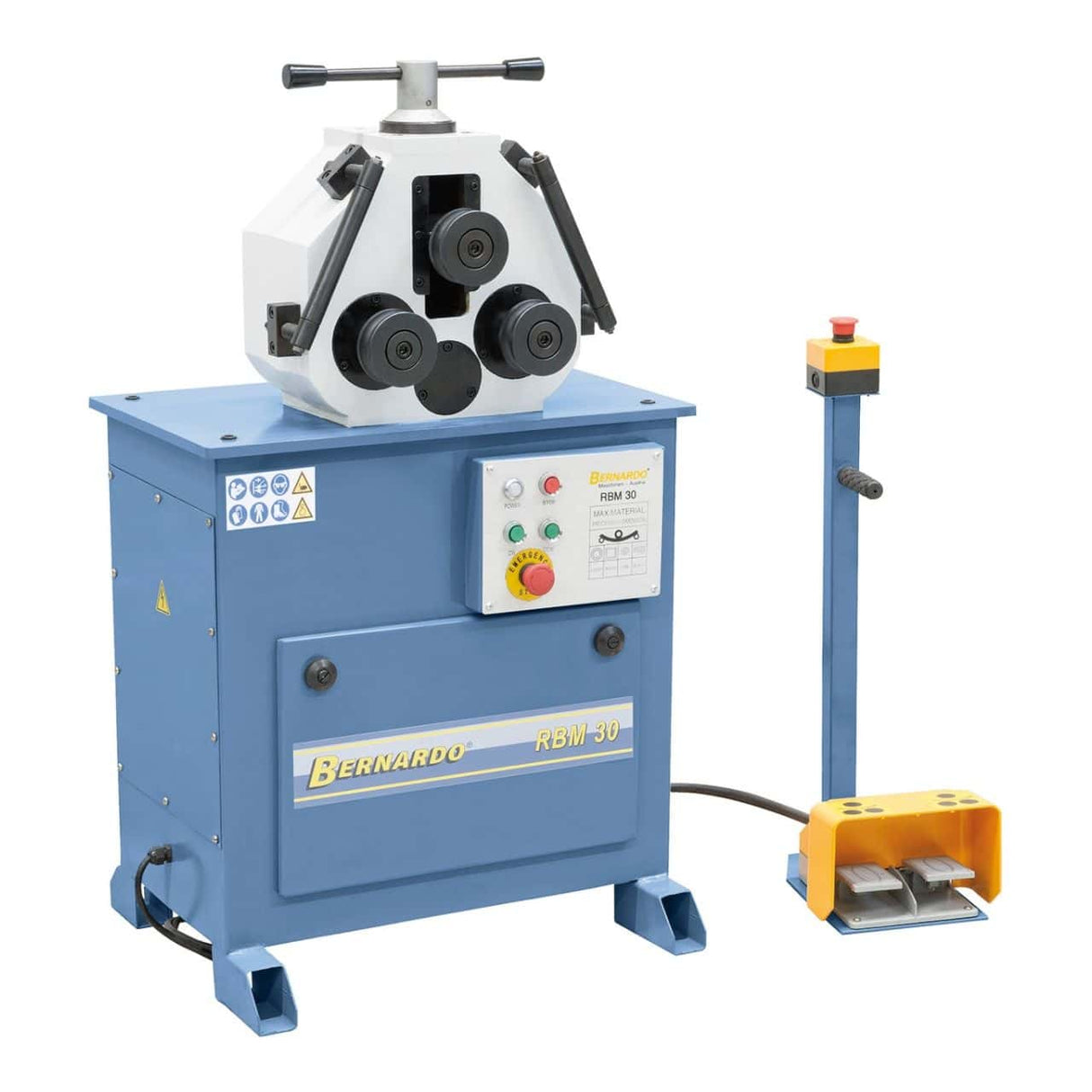

Bernardo RBM 30 – Electric tube bender with included roller sets
The Bernardo RBM 30 electric tube bender is designed for precise bending of round, square, flat tubes and solid materials. Thanks to the 6 pairs of rollers supplied, it allows for the processing of various profiles with great versatility. The lower rollers are driven by the electric motor, while the advance of the upper roller is mechanically adjusted via a screw. The shafts, made of special hardened and ground steel, guarantee long life and stability during processing. An easy-to-read millimeter scale allows for quick adjustment of the upper roller, while the integrated foot pedal easily controls clockwise or counter-clockwise rotation, with an emergency stop for maximum safety. With a bending speed of 3 m/min and a motor power of 1.1 kW, the RBM 30 is the ideal solution for workshops and laboratories that require reliability and precision in metal bending.
✅ Main features:

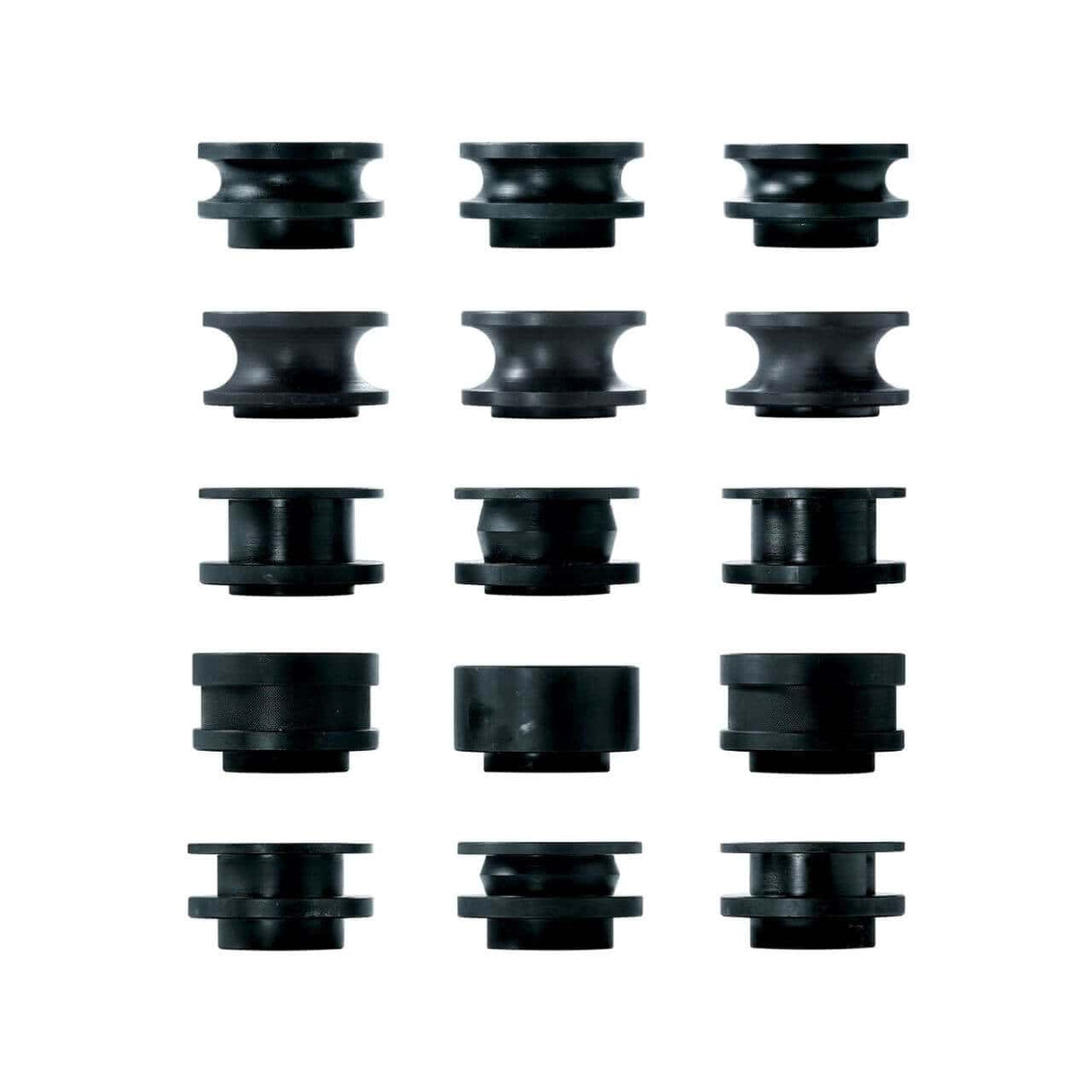

• Includes 6 sets of rollers for different profiles (round, square and flat)

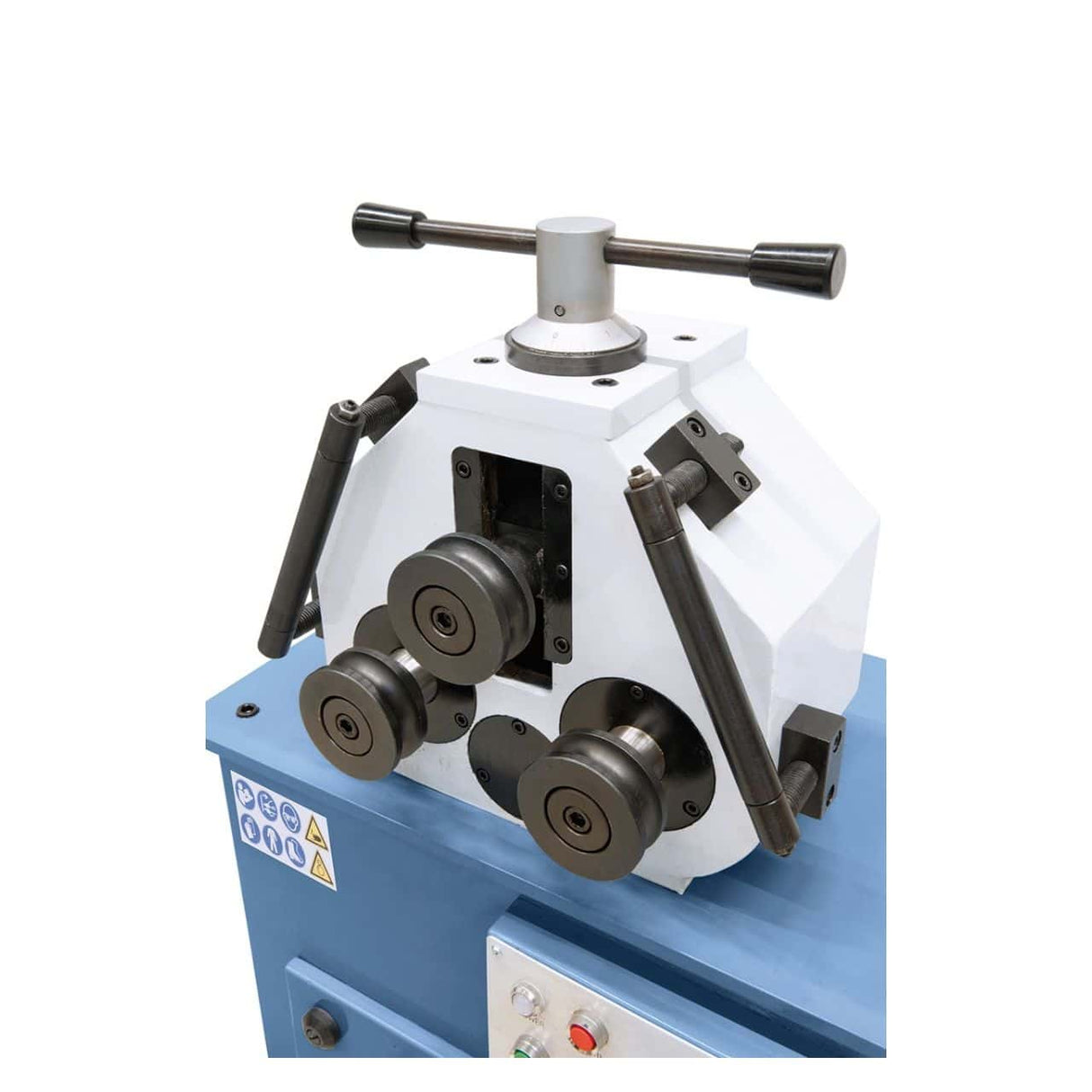

• Motorized lower rollers, upper roller with mechanical feed
• Hardened and ground shafts made of high-strength special steel
• Easy-to-read millimeter scale for quick adjustments

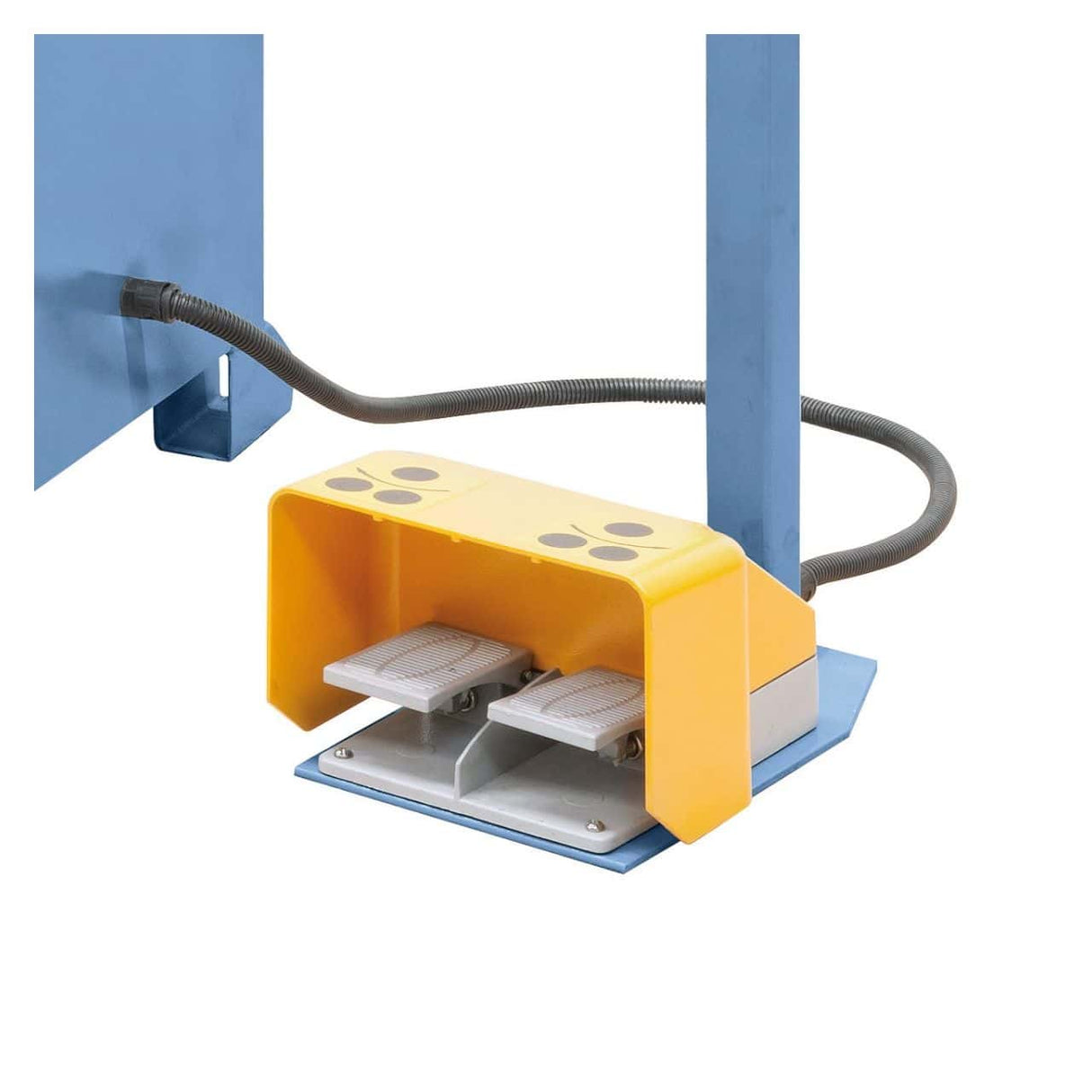

• Foot pedal for clockwise and counter-clockwise rotation

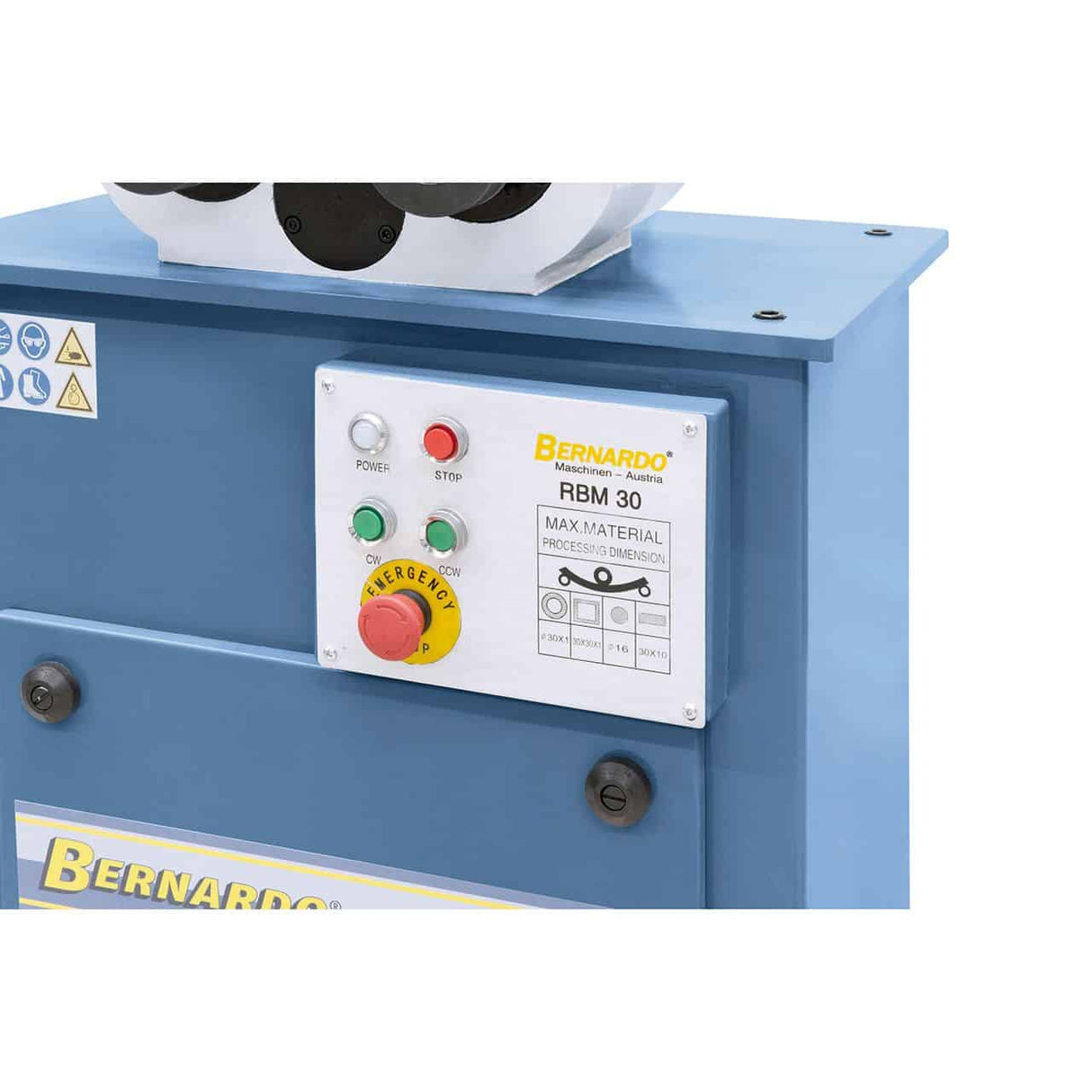

• Integrated emergency stop for safe operations
• Constant bending speed of 3 m/min
• Powerful 1.1 kW motor (400 V)
📊 Technical table:
| Specification | Value |
|---|---|
| Brand | Bernardo |
| Model | RBM 30 |
| Round tube* | Ø 20 x 1 mm (min. Ø 500 mm) / Ø 30 x 1 mm (min. Ø 800 mm) |
| Solid round material* | Ø 16 mm (min. Ø 400 mm) |
| Square tube* | 20 x 20 x 1 mm (min. Ø 800 mm) / 30 x 30 x 1 mm (min. Ø 900 mm) |
| Flat steel* | 20 x 10 mm (min. Ø 320 mm) / 30 x 10 mm (min. Ø 320 mm) |
| Shaft diameter | 30 mm |
| Bending speed | 3 m/min |
| Motor power | 1.1 kW |
| Voltage | 400 V |
| Machine dimensions (L x W x H) | 680 x 510 x 1100 mm |
| Weight | 180 kg |
* Yield strength 24 kg/mm²
📦 Package contents:

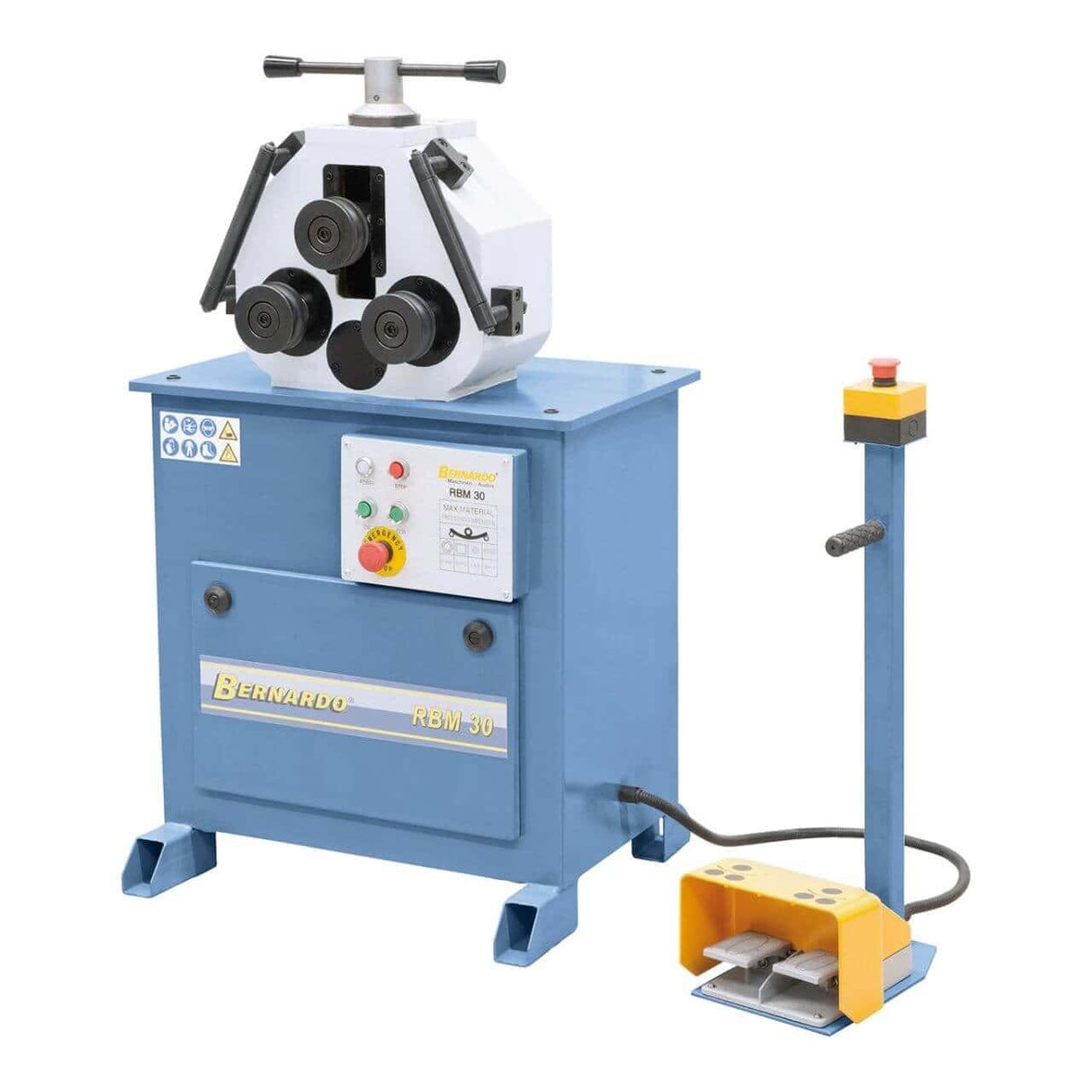

• Bernardo RBM 30 electric tube bender
• 6 pairs of roller sets
• Side straightening rollers
• Foot pedal with emergency stop
