Bernardo HTS 2050 – Manual Guillotine Shear

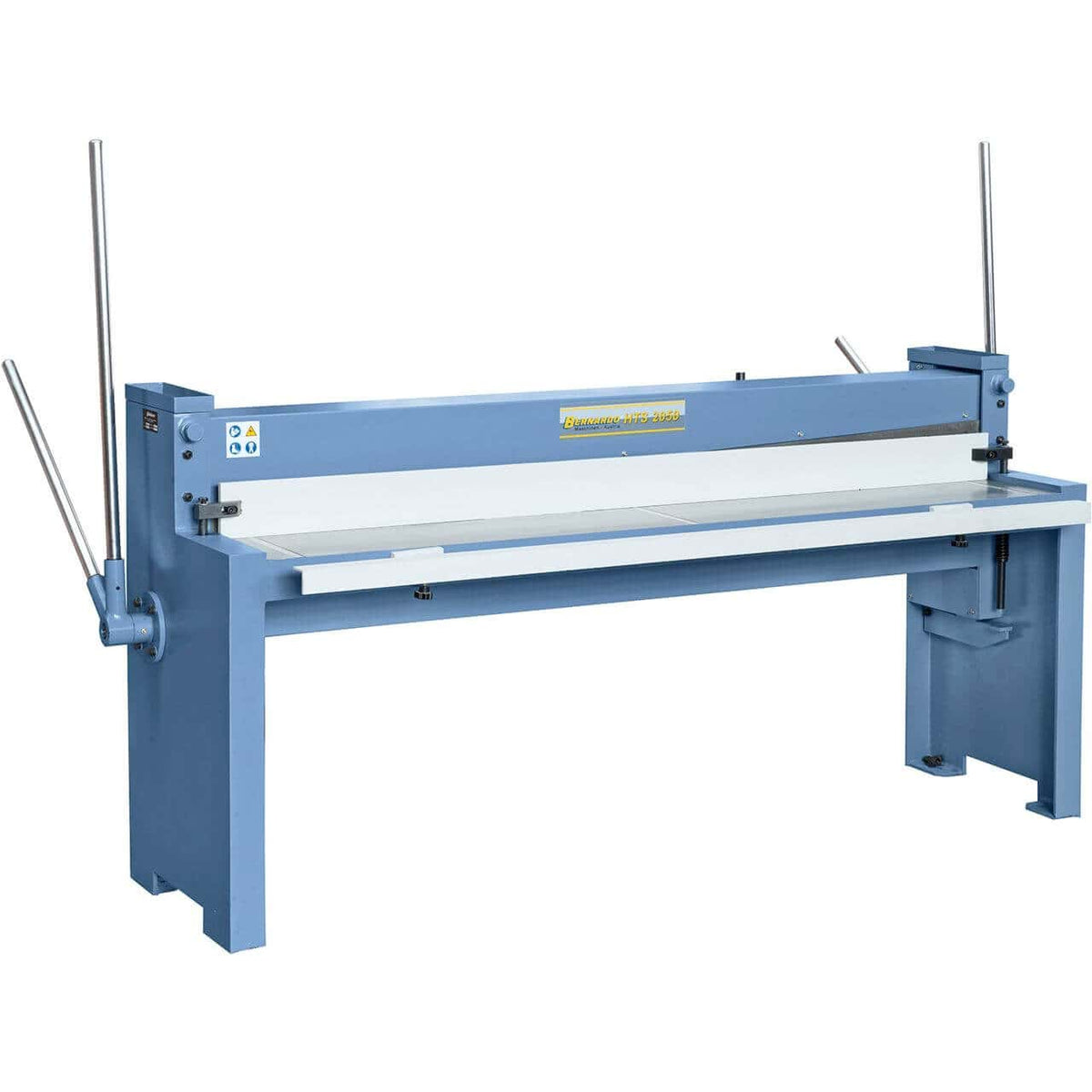

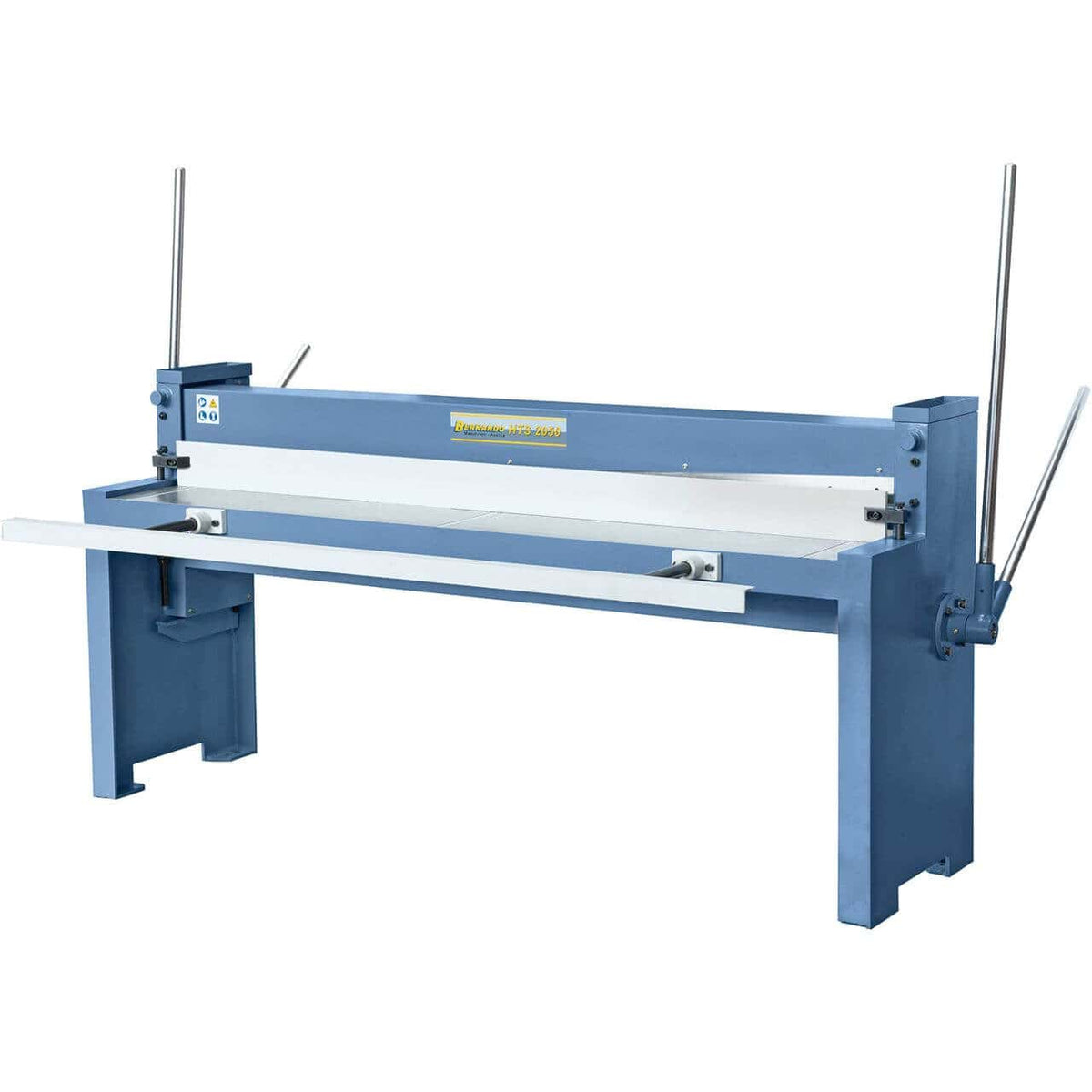

Bernardo HTS 2050 Manual Guillotine Shear

The Bernardo HTS 2050 manual guillotine shear is a professional machine designed for cutting large-format sheet metal with precision and safety. With a cutting length of 2045 mm and a maximum thickness of 1.25 mm (400 N/mm²), it is ideal for light carpentry workshops, maintenance departments, and sheet metal processing laboratories. Cutting is carried out via side levers that ensure a smooth and uniform movement, while the automatic hold-down bar keeps the material stable during operation. Thanks to the extendable support arm, the table with integrated measuring scales, and the right-angle stops on both sides, quick and precise results are achieved. The rear stop, adjustable up to 450 mm via handwheel, simplifies adjustments, while the double-edged blades made of quality steel ensure clean, burr-free cuts. A robust shear for professional needs.

---

Main features:
Robust and stable structure with modern design
Cutting operated via side levers

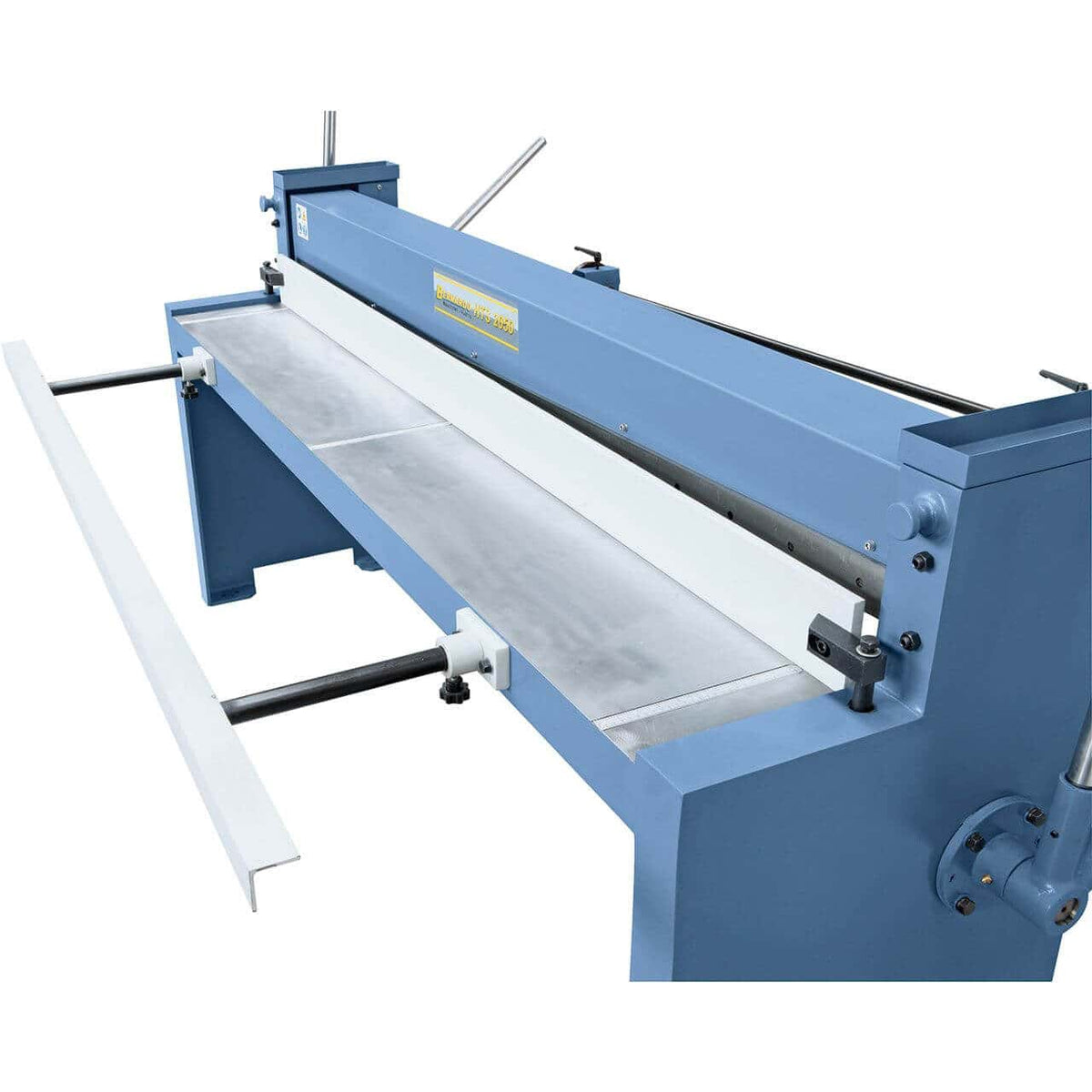

Extendable support arm for large-format sheets

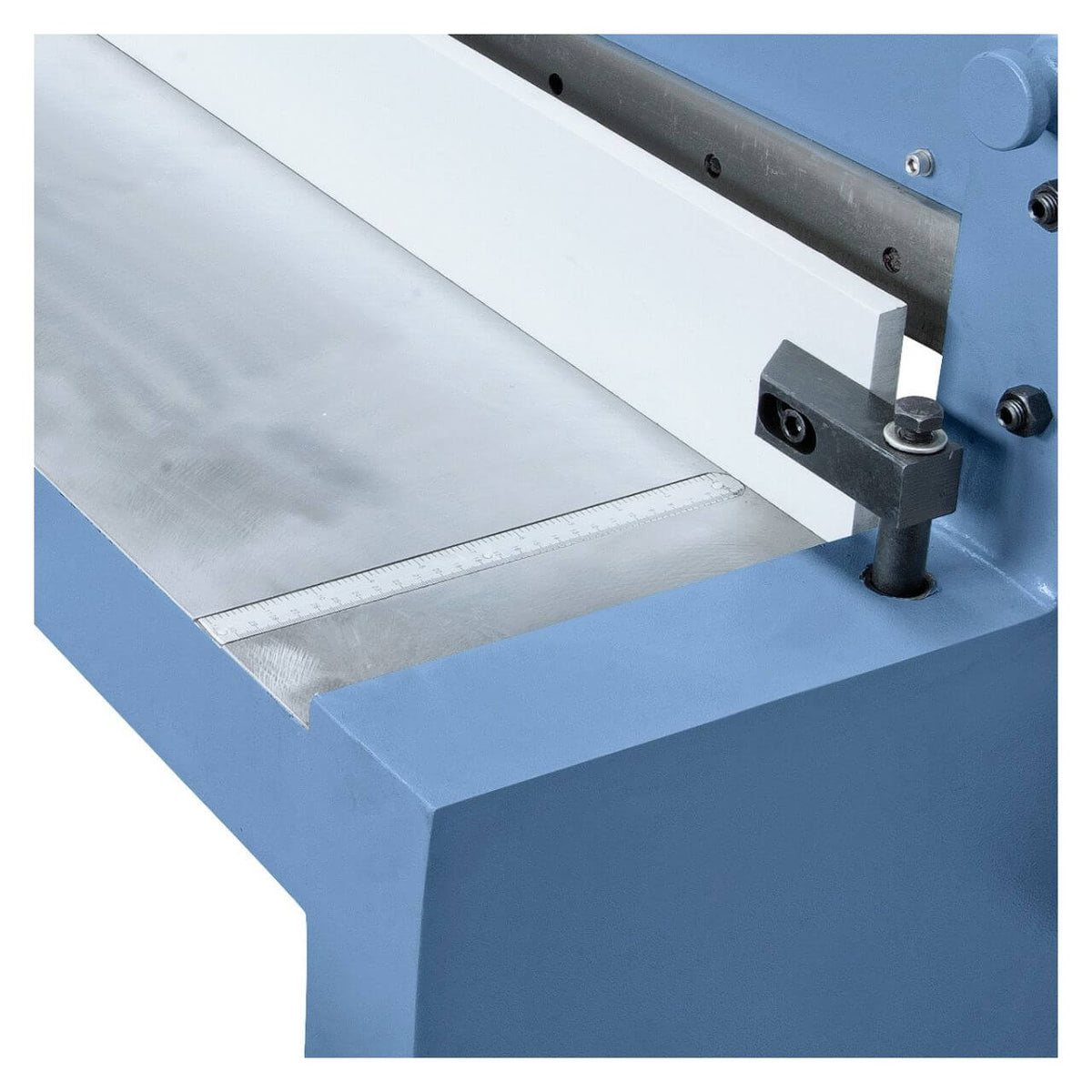

Automatic hold-down bar for secure sheet metal fastening
Table with integrated measuring scales and right-angle stop on both sides

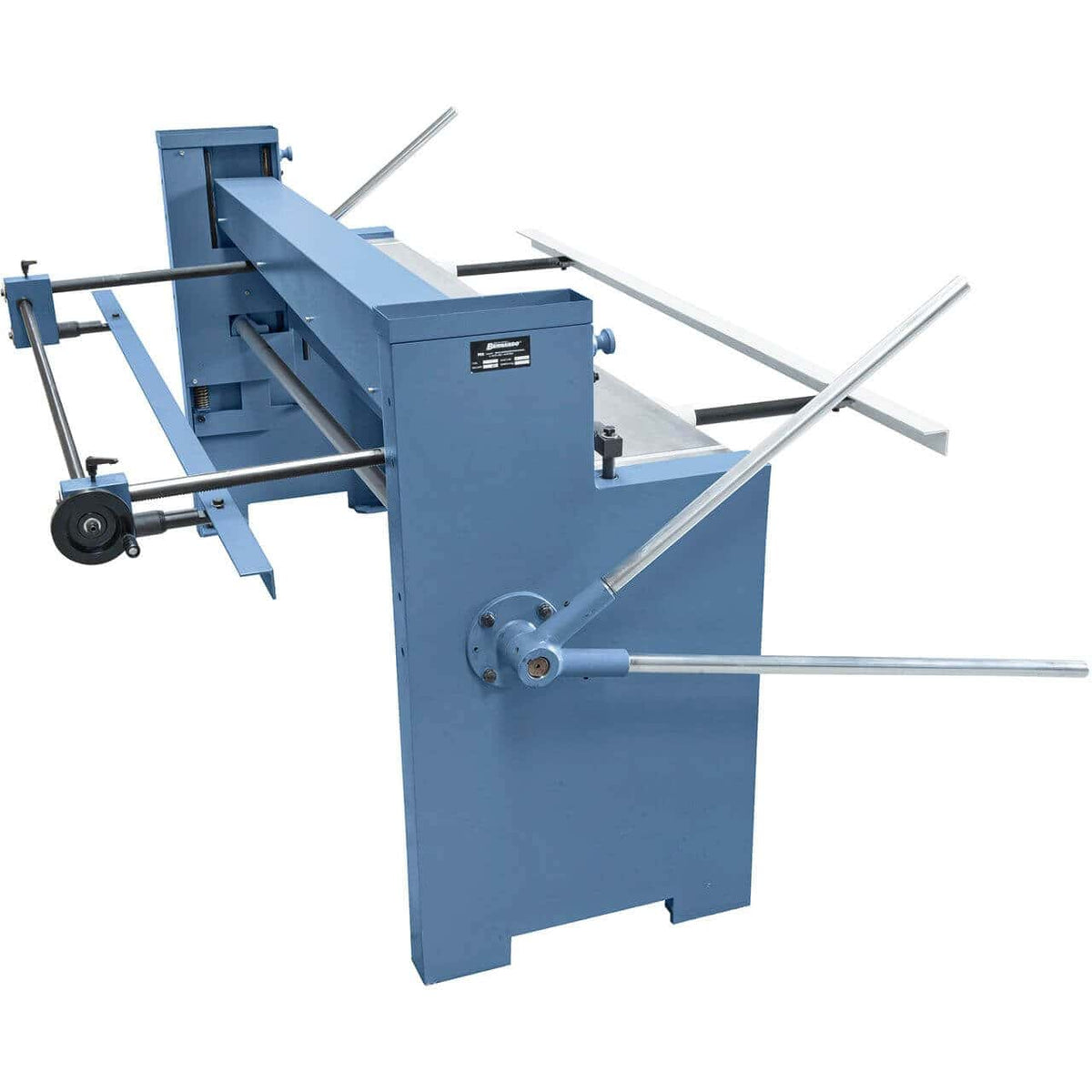

Rear stop adjustable up to 450 mm with handwheel
Double-edged upper and lower blades made of quality steel
Precise, clean, and burr-free cuts

---

---

Logistics

Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support available in Italian.

Technical specifications

Specification	Value
Brand	Bernardo
Model	HTS 2050
Cutting length	2045 mm
Max. sheet thickness (400 N/mm²)	1.25 mm
Table height	800 mm
Rear stop	0 – 450 mm
Machine length	2450 mm
Depth*	1250 mm
Height	1110 mm (1660 mm**)
Weight	540 kg

* with rear stop
** with lever

Standard equipment

Bernardo HTS 2050 Manual Guillotine Shear
Automatic hold-down bar
Adjustable rear stop
Tool steel blades

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

Frequently Asked Questions

What is the maximum thickness for aluminum and stainless steel?

The nominal thickness of 1.5 mm refers to S235 steel (400 N/mm²). For aluminum, the capacity increases by 30–50% (approx. 2.1 mm). For AISI 304 stainless steel, the capacity is reduced by 30–40% (approx. 1.0 mm).

Are the blades replaceable?

Yes. The cutting blades are replaceable when worn or damaged. Original Bernardo replacement blades available with 3–5 business days shipping.

Does it require fixed installation or is it used on a workbench?

Most Bernardo lever shears are fixed to a workbench or floor with bolts. They do not require a special foundation. More compact versions can also be used with a workbench vise.

Does the Bernardo HTS 2050 – Manual Shear also cut copper and brass?

Yes. Copper and brass have lower strength than S235 steel: the effective capacity on copper is similar to aluminum (approx. 2.1 mm). For specific alloys, contact Krollit for verification.

Is assistance and spare parts available?

Original spare parts available with 3–5 business days shipping. Customer support available in Italian.
