Bernardo MTB 1300X4 NC Hydraulic Guillotine Shear
Bernardo MTB 1300X4 NC Hydraulic Guillotine Shear is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.
For international shipments, please send your request via the dedicated contact form.
Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.
Our goal is to ensure you receive prompt service and a worry-free shopping experience.
Bernardo MTB 1300X4 NC Hydraulic Guillotine Shear
Description

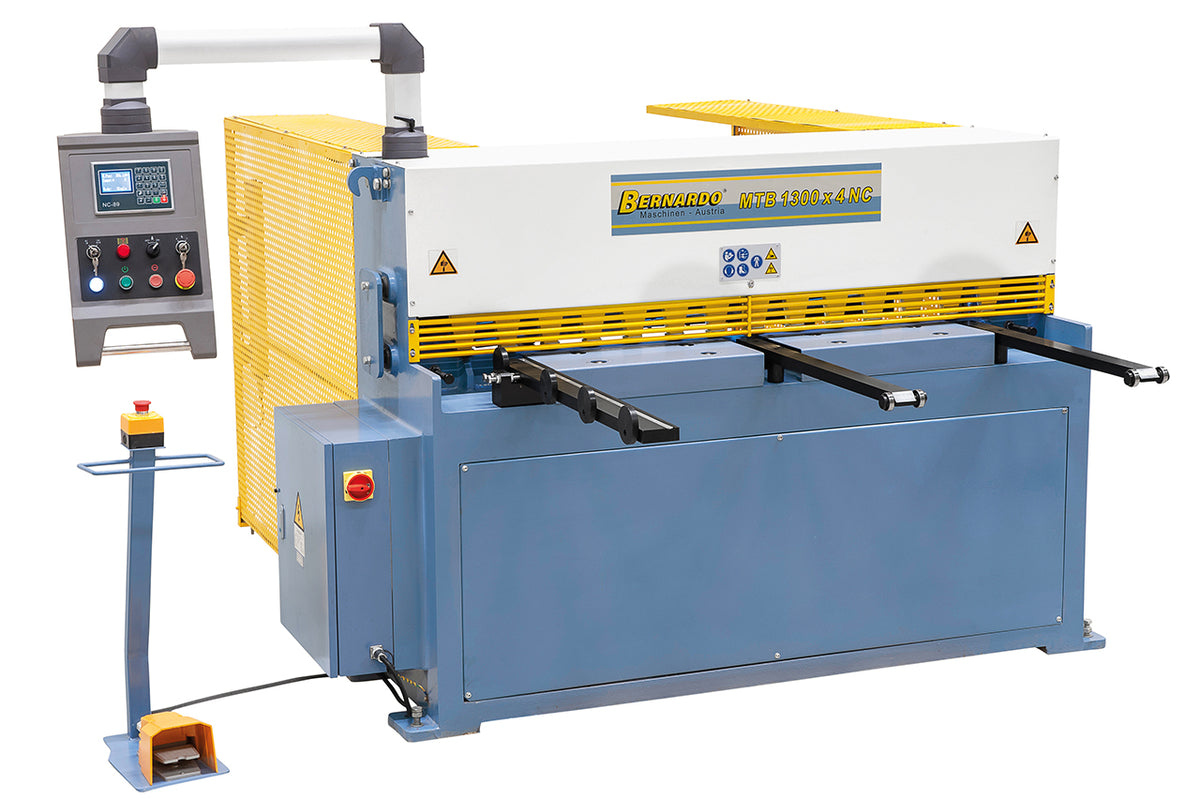

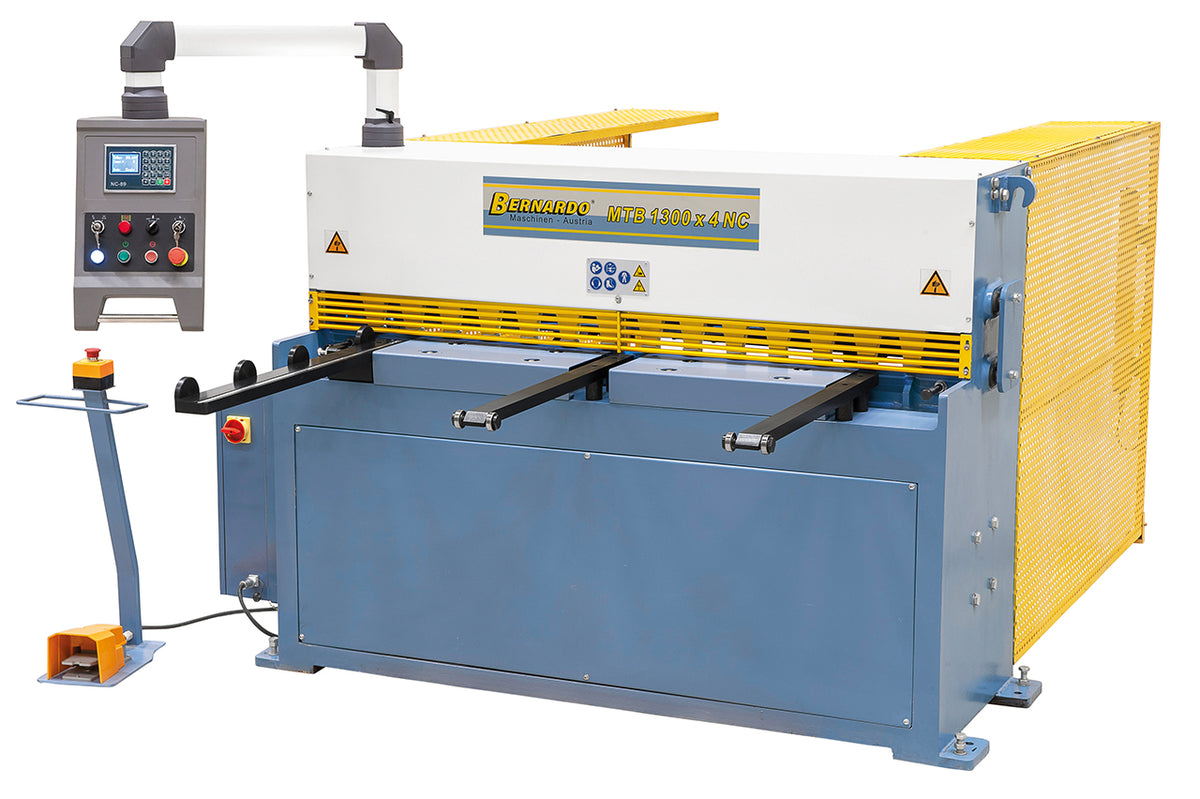

Bernardo MTB 1300X4 NC is a hydraulic guillotine shear for professional use, with a 4.0 kW motor, weighing approx. 1530 kg. Krollit, official Bernardo distributor since 2007.
- Cutting length: 1300 mm
- Max sheet thickness*: 4 mm
- Cutting angle: 2.0°
- Strokes/min: 23
- Working height: 825 mm
- Backgauge: 0 – 750 mm
Who uses the MTB 1300X4 NC and for what
Metal fabricators and sheet metal workshops use the MTB 1300X4 NC for straight cutting of steel, aluminum, and stainless steel sheets, with repetitive cycles on standard sheets.
Its place in the Bernardo range
Bernardo MTB 1300X4 NC is part of the Bernardo guillotine shear range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who the MTB 1300X4 NC is for
The MTB 1300X4 NC is recommended for the following professional profiles:
- Metal fabricators and sheet metal workshops: straight cutting of steel, aluminum, and stainless steel sheets.
- Serial sheet metal processing: repetitive cycles on standard sheets up to declared thicknesses.
Not suitable for: shaped and curved cuts (the shear only performs straight cuts: for shapes, consider punching machines or lasers).
Technical specifications
Working capacity
| Cutting length | 1300 mm |
| Max sheet thickness* | 4 mm |
| Cutting angle | 2.0° |
| Depth | 2800 mm |
Table, dimensions and geometry
| Working height | 825 mm |
| Table width | 340 mm |
| Machine length | 2030 mm |
| Height | 1620 mm |
| Weight | approx. 1530 kg |
Other specifications
| Strokes/min | 23 |
| Backgauge | 0 – 750 mm |
| Motor power | 4.0 kW |
| Backgauge motor | 0.55 kW |
| *Material strength | 400 N/mm² |
Warranty
Warranty terms and support procedures are available on the dedicated Krollit page.
View Krollit warranty termsFAQ / Frequently asked questions
Frequently asked questions
What sheet thickness can it cut?
See "Cutting capacity" in the technical table: typically 1 to 6 mm on mild steel.
The capacity refers to S235 steel. For stainless steel or high-strength alloys, the actual capacity is lower (approximately 70-80% of the declared value).
How does the hydraulic system work?
Hydraulic unit with electric pump and cylinders that actuate the movable blade against the fixed blade.
The hydraulic system requires periodic maintenance with specific hydraulic oil. The pressure is factory-set for nominal capacity.
What cutting length does it offer?
The usable length is indicated in the technical table (typically 1,000-3,000 mm).
The cutting length determines the maximum size of the workpiece that can be processed in a single pass. For longer pieces, multiple passes with repositioning are required.
Does the machine have a guide and backstops?

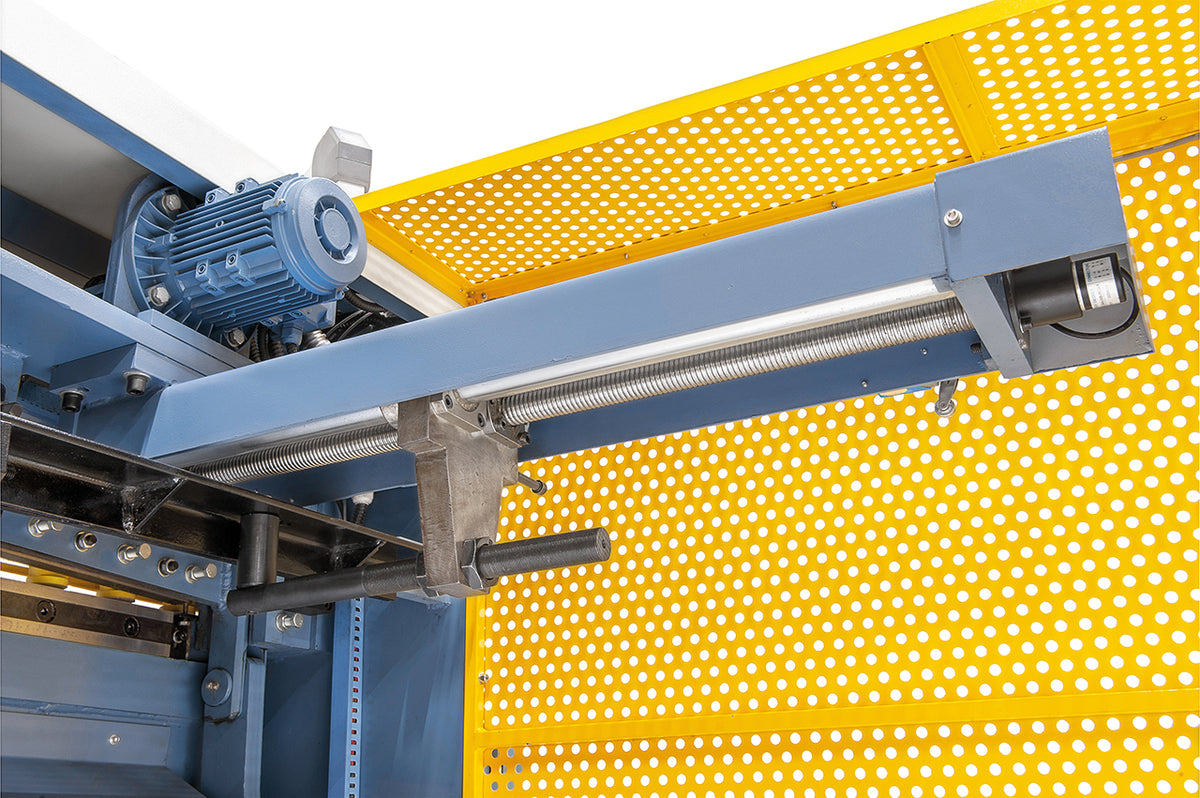

Yes, professional hydraulic shears have a back gauge with adjustable backstop.
The backstop allows repeated cuts to the same measurement without the need for marking. Advanced models offer CNC for automatic positioning.
What electrical power does it require?
See "Motor power" in the technical table: typically 4 to 22 kW (400 V three-phase).
Shears are industrial machines that require a dedicated 400 V three-phase electrical line. Check the power consumption at startup to properly size the cables.
-
