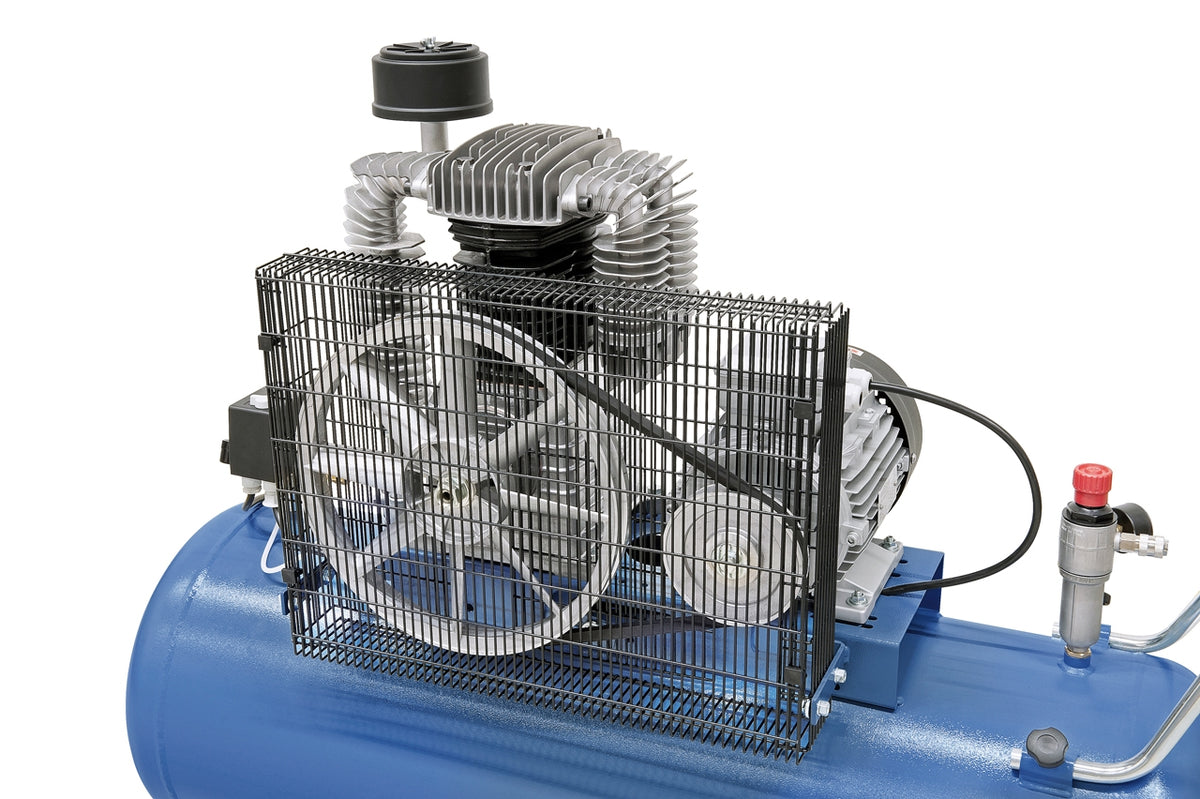

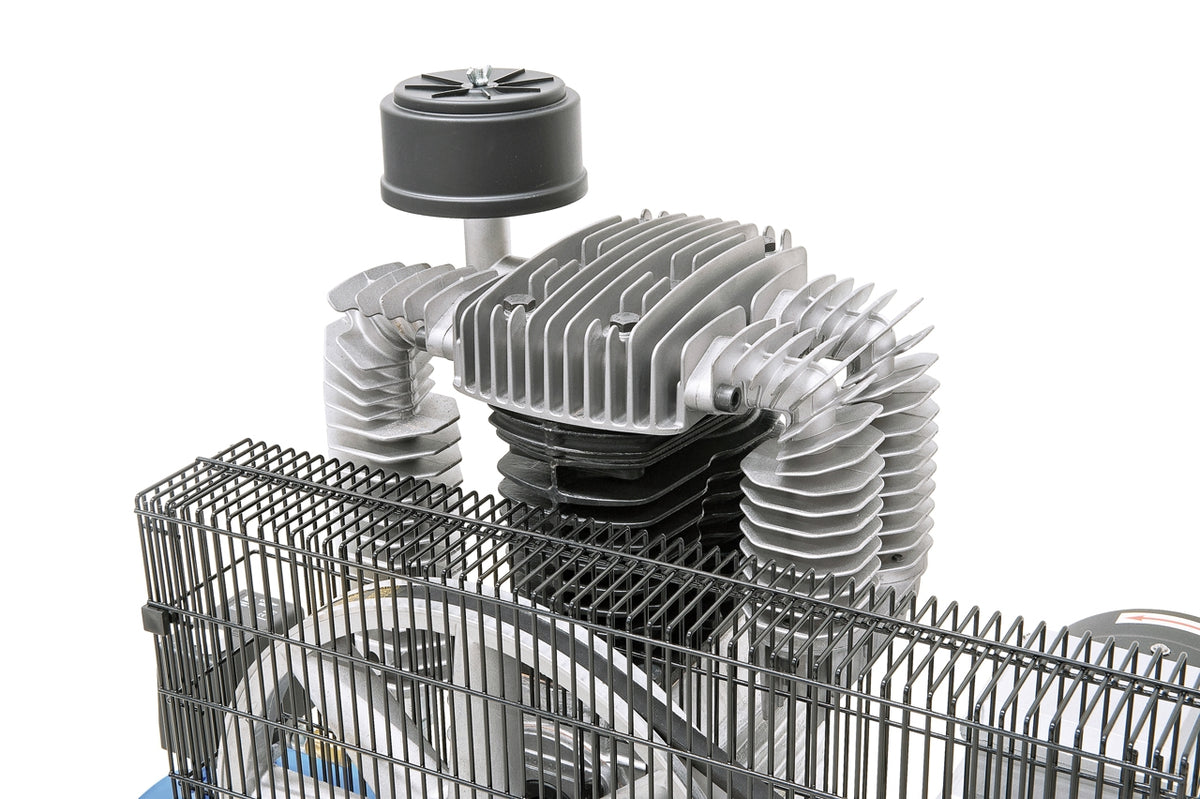

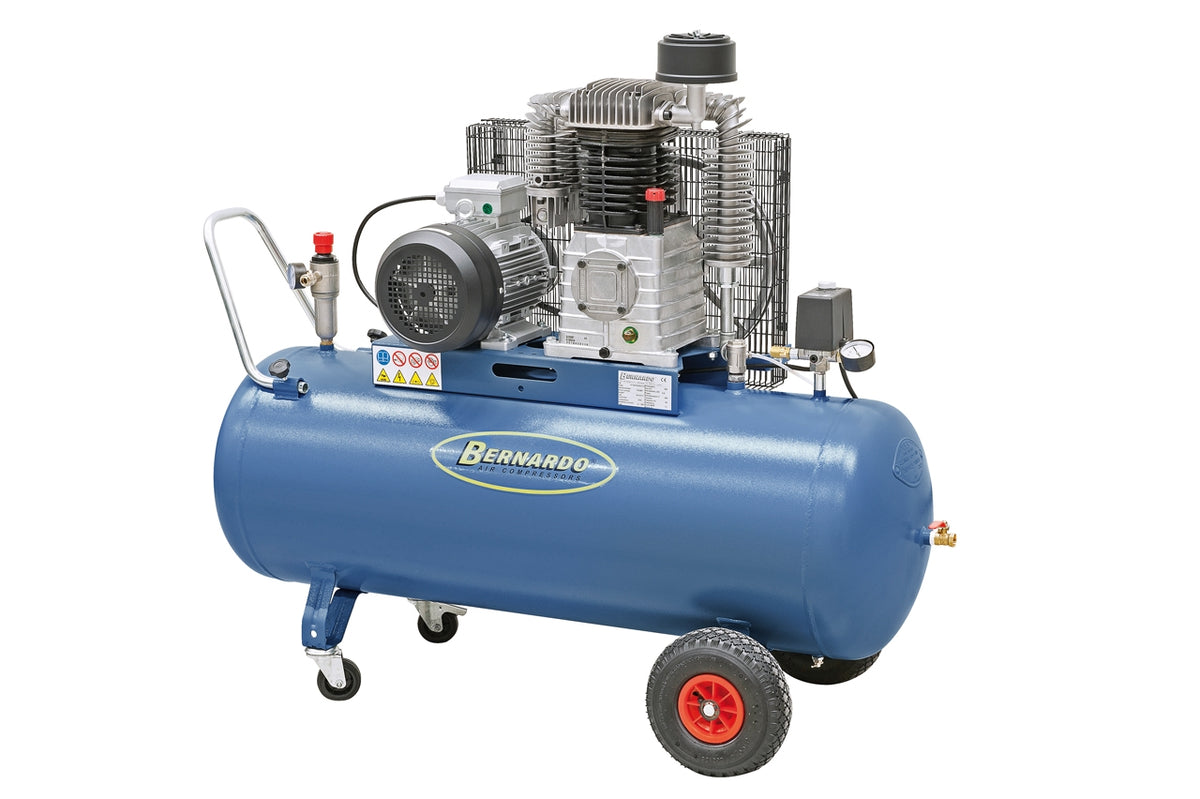

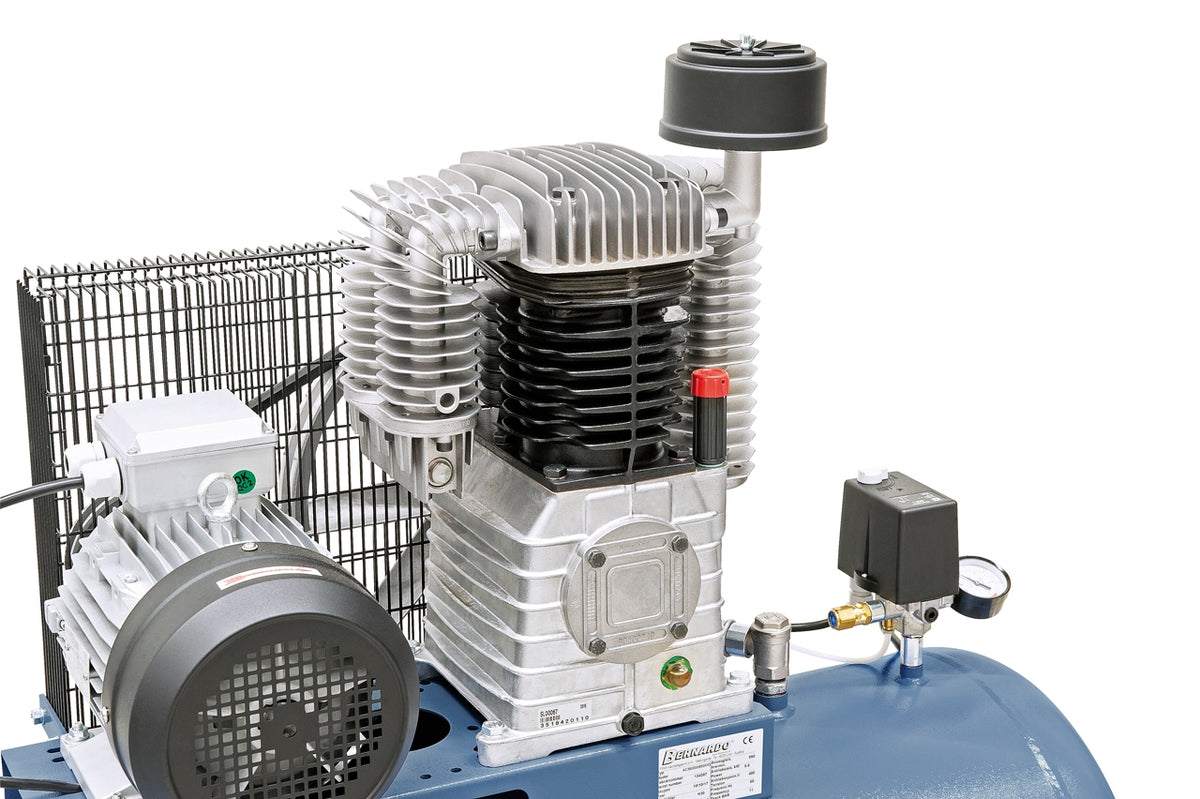

Bernardo AC38/200/850/F/D Compressor with 200-liter Trolley
The Bernardo AC38/200/850/F/D compressor is a high-performance professional machine, suitable for workshops, body shops, and industrial work requiring consistent and reliable compressed air. Equipped with a 200-liter tank and a 5.5 kW (7.5 HP) motor, it offers an intake capacity of 850 l/min and an effective capacity of 760 l/min. Its two-cylinder, two-stage design ensures energy efficiency and stable compression up to 10 bar of pressure. The integrated trolley allows for easy movement despite its 126 kg weight, making it practical even in dynamic work environments. With a noise level of only 76 dB(A), it represents a powerful yet quiet choice for continuous use.
Main specifications
Professional compressor with integrated trolley
200-liter tank for high autonomy
Intake capacity 850 l/min, effective output 760 l/min
5.5 kW (7.5 HP) motor – 400V three-phase power supply
Two-cylinder, two-stage for stable compression
Maximum pressure 10 bar
Quiet operation – only 76 dB(A)
Robust and easy-to-move structure (126 kg)
Technical table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
AC38/200/850/F/D |
| Tank capacity |
200 liters |
| Intake capacity |
850 l/min |
| Effective capacity (VDMA 4362, 70%) |
760 l/min |
| Rotation speed |
1150 U/min |
| Cylinders / Stages |
2 / 2 |
| Maximum pressure |
10 bar |
| Motor power |
5.5 kW (7.5 HP) |
| Voltage |
400 V / 50 Hz |
| Noise level |
76 dB(A) |
| Dimensions (L x W x H) |
1140 x 540 x 1220 mm |
| Weight |
approx. 126 kg |
Package contents:
Complete Bernardo AC38/200/850/F/D compressor
Trolley with mounted wheels
User and maintenance manual
Drain plug and standard fittings
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business day shipping. Customer support available in Italian.
Frequently asked questions
What professional uses is the Bernardo AC38/200 compressor designed for?
With a 200-liter tank and a maximum pressure of 10 bar, the Bernardo AC38/200 compressor is designed for: paint spray guns (requiring 6–8 bar, 150–300 l/min), pneumatic wrenches (6 bar, 100–150 l/min), compressed air tools in mechanical workshops, light sandblasting. The 200-liter tank ensures sufficient autonomy for continuous work without frequent recharging stops.
400 V three-phase — is a special system required?
Requires a 400V three-phase system — not available in standard private homes. Before purchasing, verify the presence of three-phase power and the capacity of the electrical panel. The three-phase motor guarantees higher torque and durability than a single-phase motor of the same nominal power.
How is the compressor maintained for efficiency?
Drain condensation from the tank every week (or after every intensive session) by opening the drain valve at the bottom. Change the pump unit oil every 500 operating hours or annually. Check the safety valve operation every 6 months.
Are spare parts and assistance available?
Original spare parts available with 3–5 business day shipping. Customer support available in Italian.
