Compressor with trolley Bernardo AC35/200/600/F/D – 200 L, 5.5 HP
Description

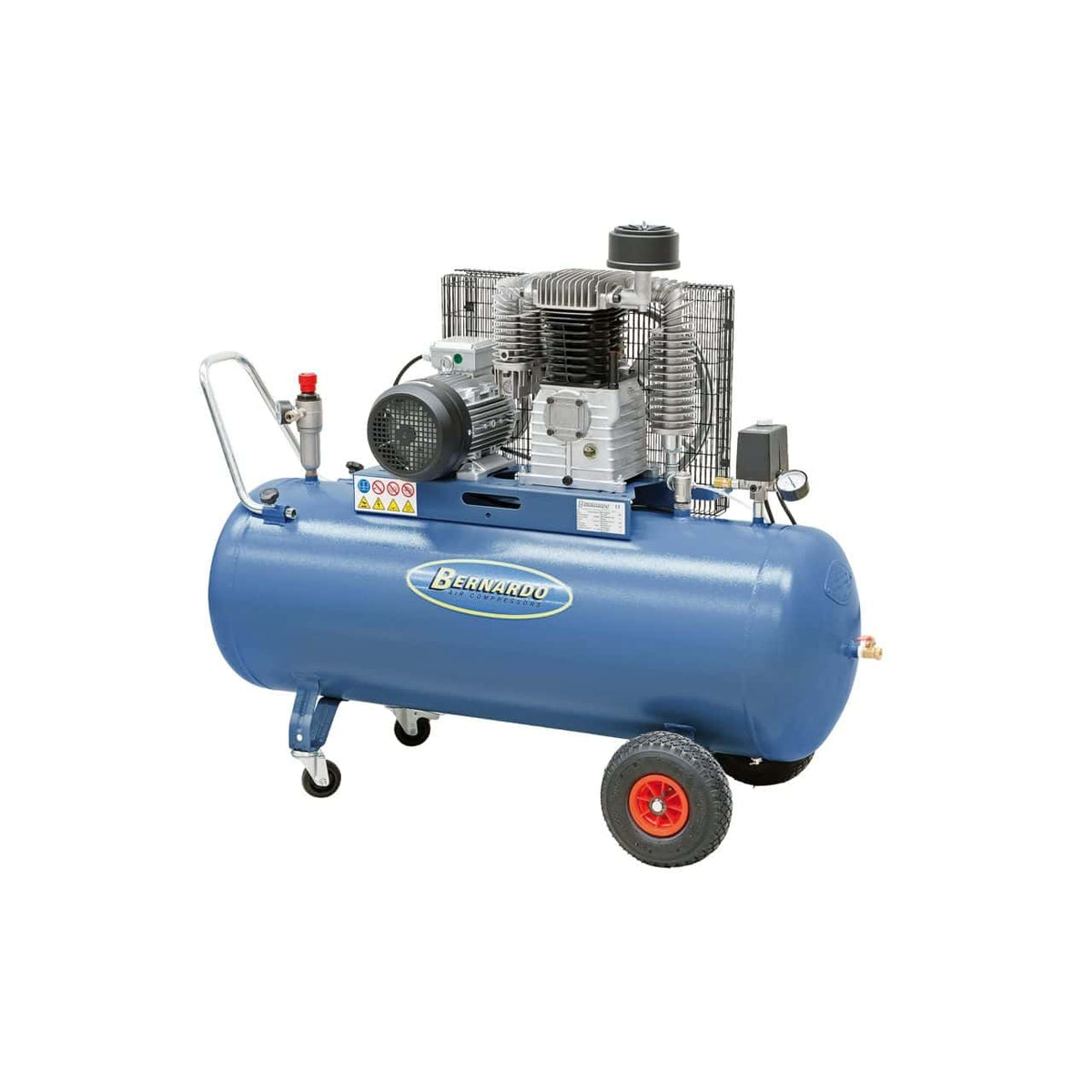

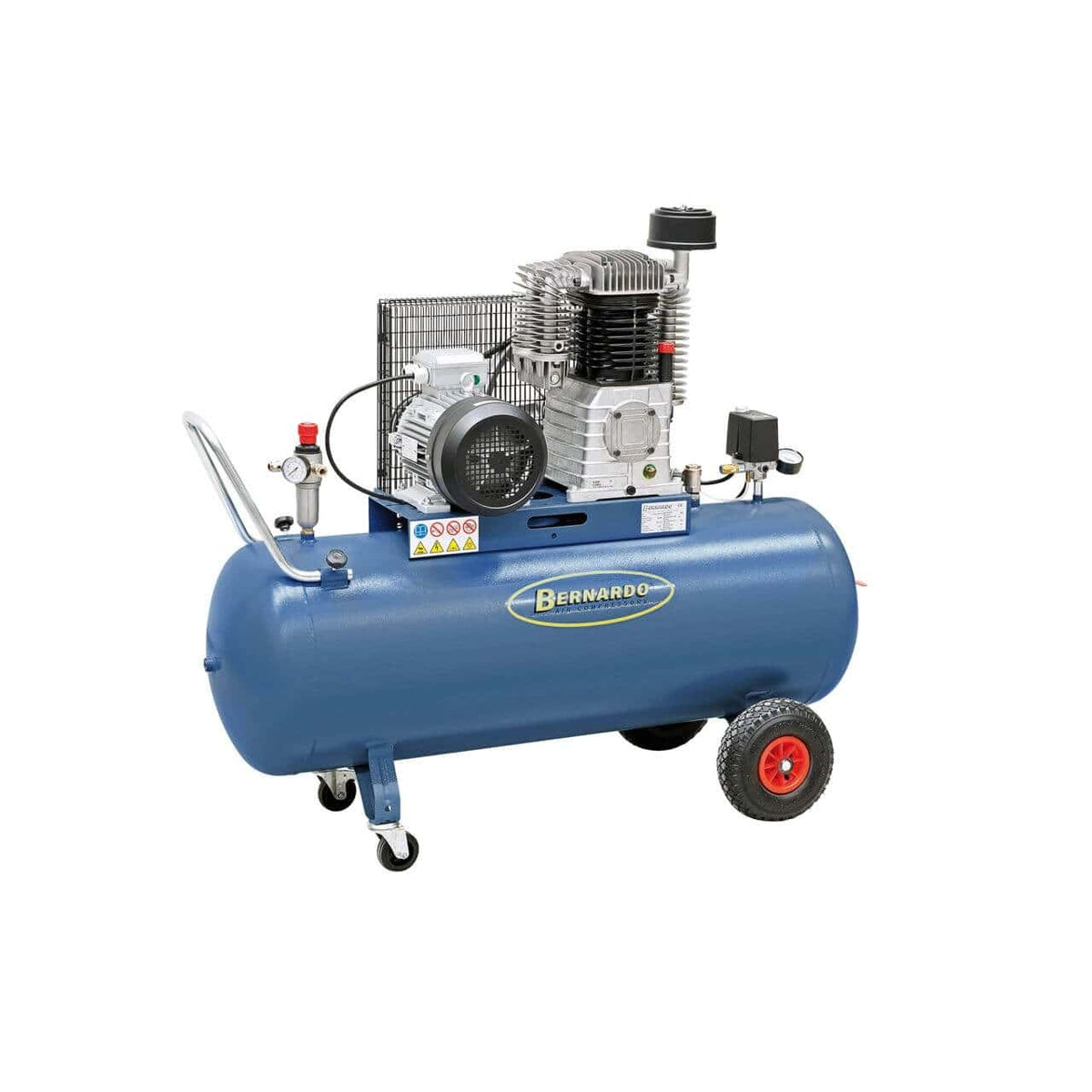

Bernardo AC35/200/600/F/D Trolley Compressor
The Bernardo AC35/200/600/F/D is a trolley compressor designed for professional and intensive use, suitable for workshops, body shops, and laboratories that require high air autonomy and constant performance. The 200-liter tank ensures a high air reserve, while the 4.0 kW (5.5 HP) three-phase motor and the two-stage twin-cylinder pump unit guarantee an intake air flow rate of 600 l/min and a useful output of approximately 580 l/min at a maximum pressure of 10 bar. The low speed operation (1450 rpm) reduces noise (78 dB(A)) and extends motor life. The robust and balanced trolley structure facilitates movement even on uneven surfaces. A powerful, stable, and quiet compressor for demanding professional applications.
Key Specifications
200-liter trolley compressor for professional use

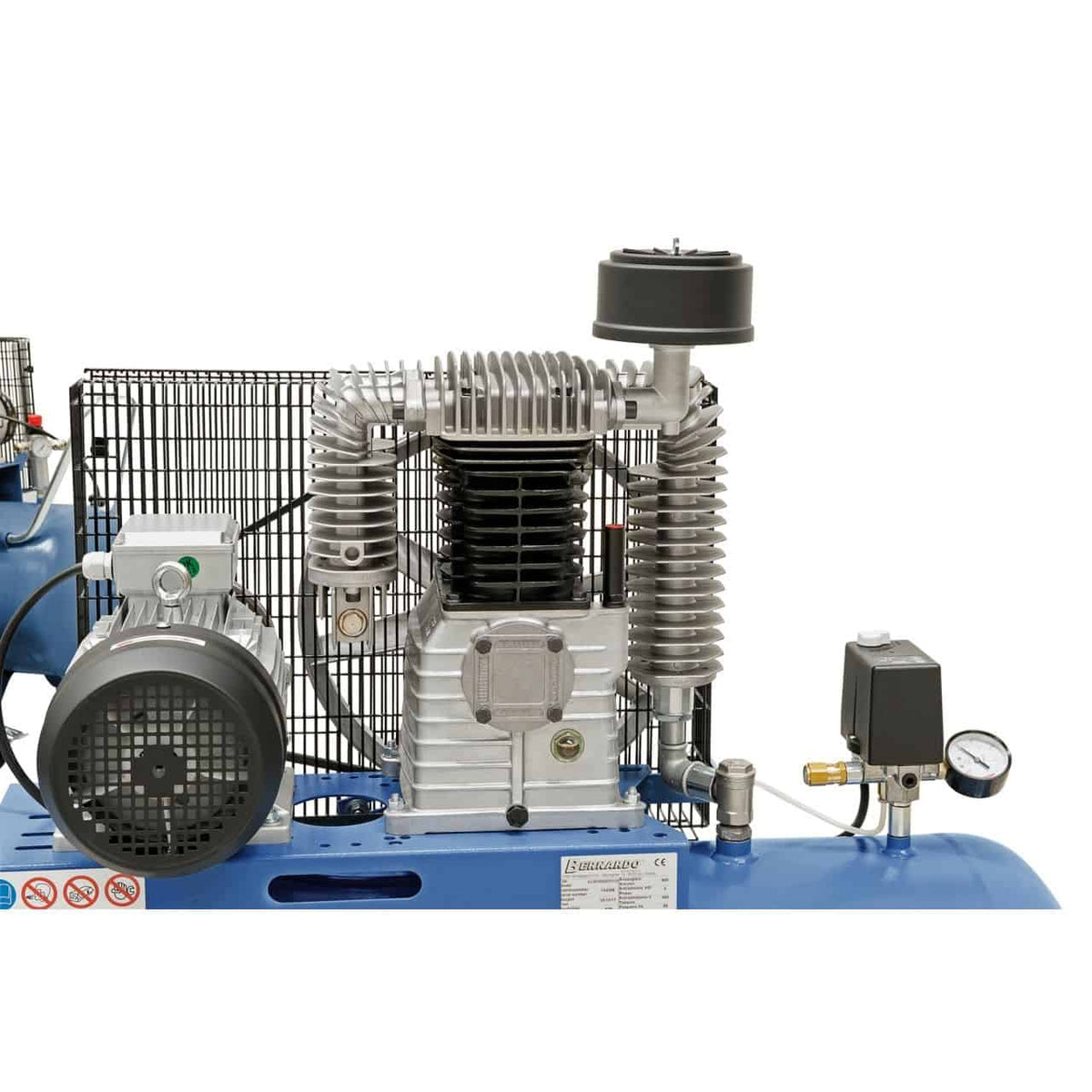

Two-stage twin-cylinder system for high performance
4.0 kW (5.5 HP) three-phase motor – 400 V / 50 Hz
Intake air flow rate 600 l/min – useful output 580 l/min
Maximum pressure 10 bar
Low speed (1450 rpm) for quiet operation (78 dB(A))
Trolley structure for easy transport and optimal stability
Suitable for workshops, body shops, sandblasters, and pneumatic systems
Package Contents:
Bernardo AC35/200/600/F/D Compressor with integrated trolley
200-liter pre-assembled tank
Safety valve and air filter
User and maintenance manual
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
Technical specifications
Technical Data:
| Specification | Value |
|---|---|
| Brand | Bernardo |
| Model | AC35/200/600/F/D |
| Type | Two-stage trolley compressor |
| Tank capacity | 200 liters |
| Suction capacity | 600 l/min |
| Filling capacity (VDMA 4362) | 580 l/min |
| Speed | 1450 rpm |
| Cylinders / Stages | 2 / 2 |
| Maximum pressure | 10 bar |
| Motor power | 4.0 kW (5.5 HP) |
| Voltage | 400 V / 50 Hz |
| Sound level | 78 dB(A) |
| Dimensions (L × W × H) | 1140 × 540 × 1060 mm |
| Weight | 114 kg |
| Origin | Bernardo – Austria |
Warranty
Warranty terms and support procedures are available on the dedicated Krollit page.
View Krollit warranty termsFAQ / Frequently asked questions
Frequently Asked Questions
For which professional uses is the Bernardo Trolley Compressor dimensioned?
With a 200-liter tank and a maximum pressure of 10 bar, the Bernardo Trolley Compressor is dimensioned for: spray guns for painting (require 6–8 bar, 150–300 l/min), pneumatic screwdrivers (6 bar, 100–150 l/min), compressed air tools in mechanical workshops, light sandblasting. The 200-liter tank guarantees sufficient autonomy for continuous work without frequent stops for refilling.
400 V three-phase — is a special system required?
Requires a 400V three-phase system — not available in standard private homes. Before purchasing, verify the presence of three-phase power and the capacity of the electrical panel. A three-phase motor guarantees higher torque and durability than a single-phase motor of the same nominal power.
How do I maintain the compressor's efficiency?
Drain condensation from the tank weekly (or after each intensive session) by opening the drain valve at the bottom. Change the pump unit oil every 500 operating hours or annually. Check the operation of the safety valve every 6 months.
Are spare parts and assistance available?
Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
-
