Bernardo AC35/DUO/F/D Portable Compressor
The Bernardo AC35/DUO/F/D is a professional portable compressor with a 4.0 kW (5.5 HP) three-phase motor and a double 2 × 11 liter tank. Designed for intensive use, it combines power, mobility, and compactness in a single system. The two-cylinder, two-stage pump unit guarantees a suction capacity of 600 l/min and an effective output of approximately 430 l/min, with a maximum pressure of 10 bar. Thanks to its reduced speed of 1450 rpm, it offers long life and quiet operation (only 78 dB(A)). The frame with wheels and ergonomic handle facilitates transport in the workshop or on the construction site. Suitable for pneumatic tools, painting, sandblasting, and craft applications where constant and reliable air is needed.
Main Specifications

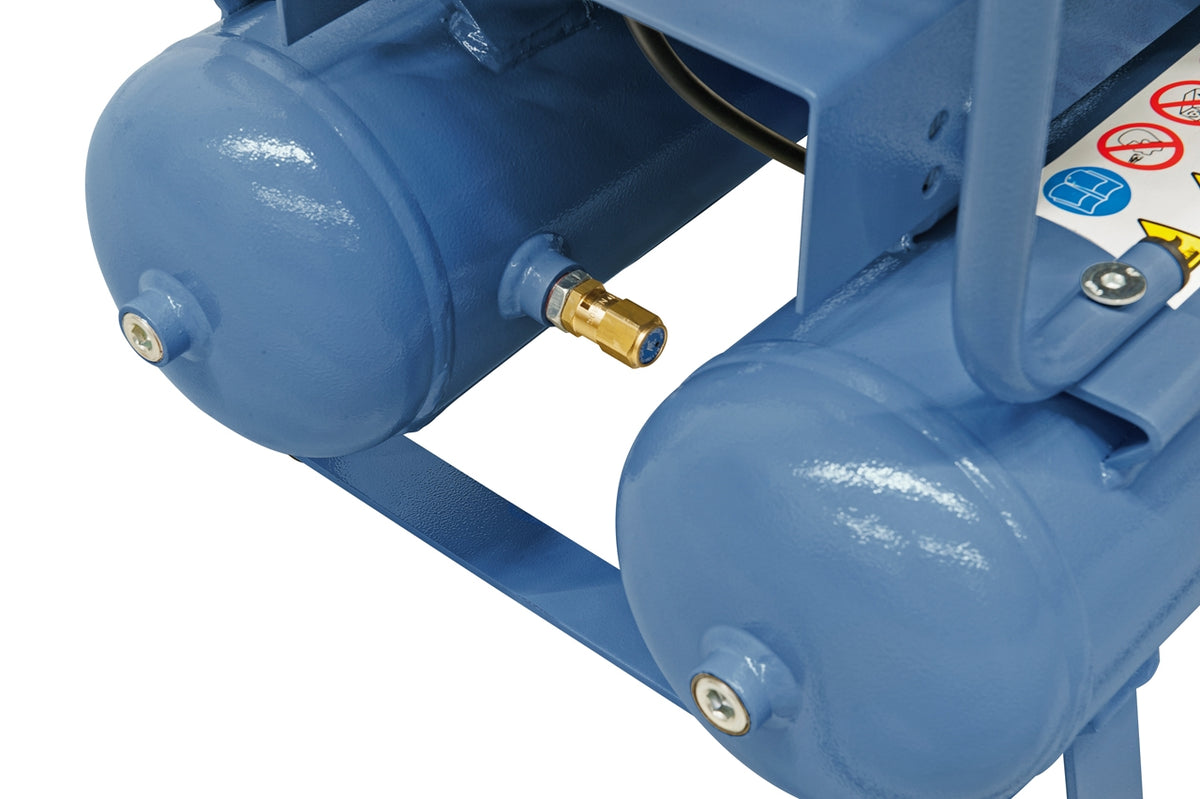

Compact portable compressor with double 11 + 11 liter tank

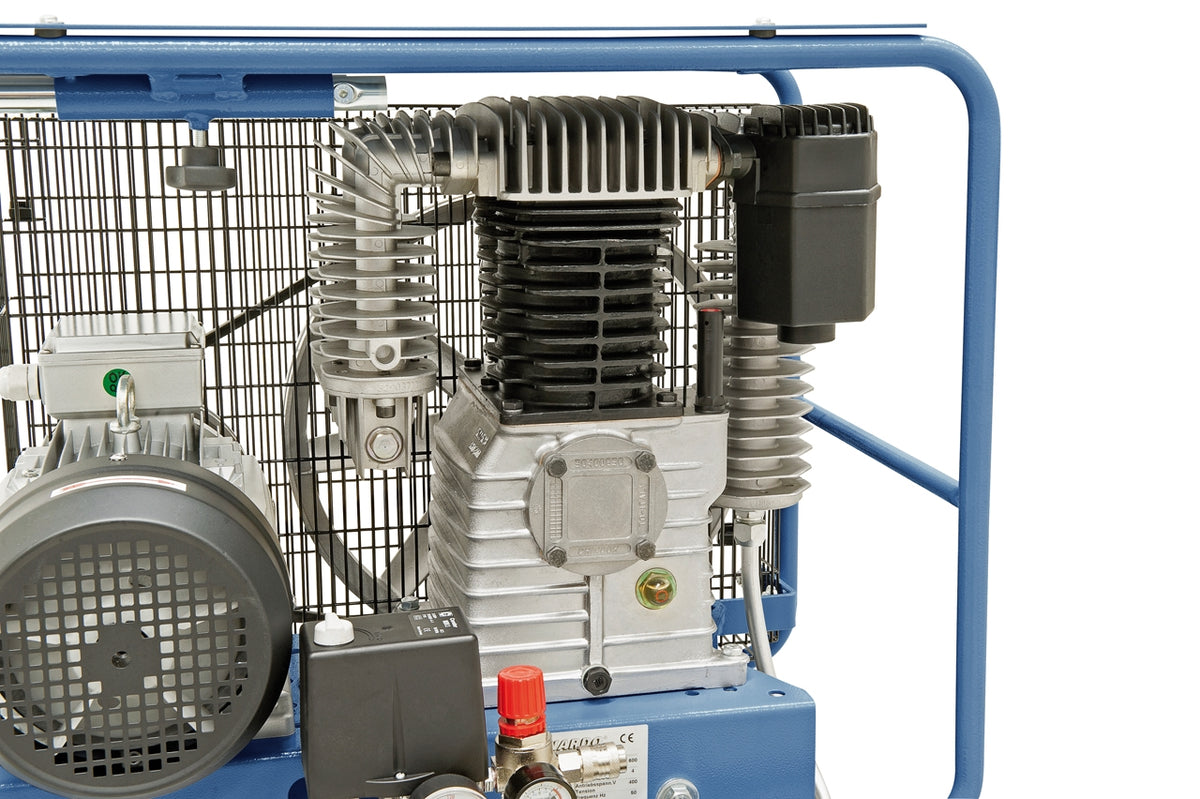

Two-cylinder, two-stage system for greater efficiency
Suction air volume 600 l/min – effective output 430 l/min
Maximum pressure 10 bar
4.0 kW (5.5 HP) three-phase motor – 400 V / 50 Hz
Quiet operation (78 dB(A))

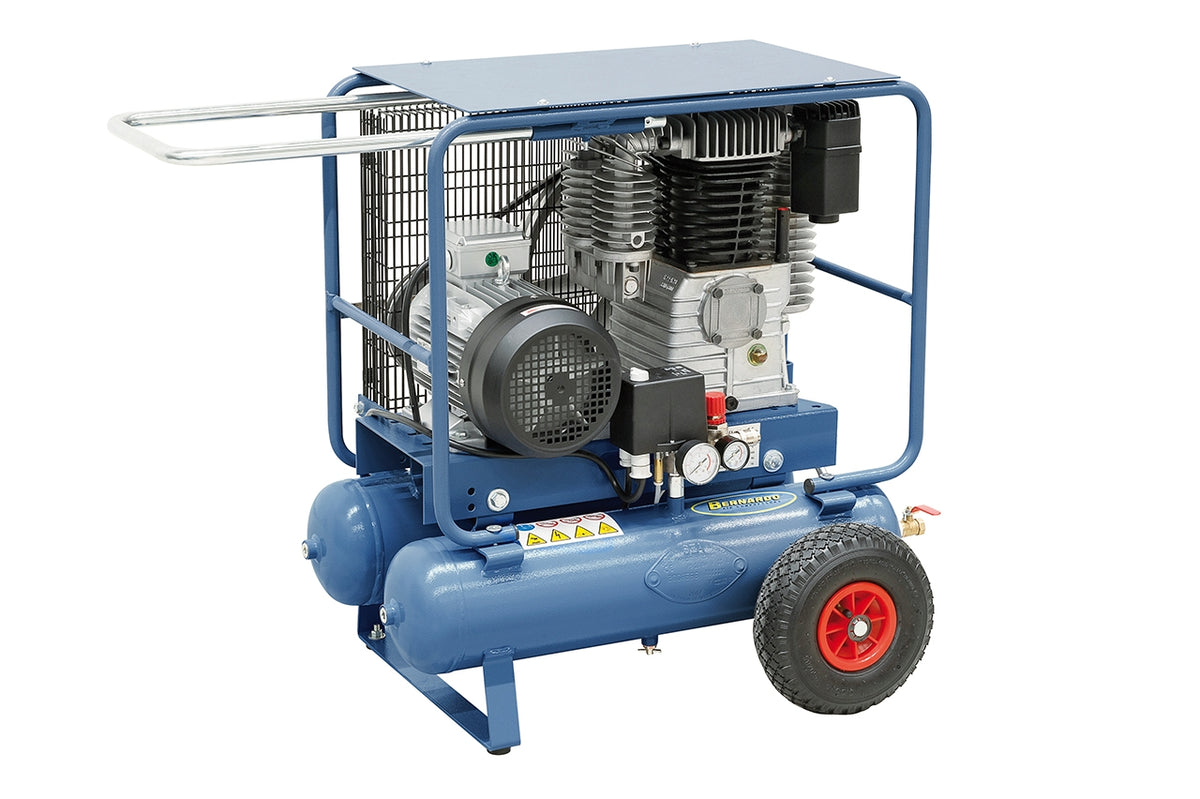

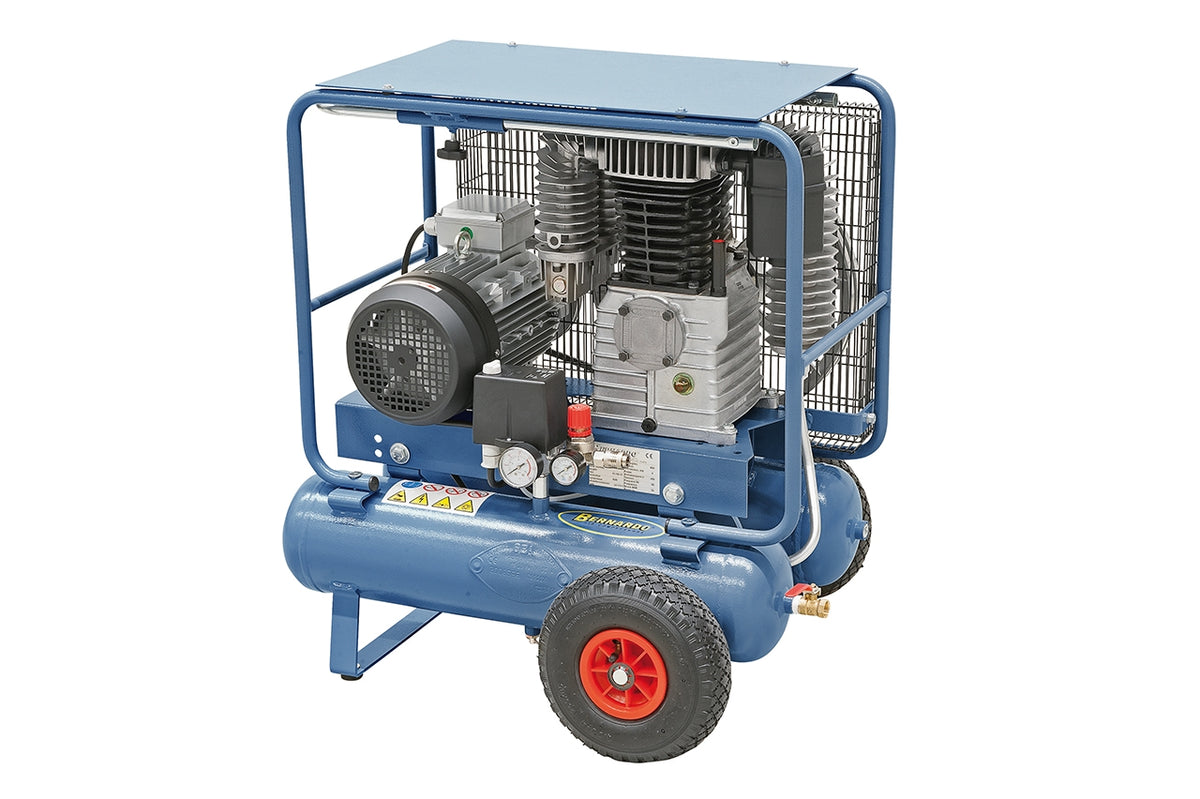

Mobile structure with robust wheels and ergonomic handle
Suitable for professional and mobile craft use
Technical data:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
AC35/DUO/F/D |
| Type |
Two-stage portable compressor |
| Tank capacity |
2 × 11 liters |
| Suction capacity |
600 l/min |
| Filling capacity (VDMA 4362) |
430 l/min |
| Speed |
1450 rpm |
| Cylinders / Stages |
2 / 2 |
| Maximum pressure |
10 bar |
| Motor power |
4.0 kW (5.5 HP) |
| Voltage |
400 V / 50 Hz |
| Sound level |
78 dB(A) |
| Dimensions (L × W × H) |
780 × 640 × 810 mm |
| Weight |
88 kg |
| Origin |
Bernardo – Austria |
Package contents:
Bernardo AC35/DUO/F/D portable compressor
2 × 11 liter tanks assembled
Air filter and safety valve
User and maintenance manual
Logistics
Bernardo shipping: 5–9 working days (7 days for the South). Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
Frequently Asked Questions
For what professional uses is the Bernardo Portable Compressor dimensioned?
With a 100-liter tank and a maximum pressure of 10 bar, the Bernardo Portable Compressor is dimensioned for: spray guns for painting (requiring 6–8 bar, 150–300 l/min), pneumatic screwdrivers (6 bar, 100–150 l/min), compressed air tools in mechanical workshops, light sandblasting. The 100-liter tank ensures sufficient autonomy for continuous work without frequent stops for refilling.
400 V three-phase — does it require a special electrical system?
Requires a 400V three-phase system — not available in standard private homes. Before purchasing, verify the presence of three-phase power and the capacity of the electrical panel. The three-phase motor guarantees higher torque and durability than a single-phase motor of the same nominal power.
How to maintain the compressor efficiently?
Drain condensation from the tank weekly (or after each intense session) by opening the drain valve at the bottom. Change the pump unit oil every 500 operating hours or annually. Check the operation of the safety valve every 6 months.
Spare parts and assistance available?
Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
