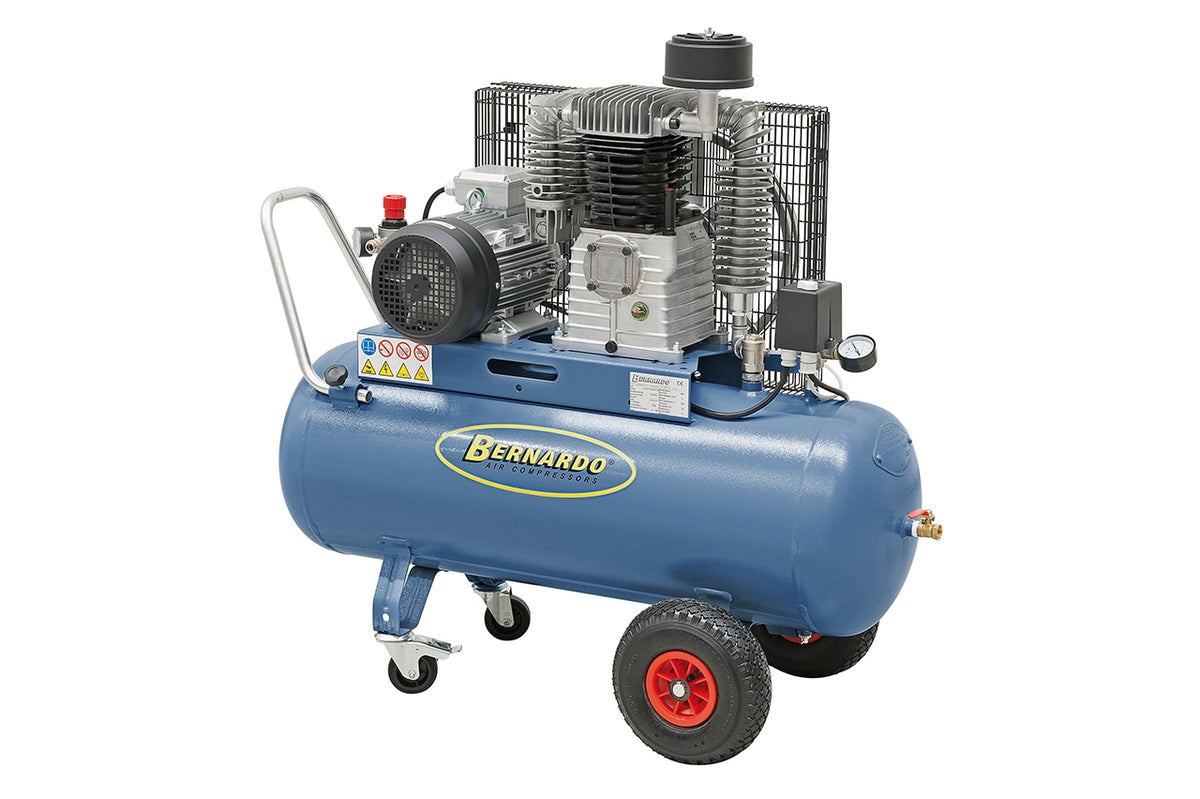

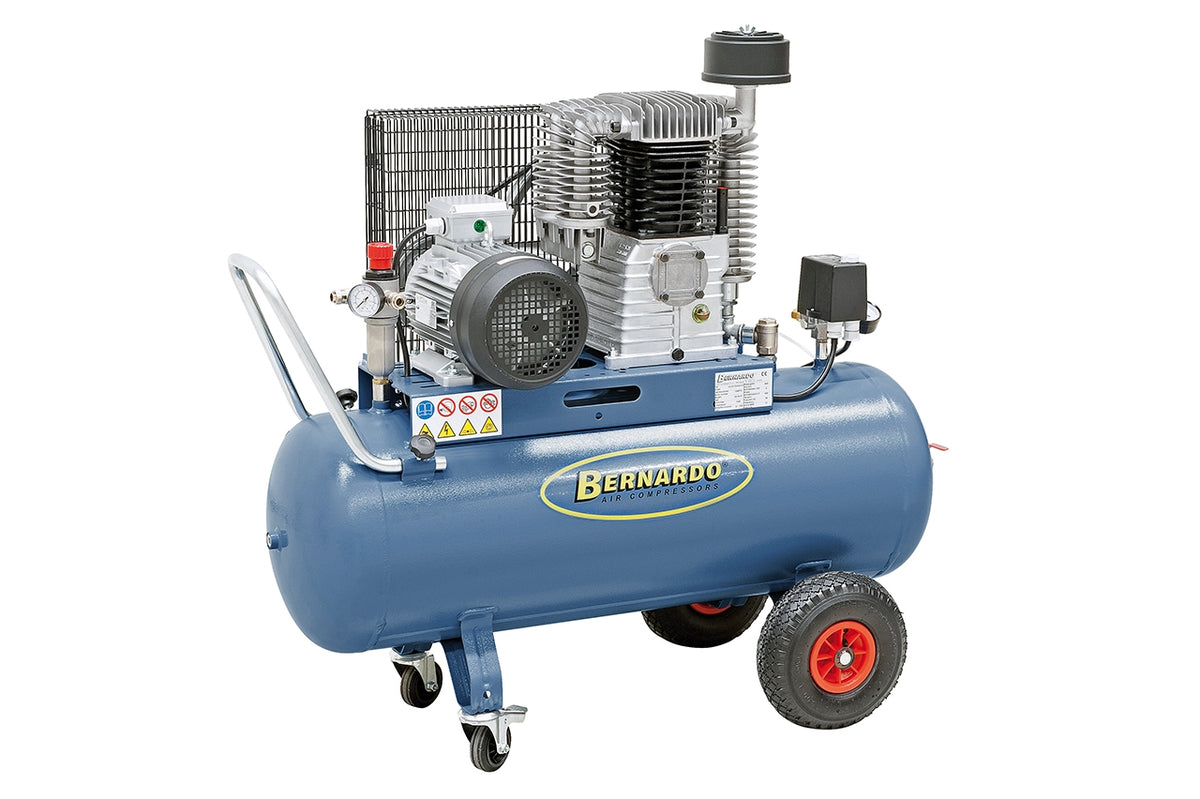

Bernardo AC35/100/600/F/D Mobile Compressor
The Bernardo AC35/100/600/F/D is a professional mobile compressor with a 100-liter tank and a 4.0 kW (5.5 HP) three-phase motor, suitable for workshops, body shops, and craft laboratories. The 1-stage twin-cylinder pump unit offers an intake air volume of 600 l/min and a useful output of 460 l/min, maintaining a maximum pressure of 10 bar. Designed for high performance and long life, it operates at low speed (1450 rpm), reducing wear and noise (only 78 dB(A)). The design with large wheels and an ergonomic handle facilitates movement, while the robust steel structure ensures stability even on uneven surfaces. Powerful, quiet, and reliable: perfect for intensive professional use.
Key Specifications
Professional 100-liter mobile compressor

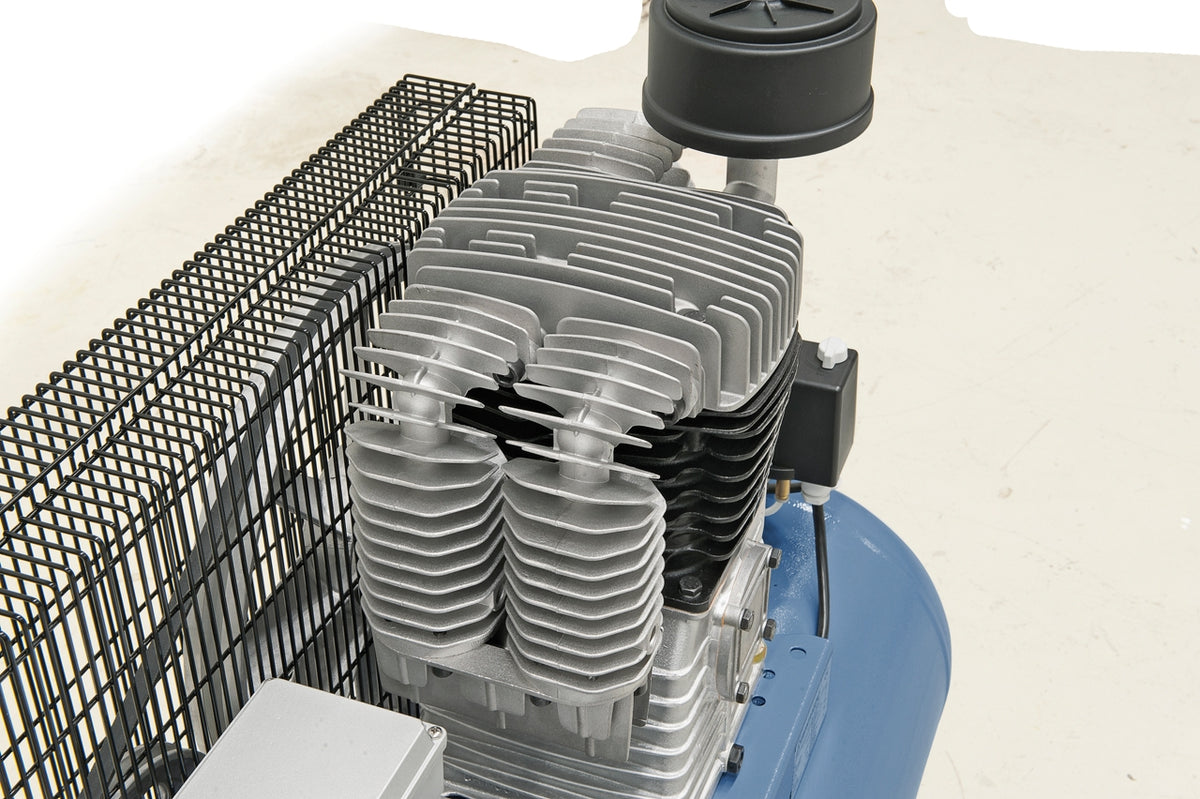

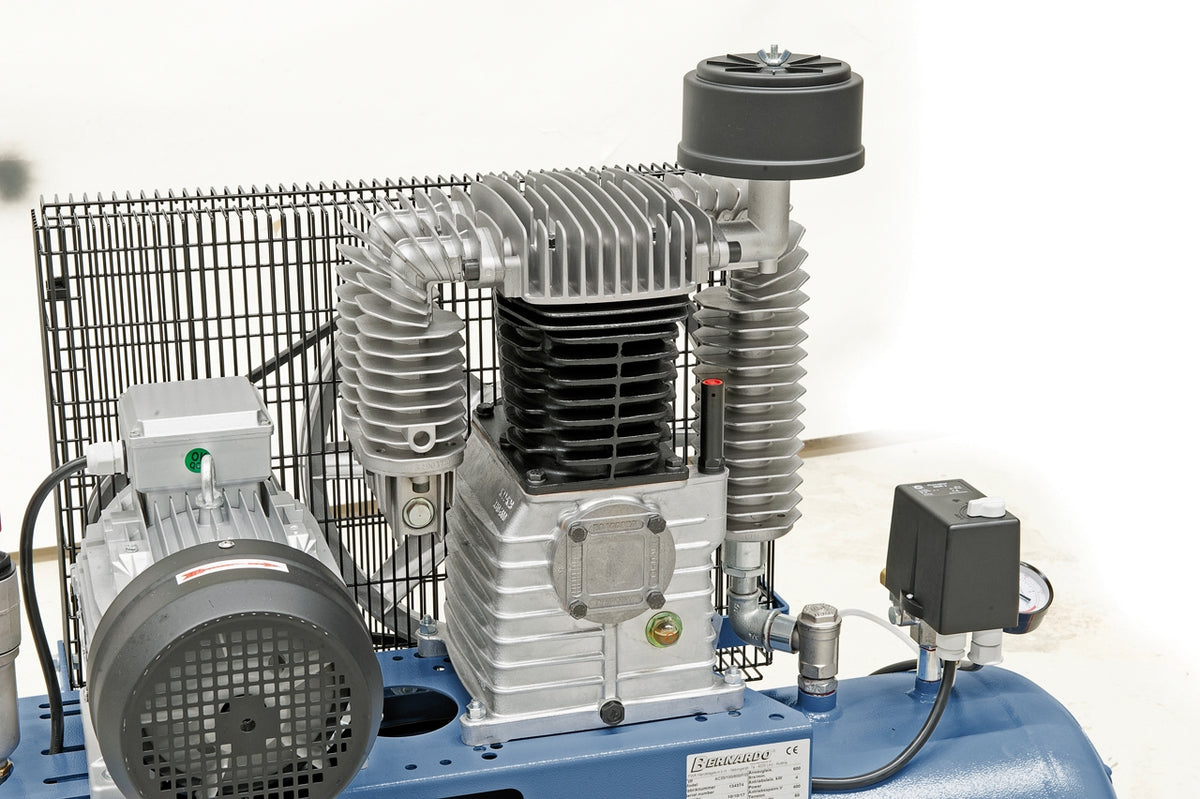

High-efficiency 1-stage twin-cylinder system

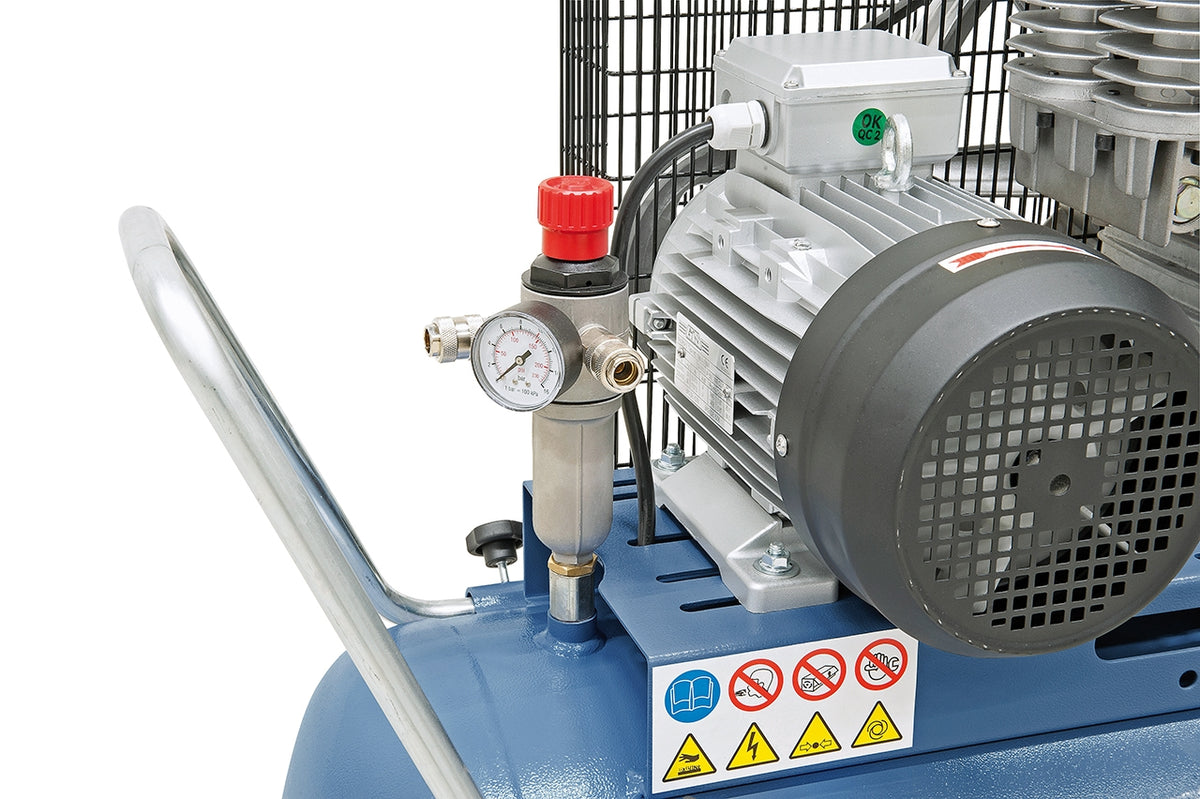

Powerful 4.0 kW (5.5 HP) – 400 V three-phase motor
Intake air volume 600 l/min – useful output 460 l/min
Maximum pressure 10 bar
Quiet operation (78 dB(A))
Reduced speed 1450 rpm for extended life

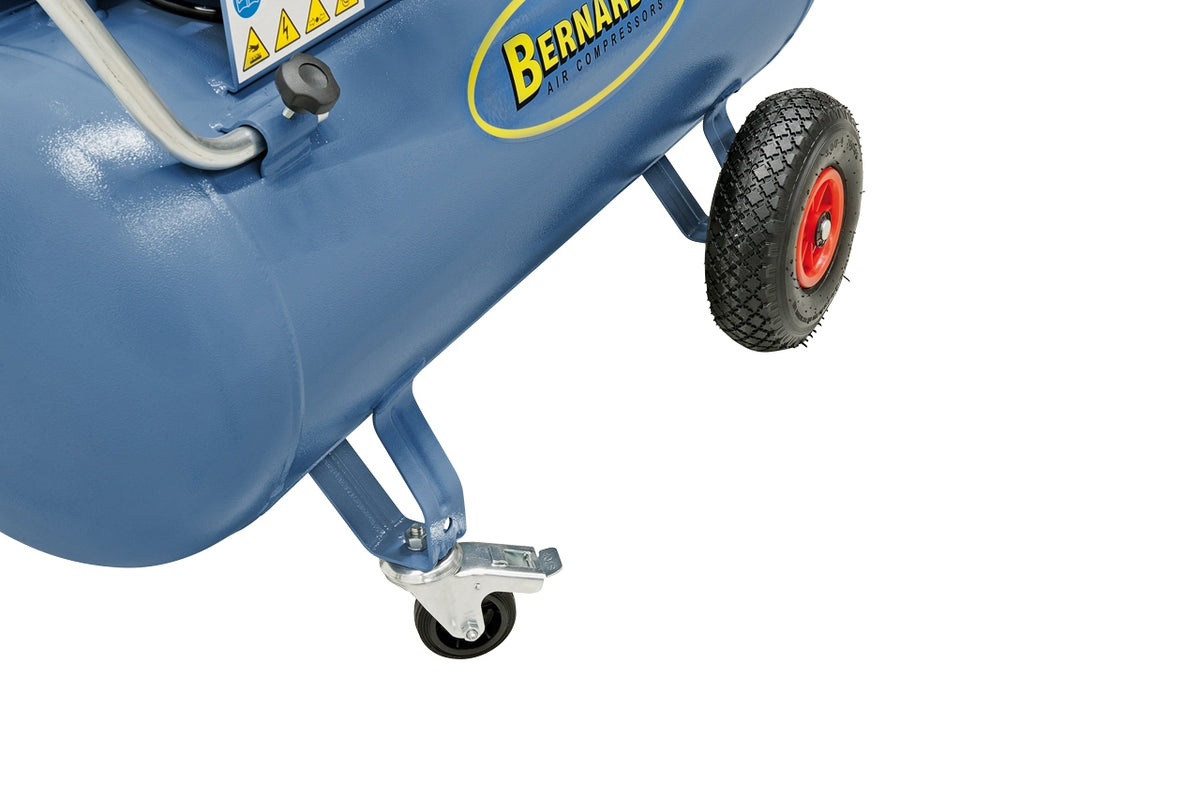

Wheeled structure with wheels and ergonomic handle
Technical table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
AC35/100/600/F/D |
| Type |
1-stage mobile compressor |
| Tank capacity |
100 liters |
| Intake capacity |
600 l/min |
| Filling capacity (VDMA 4362) |
460 l/min |
| Speed |
1450 rpm |
| Cylinders / Stages |
2 / 1 |
| Maximum pressure |
10 bar |
| Motor power |
4.0 kW (5.5 HP) |
| Voltage |
400 V / 50 Hz |
| Sound level |
78 dB(A) |
| Dimensions (L × W × H) |
1160 × 520 × 1080 mm |
| Weight |
92 kg |
| Origin |
Bernardo – Austria |
Package contents:
Bernardo AC35/100/600/F/D mobile compressor
Pre-assembled 100-liter tank
Safety valve and air filter
User and maintenance manual
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
Frequently Asked Questions
For what professional uses is the Bernardo AC Mobile Compressor sized?
With a 100-liter tank and a maximum pressure of 10 bar, the Bernardo AC Mobile Compressor is sized for: paint spray guns (requiring 6–8 bar, 150–300 l/min), pneumatic screwdrivers (6 bar, 100–150 l/min), compressed air tools in mechanical workshops, light sandblasting. The 100-liter tank ensures sufficient autonomy for continuous work without frequent stops for refilling.
400 V three-phase – does it require special installation?
It requires a 400V three-phase system – not available in standard private homes. Before purchasing, verify the presence of three-phase power and the capacity of the electrical panel. The three-phase motor guarantees superior torque and durability compared to a single-phase motor of the same rated power.
How do I maintain the compressor's efficiency?
Drain condensation from the tank weekly (or after each intensive session) by opening the drain valve at the bottom. Change the pump unit oil every 500 operating hours or annually. Check the safety valve operation every 6 months.
Are spare parts and assistance available?
Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
