Bernardo  |  SKU: 24-1093

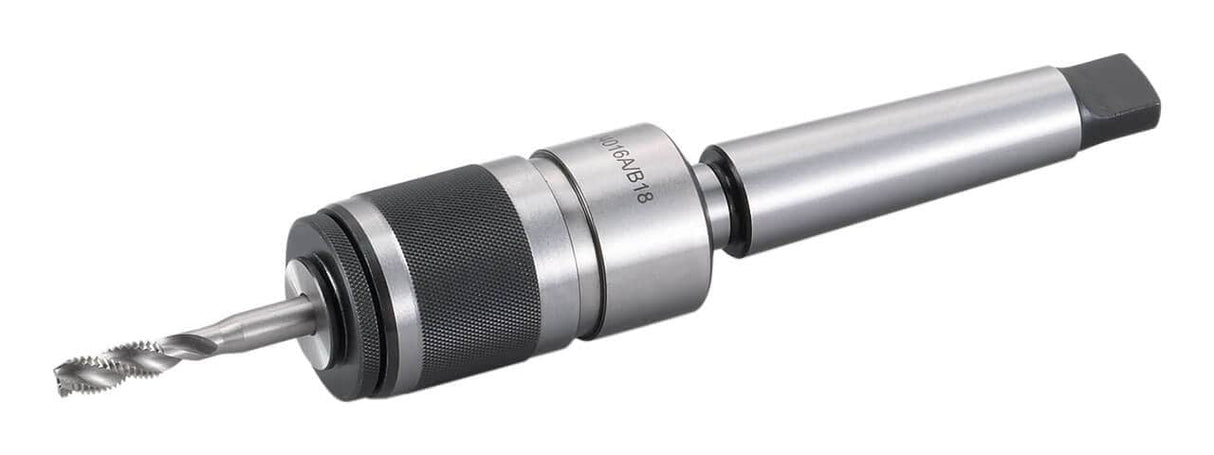

Quick-change threading chuck series CM 4 / M12 - M24

€465,26 (22% VAT incl.)
Business solution up to 30 installments

Consegna e Spedizione

Noi di Krollit garantiamo un processo di spedizione sicuro e affidabile. Gli ordini vengono gestiti con la massima cura e tracciabilità fino alla consegna.

Per spedizioni internazionali, ti invitiamo a inviare la richiesta tramite l’apposito form di contatto.

Al momento della consegna, firma sempre la bolla con la dicitura “con riserva di controllo”, così da permettere la corretta gestione di eventuali irregolarità o difformità del prodotto.

Il nostro obiettivo è assicurarti un servizio puntuale e un’esperienza d’acquisto senza pensieri.

Description

Properties

  • For use of tapping inserts for through holes and blind holes
  • Quick-change inserts equipped as standard with adjustable overload safety clutch
  • Mechanical threading with manual feed for core drilling machines, bench drills and pillar drills,...
  • Simple and quick replacement of the tapping insert without tools
  • Suitable for machines with clockwise and counter-clockwise rotation
  • Maintenance-free construction

Contents

M 12 / M 14 / M 16 / M 18 / M 20 / M 22 / M 24

Available sizes

  • CM 2 of M3 - M12
  • CM 3 of M3 - M12
  • CM 4 of M3 - M12
  • CM 3 of M12 - M24
  • CM 4 of M12 - M24
  • CM 5 of M12 - M24

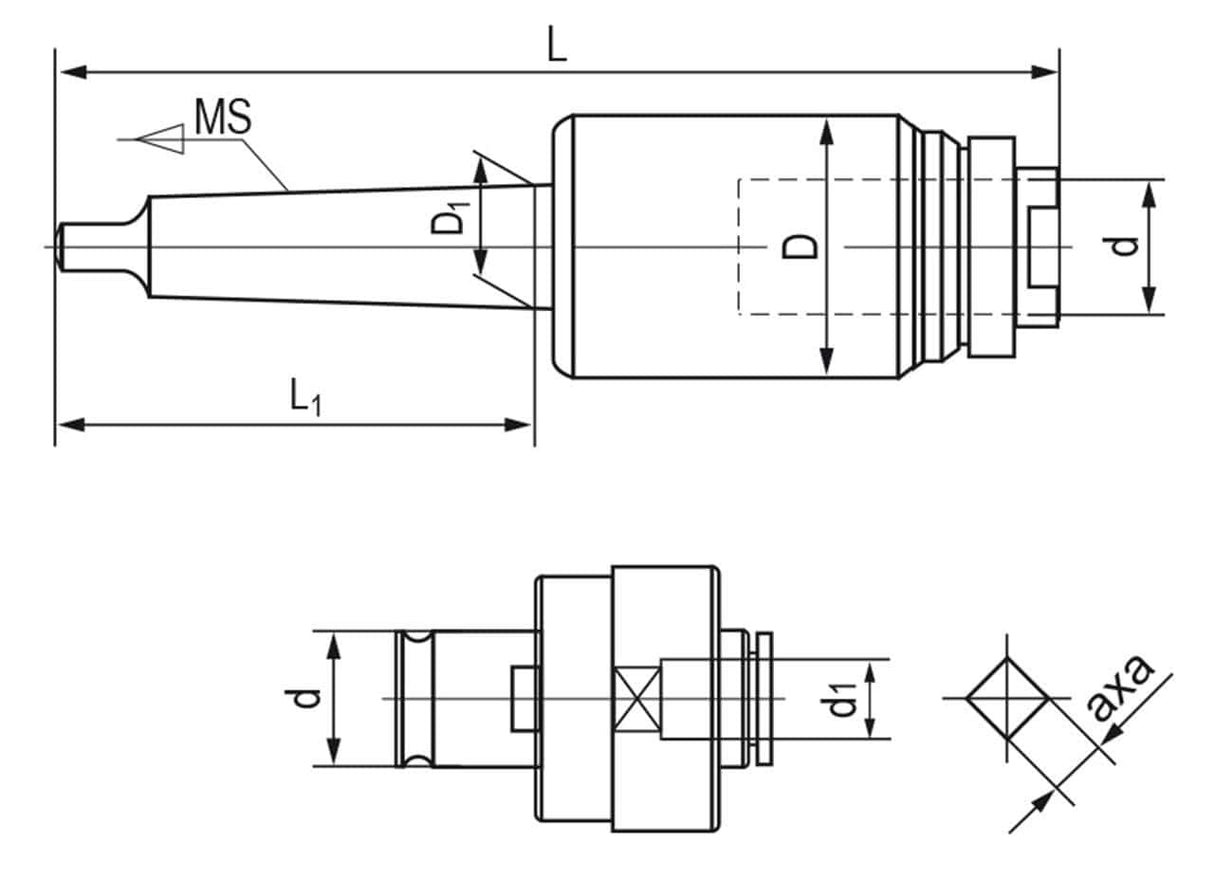

Technical specifications

Morse taper CM 4
D 66 mm
D1 31.267 mm
d 30 mm
L1 117.5 mm
L 252 mm
Cutting range M12 - M24
Torque 150 Nm
Approx. weight 3.60 kg

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer support in Italian available.

Frequently Asked Questions

CM 4 quick-change tapping chucks — what are they used for compared to hand taps?

Quick-change tapping chucks (M12 - M24) with overload safety clutch allow tapping on pillar drills and core drilling machines with manual feed, maintaining synchronisation between feed and rotation. The safety clutch protects the tap from breaking when the torque exceeds the set value. Quick change allows the tap to be replaced in 10 seconds between tapping operations without disassembling the chuck.

Is this set compatible with my Bernardo pillar drill?

Check the Morse taper of your drill's spindle (CM 4) — it must match the tap holder's connection. The CM 4 series is for lathes and drills with Morse taper 4; the CM 5 for Morse taper 5. Customer support in Italian available.

Delivery times?

Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
