Protection devices for PTO 20/800 lathes

Property
Particularly solid and functional item, designed to provide safe protection for the operator against the moving parts of the lathe.
It is fixed to the machine head and protects the operator from direct contact with the rotating components of the spindle and from chips and splashes of lubricants and coolants.
It can be attached to the machine head and features a large sliding “visibility” screen, with various adjustments for easy adaptation to many different machines.
It is available in three sizes, up to a spindle diameter of 800 mm and is complete with a safety microswitch.

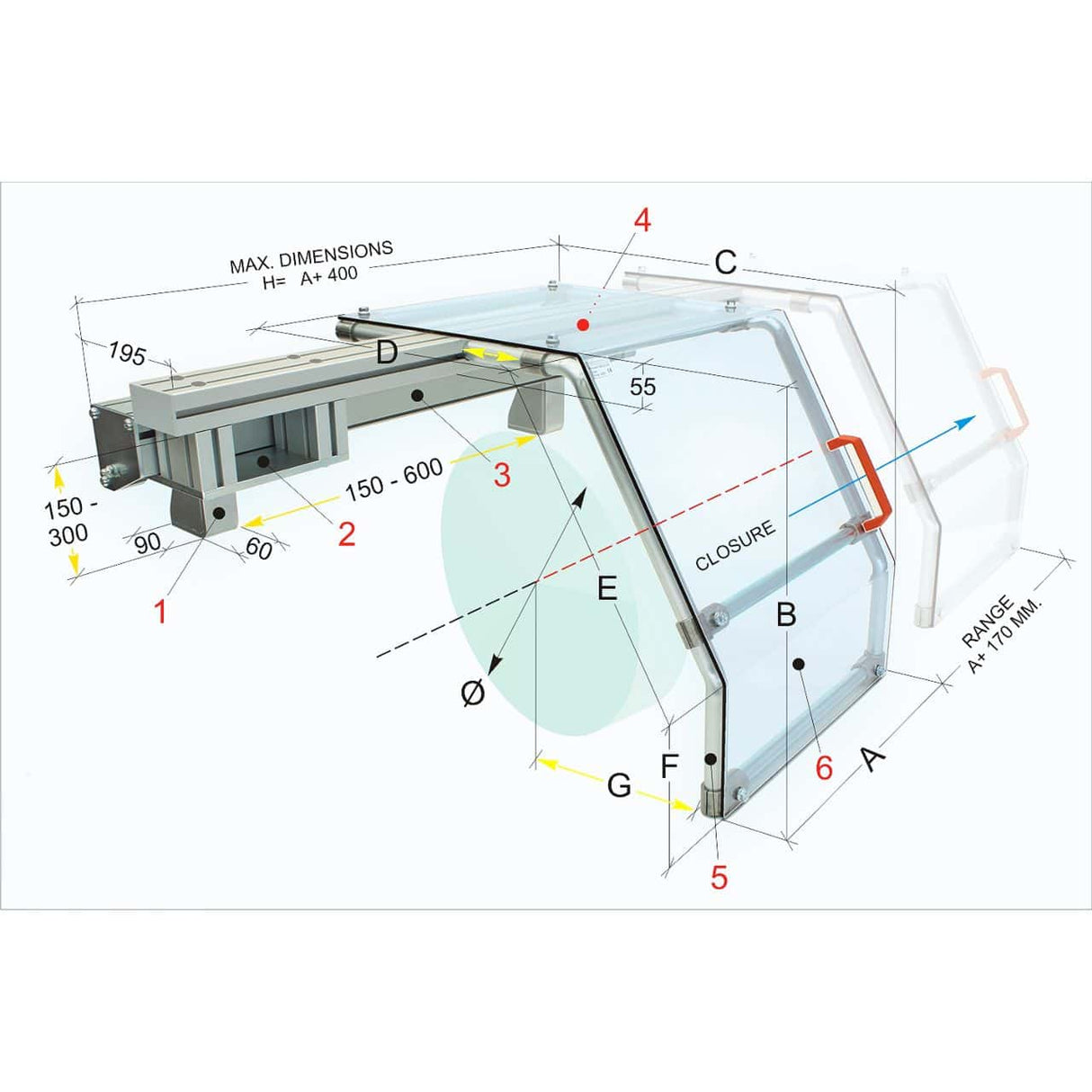

Technical specifications
Ø 800-900

At 450

B 640

C 1065

D 800

And 530

F180

G 370-950

Weight 28.8 kg

1 Anchor bracket with wide vertical adjustment
2 Sliding protection mobile support trolley
3 Self-supporting guide made of extruded aluminium, with the sliding system composed of hardened and ground steel bearing guides, placed in a protected internal position
4 safety microswitches with separate actuator - n. 2 NC contacts
5 Screen frame in tubular steel and aluminum
6 Screen made of shockproof and oil-proof plastic material of great thickness
