Bernardo PTO 11/435 Lathe Chuck Guard – With triple arm and microswitch

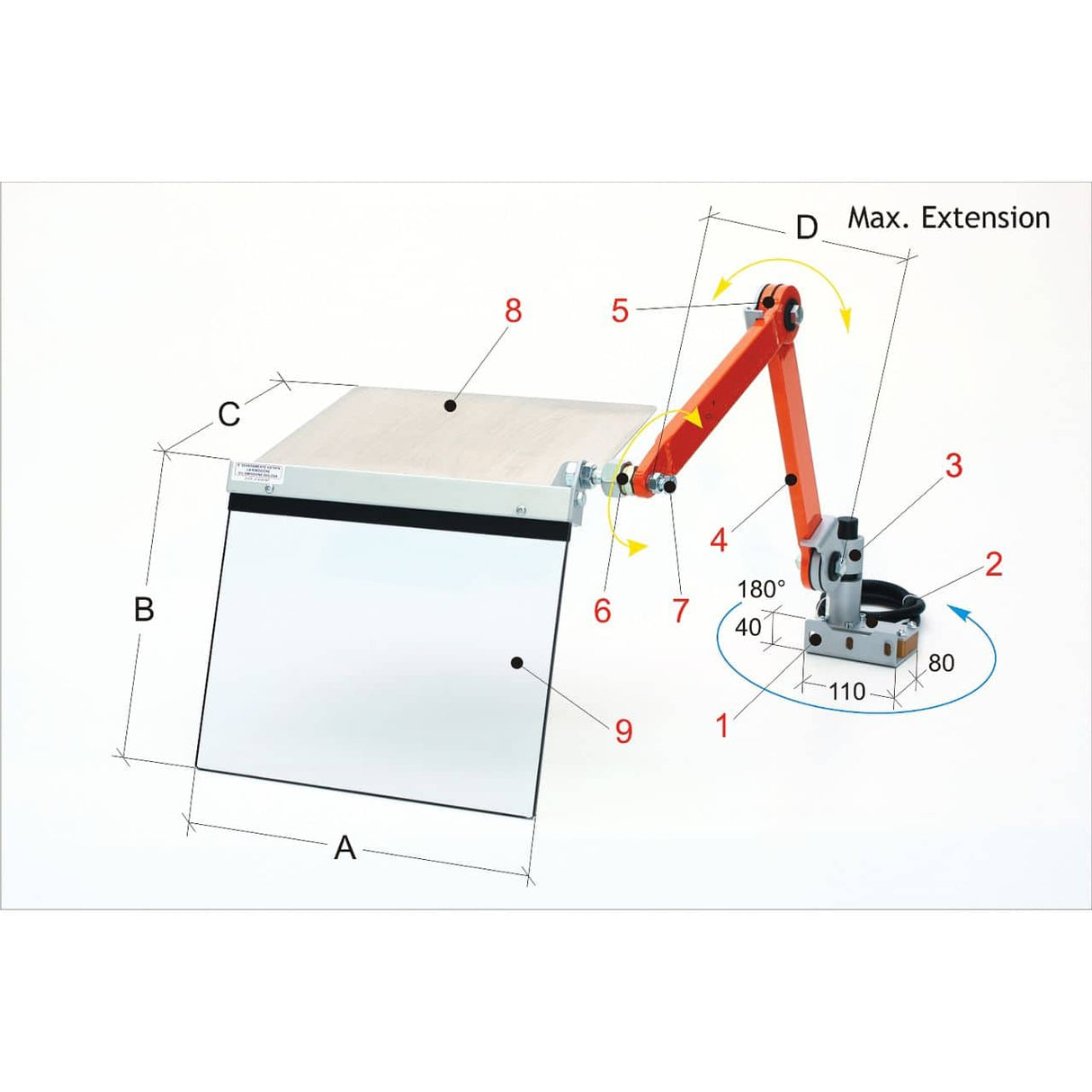

Bernardo PTO 11/435 Lathe Carriage Guard with Triple Arm

The Bernardo PTO 11/435 lathe carriage guard with triple arm is an adjustable safety device designed to ensure maximum operator protection during lathe operations. Installed directly on the longitudinal carriage, it works in combination with the spindle guard, significantly reducing the risks of contact with rotating parts and limiting splashes of coolant and chips. The guard is supported by an articulated arm system with a ball joint that allows for free, rapid, and precise positioning. The presence of the anti-chip barrier ensures superior shielding during turning operations. Complete with an integrated safety microswitch, it immediately interrupts lathe operation when lifted, improving the level of protection and compliance with regulations. Ideal for workshops, schools, mechanical departments, and laboratories.

✅ Main features:

• Adjustable guard to be mounted on the longitudinal carriage
• Articulated triple arm with ball joint for maximum positioning freedom
• Protects against contact with rotating parts, chips, lubricant, and coolant
• Integrated anti-chip barrier
• Compatible with spindle guard for maximum combined safety
• Safety microswitch included
• Robust construction, specific for professional lathes

📊 Technical table:

📦 Package contents:

• Lathe carriage guard PTO 11/435
• Articulated triple arm
• Shield with anti-chip barrier
• Integrated safety microswitch
• Mounting brackets
