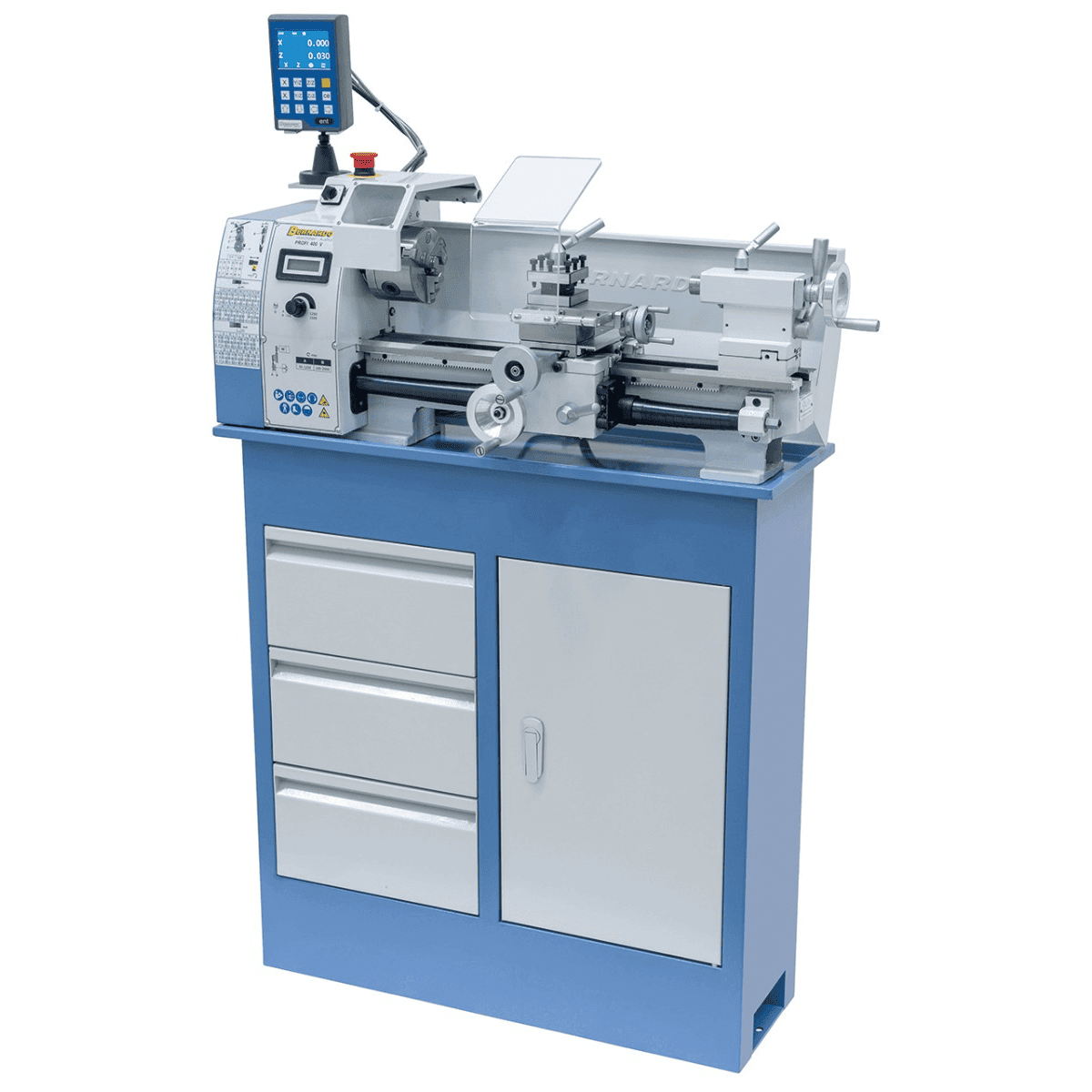

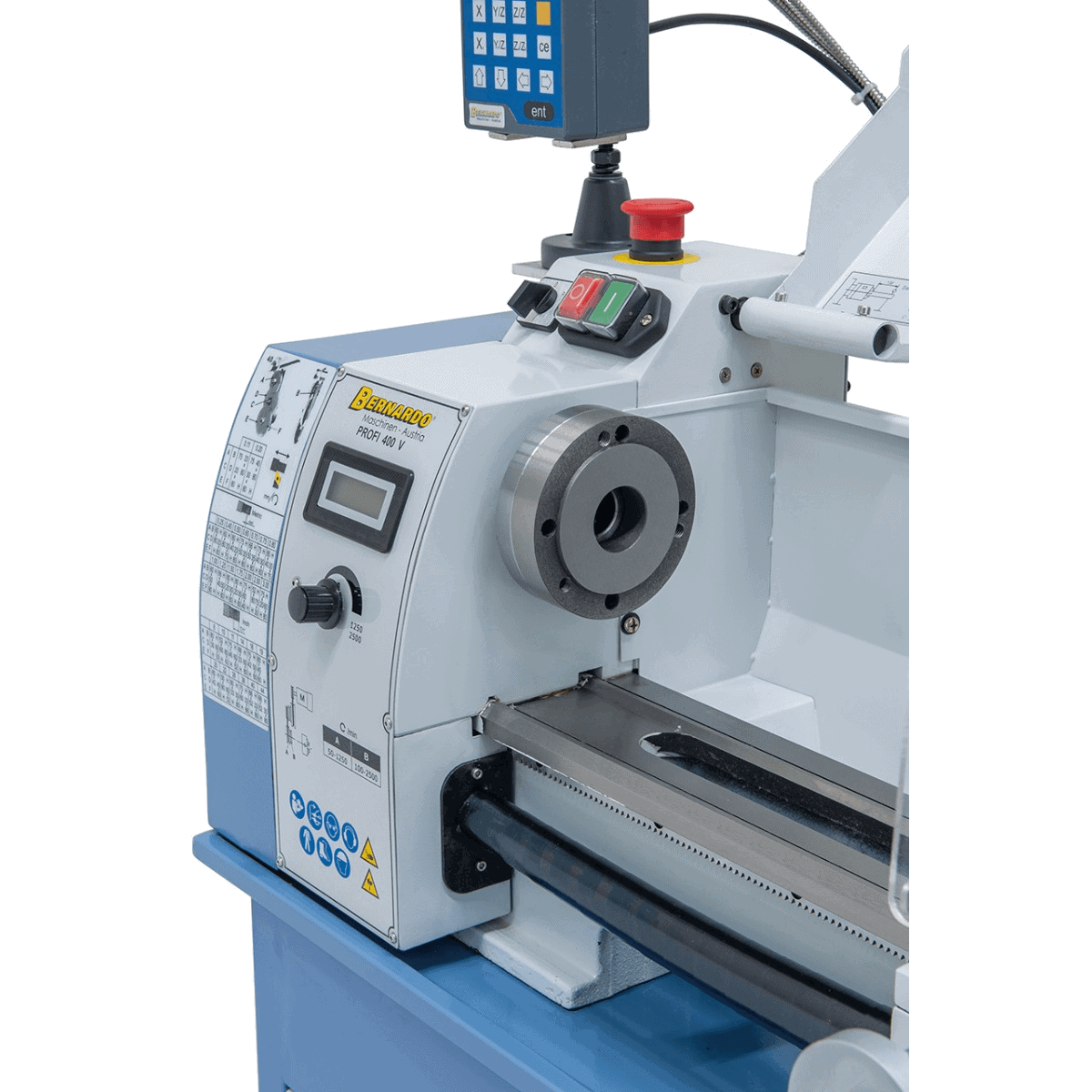

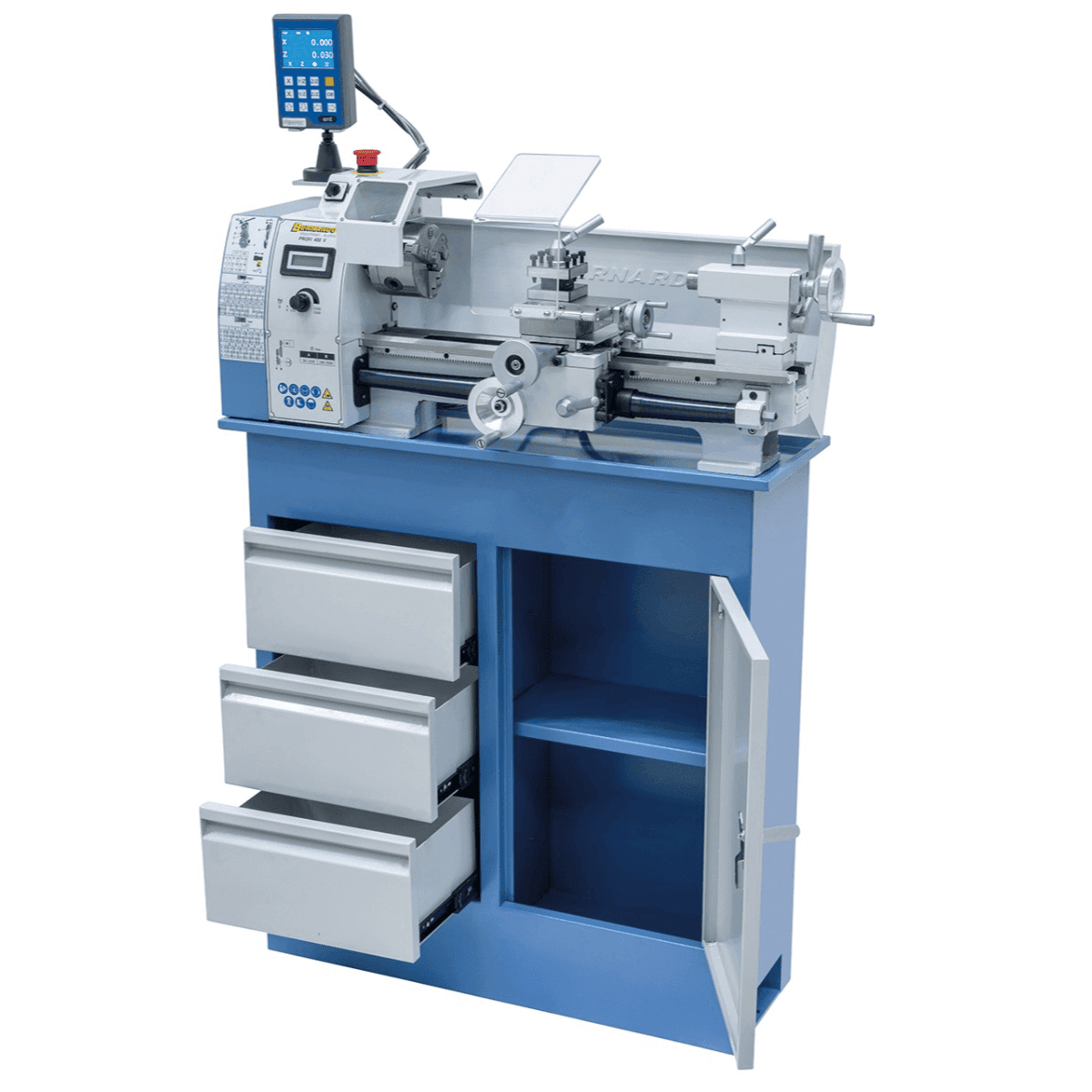

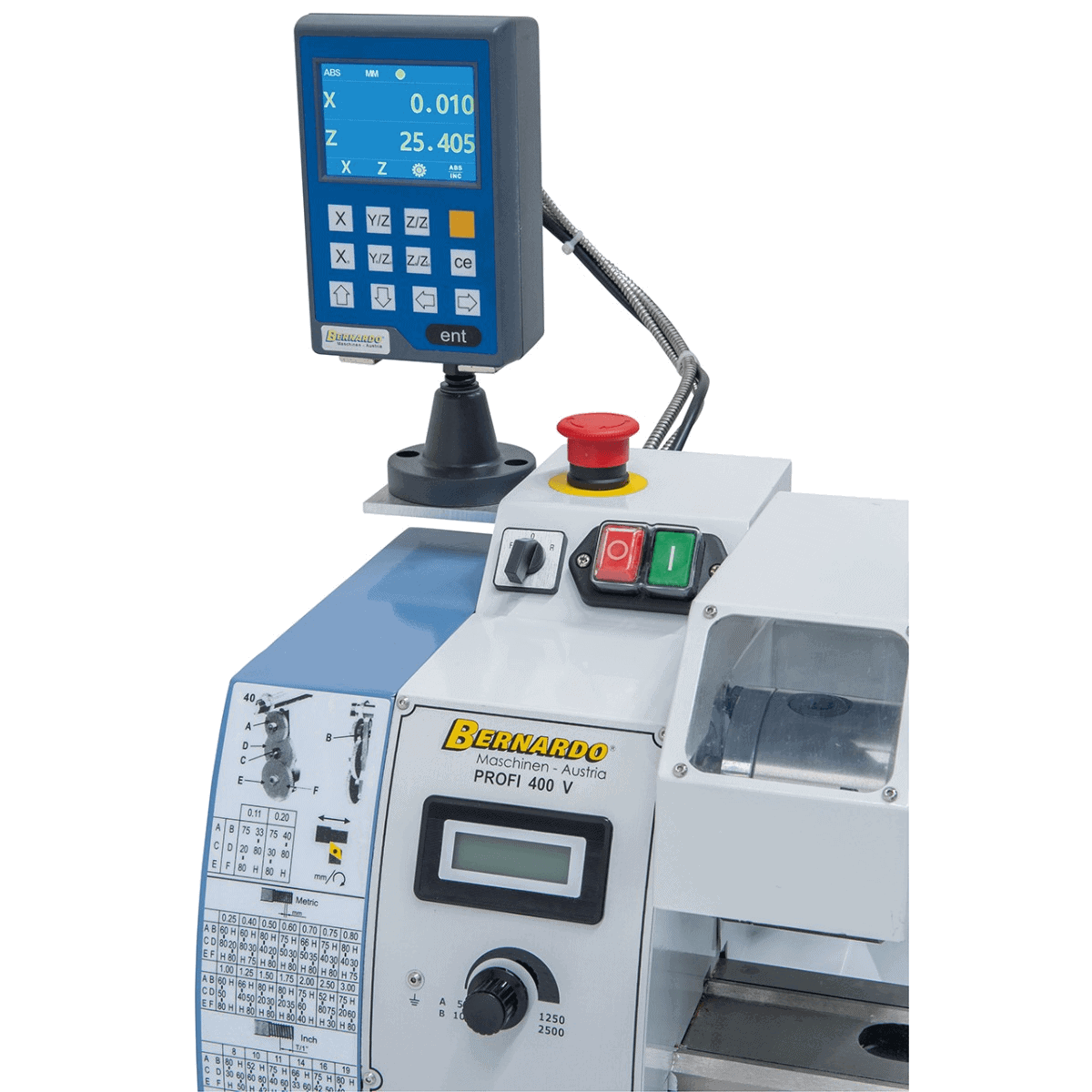

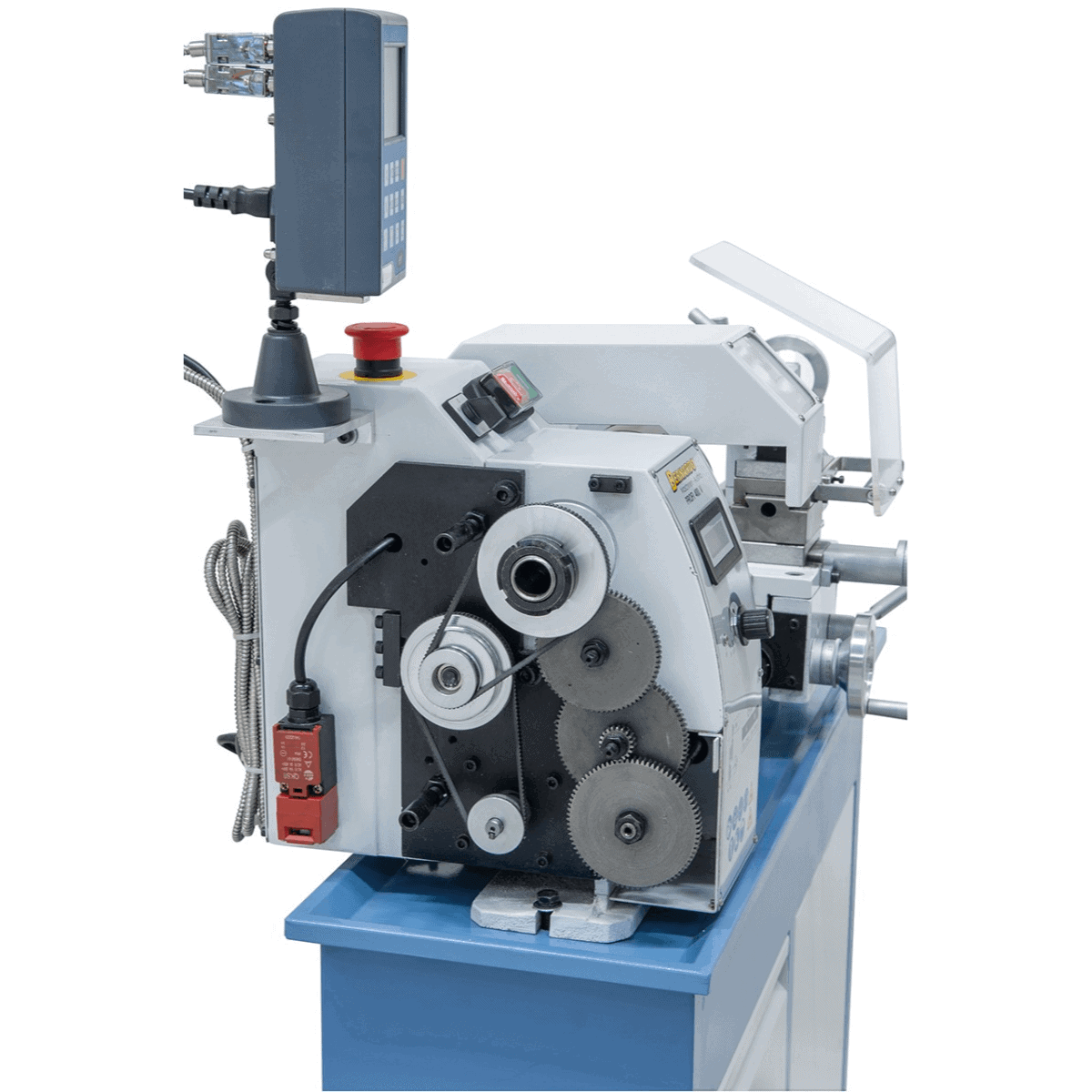

Bernardo Profi 400 V / 230 V with 2-axis DRO DT 40 is a metal lathe for professional use, with a distance between centers of 400 mm, center height of 100 mm, motor 0.60 kW (S1) / 0.80 kW (S6) – 230 V, weight 65 kg. Krollit, official Bernardo distributor since 2007.
- Distance between centers: 400 mm
- Center height: 100 mm
- Swing over bed: 200 mm
- Spindle bore: 20 mm
- Spindle taper: MT3
- Speed range: 50 – 1250 / 100 – 2500 rpm
Who uses the Profi 400 V / 230 V with 2-axis DRO DT 40 and for what
Machine shops and artisan turners use the Profi 400 V / 230 V with 2-axis DRO DT 40 for cylindrical, conical, and threading turning operations on steels and alloys. The machine supports the production of spare parts, shafts, bushings, and small series.
Its place in the Bernardo range
The Bernardo Profi 400 V / 230 V with 2-axis DRO DT 40 is part of the Bernardo metal lathe range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the Profi 400 V / 230 V with 2-axis DRO DT 40 for?
The Profi 400 V / 230 V with 2-axis DRO DT 40 is recommended for the following professional profiles:
-
Machine shops and artisan turners: cylindrical, conical, and threading turning on steels and alloys.
-
Industrial maintenance technicians and repair centers: processing of spare parts, shafts, bushings, and small-scale production.
-
Hobbyists and model making: professional machine: for occasional home use, consider smaller benchtop models.
Spindle, tools, and speed
| Distance between centers |
400 mm |
| Center height |
100 mm |
| Spindle bore |
20 mm |
| Spindle taper |
MT3 |
| Speed range |
50 – 1250 / 100 – 2500 rpm |
Other specifications
| Swing over bed |
200 mm |
| Longitudinal feeds |
0.089 – 0.198 mm/rev (3) |
| Metric threads |
0.3 – 3 mm (14 pitches) |
| Inch threads |
10 – 44 TPI (10 pitches) |

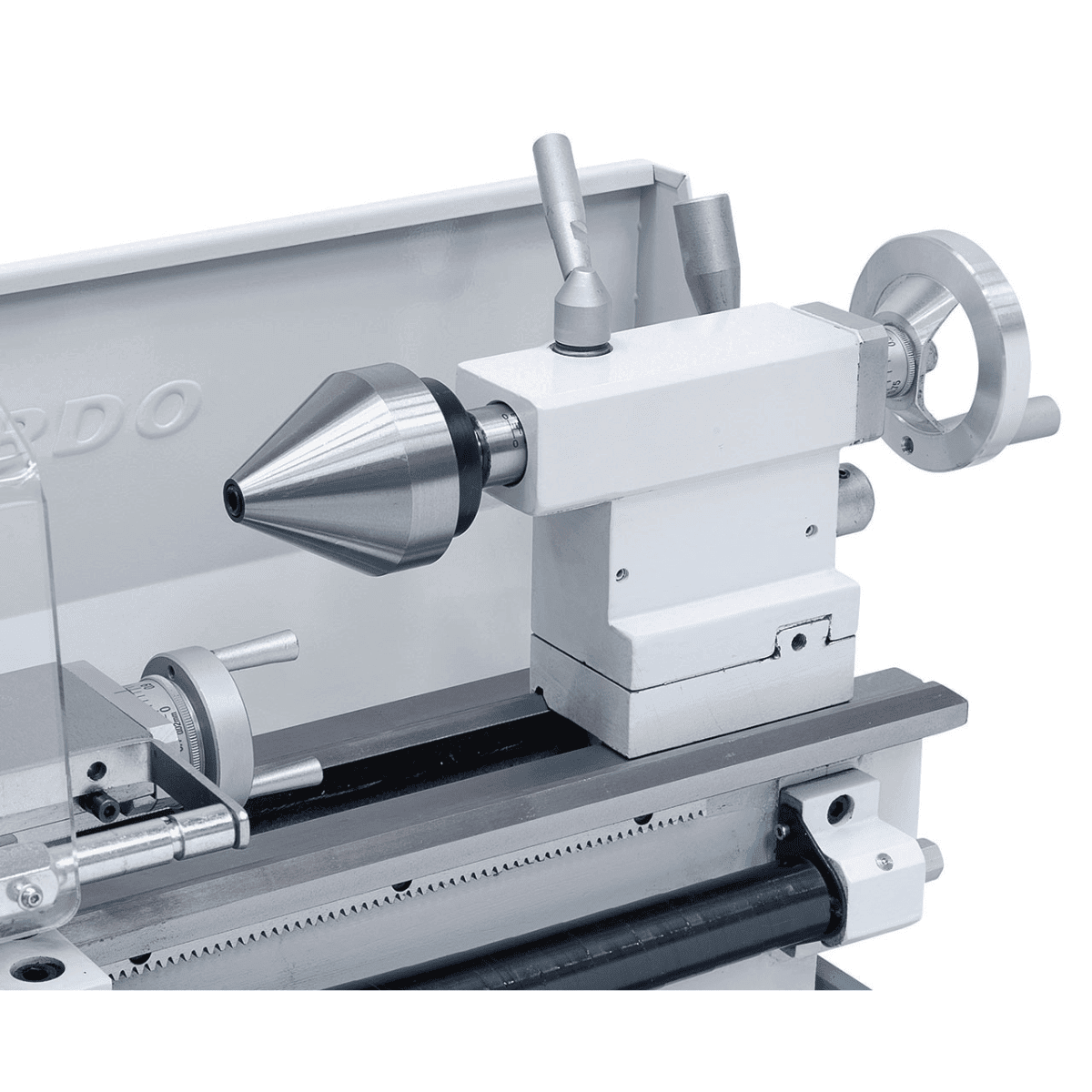

| Tailstock taper |
MT2 |
| Origin |
Europe |
| * |
without stand |
| Tailstock quill travel |
50 mm |
| Machine dimensions |
930 x 400 x 380 mm* |
| Weight |
65 kg |
| Motor power |
0.60 kW (S1) / 0.80 kW (S6) – 230 V |
Frequently asked questions
What materials can the Profi 400 V / 230 V with 2-axis DRO DT 40 work on?
Mild steels, alloy steels, cast iron, brass, and aluminum within the cutting depth limits indicated in the technical specifications.
For hardened or high-strength alloy steels, it is advisable to reduce cutting speed and depth of cut. The machine is sized for general mechanical production; for special alloys, verify the compatibility of the spindle and tailstock Morse taper.
What is included in the standard equipment?

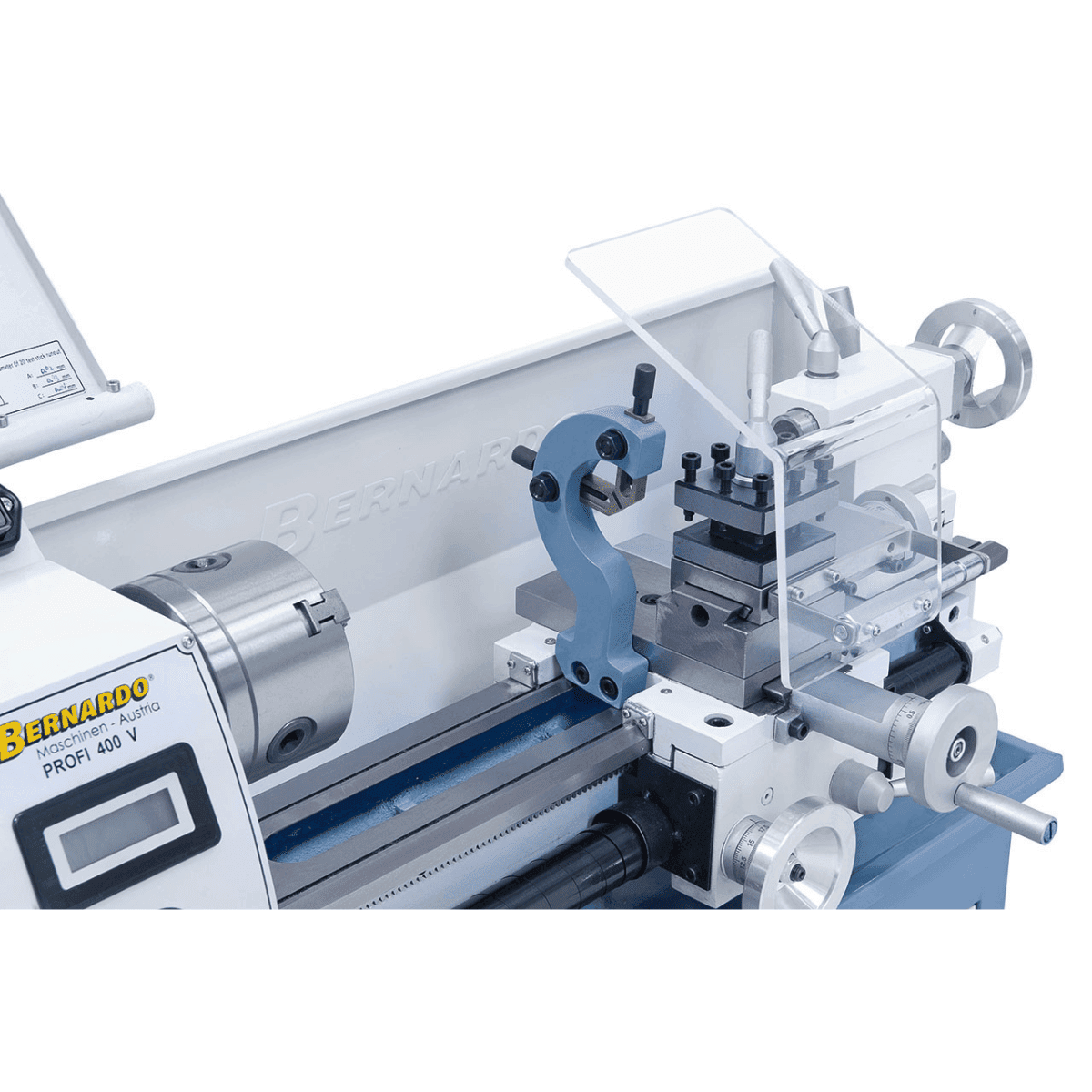

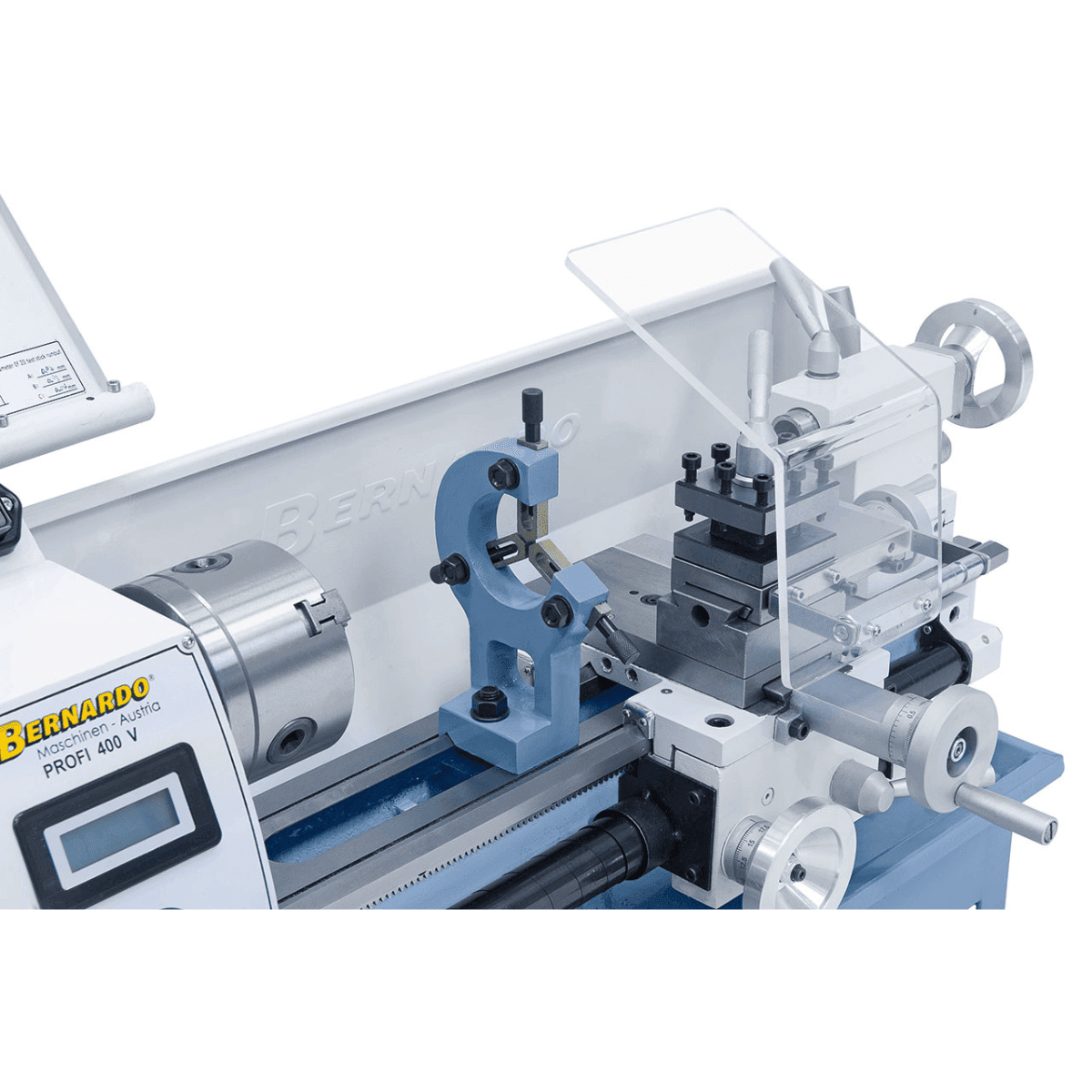

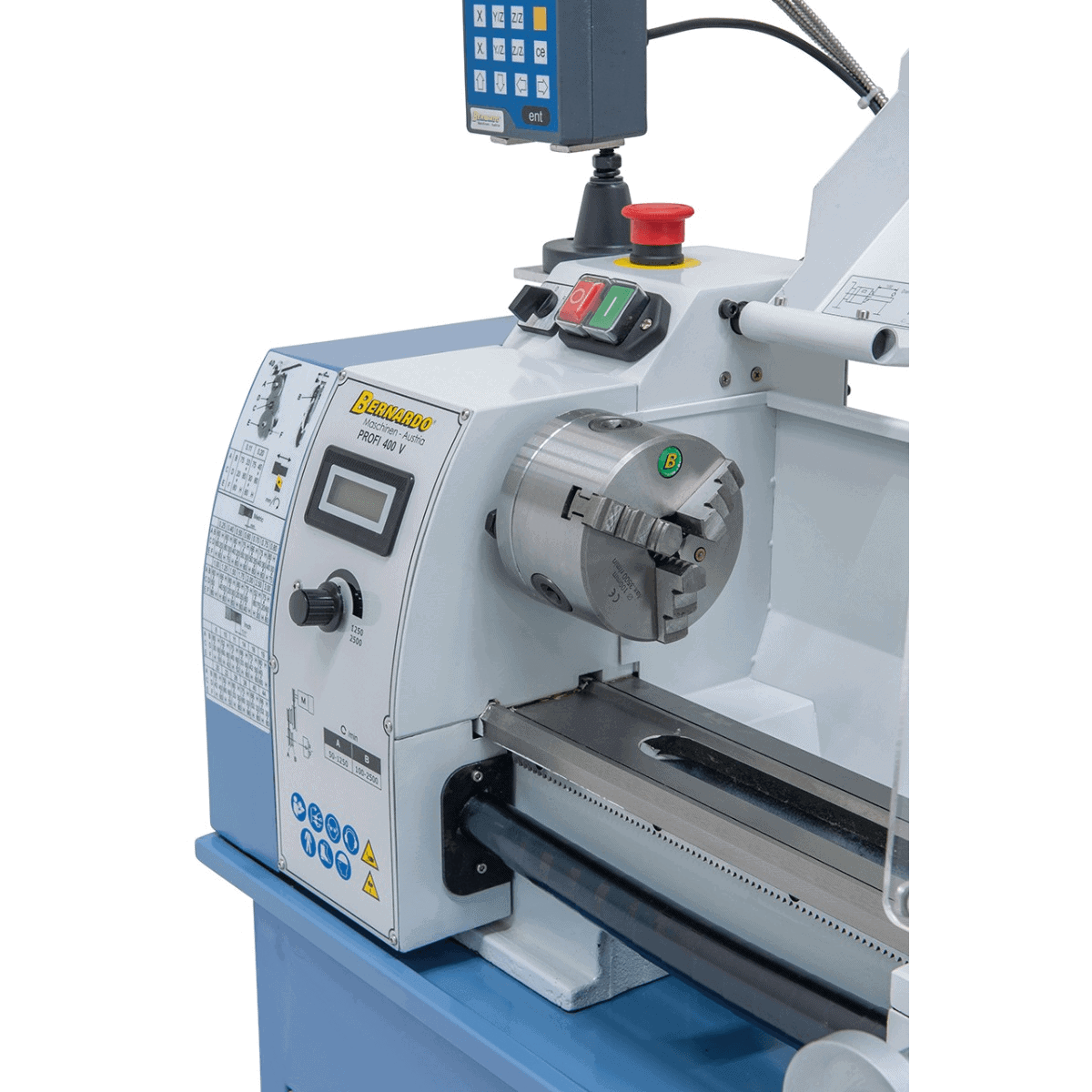

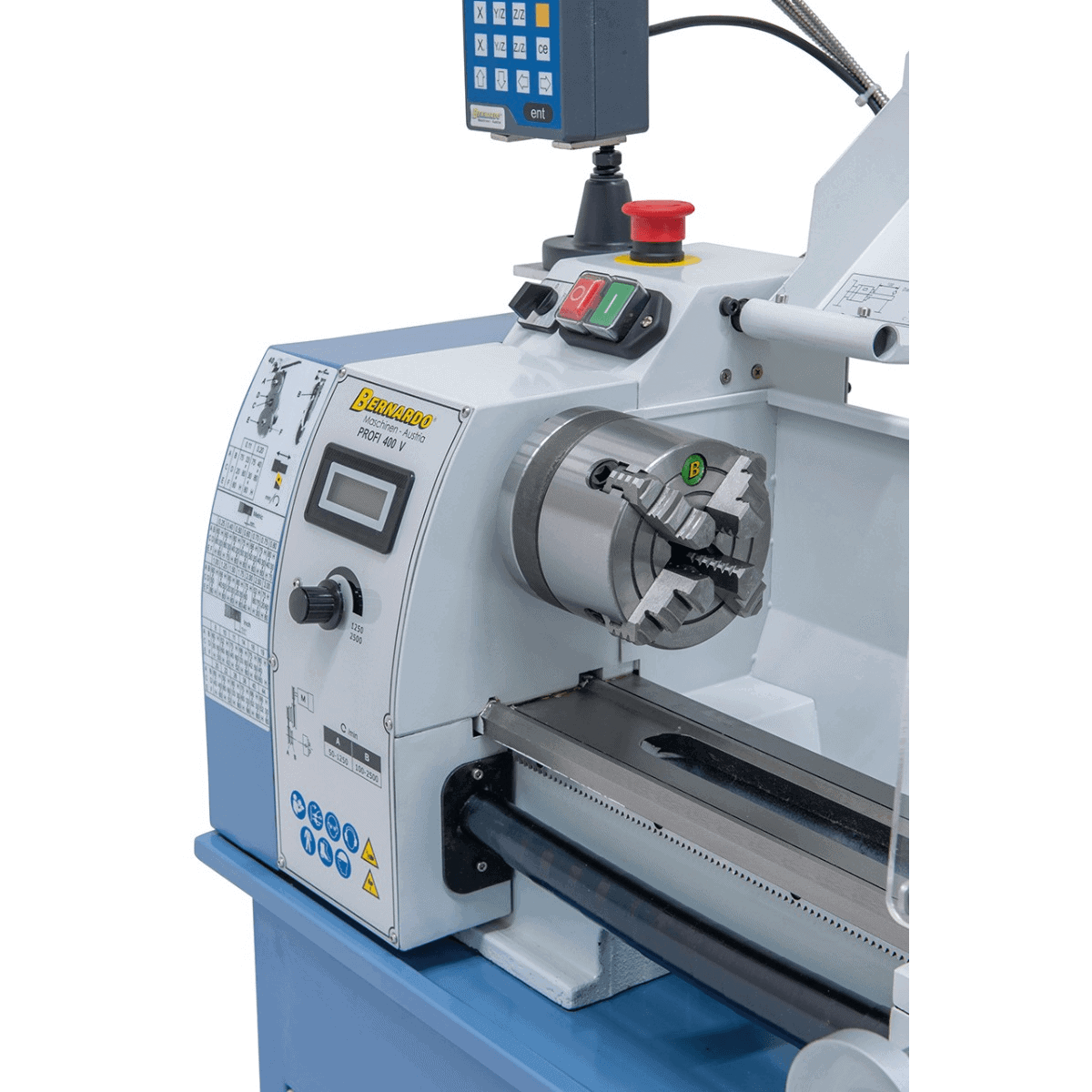

The equipment includes a self-centering chuck, tailstock, steady rest, threading accessories, and a set of wrenches.
For the exact list of accessories and spare parts supplied, consult the manufacturer's technical data sheet. Krollit provides support for original Bernardo spare parts with delivery times of 3-5 working days.
What type of power supply does it require?
See the voltage data in the technical table. Compact benchtop machines are often 230 V single-phase, professional models 400 V three-phase.
For 400 V three-phase models, an industrial power line is required. Verify the presence of adequate power supply in the workshop before purchasing.
Is the machine suitable for series production?
It depends on the model class: professional Bernardo lathes handle continuous cycles, benchtop ones are suitable for medium use.
Profi and Apollo models are designed for intensive multi-shift use; Hobby and Goliath series for occasional use or small workshops.
How much does it weigh and what installation does it require?
Weight varies significantly by model: see "Weight" in the technical table.
Machines above 500 kg require industrial flooring and fixing with anchor bolts. Benchtop models up to 100 kg are installed on a sturdy bench with an adequately sized top.
