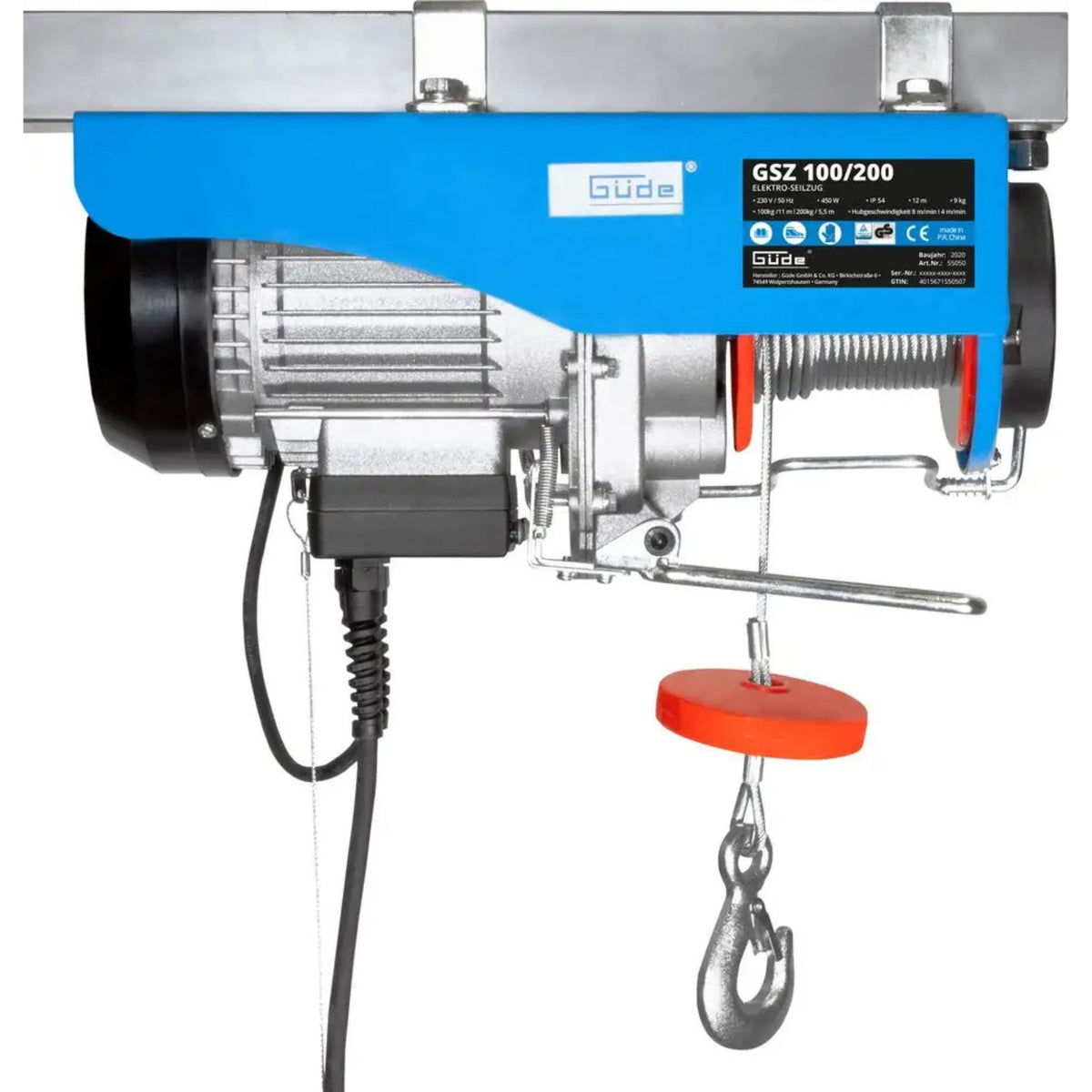

Güde GSZ 100/200 Electric Chain Hoist – 0.45 kW Motor, 100–200 kg, 11–5.5 m
The deflection pulley system is a practical innovation: it allows doubling the capacity (100 → 200 kg) while maintaining the same 0.45 kW motor, simply by threading the rope through the pulley. The speed halves (8 → 4 m/min) but allows lifting 200 kg safely — the maximum limit for ultralight hoists. The 12 m steel rope divided into 2 sections (6 m effective for single lift with pulley) allows for versatile application: offices with 3–5 meter heights or compartmentalized workshops up to 11 meters. The automatic brake provides extremely high safety — if power is interrupted, the load does not fall but remains suspended, locked by friction.
Who chooses it in Italy
Technical offices and professional firms prefer it for lifting heavy documents (archives, IT equipment) up to 100 kg without manual effort. Small workshops and artisans performing light assembly require it for precise load control up to 200 kg and the ultralight hoist weight of 9.14 kg (shoulder-portable). Shops and warehouses use it for handling light goods (clothing, catalog boxes) without needing trolleys or pallet jacks. In the Krollit catalog, it represents the essential complement for confined spaces requiring light motorized lifting without clutter.
After-sales support and spare parts
Güde provides replacement ropes, hooks, and deflection pulleys within 3–5 days from Austria. Krollit manages a spare parts warehouse in Italy. Routine maintenance: check rope lubrication before each use (apply light rope oil to connecting points), inspect hook welding monthly for cracks, check control cord for insulation damage, clean motor body of dust. CE and GS TÜV certifications ensure Italian compliance.
Who is the Güde GSZ 100/200 hoist suitable for?
| Profile |
Suitable? |
Reason |
| Technical office / Professional firm |
Ideal |
Lifting archive documents and equipment up to 100 kg effortlessly. Ultralight 9.14 kg weight, transportable by car between offices. Speed 8 m/min for quick operations. Height 11 m covers standard buildings (3 floors + mezzanine). Discreet, quiet for office environments. |
| Small workshop / Assembly craftsmanship |
Ideal |
Precise load control of 200 kg at 4 m/min with pulley. Ultralight weight for transport between workstations. Maximum capacity of 200 kg covers 90% of light metal/composite assembly. Automatic brake ensures operator safety in crowded workshops. |
| Shop / Warehouse / E-commerce |
Adequate |
Handling light goods (clothing, books, catalog boxes) up to 200 kg. Lightweight allows movement between narrow aisles without damaging structures. However, continuous use (>50 cycles/day) could stress the 0.45 kW motor — check thermal cycle. |
Not suitable for: Lifts >200 kg (0.45 kW motor insufficient, risk of thermal overload). Heavy industrial environments (Ø3.0 mm rope is undersized compared to professional hoists). Heavy construction sites (capacity too low). Continuous lifting >100 cycles/day without motor pause.
Technical specifications

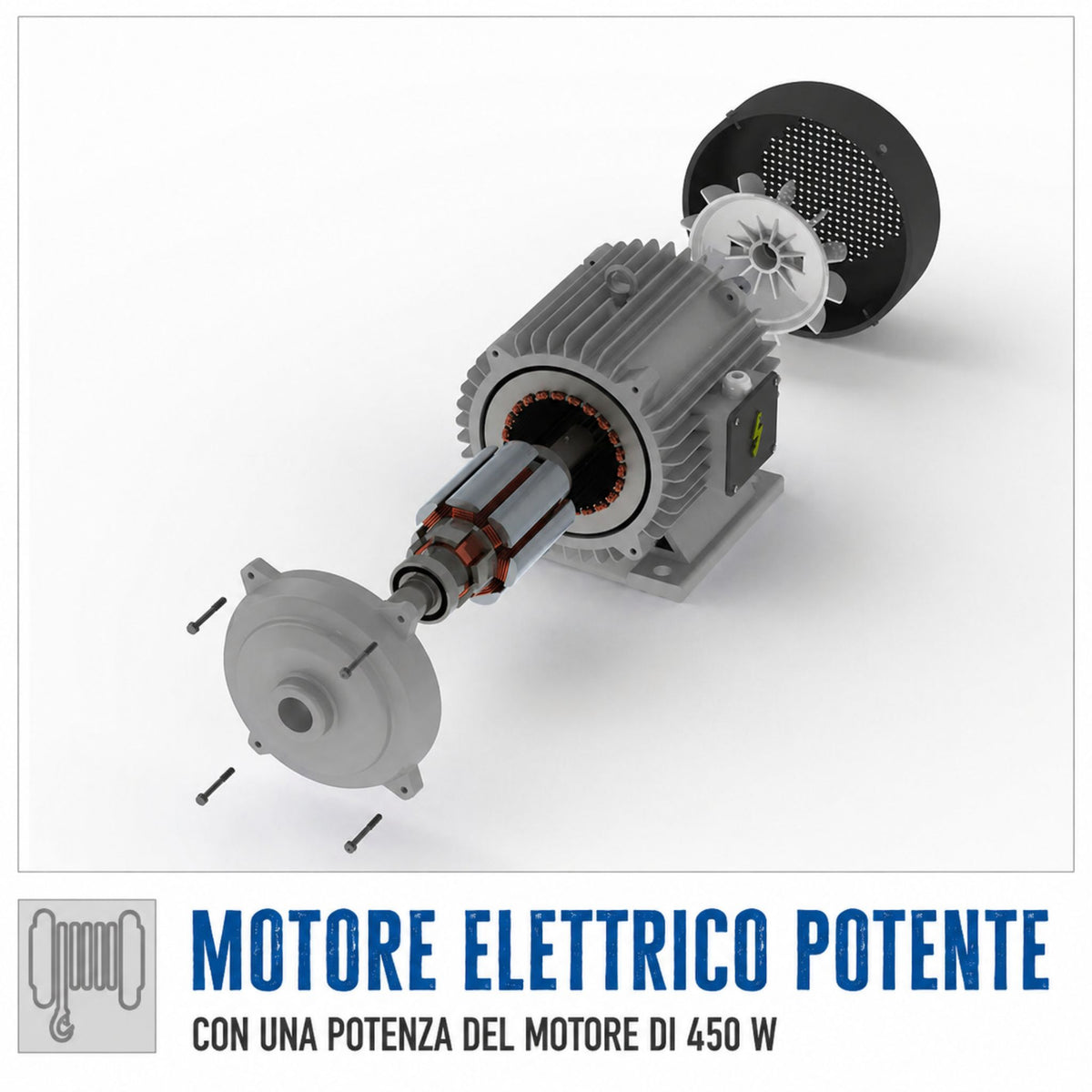

Motor and power supply
| Component |
Specification |
| Motor type |
Single-phase asynchronous electric |
| Motor power |
0.45 kW (0.61 HP) |
| Voltage |
230 V |
| Frequency |
50 Hz |
| Phases |
Single-phase |
| Motor protection |
Integrated thermal protection |
| Protection class |
I (mandatory grounding) |
| Protection type |
IP 54 (dust and splash water protection) |
| Power cable |
Not declared by manufacturer — presumably 3–5 m with 230V bipolar plug |
| Starting |
Standard direct start |
Rope lifting system
| Component |
Specification (Standard Configuration) |
Specification (With Deflection Pulley) |
| Load capacity |
100 kg |
200 kg (doubled) |
| Lifting speed |
8 m/min |
4 m/min (halved) |
| Lifting height |
11 m |
5.5 m (halved) |
| Rope type |
Steel, Ø3.0 mm |
Steel, Ø3.0 mm |
| Total rope length |
12 m (6 m effective per section) |
12 m (3 m effective per section with pulley) |

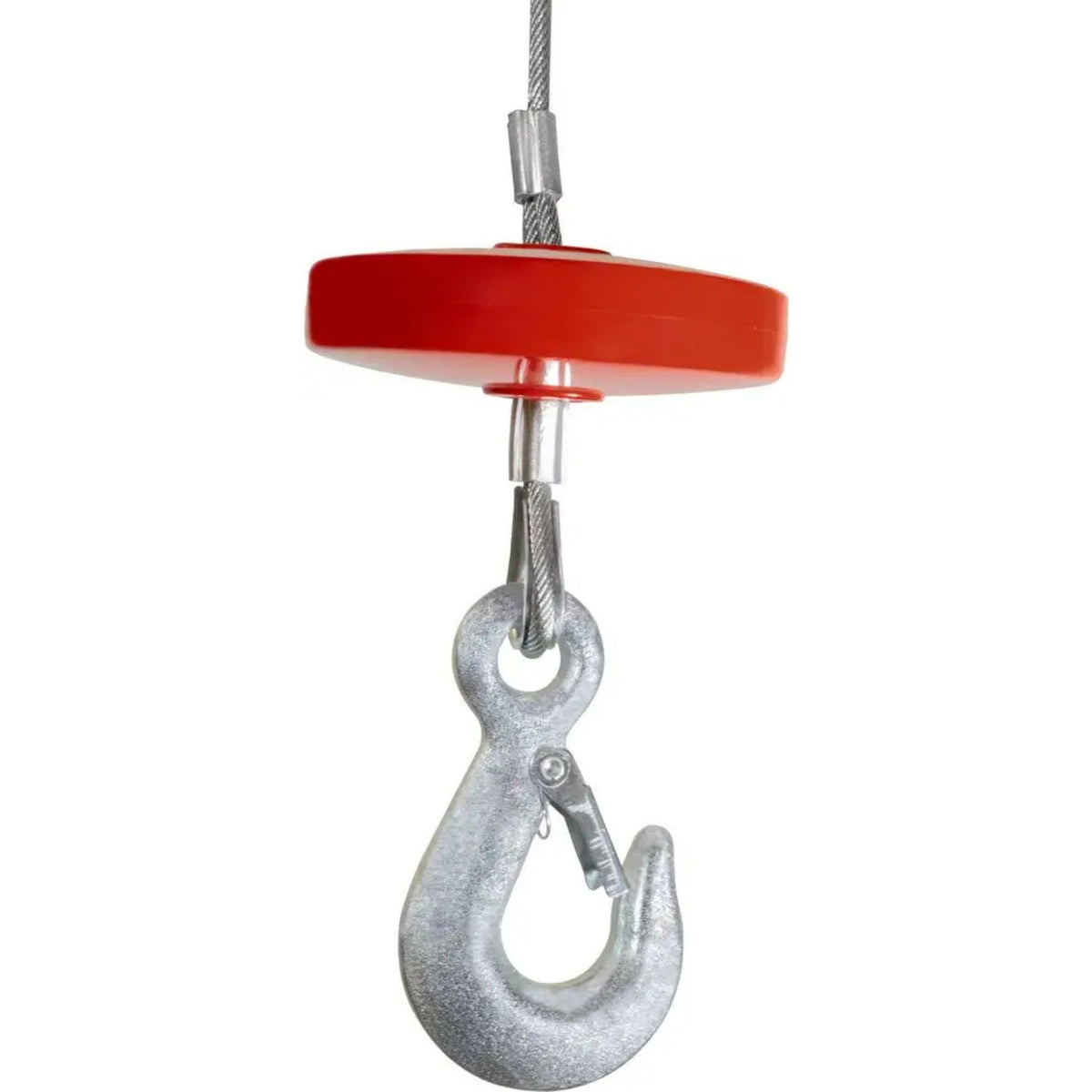

| Hook |
Welded steel, 100 kg |
Welded steel, 200 kg with pulley |
| Deflection pulley |
Not installed (optional) |
Included, interchangeable |
| Brake |
Automatic — keeps load locked on power interruption |
Automatic — keeps load locked on power interruption |
Control and safety features
| Component |
Specification |

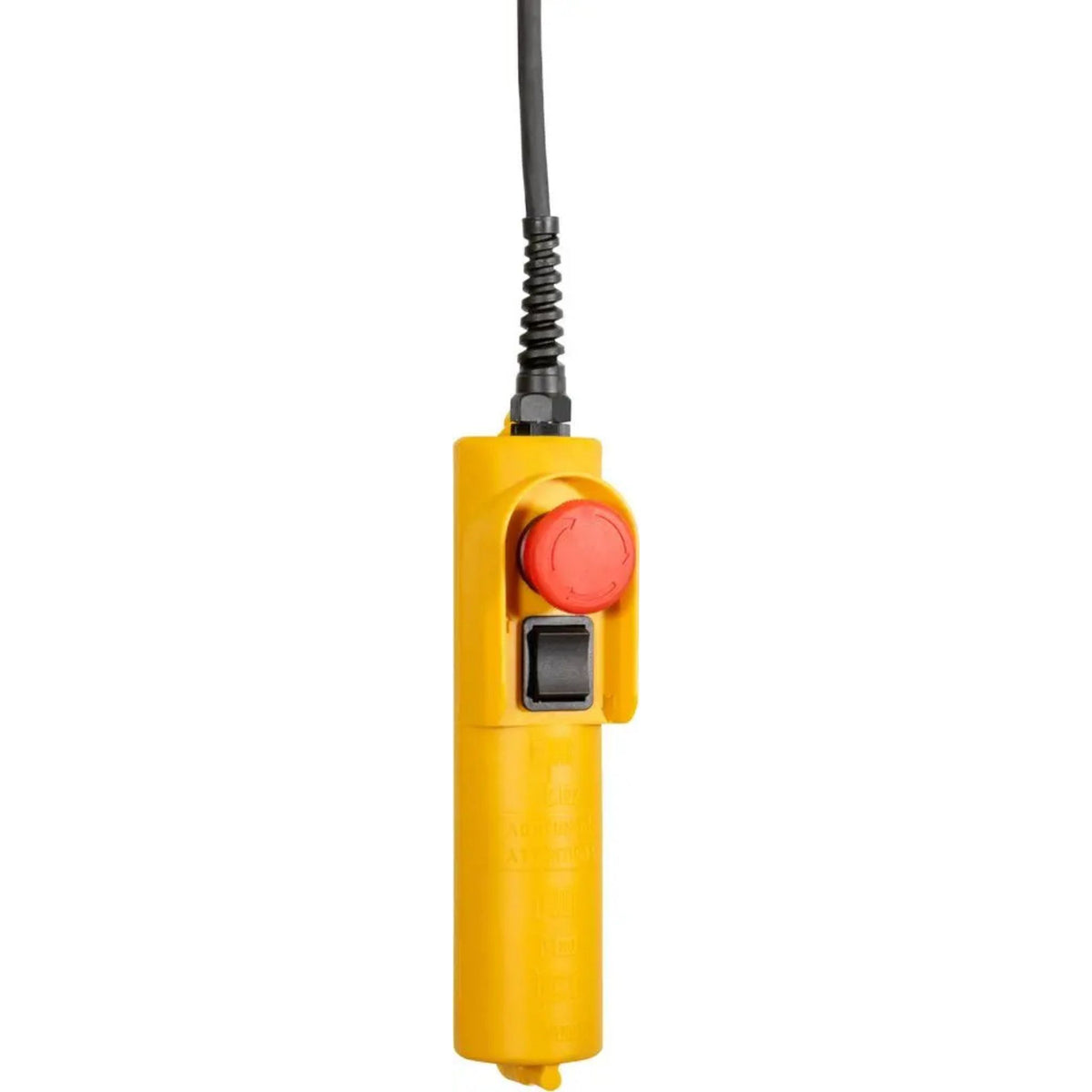

| Control element |
Flexible cord with push buttons |
| Functions |
Up / Down / Emergency stop |
| Emergency button |
Yes, for instant stop |

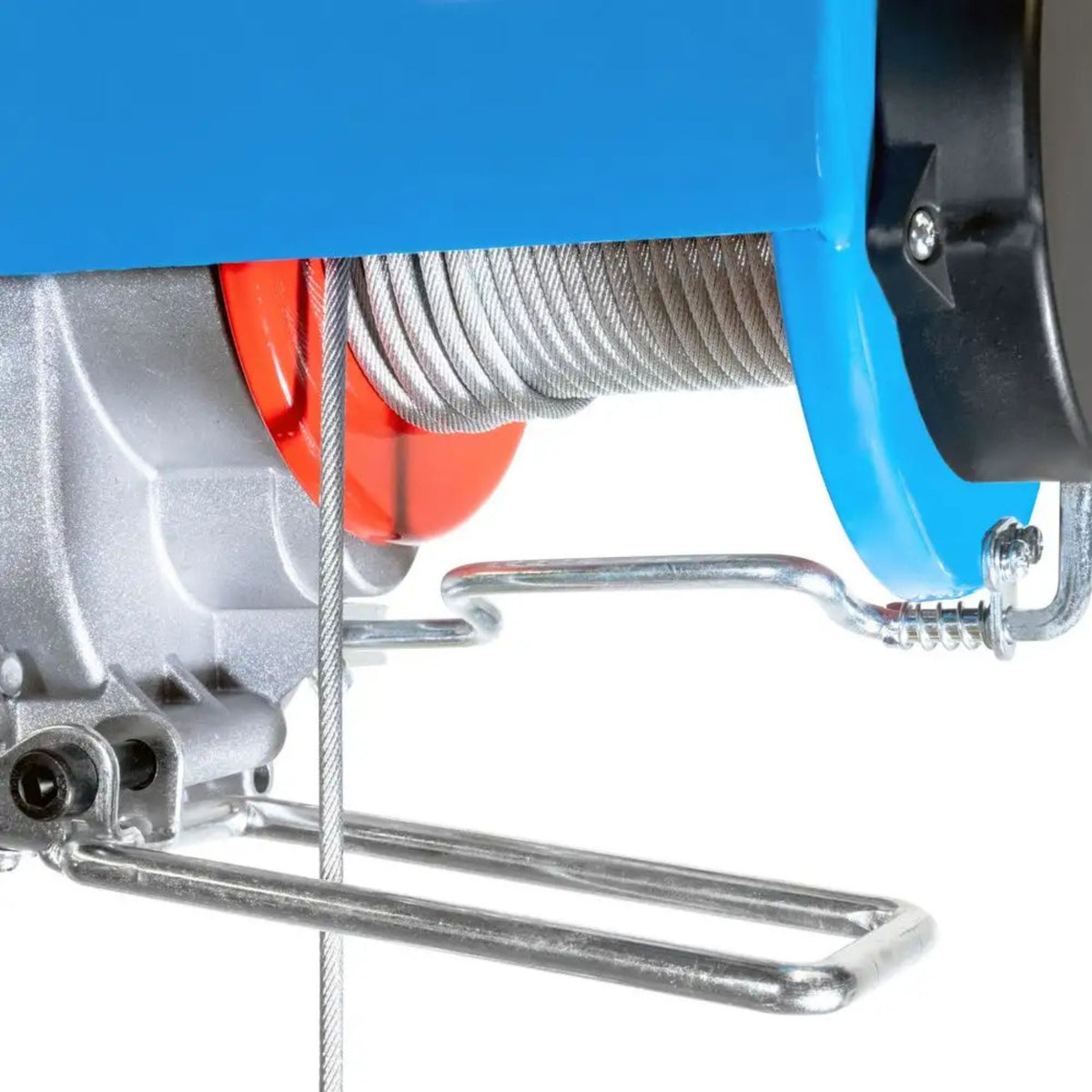

| Limit stop bracket |
Yes, for both maximum lift and maximum lowering |
| Indicator lights |
Not declared by manufacturer |
| Control cord length |
Not declared by manufacturer — presumably 2–3 m |
Installation and fastening
| Component |
Specification |

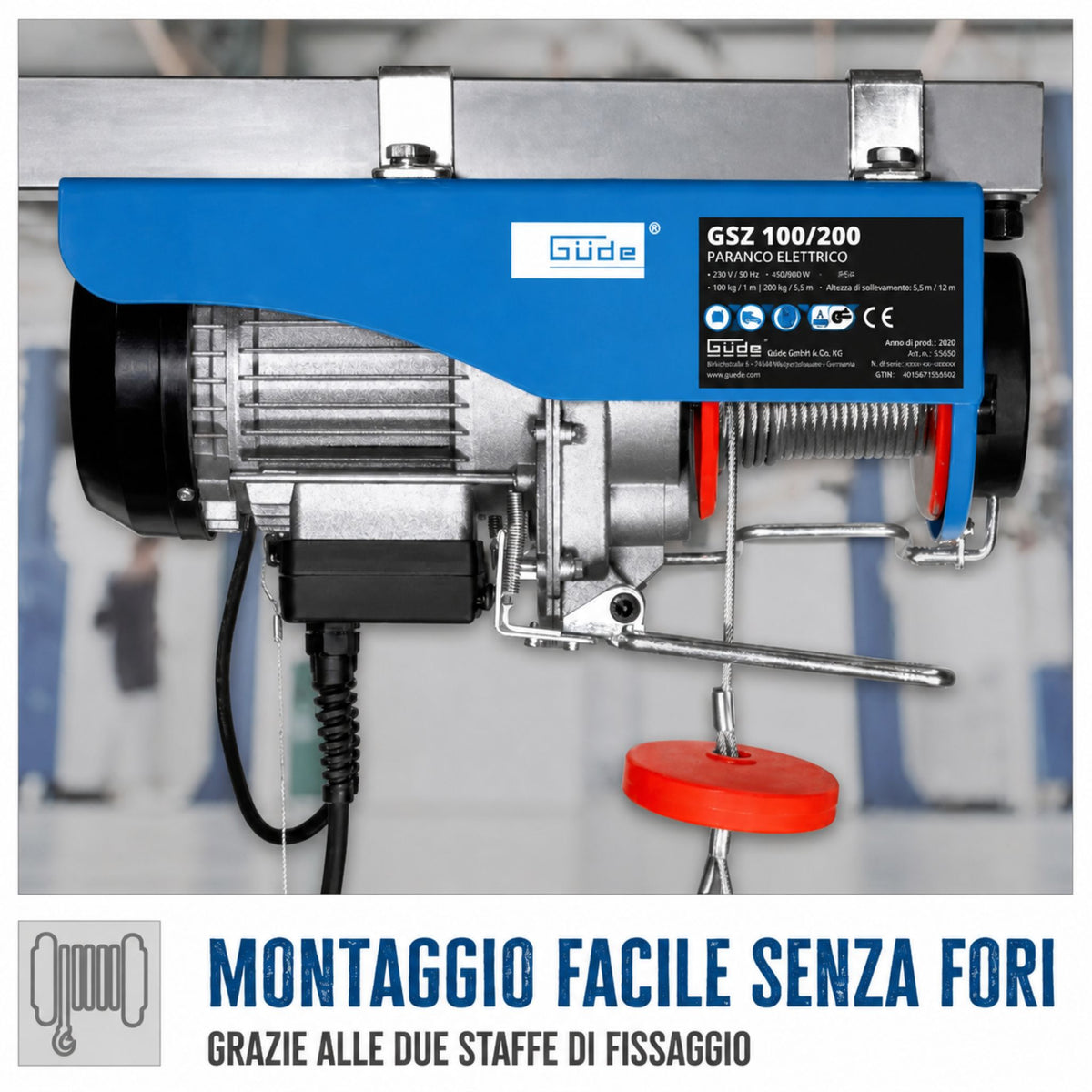

| Mounting bracket |
Steel, for mounting on I-beam or tubular profile |
| Connection type |
Bolted to structural element (beam, bracket) |
| Allowable beam loads |
Not declared — beam must support at least 10× gross load (2,000 kg with pulley) |
| Mounting |
Horizontal on beam/bracket, vertical on pole (with static checks) |
Dimensions and weight
| Component |
Specification |
| Hoist body length |
340 mm |
| Hoist body depth |
180 mm |
| Hoist body height |
120 mm |
| Net weight |
9.14 kg |
| Gross weight (packaging) |
Not declared by manufacturer |
| Portability |
Manual — ultralight weight, shoulder or backpack portable |
Compliance and safety
| Component |
Specification |
| CE marking |
Yes, Machinery Directive 2006/42/EC |
| GS certification |
Yes, GS (German TÜV safety certification) |
| Applied standards |
TÜV RL — Applicable TÜV Regulation |
| Operator protection |
Automatic brake + stop bracket + emergency button |
| Electrical insulation |
Class I (mandatory grounding) |
| Warranty |
24 months from purchase date (standard Güde) |
| Country of manufacture |
Germany |
Standard equipment
- Güde GSZ 100/200 electric chain hoist assembled and ready for use
- Steel rope Ø3.0 mm, 12 m length (6 m per section)
- Welded steel hook 100 kg (base)
- Steel deflection pulley for doubling capacity to 200 kg
- Welded steel hook 200 kg (for pulley configuration)
- Steel mounting bracket for I-beam or tubular profile
- Cord control element with up/down buttons
- Integrated emergency button
- Mounting screws and bolts
- User manual in Italian and German
- CE Declaration of Conformity
- GS TÜV certification
-
Not included: power cables, rope extensions, hook rain protection (optional cover), beam protection bracket
Frequently asked questions
How long does it take for the hoist to lift 100 kg up to 11 meters?
A speed of 8 m/min at a 100 kg load (without pulley) allows lifting 11 m in approximately: 11 m ÷ 8 m/min = 1 minute and 22 seconds. However, check initial acceleration — the very first few seconds might be slightly slower before motor stabilization.

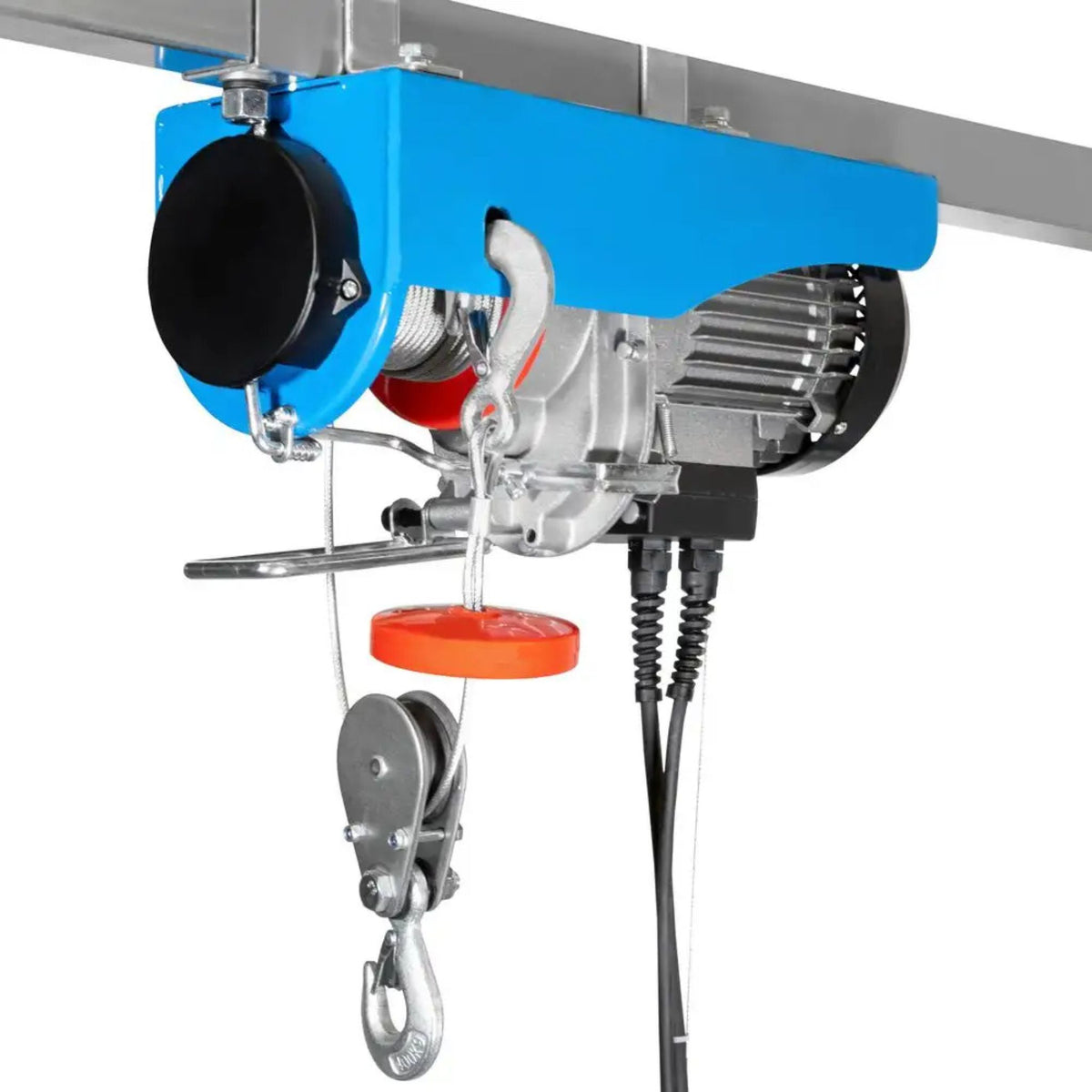

If I activate the deflection pulley, do I lose speed and height?
Yes. The deflection pulley doubles capacity (100 → 200 kg) but halves speed (8 → 4 m/min) and height (11 → 5.5 m) because the rope is multiplied into 2 sections. Necessary trade-off: to lift 200 kg with a 0.45 kW motor, you must sacrifice speed and height. If you need speed at 200 kg, request a model with a more powerful motor.
How do I mount the deflection pulley?
Procedure: (1) Secure the rope safely. (2) Thread the pulley onto the rope between the 2 hooks (one load, one deflection). (3) Tighten the pulley bracket bolts on the beam. (4) Check rope alignment (not twisted). The operation takes ~10 minutes, carefully. If in doubt, entrust to a specialized technician for safety checks.
Does the automatic brake work if there's a power outage?
Yes, that is its purpose. If there is a sudden power interruption, the integrated spring-loaded brake mechanically locks the rope and the load remains suspended. This provides very high protection against falls. However, if the power is out for >5 minutes, you won't be able to lower the load — request an external generator or entrust to a technician for manual brake release.
Can I use the hoist on a wooden shelf?
Not recommended for loads >100 kg. The mounting bracket is designed for steel I-beams or tubular profiles. Wood risks localized splitting under the bolt if a concentrated load of 200 kg is applied. If it's a wooden shelf, entrust to the manufacturer for static checks — it might be necessary to insert a steel distribution plate under the bolt.
What current does it draw during operation?
A 0.45 kW motor at 230V single-phase draws approximately 2–2.5 A at full load (standard 100 kg, 1.5–2 A during light operation). A standard 10 A single-phase meter is largely sufficient. No risk of overload even with other 230V tools running simultaneously.
How often should I service the automatic brake?
Annual service is recommended. Entrust to an authorized Güde technician for brake testing (verify 200 kg load block for 10 minutes). Cost ~€70–100 for service. If the hoist is used frequently (>200 cycles/month), consider bi-annual service.
Is the Ø3.0 mm rope robust enough for 200 kg?
Yes, if the deflection pulley is installed correctly. A Ø3.0 steel rope has a breaking load >200 kg (standard 4:1 safety margin). However, integrity depends on: lubrication maintenance, absence of rust, no visible mechanical damage. Inspect the rope monthly for cracks and corrosion.
Can I lift 150 kg (between 100 and 200)?
Yes. Without a pulley: the motor can lift up to 100 kg at 8 m/min (capacity limit). With a pulley: the motor can lift 100–200 kg at 4 m/min, varying speed. At 150 kg with a pulley, the speed will be ~5.3 m/min (interpolation). However, do not set a load >100 kg without a pulley — risk of motor overload.
