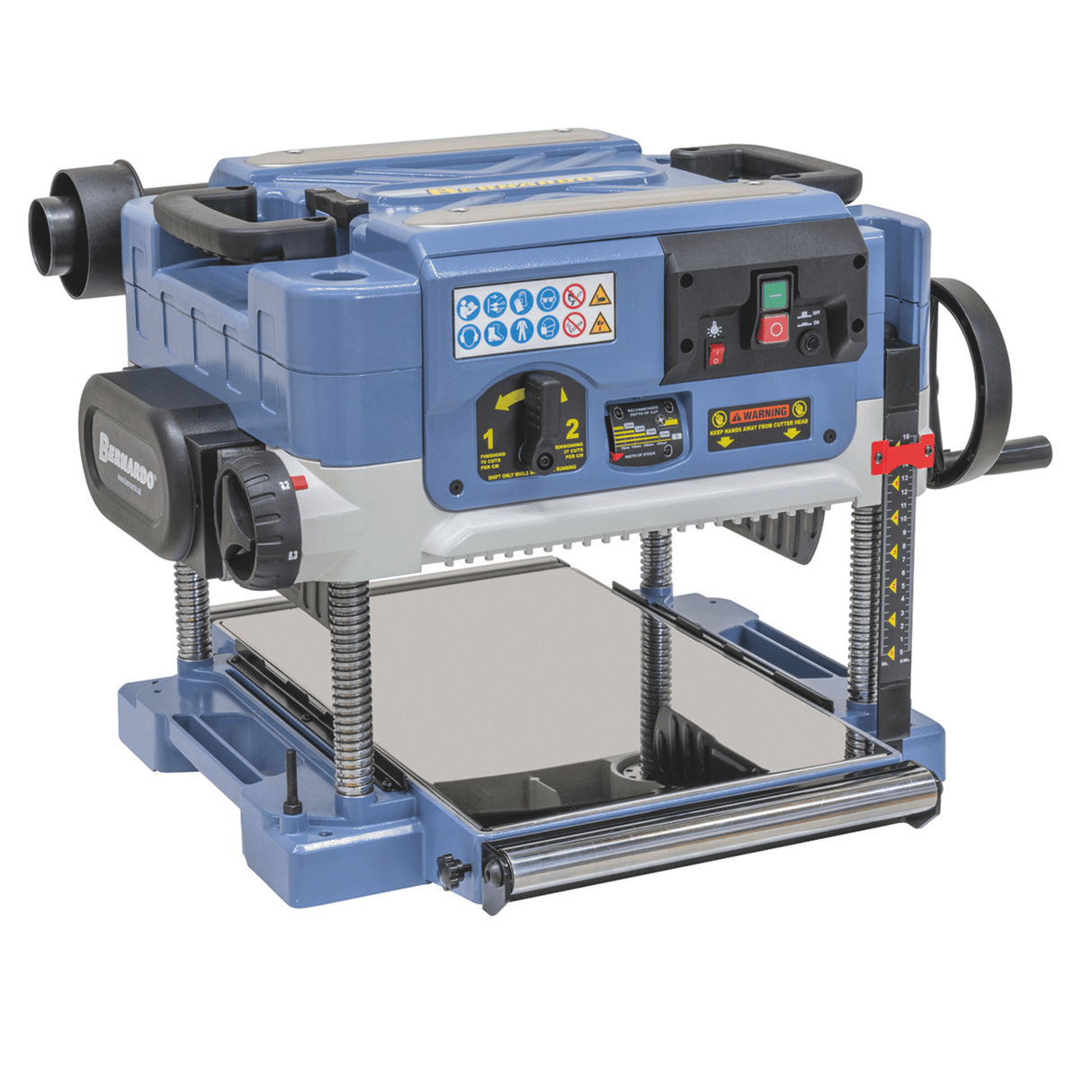

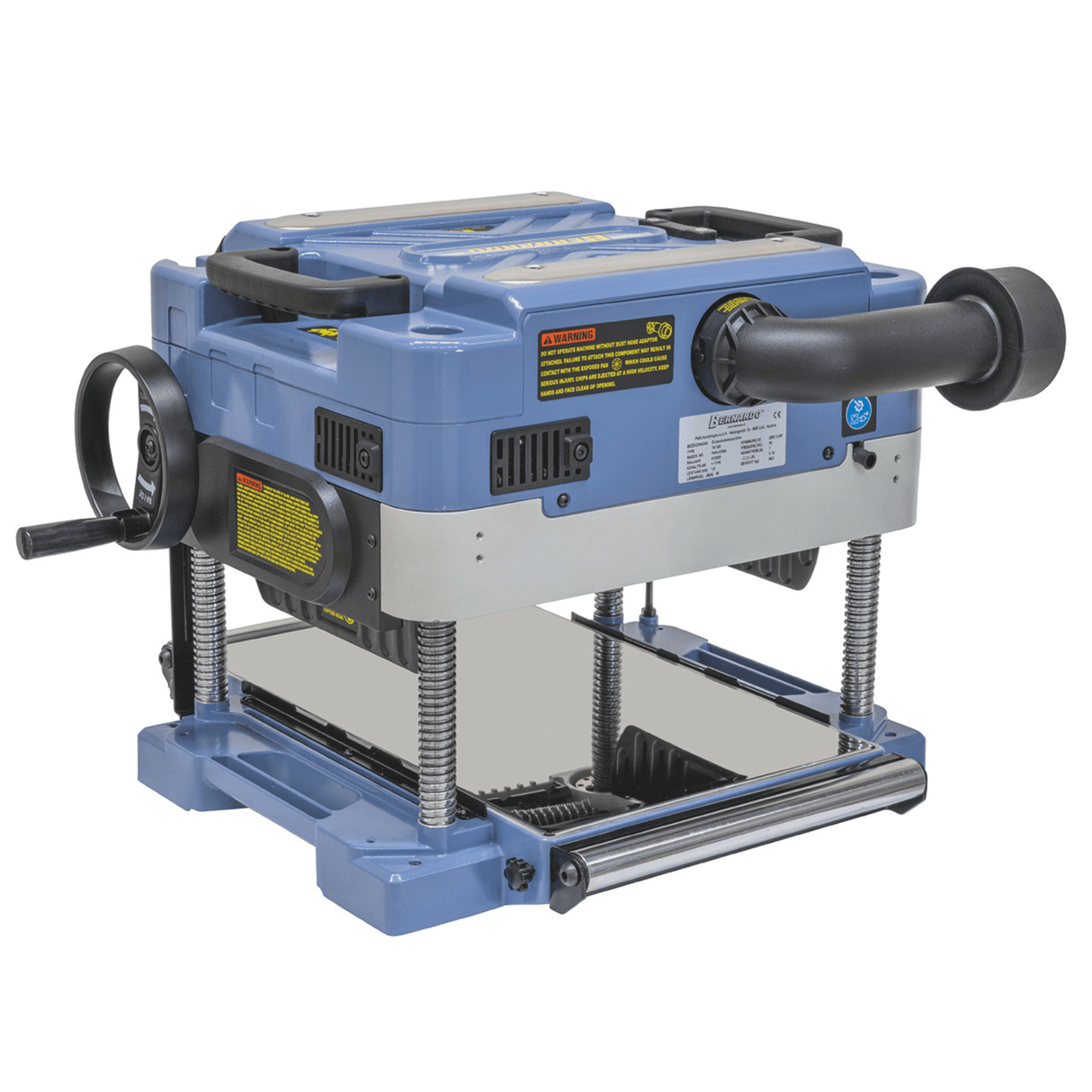

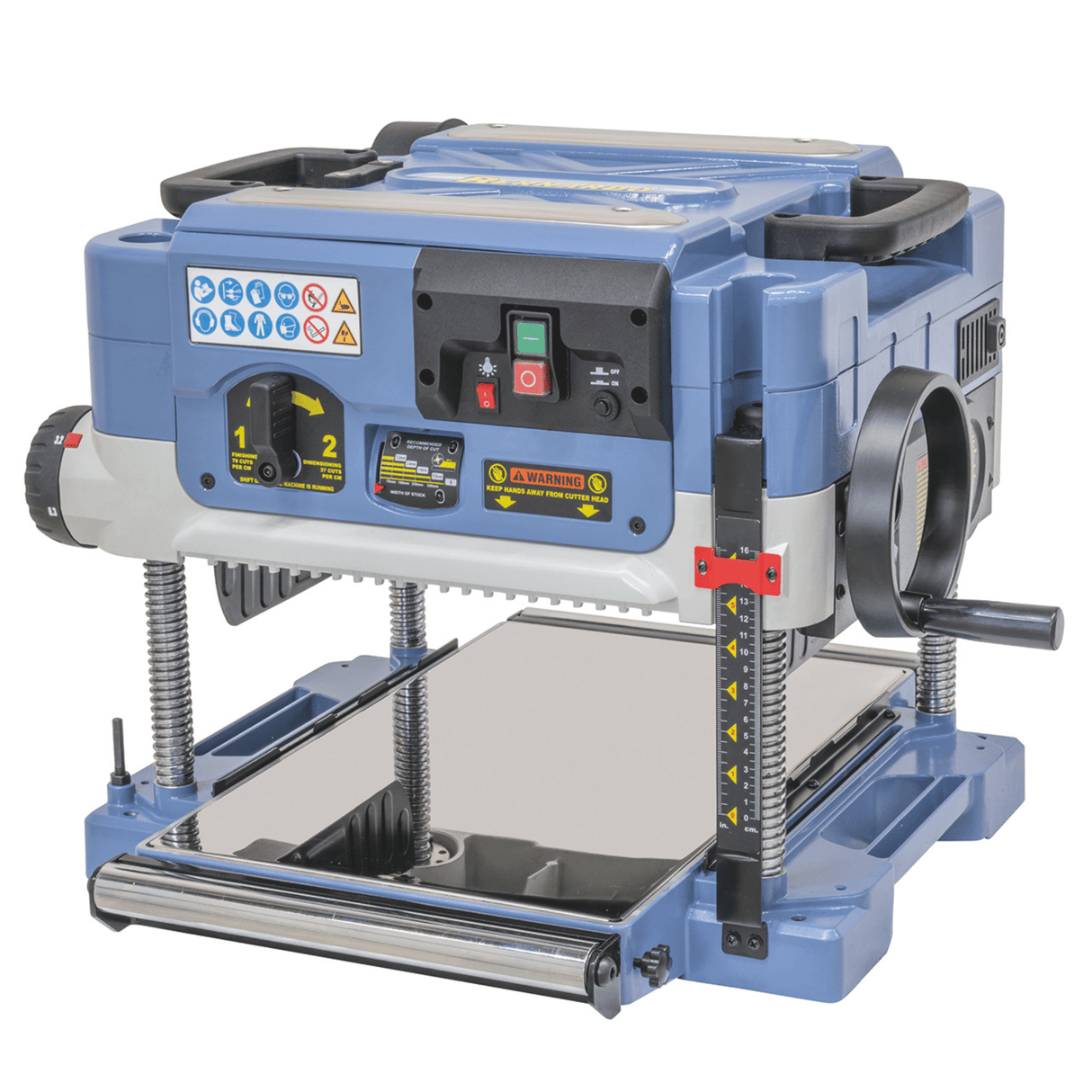

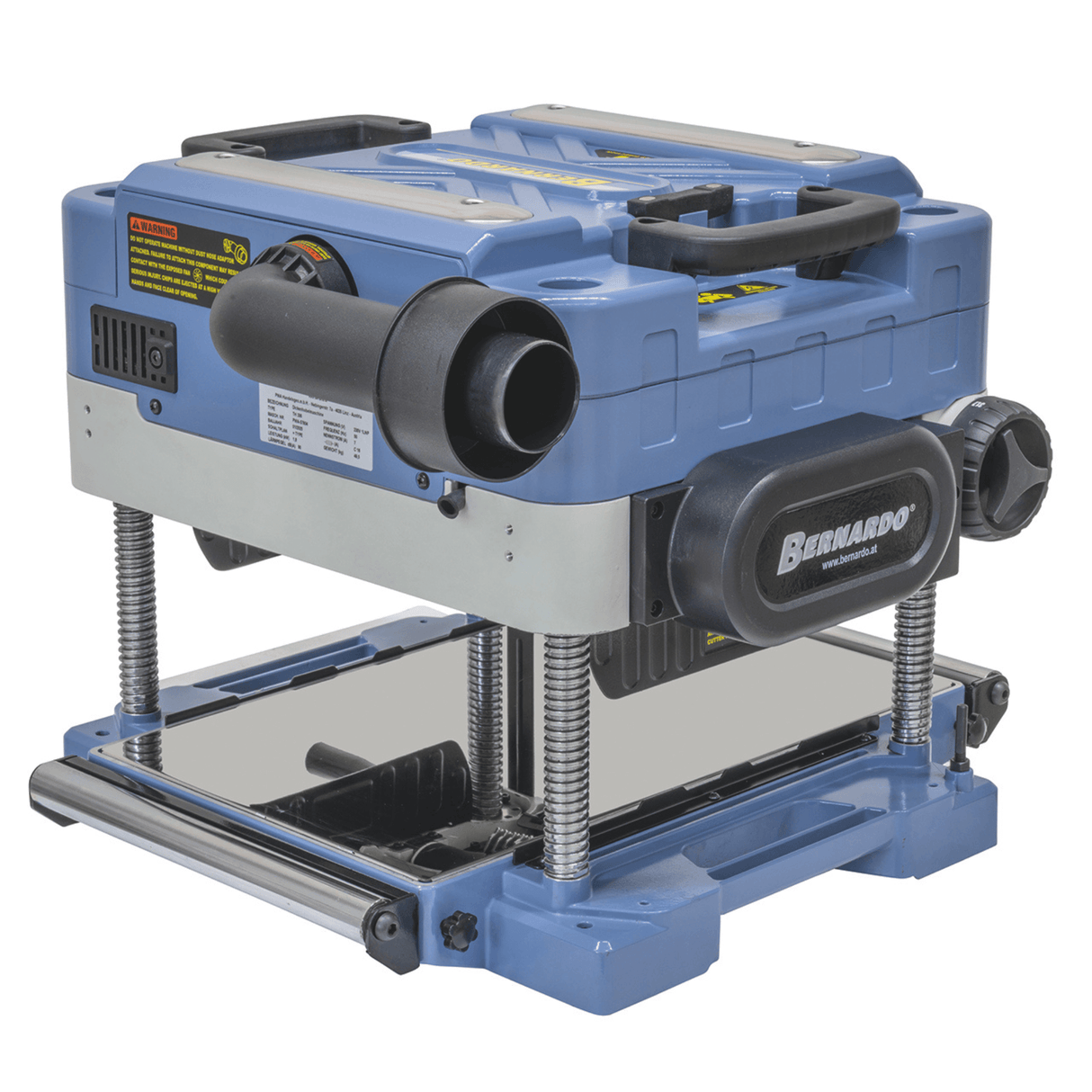

Bernardo TH 330 Pro-S / 230V Planer Thicknesser with Spiral Cutterblock
Bernardo TH 330 Pro-S / 230V Planer Thicknesser with Spiral Cutterblock is backordered and will ship as soon as it is back in stock.
Expected arrival in June
Subscribe to our newsletter
Ricevi gli ultimi aggiornamenti su tutte le nostre nuove collezioni, saldi, offerte e date di arrivo dei prodotti.
-
Description
-
Sicurezza del prodotto
-
Reviews
Description
The Bernardo TH 330 Pro-S / 230V thicknesser with spiral cutter block is a professional planer-thicknesser, with a 1.8 kW (2.4 HP) motor, weighing approx. 49 kg. Krollit, official Bernardo distributor since 2007.
- Planing width: 330 mm
- Workpiece height min/max: 5 – 155 mm
- Table size: 505 × 330 mm
- Max. depth of cut: 3.2 mm
- Min. workpiece length: 140 mm
- Cutter block diameter: 50 mm
Who uses the TH 330 Pro-S / 230V thicknesser with spiral cutter block and for what
The TH 330 Pro-S / 230V thicknesser with spiral cutter block is a professional planer-thicknesser distributed by Krollit.
Its place in the Bernardo range
The Bernardo TH 330 Pro-S / 230V thicknesser with spiral cutter block is part of the Bernardo range of planer-thicknessers, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the TH 330 Pro-S / 230V thicknesser with spiral cutter block for
The TH 330 Pro-S / 230V thicknesser with spiral cutter block is recommended for the following professional profiles:
- Professional joineries: planing and thicknessing of boards, battens, and solid wood with precise dimensional tolerance.
- Furniture factories and window/door manufacturers: surface preparation and board calibration before subsequent assembly processes.
Not suitable for: planing chipboard or MDF panels (solid wood machine: composite panels damage the blades, consider calibrating machines).
Table, dimensions and geometry
| Planing width | 330 mm |
| Workpiece height min/max | 5 – 155 mm |
| Table size | 505 × 330 mm |
| Min. workpiece length | 140 mm |
| Machine dimensions (L × W × H) | 700 × 610 × 450 mm |
| Weight | approx. 49 kg |
Motor and power supply
| Motor power (S1) | 1.8 kW (2.4 HP) |
| Motor power (S6) | 2.5 kW (3.4 HP) |
| Voltage | 230 V |
Other specifications
| Max. depth of cut | 3.2 mm |
| Cutter block diameter | 50 mm |
| Carbide inserts | 30 pieces (4 cutting edges each) |
| Cutter block speed | 9400 rpm |
| Cutter block type | Spiral with carbide inserts |
| Feed rate | 4 / 7 m/min |

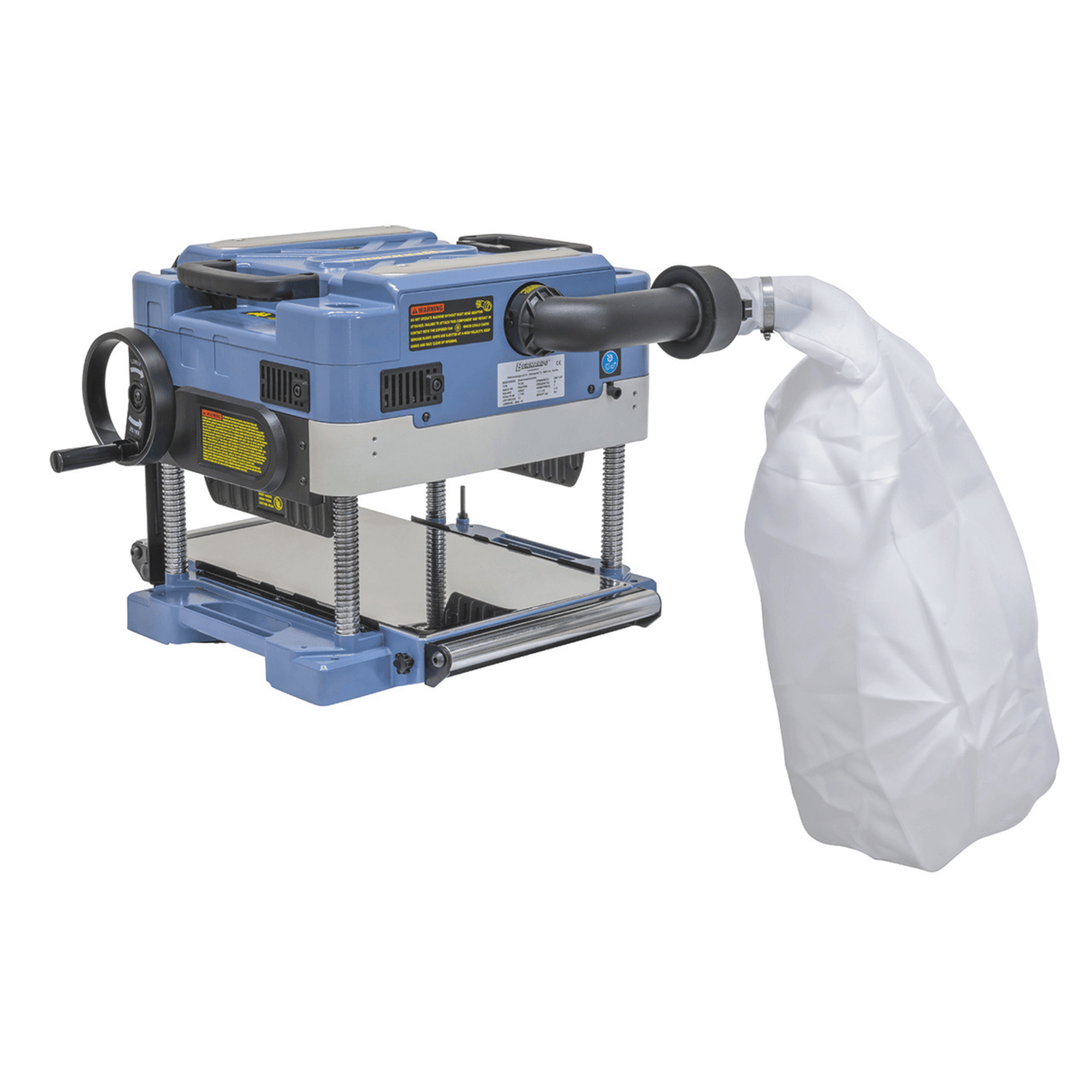

| Dust extraction connection | Ø 60 / 100 mm |
Frequently Asked Questions
What planing width does the TH 330 Pro-S / 230V thicknesser with spiral cutter block offer?
See "Planing width" in the technical table: typically from 250 to 410 mm.
The width determines the maximum workable board width in a single pass. For wider boards, a double pass or a larger machine is required.
Knife or spiral cutter block?
See the model: the "S" or "Spiral" version features a helical cutter block with carbide inserts, while the others feature standard HSS knives.
The spiral cutter block produces less noise, a better finish, and 5-10 times longer tool life, but costs more. The inserts can be rotated individually when worn.
Minimum and maximum workable thickness?
See "Min/max thickness" in the technical table: typically from 4 mm to 230 mm in height.
The minimum thickness is limited by the safety devices; the maximum depends on the clearance under the thicknessing cutter block.
Does it have quick change for planing/thicknessing?
Professional models allow changing functions in seconds by tilting the tables.
Reduced setup time is beneficial for those who frequently switch between the two functions in series production.
What power supply does it require?
See "Voltage" in the table: typically 400 V three-phase for professional machines.
Models with motors over 2.2 kW require a three-phase line. Check availability in the workshop before purchase.
