Bernardo RV 203 Extractor
Bernardo RV 203 Extractor is backordered and will ship as soon as it is back in stock.
Estimated arrival May 18
Subscribe to our newsletter
Ricevi gli ultimi aggiornamenti su tutte le nostre nuove collezioni, saldi, offerte e date di arrivo dei prodotti.
-
Description
-
Sicurezza del prodotto
-
Reviews
Description

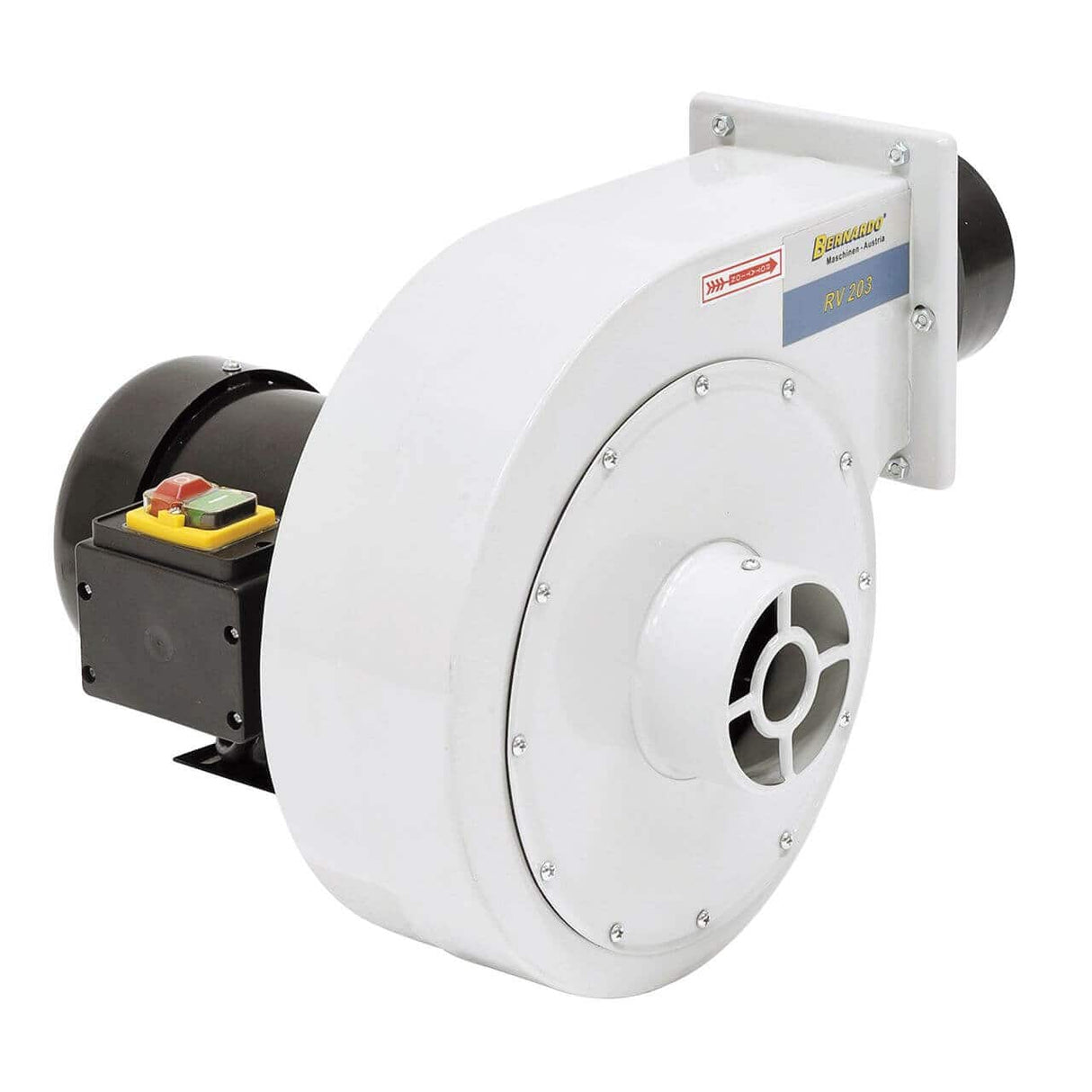

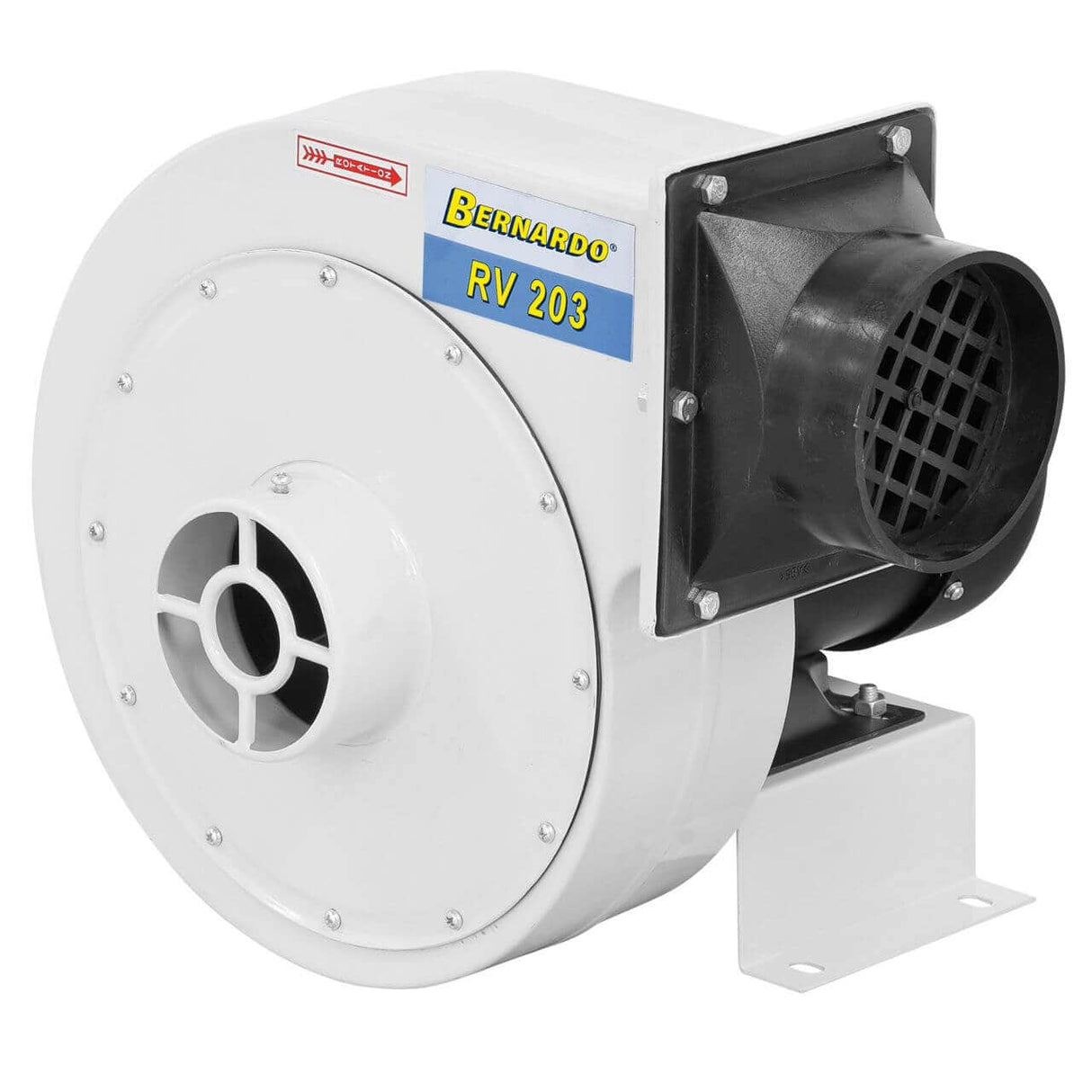

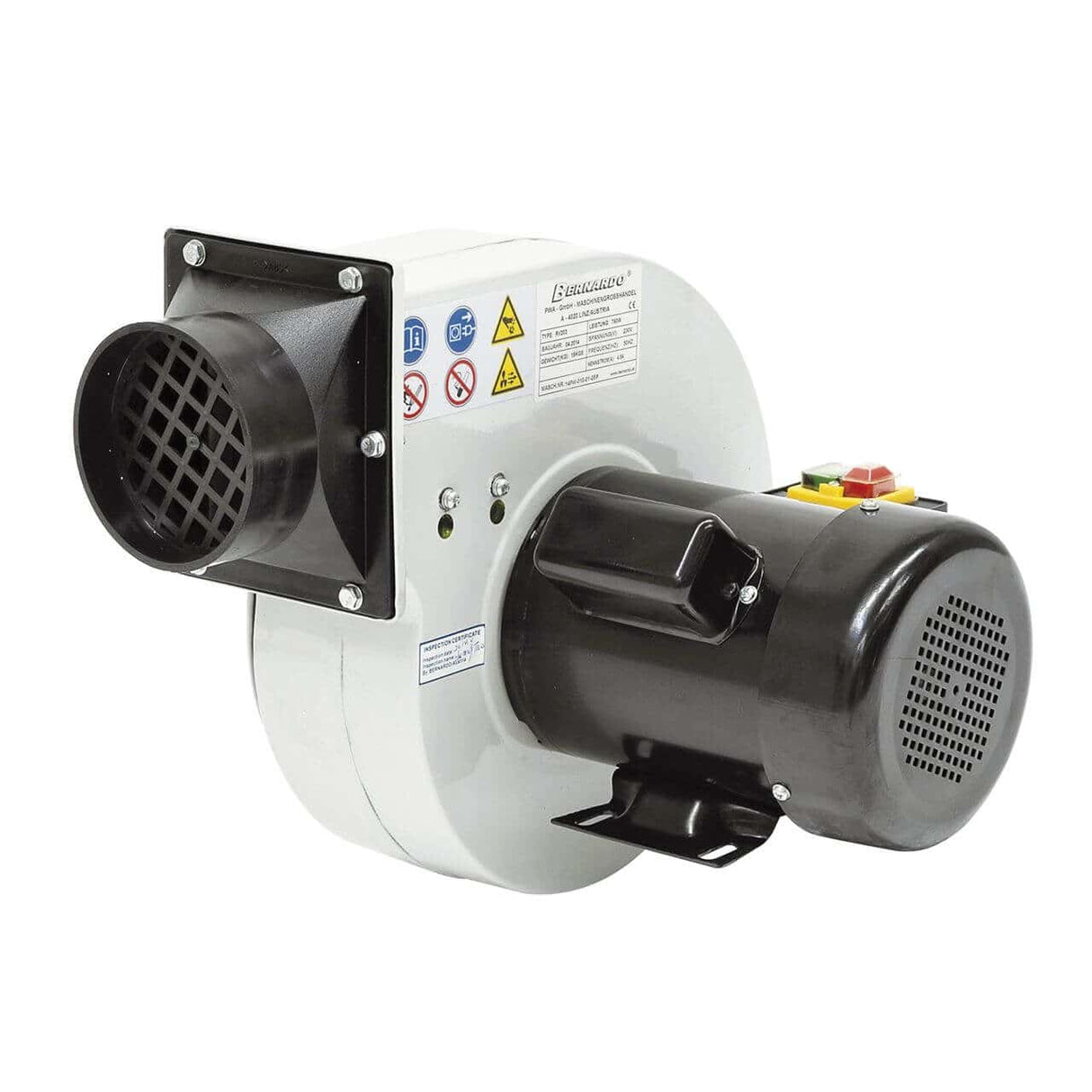

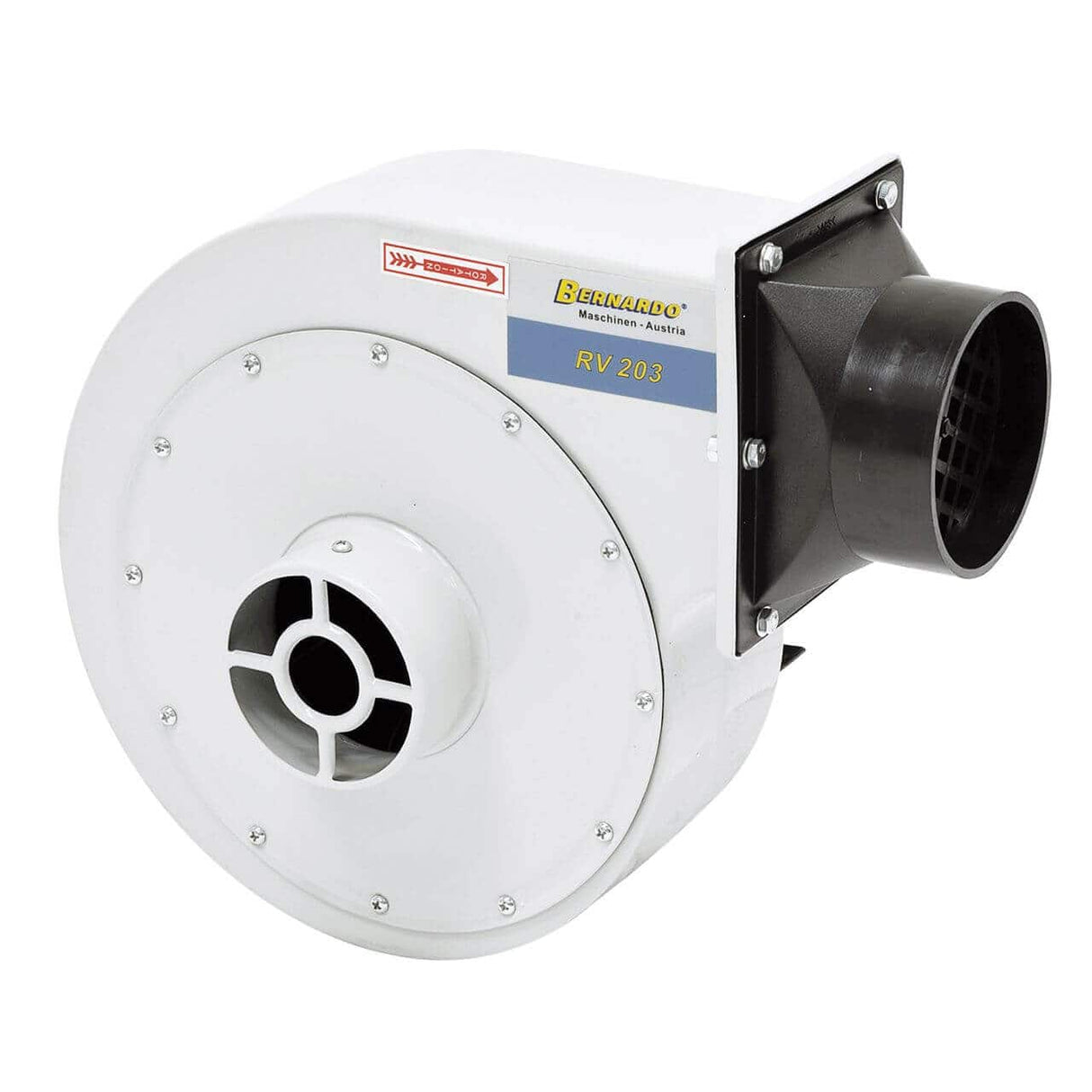

The Bernardo RV 203 is a professional dust extractor with a 0.75 kW (1.0 HP) motor, weighing 15 kg. Krollit, official Bernardo distributor since 2007.
- Brand: Bernardo
- Model: RV 203
- Maximum capacity: 870 m³/h
- Maximum pressure: 1020 Pa
- Inlet diameter: 100 mm
- Outlet diameter: 115 mm
- Motor power: 0.75 kW (1.0 HP)
- Voltage: 230 V / 50 Hz
Who uses the RV 203 and for what
Carpentry and mechanical workshops use the RV 203 for extracting chips and dust from saws, planers, milling machines, and sanders, with the possibility of connecting to centralized systems.
Its place in the Bernardo range
The Bernardo RV 203 is part of the Bernardo dust extractor range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipment in 5-9 business days (7 days for Southern Italy). For spare parts and accessories, shipment in 3-5 business days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the RV 203 for
| Profile | Compatibility | Reason |
|---|---|---|
| Carpentry and mechanical workshops | Suitable | Extraction of chips and dust from saws, planers, milling machines, and sanders |
| Production laboratories and machining centers | Suitable | Connectable to centralized systems or individual machines with flexible hose |
| Extraction of liquids or hazardous materials | Not indicated | Machine for dry dust: specific extractors are needed for liquids |
Not indicated for: extraction of liquids or hazardous materials (machine for dry dust: specific extractors are needed for liquids).
Working capacity
| Maximum capacity | 870 m³/h |
Table and dimensions
| Dimensions (L × W × H) | 430 × 400 × 370 mm |
Motor and power supply
| Motor power | 0.75 kW (1.0 HP) |
| Voltage | 230 V / 50 Hz |
Other specifications
| Brand | Bernardo |
| Model | RV 203 |
| Maximum pressure | 1020 Pa |
| Inlet diameter | 100 mm |
| Outlet diameter | 115 mm |
| Weight | 15 kg |
Frequently asked questions
What airflow does the RV 203 offer?
See "Airflow" in the technical table: typically 1,000-5,000 m³/h for workshop use.
The flow rate determines the number of machines that can be connected simultaneously. For centralized systems with multiple workstations, size with a 30% margin.
What pipe diameter does it require?
See "Connection diameter" in the table: typically Ø100, Ø120 or Ø150 mm.
Larger diameters reduce pressure losses and improve efficiency. For systems with long runs (over 10 m), prefer Ø150 mm.
Bag/container capacity?
See "Container capacity" in the technical table: typically 70-300 liters.
Bags must be emptied before they become saturated to maintain suction flow. Models with larger bags reduce intervention frequency.
Fine dust filtration?
Professional models offer fine filtration with class M or H for respirable dust.
For treated wood and MDF panels, class M or higher is recommended. Krollit supplies original replacement filters.
What is its power consumption?
See "Motor power" in the technical table: typically 1-7 kW.
Models above 3 kW require 400 V three-phase. Check availability in the workshop.
