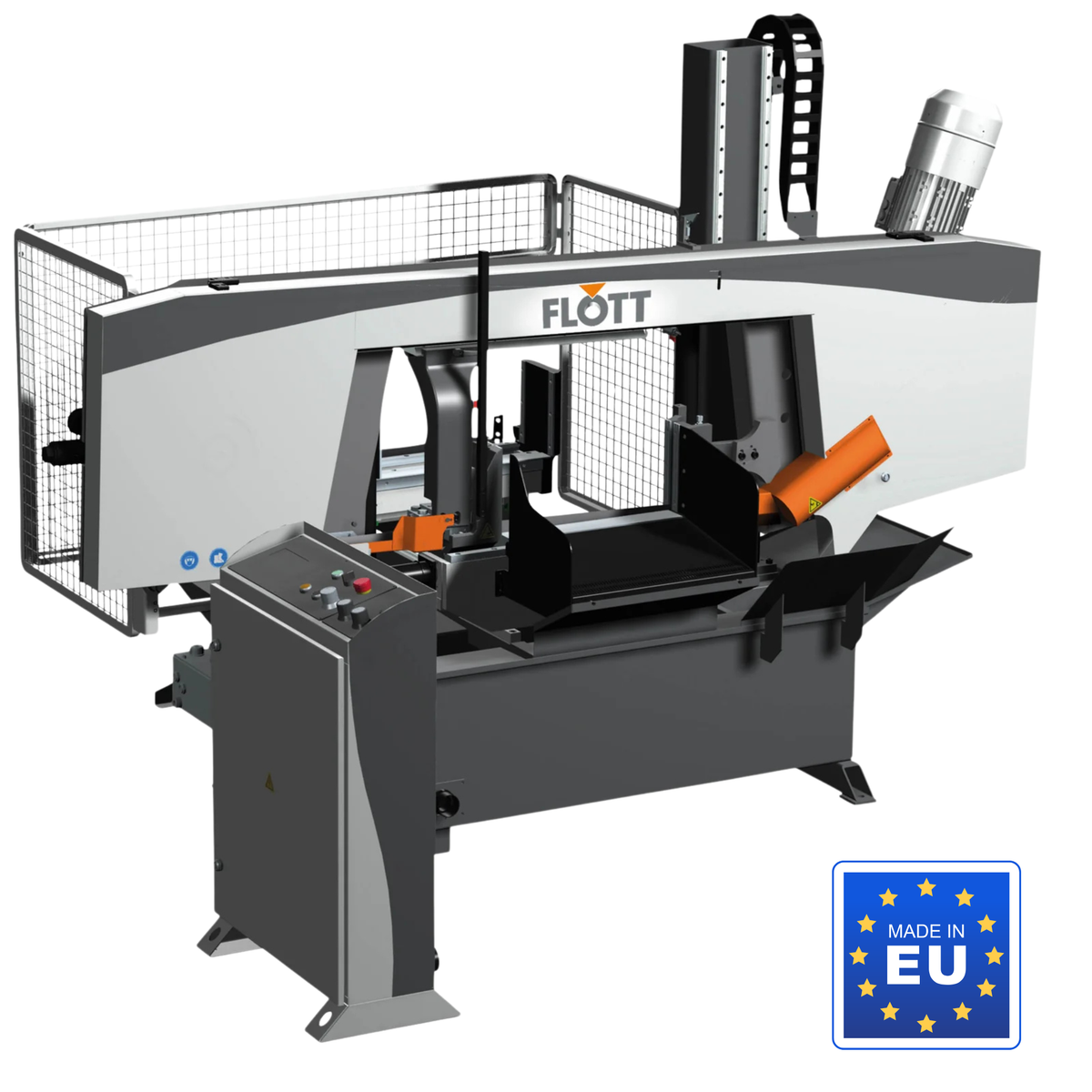

The Flott HBS 450 SANC automatic band saw is a metal band saw for professional use, with a cutting capacity of 520 mm, band speed of 20 – 120 m/min, and a weight of 1600 kg. Krollit, official Flott distributor since 2007.
- Motor: 4.0 kW three-phase 400 V with inverter
- Cutting system: 2-column with preloaded linear guides
- Blade speed: 20 – 120 m/min
- Blade dimensions: 6020 x 41 x 1.3 mm
- Pulley diameter: Ø 550 mm
- Cutting capacity (clearance between columns): 520 mm
Who uses the Flott HBS 450 SANC automatic band saw and for what
Mechanical workshops and metal fabrication shops use the HBS 450 SANC automatic band saw for cutting steel, aluminum, and cast iron profiles and bars, sectioning raw materials before turning or milling.
Its place in the Flott range
The Flott HBS 450 SANC automatic band saw is part of the Flott metal band saw range, distributed in Italy by Krollit since 2007. The Flott range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Flott catalog on Krollit or contact customer support for selection assistance.
Krollit Logistics and Support
Machine shipping in 5-9 business days (7 days for Southern Italy). For spare parts and accessories, shipping in 3-5 business days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit is an official distributor since 2007.
Who is the HBS 450 SANC automatic band saw for
The HBS 450 SANC automatic band saw is recommended for the following professional profiles:
-
Mechanical workshops and metal fabrication: cutting steel profiles and bars with acceptable tolerance for subsequent processing.
-
Turners and industrial maintenance personnel: sectioning raw materials before turning or milling.
Not suitable for: precision cutting on thin sheets (for thin sheets, consider hydraulic shears or circular metal saws).
Processing capacity
| Cutting system |
2-column with preloaded linear guides |
| Cutting capacity (clearance between columns) |
520 mm |
| Minimum cut diameter |
10 mm |
Table, dimensions, and geometry
| Working height |
780 mm |
| Machine dimensions |
2890 x 2055 x 2030 mm |
| Weight |
1600 kg |
Other specifications
| Pulley diameter |
Ø 550 mm |
| Feeding system |
Hydraulic, stroke 600 mm (up to 999 repetitions) |
| Minimum workpiece (L x H) |
10 x 5 mm |
| Coolant tank capacity |
45 L |
| Chip evacuator |
Scraper type, motorized |
| Warranty |
12 months (single shift use) |
| Vise system |
Hydraulic with adjustable pressure |
| Blade speed |
20 – 120 m/min |
| Blade dimensions |
6020 x 41 x 1.3 mm |
| Motor |
4.0 kW three-phase 400 V with inverter |
| Material feed |
Guided on linear guides, hydraulic |
| Machine color |
Frame RAL 7035, body RAL 7005 |
Frequently Asked Questions
What can the HBS 450 SANC automatic band saw cut?
Profiles, pipes, solid bars, and rolled steel, aluminum, and cast iron within the indicated section limits.
Cutting capacity is expressed in mm of maximum section for round, square, and rectangular profiles. For extra-hard materials, reduce band speed and use blades with appropriate tooth pitch.
What type of blade does it require?
Bimetallic blade for steel cutting, carbon steel blade for soft metals.
Krollit supplies original Bernardo blades in various tooth pitches to optimize cutting based on material type and thickness.
What cutting speed does it offer?
See "Band speed" data in the technical table: typically adjustable in 2-4 steps or continuously (Vario).
Low speeds (15-30 m/min) for alloy steels, high speeds (50-80 m/min) for light alloys and aluminum. Incorrect selection accelerates blade wear.
Does it have integrated cooling?
Professional models are equipped with a cooling pump with a collection tank and drip tray.
Cooling (with cutting oil or emulsion) extends blade life and improves cutting quality on hard materials. For dry cutting, use specific blades.
How much does it weigh and how is it installed?
See "Weight" data in the technical table: industrial models weigh from 150 to over 400 kg.
Saws over 200 kg require adequate flooring and fixing. The machine must be positioned in an open space for handling long profiles.
