Bernardo  |  SKU: 21-0989

Chuck Jaws DIJ-DK12-500

€920,11 (22% VAT incl.)
Business solution up to 30 installments

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words β€œsubject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

DIJ Ø 500 mm Jaws for DK12 Chucks β€” internal gripping jaws. In the Krollit catalog since 2007 as an official Bernardo distributor.

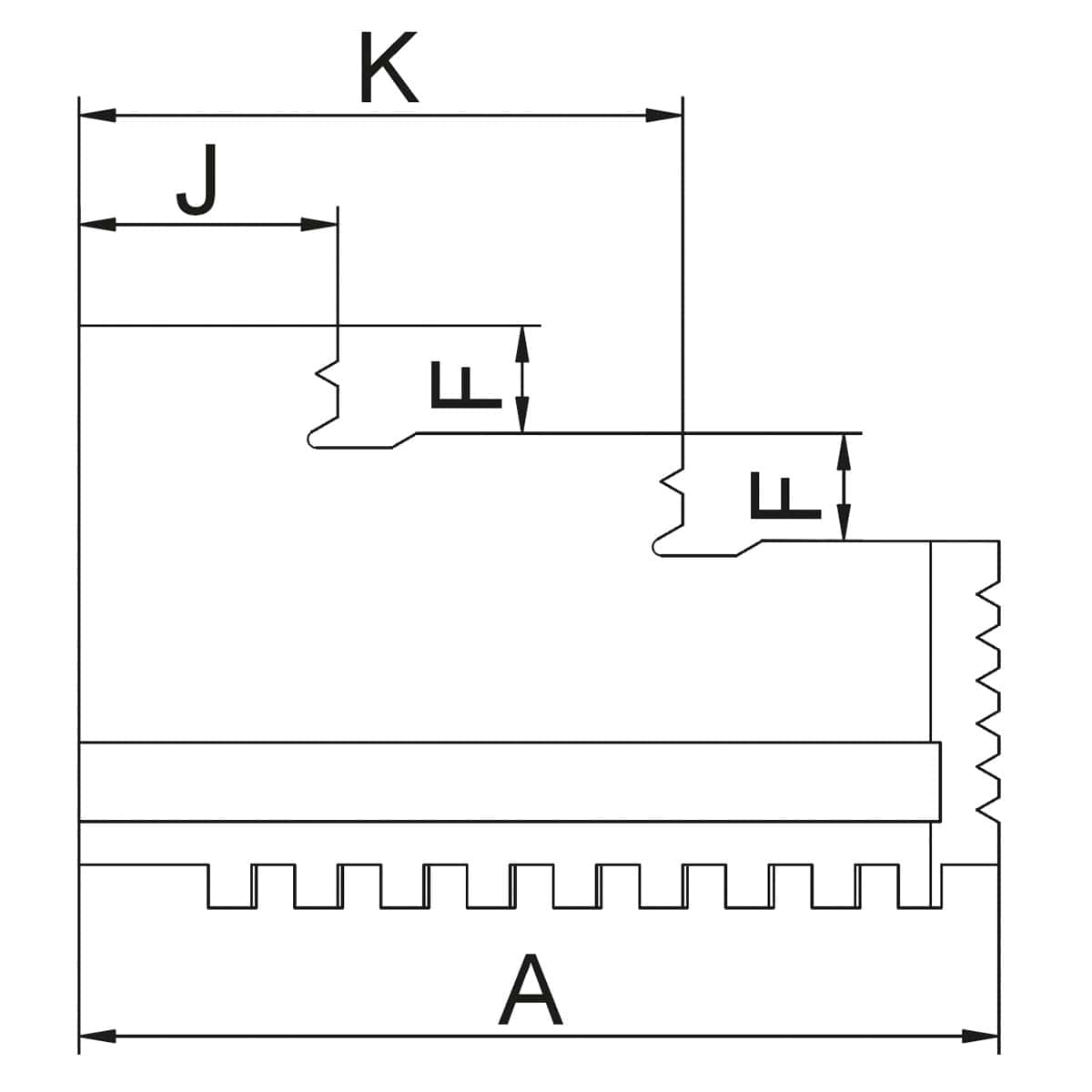

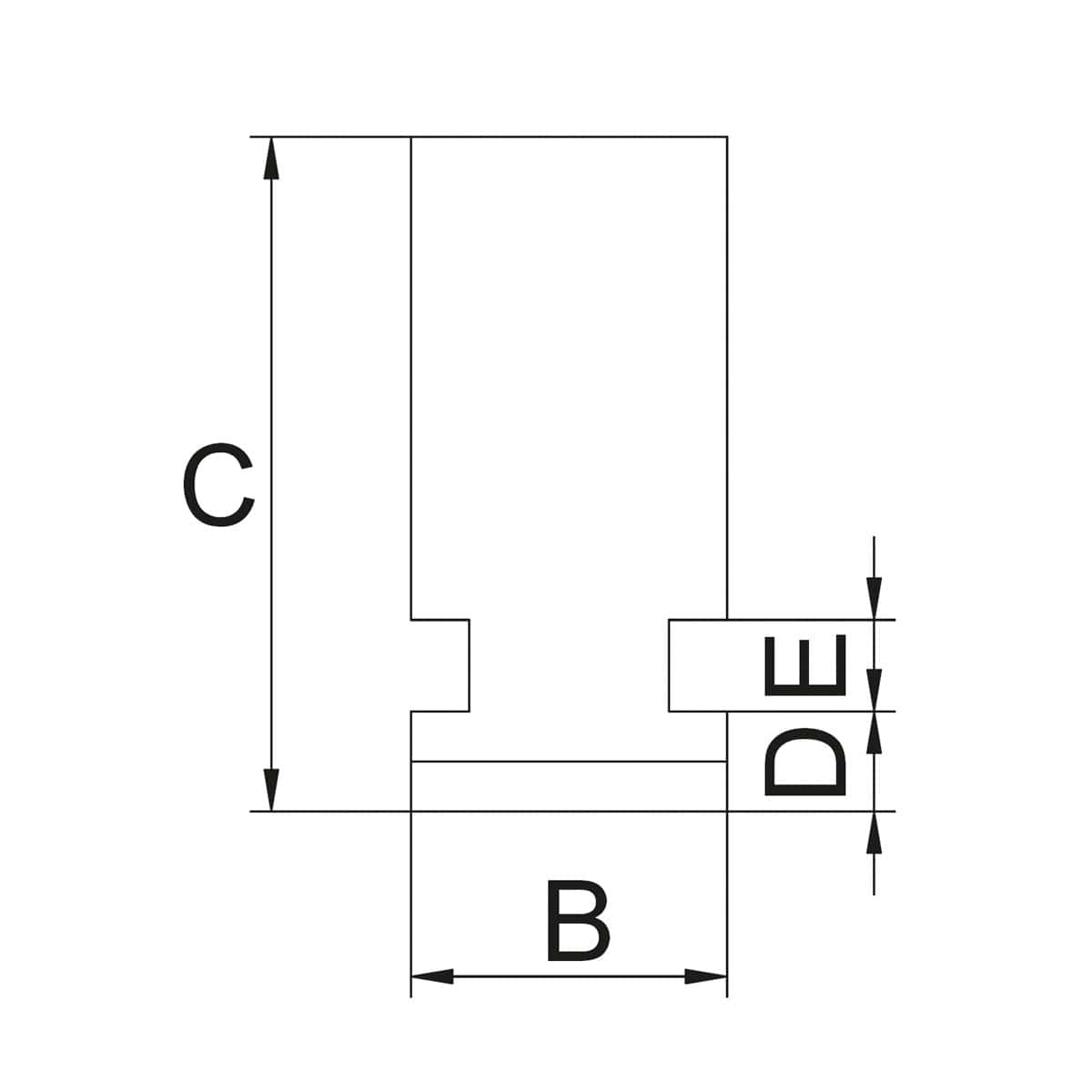

Technical Specifications

Chuck Size

500 mm

A

180 mm

B

46 mm

C

100 mm

d

17 mm

E

18 mm

F

24 mm

K

119.5 mm

J

50 mm

Logistics

Original spare parts available with 3–5 business day shipping. Customer support available in Italian.

Frequently Asked Questions

DIJ Ø 500 mm Jaws β€” what does DIJ mean and for what type of clamping?

DIJ (Direct Inner Jaw) refers to jaws for internal gripping: the teeth bite from inside a hole or cavity, expanding outwards. Used for clamping hollow workpieces (rings, flanges, hollow shafts) by gripping them from inside the hole. The tooth geometry is optimized for internal gripping β€” they are not used for traditional external gripping. The Ø 500 mm size indicates the diameter of the compatible chuck, not the diameter of the hole that can be clamped.

DK12 Series β€” compatibility with my chuck?

DK12 mounting (12 DIN 6350 bolts). Check your chuck's mounting type before purchasing β€” DK11 and DK12 are not interchangeable. The Ø 500 mm diameter must match the chuck size. Customer support available in Italian.

What is the range of internal diameters that can be clamped with these jaws?

The clampable range depends on the jaw travel in the chuck and the tooth geometry. As a reference for a Ø 500 mm chuck: the minimum clampable hole is approximately 15–20% of the chuck diameter; the maximum is approximately 60–70%. For applications outside this range, please contact Krollit. Customer support available in Italian.

Delivery times?

Original spare parts available with 3–5 business day shipping. Customer support available in Italian.
