Chuck Jaws DIJ-DK12-630
Description
DIJ Jaws Ø 630 mm for DK12 chucks — internal gripping jaws. Available from Krollit, official Bernardo distributor since 2007.
Logistics
Original spare parts available with 3-5 working day shipping. Customer service available in Italian.

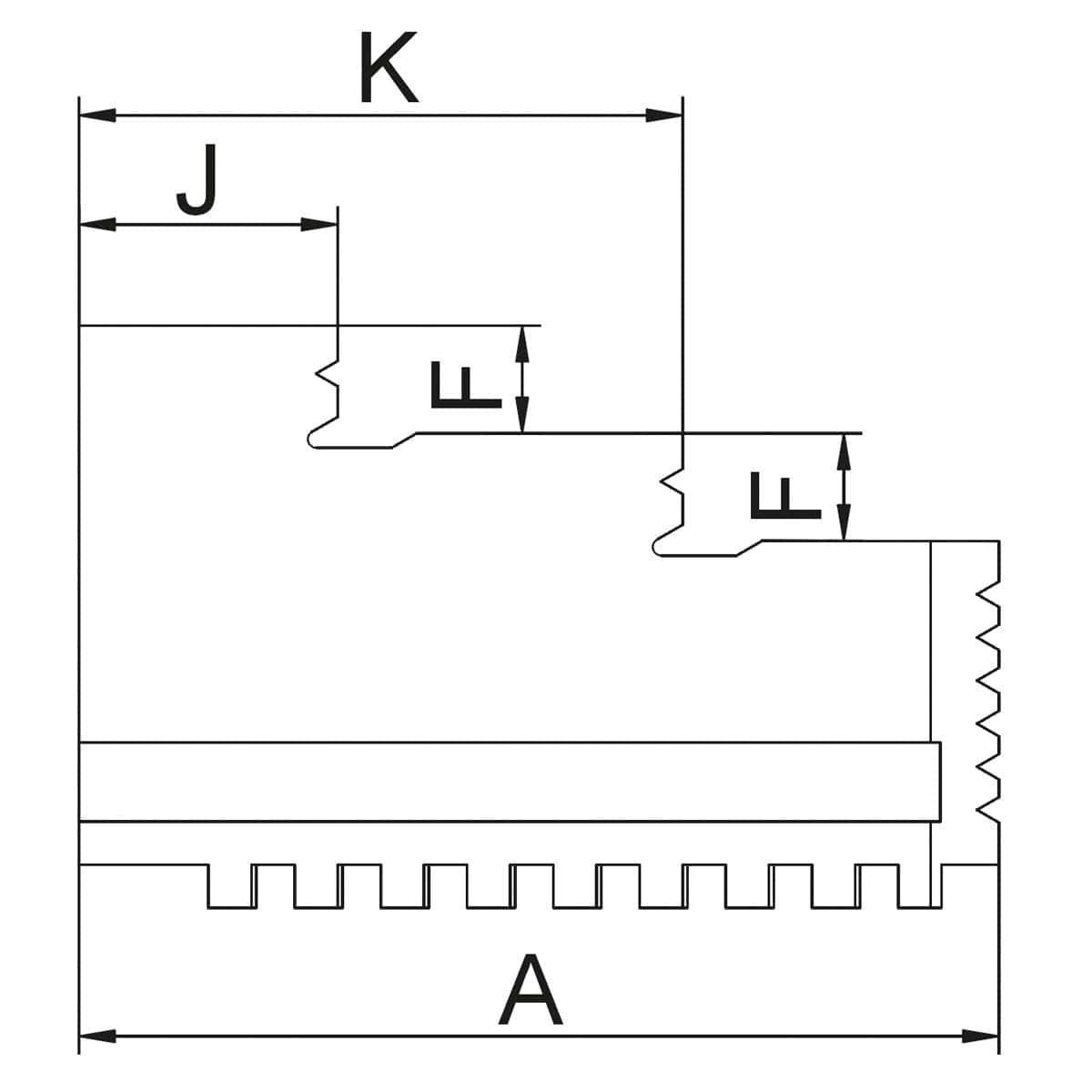

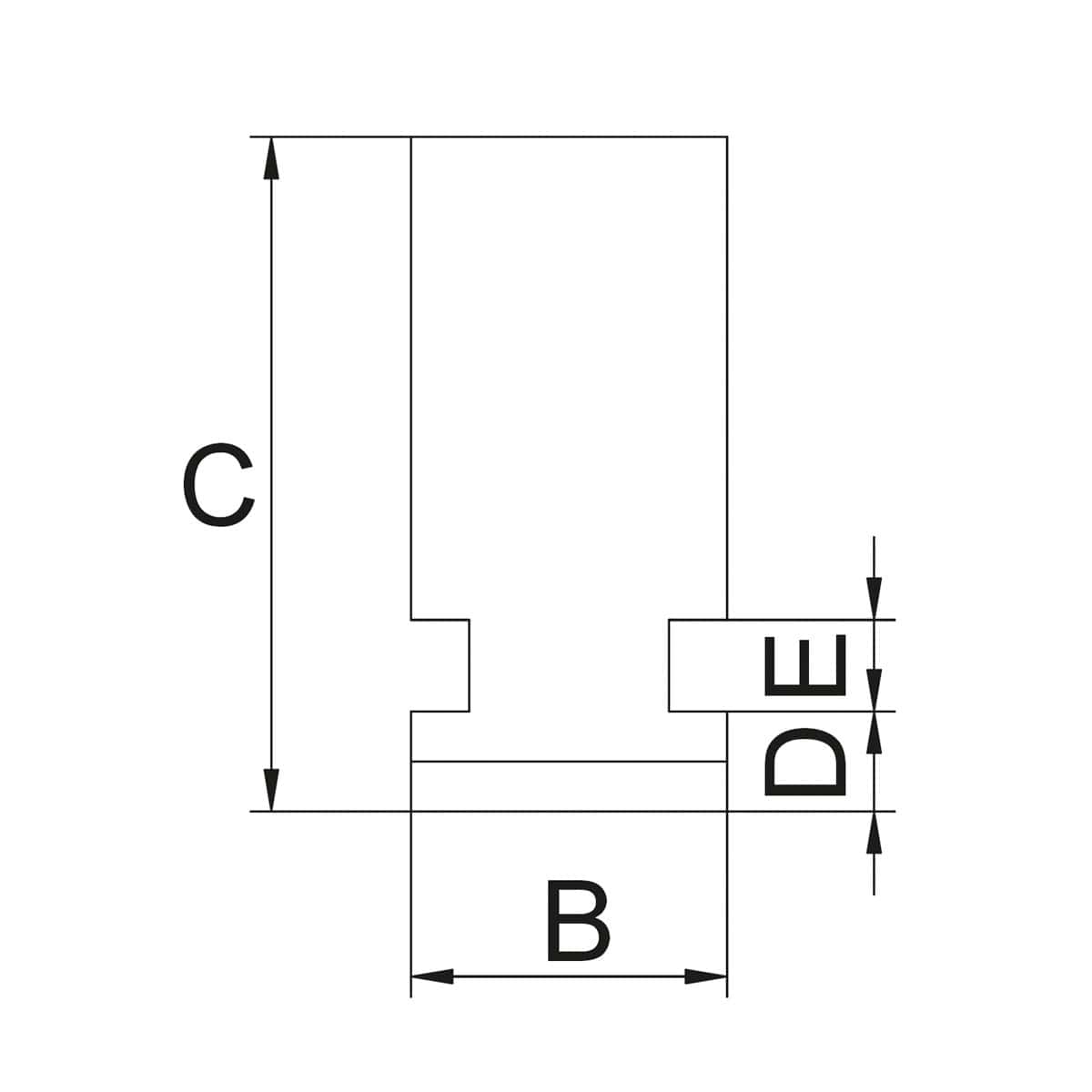

Technical specifications
Technical specifications
Chuck size |
630 mm |
A |
225 mm |
B |
50 mm |
C |
117 mm |
d |
16 mm |
E |
18 mm |
F |
28 mm |
K |
149 mm |
J |
66 mm |
Warranty
Warranty terms and support procedures are available on the dedicated Krollit page.
View Krollit warranty termsFAQ / Frequently asked questions
Frequently Asked Questions
DIJ Jaws Ø 630 mm — what does DIJ mean and for what type of clamping?
DIJ (Direct Inner Jaw) indicates internal gripping jaws: the teeth bite from inside a hole or cavity, expanding outwards. Used to clamp hollow workpieces (rings, flanges, hollow shafts) by gripping them from inside the bore. The tooth geometry is optimized for internal gripping — they are not used for traditional external gripping. The Ø 630 mm size indicates the compatible chuck diameter, not the diameter of the hole that can be clamped.
DK12 series — compatibility with my chuck?
DK12 mounting (12 bolts DIN 6350). Check your chuck's mounting type before purchasing — DK11 and DK12 are not interchangeable. The Ø 630 mm diameter must match the chuck size. Customer service available in Italian.
What is the range of internal diameters that can be clamped with these jaws?
The clamping range depends on the jaw travel in the chuck and the tooth geometry. As a reference for a Ø 630 mm chuck: the minimum bore that can be clamped is approximately 15-20% of the chuck diameter; the maximum is approximately 60-70%. For applications outside this range, contact Krollit. Customer service available in Italian.
Delivery times?
Original spare parts available with 3-5 working day shipping. Customer service available in Italian.
-
