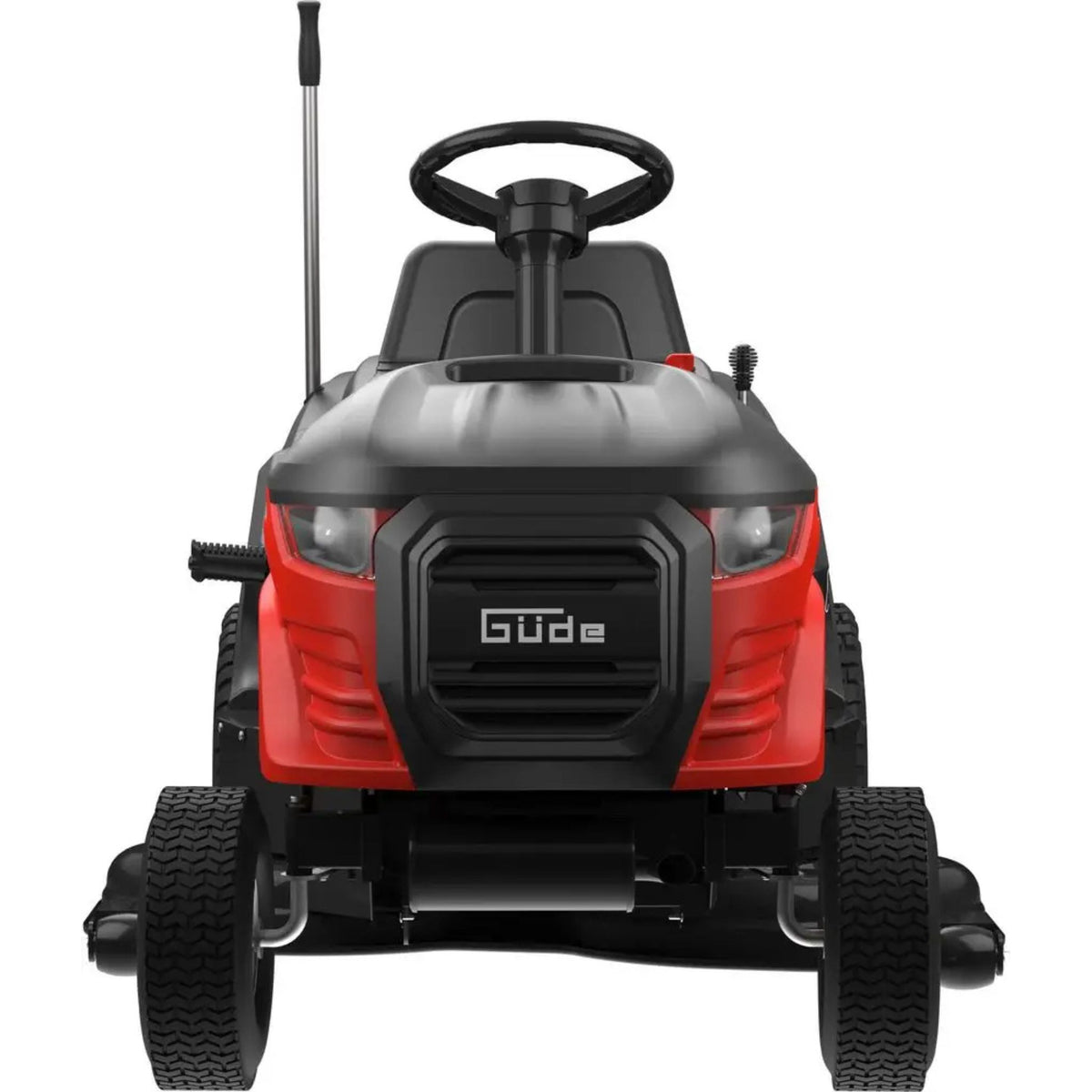

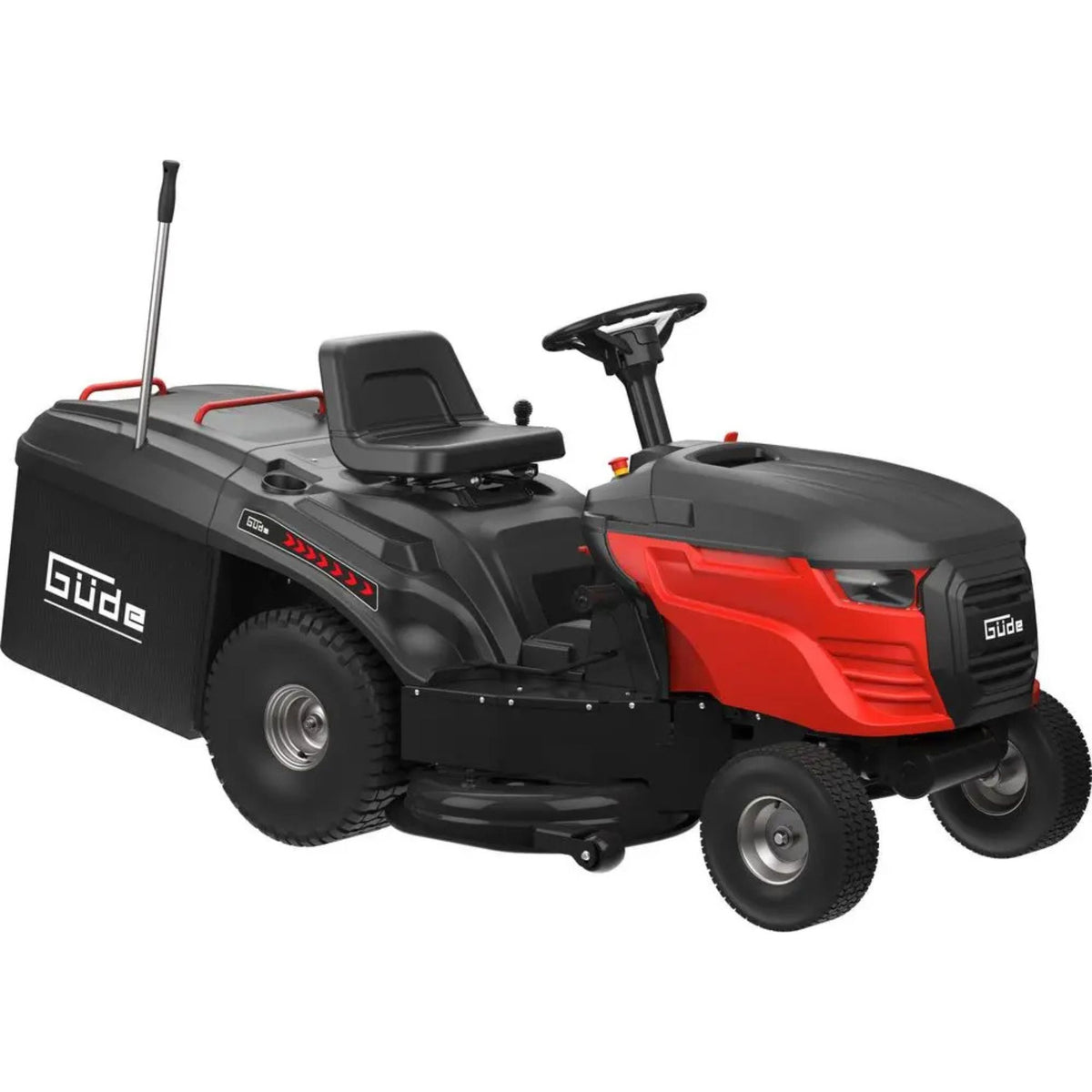

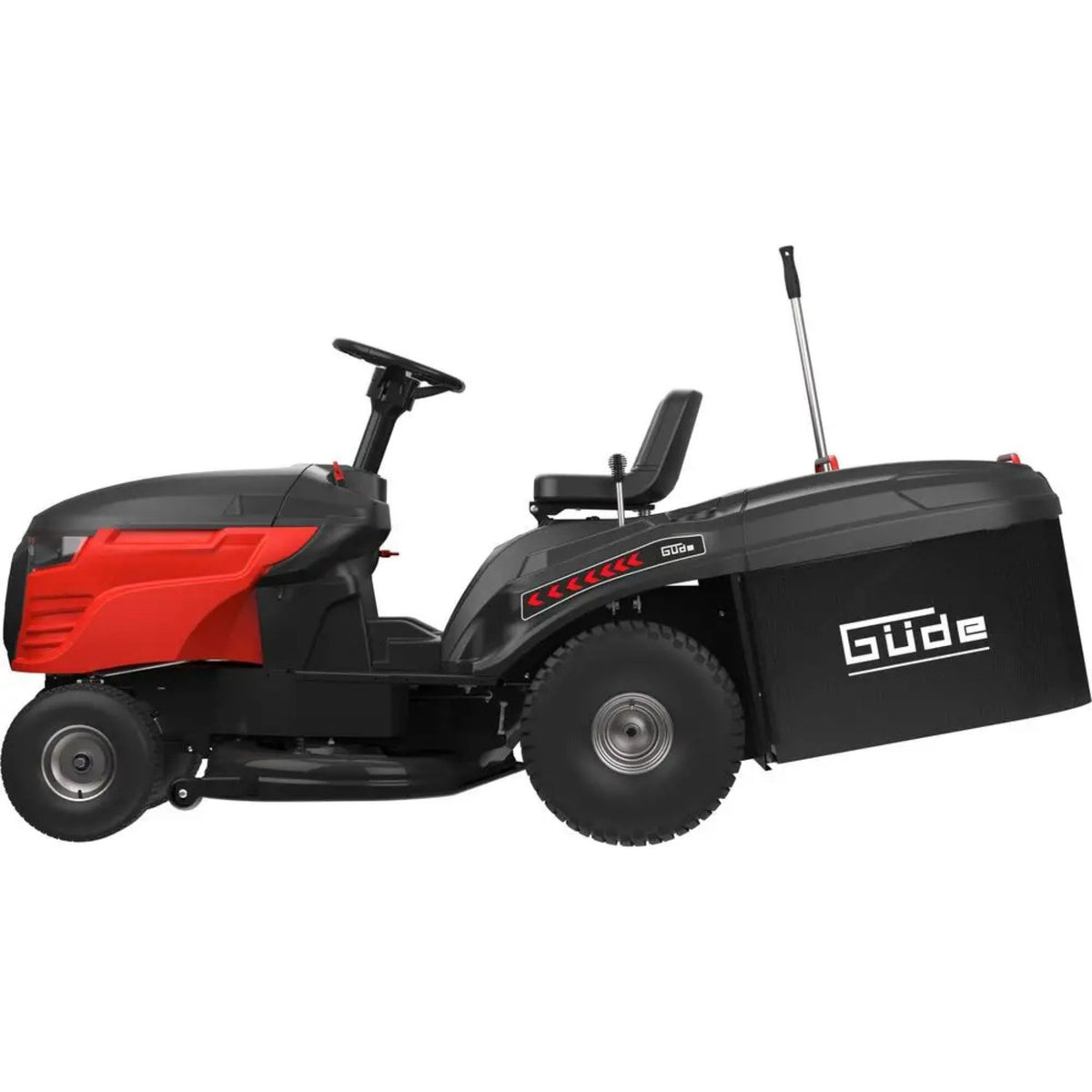

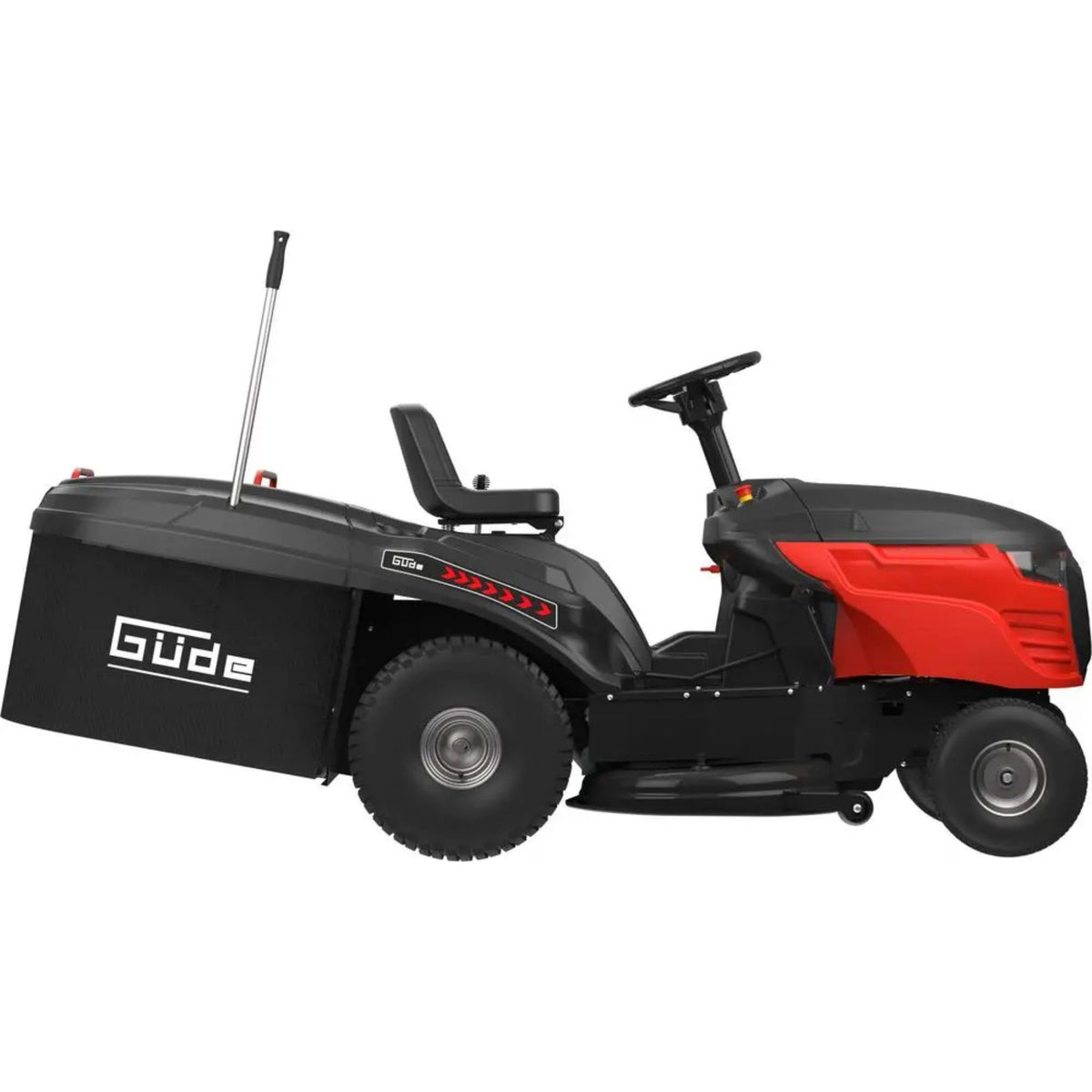

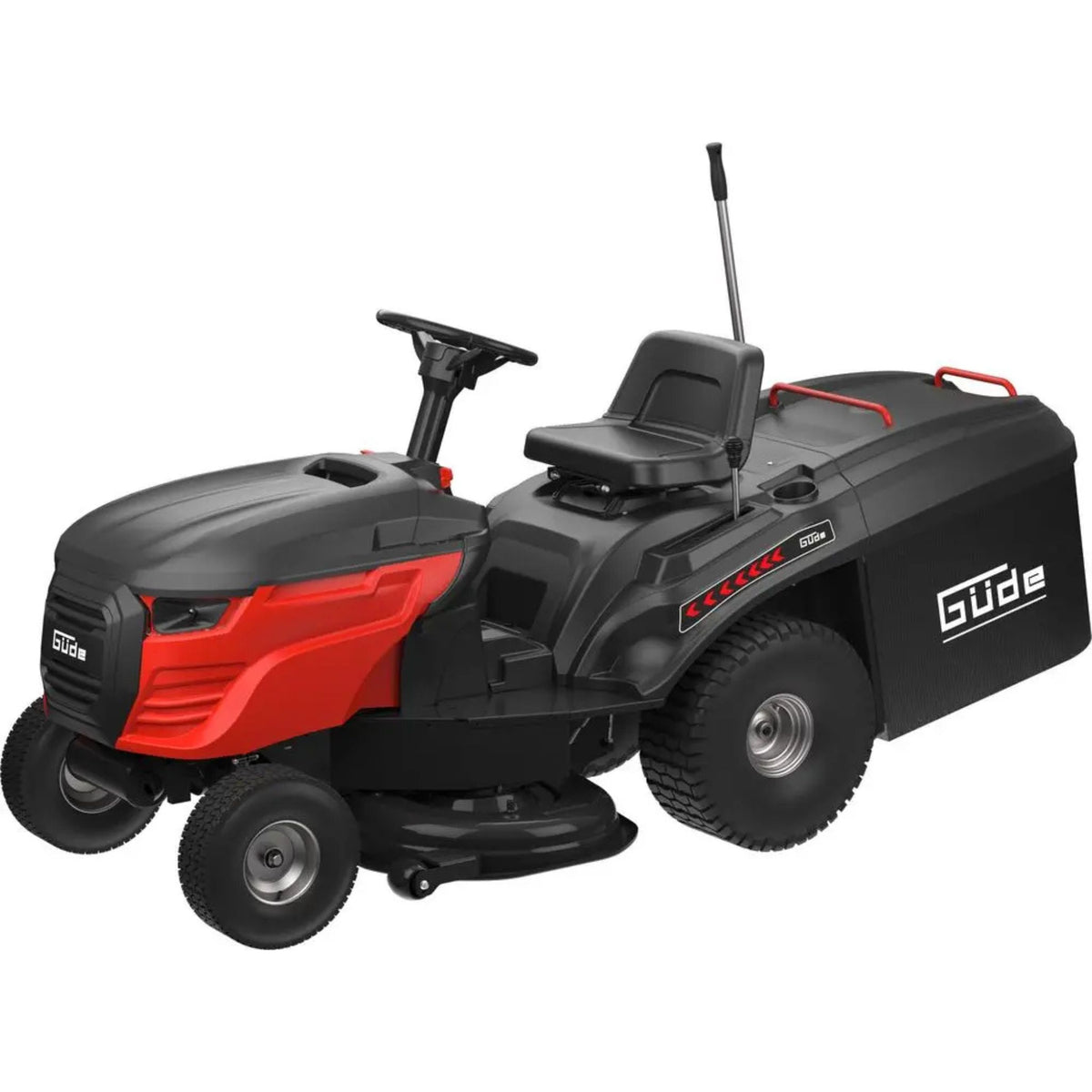

Güde GAR 960 T Hydrostat ride-on mower – 960 mm cutting width, 8.2 kW
The GAR 960 T Hydrostat is the right choice when driving comfort is a priority: smooth transmission without jerks, precise speed control on slopes, and reduced fatigue on uneven surfaces. The 193 kg net weight is slightly higher than the mechanical model due to the complexity of the hydrostatic system, but operating efficiency compensates for it. Choosing Hydrostat means investing in transmission longevity, as hydrostatic systems last longer than chain mechanisms under intensive use.
Who the GAR 960 T Hydrostat ride-on mower is suitable for
| Profile |
Suitable? |
Reason |
| Hobby user with a large garden |
Ideal |
960 mm cutting width + 210 l collection bag + smooth transmission comfortably handle 5,000 m²; continuous speed variation reduces fatigue |
| Gardening maintenance operator / small business |
Ideal |
8.2 kW engine + Hydrostat suitable for 80–150 hours/year; hydrostatic transmission is more reliable under continuous load; driving comfort increases productivity |
| Farmer / extended land |
Adequate |
Suitable for 1–2 hectares of semi-professional use; insufficient for continuous management of areas > 2 hectares (ride-on mowers > 12 kW are preferable) |
Not recommended for: operators with a limited budget (Hydrostat costs more than the mechanical model), environments where maintenance is difficult (hydrostatic systems require specific fluid and specialised spare parts), steep slopes > 15° (no roll bar).

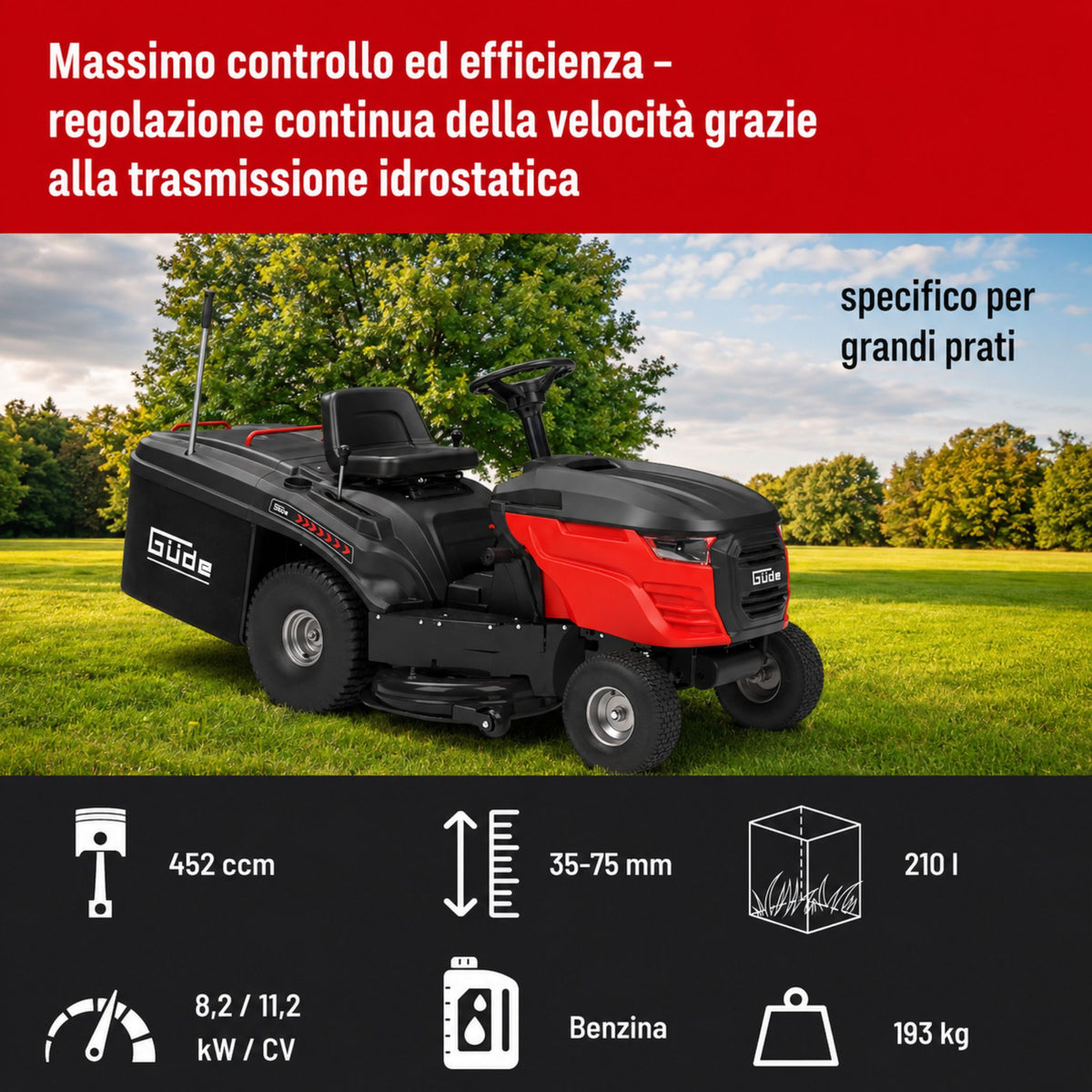

Technical specifications
Engine and power supply
| Parameter |
Value |
| Engine type |
4-stroke single-cylinder Power-Engine S 1360 V |
| Power (P1) |
8.2 kW (11.2 HP) |
| Displacement |
452 cm³ |
| Rated speed |
2,800 rpm |
| Fuel tank |
5 litres |
| Recommended engine oil |
Not declared / 0.8 l capacity |
| Fuel |
Petrol, E10 approved |
| Starting system |
Electric start |
| CO₂ emissions |
773.41 g/kWh |
| Certification |
CE, Euro 5, certified Power Engine |
Cutting capacity
| Parameter |
Value |
| Cutting width |
960 mm |
| Blade length |
2 pieces, 508 mm each |
| Adjustable cutting height |
35–75 mm (5 central positions) |
| Suitable area |
Up to 5,000 m² |
| Grass collection |
210-litre collection bag |
| Cutting system |
Manually operated by lever |
Transmission and movement
| Parameter |
Value |
| Transmission type |
Hydrostatic (continuous variator) |
| Forward speed |
0–7 km/h (continuous, without jerks) |
| Maximum speed |
8.7 km/h (theoretical) |
| Gears |
No mechanical gearbox (smooth variator) |
| Steering |
Mechanical lever |
| Brake |
Parking brake |
| Rear tyres |
18 inches (approx. 457 mm) |
| Front tyres |
13 inches (approx. 330 mm) |
| Tyre type |
Pneumatic tyres (Luftbereifung) |
Seat, battery and structure
| Parameter |
Value |
| Seat |
Ergonomic, adjustable |
| Battery type |
12V / 12 Ah (dry battery) |
| Number of batteries |
1 piece |
| Frame |
Painted steel |
| Turning radius |
165 cm (inside) |
| Noise level (LWA) |
100 dB |
Dimensions and weight
| Parameter |
Value |
| Overall dimensions (L × W × H) |
2,380 × 1,050 × 1,070 mm |
| Net weight |
193 kg |
| Gross weight (with packaging) |
228 kg |
Compliance
- CE – Machinery Directive 2006/42/EC
- Q9, E10 marking
- Emission standard: Euro 5
- Electric start
Standard equipment
- 210-litre collection bag
- Adjustable ergonomic seat
- 12V/12Ah battery for electric start
- Hook for garden cart (e.g. Güde GGW 300)
- Control levers for transmission and brake
- Cutting system lift/lower control
- LED work light
- Cleaning connection on the cutting deck
Frequently asked questions
What is the difference between the mechanical GAR 960 T and the Hydrostat?
The mechanical GAR 960 T has 5 fixed gears (1.5 / 2.0 / 3.0 / 4.6 km/h); the GAR 960 T Hydrostat has continuous hydrostatic transmission (0–7 km/h without jerks). The Hydrostat offers smoother control, reduced operator fatigue and greater transmission longevity. The Hydrostat price is higher, approximately 20–30%.
How does hydrostatic transmission work?
The continuous variator (Hydrostat) allows the speed to be adjusted smoothly without mechanical gear changes. By pushing the lever, you progressively accelerate/decelerate from 0 to 7 km/h. There are no fixed gears; the speed is continuous. Ideal for uneven ground or precise finishing work.
Does the GAR 960 T Hydrostat consume more fuel than the mechanical model?
Hydrostatic transmission tends to consume slightly more fuel, approximately 5–10% more, because it loses a little energy compared with a mechanical gearbox. With the declared 5-litre tank, autonomy is still higher than models with smaller tanks.
Can I operate the GAR 960 T Hydrostat without experience with ride-on mowers?
Yes, more easily than the mechanical model. The continuous variator is very similar to driving a car with automatic transmission: push the lever forward to accelerate, release it to decelerate. No gear changes to coordinate. Perfect for beginners.
What is the noise level of the GAR 960 T Hydrostat?
100 dB at full load, significantly louder than push lawn mowers (93–96 dB) but in line with other mid-high range petrol ride-on mowers. It is not silent. Use early in the morning in residential areas is not recommended.
What maintenance does the hydrostatic transmission require?
Periodic monitoring of the hydrostatic fluid level, specific to the system, checking for leaks, and fluid replacement every 500–1,000 working hours, depending on the manufacturer. More demanding than a mechanical gearbox, but more reliable under continuous stress. An annual service at a specialised Güde workshop is recommended.
