Bernardo PGH 500 Planishing hammer
Bernardo PGH 500 Planishing hammer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.
For international shipments, please send your request via the dedicated contact form.
Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.
Our goal is to ensure you receive prompt service and a worry-free shopping experience.
Bernardo PGH 500 Planishing hammer
Description

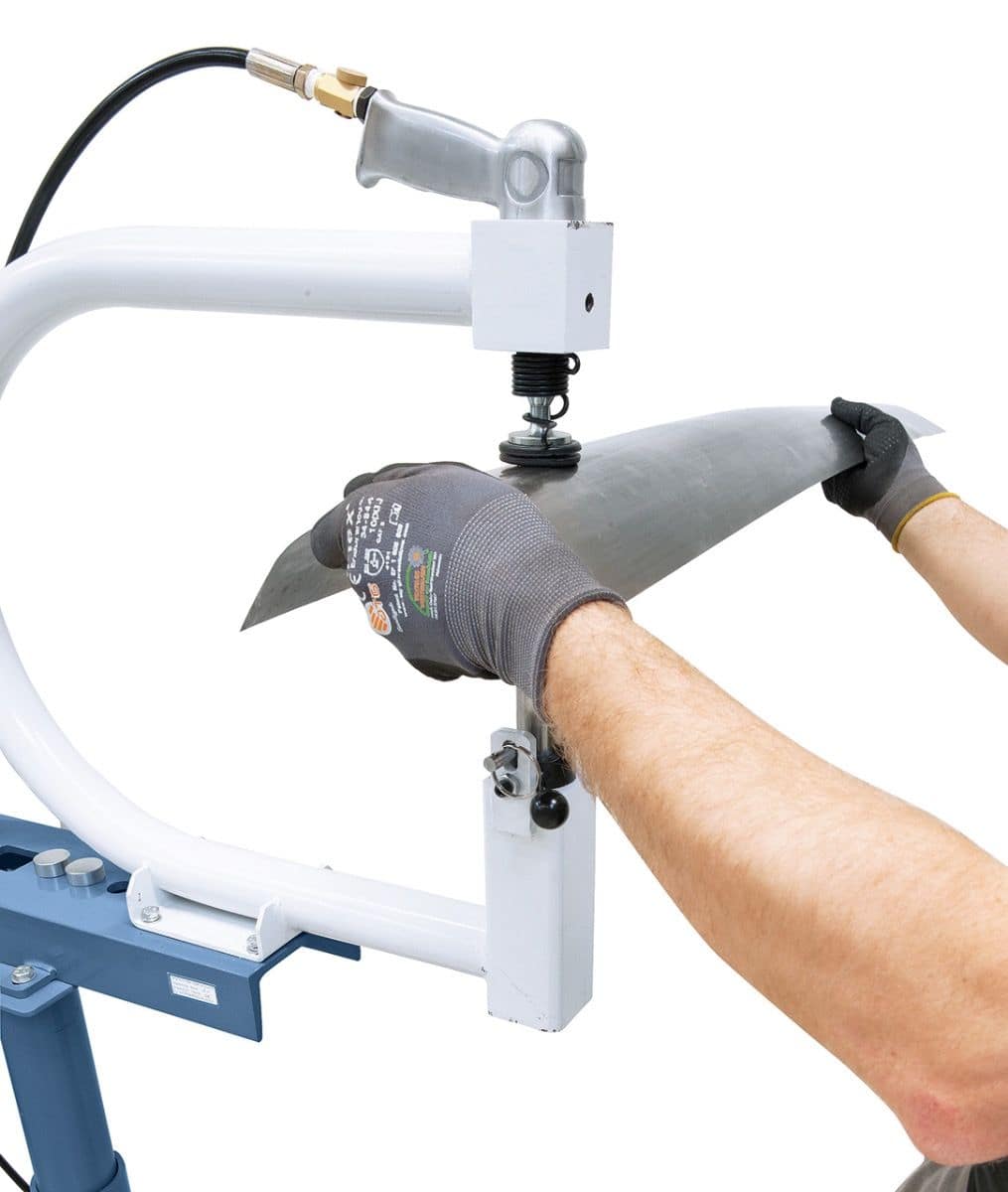

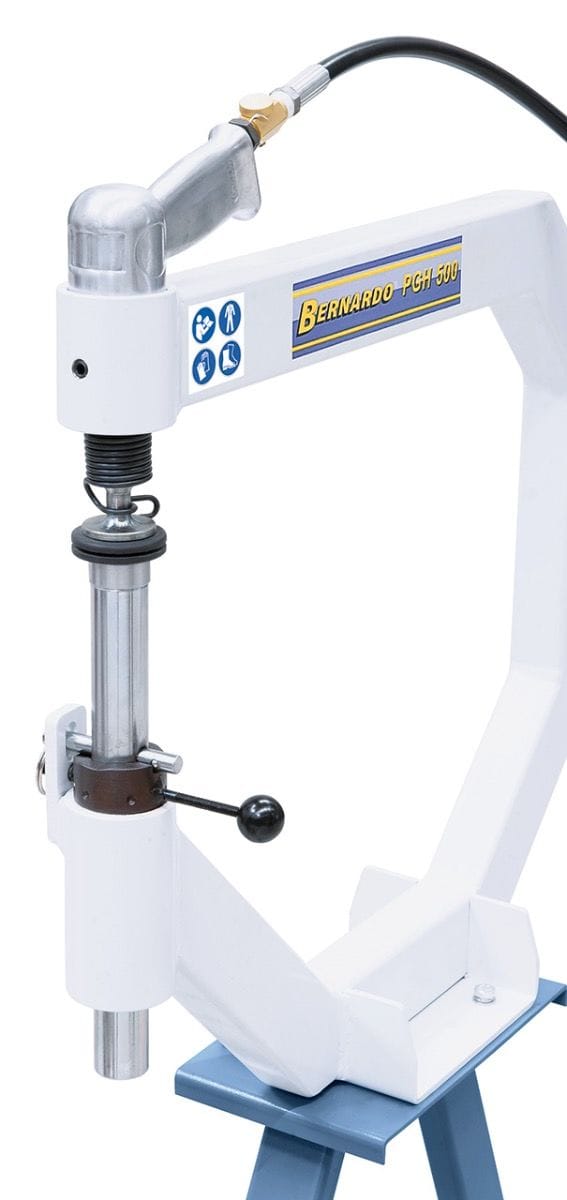

Bernardo PGH 500 – Pneumatic Planishing Hammer
The Bernardo PGH 500 is a professional pneumatic hammer designed for forming and planishing steel, aluminum, brass, and copper sheets. With a 500 mm throat depth and 395 mm internal height, it offers ample working space even for large pieces. The adjustable stroke frequency between 875 and 1350 beats/min ensures precision and productivity. The standard foot pedal keeps hands free, increasing safety and control over the workpiece. The tubular frame can be filled with sand to dampen vibrations, while the removable planishing hammer extends the range of applications. Essential for classic car restoration, body shops, and sheet metal working workshops, the PGH 500 combines lightness (20 kg) with professional reliability and versatility.
Main Specifications
500 mm throat depth and 395 mm internal height for ample working space
Adjustable frequency 875–1350 beats/min for precision and speed
Working capacity: 1.2 mm steel and 1.4 mm aluminum
Standard foot pedal to keep hands free during use
Tubular frame can be filled with sand for vibration reduction
Removable planishing hammer for extended applications
Compact and lightweight structure (20 kg), easy to position in the workshop
Suitable for car restoration, body shops, and sheet metal working
Package contents:
Bernardo PGH 500 pneumatic hammer

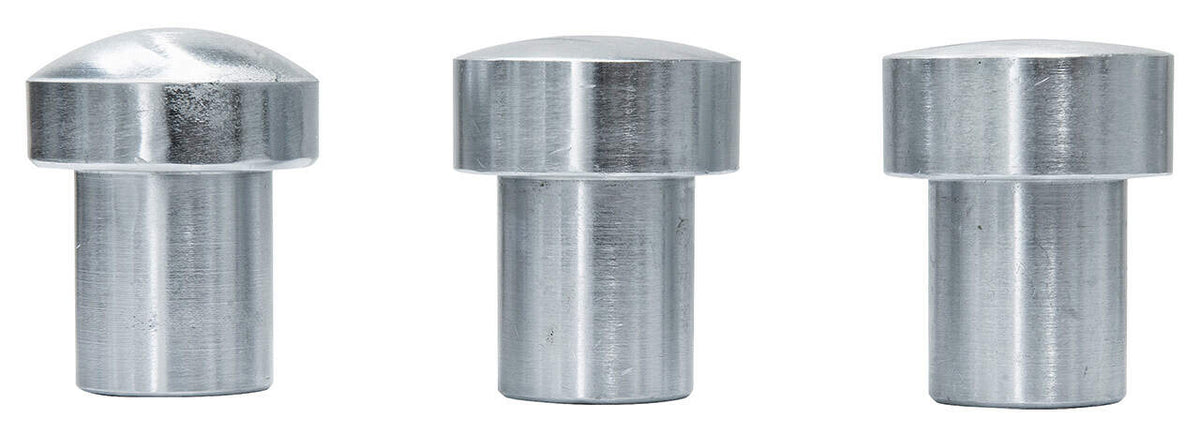

3 radius punches 1" / 2" / 3"
Planishing hammer
Foot pedal
Support
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
Technical specifications
Technical Table:
| Specification | Value |
|---|---|
| Brand | Bernardo |
| Model | PGH 500 |
| Type | Pneumatic Planishing Hammer |
| Throat depth | 500 mm |
| Internal height | 395 mm |
| Max steel thickness* | 1.2 mm |
| Max aluminum thickness | 1.4 mm |
| Stroke frequency | 875 – 1350 / min |
| Max air pressure | 3.5 – 6.5 bar |
| Air consumption | 200 l/min |
| Dimensions (L x W x H) | 710 x 400 x 1200 mm |
| Weight | 20 kg |
| *Base material | 400 N/mm² |
Warranty
Warranty terms and support procedures are available on the dedicated Krollit page.
View Krollit warranty termsFAQ / Frequently asked questions
Frequently Asked Questions
What is a pneumatic planishing hammer and when is it used?
The Bernardo PGH pneumatic planishing hammer is a tool for forming and repairing sheet metal: the pneumatic blow rapidly hammers the sheet metal onto a shaped anvil, allowing for correction of deformations, creation of domed shapes, and intricate modeling. It is the standard tool in body shops for repairing dents in steel and aluminum panels, and in boat fitting for forming curved panels.
What air pressure does the PGH 500 / PGH 700 require?
PGH hammers require compressed air at 6–8 bar with adequate flow for continuous operation. A compressor with a minimum 50-liter tank and a minimum flow rate of 150–200 l/min is sufficient for intermittent artisanal use. For continuous use, prefer compressors with a higher flow rate.
What is the difference between PGH 500 and PGH 700?
The number indicates the impact force: the PGH 700 has a greater impact than the PGH 500 — suitable for thicker sheets or more pronounced corrections. The PGH 500 is more precise and less aggressive for finishing work and on thin sheets. In body shops, both are used: 700 for roughing, 500 for finishing.
Are accessories (anvils) available?
Yes. Anvils of various shapes (flat, curved, spoon) compatible with PGH are available as Bernardo accessories with 3–5 business days shipping.
Is assistance available?
Original Bernardo spare parts available with 3–5 business days shipping. Customer support in Italian available.
-
