Güde 2000 kg Spur Gear Hoist – Manual, gear reducer, Ø8 mm chain, 3 m height
The Güde 2000 kg hoist is an enhanced version for construction sites and workshops that require lifting heavy loads of 2 tonnes without electrical power. Unlike the 1000 kg model, this one offers double the capacity while maintaining a contained weight of 15.8 kg, making it practical for transport between remote sites. The spur gear system allows for force multiplication: the operator applies moderate effort to the control chain, and the reducer amplifies the mechanical power to safely support 2,000 kg.
The spur gear mechanism is a practical innovation: it allows lifting a load 5–10 times greater than the applied effort. To lift 2,000 kg, only ~200–400 kg of manual pressure on the control chain is sufficient. The Ø8 mm steel chain ensures robustness: its increased diameter compared to the 1000 kg model (Ø6 mm) supports double the load without metallurgical fatigue. The 3 m single-lift height is standard for slab and scaffolding work. The 360° swivel hook with a safety device ensures the load remains locked even with off-axis suspension.
Who chooses it in Italy
Construction companies performing heavy prefabricated lifts of 2 tonnes prefer it for its independence from electrical power — it works anywhere, including remote sites. Carpenters and workers in metal workshops request it for its mechanical robustness, which is double that of the 1000 kg model, without requiring fixed cranes. Cargo handling companies and heavy warehouses include it as standard equipment for its versatility with loads between 1–2 tonnes. In the Krollit catalog, it represents an essential complement for construction sites that need robust 2-tonne lifting without reliance on electricity.
After-sales support and spare parts
Güde provides replacement chains, hooks, and gears within 3–5 days from Austria. Krollit manages a spare parts warehouse in Italy. Routine maintenance: monthly lubrication of the spur reducer (apply multi-purpose lubricating oil to the gear teeth), weekly inspection of the hook's safety device (verify the mechanism engages correctly), and chain inspection for corrosion and mechanical damage. The gears are robust — no extraordinary maintenance is required if lubrication is regular. CE and Q9 certifications ensure Italian compliance and operator protection.
Who the Güde 2000 kg hoist is suitable for
| Profile |
Suitable? |
Reason |
| Construction company / heavy lifting site |
Ideal |
2,000 kg capacity covers 100% of heavy steel and wood prefabricates (double beams, solid planks, assembly components). Force multiplier reducer reduces operator effort (~200-400 kg manual pressure vs 2,000 kg load). 3 m height covers standard slabs and scaffolding. Independent from electricity. |
| Metal carpenter / light industrial assemblies |
Ideal |
Lifting steel plates and 2,000 kg components without excessive fatigue. Robust Ø8 mm chain for double load. 360° swivel hook with safety device ensures stable load during assembly. Self-contained mechanism. |
| Cargo handling company / heavy warehouse |
Adequate |
Completely self-contained hoist — no power required. Mechanical robustness ensures reliability. However, 3 m height is a single-lift limit — for lifts >3 m, rely on hoists with longer chains or fixed systems. |
Not suitable for: Lifts >2,000 kg (undersized hoist, risk of chain breakage). Continuous lifts >40 cycles/hour (risk of operator fatigue, not designed for speed). Heights >3 m without extended chain (declared single-lift limit). Highly corrosive marine environments (basic steel protection, prefer stainless steel for saline environments).
Technical specifications
Lifting mechanism
| Component |
Specification |
| Hoist type |
Manual spur gear |
| Reducer mechanism |
Spur gears (stirnrad) |
| Maximum load capacity |
2,000 kg (2 tonnes) |
| Force multiplication ratio |
Not declared by manufacturer — estimated 5:1 to 10:1 (200-400 kg effort to lift 2,000 kg) |
| Single lift height |
3 m |
| Load chain type |
Steel, Ø8 mm |
| Load chain length |
3 m |
| Chain link size |
8 × 24 mm (increased compared to 1000 kg model) |
| Control chain (operation) |
2.5 m |
| Operation mechanism |
Manual — pulling the control chain activates gears |
| Load locking |
Automatic — gear locks by friction when chain is released |
Hooks and fixings
| Component |
Specification |

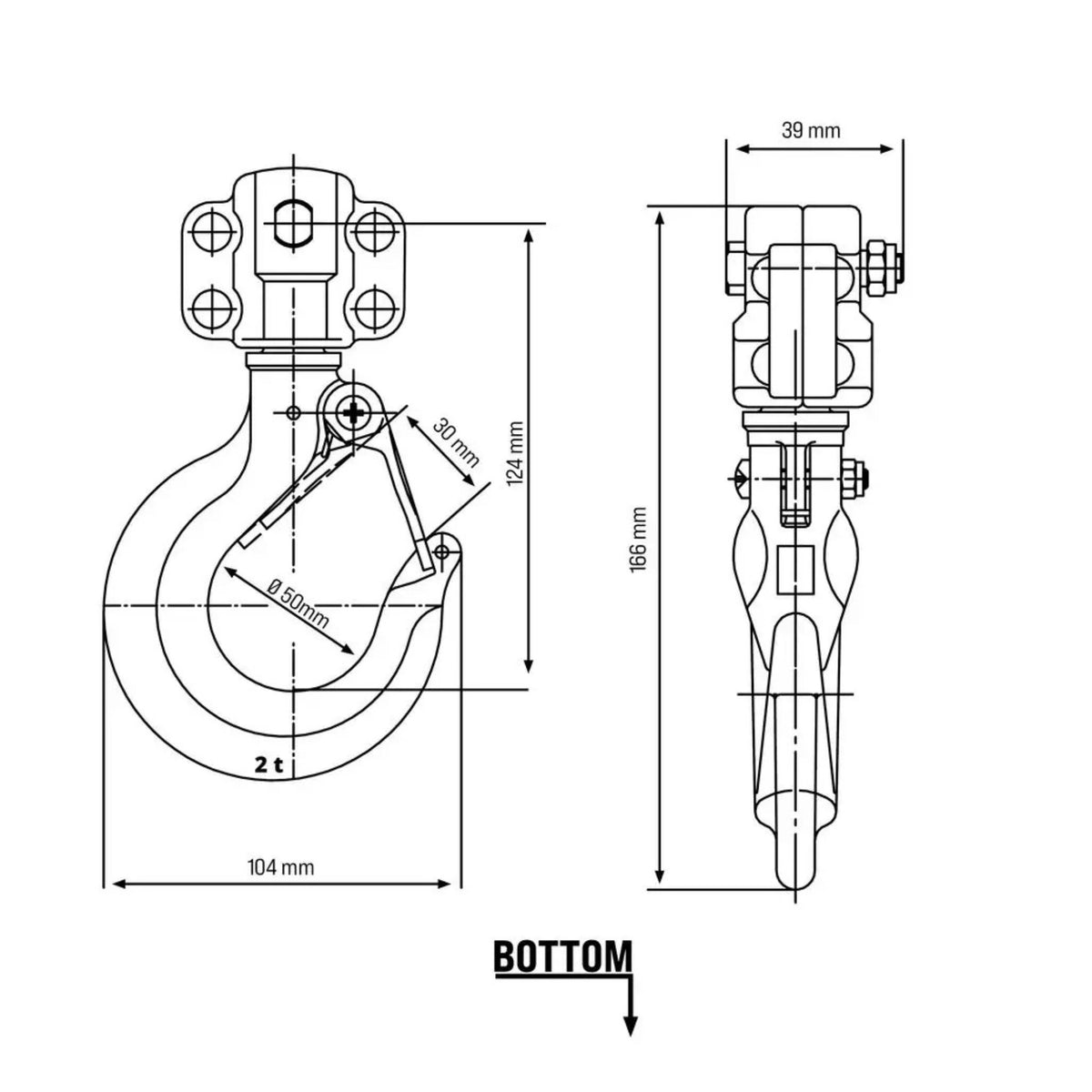

| Load hook |
Steel, 2,000 kg maximum |
| Hook rotation |
360° continuous (free rotation) |
| Hook safety device |
Yes, integrated mechanism (locks automatically) |

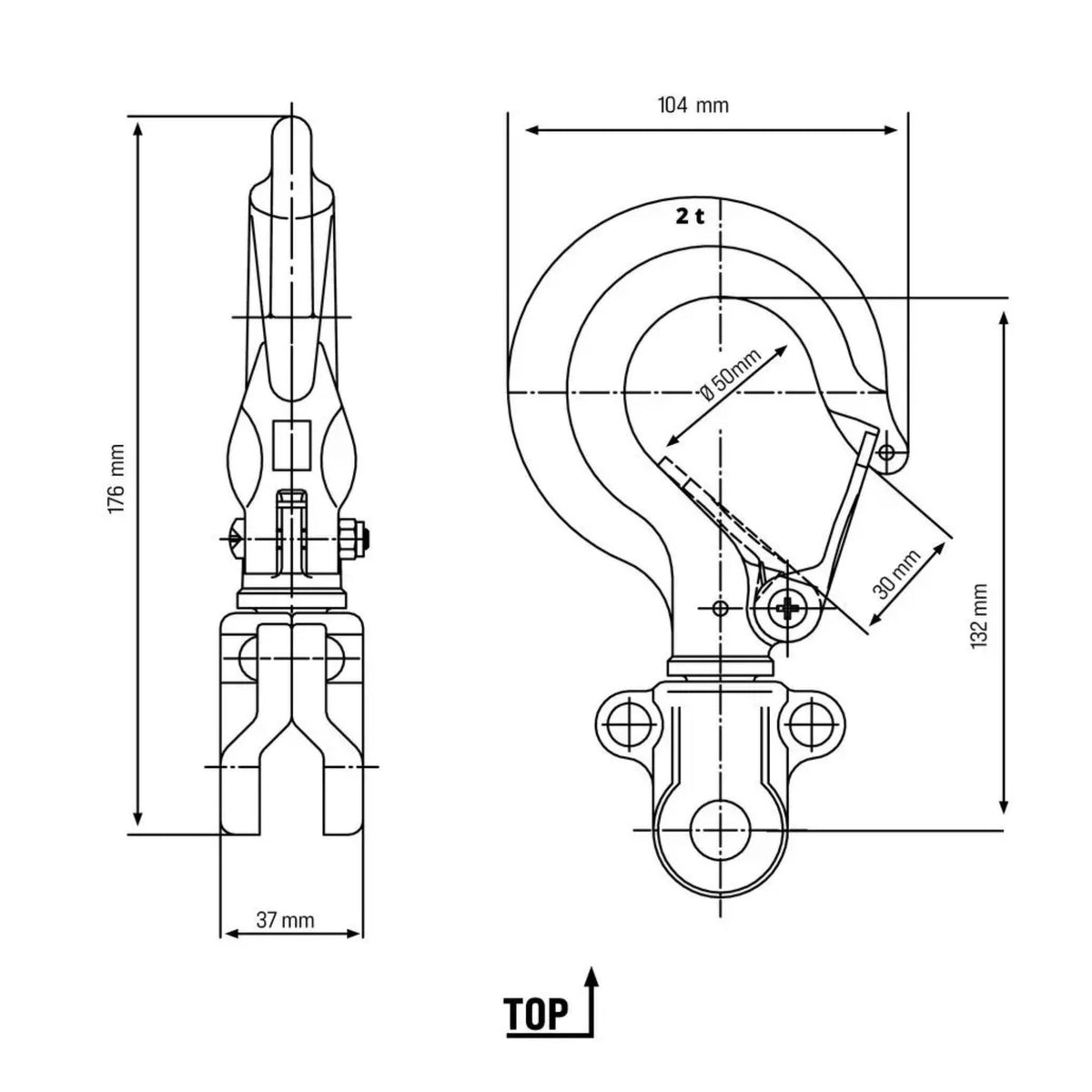

| Upper attachment hook |
Steel, 360° swivel |
| Attachment safety device |
Yes, integrated mechanism |
| Hook opening |
Not declared by manufacturer — presumably industry standard |
Structure and components
| Component |
Specification |
| Main body |
Robust steel |
| Gears |
Steel spur gears, integrated lubrication |
| Bearings |
Not declared by manufacturer — presumably standard steel |
| Gear cover |
Partial (protection from elements) |
Dimensions and weight
| Component |
Specification |
| Hoist body length |
350 mm |
| Hoist body depth |
180 mm |
| Hoist body height |
180 mm |
| Net weight |
15.8 kg |
| Gross weight (packaging) |
16.3 kg |
| Packaging dimensions |
300 × 220 × 210 mm |
| Transportability |
Manual — moderate weight, transportable by two people or on a trolley |
Compliance
| Component |
Specification |
| CE marking |
Yes, Machinery Directive 2006/42/EC |
| Q9 Certification |
Yes, constructive quality compliance |
| Applied standards |
EN 14491 (manual hoists) — probable |
| Operator protection |
Hook with safety device, self-locking gear, basic gear protection |
| Warranty |
24 months from purchase date (Güde standard) |
| Country of manufacture |
Germany |
| GTIN |
4015671551047 |
Standard equipment
- Güde 2000 kg spur gear hoist assembled and ready for use
- Steel load hook 2,000 kg with integrated safety device
- Upper steel swivel attachment hook 360°
- Steel load chain Ø8 mm, 3 m length
- Control chain 2.5 m for manual operation
- Robust steel body with integrated spur gears
- User manual in Italian and German
- CE Declaration of Conformity
- Q9 Certification
-
Not included: lubricating oil (recommended to provide separately), hook rain protection (optional cover), beam attachment bracket (request custom)
Frequently asked questions
How much physical effort is needed to lift 2,000 kg?
The spur reducer multiplies the force: to lift 2,000 kg, the operator must apply an effort equivalent to ~200–400 kg of manual pressure on the control chain. The exact multiplication ratio is not declared (estimated 5:1 to 10:1 depending on gear configuration). However, lifting is gradual — it's not a "one-time pull" but a sequence of small pulls on the chain. A strong operator is recommended.
How does the automatic load locking work?
Spur gears have an inclination angle such that the load automatically pulls on the teeth — when you release the control chain, friction and gear geometry instantly lock the load. It is not a snap lock (manual operation) but a mechanical self-lock by gravity. Very high safety: even if the chain breaks, the load remains suspended and locked.
Can I lift a load >2,000 kg by forcing it?
No, absolutely not recommended. The Ø8 mm steel chain has a breaking load of ~2,400 kg — a safety margin of only 20% above nominal. Forcing a load >2,000 kg risks: (1) sudden chain breakage, (2) gear failure, (3) load drop. Use an appropriately sized hoist for the actual load (if >2,000 kg, request industrial fixed cranes).
How do I lubricate the spur reducer?
Monthly lubrication is recommended: apply multi-purpose lubricating oil (e.g., 32 cSt machine oil) to the visible gear teeth. Quantity: 15–25 ml per session (increased compared to the 1000 kg model). Method: unscrew the inspection cap (if present) or apply oil to the accessible gear flanks. Do not over-lubricate (risk of dust/dirt accumulation).
How does the hook safety device work?
The hook has a spring mechanism that automatically locks when a load is applied: a locking tooth engages and retains the load. To open, lift the load hook slightly to release the mechanism, then remove the load. The mechanism is robust — no maintenance is required if the device engages correctly (weekly check).
What is the difference compared to the 1000 kg model?
2000 kg vs 1000 kg model:
- Load capacity: 2 tonnes vs 1 tonne (double)
- Chain: Ø8 mm vs Ø6 mm (more robust)
- Hoist weight: 15.8 kg vs 10.4 kg (50% heavier)
- Body dimensions: 350×180×180 mm vs 230×180×175 mm (larger)
- Multiplication ratio: Presumably identical (5:1 to 10:1)
- Lifting height: Identical 3 m (both)
Choose the 2000 kg model if the load is >1 tonne; choose the 1000 kg model if the load is ≤1 tonne (saves weight and improves transportability).
Can I extend the chain if I need a height >3 m?
Modifying the hoist is not recommended. The integrated chain is sized to ensure the correct gear multiplication ratio — extending the chain would change the mechanics and could cause gear slippage. If a height >3 m is required, acquire a hoist with a longer chain or use fixed lifting systems (construction cranes, winches).
What extraordinary maintenance is needed?
Minimal. Spur gears are robust and do not require overhaul if: (1) regular monthly lubrication, (2) no severe impacts to the hoist body, (3) load always within the nominal 2,000 kg. An annual inspection by a Güde technician is recommended (check gear teeth, safety device locking) — cost ~€100–140.
Is the hoist suitable for continuous vertical lifts or only occasional ones?
Designed for occasional lifts — it is not a hoist for continuous cycles. Operator effort is considerable: even if "only 200-400 kg," maintaining tension for >40 seconds is fatiguing. Practical limit: ~40 cycles/hour (1 cycle = 3 m lift + 3 m lowering). For continuous cycles >100/hour, electric hoists or fixed systems are required.
